98UM5J component-copyModelName

UHD Large Screen Signage Display

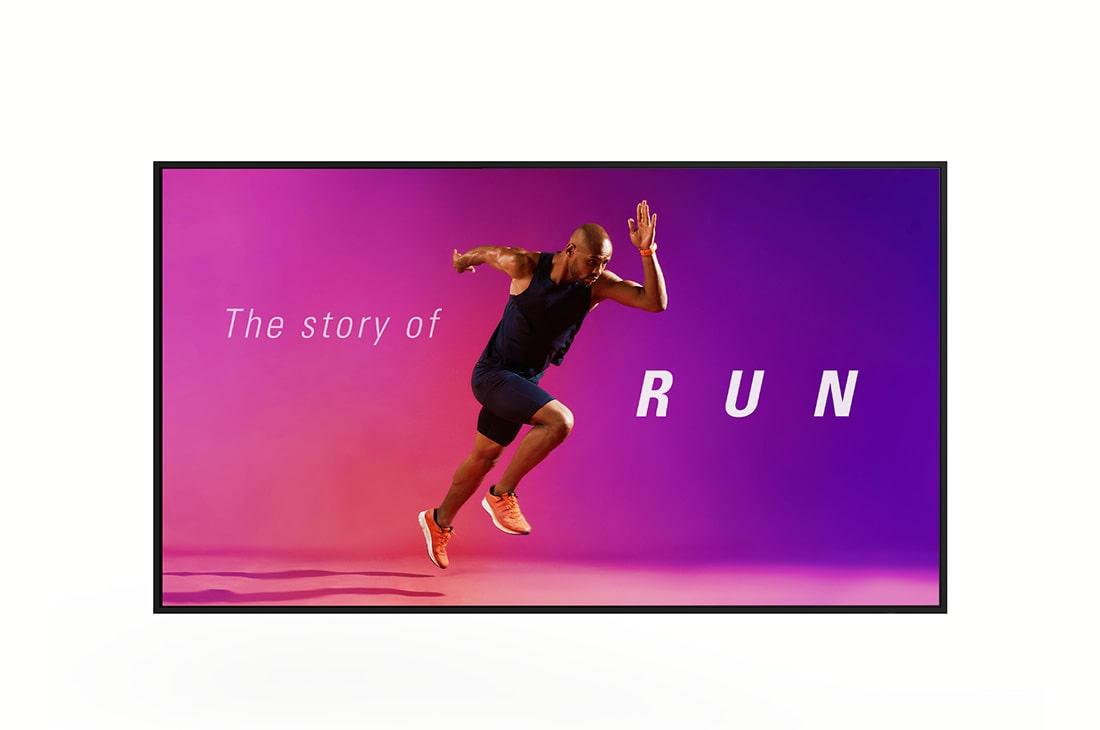

LG UHD Large Screen Signage Display, Front view with infill image, 98UM5J, thumbnail 1

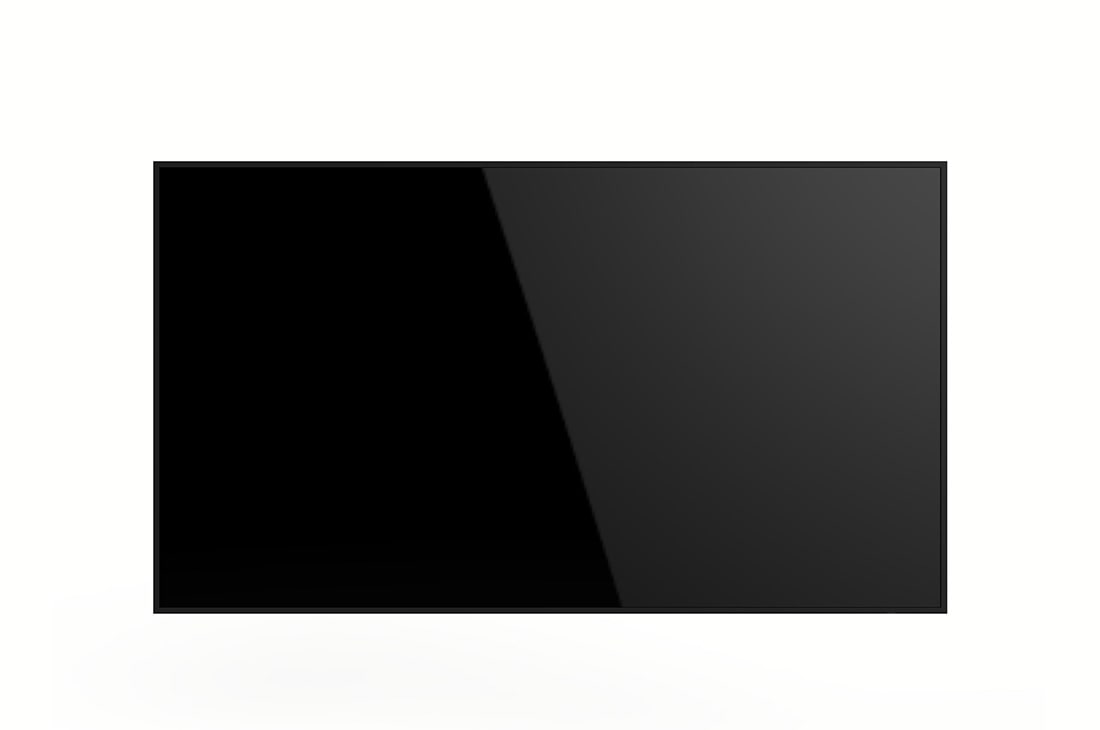

LG UHD Large Screen Signage Display, Front view, 98UM5J, thumbnail 2

LG UHD Large Screen Signage Display, +45 degree side view, 98UM5J, thumbnail 3

LG UHD Large Screen Signage Display, +90 degree side view, 98UM5J, thumbnail 4

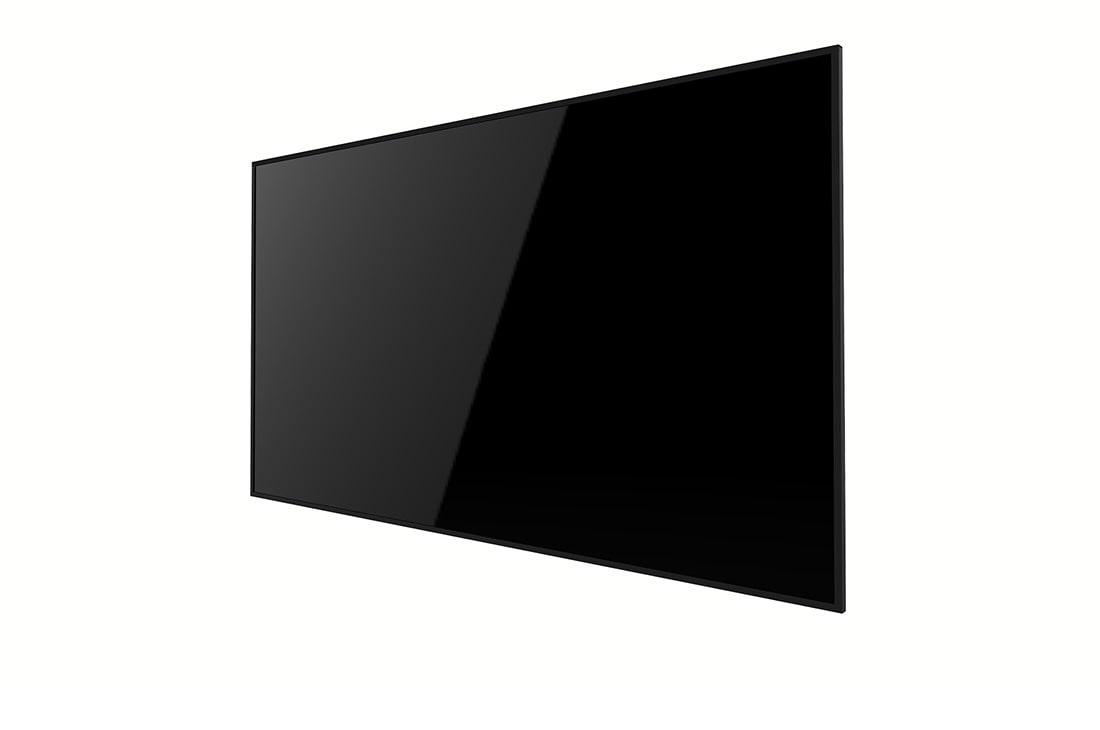

LG UHD Large Screen Signage Display, -45 degree side view, 98UM5J, thumbnail 5

LG UHD Large Screen Signage Display, Top view, 98UM5J, thumbnail 6

Discontinued

98UM5J component-copyModelName

UHD Large Screen Signage Display

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Built-in Wi-Fi / Bluetooth
Built-in Speaker (10 W + 10 W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Built-in Wi-Fi / Bluetooth
Built-in Speaker (10 W + 10 W)

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

UHD Large Screen Signage Display

A man is watching an advertisement on the big screen of a sports store.

* All images in this web page are for illustrative purposes only.

Slim Design

UM5J offers a slim design for a seamless interior, ideal for a closer wall installation. It enhances the immersive experience and adds sophistication to the overall design.

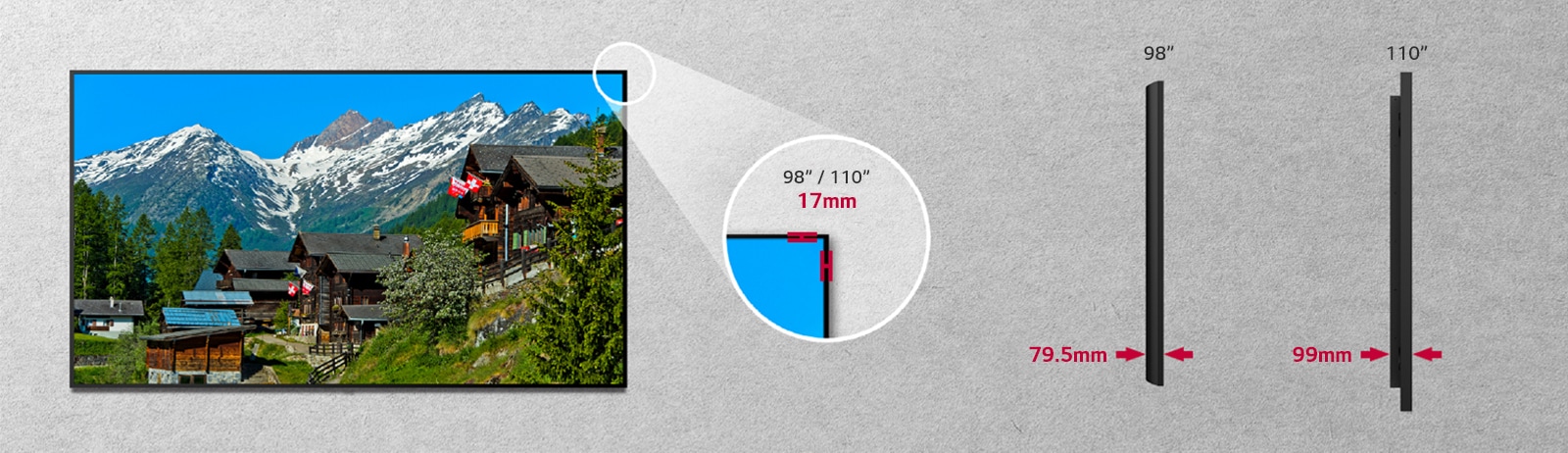

The bezel size of UM5J is 17mm. And the depth of the UM5J 98" is 79.5mm, and 110" is 99mm.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

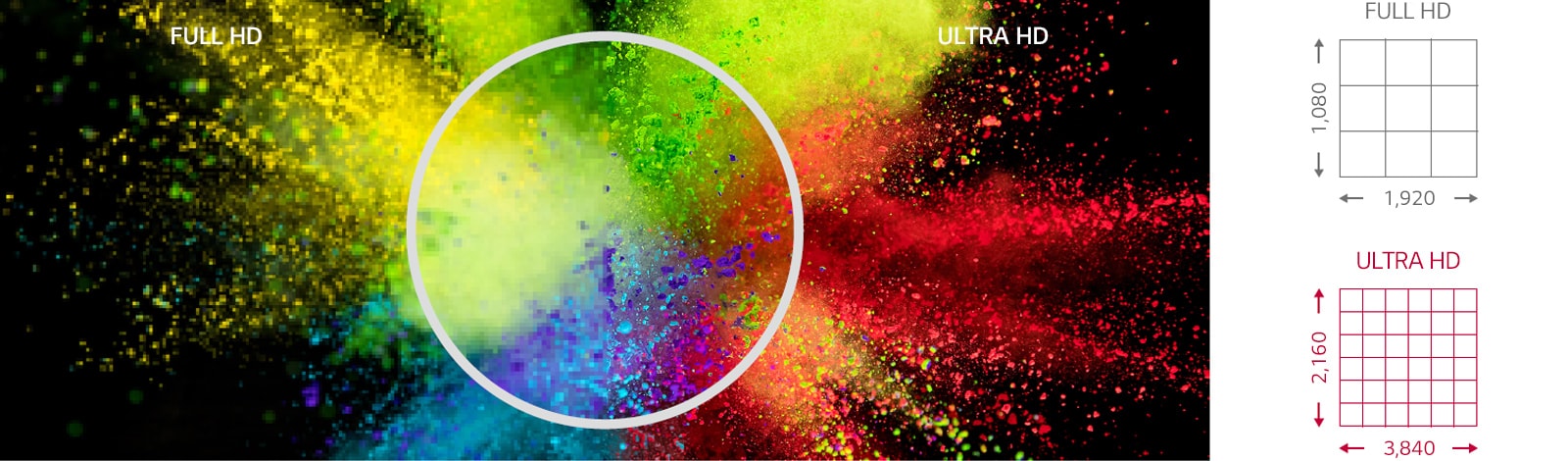

This image illustratively compares FHD resolution and UHD resolution. This image indicates that the screen with UHD has 4 times higher resolution than FHD, so contents can be seen more vivid and colorful.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

High Brightness

With a great brightness of 500 cd/m², UM5J series clearly deliver contents and attract public attention, which is the ultimate display for market of retail, cooperate etc.

UM5J has a brightness of 500 nits, so it is clearly visible, even under strong light.

Compatible with webOS Box (WP402)

UM5J is compatible with the webOS Box WP402 and it supports LG SuperSign Solutions when used in conjunction with the box, making content creation and distribution easier.
Furthermore, thanks to its compatibility with WP402, UM5J enables display power on/off control through an HDMI-OUT port when connected to the WP402.

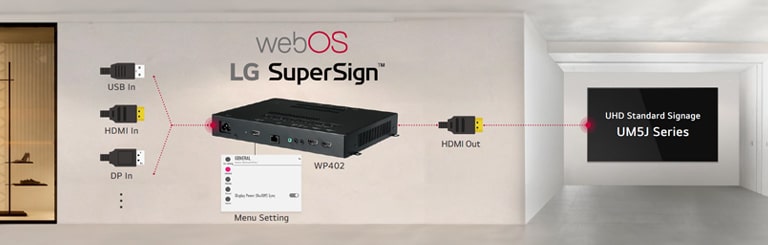

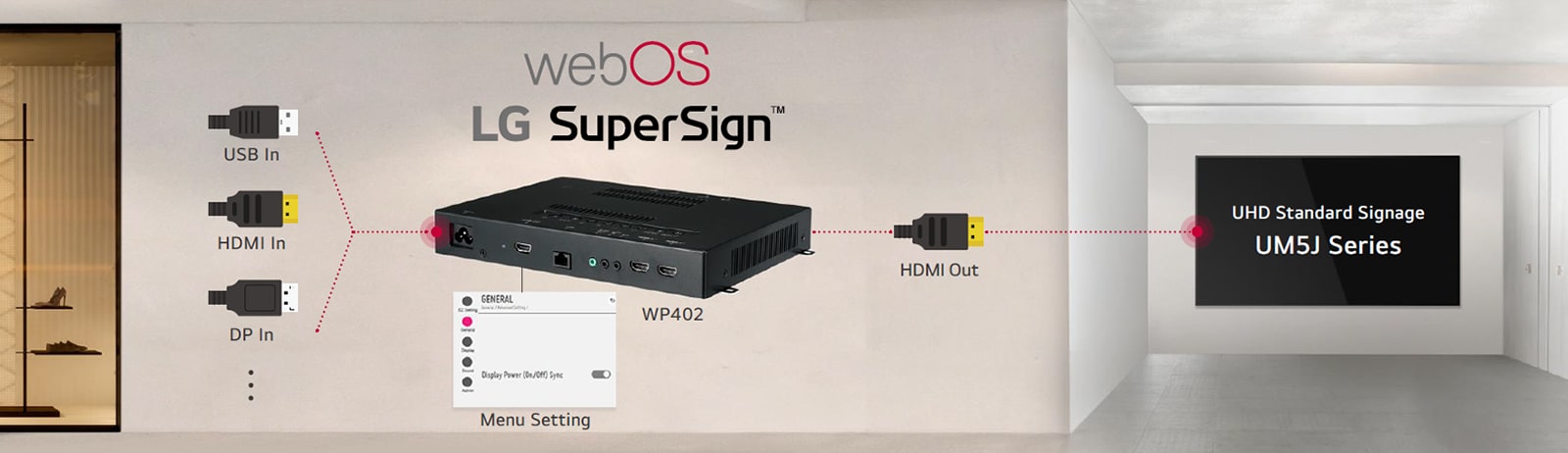

Various types of inputs such as USB, HDMI, and DP are connected to the webOS Box WP402, and the webOS Box WP402, which supports LG SuperSign Solutions, is connected via HDMI output to the UHD Standard Signage UM5J Series.

* Some of WP402 features may NOT be available with UM5J products.
e.g.) Product monitoring-related functions such as DPM, SuperSign Control+, and Control manager
* HDMI-CEC function is only available when connected to the WP402 product, and the supported feature is limited to power on/off control

Panel

Screen Size

98"

Panel Technology

IPS
Back Light Type

Direct

Aspect Ratio

16 : 9
Native Resolution

3840 x 2160 (UHD)

Refresh Rate

60Hz
Brightness

500nit (Typ.)

Contrast Ratio

1,200:1
Dynamic CR

200,000:1

Color gamut

DCI 85%
Viewing Angle(H x V)

178 Deg.(H) x 178 Deg.(V)

Color Depth

1.07Billon colors(8bit + FRC)
Response Time

8ms

Surface Treatment(Haze)

25%
Life time

30,000Hrs (Typ)

Operation Hours (Hours/Day)

16/7
Portrait / Landscape

Yes / Yes

Connectivity

Input

HDMI (3), RJ45(LAN) (1, FW update only), USB2.0 Type A (2)

Output

Audio Out (SPDIF 1, Phone Jack 1)

Mechanical Specification

Bezel Color

Black

Bezel Width

T/B/L/R: 17mm
Weight(Head)

78kg

Packed Weight

105kg
Monitor Dimension(W x H x D)

2198 x 1253 x 79.5mm

Carton Dimensions(W x H x D) (Box outer size)

2440 x 1468 x 275mm
Wall Mount Interface

800 x 400 or 800 x 800

Key Feature

HW

Internal Memory 16GB (based on EMMC), Wi-Fi (Built-in, FW update only), Bluetooth (Built-in), Power Indicator, Local Key Operation (7key, Power/UP/DOWN/LEFT/RIGHT/INPUT/MENU)

SW

webOS ver. (Non Smart/ Non webOS platform), Background Image (Booting Logo Image(No, LG logo only)), HDMI-CEC (power on/off control only)

Environment Conditions

Operation Temperature

0 °C to 40 °C

Operation Humidity

10%～80%

Power

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

560W

Max.

590W
BTU (British Thermal Unit)

1706 BTU/Hr(Typ.), 1911 BTU/Hr(Max)

Power off

0.5W

Sound

Speaker

Yes (10W+10W)

Certification

Safety

UL, CB

EMC

FCC Class "A" / CE
ErP / Energy Star

Ye (NewErP) / No

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original),
Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese,
Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic, polski

Accessory

Basic

LG Remote Controller(include battery 2ea),
Power Cord, Manual

Dimension
- 98um5j_2d.dwg
- 98um5j_2d.pdf
Datasheet
- UM5J_Datasheet(low)_LG UHD Signage_230901.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
