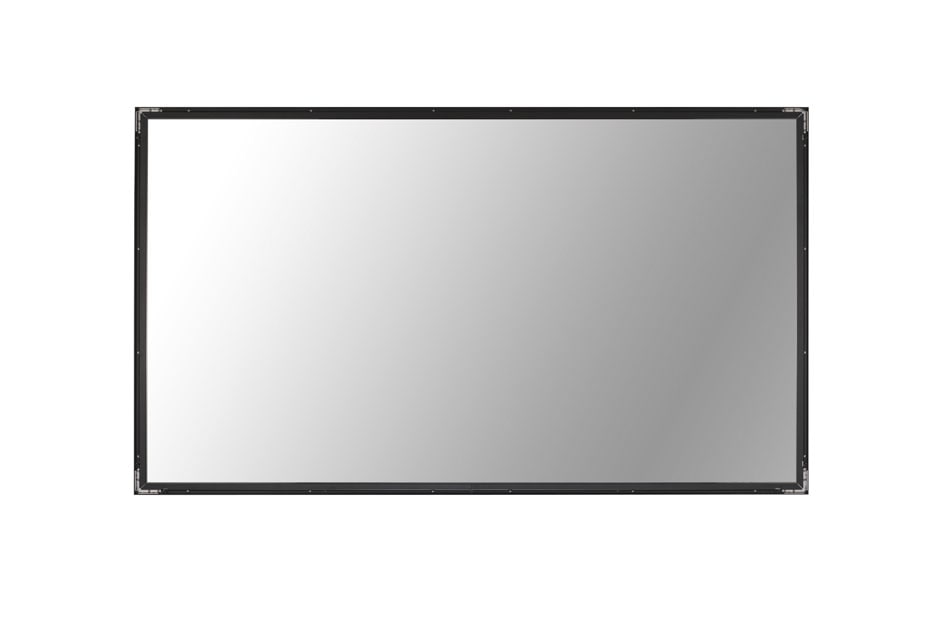

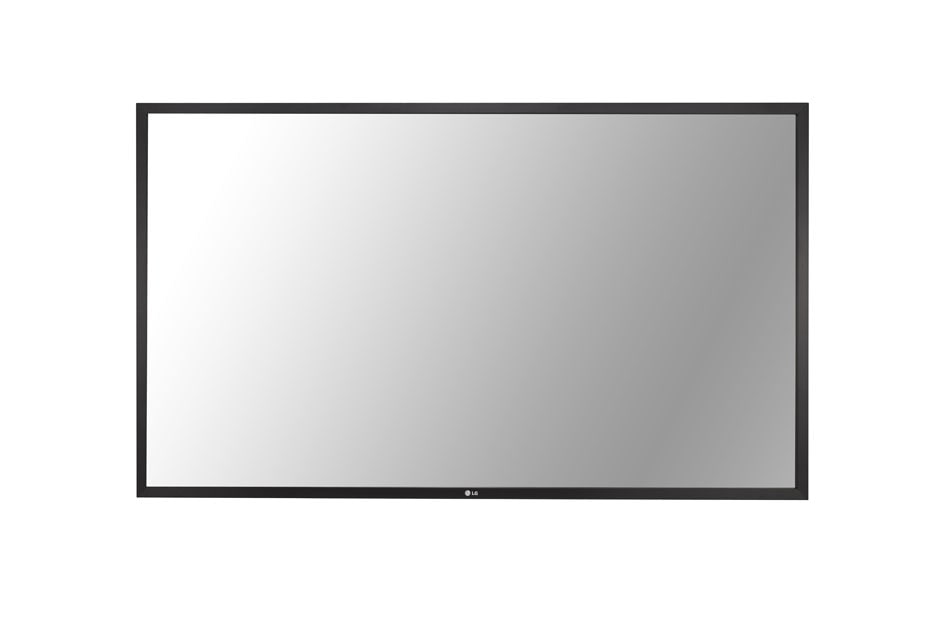

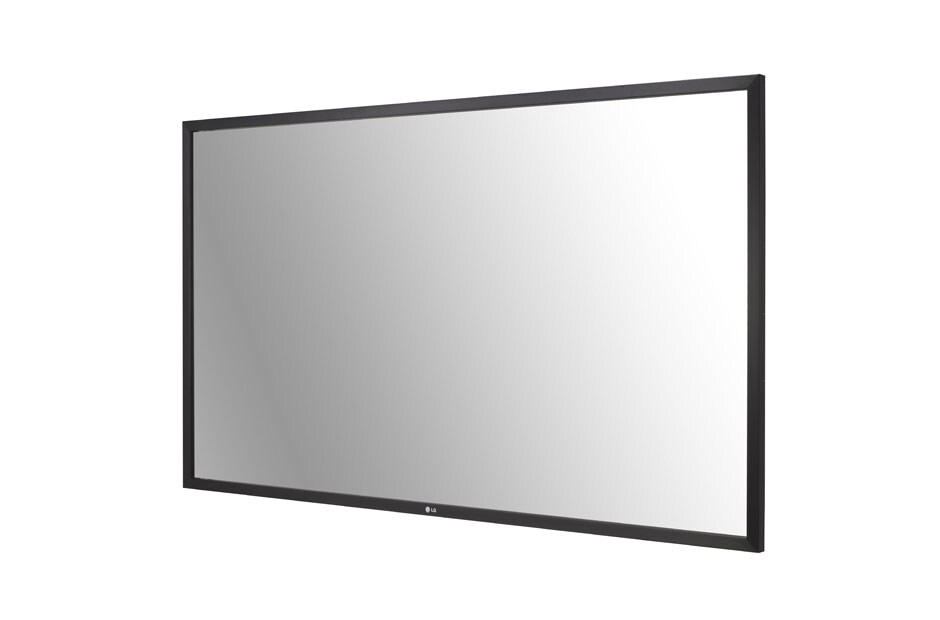

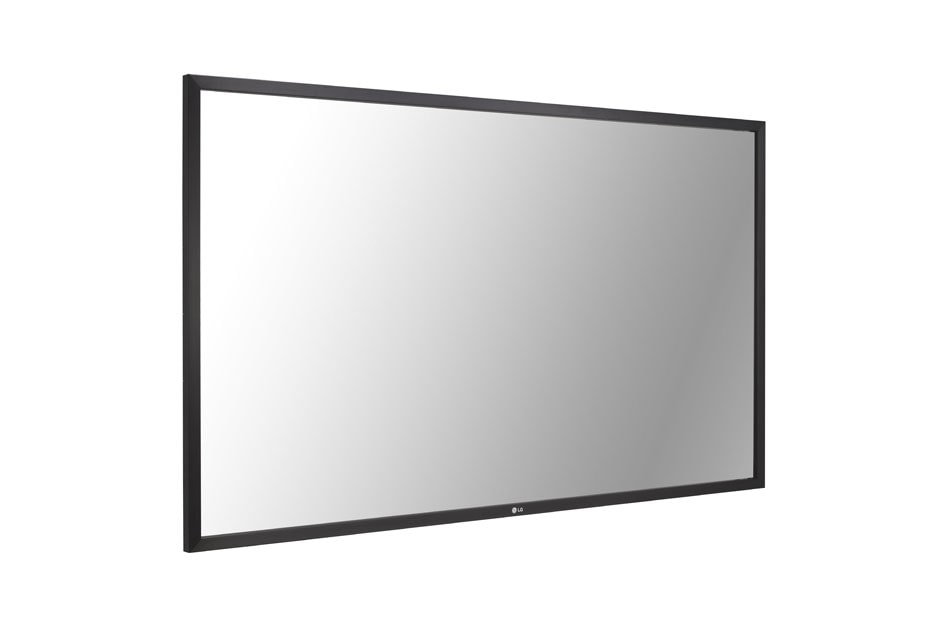

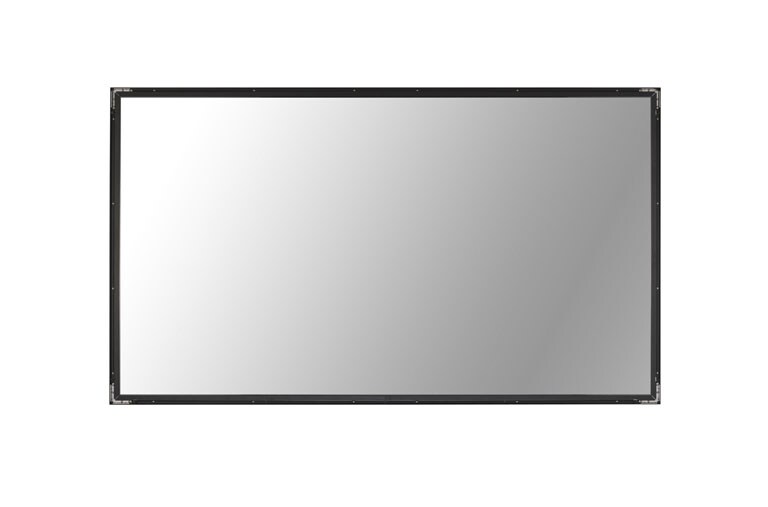

Touch Overlay Kit

Key Features

component-OBScountrySelectDesc

Touch Overlay Kit
Touch
  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    9 ms (1 Point) ~ 15 ms (10 Points)
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10 / Mac OSX (10.7 or later) / Android
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803
Panel
  • Screen Size
    43"
    Compatible Products
    43SE3B, 43SM5B, 43SE3KB, 43SM5KB, 43SL5B, 43SM3B, 43SE3C, 43SM5C, 43SM5KC, 43SM3C, 43SE3D, 43SM5D, 43SE3KD, 43SE3DD, 43SM5KD
  • Orientation
    Landscape & Portrait
Connectivity
  • Input
    USB
Physical Specification
  • Bezel Width
    27.0mm
    Overlay Dimension (W x H x D)
    997 x 586 x 23.5 mm (Max 60 mm)
  • Weight (Head)
    6.5kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    USB
    Typ.
    1.31W
Software Compatibility
  • IWB Software
    YES (CD)
Accessory
  • Basic
    Manual (Overlay), CD (Writing S/W), Install Accessories
