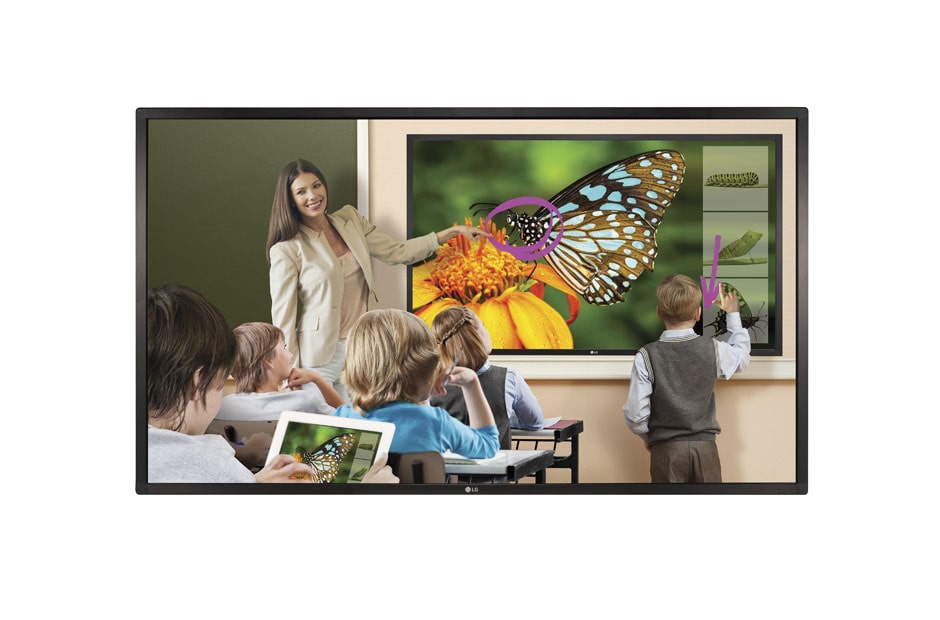

Touch Overlay Kit

Key Features

component-OBScountrySelectDesc

Touch Overlay Kit
Touch
  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    9 ms (1 Point) ~ 15 ms (10 Points)
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10 / Mac OSX (10.7 or later) / Android
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803
Panel
  • Screen Size
    55"
    Compatible Products
    55SE3B, 55SM5B, 55SE3KB, 55SM5KB, 55SL5B, 55SM3B, 55SE3C, 55SM5C, 55SM5KC, 55SM3C, 55SE3D, 55SM5D, 55SE3KD, 55SE3DD, 55SM5KD
  • Orientation
    Landscape & Portrait
Connectivity
  • Input
    USB
Physical Specification
  • Bezel Width
    27.0mm
    Overlay Dimension (W x H x D)
    1,266 x 739 x 23.5 mm (Max 60 mm)
  • Weight (Head)
    9.7kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    USB
    Typ.
    1.31W
Software Compatibility
  • IWB Software
    YES (CD)
Accessory
  • Basic
    Manual (Overlay), CD (Writing S/W), Install Accessories
  • Datasheet
    • KT_T_series_(low) Leaflet_170613.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
