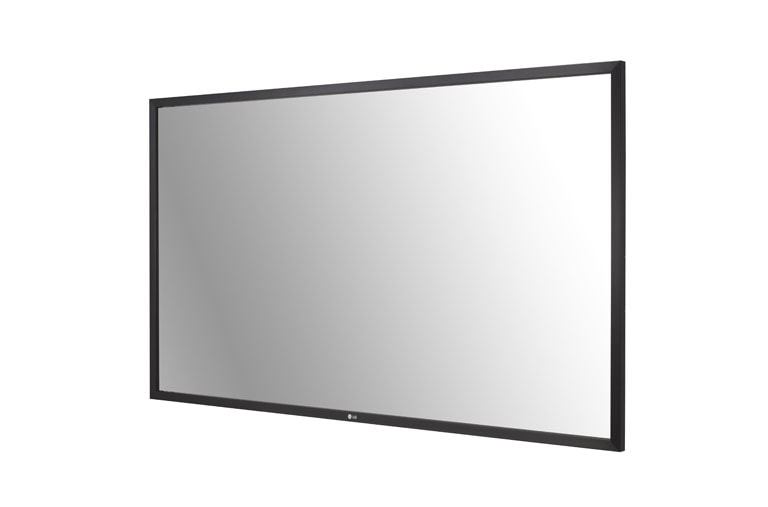

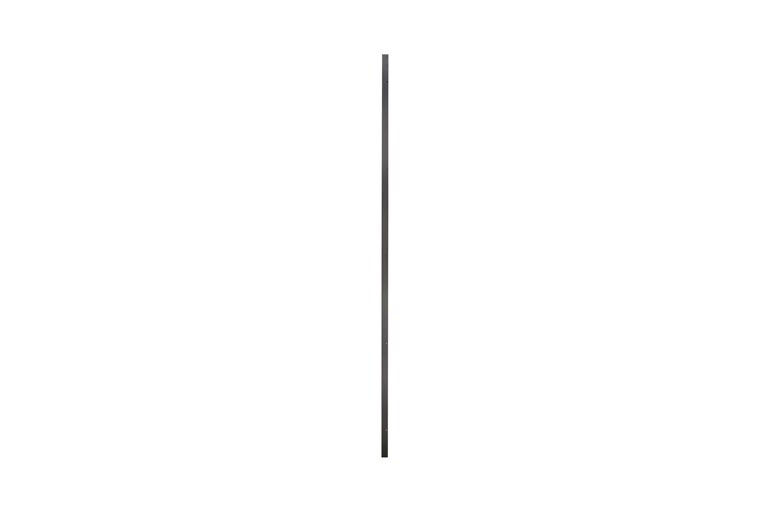

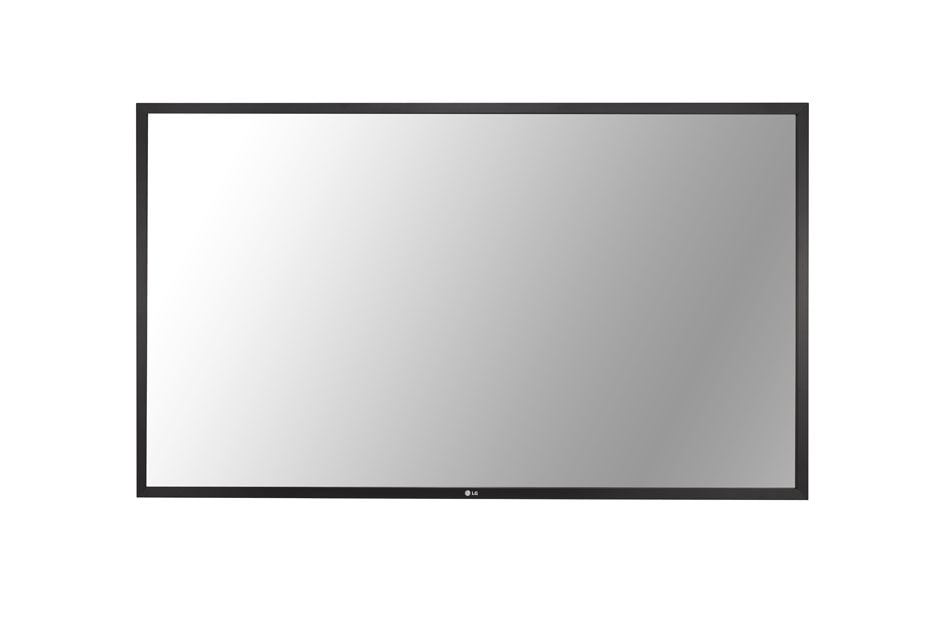

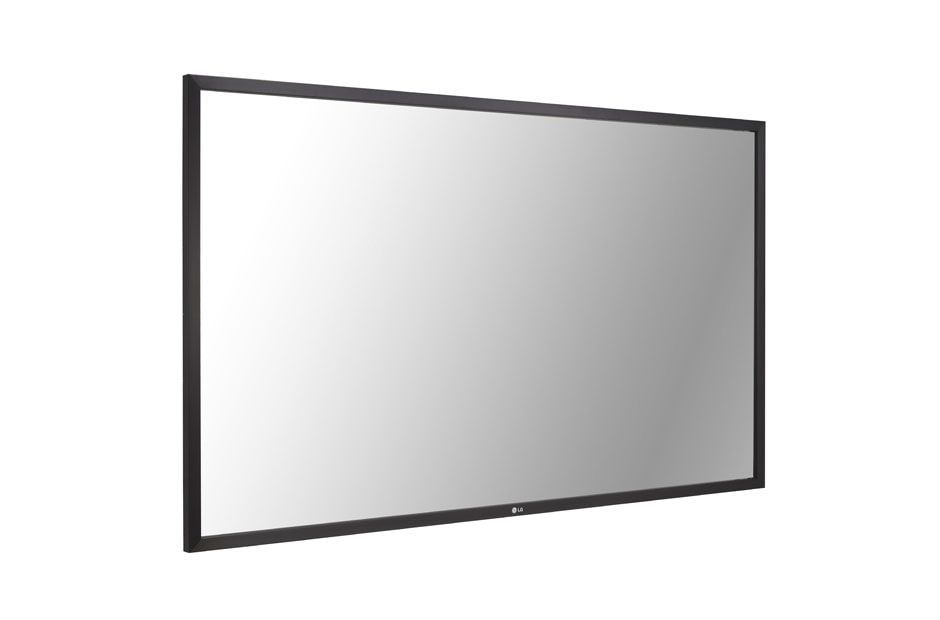

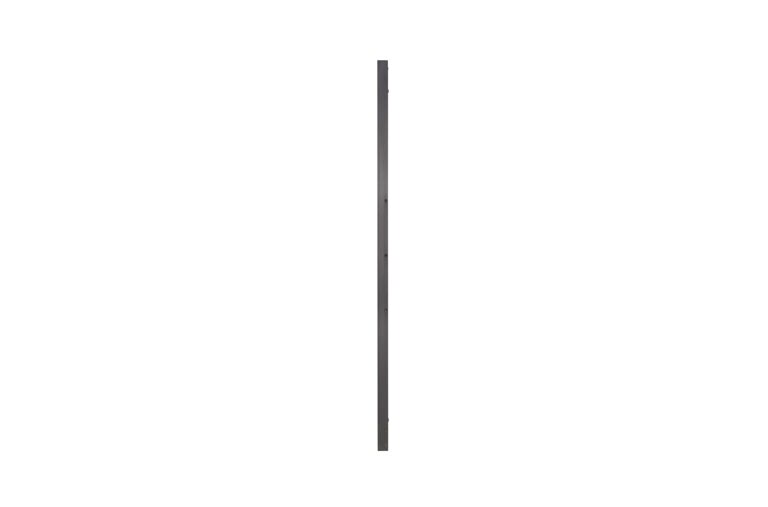

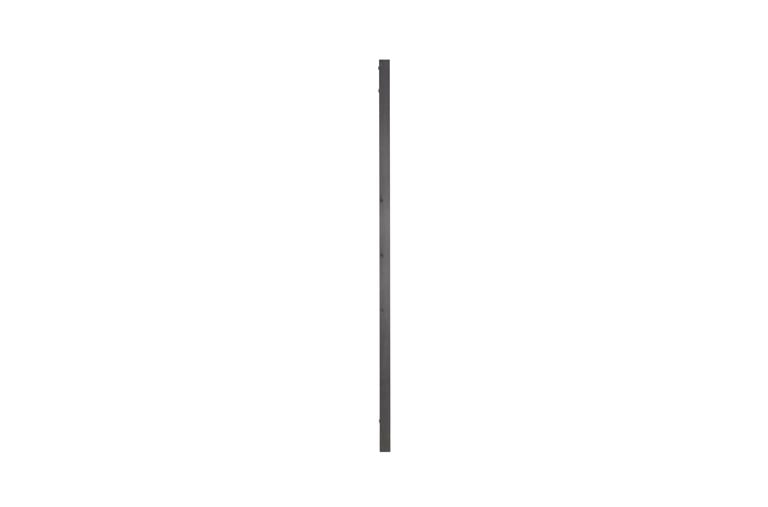

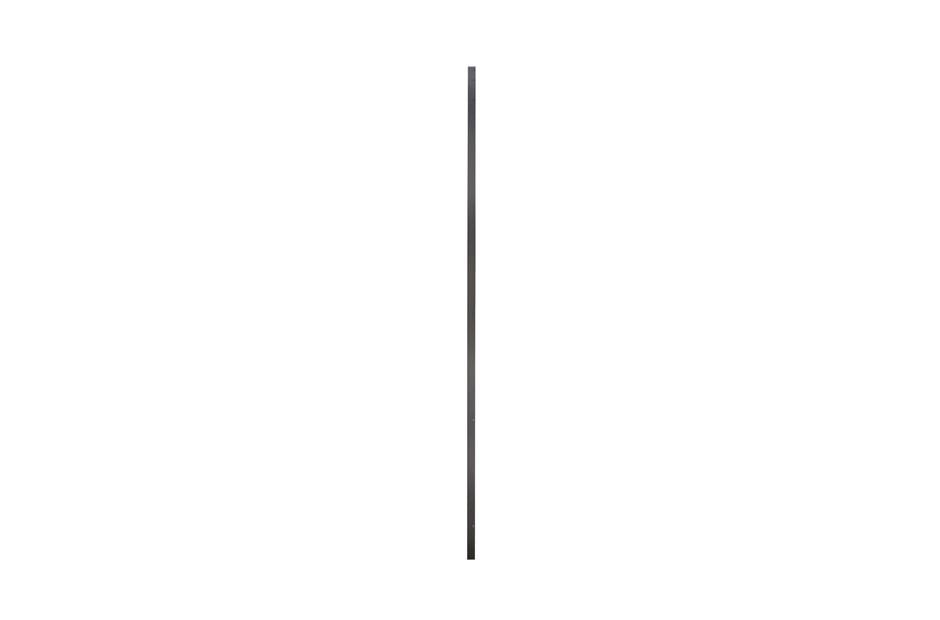

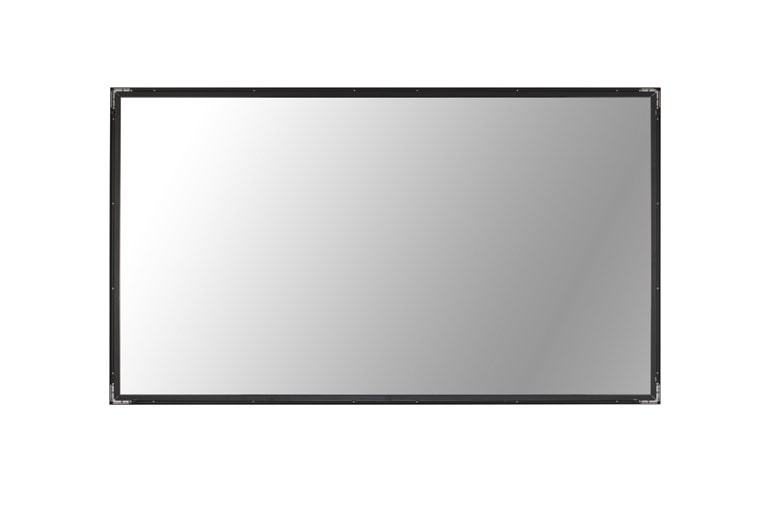

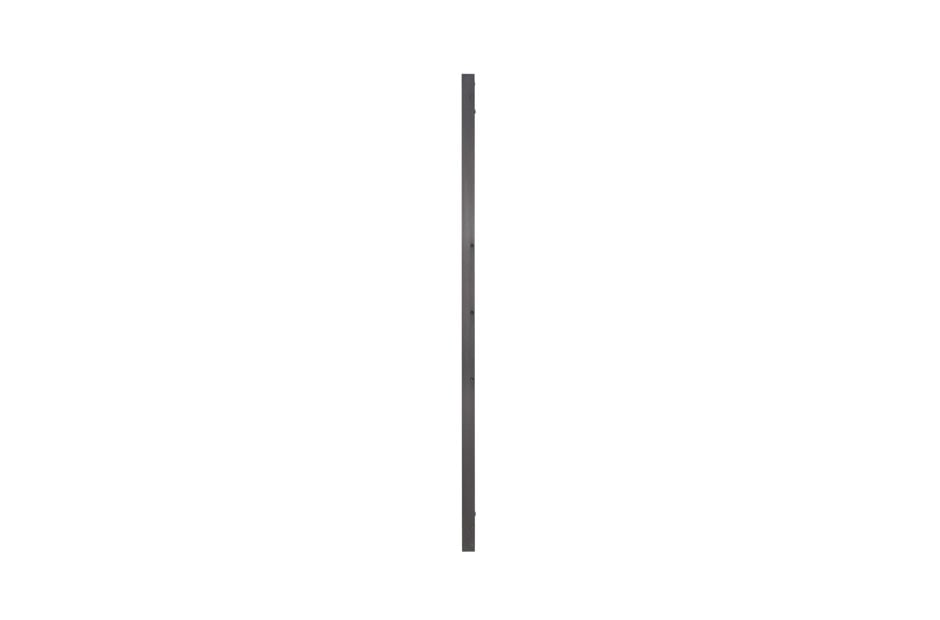

KT-T Series

Key Features

component-OBScountrySelectDesc

KT-T Series
Touch
  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    13 ~ 30ms
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8 / Mac OS X (10.7 or later) / Android / Linux (Kernel 3.9 or later)
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803
Panel
  • Screen Size
    65"
    Compatible Products
    65LS33A
  • Orientation
    Landscape & Portrait
Connectivity
  • Input
    USB
Physical Specification
  • Bezel Width
    27.0mm
    Overlay Dimension (W x H x D)
    1,485.5 x 859.5 x 23.5 mm (Max 62.1 mm)
  • Weight (Head)
    18.5kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    USB
    Typ.
    2.5W
Software Compatibility
  • IWB Software
    Yes
Accessory
  • Basic
    Manual (Overlay), CD (Writing S/W), Pen (2), Tray, Install Accessories
  • Dimension
    • [Dimension] KT-T650.dwg
    • [Dimension] KT-T650.pdf
  • Datasheet
    • [Leaflet] KT-T_series_preview_150908.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
