KT-T65E component-copyModelName

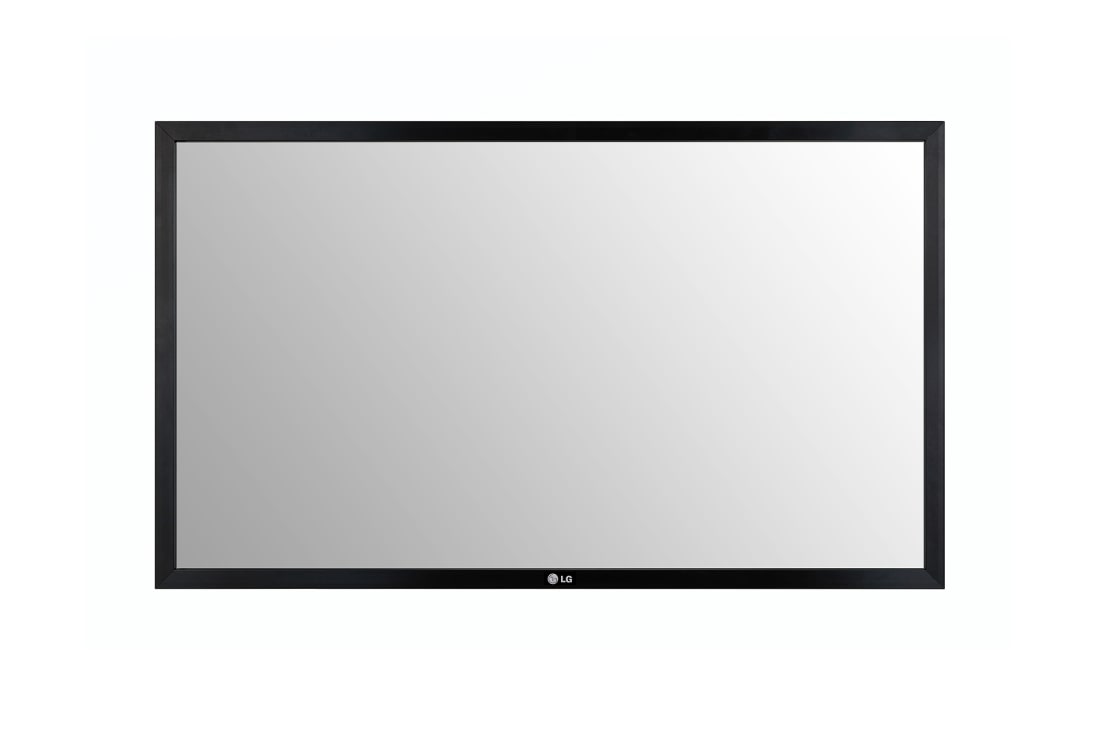

Touch Overlay Kit

LG Touch Overlay Kit, KT-T65E, thumbnail 1

LG Touch Overlay Kit, KT-T65E, thumbnail 2

LG Touch Overlay Kit, KT-T65E, thumbnail 3

LG Touch Overlay Kit, KT-T65E, thumbnail 4

Discontinued

KT-T65E component-copyModelName

Touch Overlay Kit

Key Features

Touch Type: IR (Infrared Rays) Scattering
Available Object Size for Touch: Φ6 mm↑ (Single), Φ8 mm↑ (Multi)
Accuracy: 2 mm (Over 90% Area)
Interface: USB 2.0
Multi Touch Point: Max 10 Points

Choose your Size

Add to Compare

component-OBScountrySelectDesc

Key Features

Touch Type: IR (Infrared Rays) Scattering
Available Object Size for Touch: Φ6 mm↑ (Single), Φ8 mm↑ (Multi)
Accuracy: 2 mm (Over 90% Area)
Interface: USB 2.0
Multi Touch Point: Max 10 Points

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Touch Overlay Kit

Interactive Performance

Clean Touch Experience

LG proprietary touch technology can draw clean and accurate diagonal lines through controlling multi-touch gestures in great precision. Clean multi-touch experience with IR Spread is based on our in-house IR-Spread technology which provides better accuracy compared to conventional IR Matrix.

Interactive Performance

Multi Touch Experience

It provides a more realistic sense of touch since it can recognize up to 10 point-touches at once. Various touch-based customer services can be provided through the screen so that consumers will have unforgettable shopping experiences.

03_Slim-Design-for-a-Sleek-Look_1545034094326

User Convenience

Slim Design for a Sleek Look

With slim bezel and depth, KT-T series is designed to fit compatible displays and provide better touch accuracy. This way, the display maintains its sleek and clean look even when multi-functions are added on.

User Convenience

Simple Installation

Just a few screws and brackets are needed to attach a touch overlay kit be to the display. With low cost and minimal effort, your display can have the added value of touch performance.

Application

By adding touch values to standard displays, the utilization possibilities expand to a surprising variety of places. Wherever the KT-T series is installed, its two-way communication maximizes user engagement as well as user convenience.

Touch

Touch type

IR (Infrared Rays) Scattering

Available object size for touch

Φ6 mm↑ (Single), Φ8 mm↑ (Multi)
Scan Time

15 ms ↓

Accuracy

2 mm (Over 90% Area)
Interface

USB 2.0

Protection Glass Thickness

2.8T (Anti-Glare)
Protection Glass Transmission

85 ± 5%

Operating Systme Support

Windows 7, Windows 8, Windows 8.1, Windows 10, Android (Kernel Version 3.5 Over), Linux(Kernel Version 3.5 Over), Mac OS X (10.9 Over), Chrome (39 or Above)
Multi touch point

Max 10 Points

Panel

Screen Size

65"

Compatible Products

65SM5(K)D, 65SE3(K)D
Orientation

Landscape & Portrait

Connectivity

Input

USB

Physical Specification

Bezel Width

32.7 mm

Overlay Dimension (W x H x D)

1,496.9 × 871.9 × 29.3 mm
Weight (Head)

12.9 kg

Carton Dimensions (W x H x D)

1,676.0 × 1,042.0 × 190.0 mm
Packed Weight

21.3 kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

USB

Max

1.8 W

Accessory

Basic

Overlay Manual (CD), Pen (2), Pen Tray, Install Accessories

Dimension
- [Dimension]KT-T65E.dwg
- [Dimension]KT-T65E.pdf
Datasheet
- KT-T Series Leaflet_web_11812.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
