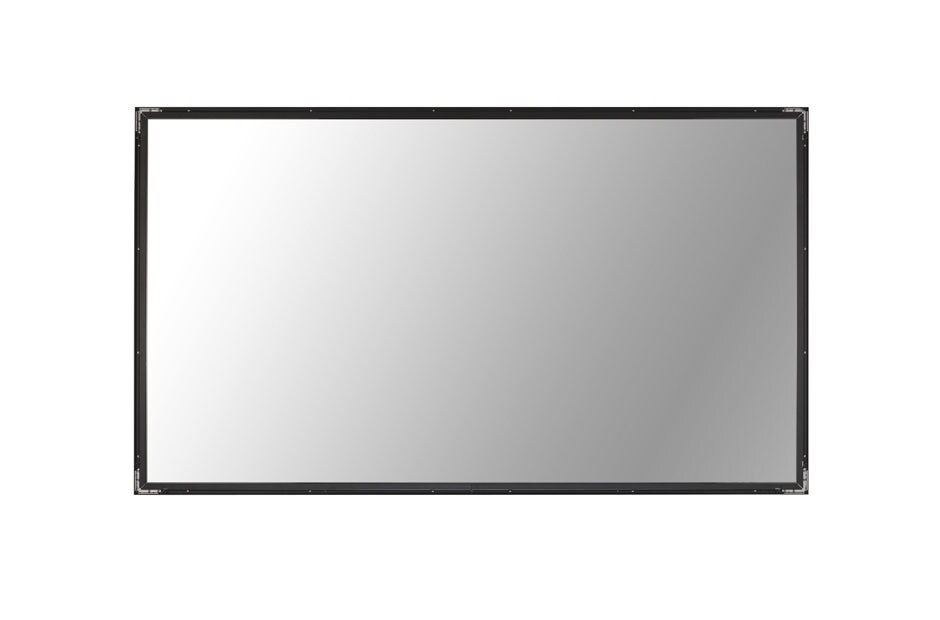

Touch Overlay Kit

Key Features

component-OBScountrySelectDesc

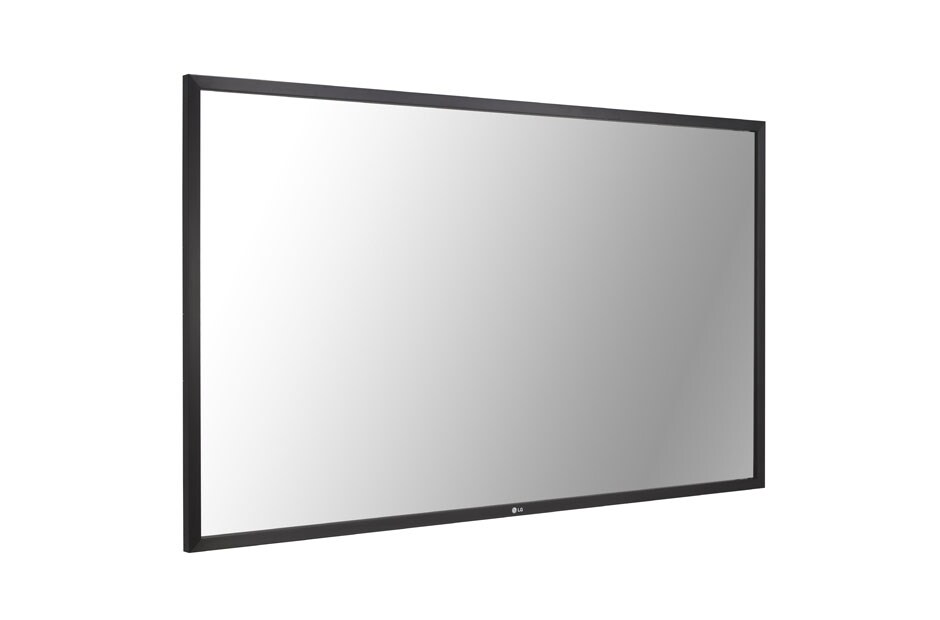

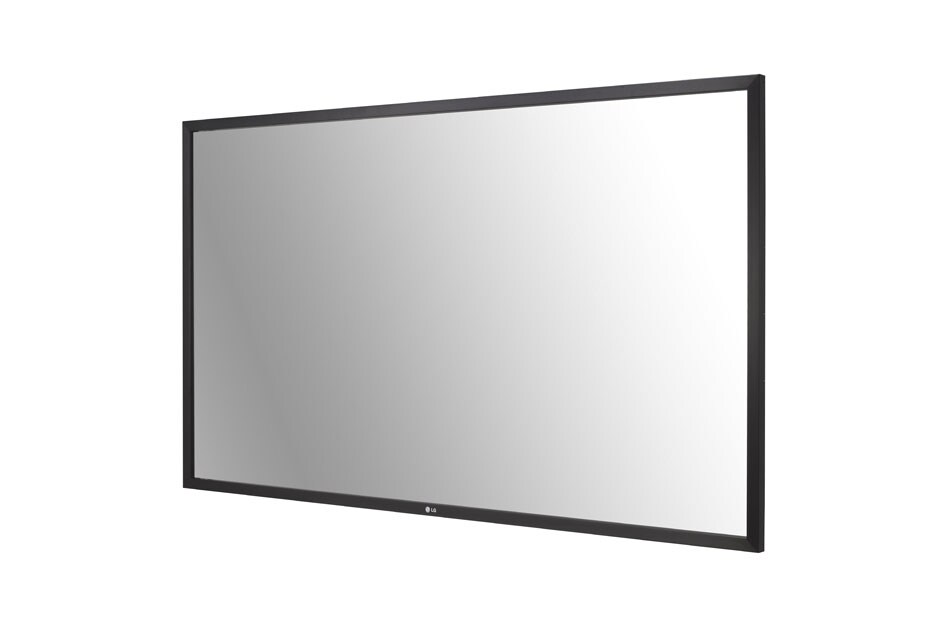

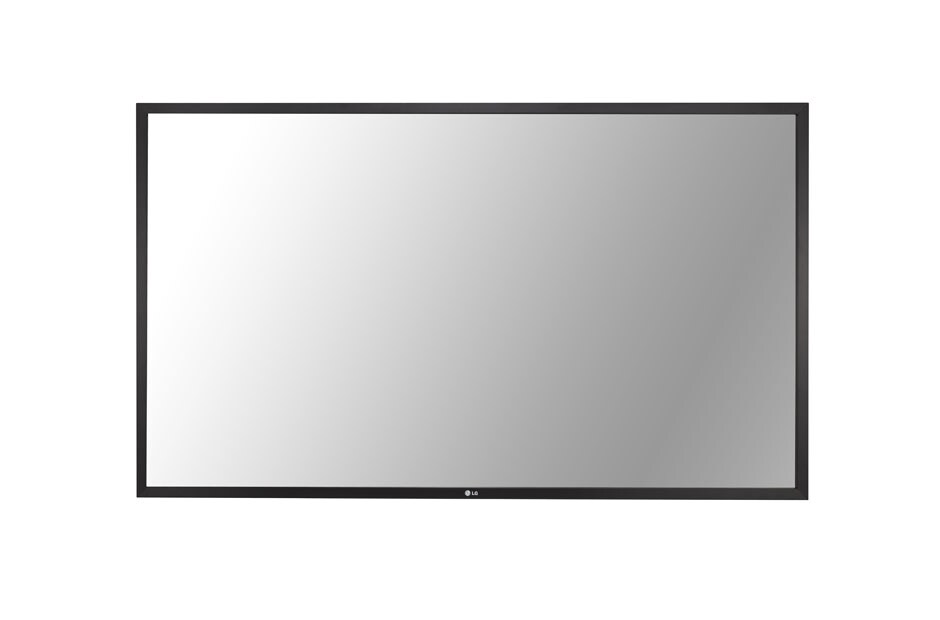

Touch Overlay Kit
Touch
  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    10 ms (1 Point) ~ 30 ms (10 Points)
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    3.2T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8, Windows 8.1, Windows 10 / Mac OSX (10.7 or later) / Android
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803
Panel
  • Screen Size
    75"
    Compatible Products
    75UH5C, 75UM3C
  • Orientation
    Landscape & Portrait
Connectivity
  • Input
    USB
Physical Specification
  • Bezel Width
    32.0 mm
    Overlay Dimension (W x H x D)
    1,715 × 993.5 × 25 mm (Max 138.6 mm)
  • Weight (Head)
    22.7 kg
Environment Conditions
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 85%
Power
  • Power Supply
    USB
    Typ.
    1.8 W
Software Compatibility
  • IWB Software
    YES (CD)
Accessory
  • Basic
    Manual (Overlay), CD (Writing S/W), Pen (2), Tray, Install Accessories
  • Dimension
    • KT-T751.dxf
    • KT-T751.pdf
  • Datasheet
    • KT_T_series_(low) Leaflet_170613.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
