OPSJ-5LDJA (NA/SCA) component-copyModelName
LG OPS Player

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (OPSJ-5LDJA (NA/SCA))
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (OPSJ-5LDJA (NA/SCA))
    $
    $
    LG Members Price
Total
LG OPS Player

Extended Smart Features and Compatibility with LG OPS

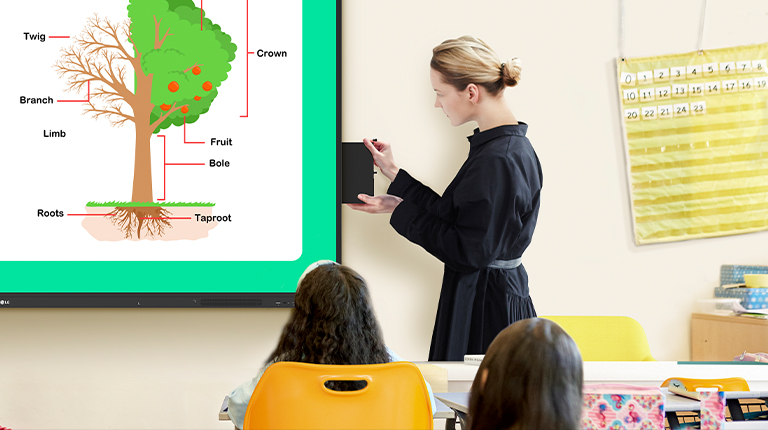

The teacher is conveniently installing OPS onto Interactive Digital Board on the classroom’s wall. The teacher is conveniently installing OPS onto Interactive Digital Board on the classroom’s wall.
* All images in this page are for illustrative purposes only.

Wi-Fi & Bluetooth Supported

LG OPS Player (OPS Slot-in PC) provides the convenience of wireless connection through a Dual Band 2.4GHz / 5GHz Wi-Fi network and Bluetooth.

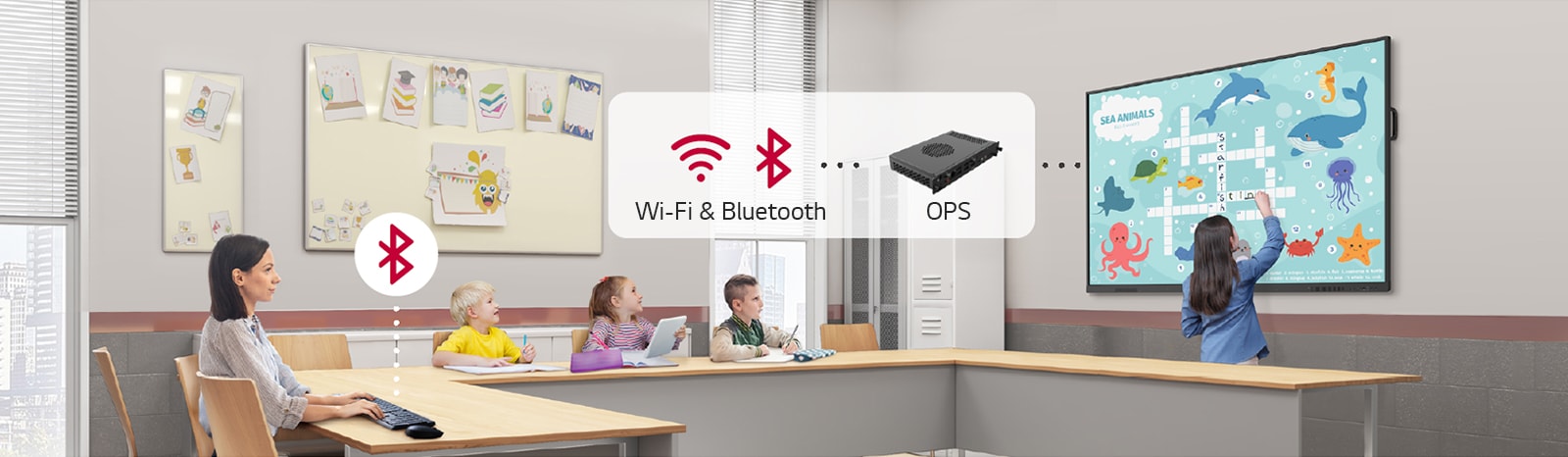

The class is being taught on an Interactive Digital Board screen in the classroom. OPS is installed on it, so the teacher controls it remotely via Wi-Fi and Bluetooth. The class is being taught on an Interactive Digital Board screen in the classroom. OPS is installed on it, so the teacher controls it remotely via Wi-Fi and Bluetooth.
* Wireless performance may vary depending on user's devices and circumstance.

Compatible with
LG CreateBoard

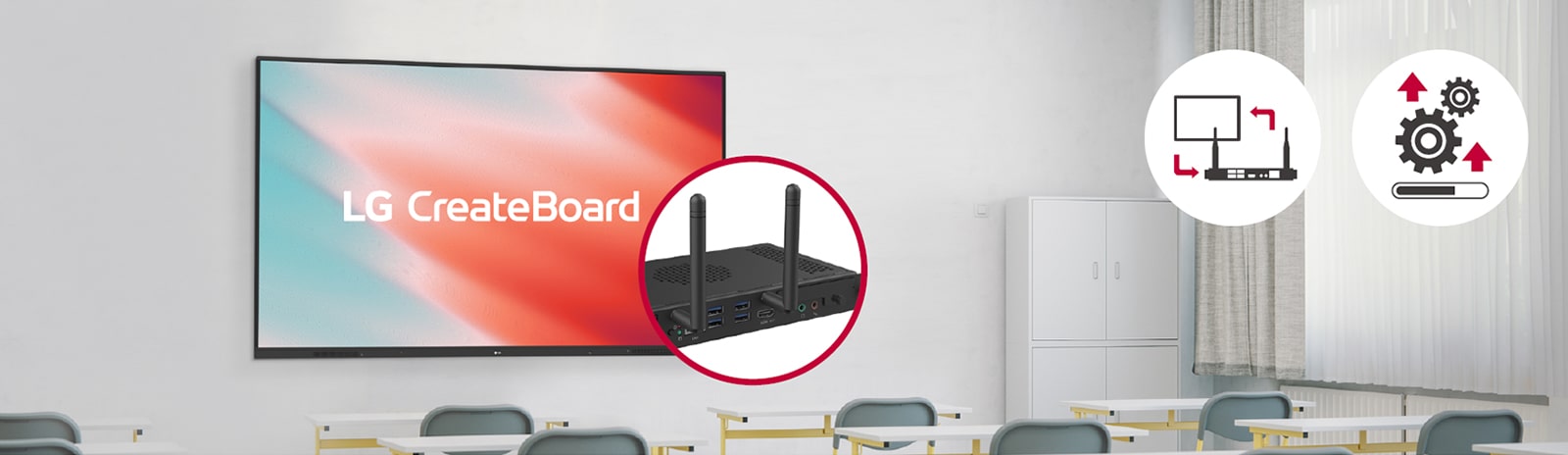

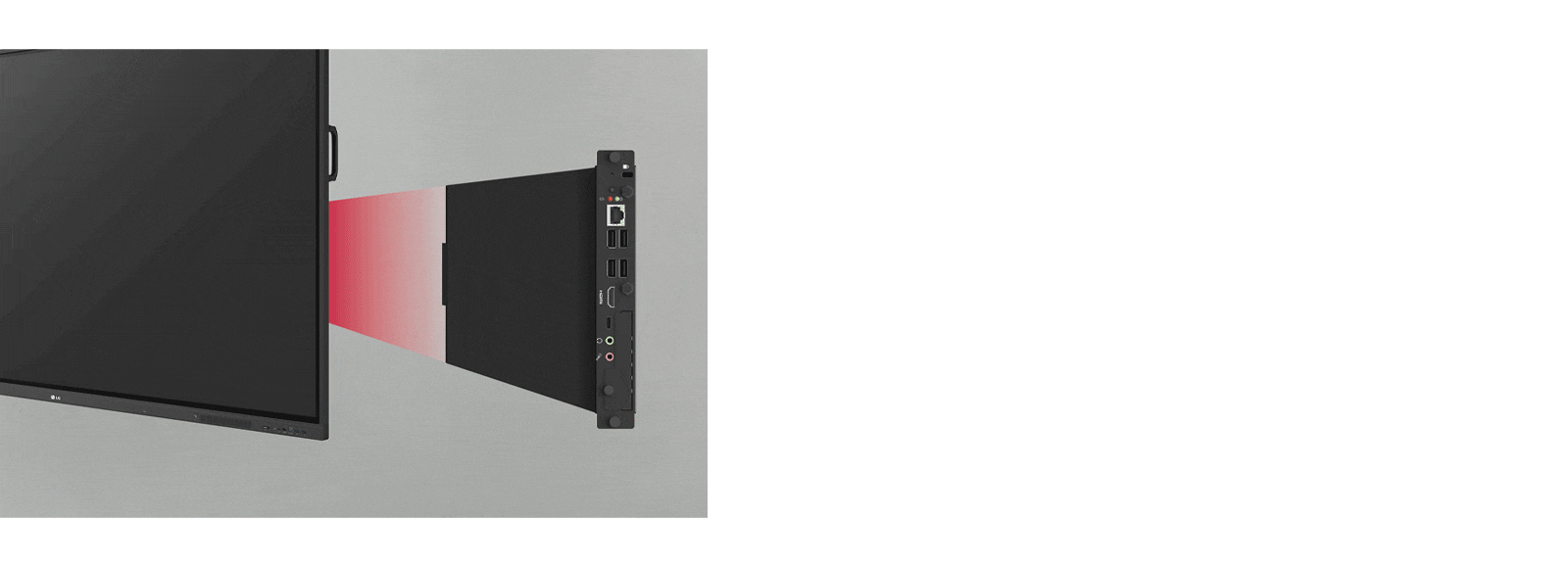

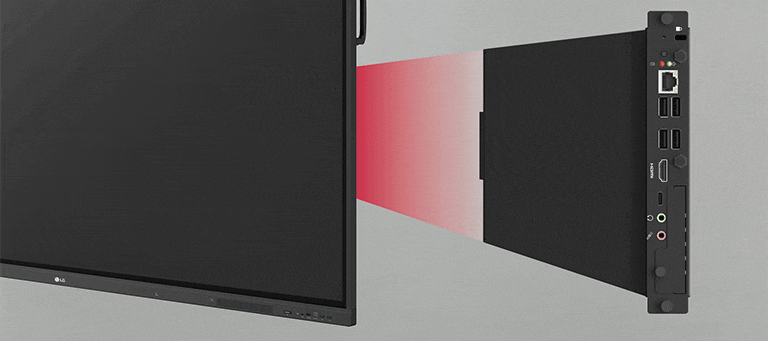

LG OPS Player provides useful computing performance to LG CreateBoard. The LG OPS Player allows quick and easy updates by being easily slotted into LG CreateBoard fitting neatly.
Easy updates and computing performance can be performed by installing LG OPS Player on the LG CreateBoard. Easy updates and computing performance can be performed by installing LG OPS Player on the LG CreateBoard.
* LG OPS Player is compatible with LG CreateBaord TR3BF, TR3BG, TR3DJ and TR3PJ series (as of December, 2022).
CPU
  • CPU
    Intel Core i5-1135G7 (2.4GHz)
Memory
  • Memory
    8GB (8GB*1) DDR4
Graphics
  • Graphics
    Intel Iris Xe Graphics
Storage
  • SSD
    256GB M.2-2280 SATA Ⅲ (up to 6Gb/s)
Operation System
  • Operation System
    Windows 10 Pro (64bit)
Network
  • Network
    Intel Wireless (2.4GHz / 5.0GHz)
    WIFI
    IEEE 802.11ax (Wi-Fi 6)
  • Bluetooth
    Bluetooth 4.2
    LAN
    Gigabit Ehternet Intel I219-V
Power
  • Input power
    12V~19V
    Max Power Consumption
    65W
  • Standby Power Consumption
    1.5W
Environmental
  • Operation Temperature
    -10℃ ~ 50℃
    Operation Humidity
    10% ~ 90% RH
  • Storage Temperature
    -20℃ ~ 60℃
    Storage Humidity
    10% ~ 90% RH
Physical Specification
  • Dimensions (w/o package) W x D x H
    202mm x 133.5mm x 30mm
    Slot inlet requirement W x H
    181mm x 31mm

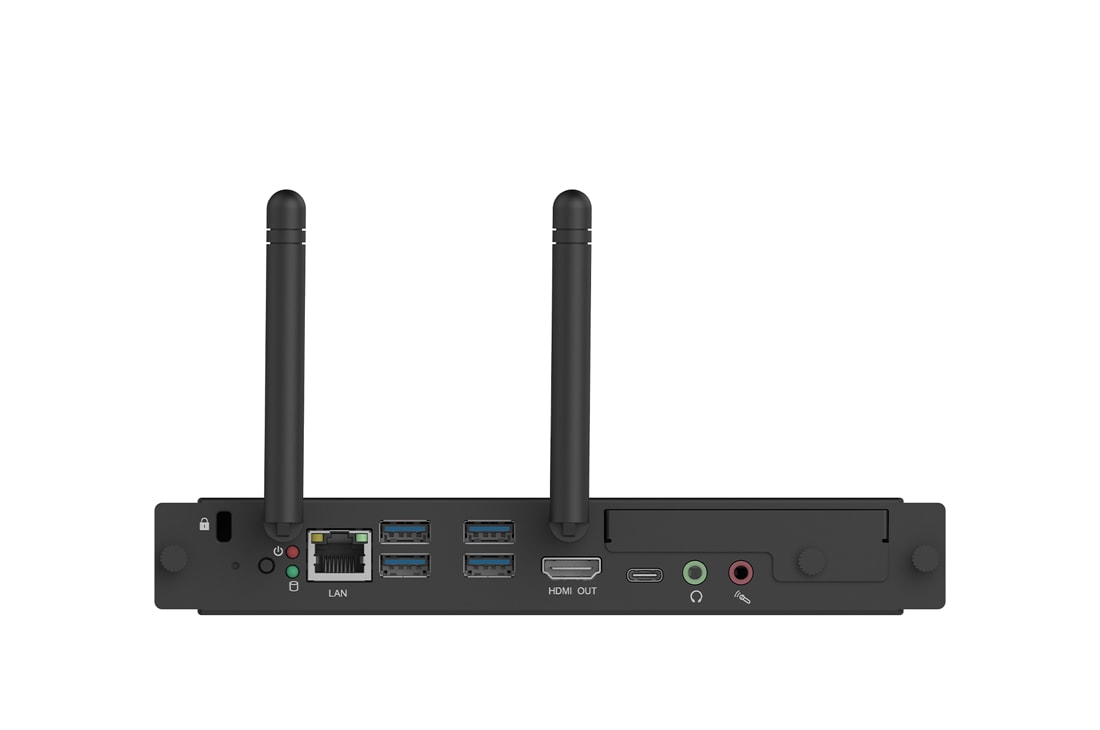

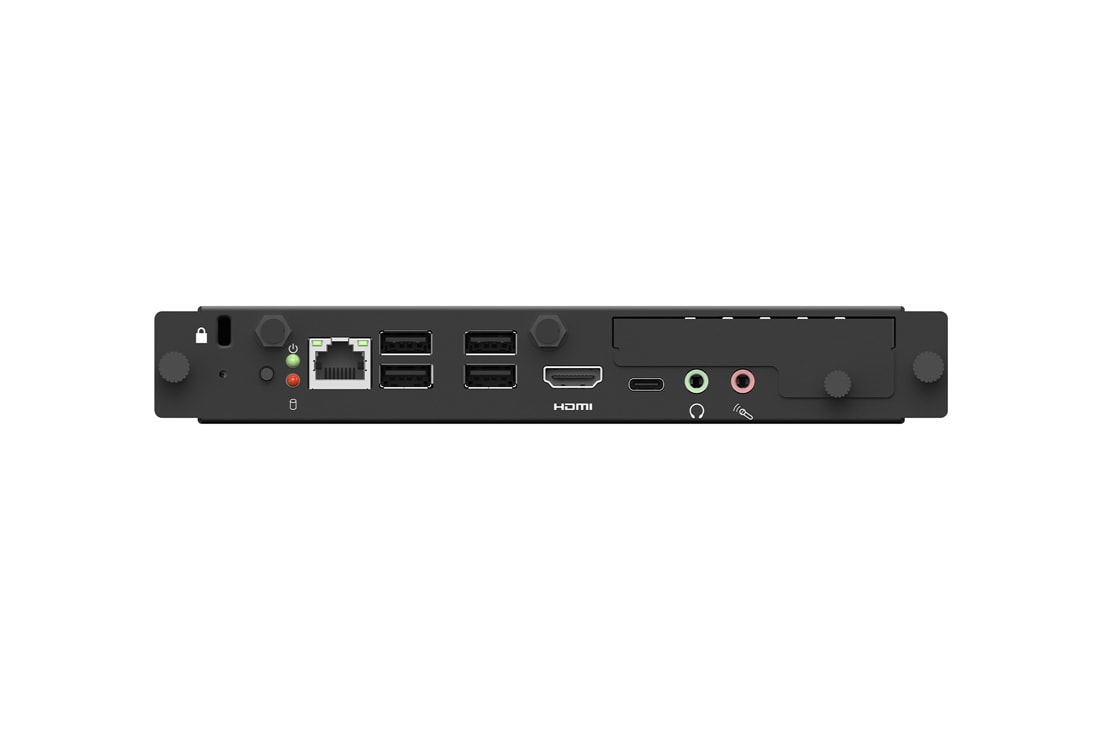

Connectivity
  • USB Type-C
    1
    USB 3.0
    4
  • HDMI Out
    1
    Audio out
    1
  • Mic in
    1
    LAN (RJ45)
    1
Compatibility
  • Compatibility
    TR3BF, TR3BG, TR3DJ, TR3PJ, TR3DK(Coming soon)
  • Data Sheets
    • OPS62A-SHA-G-M099-V1.0.pdf
    • OPS62A-SHA-G.pdf
    • OPSJ_Datasheet(low)_LG OPS Player_221118.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
