Ice Thermal Storage Centrifugal Chiller

LG Ice Thermal Storage Centrifugal Chiller is a technology that cools the indoor area by melting the ice produced overnight.

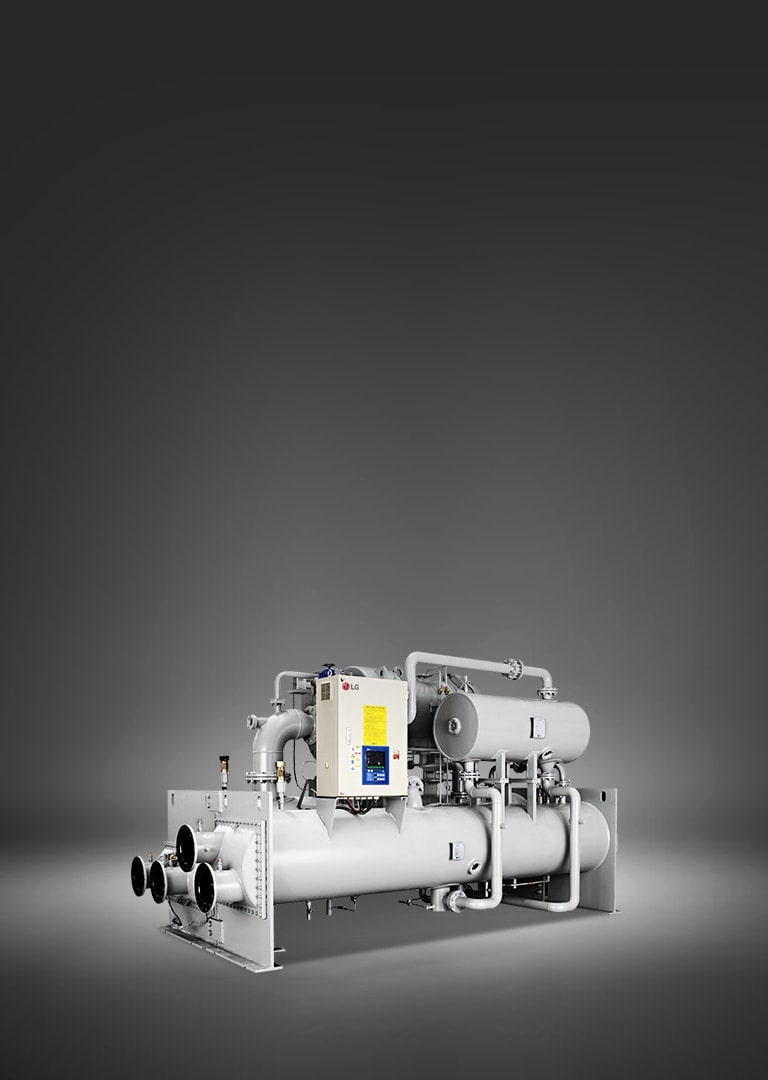

LG Ice Thermal Storage Centrifugal Chiller, showcased in a dark grey hue, consists of a series of linear and cylindrical pipe assemblies. LG Ice Thermal Storage Centrifugal Chiller, showcased in a dark grey hue, consists of a series of linear and cylindrical pipe assemblies.

Ice Thermal Storage Centrifugal Chiller

TAB 1
Features
Features INQUIRE TO BUY

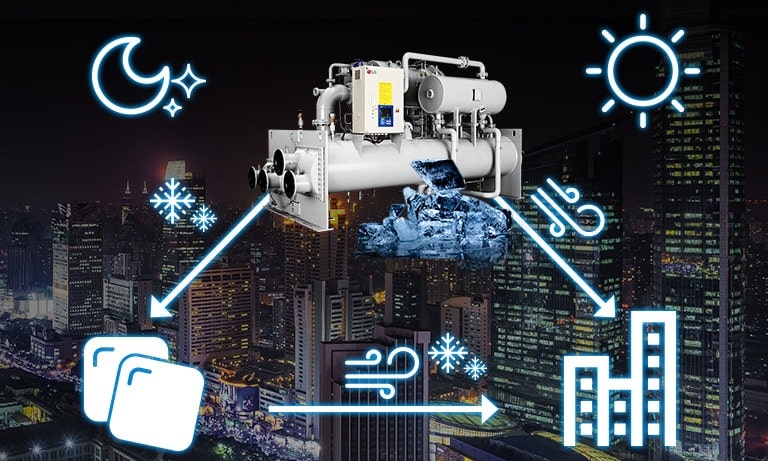

The central-top LG Chiller unit is linked via blue arrows to ice cubes on the lower left and building outlines on the lower right. The central-top LG Chiller unit is linked via blue arrows to ice cubes on the lower left and building outlines on the lower right.

Ice Thermal Storage Centrifugal Chiller

Ice Thermal Storage is a technology that cools the indoor area by melting the frozen ice produced over the night. This can be combined with centrifugal chillers to form an optimal system.

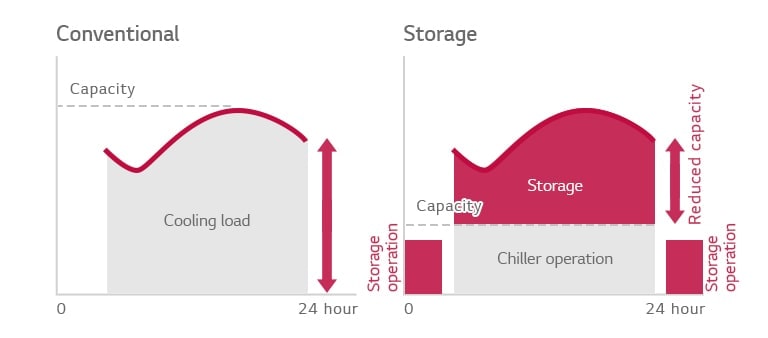

Two graphs plot 'conventional' and 'storage' against 24 hours. A red-shaded arch on the right graph touts the LG chiller's superior efficiency. Two graphs plot 'conventional' and 'storage' against 24 hours. A red-shaded arch on the right graph touts the LG chiller's superior efficiency.

Easy and Efficient Ice Thermal Storage Centrifugal Chiller

It operates the Chiller at night time, freezes the ice, stores it in the thermal storage tank, and dissolves it during the daytime to provide cooling to the building.

Its operational cost is reduced by utilizing the benefit of reduced electricity tariff cost at night time and peak load in summer season.

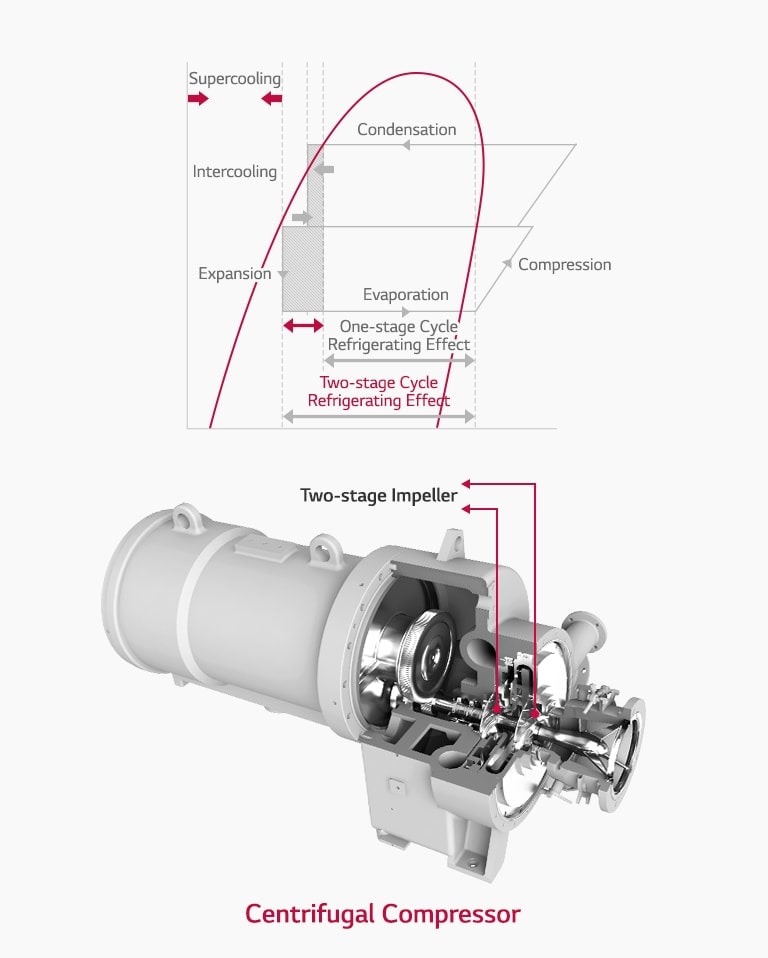

Inside view of a high-efficiency two-stage compressor, the following graph shows energy efficiency improvement over a one-stage compressor. Inside view of a high-efficiency two-stage compressor, the following graph shows energy efficiency improvement over a one-stage compressor.

High Efficiency Two-stage Compressor

Centrifugal Chiller is able to achieve high efficiency through Two-stage Compressor.

With optimized Two-stage compression cycle, energy efficiency has been improved and operation costs have been reduced as compared to the conventional One-stage Centrifugal Chiller.

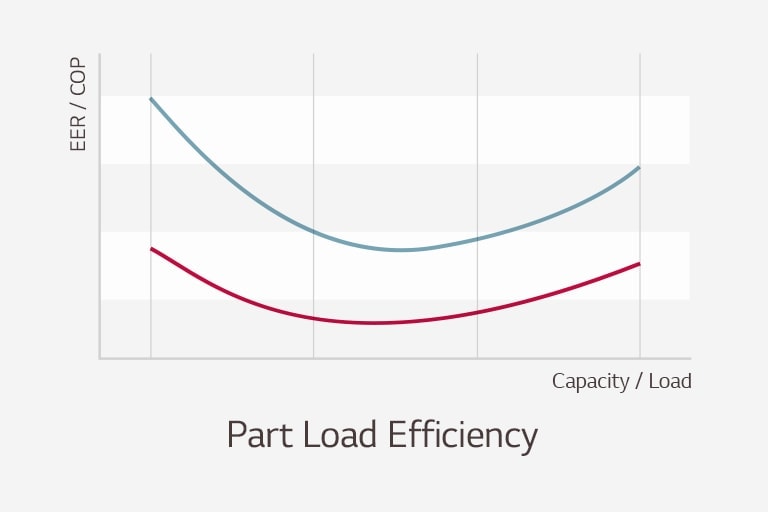

  • Graph plots Capacity/Load on the x-axis and EER/COP on the y-axis. Red two-stage line shows lower energy usage than blue single-stage.

    Variable Diffuser

    Excellent partial load systems can save cost and maximize energy efficiency at low loads.

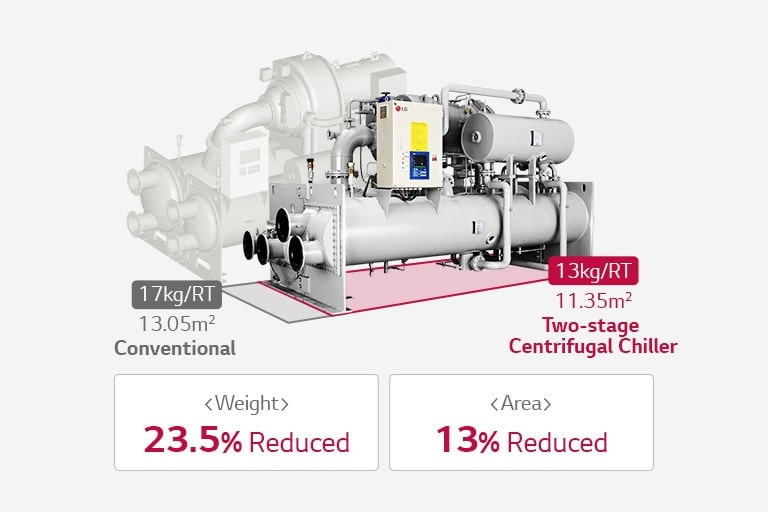

  • The LG Ice Thermal Storage Centrifugal Chiller is encased in a red rectangular line at the center, symbolizing its reduced weight and compact size.

    Stable Operation

    Provides wider operation range at a low-load conditions and prevents stall from discharge gas for stable operation.

  • A person holds a tablet displaying a control solution. Four red lines extend from the tablet, connecting to buildings on the left.

    Optimized Central Control

    Control Solutions such as ACP and AC Smart enable easy monitoring and allow remote monitoring and remote management of various HVAC models installed someplace else.

    Learn more

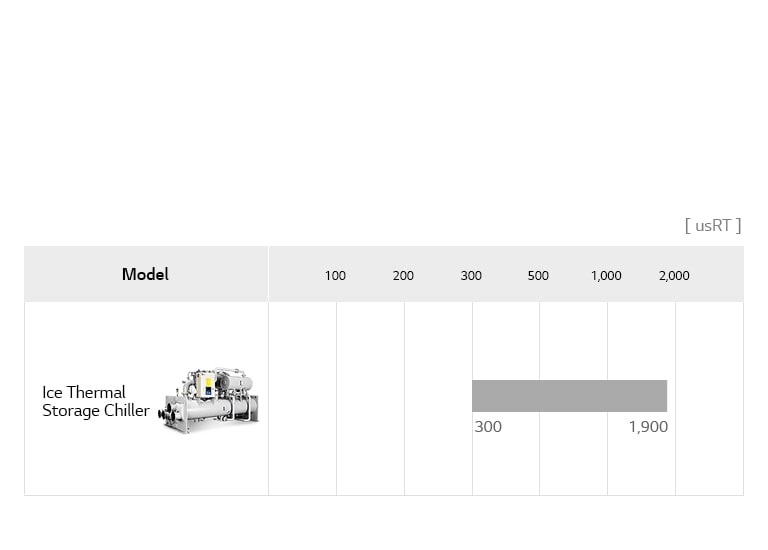

LG Ice Thermal Storage Centrifugal Chiller lineup chart includes Ice Thermal Storage Chiller, detailing model name, and usRT. LG Ice Thermal Storage Centrifugal Chiller lineup chart includes Ice Thermal Storage Chiller, detailing model name, and usRT.

Ice Thermal Storage Centrifugal Chiller Line Up

A man in a suit holds a smartphone in his right hand, displaying the LG website. A man in a suit holds a smartphone in his right hand, displaying the LG website.

Inquire To Buy

Please inquire to buy for more information on the product and we will get in touch with you soon.
