Fine-pitch Essential Series
LG's Fine-pitch Essential Series offers a unit case with 16:9 aspect ratio, as well as light-weight cabinet design and easy installation. LG will revolutionize the way you conduct business.

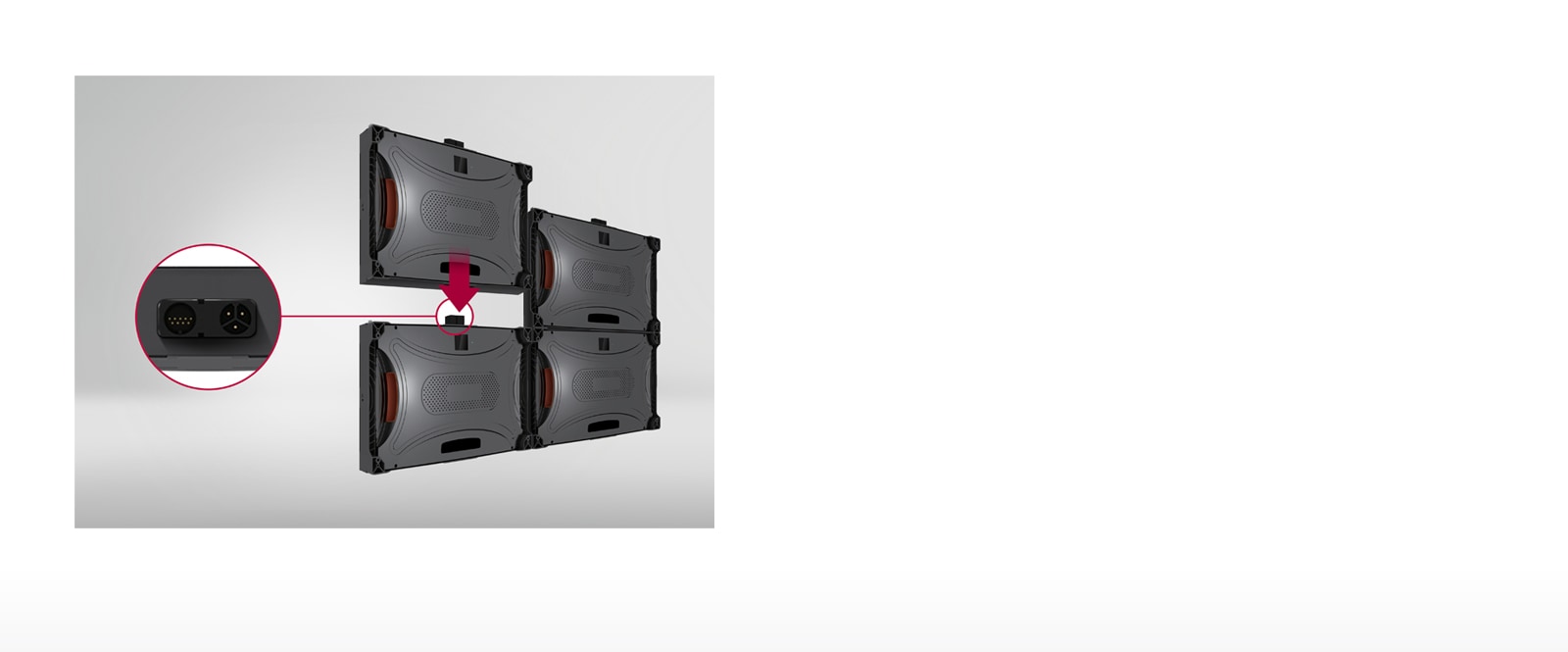

Cableless Installation and Clean Design

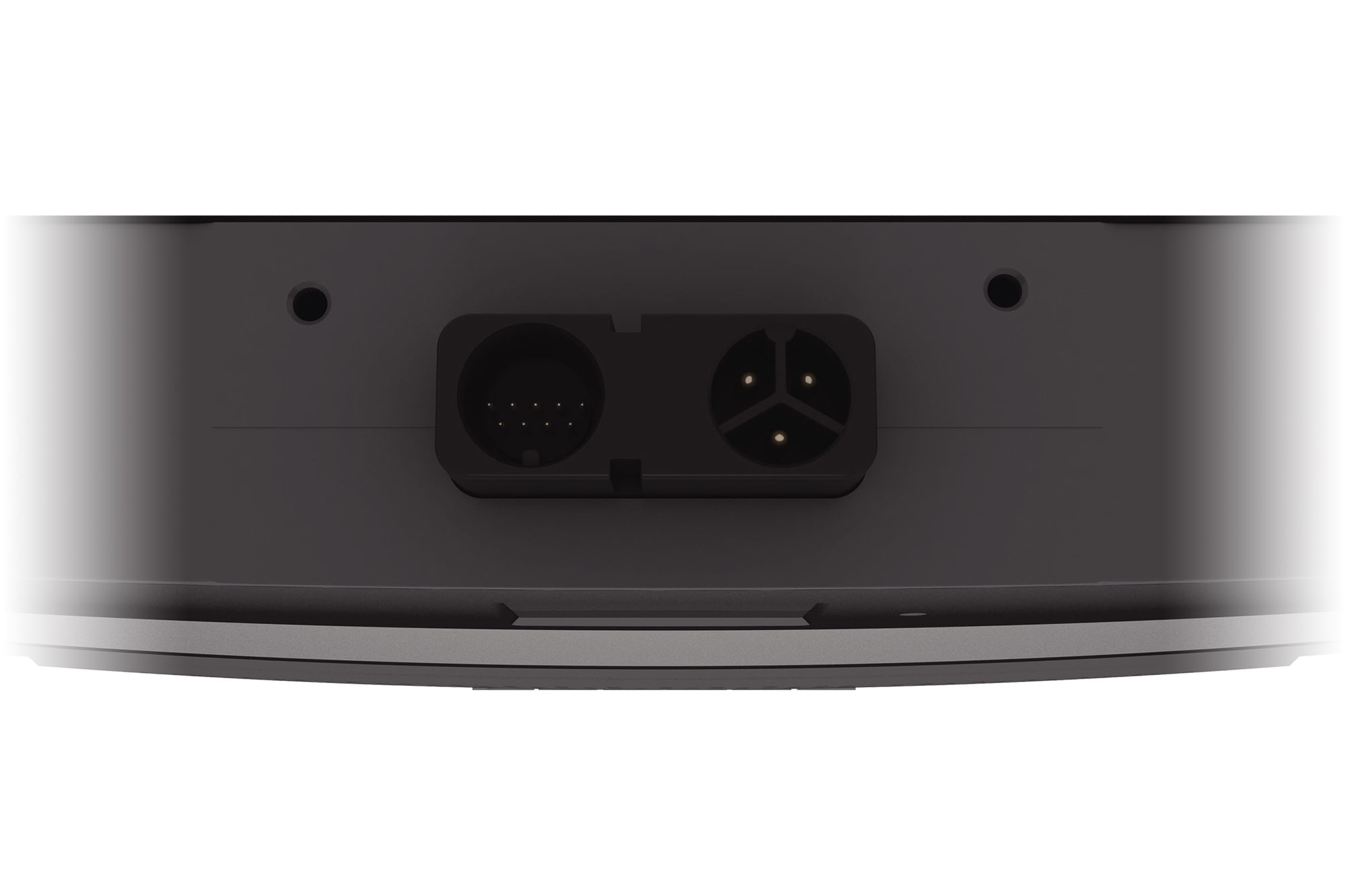

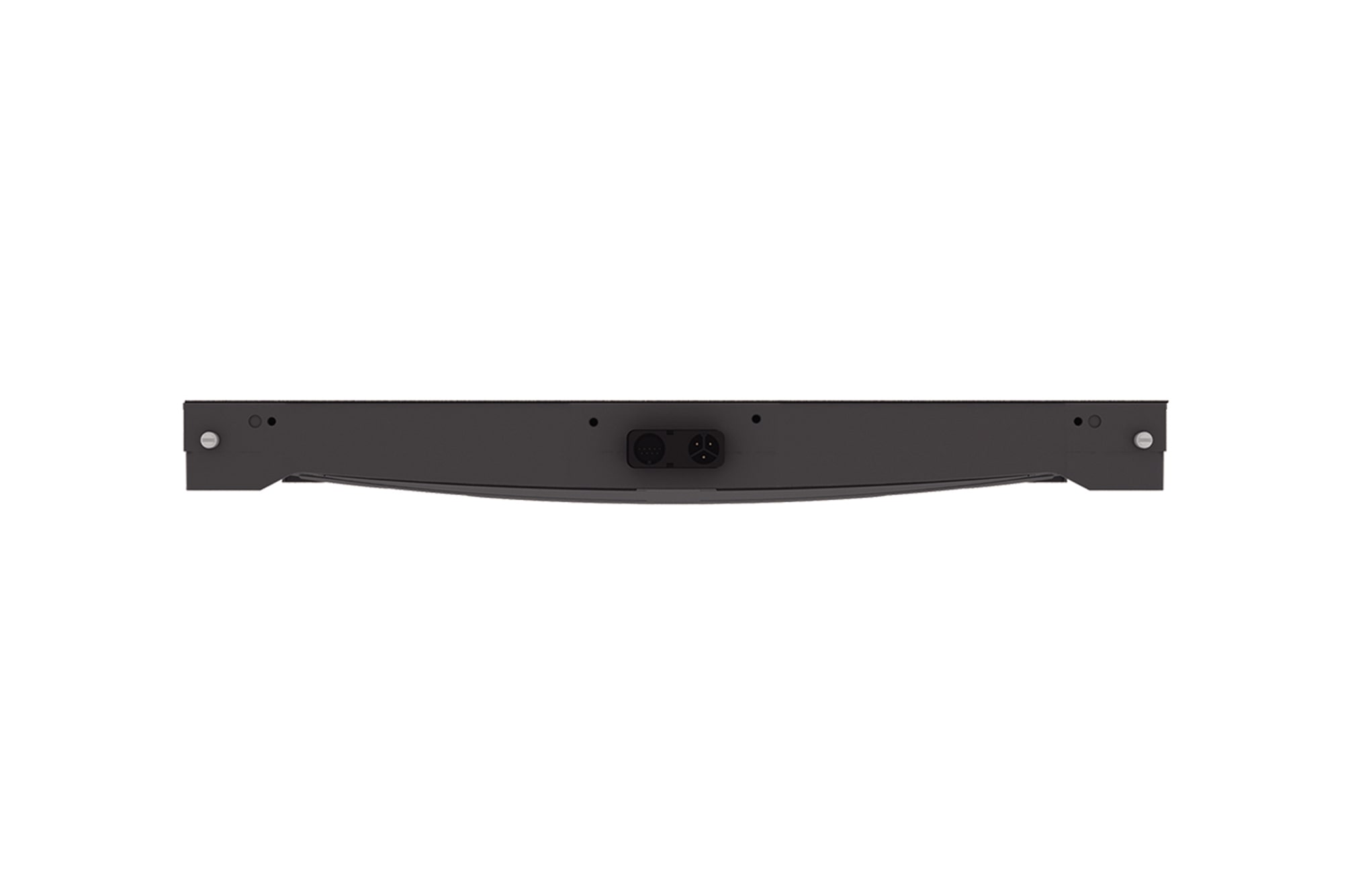

Unit cases are stackable, with sockets on the top and bottom that align. Thanks to the built-in power and signal connector protruding from the top, there is no need for wiring between unit cases. With easy installation and seamless appearance, this design eliminates the need for cables or additional space.

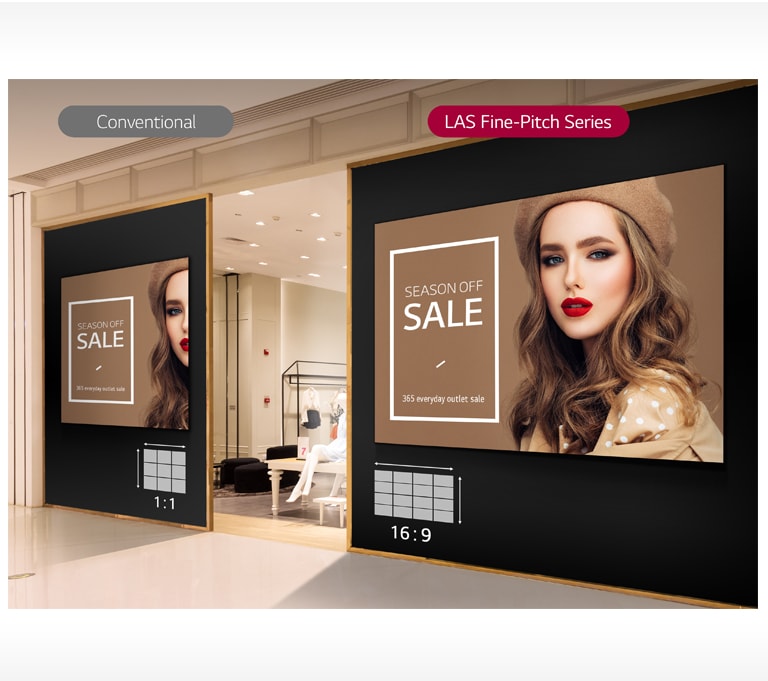

16:9 Aspect Ratio Optimized for FHD/UHD Content
Each unit case uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to enjoy existing content without additional editing.

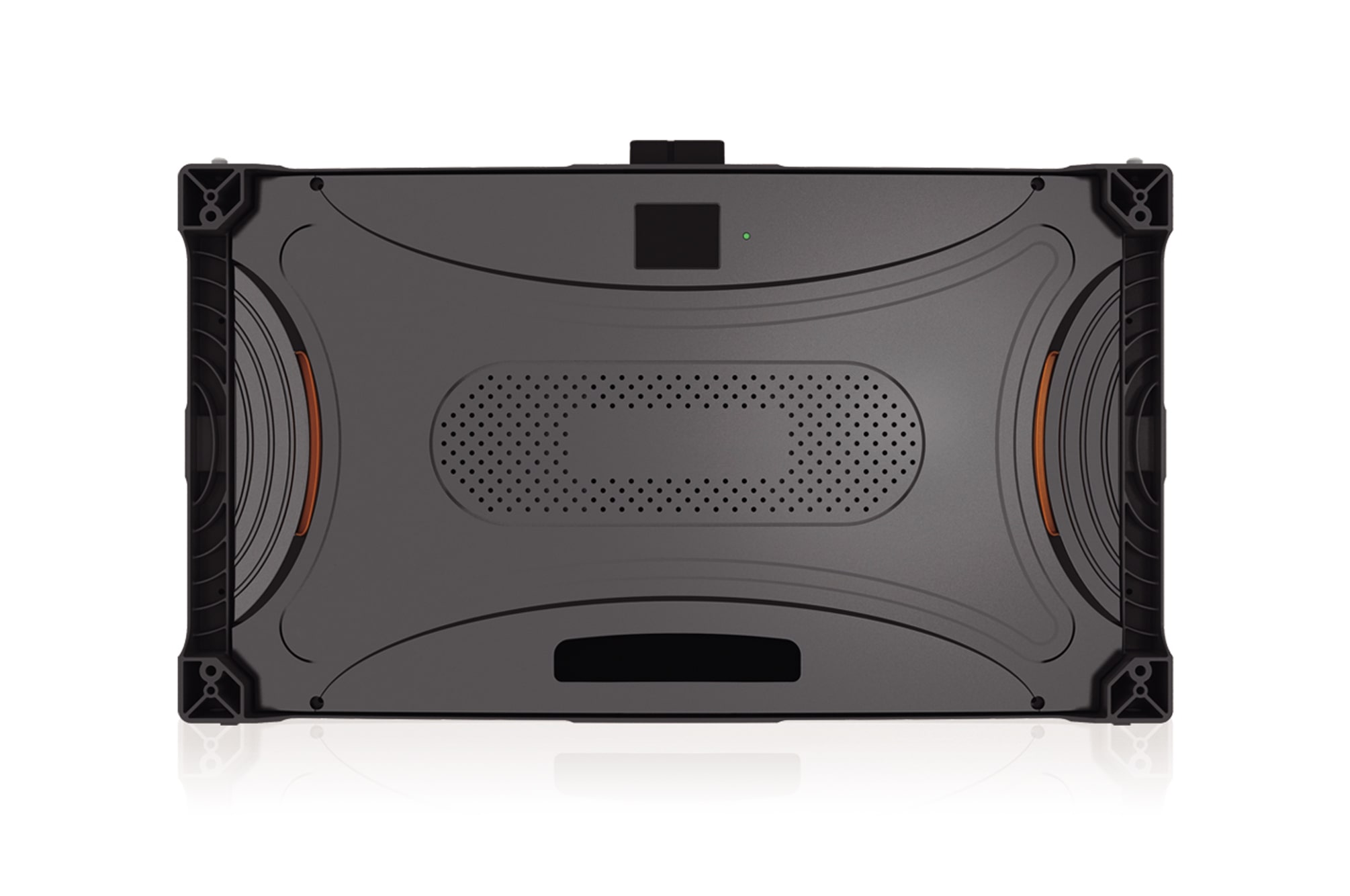

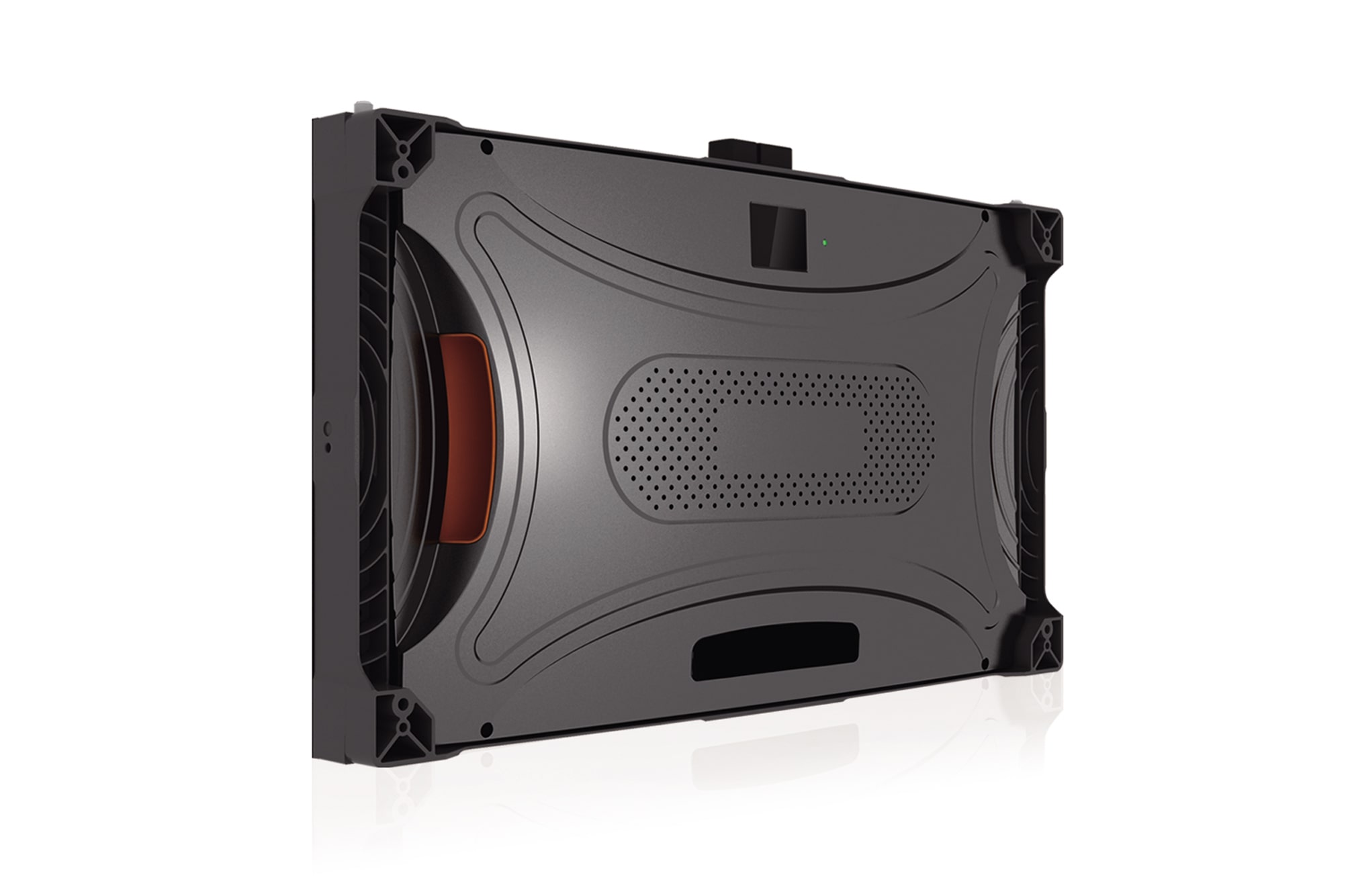

Easy-handling Lightweight Unit Case
It’s lightweight and easy to install, preventing damage during installation. A full set of LED screens is still lightweight, reducing strain on the structure holding the screens.

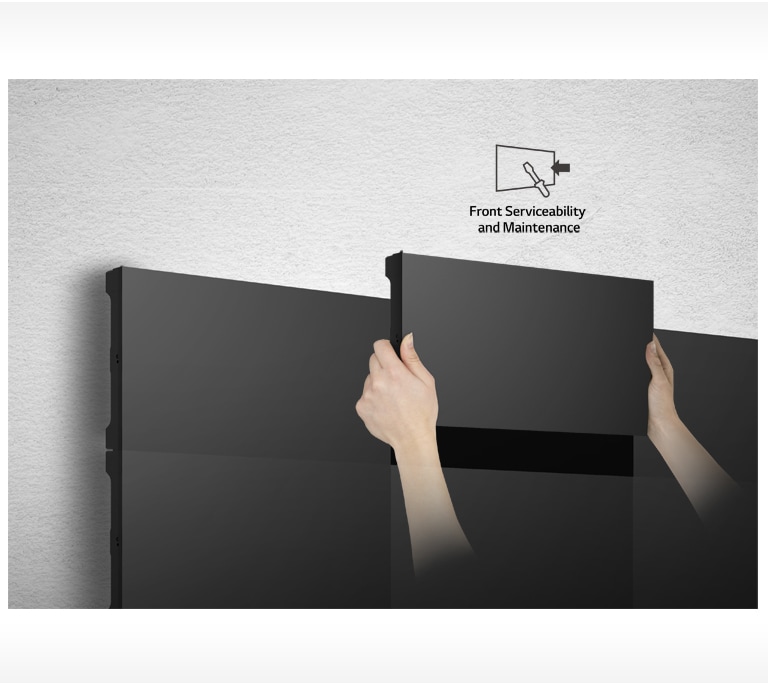

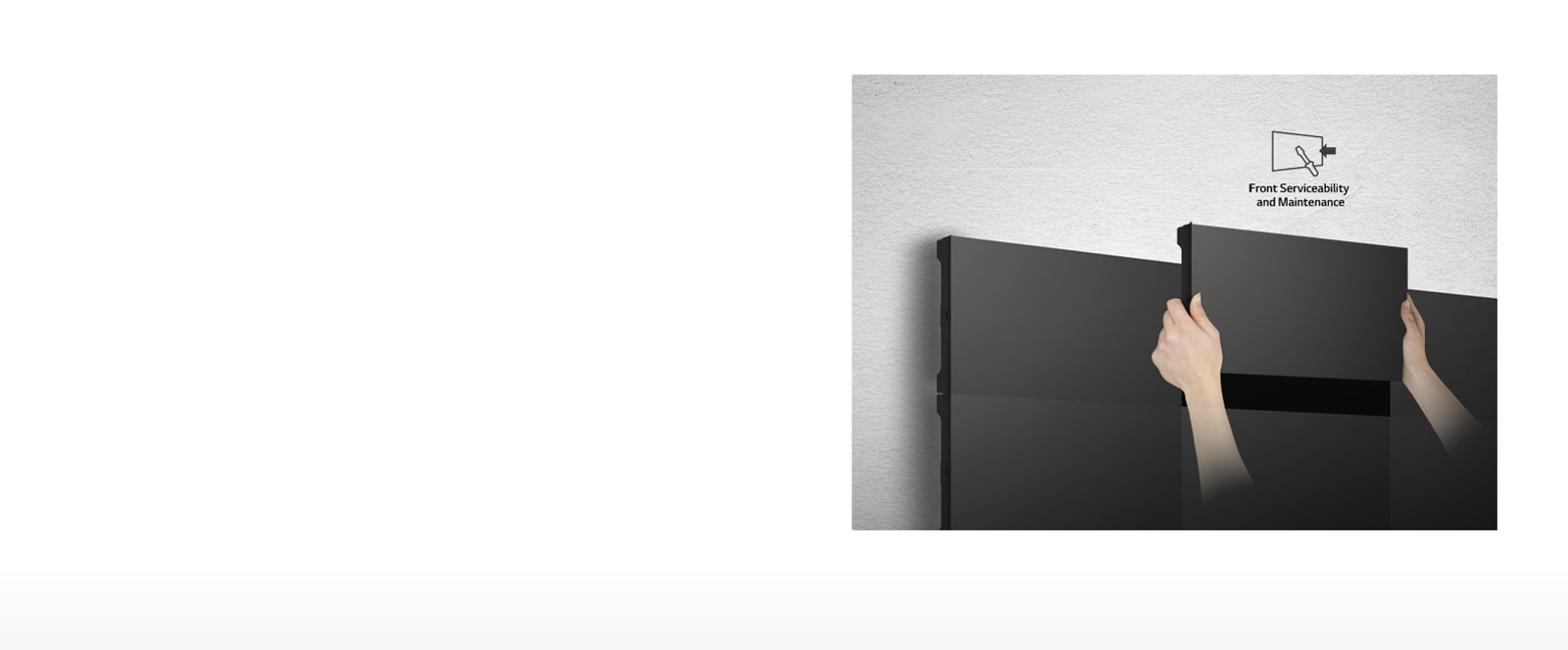

Front Serviceability
The product offers front access, freeing customers from needing rear access space.

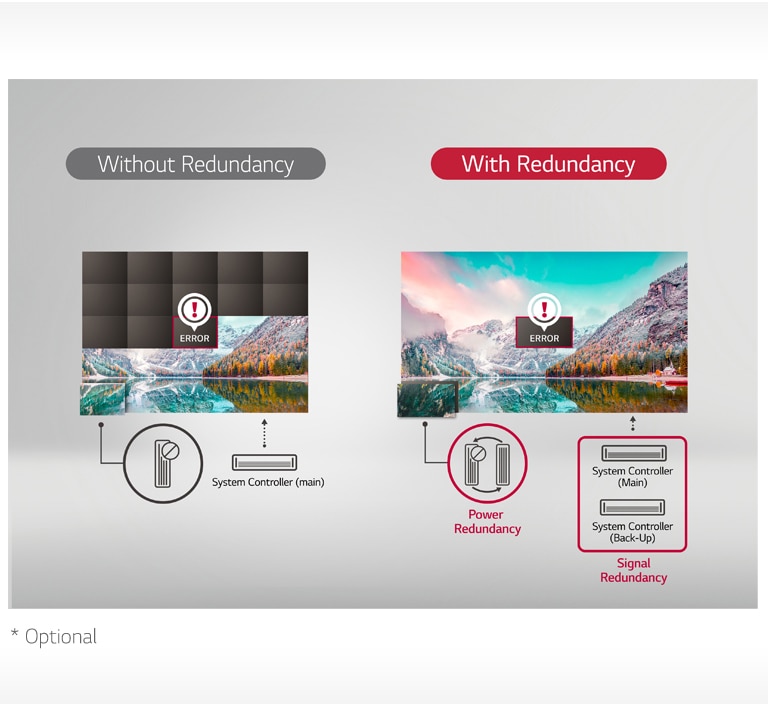

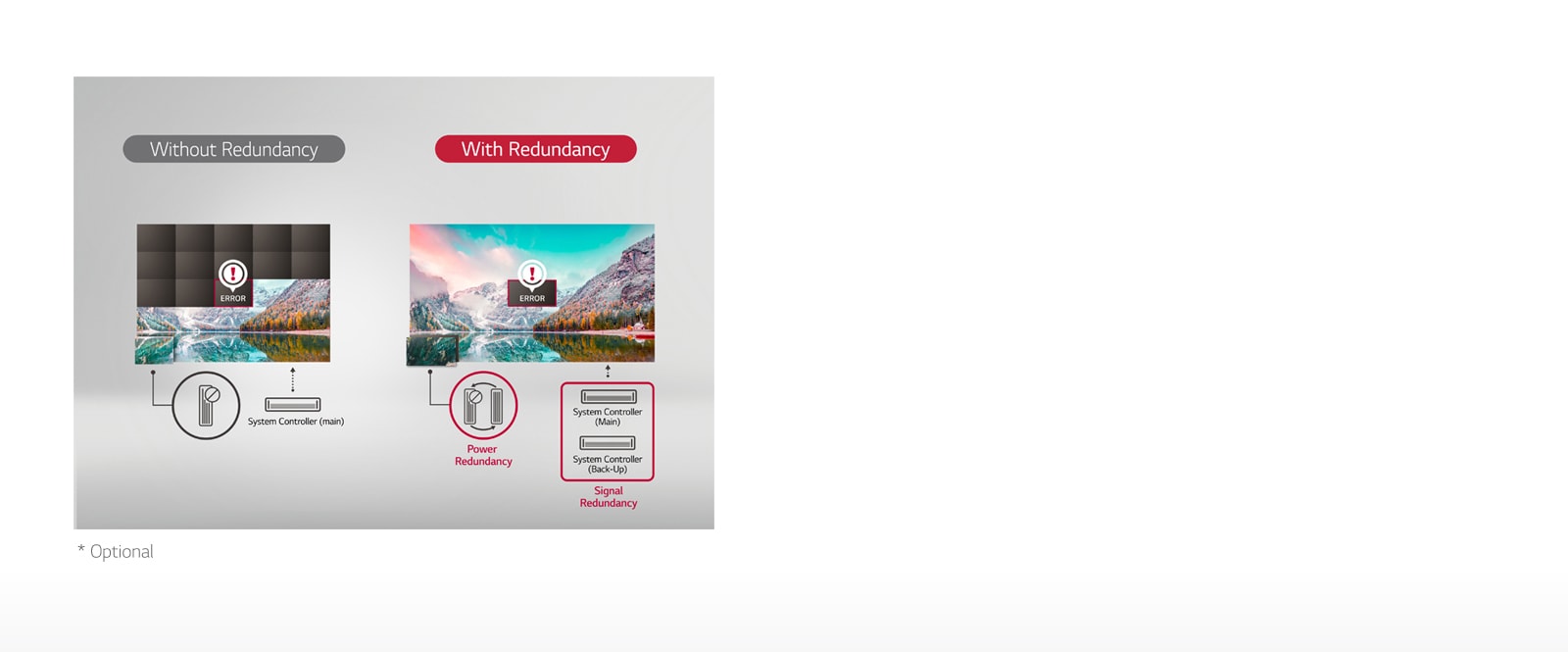

Reliable Operation with Signal/Power Redundancy
With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy*). The product also offers Power Redundancy*. Two power units are provided in every LED unit; one activates to provide power when the other fails.

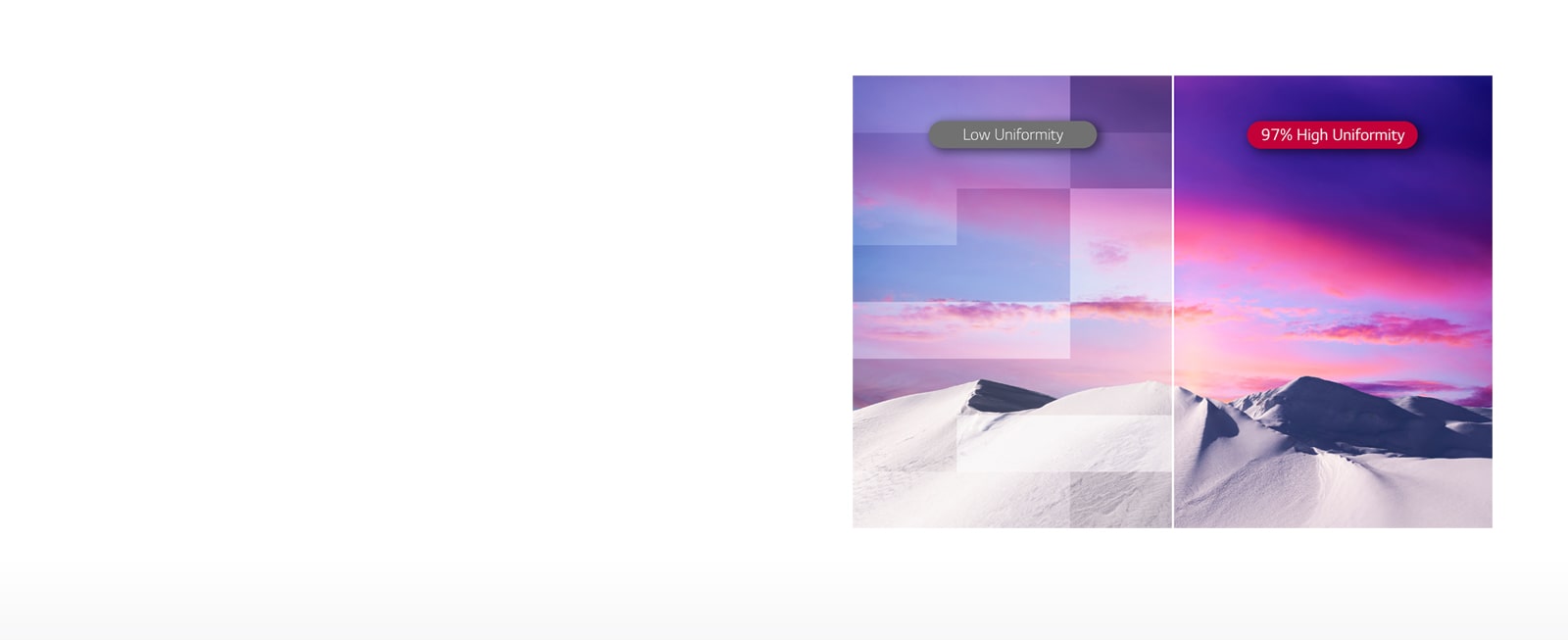

Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
| Model Name | LAS009DB7-F | LAS012DB2-F | LAS012DB4-F | LAS012DB7-F |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 0.945 | 1.26 | 1.26 | 1.26 |
| Unit Case Resolution (WxH) |
640 x 360 | 480 x 270 | 480 x 270 | 480 x 270 |
| Unit Case Dimensions (WxHxD, mm) |
604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 |
| Weight per Unit Case / Square Meter (kg) |
7.2/36 | 5.2/25.3 | 5.2/25.3 | 5.2/25.3 |
| Service access | Front | Front | Front | Front |
| Min. Brightness (After Calibration, cd/m²) |
600 | 600 | 600 | 600 |
| Color Temperature | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/140 | 160/140 | 160/140 | 160/140 |
| Brightness Uniformity | ≥97％ | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | 7,000 | 7,000 | 7,000 | 7,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
70/160 | 54/180 | 54/180 | 54/180 |
| Power Consumption (W/m², Max.) |
800 | 874 | 874 | 874 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,000 | 3,000 | 3,000 | 3,000 |
| Lifetime (Duration of Half Brightness in Hours) |
100,000 | 100,000 | 50,000 | 100,000 |
| Operating Temperature(°C) / Humidity |
-10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH |
* Models may vary by region. Check with local salesteam.
| Model Name | LAS014DB2-F | LAS014DB4-F | LAS014DB7-F |
|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 1.454 | 1.454 | 1.454 |
| Unit Case Resolution (WxH) |
416 x 234 | 416 x 234 | 416 x 234 |
| Unit Case Dimensions (WxHxD, mm) |
604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 |
| Weight per Unit Case / Square Meter (kg) |
5.2/25.3 | 5.2/25.3 | 5.2/25.3 |
| Service access | Front | Front | Front |
| Min. Brightness (After Calibration, cd/m²) |
600 | 600 | 600 |
| Color Temperature | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/140 | 160/140 | 160/140 |
| Brightness Uniformity | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | 7,000 | 7,000 | 7,000 |
| Processing Depth (bit) | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
54/180 | 54/180 | 54/180 |
| Power Consumption (W/m², Max.) |
874 | 874 | 874 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,000 | 3,000 | 3,000 |
| Lifetime (Half brightness, hrs)* |
100,000 | 50,000 | 100,000 |
| Operating Temperature(°C) / Humidity |
-10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH |
* Models may vary by region. Check with local salesteam.
| Model Name | LAS015DB2-F | LAS015DB4-F | LAS015DB7-F |
|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 1.575 | 1.575 | 1.575 |
| Unit Case Resolution (WxH) |
384 x 216 | 384 x 216 | 384 x 216 |
| Unit Case Dimensions (WxHxD, mm) |
604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 |
| Weight per Unit Case / Square Meter (kg) |
5.2/25.3 | 5.2/25.3 | 5.2/25.3 |
| Service access | Front | Front | Front |
| Min. Brightness (After Calibration, cd/m²) |
600 | 600 | 600 |
| Color Temperature | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/140 | 160/140 | 160/140 |
| Brightness Uniformity | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | 7,000 | 7,000 | 7,000 |
| Processing Depth (bit) | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
54/180 | 54/180 | 54/180 |
| Power Consumption (W/m², Max.) |
874 | 874 | 874 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,000 | 3,000 | 3,000 |
| Lifetime (Duration of Half Brightness in Hours) |
100,000 | 50,000 | 100,000 |
| Operating Temperature(°C) / Humidity |
-10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH |
* Models may vary by region. Check with local salesteam.
| Model Name | LAS018DB2-F | LAS018DB4-F | LAS018DB7-F |
|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 1.89 | 1.89 | 1.89 |
| Unit Case Resolution (WxH) |
320 x 180 | 320 x 180 | 320 x 180 |
| Unit Case Dimensions (WxHxD, mm) |
604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 |
| Weight per Unit Case / Square Meter (kg) |
5.2/25.3 | 5.2/25.3 | 5.2/25.3 |
| Service access | Front | Front | Front |
| Min. Brightness (After Calibration, cd/m²) |
600 | 600 | 600 |
| Color Temperature | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/140 | 160/140 | 160/140 |
| Brightness Uniformity | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | 7,000 | 7,000 | 7,000 |
| Processing Depth (bit) | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
54/180 | 54/180 | 54/180 |
| Power Consumption (W/m², Max.) |
874 | 874 | 874 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,000 | 3,000 | 3,000 |
| Lifetime (Duration of Half Brightness in Hours) |
100,000 | 50,000 | 100,000 |
| Operating Temperature(°C) / Humidity |
-10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH |
* Models may vary by region. Check with local salesteam.
| Model Name | LAS025DB2-F | LAS025DB4-F | LAS025DB7-F |
|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.52 | 2.52 | 2.52 |
| Unit Case Resolution (WxH) |
240 x 136 | 240 x 136 | 240 x 136 |
| Unit Case Dimensions (WxHxD, mm) |
604.8x340.2x72.5 | 604.8x340.2x72.5 | 604.8x340.2x72.5 |
| Weight per Unit Case / Square Meter (kg) |
5.2/25.3 | 5.2/25.3 | 5.2/25.3 |
| Service access | Front | Front | Front |
| Min. Brightness (After Calibration, cd/m²) |
600 | 600 | 600 |
| Color Temperature | 3,000 - 10,000 | 3,000 - 10,000 | 3,000 - 10,000 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/140 | 160/140 | 160/140 |
| Brightness Uniformity | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | 7,000 | 7,000 | 7,000 |
| Processing Depth (bit) | 16 | 16 | 16 |
| Power Consumption (W/Unit, Avg./Max.) |
54/180 | 54/180 | 54/180 |
| Power Consumption (W/m², Max.) |
874 | 874 | 874 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,000 | 3,000 | 3,000 |
| Lifetime (Duration of Half Brightness in Hours) |
100,000 | 50,000 | 100,000 |
| Operating Temperature(°C) / Humidity |
-10° to 40°/10-80％RH | -10° to 40°/10-80％RH | -10° to 40°/10-80％RH |
* Models may vary by region. Check with local salesteam.
