Versatile Series
Contact Us

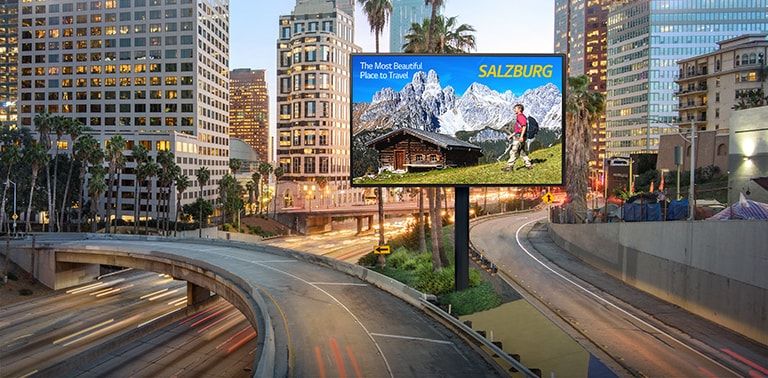

GSCA-01-GSCA-Versatile-Series-Outdoor-LED-Signage-ID-D GSCA-01-GSCA-Versatile-Series-Outdoor-LED-Signage-ID-M

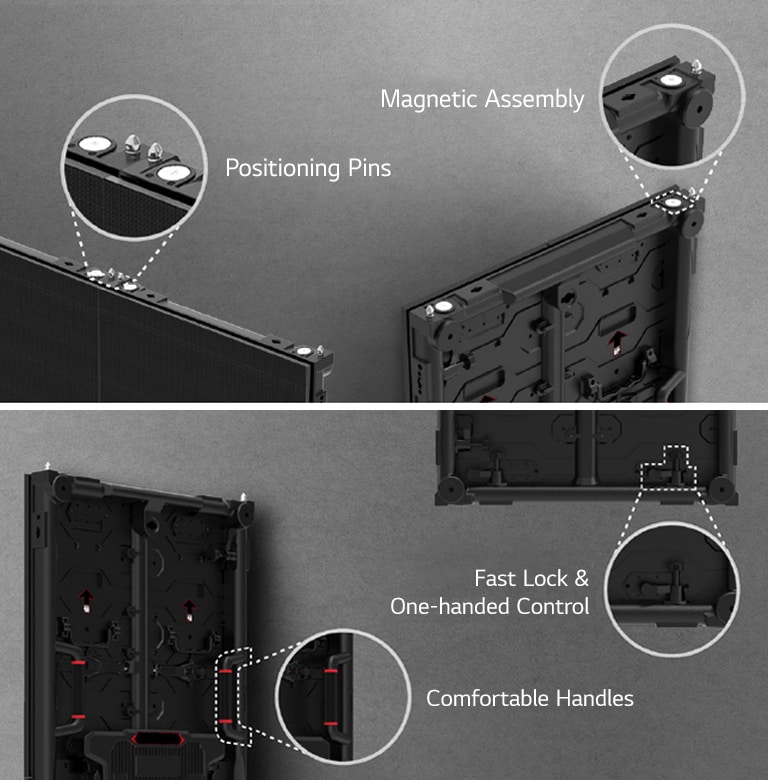

Fast Installation

Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Fast Installation Fast Installation
Easy Maintenance Easy Maintenance

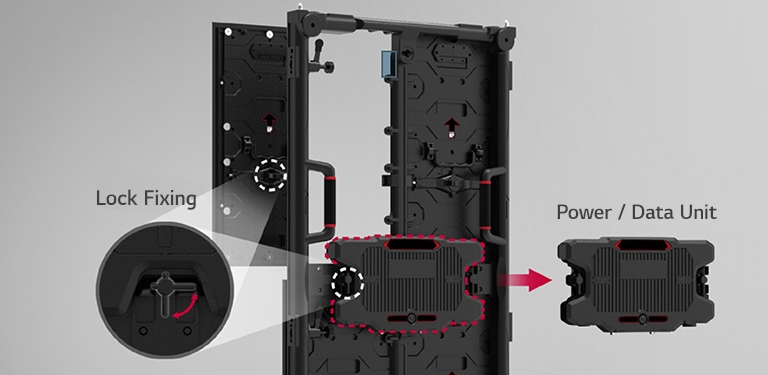

Easy Maintenance

The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

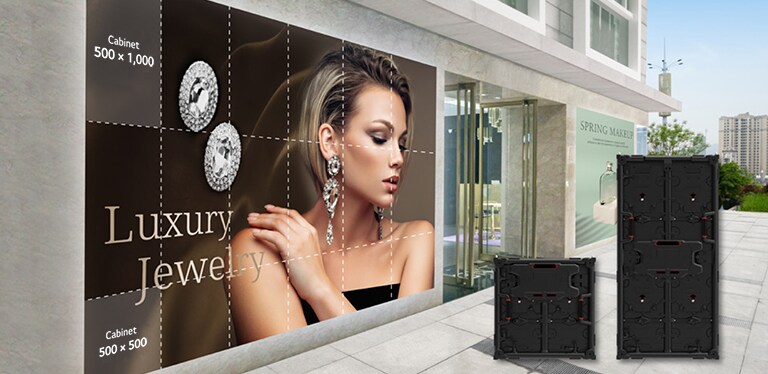

Two Cabinet Options

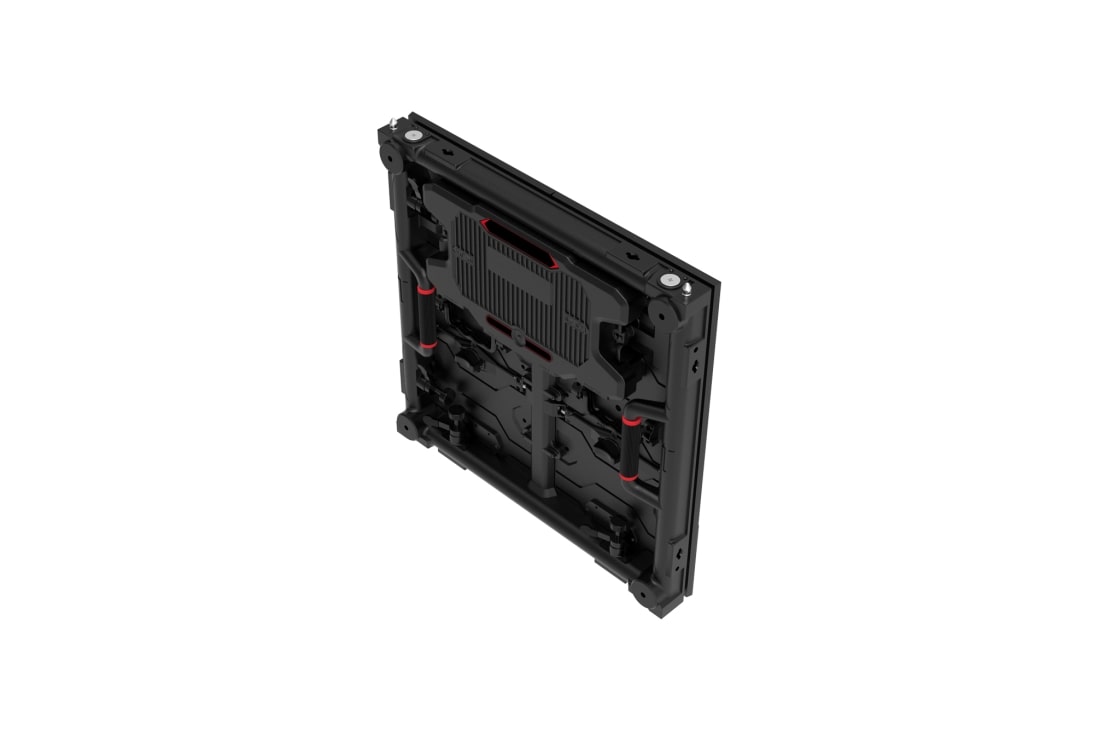

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.
Two Cabinet Options Two Cabinet Options

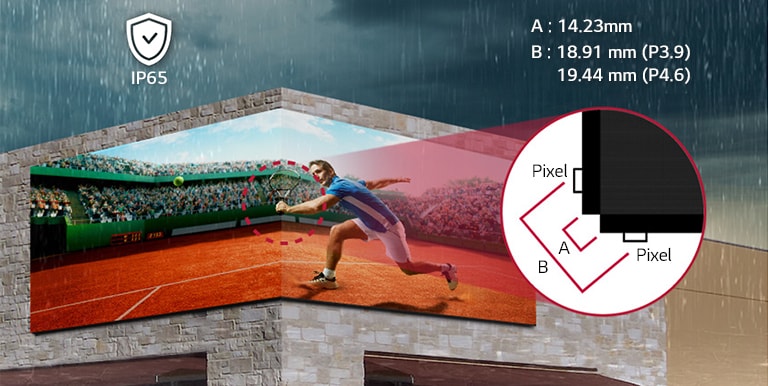

IP Rated Weatherproof
& 90° Corner Design

The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.
IP Rated Weatherproof & 90° Corner Design IP Rated Weatherproof & 90° Corner Design

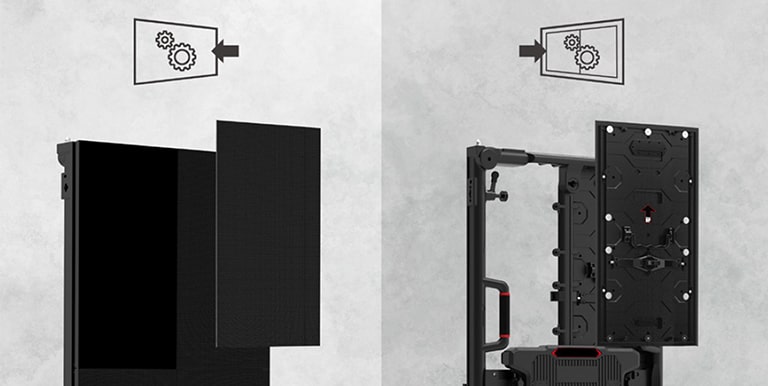

Front or Rear Serviceability Front or Rear Serviceability

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

Explore more showroom at Digital Connect

Close
Physical Parameters
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    3.91
  • Module Resolution (W x H)
    64 × 128
    Module Dimensions (W x H, mm)
    250 × 500
  • Weight per Module (kg)
    1.40
    No. of Modules per Cabinet (W × H)
    2 × 2 / 2 × 1 (Half-sized)
  • Cabinet Resolution (W × H)
    128 × 256 / 128 × 128 (Half-sized)

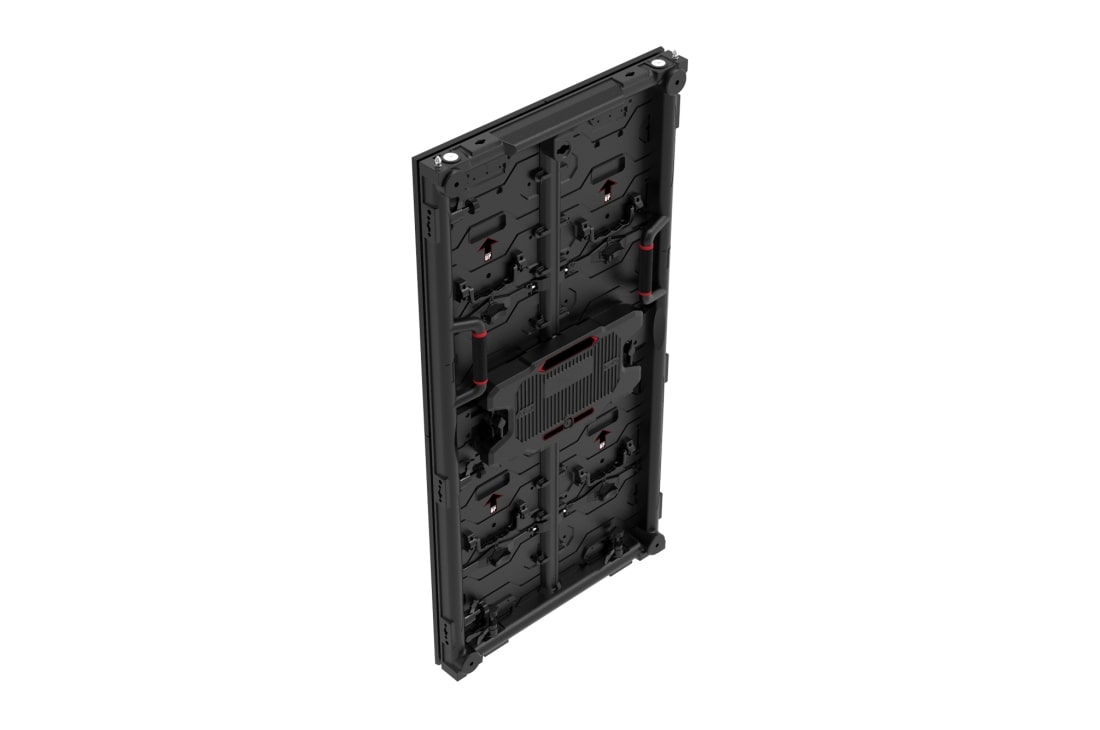

    Cabinet Dimensions (W x H x D, mm)
    500 × 1,000 × 66.05
    500 × 500 × 66.05 (Half-sized)
  • Cabinet Surface Area (m²)
    0.500 / 0.250 (Half-sized)
    Weight per Cabinet (kg/cabinet)
    12.5 / 7.9 (Half-sized)
  • Weight per Square Meter (kg/m²)
    24.9 / 31.7 (Half-sized)
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet
    ± 0.3 mm
    Cabinet Material
    Die-casting Magnesium
  • Service Access
    Front or Rear (One Option Only)
Optical Parameter
  • Min. Brightness (After Calibration)
    5,000
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal/Vertical)
    160 / 155
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    6,000
  • Processing Depth (bit)
    14
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    300 / 150 (Half-sized)
    Power Consumption (W/Cabinet, Avg.)
    100 / 50 (Half-sized)
  • Power Consumption (W/m², Max.)
    600
    Heat Dissipation (BTU/h/Cabinet, Max.)
    1024 / 512 (Half-sized)
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    341 / 171 (Half-sized)
    Heat Dissipation (BTU/h/m², Max.)
    2047
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20℃ to +45℃
  • Operating Humidity
    10-99%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP65
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS
Controller
  • Controller
    LCIN006
Series
  • Series
    GSCA
  • Dimension
    • (2D Drawing) LG GSCA0xx-GN-series.dwg
    • (2D Drawing) LG GSCA0xx-GN2-series.dwg
    • (2D Drawing) LG GSCA0xx-GN-series.pdf
    • (2D Drawing) LG GSCA0xx-GN2-series.pdf
  • Datasheet
    • LG Versatile LED_GSCA series_Datasheet(web)_2005.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
