Eye-level Accessible LED
Contact Us

Eye-level Accessible LED

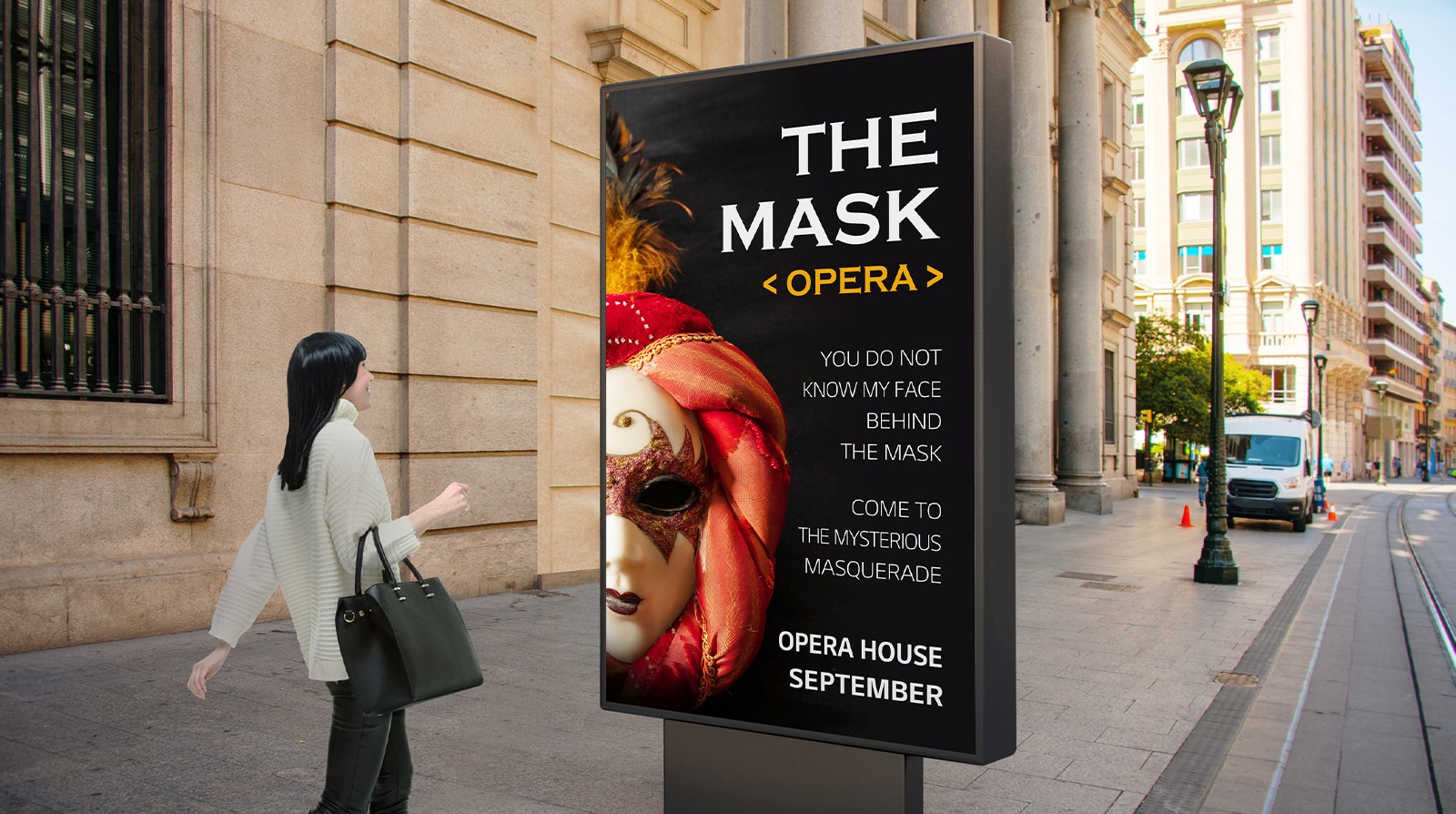

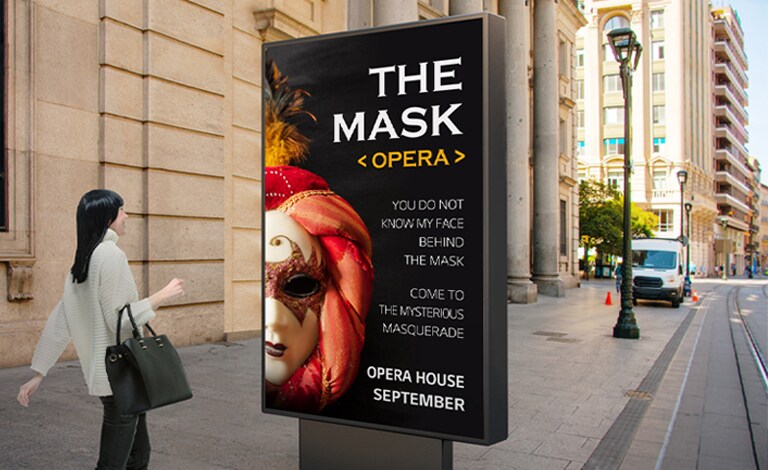

A display as tall as a person is installed at eye level on the street, and a woman who is walking past is watching a clear-image-quality opera advertisement on the display’s screen. A display as tall as a person is installed at eye level on the street, and a woman who is walking past is watching a clear-image-quality opera advertisement on the display’s screen.
* All images in this page are for illustrative purposes only.

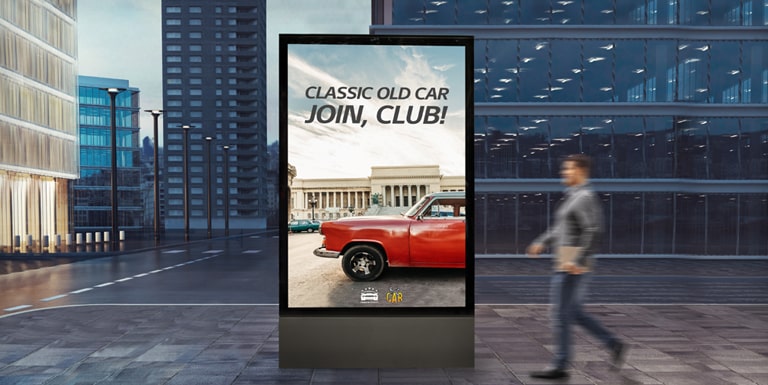

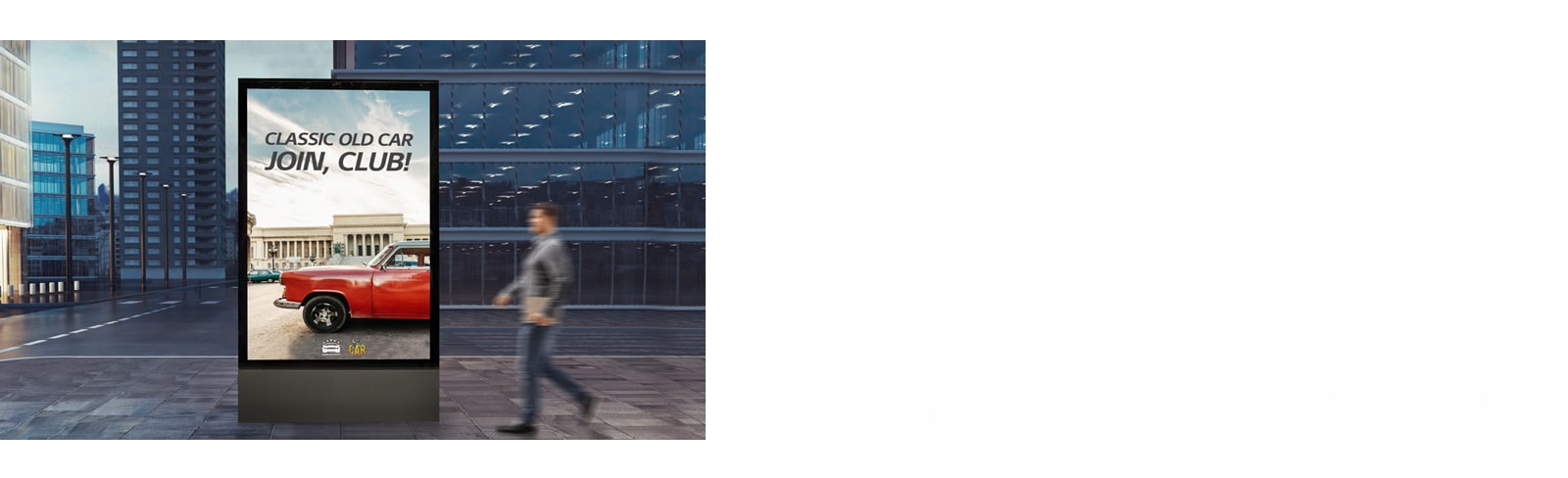

A large display is installed at eye level on the street. A large display is installed at eye level on the street.

Eye-level Pitch for Outdoor

Unlike the existing large-scale screen that used to be installed high to secure visibility, the GSED series has a lower pixel pitch of 2.5 mm, which allows installment for eye-level accessibility and to accurately display images even on a smaller screen.

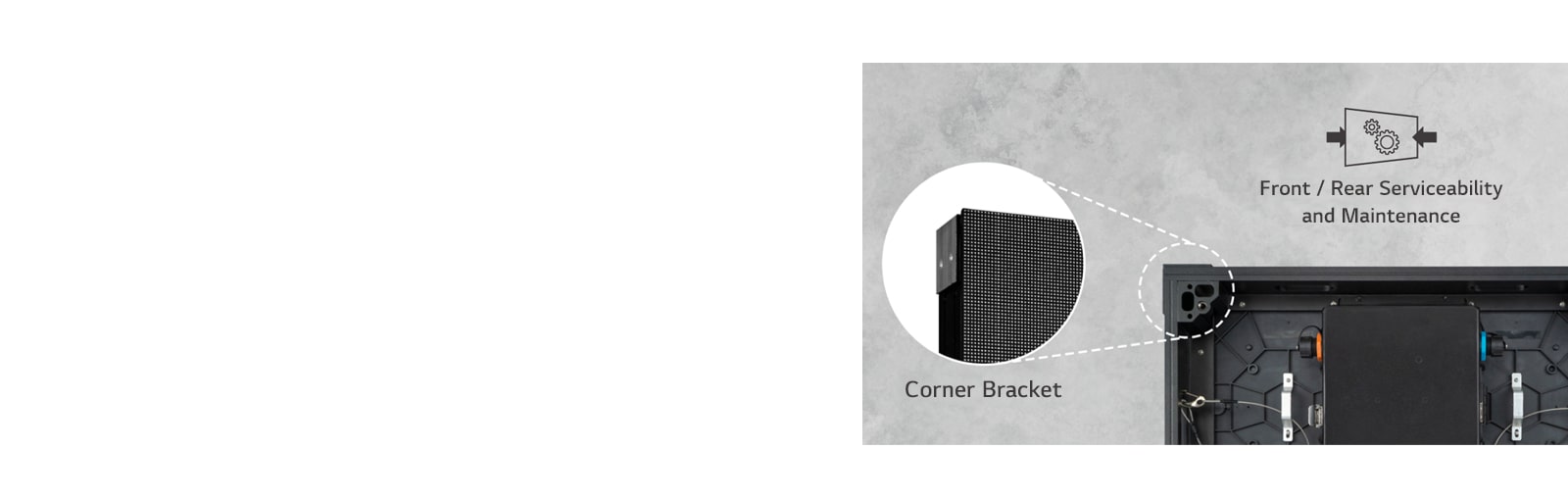

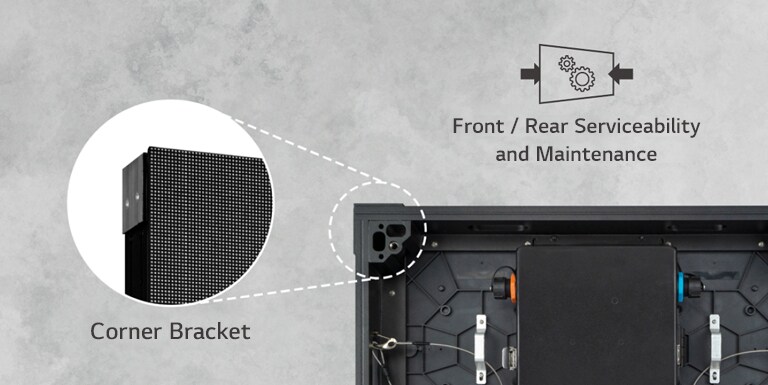

It shows the enlarged image of a corner bracket which is on the rear product. It shows the enlarged image of a corner bracket which is on the rear product.

Design for Durability and Easy Maintenance

The GSED series corner brackets provide a solid installation and reduce the risk of twisting. Its accessibility to the front and rear sides allows for easy maintenance for various installation environments.

Signal Redundancy Support

The GSED series is designed to support redundancy of signal, providing users with comfort. With an additional system controller, customers can get continuous operation while the dual controllers can reduce screen failures with bi-directional signal input.

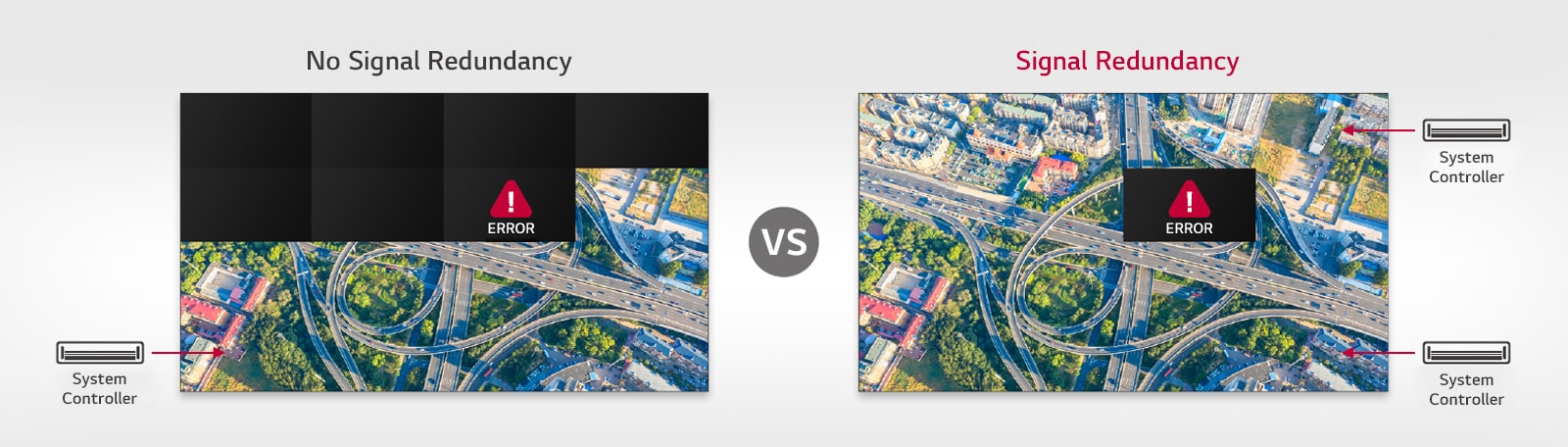

In the case of no signal redundancy, the error is blacked out starting at the beginning of the display. However, in the case of signal redundancy, only the error part is blacked out. In the case of no signal redundancy, the error is blacked out starting at the beginning of the display. However, in the case of signal redundancy, only the error part is blacked out.
* To use Signal redundancy properly, video transmission system has to be arranged suitably. Please check it with LG engineer to confirm it.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GSED series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

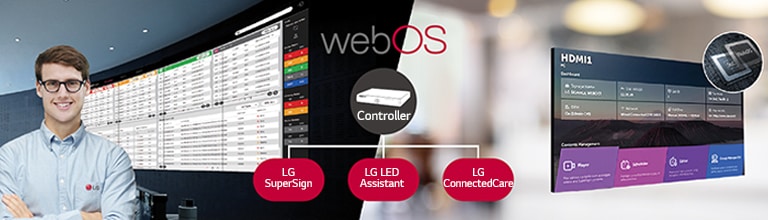

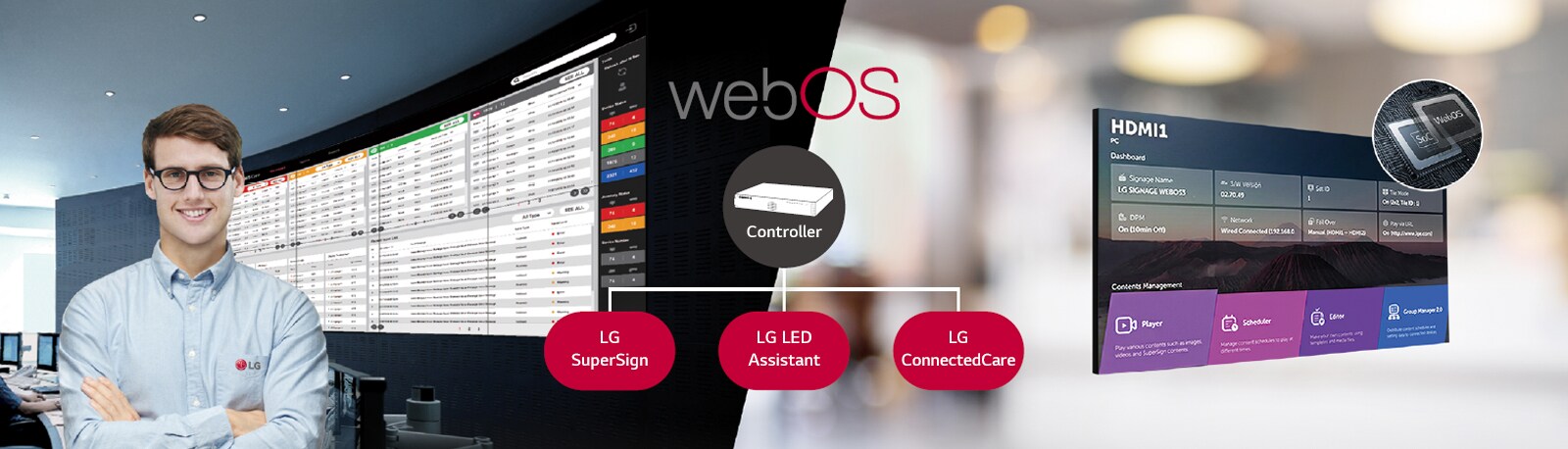

The LG employee is remotely monitoring the GSED series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSED series to be compatible with LG software solutions. The LG employee is remotely monitoring the GSED series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSED series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.
Close
Physical Parameters
  • Pixel Configuration
    Single SMD
    Pixel Pitch(mm)
    2.50
  • Module Resolution (WxH)
    96x108
    Module Dimensions(WxH,mm)
    240x270
  • Weight per Module (kg)
    1.05
    No. of Modules per Cabinet (WxH)
    2 x 2
  • Cabinet Resolution (WxH)
    192x216
    Cabinet Dimensions (W x H x D, mm)
    480x540x70
  • Cabinet Surface Area (㎡)
    0.260
    Weight per Cabinet (kg/unit)
    8.5
  • Weight per Square Meter (kg/m²)
    32.7
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet (mm)
    ±1.0
    Cabinet Material
    Aluminum
  • Service Access
    Front and Rear
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    4,000
    Color Temperature (K)
    3,500~8,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    4,000:1
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    180
    Power Consumption (W/Cabinet, Avg.)
    72
  • Power Consumption (W/m², Max.)
    694
    Heat Dissipation (BTU/h/Cabinet, Max.)
    614
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    246
    Heat Dissipation (BTU/h/m², Max.)
    2,368
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30°C to +50°C
  • Operating Humidity
    0~90%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP65
Certification
  • Certification
    CE, FCC, ETL
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    CVEA
90 Degree Corner Cut
  • 90 Degree Corner Cut
    Yes
Series
  • Series
    GSED
  • Dimension
    • GSED025-GD_2D Drawing CAD.dwg
    • GSED025-GD_2D Drawing.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
