LG LED All-in-One
Contact Us

LED Display Supporting FHD Resolution

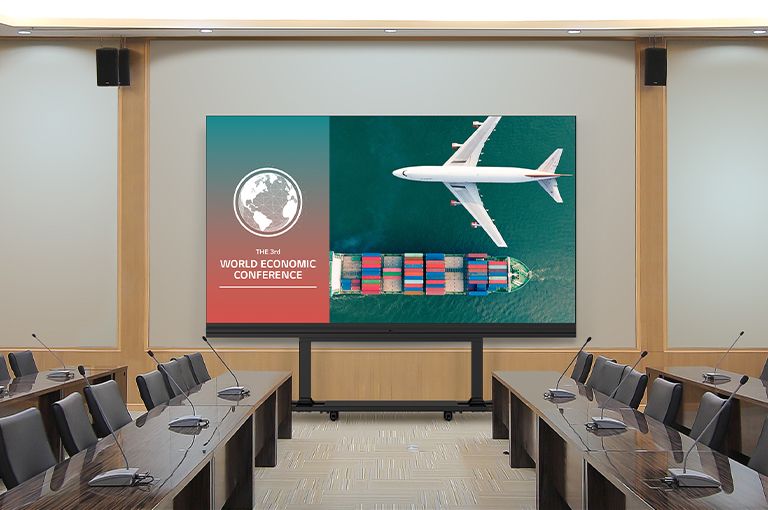

In a spacious meeting room with long tables on both sides, a LABA series which is TAA (Trade Agreements Acts) compliant All-in-One LED model is placed against the wall. The LABA screen displays meeting content vividly. In a spacious meeting room with long tables on both sides, a LABA series which is TAA (Trade Agreements Acts) compliant All-in-One LED model is placed against the wall. The LABA screen displays meeting content vividly.
* All images in this page are for illustrative purposes only and may differ from the actual product.
* Stand accessory needs to be purchased separately.

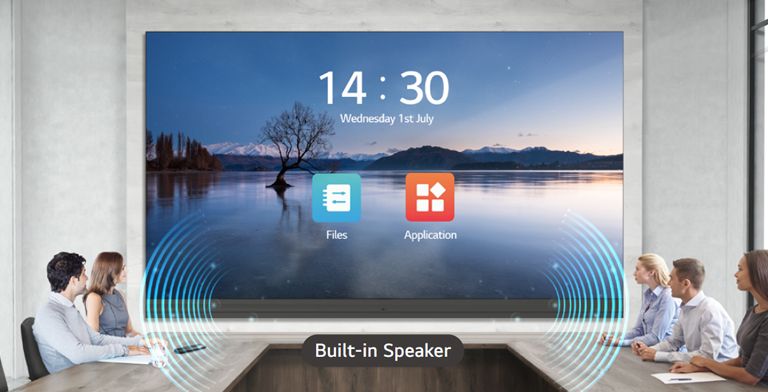

People have a meeting while watching the display and listening sound with the built-in speakers of LABA series, installed in the meeting room. People have a meeting while watching the display and listening sound with the built-in speakers of LABA series, installed in the meeting room.

FHD LED Screen with Built-in Speaker

LABA series with Full HD screen size includes a control box and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

* Only for FHD resolution configuration case
Several tasks that can be done simultaneously are arranged through the LG webOS smart platform. Several tasks that can be done simultaneously are arranged through the LG webOS smart platform.

High Performance with webOS

Built-in Quad Core SoC (System on Chip) can execute several tasks at once for providing smooth content playback. Also, LG webOS Smart Platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools* such as SDK (Software Development Kit), SCAP, sample applications.

* The webOS Signage Developer site (https://webossignage.developer.lge.com) provides SDK tools and documentation for creating apps on LG Digital Signage. This is only open to partners.

Easy Installation (for FHD Resolution Configuration Case)

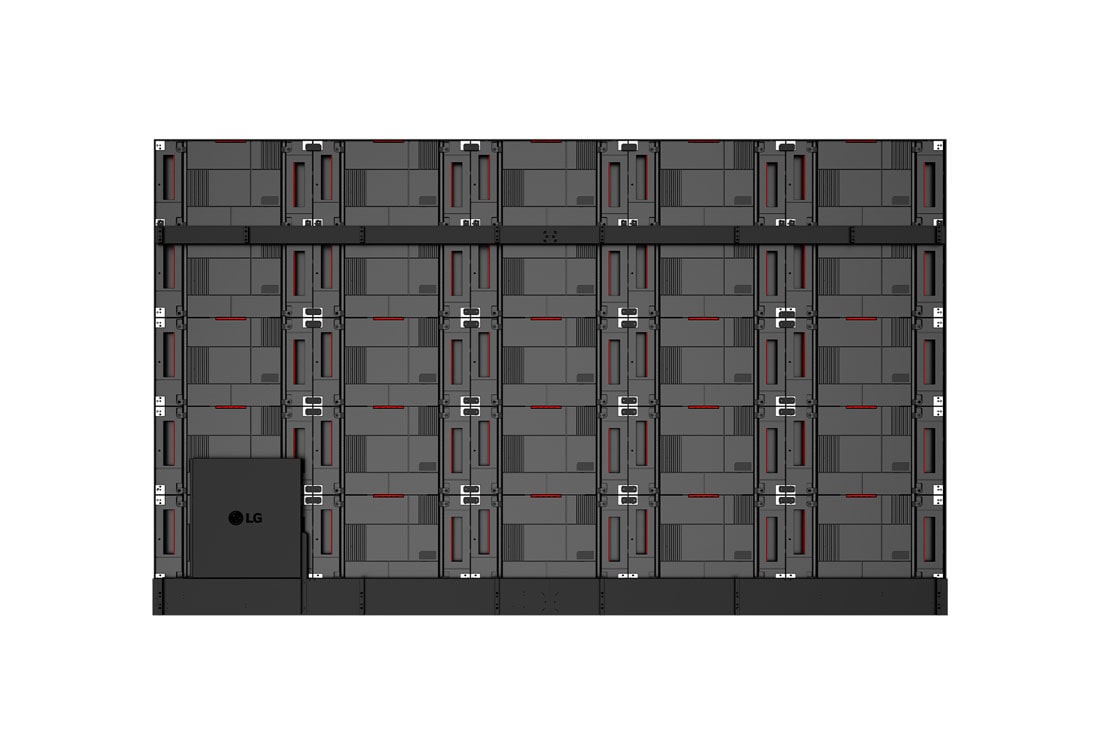

Thanks to the carbon fiber tubes and locks located behind the cabinets, installation is straightforward. Simply place the 5 units of cabinets, connect and secure them with locking catches. Then the assembly is done. 5 cabinets forming a unit are pre-assembled with carbon fiber tubes and each unit can be held tightly with lock catches.

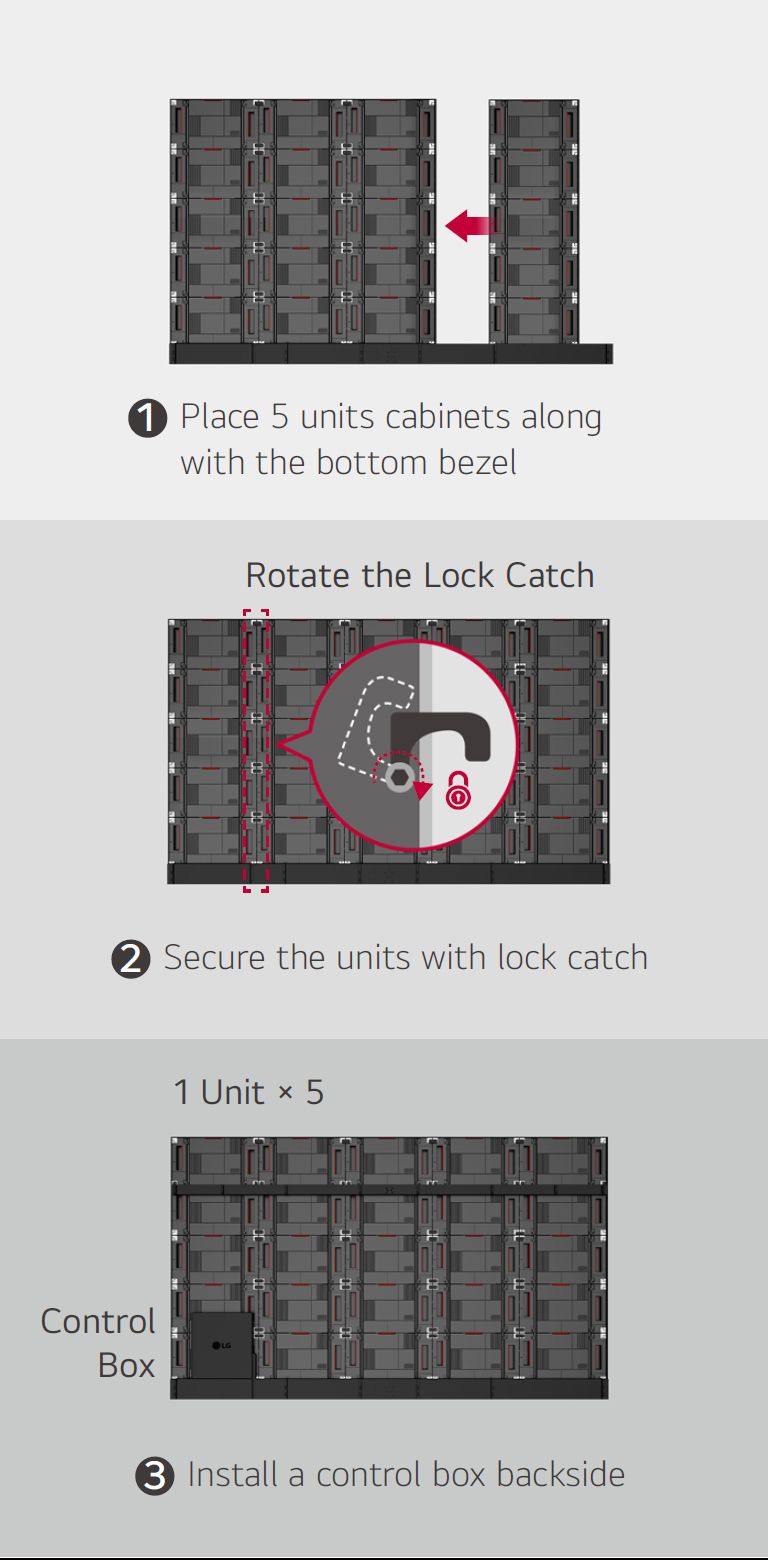

This consists of a total of 3 images illustrating the installation steps to place 5 units of cabinets, secure the units, and install a control box. This shows how LABA series can be installed with ease. This consists of a total of 3 images illustrating the installation steps to place 5 units of cabinets, secure the units, and install a control box. This shows how LABA series can be installed with ease.
* Fixing screws or installing wall mount/accessories is needed additionally.

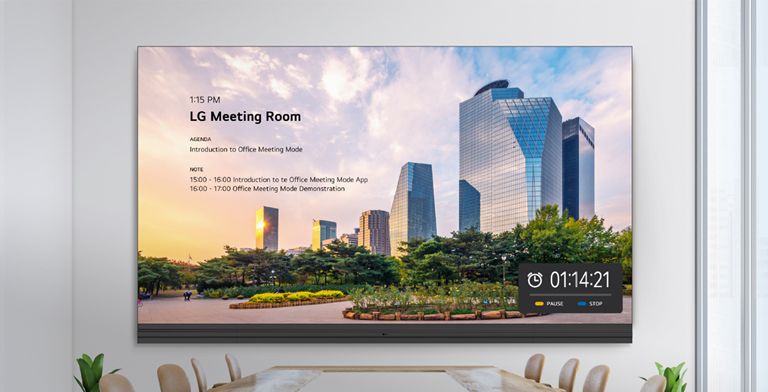

LABA series, which displays meeting room details such as the room number, meeting agenda, timer, etc via its office meeting mode, is installed on the meeting room wall. LABA series, which displays meeting room details such as the room number, meeting agenda, timer, etc via its office meeting mode, is installed on the meeting room wall.

Office Meeting Mode

With Office Meeting Mode, easily configure meeting room details like the room number and current time. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as autobrightness and picture mode.

* Users can enable Office Meeting Mode at EZ Setting menu of the Signage.

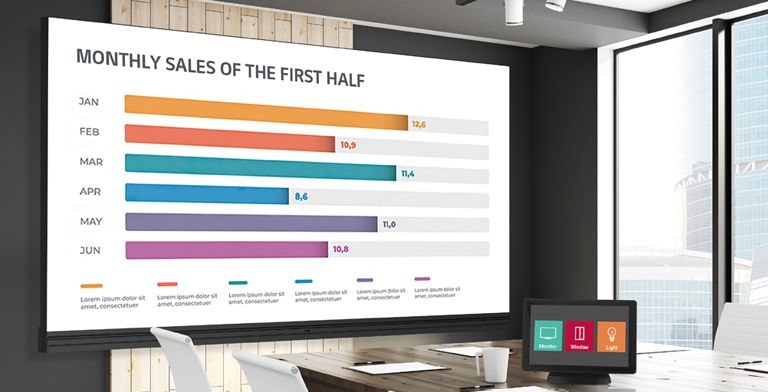

There are one in the meeting rooms with the signage and one of AV control system which helps users control the LABA series. There are one in the meeting rooms with the signage and one of AV control system which helps users control the LABA series.

Compatible with AV Control Systems

The LABA series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

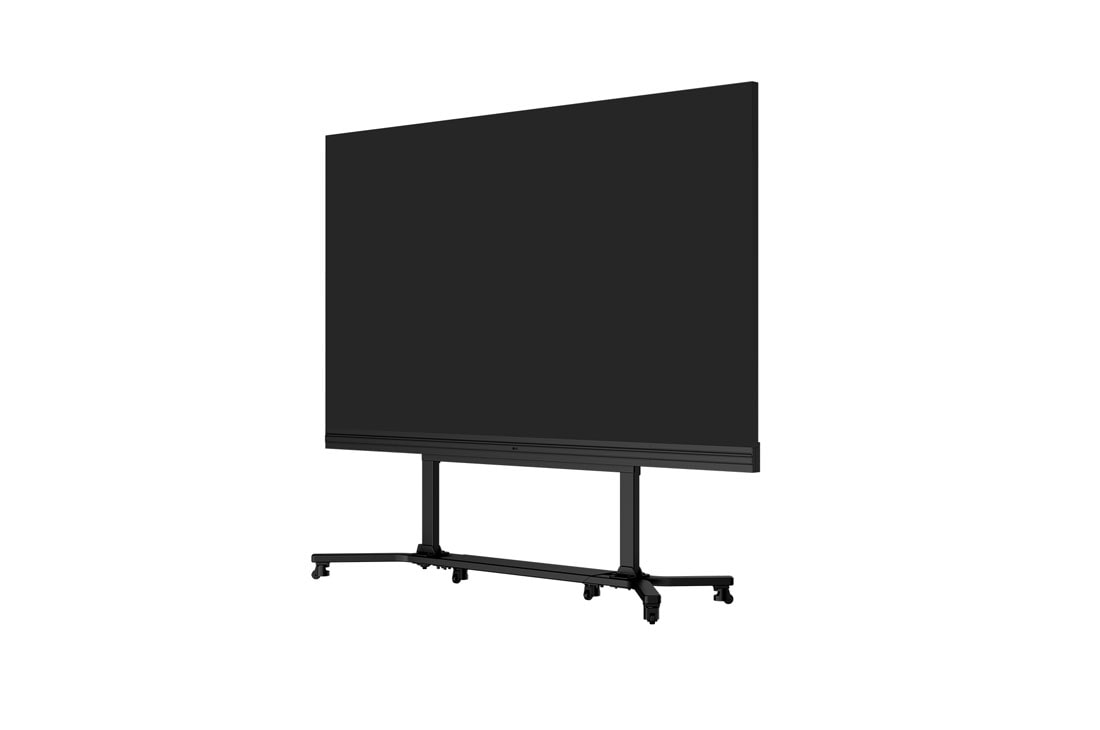

Dedicated Installation Accessories (for FHD Resolution Configuration Case)

The product includes necessary components including the landscape wall mount and tools for installation. The dedicated stand is provided as an option, so that you can easily place it depending on your installation sites.

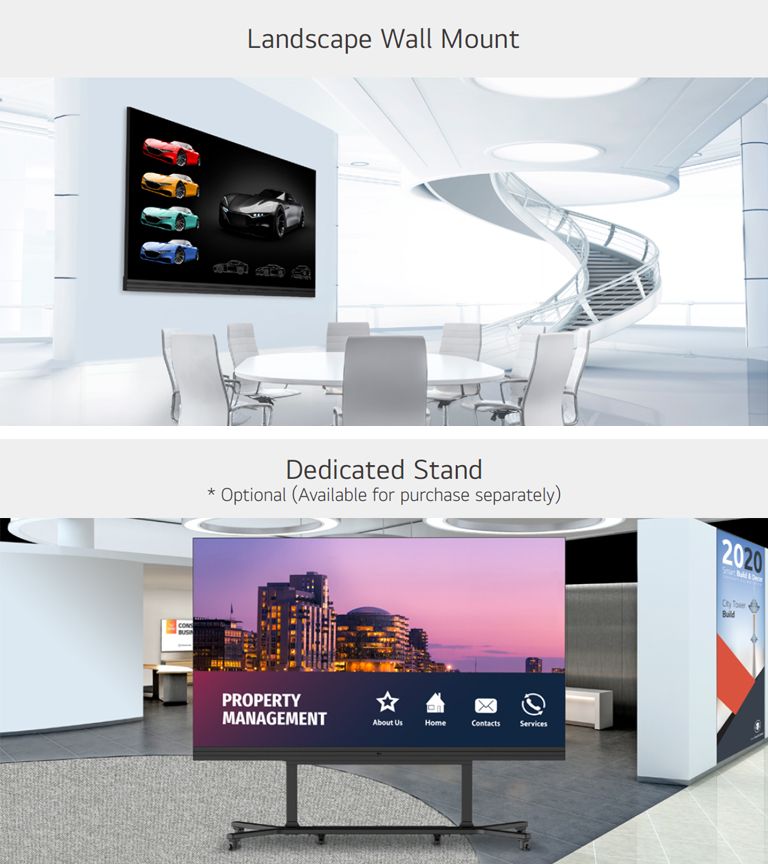

"The LABA series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images. The LABA’s have been installed along with the motorized stand in an event hall." "The LABA series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images. The LABA’s have been installed along with the motorized stand in an event hall."
* Stand accessory needs to be purchased separately.

Display Power Management (DPM)

The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.

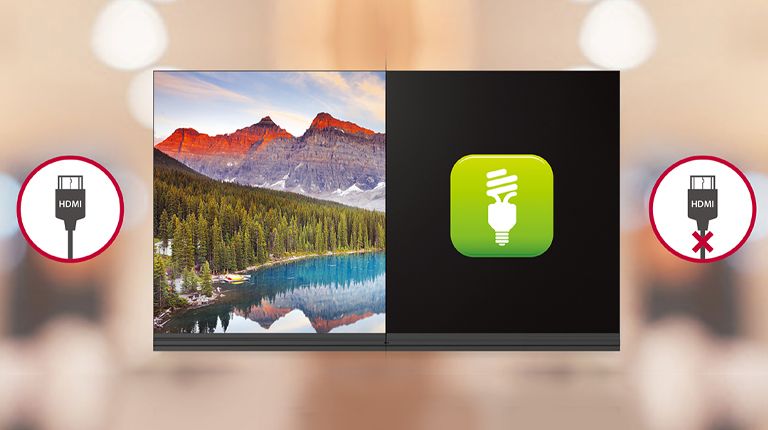

The LABA series can be set to be in standby mode when there is no signal from the input source device. The LABA series can be set to be in standby mode when there is no signal from the input source device.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
The one of LG employee is remotely monitoring the LABA LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare. The one of LG employee is remotely monitoring the LABA LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare.
* The availability of LG ConnectedCare differs by region.
** Stand accessory needs to be purchased separately.
*** LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.
Close
LABA015-GD
  • Notice

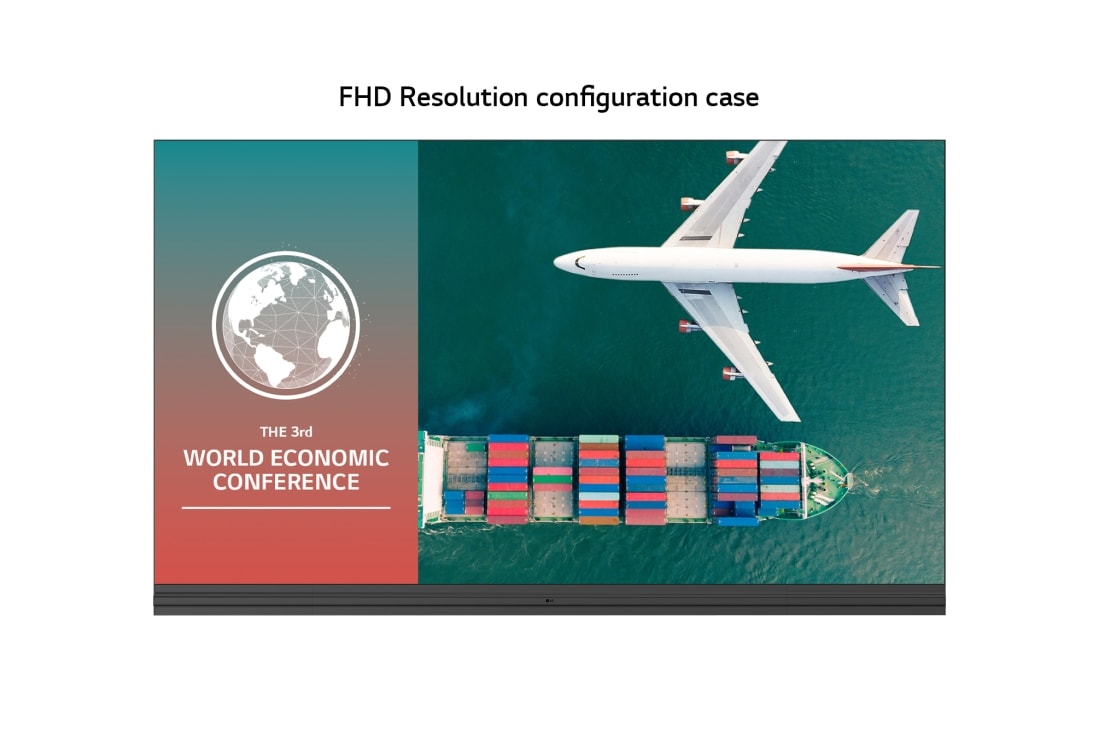

    The below is the specification for FHD Resolution Configuration Case with LABA015-GD 5 × 5
Physical Parameters
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.575
  • Screen Resolution (WxH)
    1,920 × 1,080
    Module Dimensions (W × H, mm)
    151.2 × 340.2
  • No. of Modules per Screen (WxH)
    20 × 5 (Total 100)
    Screen Dimensions (W x H x D, mm)
    3,035 × 1,821.5 × 45.5 (Thickest 83.5)
  • Screen Surface Area (㎡)
    5.14
    Screen Weight (kg)
    154
  • Physical Pixel Density (pixels/m²)
    403,124
    Flatness of Cabinet (mm)
    ≤0.15
  • Cabinet Material
    Die-casting Aluminum
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Max. Brightness (nit, after calibration)
    500
    Color Temperature (K)
    3,200 - 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003 Cx, Cy
  • Contrast Ratio
    8,000 : 1
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/screen, Max.)
    1,600
    Power Consumption (W/screen, Avg.)
    950
  • Power Consumption (W/m², Max.)
    300
    Power Consumption (BTU/h/Screen, Max.)
    5,456
  • Power Consumption (BTU/h/Screen, Avg.)
    3,240
    Power Consumption (BTU/h/㎡, Max.)
    1,023
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0 to +40
  • Operating Humidity
    10-80% RH
    IP Rating (Front / Rear)
    IP50 / IP50
Speaker
  • Speaker
    Built-in (8 W + 8 W)
Certification
  • Certification
    CE, FCC, cTUVus, CB, EMC Class A
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    Embedded
Remote Control

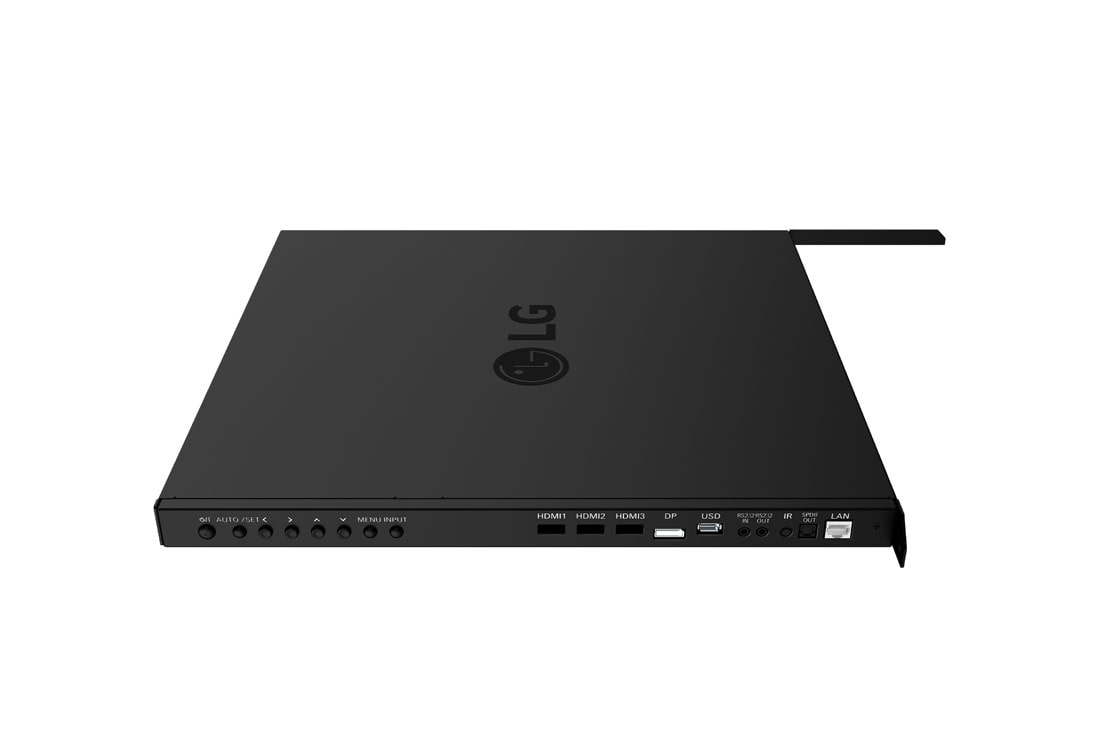

  • I/O Port
    HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out
Series
  • Series
    LABA
  • Datasheet
    • LABA_Datasheet(low)_LG All-in-One Smart LED_240708.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
