LAD033F component-copyModelName

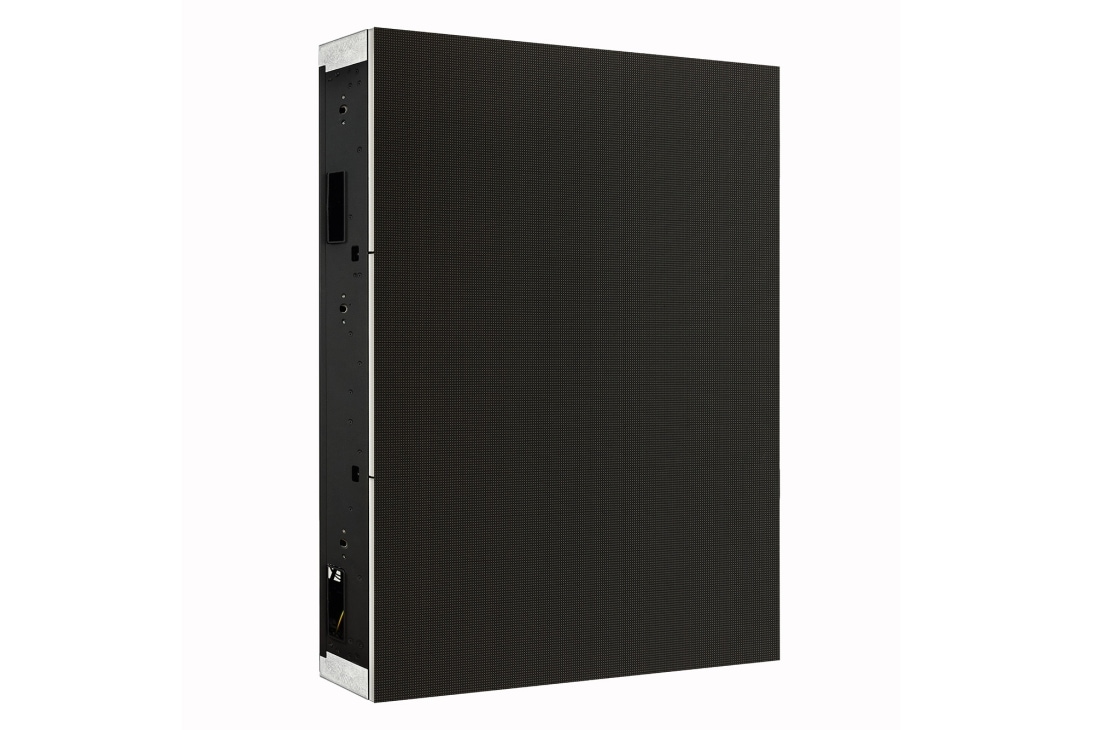

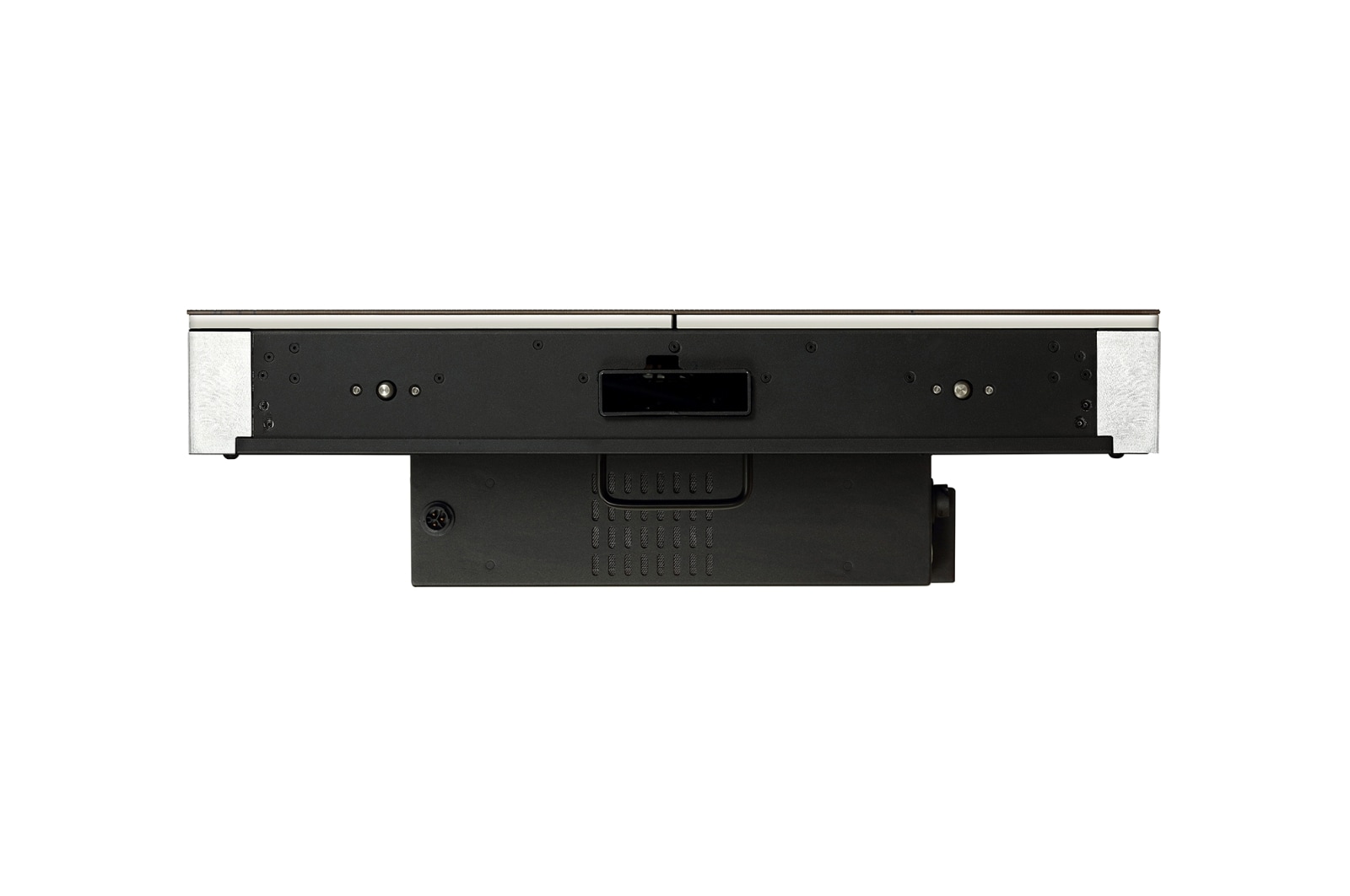

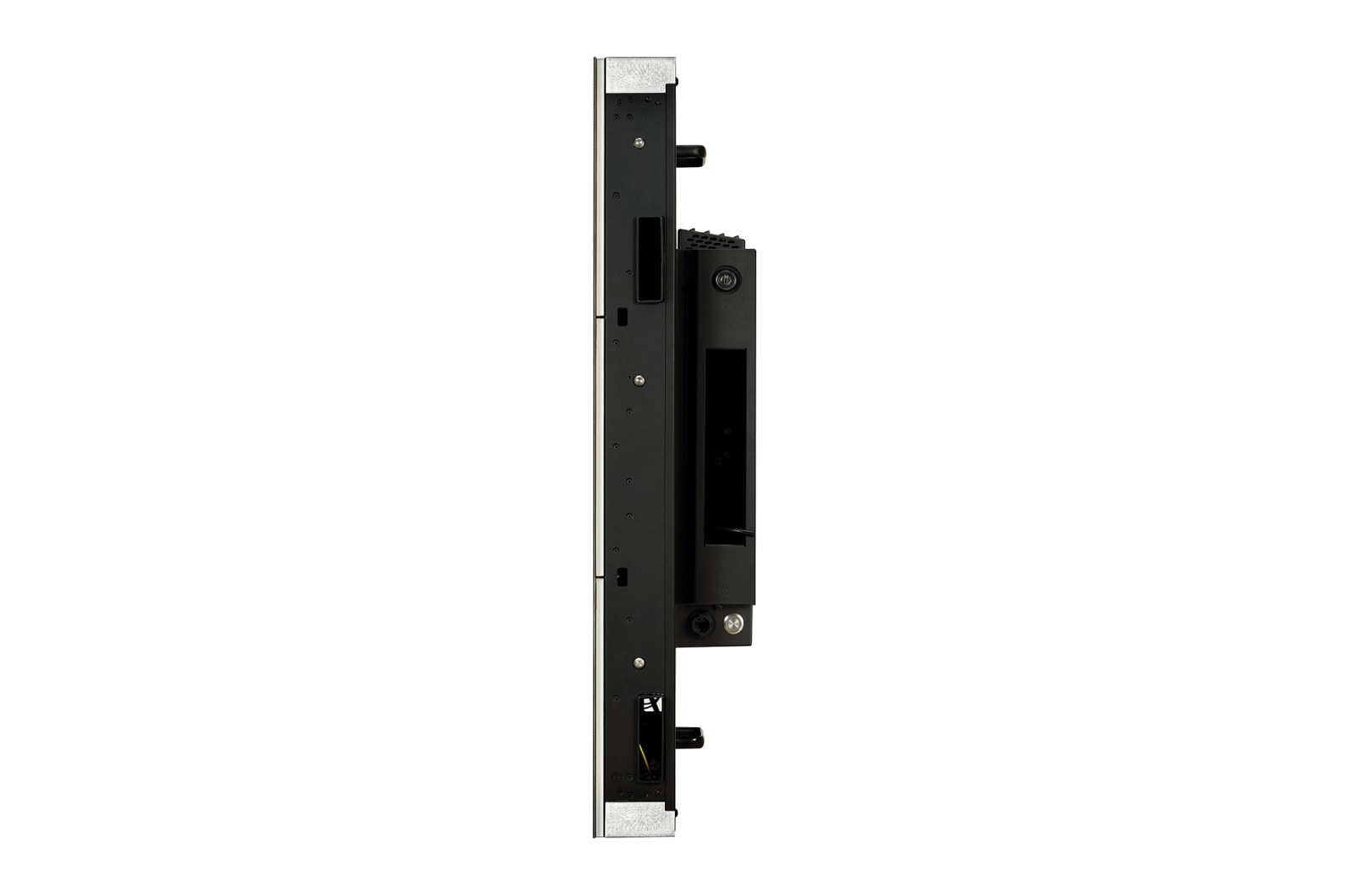

LG Miraclass, 4K Screen

Key Features

Choose your Pitch

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

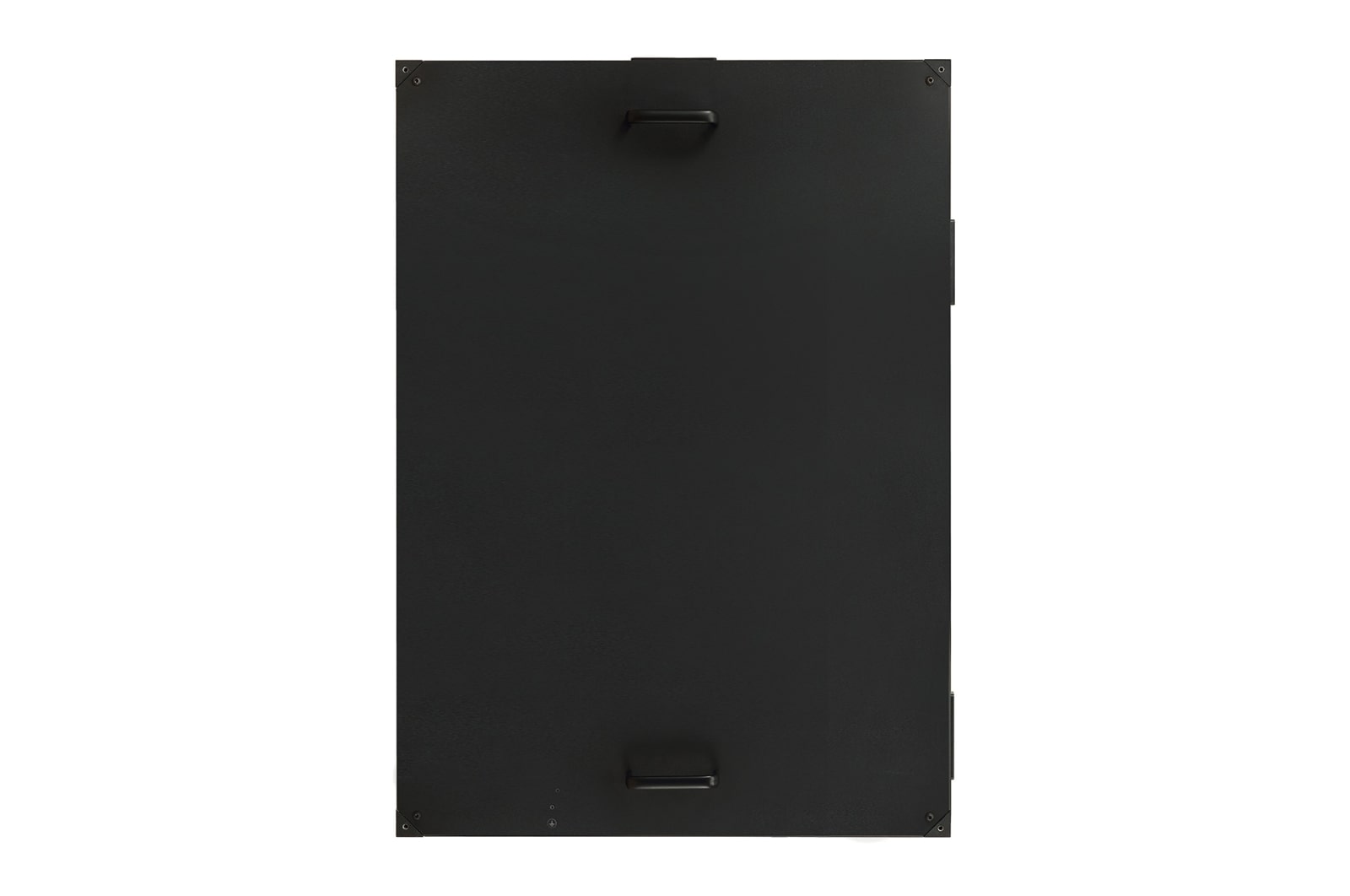

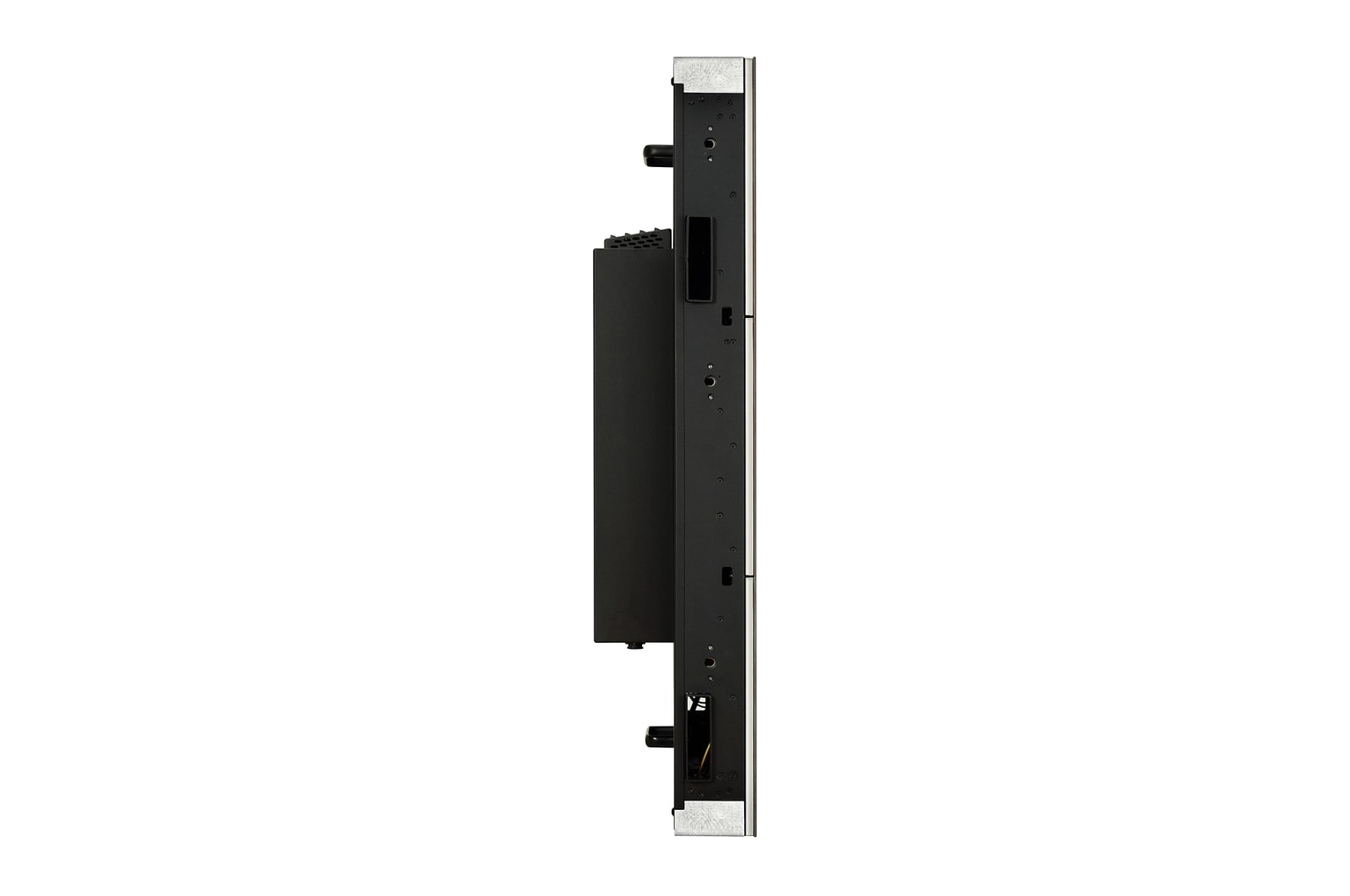

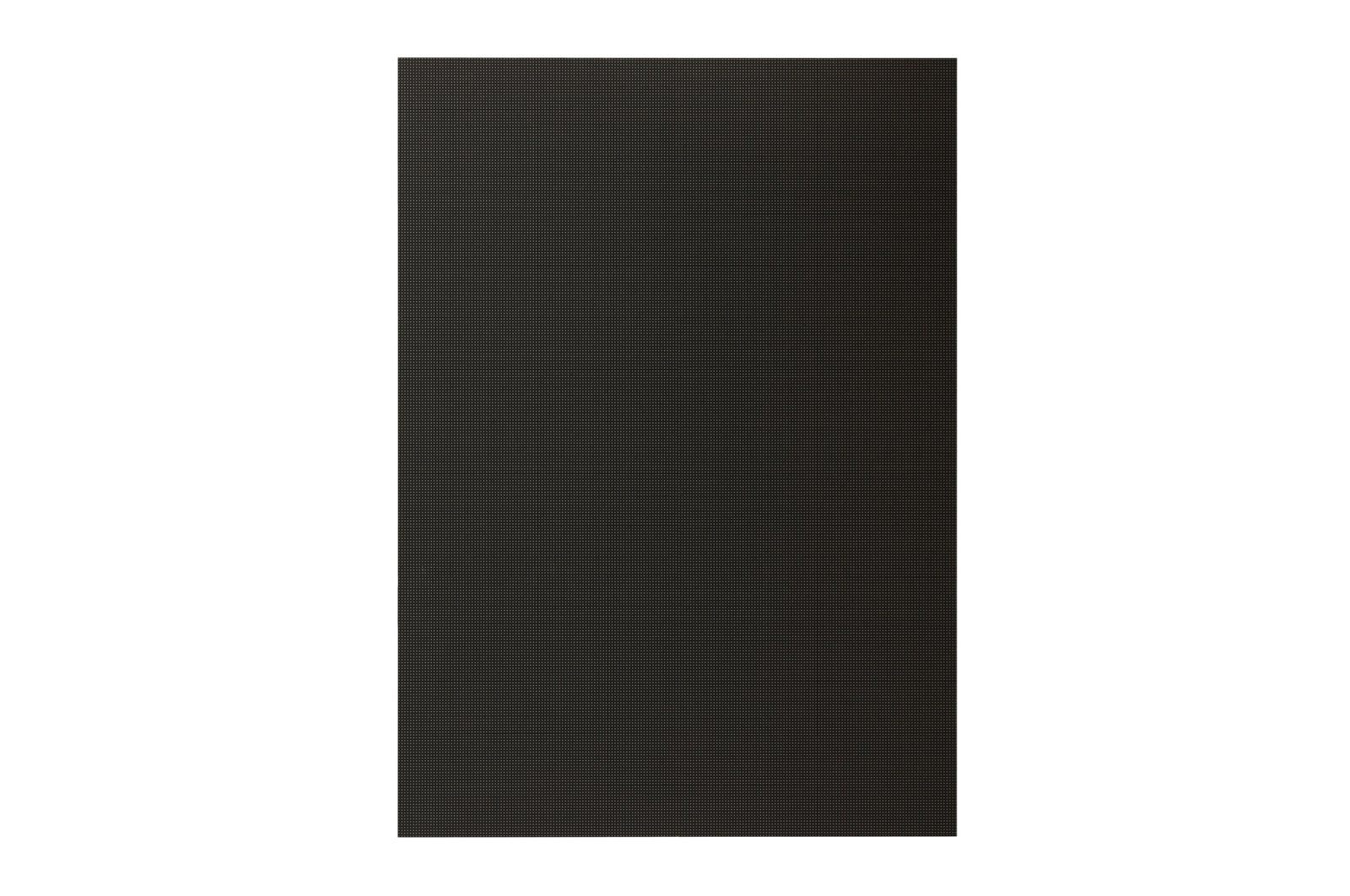

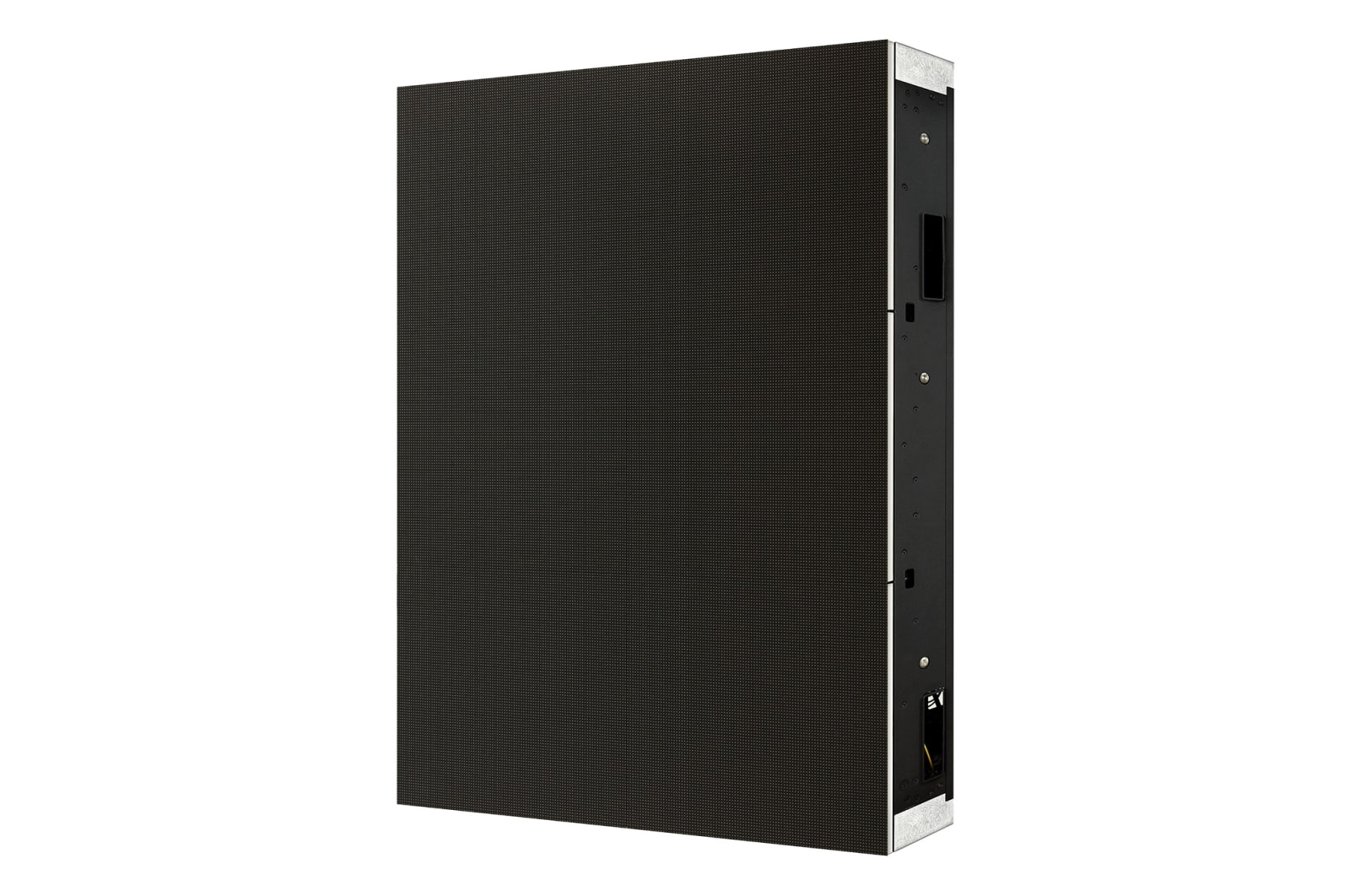

LG Miraclass, 4K Screen
Contact Us
Close
Physical Parameters
  • Pixel Pitch (mm)
    3.3mm
    Pixel Configuration
    SMD
  • LED Lifetime (Half Brightness)
    100,000 Hours
    No. of Modules per Cabinet (WxH)
    6 (2 x 3)
  • Cabinet Resolution (W × H)
    192 x 270
    Cabinet Material
    Iron & Aluminum
  • Cabinet Dimensions (W x H x D, mm)

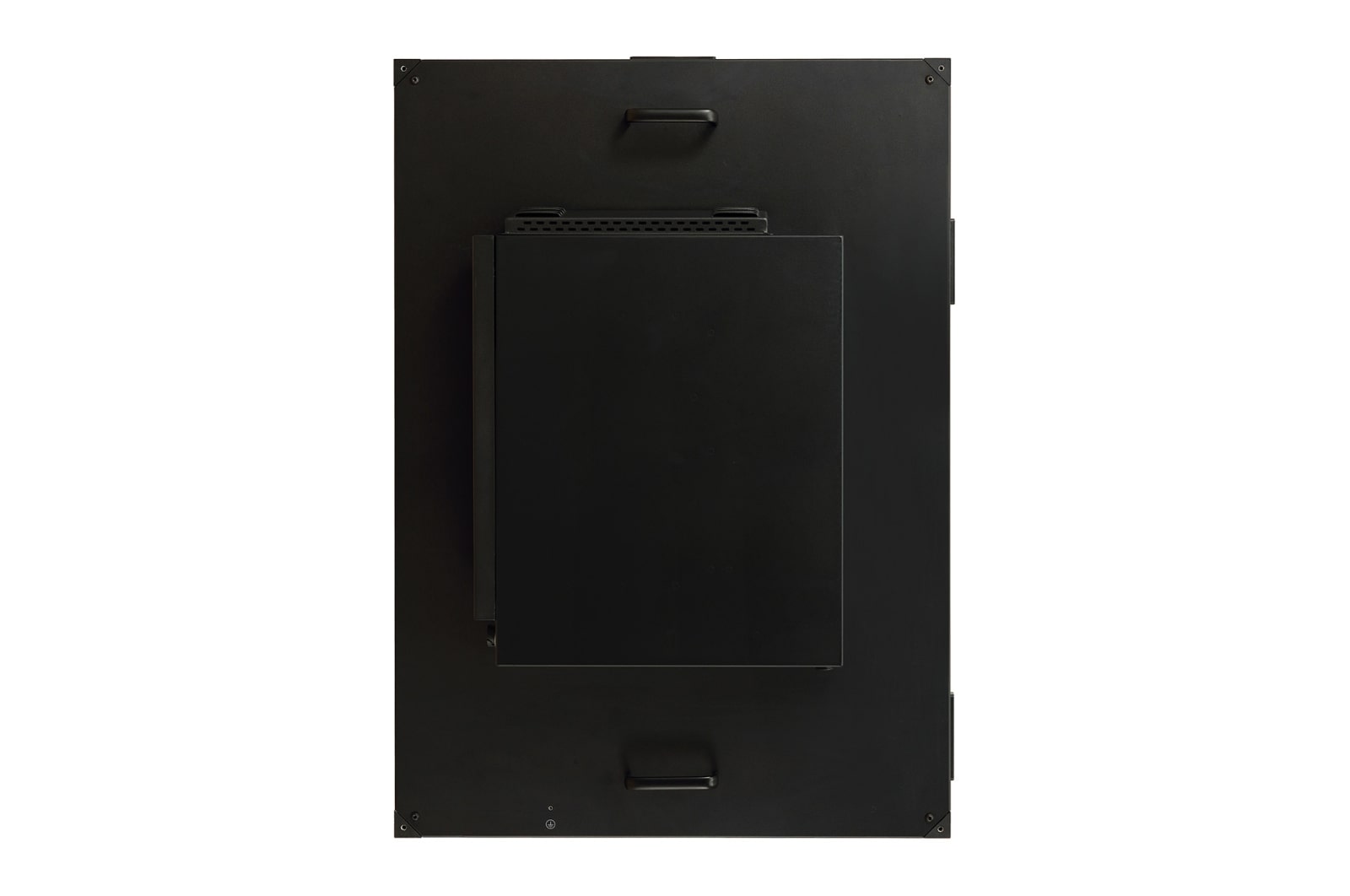

    Main : 640 x 900 x 94 (191 w/back cover)

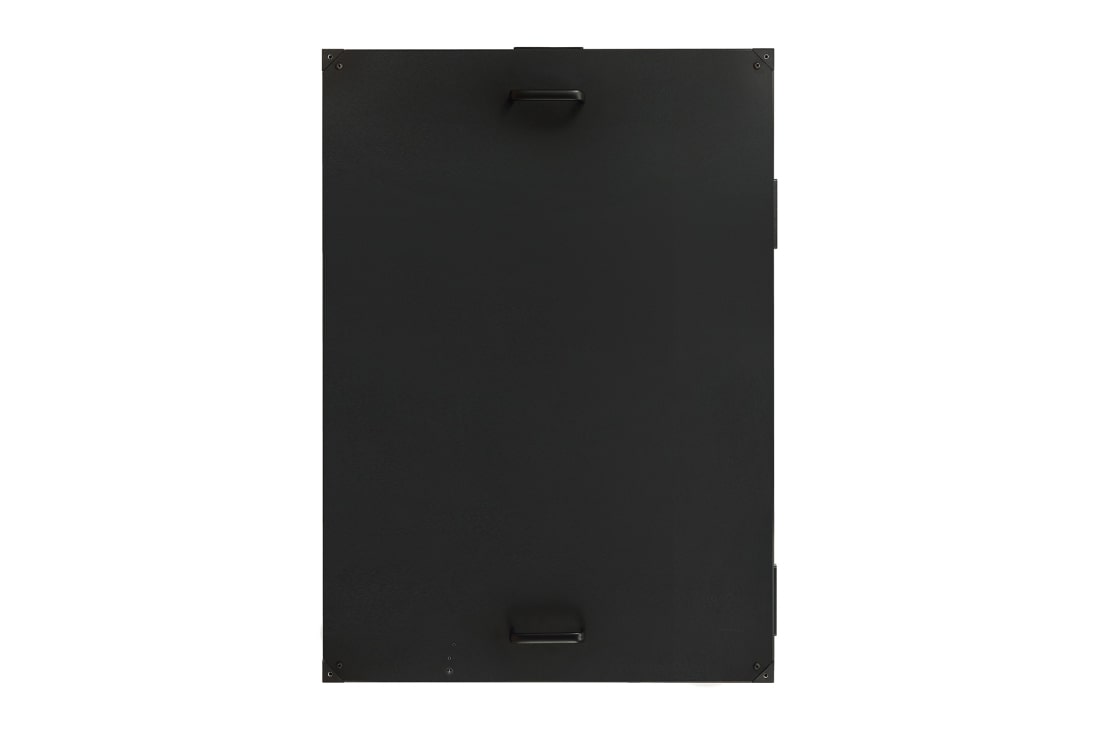

    Secondary : 640 x 900 x 94 (124 w/handle)
    Weight per Cabinet (kg/unit)
    Main : 29
    Secondary : 15
  • Power Consumption (W/Cabinet, 48 nit)
    140 (Main) / 52 (Secondary)
    Power Consumption (W/Cabinet, 100 nit)
    160 (Main) / 70 (Secondary)
  • Service Access
    Rear only
4K Screen Specifications
  • Screen Resolution (WxH, Native)
    4,224 x 2,160
    Physical Pixel Density (pixels/㎡)
    90,000
  • No. of Cabinets per Screen (Resolution, WxH)
    176 (22 x 8)
    Screen Dimensions (W x H, mm)
    14,080 x 7,200 (101 sqm)
  • Screen Weight (kg)
    2,654
    Power Supply (V)
    AC100-240 V ~, 50/60 Hz
  • Power Type
    Built-in Power
    Power Consumption (W/Screen, 48 nit)
    9,240
  • Power Consumption (W/Screen, 100 nit in Only LAD033F)
    12,410
    Operating Temperature(℃)
    0℃ to 40℃
  • Operating Humidity
    10% to 80%
OPTICAL SPECIFICATIONS
  • Video Frame Rate (Hz)
    24, 25, 30, 48, 50, 60, 144@3D
    Refresh Rate (@24Hz)
    3,072
  • Brightness (After Calibration, nit)
    48(DCI) / 55 / 65 / 75 / 100
    Contrast Ratio
    ≥4,000:1
  • Color Space (Gamut)
    DCI P3 Theater
    Visual Viewing Angle (H × V)
    160 × 160
  • Processing Depth (bit)
    16bit
    Bit Rate (Color Processing / Color)
    15 (45 / total)
General
  • Certification
    DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
    Cinema server compatibility
    Dolby IMS3-L
  • Interface
    RJ45, HDMI (on IMS server)
Series
  • Series
    LADF
  • Dimension
    • main-2d_p19_191224.dwg
    • secondary-2d_p20_191224.dwg
    • main-2d_p19_191224.pdf
    • secondary-2d_p20_191224.pdf
  • Datasheet
    • LAD033F_Datasheet(low)_LG Miraclass_240507 1.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
