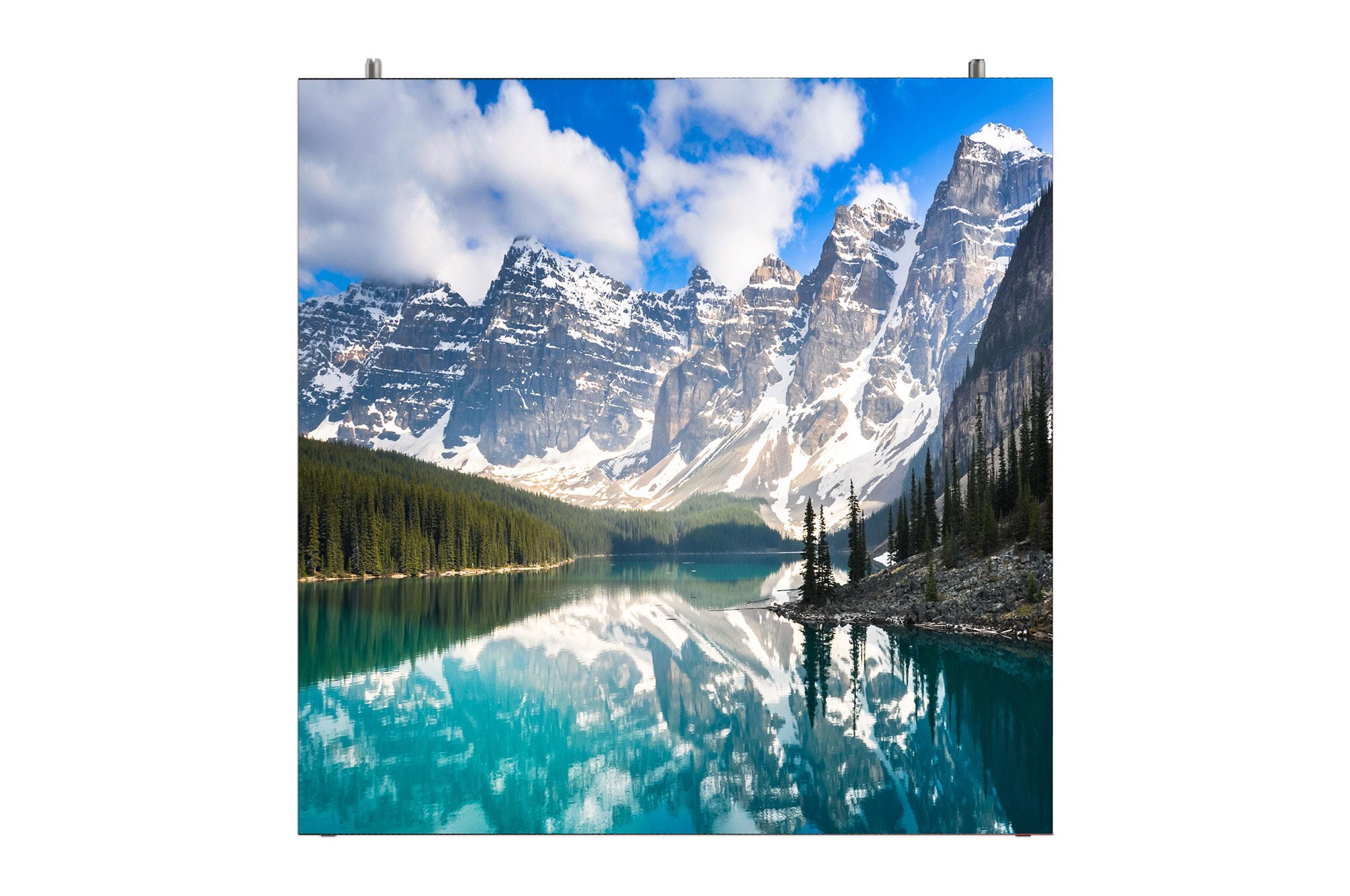

Compact Series

Key Features

Choose your Pitch

component-OBScountrySelectDesc

Compact Series
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    2.50
  • Module Resolution (W x H)
    100x100
    Module Dimensions (W x H, mm)
    250x250
  • Weight per Module (kg)
    0.54
    No. of Modules per Cabinet (W × H)
    2 × 2
  • Cabinet Resolution (W × H)
    200x200
    Cabinet Dimensions (W × H × D)
    500x500x74
  • Cabinet Surface Area (m²)
    0.250
    Weight per Cabinet (kg/cabinet)
    7.5
  • Weight per Square Meter (kg/m²)
    30.0
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet
    ±0.5
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front
    * Min. 100mm needed between cabinet rear surface and back wall.
Optical Parameter
  • Min. Brightness (After Calibration)
    1,000
    Color Temperature
    3,000 - 10,000
  • Visual Viewing Angle (H×V)
    160 × 140
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    8,000
  • Processing Depth (bit)
    16
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    160
    Power Consumption (W/Cabinet, Avg.)
    58
  • Power Consumption (W/m², Max.)
    640
    Heat Dissipation (BTU/h/Cabinet, Max.)
    546
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    198
    Heat Dissipation (BTU/h/m², Max.)
    2,184
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10° to +40°
  • Operating Humidity
    10-80%RH
    IP Rating Front
    IP5X
  • IP Rating Rear
    IP5X
Controller
  • Controller
    LCLG006
Certification
  • Certification
    CE/FCC/cTUVus/CB
Environment
  • Environment
    RoHS/REACH
