Micro LED for Virtual Production
Contact Us

Micro LED for
Virtual Production

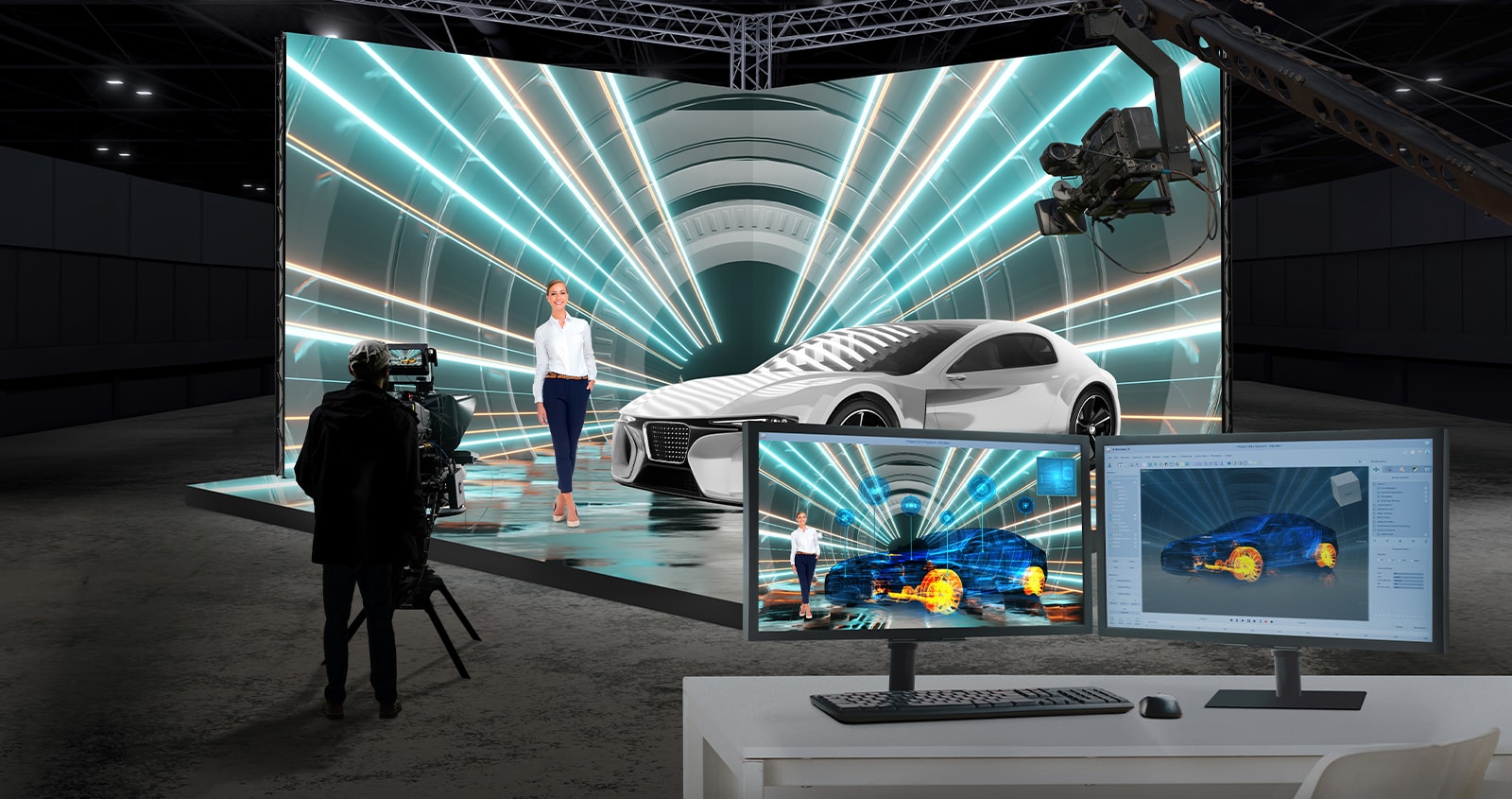

Filming of the model and car is taking place in a virtual production studio that features cube-shaped wall-mounted, ceiling, and floor LED displays. While only the model and car are physically present, the monitor displays AR effects, such as 3D rendering of the car, for verification purposes. Filming of the model and car is taking place in a virtual production studio that features cube-shaped wall-mounted, ceiling, and floor LED displays. While only the model and car are physically present, the monitor displays AR effects, such as 3D rendering of the car, for verification purposes.
* All images in this page are for illustrative purposes only.

Easy Installation & Maintenance

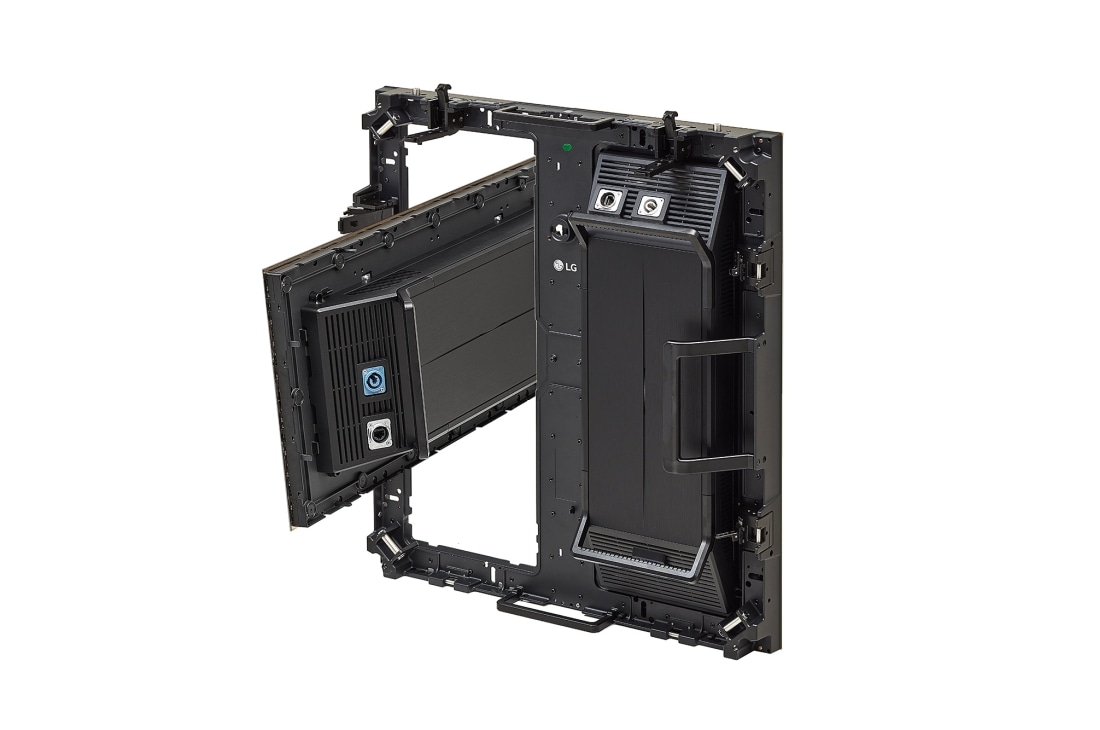

The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.

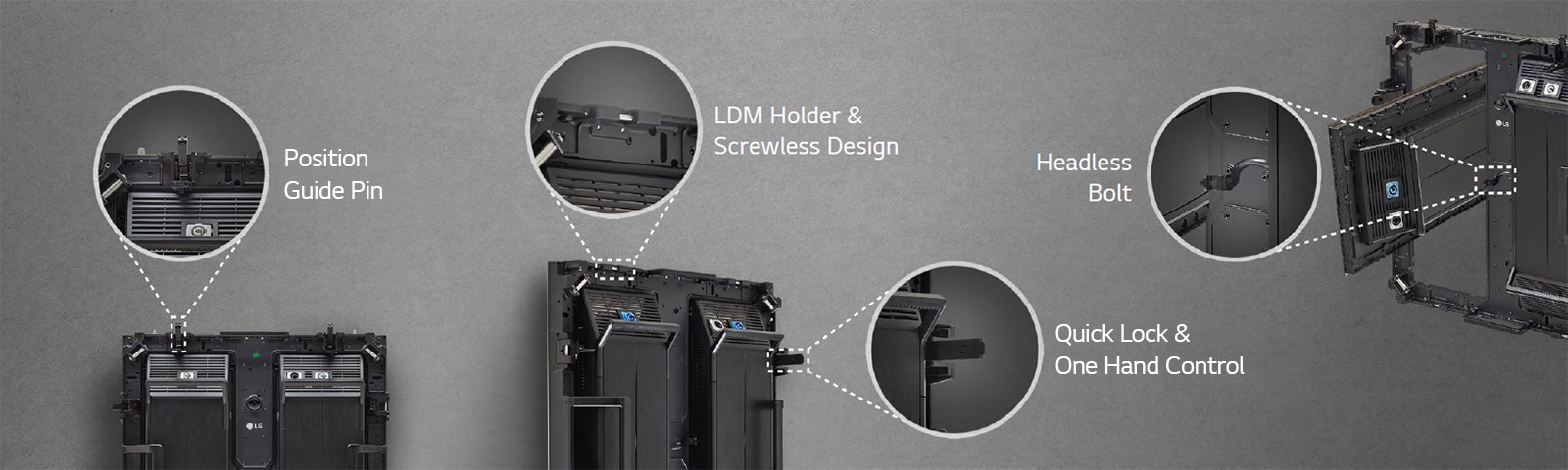

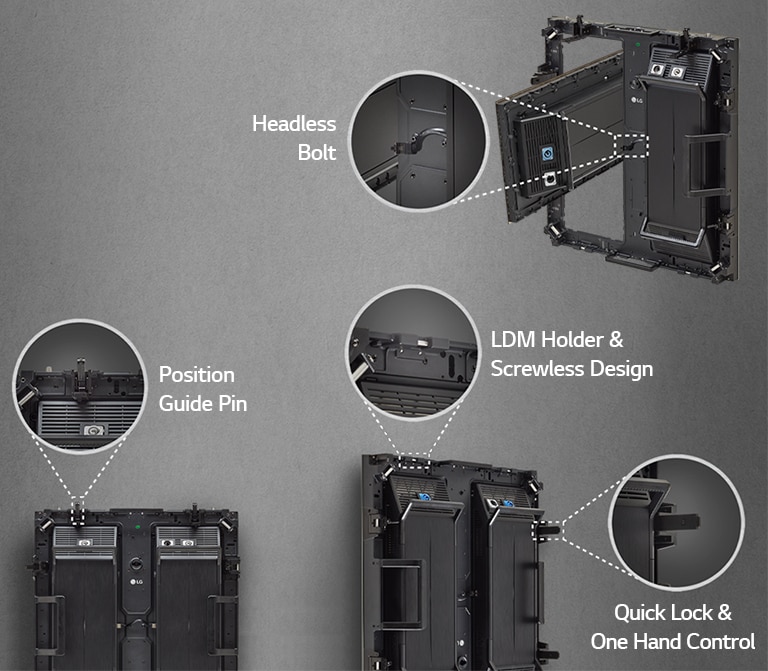

The cabinet parts, including 'Quick Lock & One Hand Control', 'LDM Holder & Screwless Design', 'Position Guide Pin', and 'Headless Bolt', are depicted in an enlarged manner. The cabinet parts, including 'Quick Lock & One Hand Control', 'LDM Holder & Screwless Design', 'Position Guide Pin', and 'Headless Bolt', are depicted in an enlarged manner.

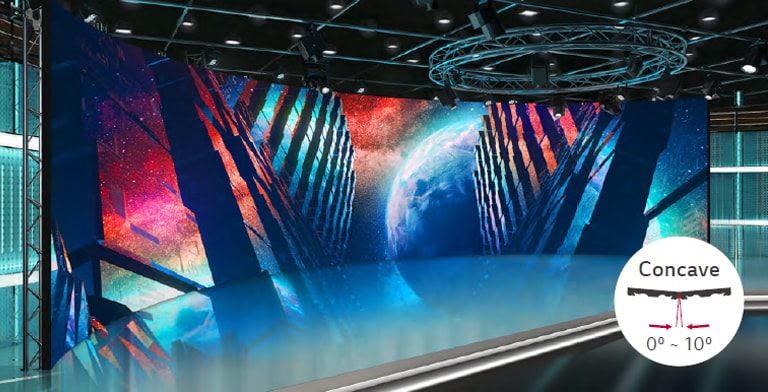

Curved LED walls are installed in a studio. Curved LED walls are installed in a studio.

Curve Effect Available

The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.

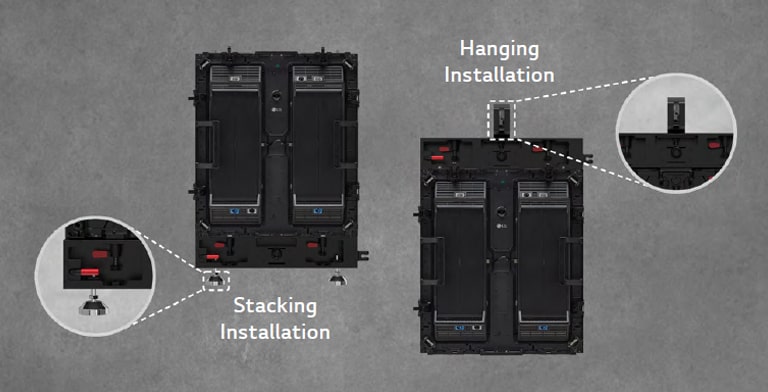

The part where the cabinet can be installed either as stacking or hanging is enlarged and shown. The part where the cabinet can be installed either as stacking or hanging is enlarged and shown.

Stacking & Hanging System Available

It can be installed by stacking or hanging, using the optional accessories such as single or double beams for customization to the studio environment.
LBAF utilizes full black coating technology and chip on board technology to achieve high contrast black. LBAF utilizes full black coating technology and chip on board technology to achieve high contrast black.

Black Immersion, Enlivened Details

By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, the LBAF series surprisingly delivers much deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.

* Based on LG's conventional LED Signage
The LBAF technology showcases rainbow colors with uniformity and high fidelity to the original colors. The LBAF technology showcases rainbow colors with uniformity and high fidelity to the original colors.

Accurate Colors as Intended

By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LBAF series to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.

Wide Color Viewing Angle

Thanks to the structure of LBAF series, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.

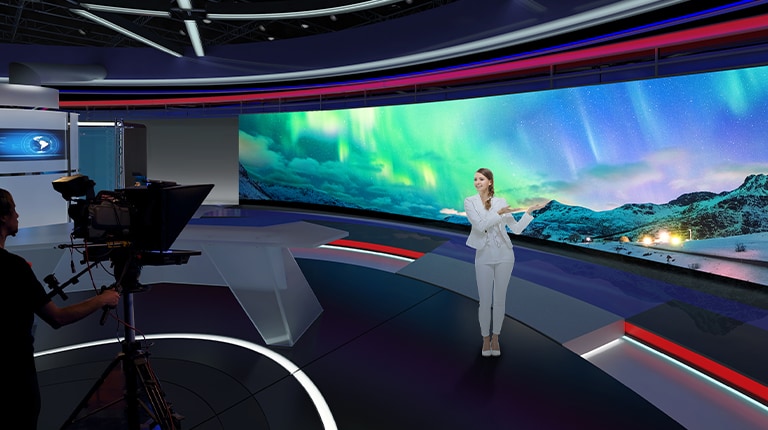

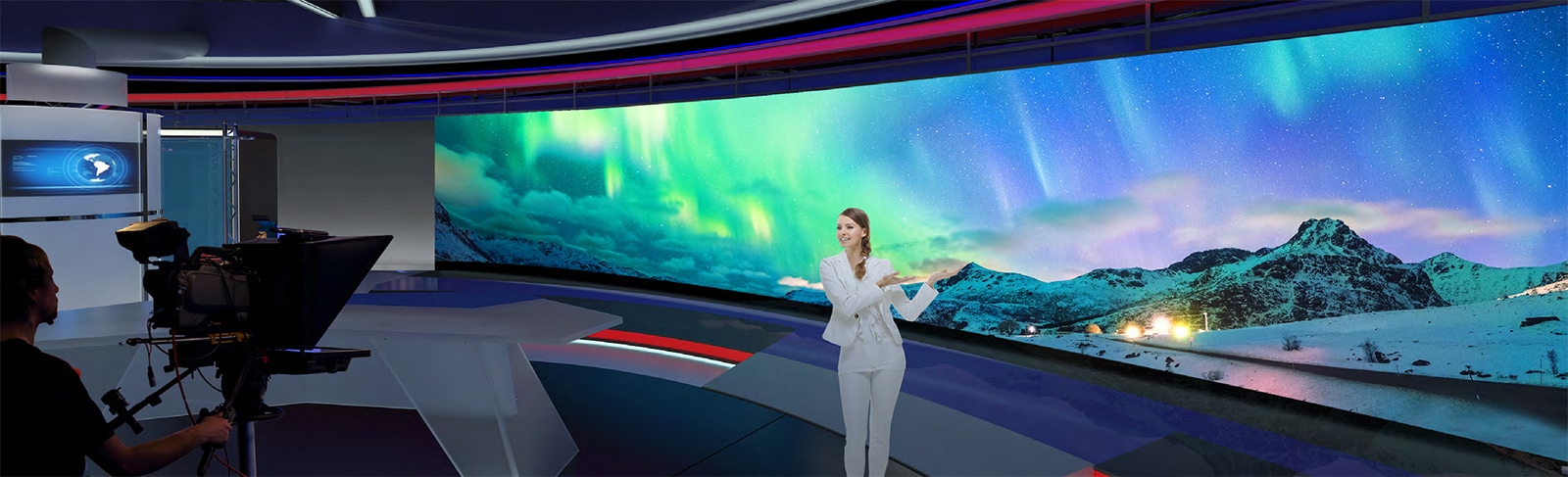

Even when viewed from a side angle, the LBAF technology accurately represents true colors due to its elongated and wide format. Even when viewed from a side angle, the LBAF technology accurately represents true colors due to its elongated and wide format.
A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown. A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown.

Broadcast Quality Available

With HDR capability and low latency video processing, LBAF supports broadcast-quality, providing accurate and smooth playback.
By tuning the frequency of the LED display to the frequency of the camera and sync, the flickering phenomenon is eliminated. By tuning the frequency of the LED display to the frequency of the camera and sync, the flickering phenomenon is eliminated.

V-Sync

The flow of black lines can be prevented by adjusting the LED display’s V-Sync to match the frequency between the camera and LED. This can reduce a rolling shutter effect while the camera is shooting.
Phase Shift clearly allows clearly modifying the ghost effect as one, which is overlapping with two or three screens. Phase Shift clearly allows clearly modifying the ghost effect as one, which is overlapping with two or three screens.

Phase Shift

Phase Shift can make adjustments to the LED screen output timing. The LED screen can adjust timing manually to remove visual artefacts with Phase Shift if the camera recording results have caused a double image (double frame).

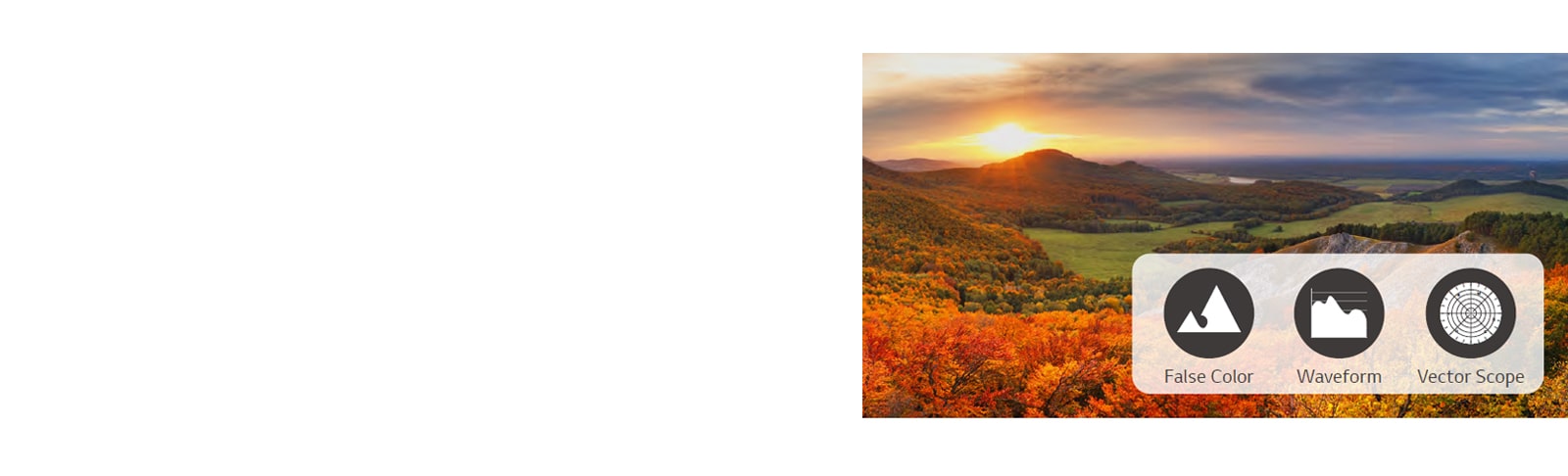

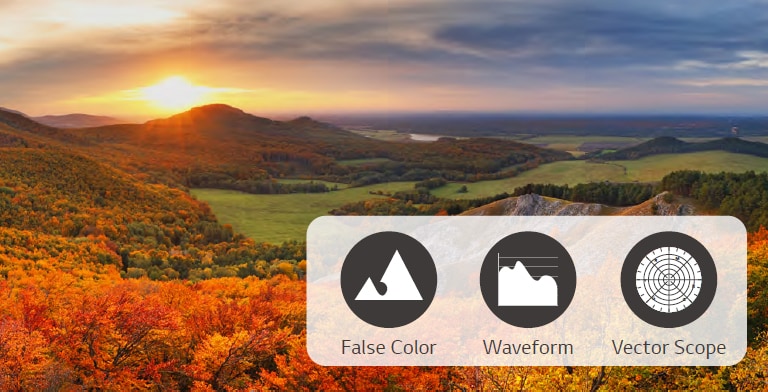

Through analyzing the video signal, the False Color, Waveform, and Vector Scope information is visualized and shown. Through analyzing the video signal, the False Color, Waveform, and Vector Scope information is visualized and shown.

Detailed Analysis of Video Signals

The LBAF series analyzes video input of Y’, Y’-Cb, and Y’Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope for more video details or adjustments can be read on a display.

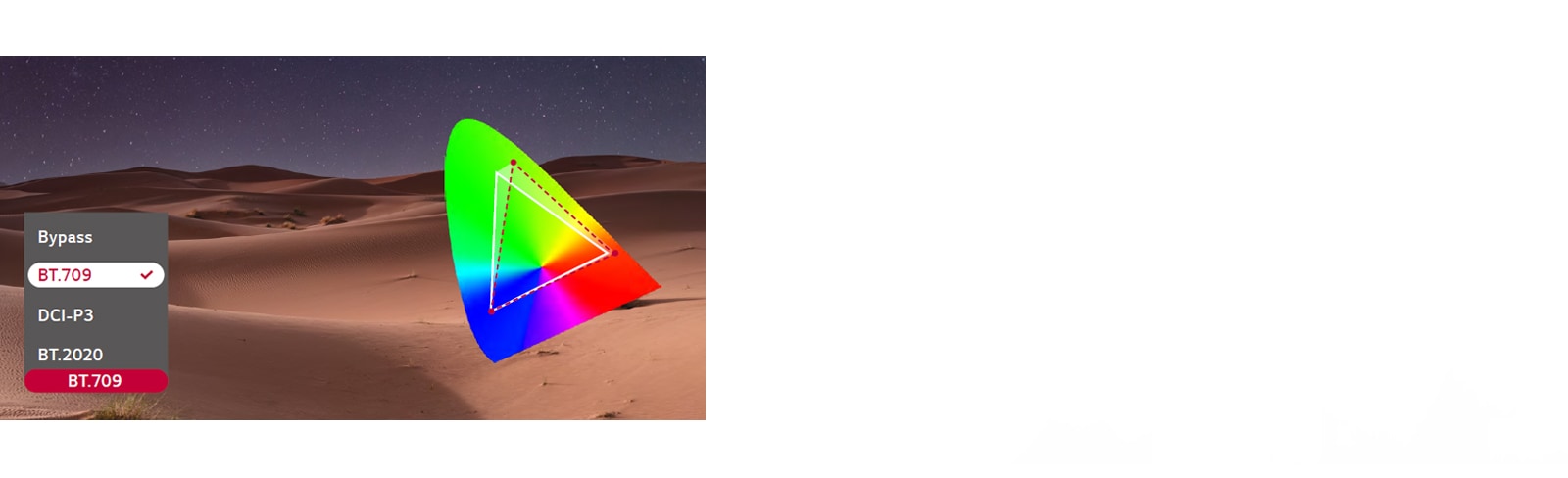

The RGB value is manually adjusted via the Color Gamut function. The RGB value is manually adjusted via the Color Gamut function.

Color Gamut Adjustment

The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired colors.
An anomaly that appears yellowish in color, such as the image on the left, can be modified to a gray tone, such as the right, by adjusting the gamma value manually. An anomaly that appears yellowish in color, such as the image on the left, can be modified to a gray tone, such as the right, by adjusting the gamma value manually.

Gamma Adjustment

Gamma adjustment can be made manually from 0 to 1023 to calibrate RGB and fix errors.
Using 3D-LUT the color combination becomes more abundant, making color reproduction more accurate. Using 3D-LUT the color combination becomes more abundant, making color reproduction more accurate.

Custom 3D-LUT

With LED displays supporting customized 3D-LUT, users can achieve their desired colors more accurately.

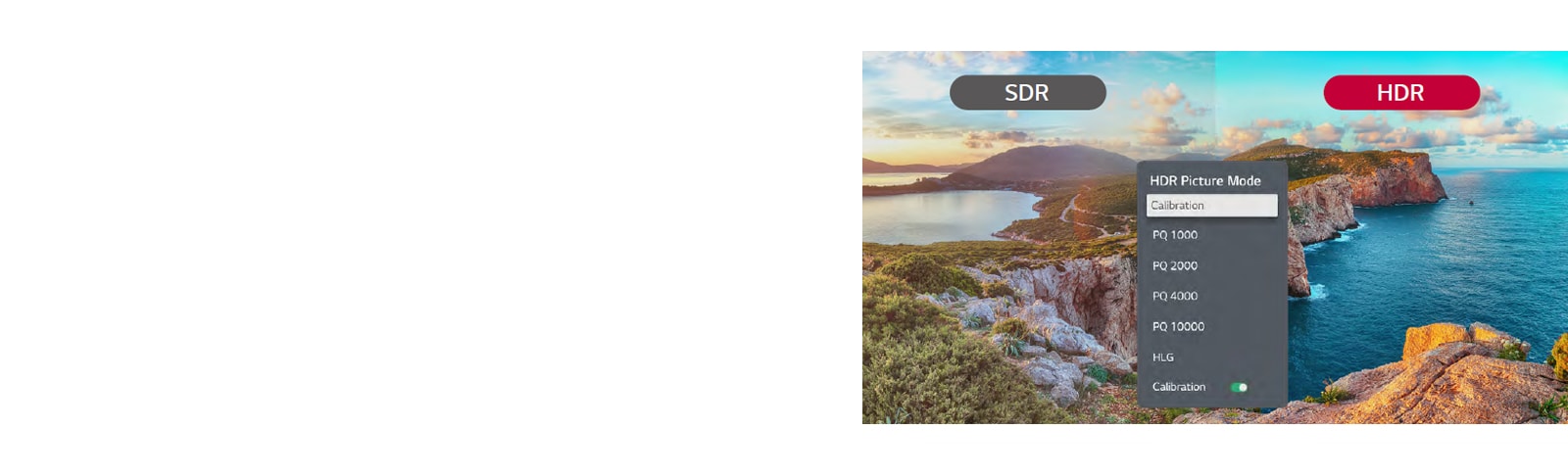

The tone is adjusted by selecting HDR information manually. The tone is adjusted by selecting HDR information manually.

HDR Manual Adjustment

Although HDR metadata is not transferred from recorded video, accurate tone-mapping can be made with this HDR manual adjustment feature.

Compatibility with
LG Software Solutions

When connected with LG's CBAF system controller, the LBAF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

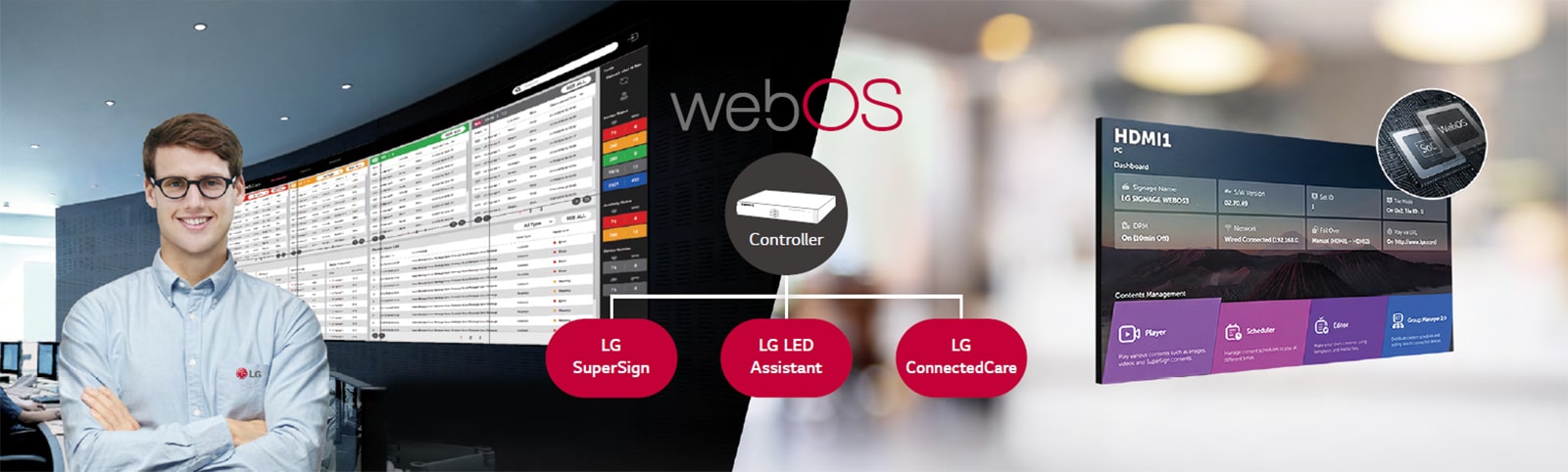

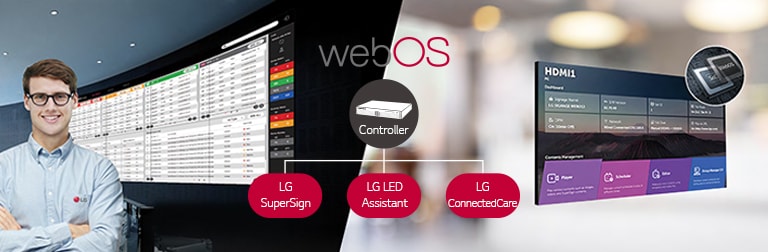

"The LG employee is remotely monitoring the LBAF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LBAF series to be compatible with LG software solutions." "The LG employee is remotely monitoring the LBAF series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LBAF series to be compatible with LG software solutions."
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Close
Physical Parameters
  • Pixel Configuration
    Micro
    Pixel Pitch (mm)
    1.56
  • Module Resolution (W x H)
    96 x 108
    Module Dimensions (W x H, mm)
    150 x 168.75
  • Weight per Module (kg)
    0.15
    No. of Modules per Cabinet (W × H)
    4 x 4
  • Cabinet Resolution (W × H)
    384 x 432
    Cabinet Dimensions (W × H × D)
    600 x 675 x 125
  • Cabinet Surface Area (m²)
    0.41
    Weight per Cabinet (kg/unit)
    15.5
  • Weight per Square Meter (kg/m²)
    38.3
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Cabinet (mm)
    ±0.15
    Cabinet Material
    Die Casting Magnesium Alloy
  • Service Access
    Rear
OPTICAL SPECIFICATIONS
  • Max. Brightness (After Calibration, nit)*
    Max. 1,500
    Color Temperature (K)
    3,200~9,300 / Default 6,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    ≥ 95%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    Max. 100,000:1
    Processing Depth (bit)
    20 (HDR10, HDR10 Pro, PQ, HLG)
  • Notice
    * These values represent the maximum measurable specifications of the product. Actual performance or specifications may vary depending on the specific product and usage environment.
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    200
    Power Consumption (W/Cabinet, Avg.)
    175
  • Power Consumption (W/m², Max.)
    494
    Heat Dissipation (BTU/h/Cabinet, Max.)
    682
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    597
    Heat Dissipation (BTU/h/m², Max.)
    1,684
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    96 / 100 / 120
  • Refresh Rate (Hz)
    7,680
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature (°C)
    0∘ to +40∘
  • Operating Humidity
    10 ~ 80%RH
    IP Rating Front
    IP50
  • IP Rating Rear
    IP20
Standard
  • Certification
    Safety 62368-1, EMC Class A
    Certification (Fire Protection)
    BS476 Part7 Class1
Environment
  • Environment
    RoHS/REACH
Controller
  • Controller
    CBAF-0151
Series
  • Series
    LBAF
  • Datasheet
    • LBAF Series_Datasheet(low)_LG Mirco LED_240110.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
