Micro LED for Virtual Production
Contact Us

Micro LED for
Virtual Production

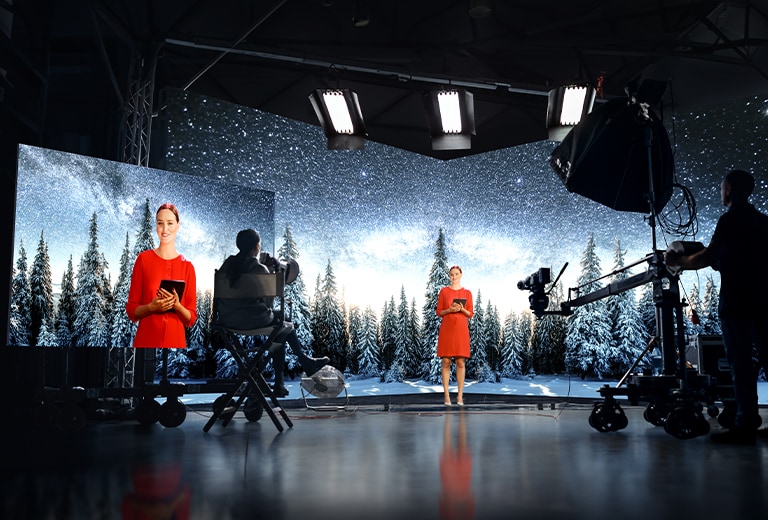

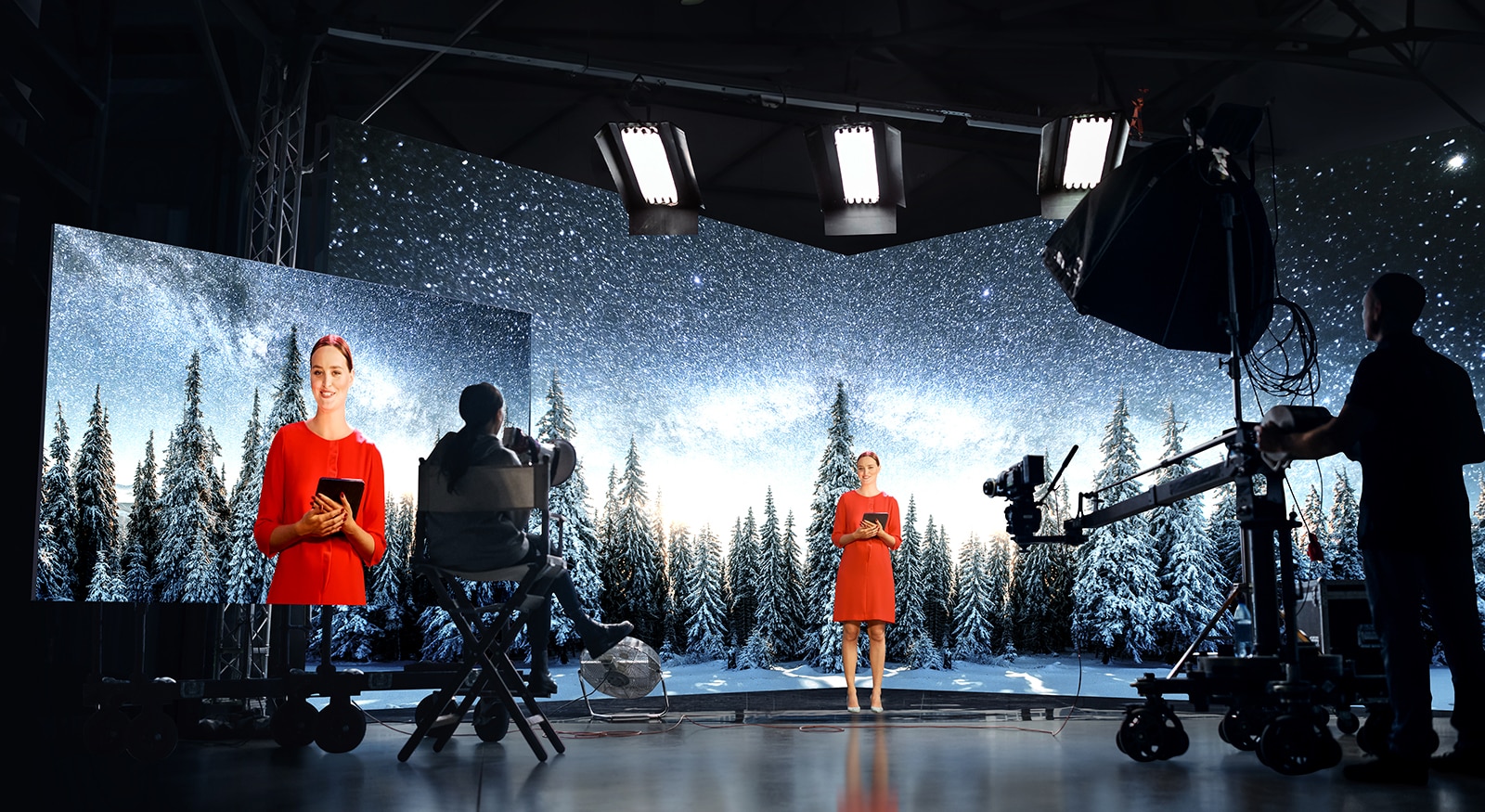

A woman is seen filming in front of a large cube-shaped LED screen. The LED displays a sparkling starlit snowy background, sharply contrasting with the woman's red dress, creating a vivid image on the large monitor. A woman is seen filming in front of a large cube-shaped LED screen. The LED displays a sparkling starlit snowy background, sharply contrasting with the woman's red dress, creating a vivid image on the large monitor.
* All images in this page are for illustrative purposes only.

Powerful UI/UX with
Megapixel HELIOS LED Processing Platform

With the Megapixel HELIOS LED Processing Platform, LBAG now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.

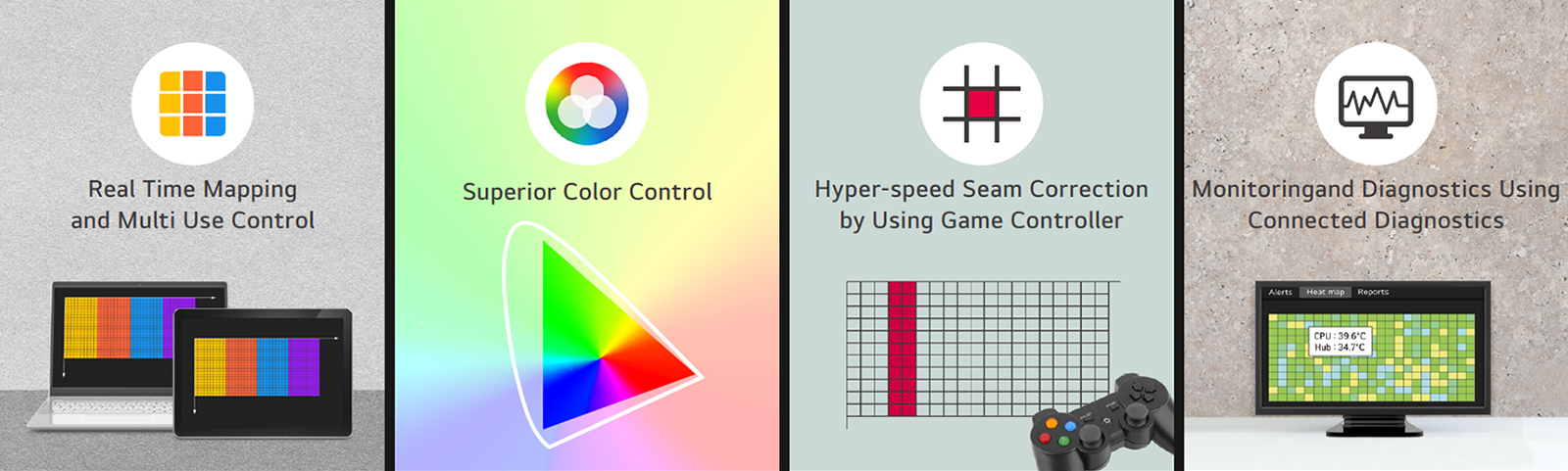

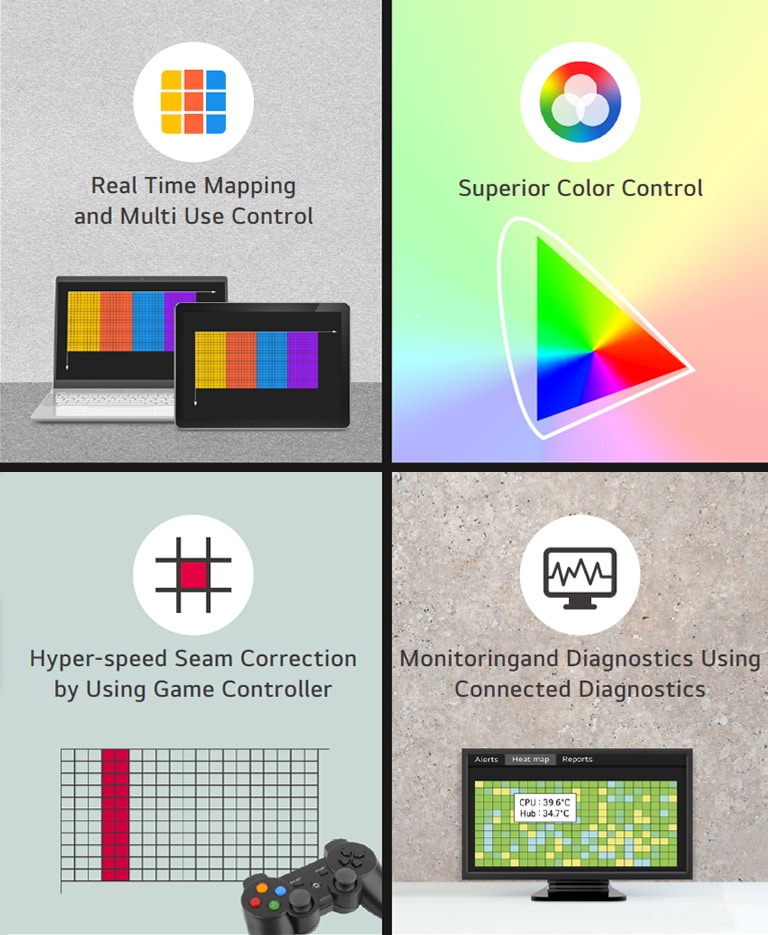

The MVR controller provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics. The MVR controller provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics.
* Megapixel HELIOS LED Processing Platform needs to be purchased separately

Easy Installation & Maintenance

The module can be easily removed with even bare hands, as it features rear service access that does not require any tools. Additionally, the positioning pins and magnets help perform easy panel adjustments, resulting in a smooth screen assembly.

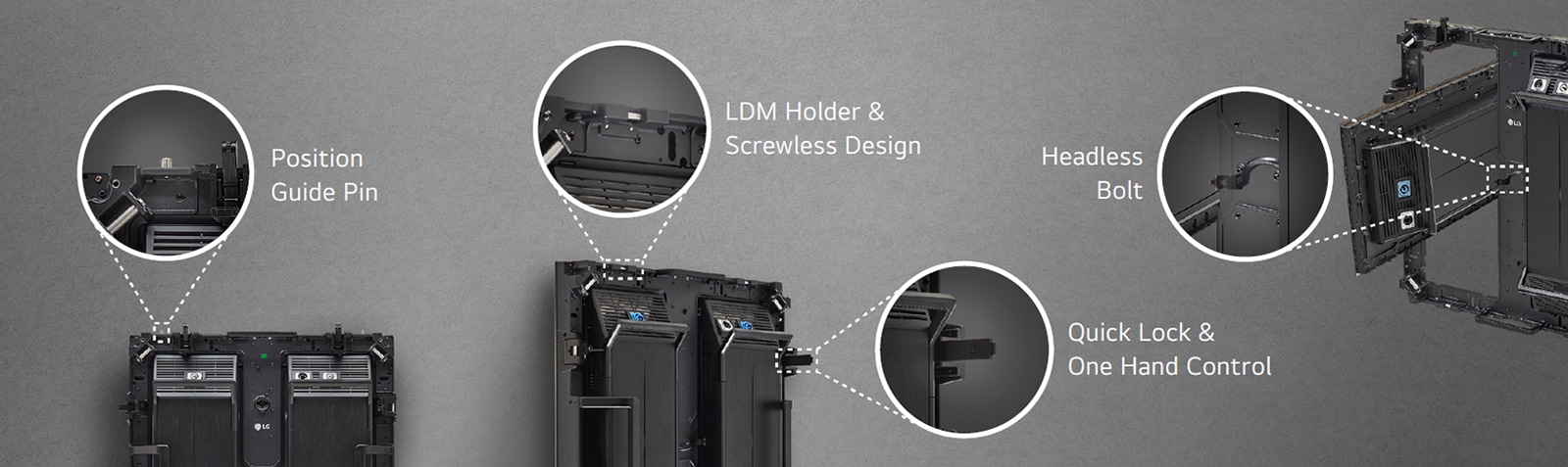

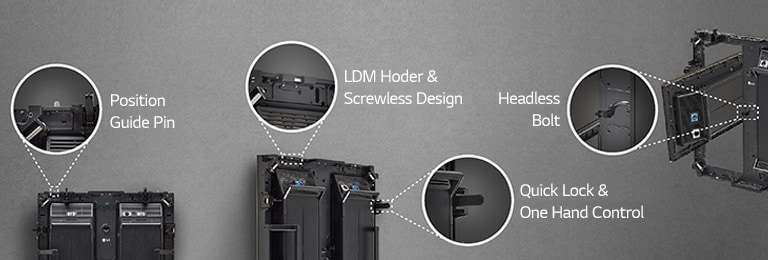

The cabinet parts, including 'Position Guide Pin', 'LDM Holder & Screwless Design', 'Quick Lock & One Hand Control', and 'Headless Bolt', are depicted in an enlarged manner. The cabinet parts, including 'Position Guide Pin', 'LDM Holder & Screwless Design', 'Quick Lock & One Hand Control', and 'Headless Bolt', are depicted in an enlarged manner.

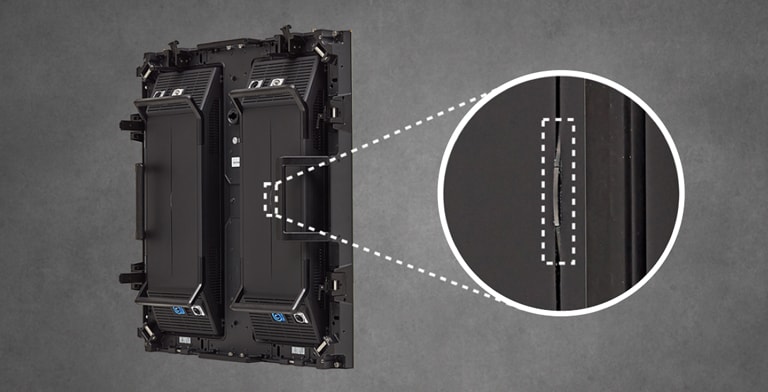

The LED indicator on the back of the LBAG is shown in an enlarged view. The LED indicator on the back of the LBAG is shown in an enlarged view.

LED Indicator to Check Status

LED Indicator provides convenience to users to check LBAG status with various meanings of colors.

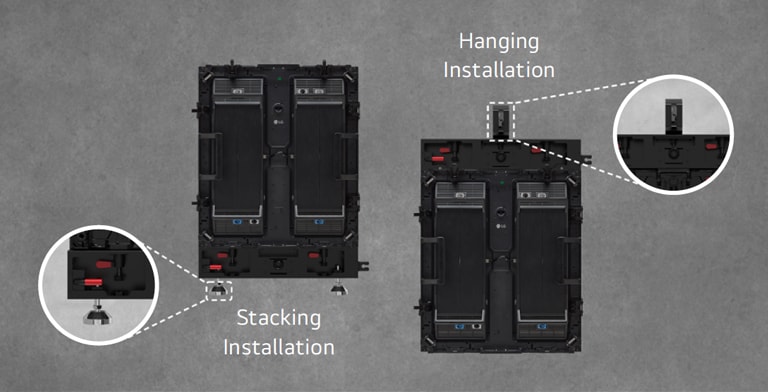

The part where the cabinet can be installed either as stacking or hanging is enlarged and shown. The part where the cabinet can be installed either as stacking or hanging is enlarged and shown.

Stacking & Hanging System Available

It can be installed by stacking or hanging, using the optional accessories such as single or double beams for customization to the studio environment.

* Installation accessories need to be purchased separately

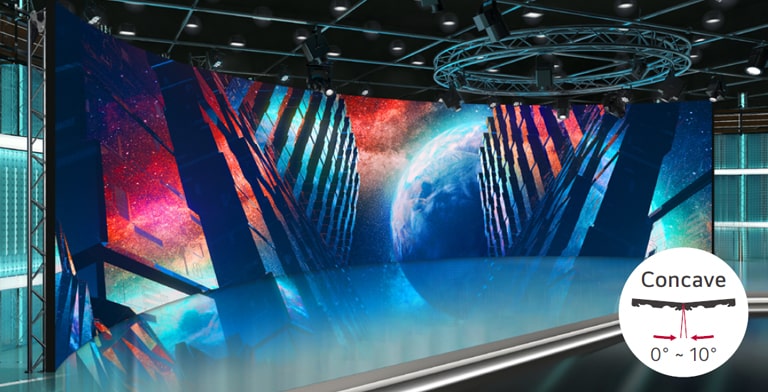

Curved LED walls are installed in a studio. Curved LED walls are installed in a studio.

Curve Effect Available

The angle adapter system and fast lock are designed to fascilitate easy installation for curved display. The system allows for adjustment of up to 10 degrees in concave area while providing a secure mechanical connection.
A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown. A vivid HDR-enabled screen and a screen with a high refresh rate displaying the exact color are being shown.

Broadcast Quality Available

With HDR capability and low latency video processing, LBAG supports broadcast-quality, providing accurate and smooth playback.

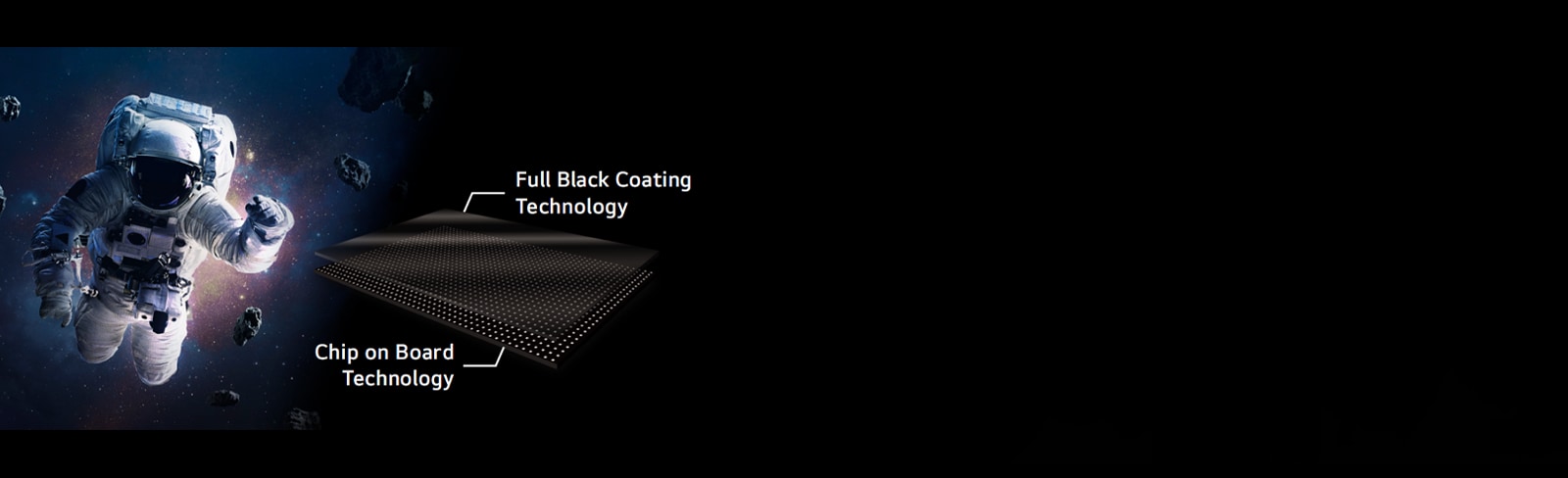

LBAG utilizes full black coating technology and chip on board technology to achieve high contrast black. LBAG utilizes full black coating technology and chip on board technology to achieve high contrast black.

Black Immersion, Enlivened Details

By removing a package surrounding R, G, B LED chips and applying LG’s own Full Black Coating technology, the LBAG series surprisingly delivers much deeper black than the conventional package LED signage*. This not only enhances color vividness, but also makes the details which were hidden in the shadows appear, providing audiences a sense of immersion.

* Based on comparison against LG's conventional LED Signage

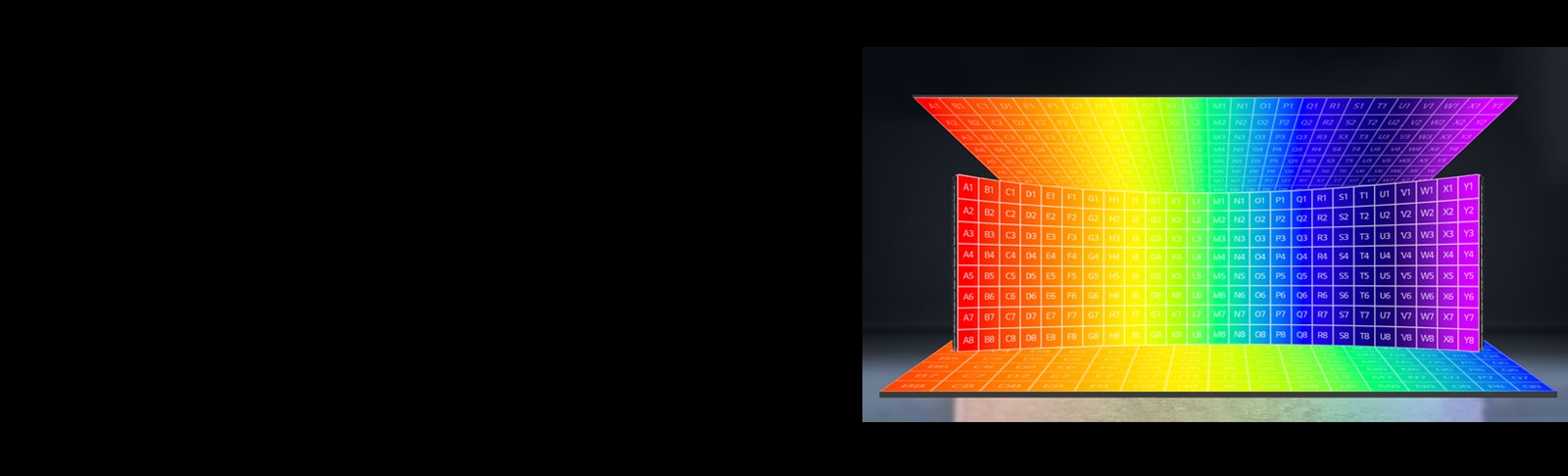

The LBAG technology showcases rainbow colors with uniformity and high fidelity to the original colors. The LBAG technology showcases rainbow colors with uniformity and high fidelity to the original colors.

Accurate Colors as Intended

By carefully selecting an LED chip which is a key factor to determine color purity, its narrowed wavelength allows LBAG series to show uniform colors across the screen. Furthermore, the enhanced Gamut Transfer technology supports it to describe colors close to the original color, which is essential for places where exact color representation is demanding.

Wide Color Viewing Angle

Thanks to the structure of LBAG series, it minimizes color distortion according to the viewing angle. In other words, the original color can be appreciated even from the side angles, captivating various pedestrians even if it is installed in a large public places.

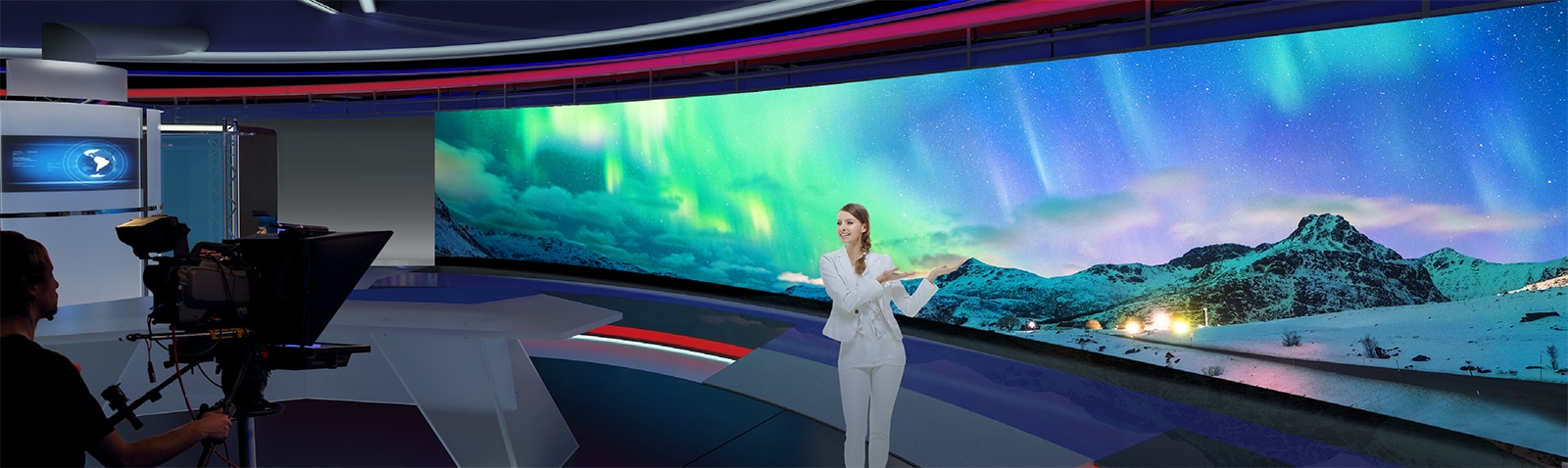

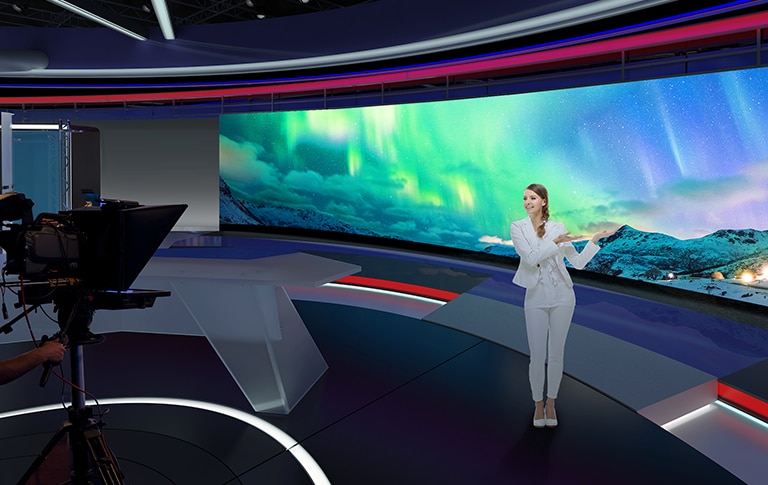

Even when viewed from a side angle, the LBAG technology accurately represents true colors due to its elongated and wide format. Even when viewed from a side angle, the LBAG technology accurately represents true colors due to its elongated and wide format.
Close
Physical Parameters
  • Pixel Configuration
    COB
    Pixel Pitch(mm)
    1.56
  • Module Resolution (WxH)
    96x108
    Module Dimensions(WxH,mm)
    150x168.75
  • Weight per Module (kg)
    0.15
    No. of Modules per Cabinet (WxH)
    4x4
  • Cabinet Resolution (WxH)
    384x432
    Cabinet Dimensions (W x H x D, mm)
    600x675x125
  • Cabinet Surface Area (㎡)
    0.405
    Weight per Cabinet (kg/unit)
    16.0
  • Weight per Square Meter (kg/m²)
    39.5
    Physical Pixel Density (pixels/m²)
    409,600
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die casting Magnesium alloy
  • Service Access
    Rear
OPTICAL SPECIFICATIONS
  • Max. Brightness (After Calibration, nit)*
    Max. 1,500
    Color Temperature (K)
    6,504K / 2,000~10,000K
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    ≥ 95%
    Color Uniformity
    ±0.02Cx,Cy
  • Contrast Ratio
    Max. 100,000:1
    Processing Depth (bit)
    22bit Internal processing (HDR10)
  • Notice
    * These values represent the maximum measurable specifications of the product. Actual performance or specifications may vary depending on the specific product and usage environment.
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    220
    Power Consumption (W/Cabinet, Avg.)
    175
  • Power Consumption (W/m², Max.)
    543
    Heat Dissipation (BTU/h/Cabinet, Max.)
    751
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    597
    Heat Dissipation (BTU/h/m², Max.)
    1853
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    23.98/24/25/29.97/30/48/50/59.94/60/72/90/96/100/120
  • Refresh Rate (Hz)
    7,680
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0∘to +40∘
  • Operating Humidity
    10-80%RH
Certification
  • Certification
    IEC 62368-1
    EMC Class A,
Environment
  • Environment
    RoHS/REACH
Controller
  • Controller
    MVR HEIOS
Series
  • Series
    LBAG
  • Datasheet
    • LBAG Series_Datasheet(low)_LG Micro LED_230915.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
