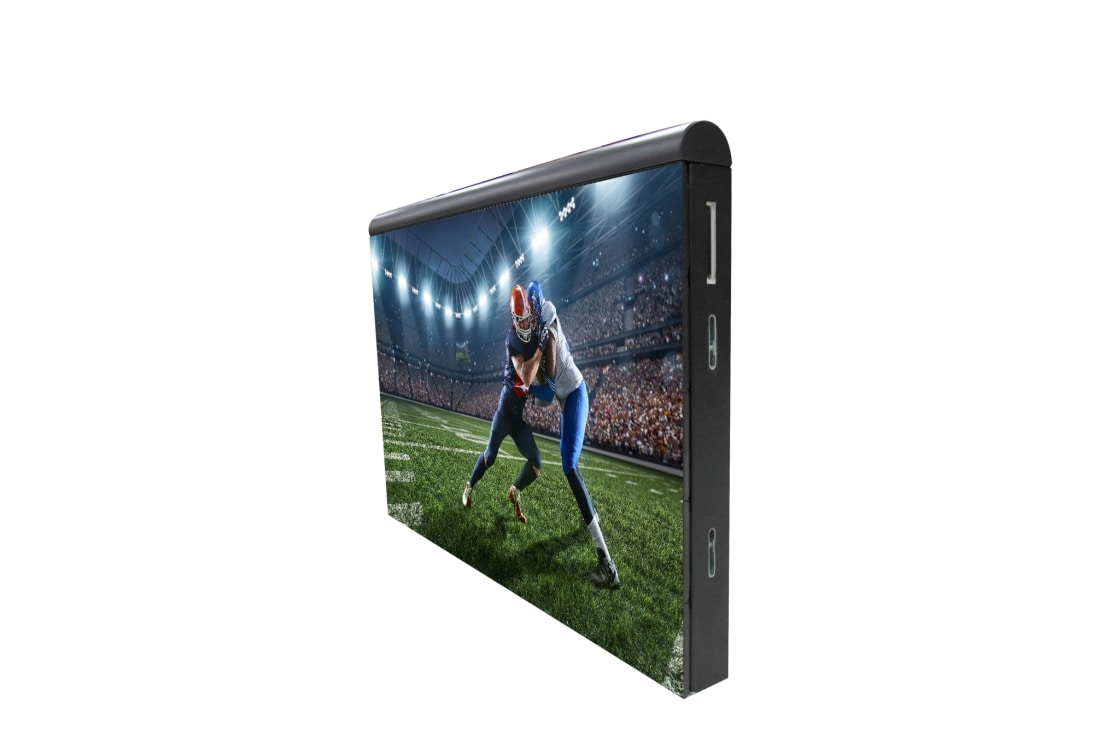

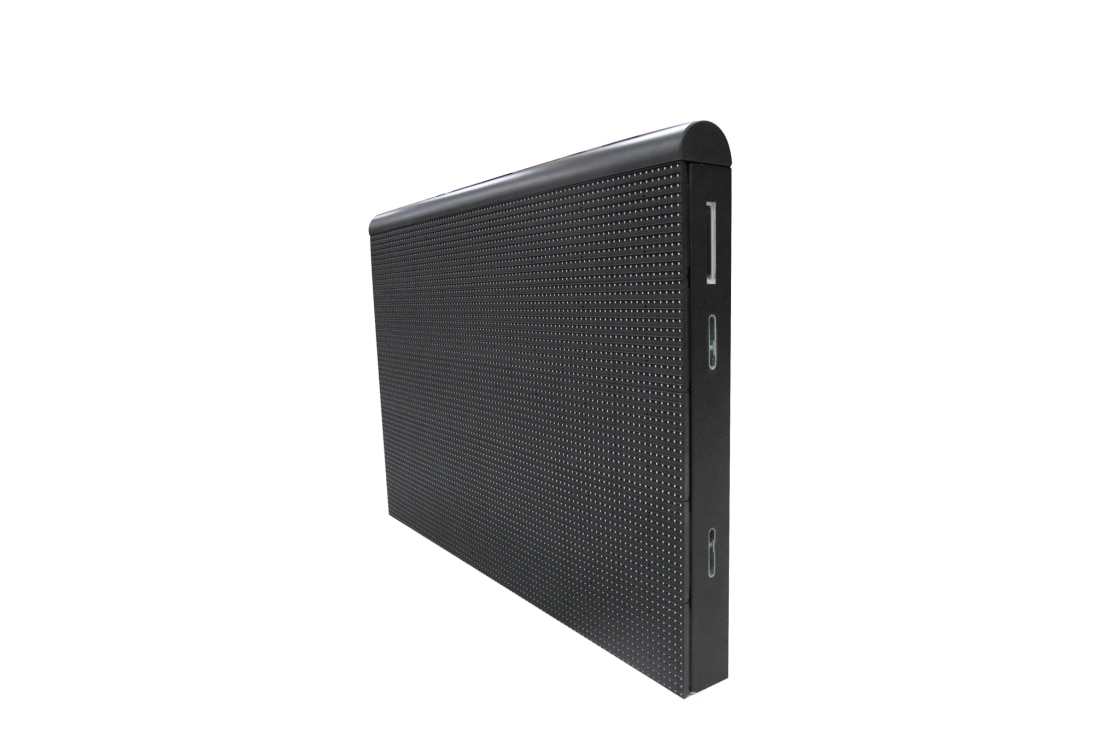

Stadium Series (Perimeter)
Inquiry to Buy

Outstanding Visibility

Offering a powerful 6,000 nits brightness (customizable up to 8,500 nits), this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.
Outstanding Visibility Outstanding Visibility

Smooth Playback in Dynamic Motion

A high refresh rate of 4,000Hz ensures smooth playback. Flicker-free images prevent the black bars that appear in video recordings, as well as viewer eye strain and blurred vision.
Smooth Playback in Dynamic Motion Smooth Playback in Dynamic Motion
Detailed Expression of Color Depth Detailed Expression of Color Depth

Detailed Expression of Color Depth

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

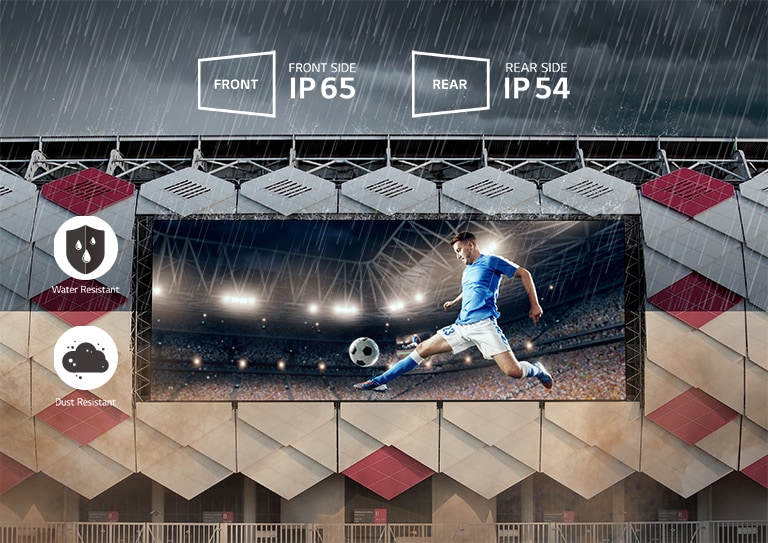

Reliable Weatherproof Design Reliable Weatherproof Design

Reliable Weatherproof Design

The front and back of the unit case are IP65- and IP54-certified*, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.

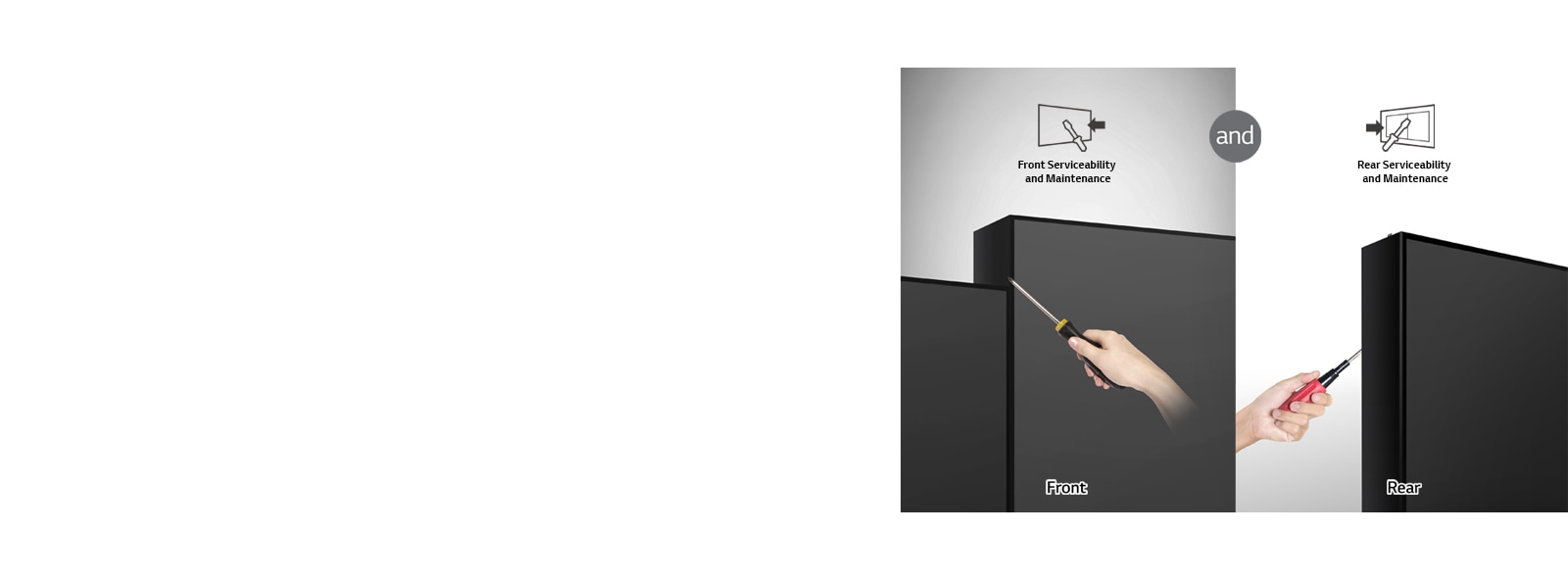

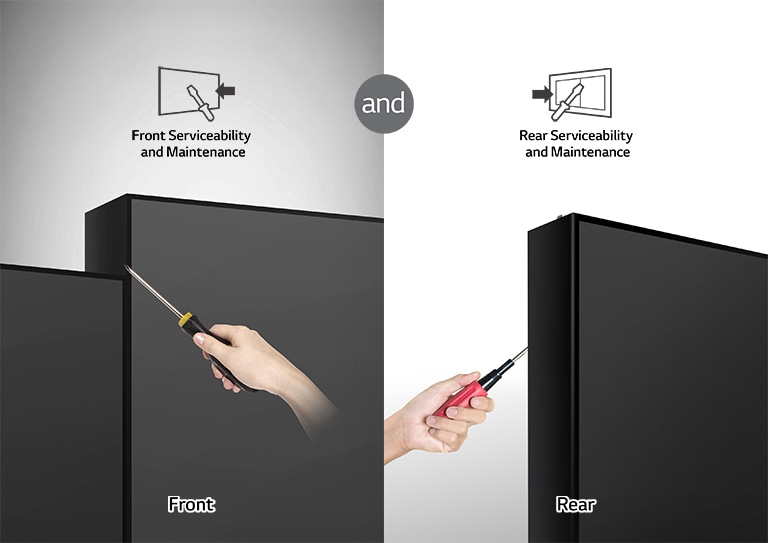

Front and Rear Serviceability Front and Rear Serviceability

Front and Rear Serviceability

The product offers both front access and rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.
Uniform Picture Quality Uniform Picture Quality

Uniform Picture Quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy Vividness with Color Accuracy

Vividness with Color Accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product RoHS Certified Safe Product

RoHS Certified Safe Product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
Close
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    16.00
  • Module Resolution (W x H)
    12 × 12
    Module Dimensions (W x H, mm)
    192 × 192
  • Weight per Module (kg)
    0.58
    No. of Modules per Cabinet (W × H)
    8 × 5
  • Cabinet Resolution (W × H)
    96 × 60
    Cabinet Dimensions (W × H × D)
    1536 × 960 × 215
  • Cabinet Surface Area (m²)
    1.475
    Weight per Cabinet (kg/cabinet)
    71.0
  • Weight per Square Meter (kg/m²)
    48.1
    Physical Pixel Density (pixels/m²)
    3,906
  • Flatness of Cabinet
    ±1.0 mm
    Cabinet Material
    Aluminum Sheet
  • Service Access
    Front and Rear
Optical Parameter
  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3500 ~ 8500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    105
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    1050
    Power Consumption (W/Cabinet, Avg.)
    420
  • Power Consumption (W/m², Max.)
    712
    Heat Dissipation (BTU/h/Cabinet, Max.)
    3,583
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    1,433
    Heat Dissipation (BTU/h/m², Max.)
    2,429
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    4,000
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20° to +50°
  • Operating Humidity
    10-90%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP54
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    LCLH001
Series
  • Series
    LBB
  • Dimension
    • (2D Drawing)LG LBB160DAnD2.dwg
    • (2D Drawing)LG LBB160DAnD2.pdf
  • Datasheet
    • LG Stadium LED_LBF-LBB series_Datasheet(web)_2009.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
