LBF160DA4D component-copyModelName

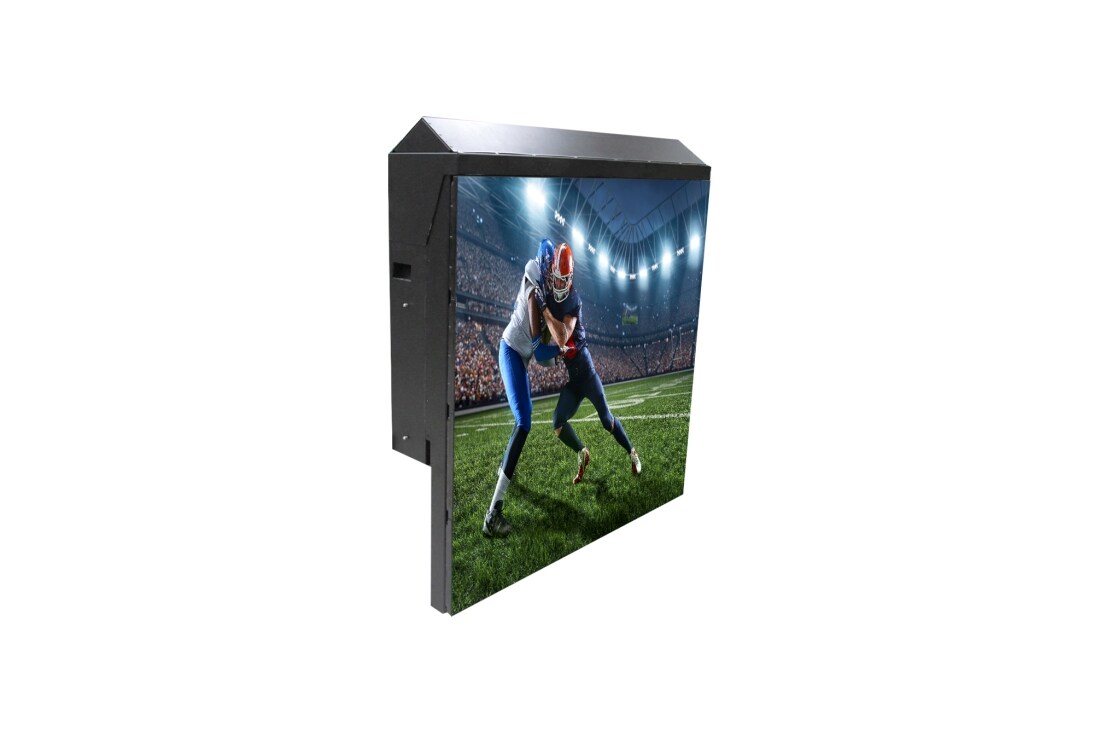

Stadium Series (Ribbon Board)

LG Stadium Series (Ribbon Board), LBF160DA4D, thumbnail 1

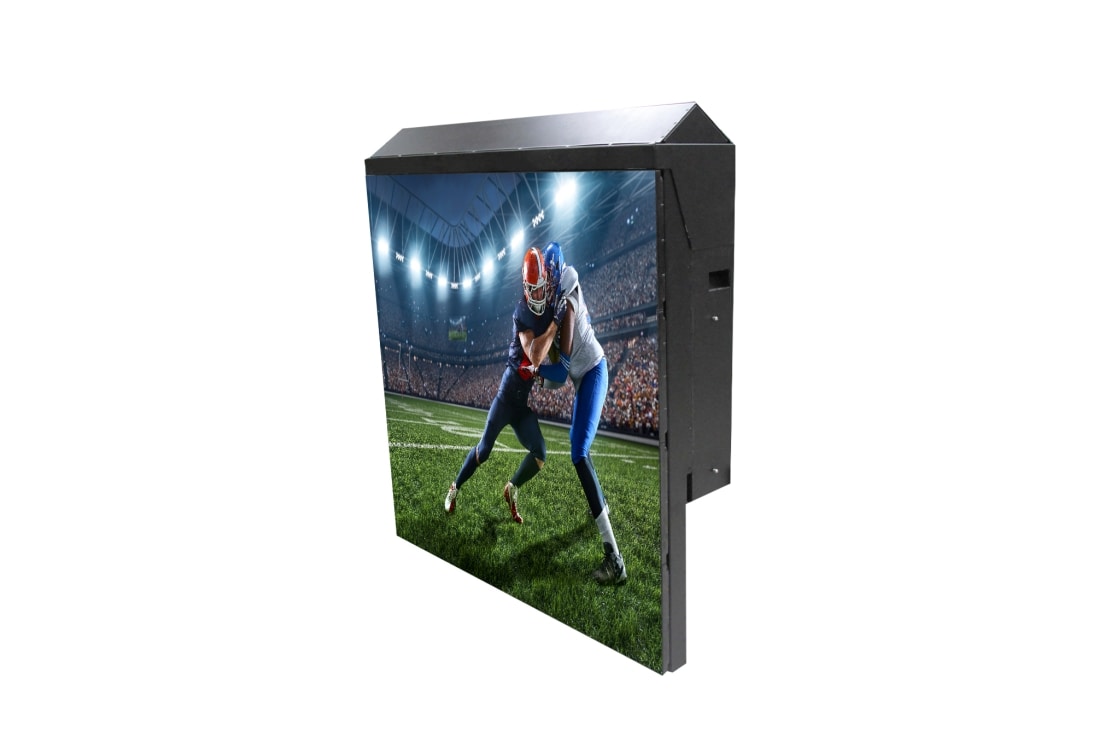

LG Stadium Series (Ribbon Board), -45 degree side view with infill image, LBF160DA4D, thumbnail 2

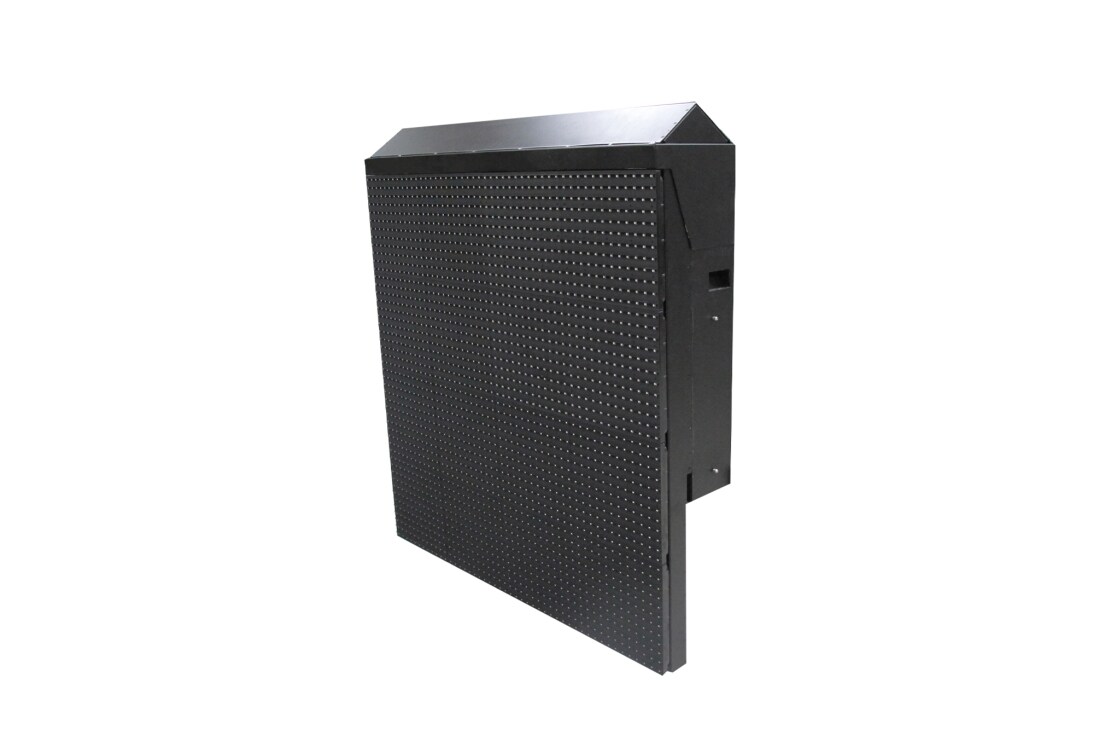

LG Stadium Series (Ribbon Board), -45 degree side view, LBF160DA4D, thumbnail 3

Discontinued

LBF160DA4D component-copyModelName

Stadium Series (Ribbon Board)

Key Features

Pixel Pitch: 16.0mm
Brightness: 6,000cd/m²
Outstanding Visibility
High Refresh Rate of 4,000Hz
16-bit Color Processing
Reliable Weatherproof Design

Choose your Pitch

P16.00

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 16.0mm
Brightness: 6,000cd/m²
Outstanding Visibility
High Refresh Rate of 4,000Hz
16-bit Color Processing
Reliable Weatherproof Design

Choose your Pitch

P16.00

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Stadium Series (Ribbon Board)

Outstanding Visibility

Offering a powerful 6,000 nits brightness (customizable up to 8,500 nits), this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.

Smooth Playback in Dynamic Motion

A high refresh rate of 4,000Hz ensures smooth playback. Flicker-free images prevent the black bars that appear in video recordings, as well as viewer eye strain and blurred vision.

Detailed Expression of Color Depth

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

Reliable Weatherproof Design

The front and back of the unit case are IP65- and IP54-certified*, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.

Uniform Picture Quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.

Vividness with Color Accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

RoHS Certified Safe Product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

Physical Parameters

Pixel Configuration

3 in 1

Pixel Pitch (mm)

16.00
Module Resolution (W x H)

12 × 12

Module Dimensions (W x H, mm)

192 × 192
Weight per Module (kg)

0.56

No. of Modules per Cabinet (W × H)

4 × 5
Cabinet Resolution (W × H)

48 × 60

Cabinet Dimensions (W × H × D)

768 × 960 × 254
Cabinet Surface Area (m²)

0.737

Weight per Cabinet (kg/cabinet)

40.0
Weight per Square Meter (kg/m²)

54.3

Physical Pixel Density (pixels/m²)

3,906
Flatness of Cabinet

±1.0 mm

Cabinet Material

Aluminum Sheet
Service Access

TOP

Optical Parameter

Min. Brightness (After Calibration)

6,000

Color Temperature

3500 ~ 8500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

105
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

3,000

Processing Depth (bit)

16

Electrical Parameter

Power Consumption (W/Cabinet, Max.)

510

Power Consumption (W/Cabinet, Avg.)

204
Power Consumption (W/m², Max.)

692

Heat Dissipation (BTU/h/Cabinet, Max.)

1,740
Heat Dissipation (BTU/h/Cabinet, Avg.)

696

Heat Dissipation (BTU/h/m², Max.)

2,361
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

4,000

Operation Conditions

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C)

-20° to +50°
Operating Humidity

< 90%RH

IP Rating Front

IP65
IP Rating Rear

IP54

Certification

Certification

CE,FCC,ETL

Environment

Environment

RoHS, REACH

Controller

Controller

LCLH001

Dimension
- (2D Drawing)LG LBF160DAnD (4x5).dwg
- (2D Drawing)LG LBF160DAnD (4x5).pdf
Datasheet
- LG Stadium LED_LBF-LBB series_Datasheet(web)_2009.pdf
