Discontinued

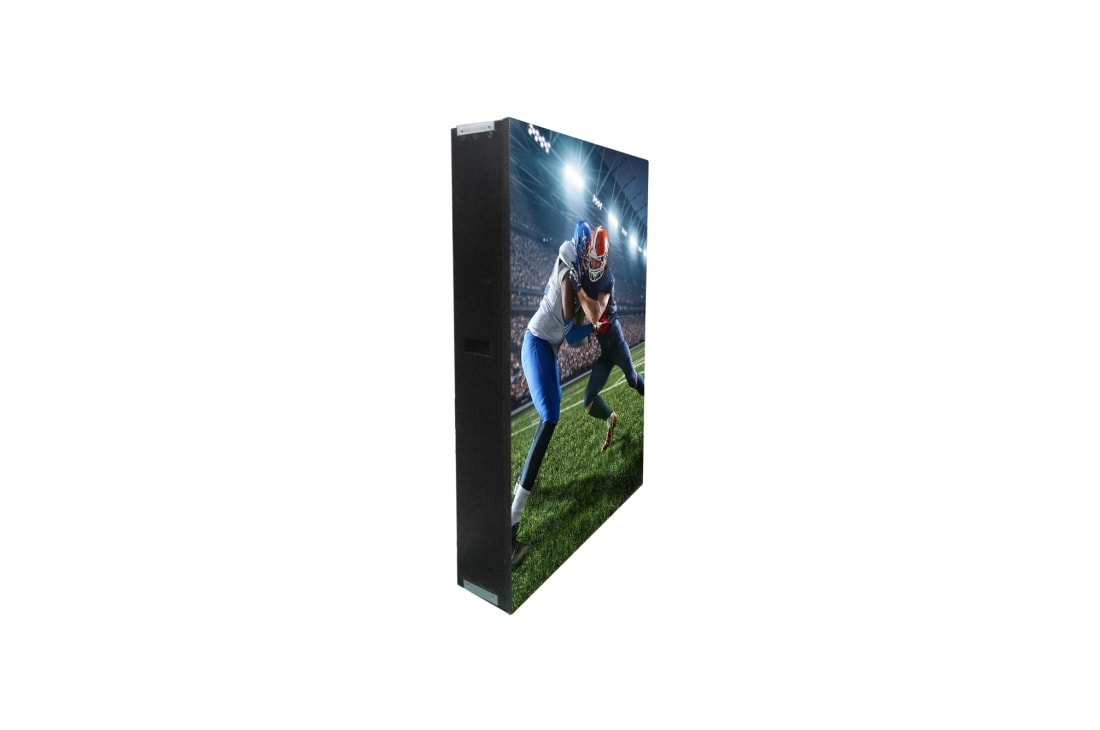

LBS120DA4D component-copyModelName
Premium Series

Key Features

Choose your Pitch

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Premium Series
Contact Us
Close
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    12.00
  • Module Resolution (W x H)
    16 × 16
    Module Dimensions (W x H, mm)
    192 × 192
  • Weight per Module (kg)
    0.56
    No. of Modules per Cabinet (W × H)
    8 × 8
  • Cabinet Resolution (W × H)
    128 × 128
    Cabinet Dimensions (W × H × D)
    1536 × 1536 × 223
  • Cabinet Surface Area (m²)
    2.359
    Weight per Cabinet (kg/cabinet)
    104.0
  • Weight per Square Meter (kg/m²)
    44.1
    Physical Pixel Density (pixels/m²)
    6,944
  • Flatness of Cabinet
    ±1.0 mm
    Cabinet Material
    Aluminum Sheet
  • Service Access
    Front and Rear
Optical Parameter
  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3500 ~ 8500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    125
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    1790
    Power Consumption (W/Cabinet, Avg.)
    716
  • Power Consumption (W/m², Max.)
    759
    Heat Dissipation (BTU/h/Cabinet, Max.)
    6,107
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    2,443
    Heat Dissipation (BTU/h/m², Max.)
    2,590
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    4,000
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -30° to +50°
  • Operating Humidity
    < 90%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP54
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    LCLH001
