Flexible LED Display
Contact Us

Flexible LED Display

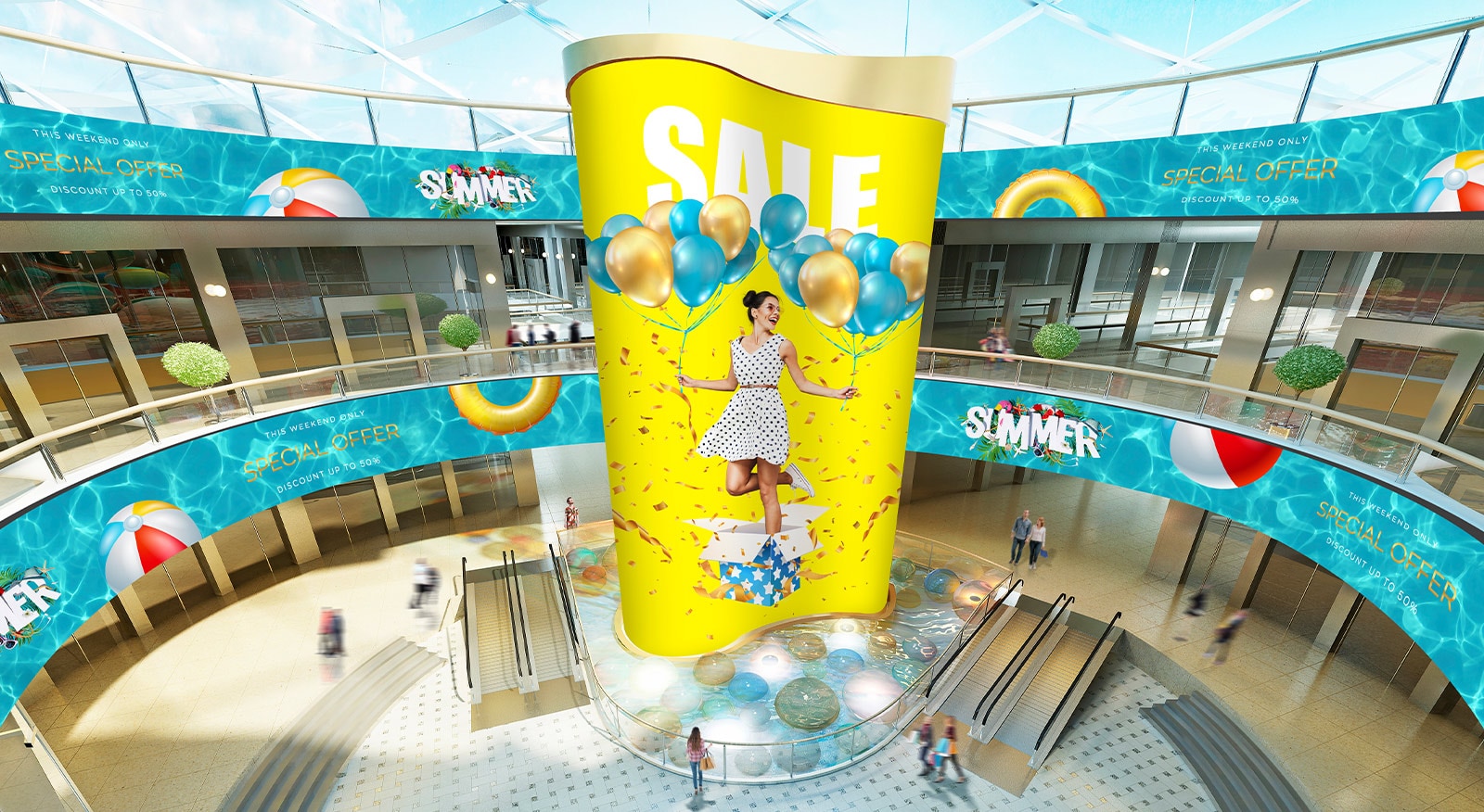

The LED is installed to match the curved shopping mall railing and a large uniquely-wavy shaped column’s flexion. The LED screen shows the season sale’s advertisement. The LED is installed to match the curved shopping mall railing and a large uniquely-wavy shaped column’s flexion. The LED screen shows the season sale’s advertisement.
* All images in this page are for illustrative purposes only.

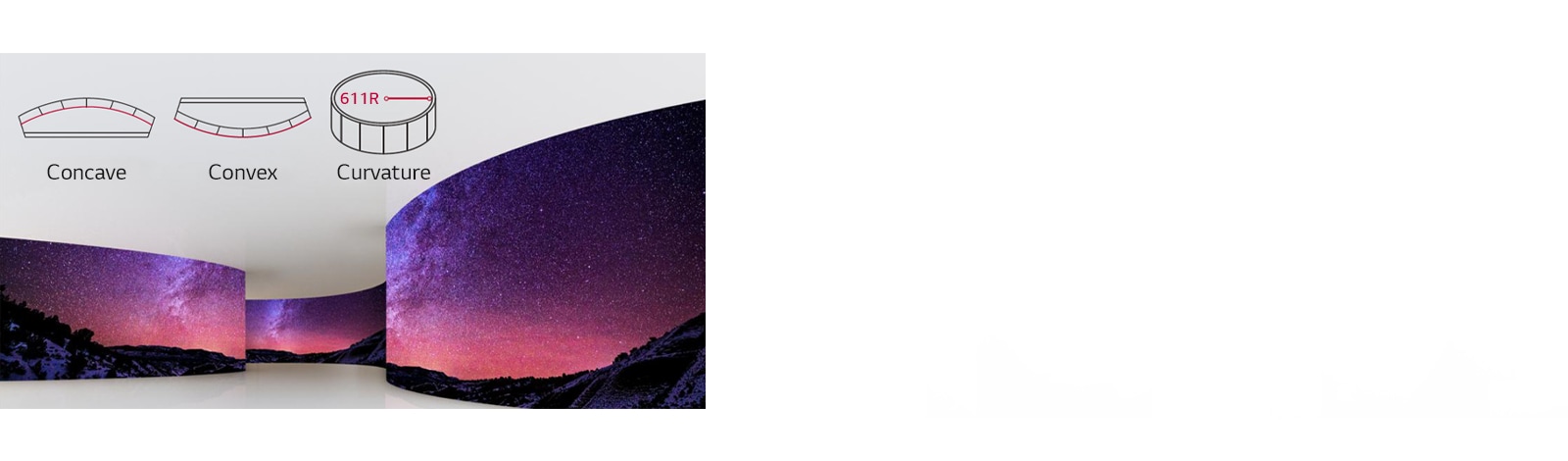

Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall. Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall.

Flexible LED Display

With a specially designed flexible LDM (LED Display Module), the LCCM series supports true concave and convex curvature from 611R. The LCCM series also greatly amplifies design flexibility, providing users with the ability to create true curved screens.

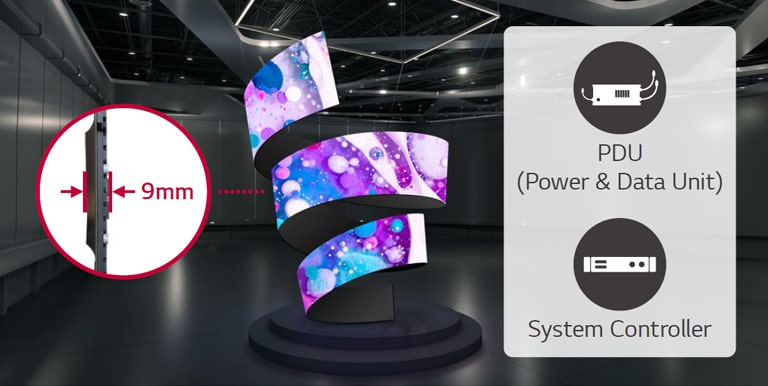

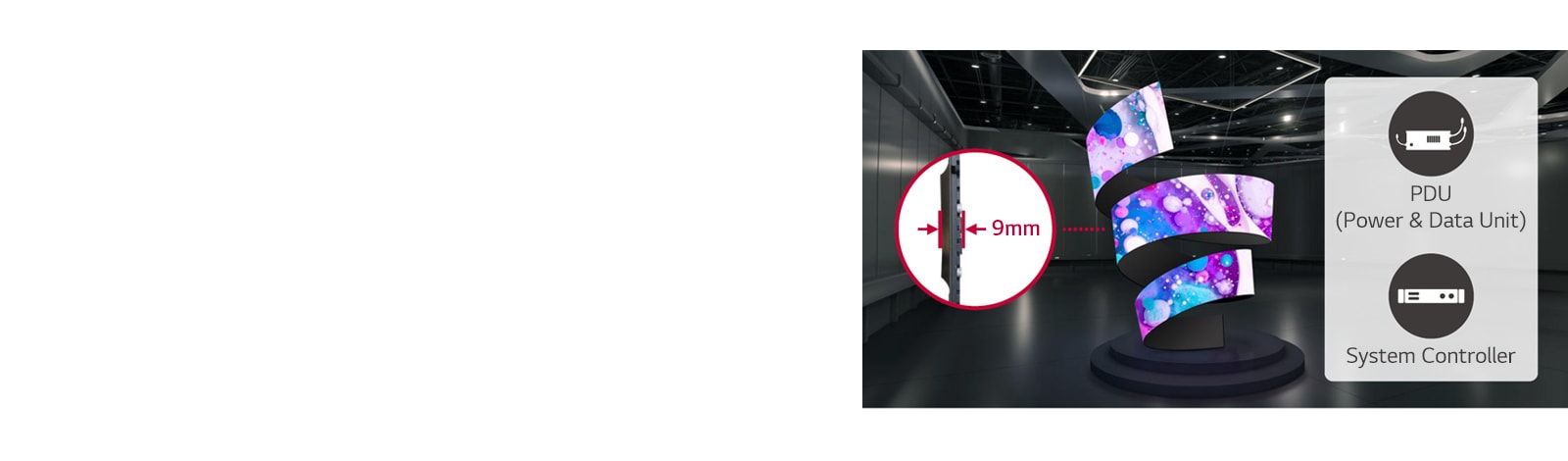

LEDs with unique shapes such as tornadoes are installed in an exhibition space. LEDs with unique shapes such as tornadoes are installed in an exhibition space.

Creative LED Screen

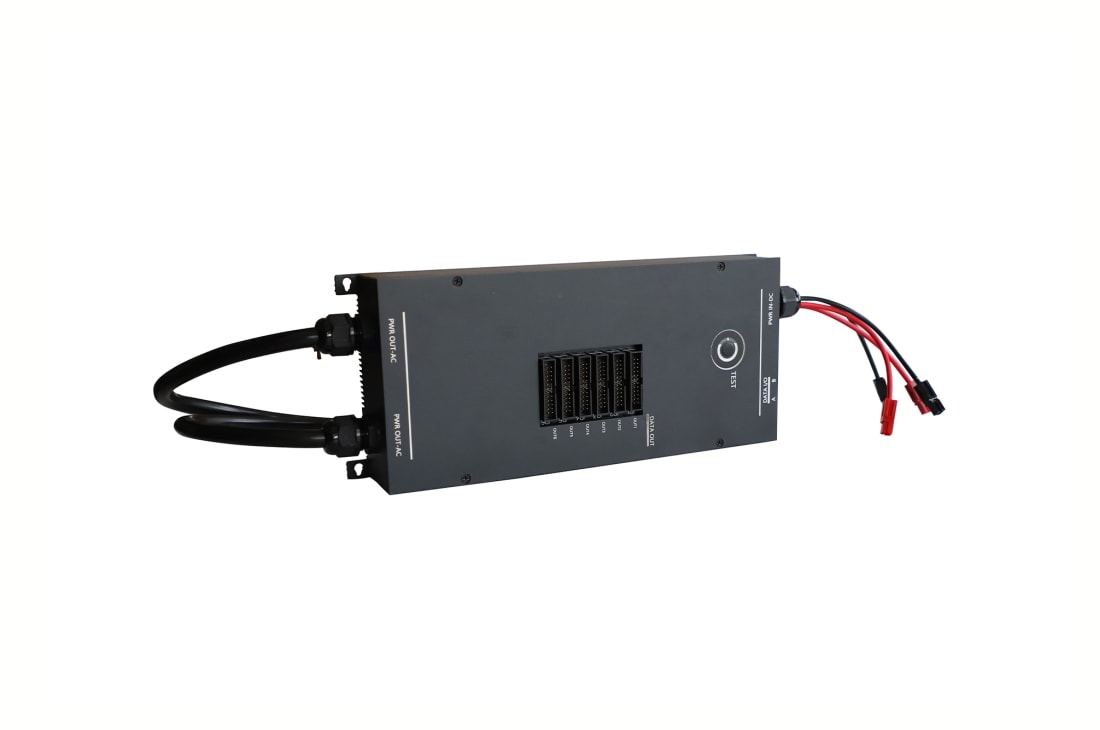

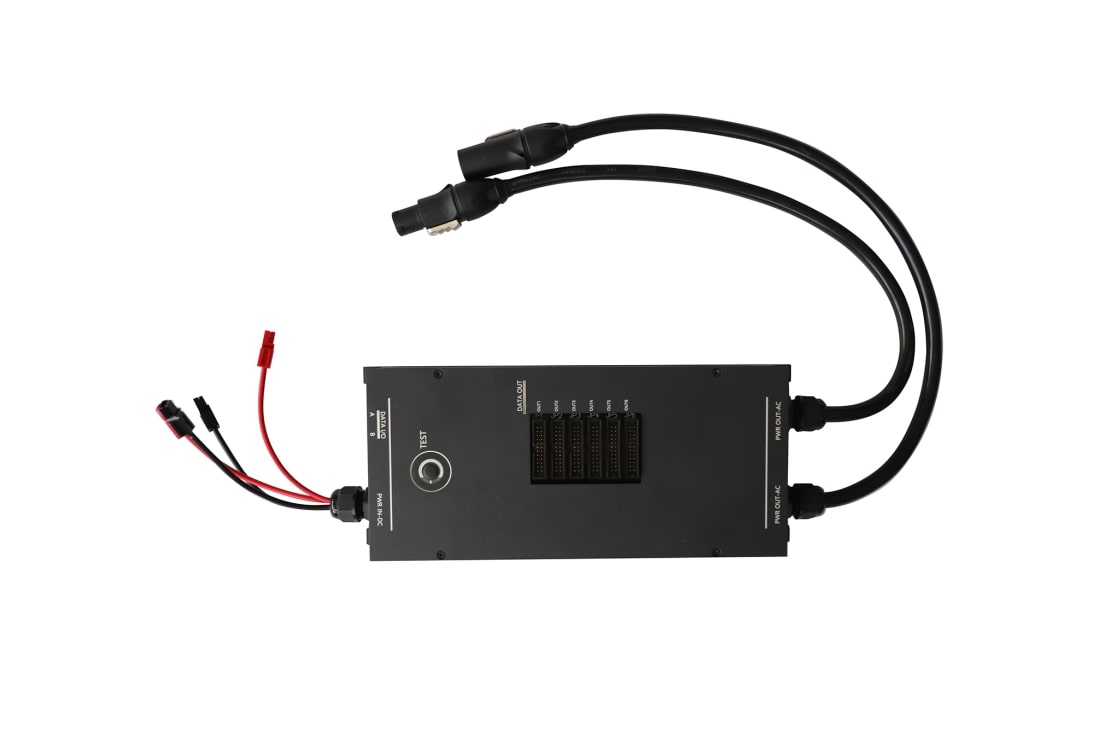

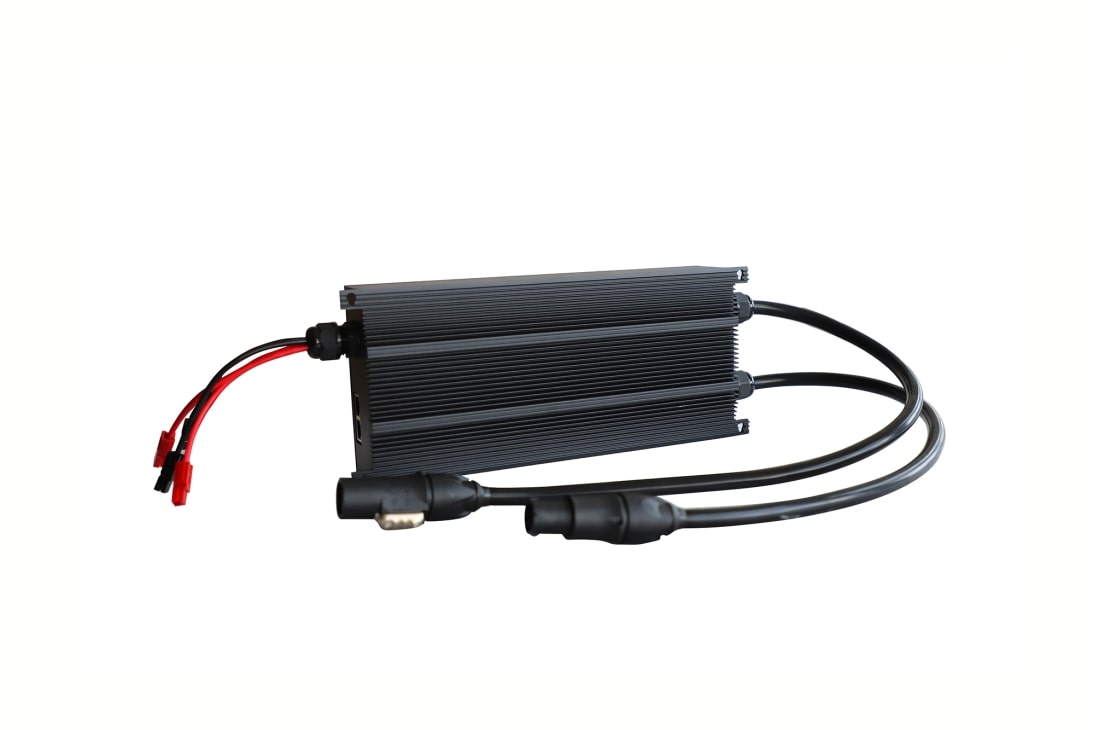

Different from the conventional LED display, LCCM series breaks free from the rectangular shape, allowing to be designed in various shapes as to display highly creative content on screen. In addition, the separation of the PDU (Power & Data Unit) from the cabinet gives a lot of freedom and advantage for creative installations.

Easy Installation & Maintenance

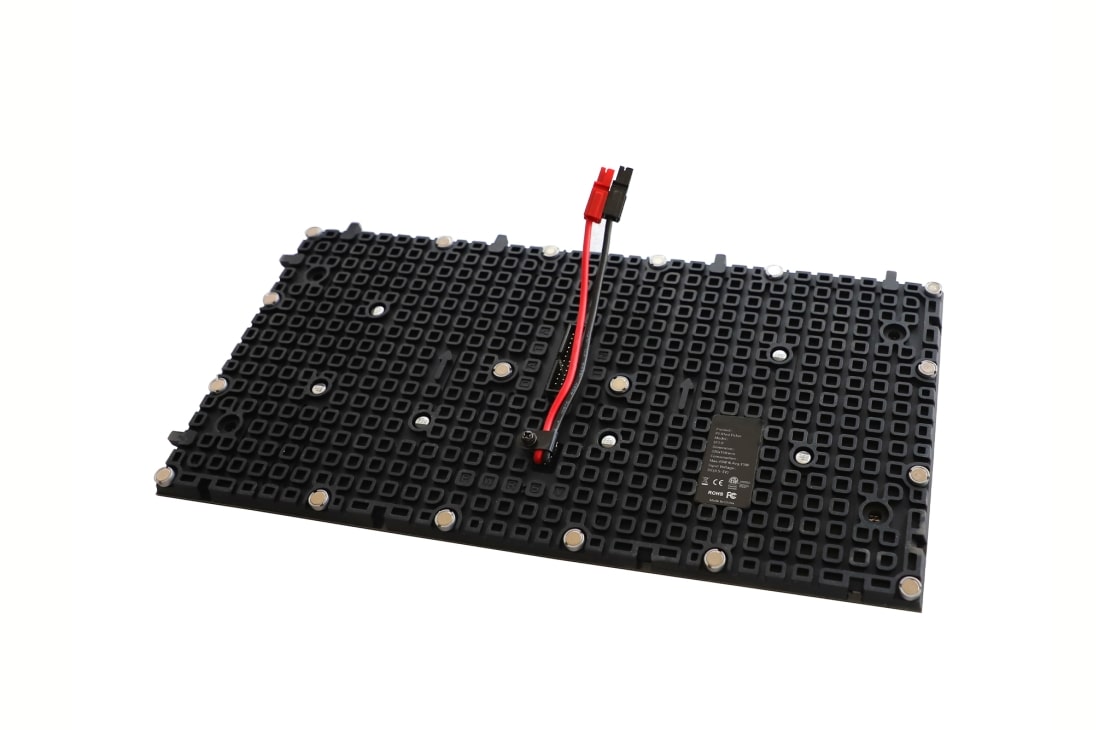

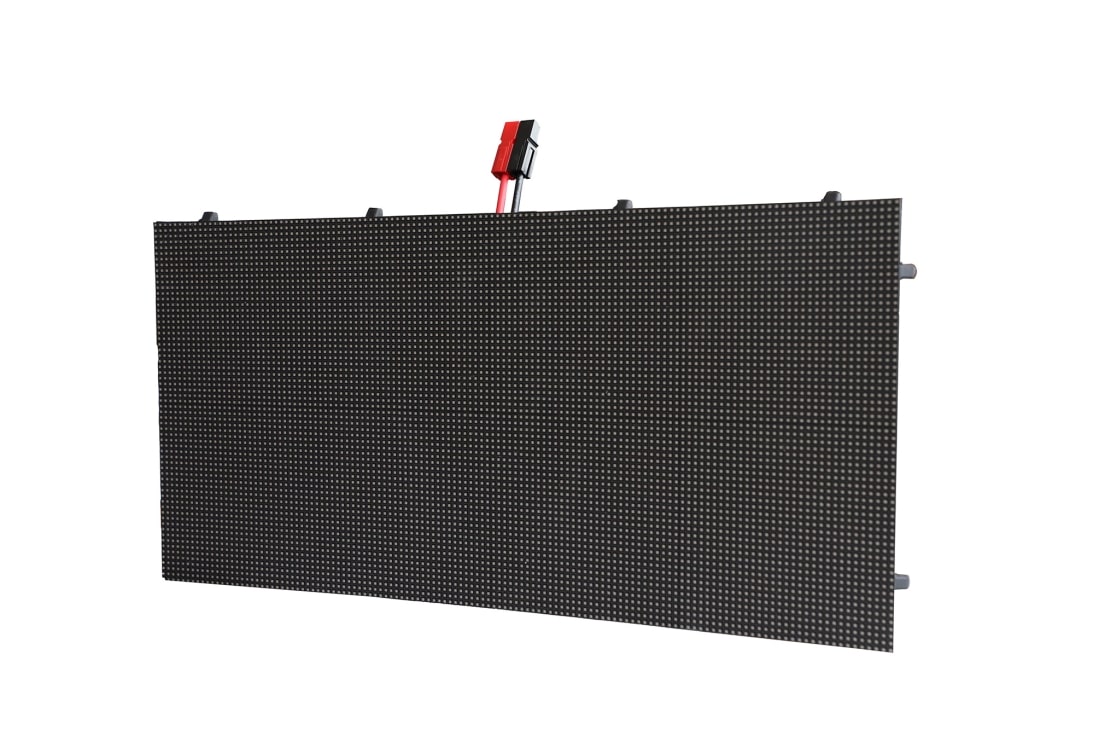

The easy-handling lightweight LDM (LED Display Module) makes installation easy. Also, with various factors including magnets and positioning pins, the installers can easily install and dismantle the LED screen with dedicated tool, making it convenient to manage.

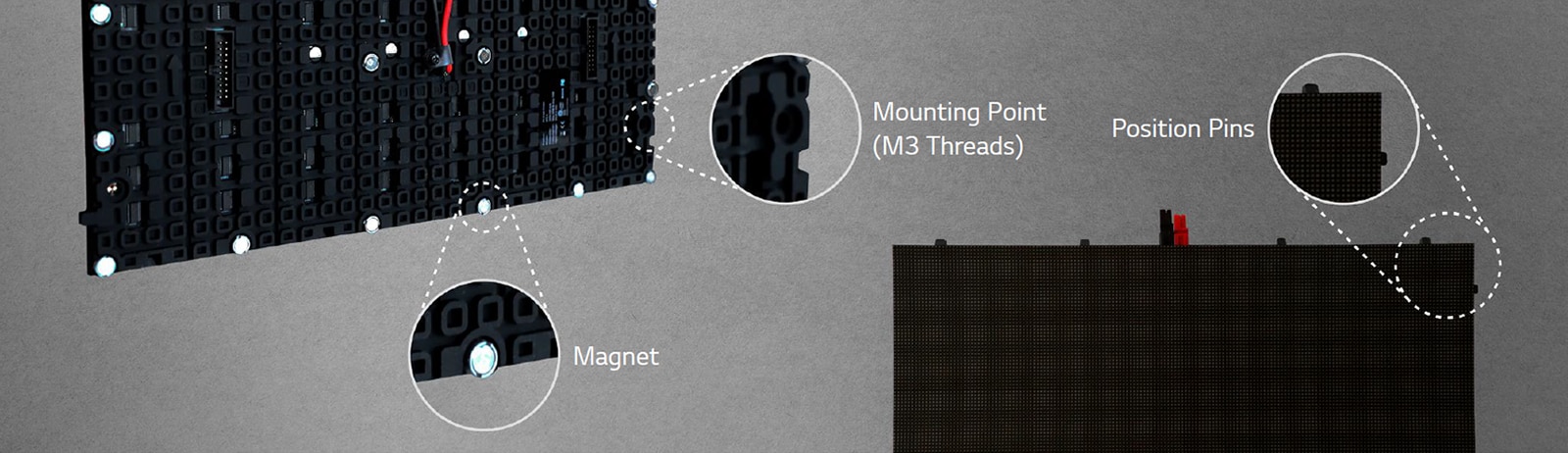

The 'Magnet', 'Mounting point (M3 threads)', and 'Position Pins' parts in the cabinet are enlarged. The 'Magnet', 'Mounting point (M3 threads)', and 'Position Pins' parts in the cabinet are enlarged.

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LCCM series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

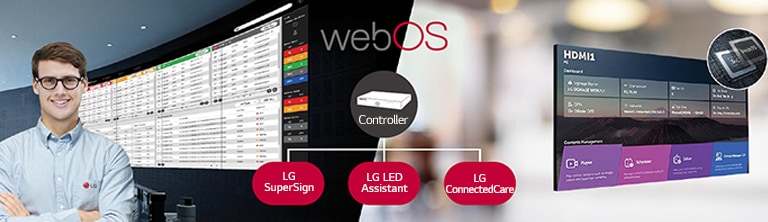

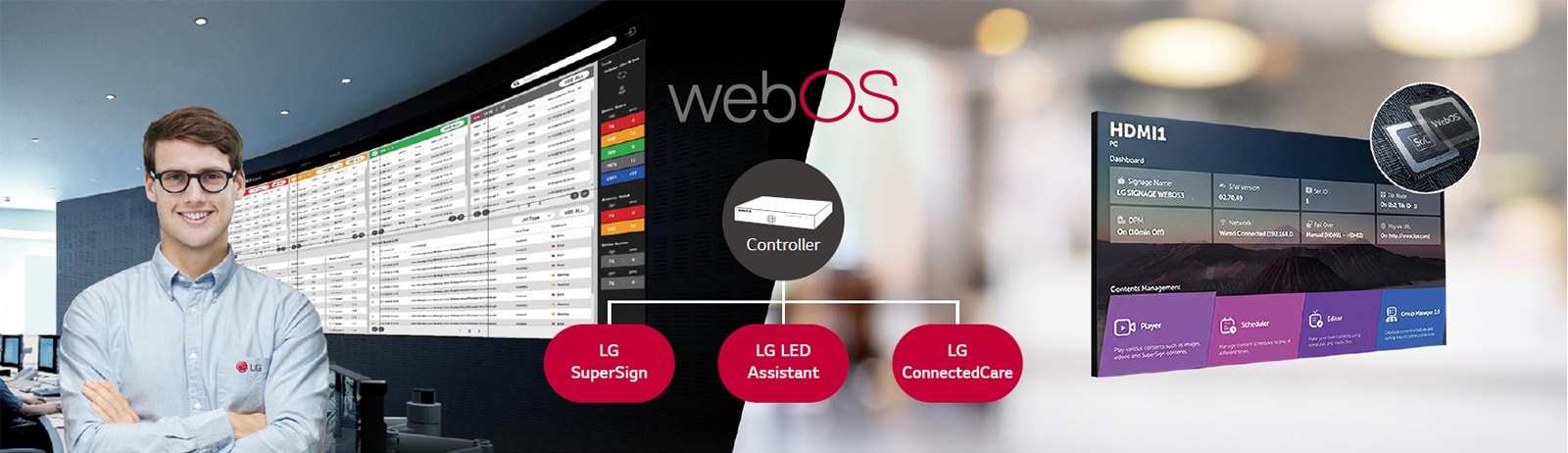

"The LG employee is remotely monitoring the LCCM series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LCCM series to be compatible with LG software solutions." "The LG employee is remotely monitoring the LCCM series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LCCM series to be compatible with LG software solutions."
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Available when using with CVCA cotroller.
Close
Physical Parameters
  • Pitch Name
    P2.5
    Pixel Configuration
    3 in 1
  • Pixel Pitch(mm)
    2.50
    Module Resolution (WxH)
    128x64
  • Module Dimensions(WxH,mm)
    320x160
    Weight per Module (kg)
    0.50
  • Physical Pixel Density (pixels/m²)
    160,000
    Flatness of Cabinet (mm)
    ±1.0
  • Cabinet Material
    Al
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    1,200
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    36
    Power Consumption (W/Cabinet, Avg.)
    12
  • Power Consumption (W/m², Max.)
    720
    Heat Dissipation (BTU/h/Cabinet, Max.)
    123
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    41
    Heat Dissipation (BTU/h/m², Max.)
    2,457
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    1,920
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -30℃ to +45℃
  • Operating Humidity
    10~90%RH
    IP Rating Front
    IP30
  • IP Rating Rear
    IP30
Certification
  • Certification
    CE, FCC, ETL
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    CVCA
Series
  • Series
    LCCM
  • Dimension
    • LCCM025-GN-v1.0 (1).dwg
    • LCCM025-GN-v1.0.pdf
  • Datasheet
    • LCCM-Series_Datasheet(low)_LG-Indoor-LED_220630.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
