LG MAGNIT
Contact Us

Micro LED Display with
Megapixel HELIOS LED Processing Platform

A man is giving a presentation in front of a large LED screen. The screen displays automobile-related content with clear visibility. A man is giving a presentation in front of a large LED screen. The screen displays automobile-related content with clear visibility.
* All images in this page are for illustrative purposes only.

Black Immersion,
Enlivened Details

LG MAGNIT's revolutionary chip transfer, full black coating, and newly incorporated surface treatment technology unite to provide outstanding black expression, vibrant colors, heightened contrast, and an unparalleled immersive visual experience. Witness the pinnacle of visual excellence as even the most intricate shadow details hidden in darkness.

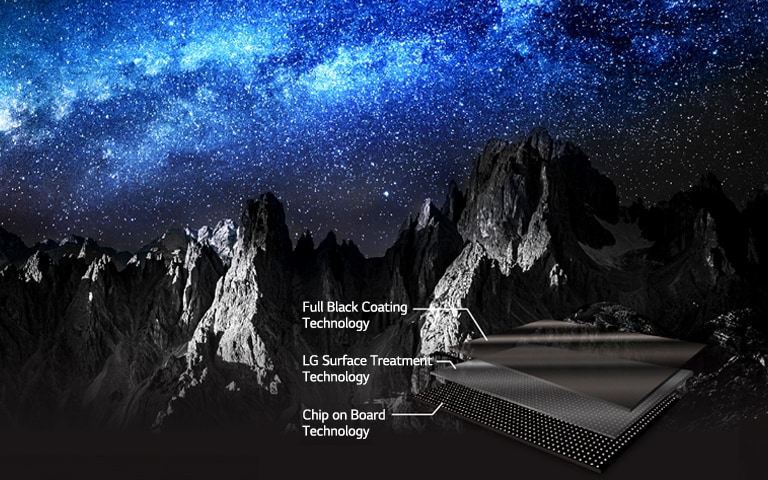

The starry night sky and dark mountain ranges are detailed and richly colored. The starry night sky and dark mountain ranges are detailed and richly colored.
* Based on LG's conventional LED Signage

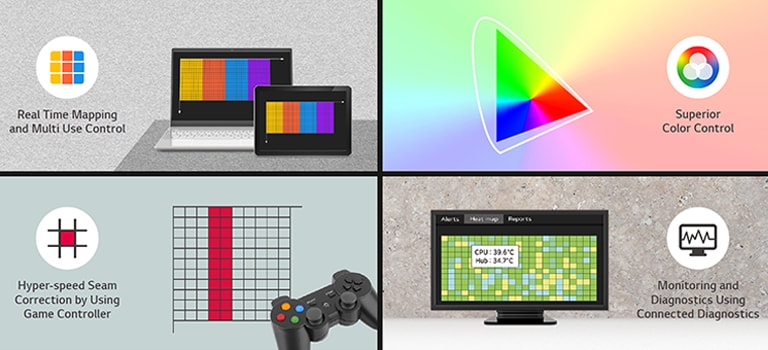

Powerful UI/UX with
Megapixel HELIOS LED Processing Platform

With the Megapixel HELIOS LED Processing Platform, LSAP now has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available.
The Megapixel HELIOS LED Processing Platform provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics. The Megapixel HELIOS LED Processing Platform provides access to the features such as Real-Time Mapping and Multi-Use Control, Superior Color Control, Hyper-speed Seam Correction using a Game Controller, and Monitoring and Diagnostics using Connected Diagnostics.
* Megapixel HELIOS LED Processing Platform needs to be purchased separately

Accurate Colors as Intended

LG MAGNIT's careful selection of LED chips guarantees uniform and pure colors across the entire screen. Experience vibrant and precise colors that faithfully reflect the original source, thanks to the narrowed wavelength. The enhanced Gamut Transfer technology elevates color representation to a new level, ideal for environments that require precise and lifelike color reproduction.
The rippling water is reflecting colorful light, and each color is vividly displayed. The rippling water is reflecting colorful light, and each color is vividly displayed.

Wide Color Viewing Angle

LG MAGNIT sets a new standard for color uniformity, providing vibrant hues from various angles. Whether you're directly in front or off to the side, LG MAGNIT consistently displays precise colors. This reliable performance ensures that attendees in a large space sees consistent color representation. LG MAGNIT’s color consistency has also been recognized with TÜV certification for its wide viewing angle.
The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion. The same scene is being displayed on multiple screens set up at different angles, and each screen shows the same exact scene with accurate and consistent colors and no angle distortion.
* The LSAP007-N2, LSAP009-N2,N5 LED module passed a TÜV Rheinland-approved test following "2 PfG Q2865 / 05.23 Evaluation of Color consistency wide viewing angle". This covers aspects like Color consistency(left/right), Color consistency(top/bottom), Color direction, Viewing angle segmentation(left/right), Color consistency(Color gamut). (Certificate No. Q50589187 0001)

Vivid Color Expression Powered by HDR

With HDR10 support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
The brilliant and colorful traditional Korean patterns are more vivid and delicate on the HDR On screen than on the HDR Off screen. The brilliant and colorful traditional Korean patterns are more vivid and delicate on the HDR On screen than on the HDR Off screen.

Care Less with Sturdy Design

LG MAGNIT has improved durability to protect against various risks caused by factors such as dust, electro-magnetic interference, flame spread and physical impacts. This is particularly important for installation in public places, as it helps minimize unforeseen accidents.
LG MAGNIT features enhanced durability against dust, electromagnetic interference, flame spread, and physical impacts. LG MAGNIT features enhanced durability against dust, electromagnetic interference, flame spread, and physical impacts.
* Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.
Close
Physical Parameters
  • Pitch Name
    P0.78
    Pixel Configuration
    Micro
  • Pixel Pitch (mm)
    0.78
    Module Resolution (W x H)
    384 × 144
  • Module Dimensions (W x H, mm)
    300 x 112.5
    Weight per Module (kg)
    0.18
  • No. of Modules per Cabinet (W × H)
    2 × 3
    Cabinet Resolution (W × H)
    768 x 432
  • Cabinet Dimensions (W x H x D, mm)
    600 × 337.5 × 44.9
    Cabinet Surface Area (m²)
    0.2
  • Weight per Cabinet (kg/unit)
    7.8
    Weight per Square Meter (kg/m²)
    38.5
  • Physical Pixel Density (pixels/m²)
    1,638,400
    Flatness of Cabinet (mm)
    ±0.5
  • Cabinet Material
    Die-casting Aluminum
    Service Access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    600 (min.)
    Color Temperature (K)
    2,000~10,000 / Default 6,504
  • Visual Viewing Angle (Horizontal)
    150
    Visual Viewing Angle (Vertical)
    150
  • Brightness Uniformity
    0.95
    Color Uniformity
    ±0.02Cx,Cy
  • Contrast Ratio
    17,000:1 @10lux
    Processing Depth (bit)
    22bit Internal processing (HDR10)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    70
    Power Consumption (W/Cabinet, Avg.)
    40
  • Power Consumption (W/m², Max.)
    346
    Heat Dissipation (BTU/h/Cabinet, Max.)
    239
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    137
    Heat Dissipation (BTU/h/m², Max.)
    1,180
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    23.98/24/25/29.97/30/50/59.94/60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0℃ to +40℃
  • Operating Humidity
    10 ~ 80%RH
    IP Rating Front
    IP50
  • IP Rating Rear
    IP20
Standard
  • Certification
    Safety 62368-1, EMC Class A
    Certification (Fire Protection)
    BS476 Part7 Class1
Environment
  • Environment
    RoHS/REACH
Controller
  • Controller
    MEGAPIXEL VR (HELIOS)
Series
  • Series
    LSAP
  • Datasheet
    • LSAP Series_Datasheet(low)_LG Micro LED_240902.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
