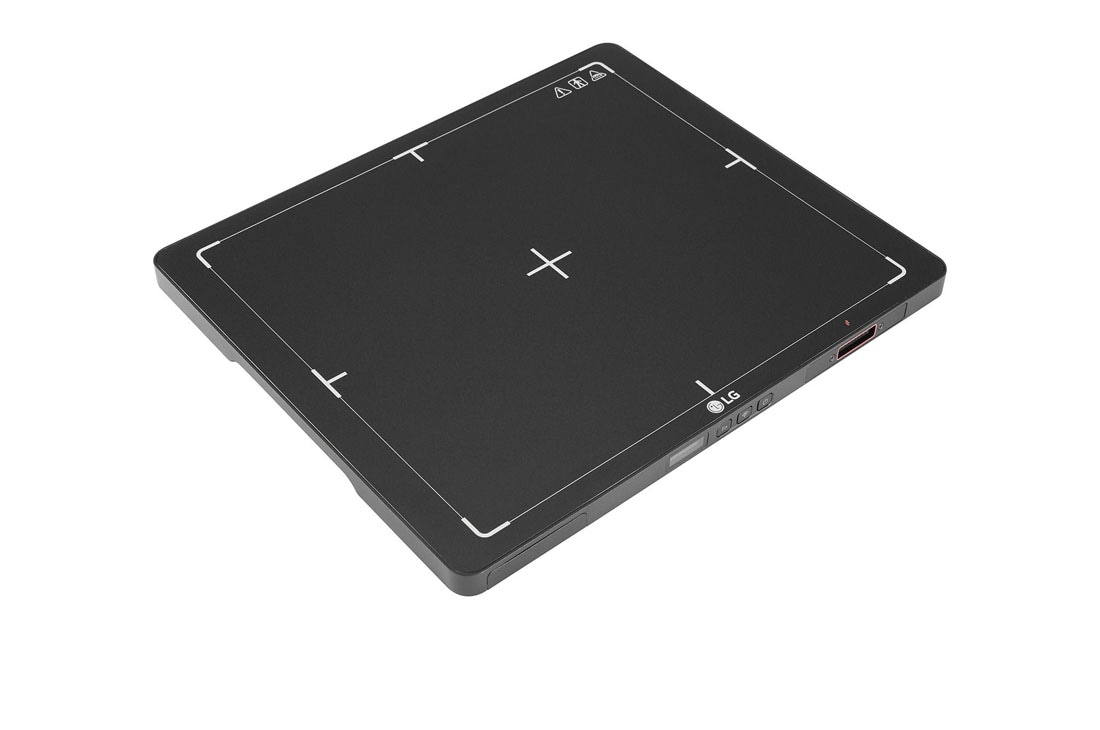

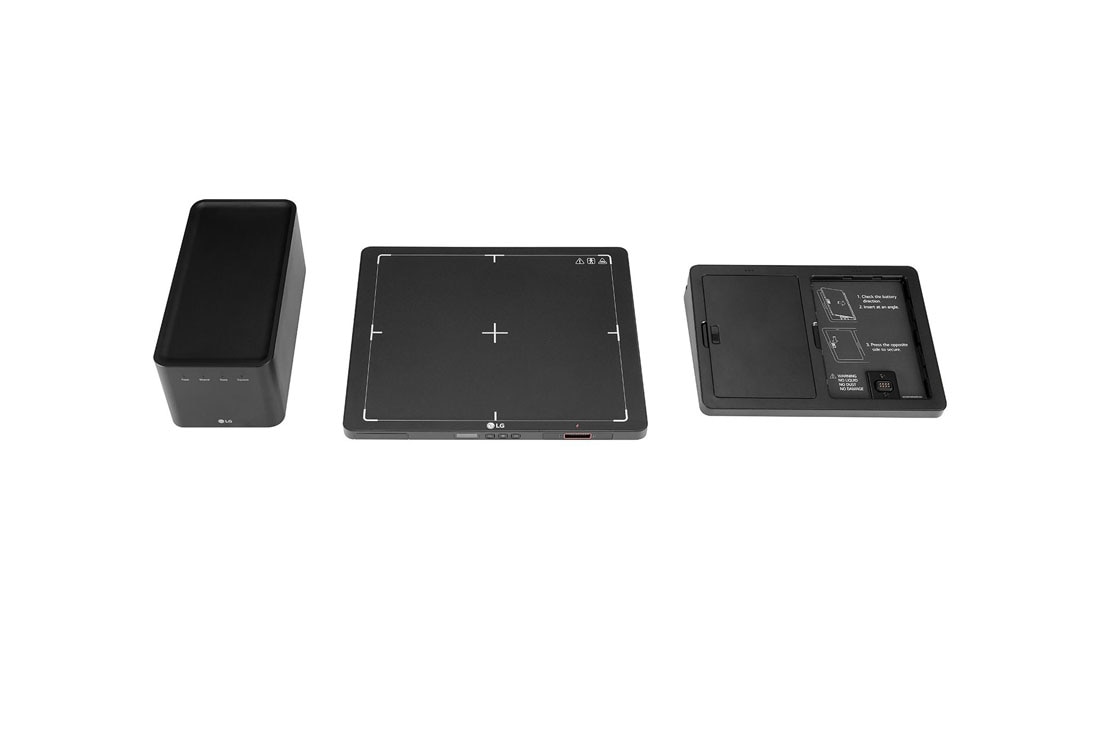

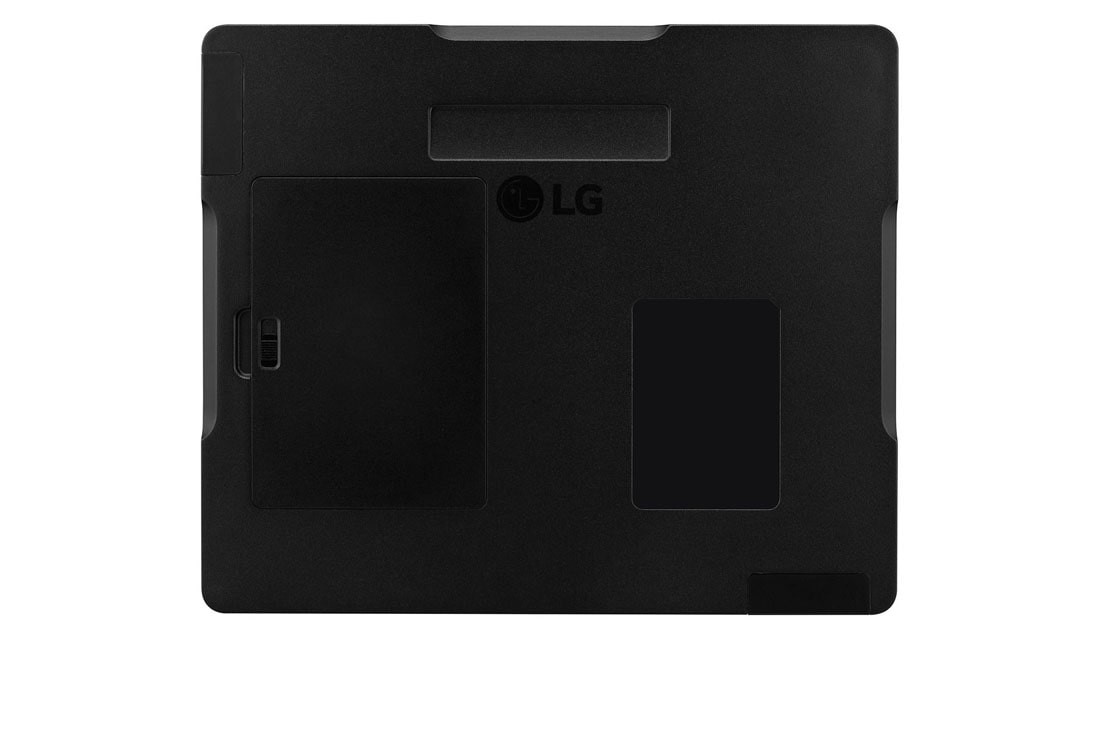

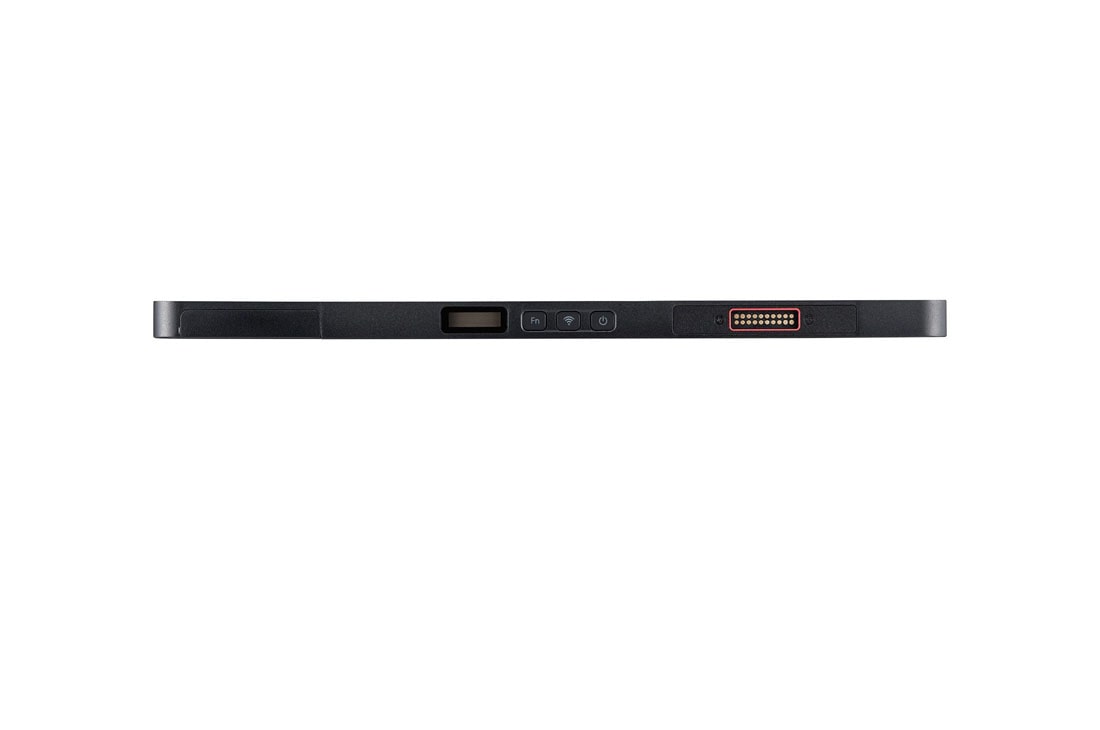

LG Digital X-ray Detector with a-Si TFT
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

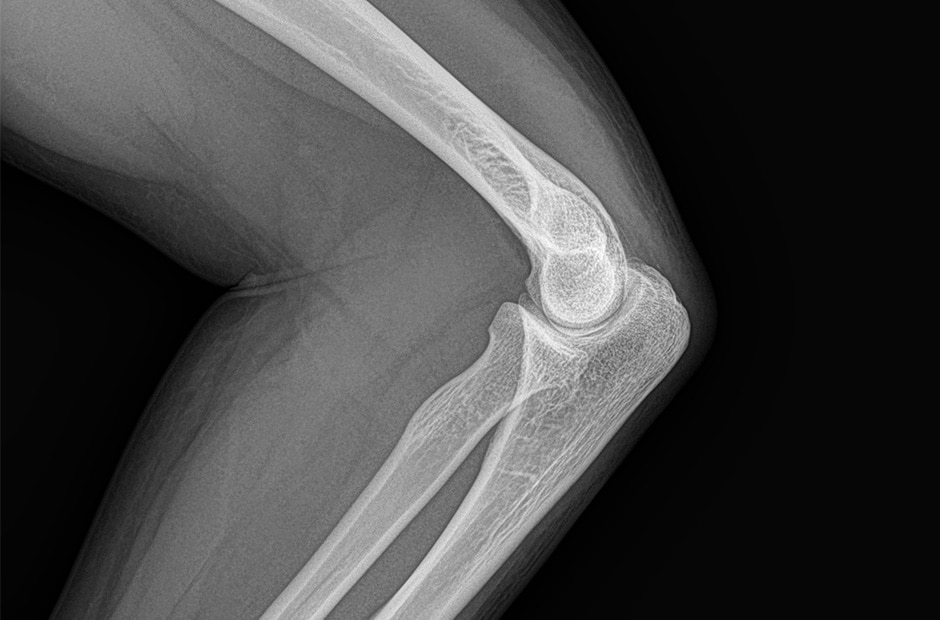

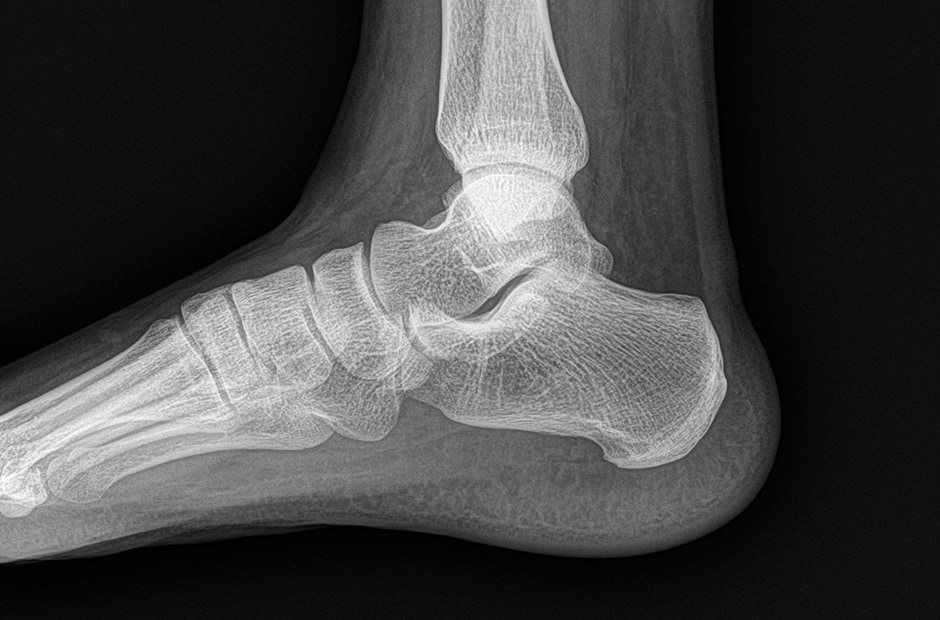

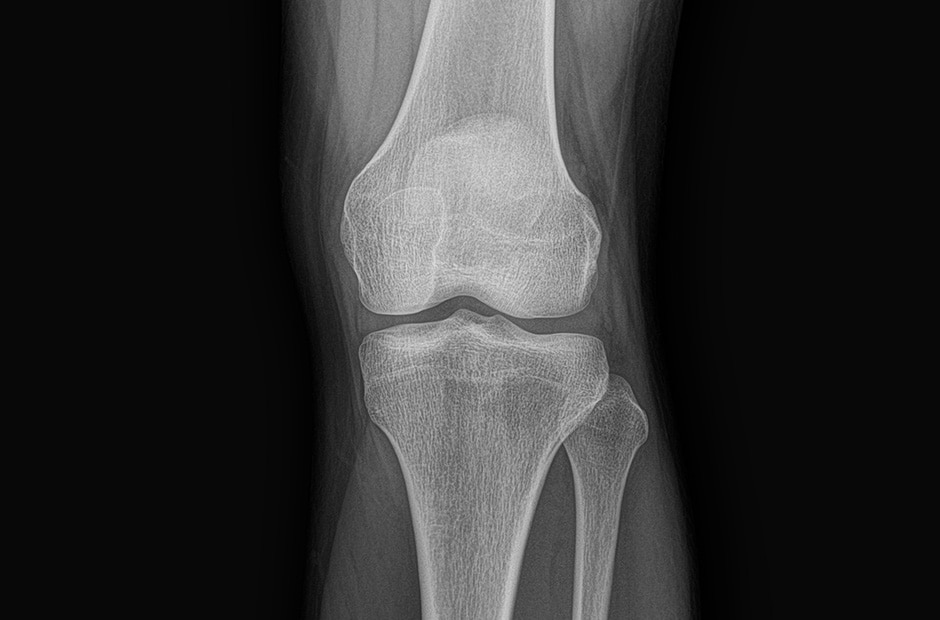

Get Clear Images
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

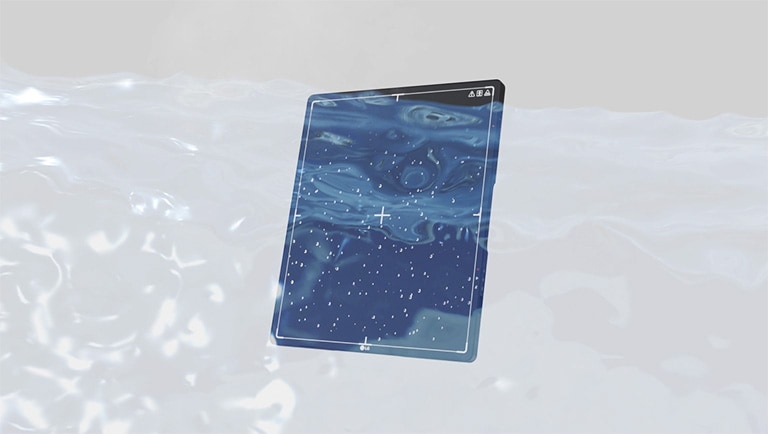

Durable Design
IP68*
400kg** Max. Uniform Load
200kg** Max. Point Load
1.5m*** Max. Drop Height
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Efficient Portability

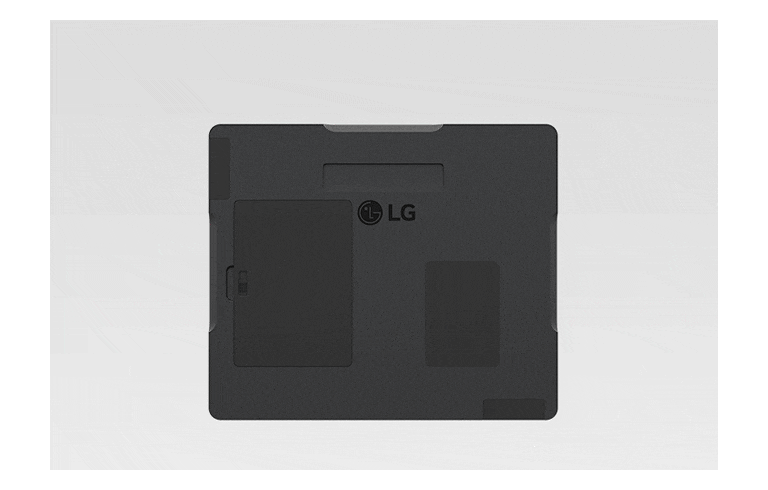

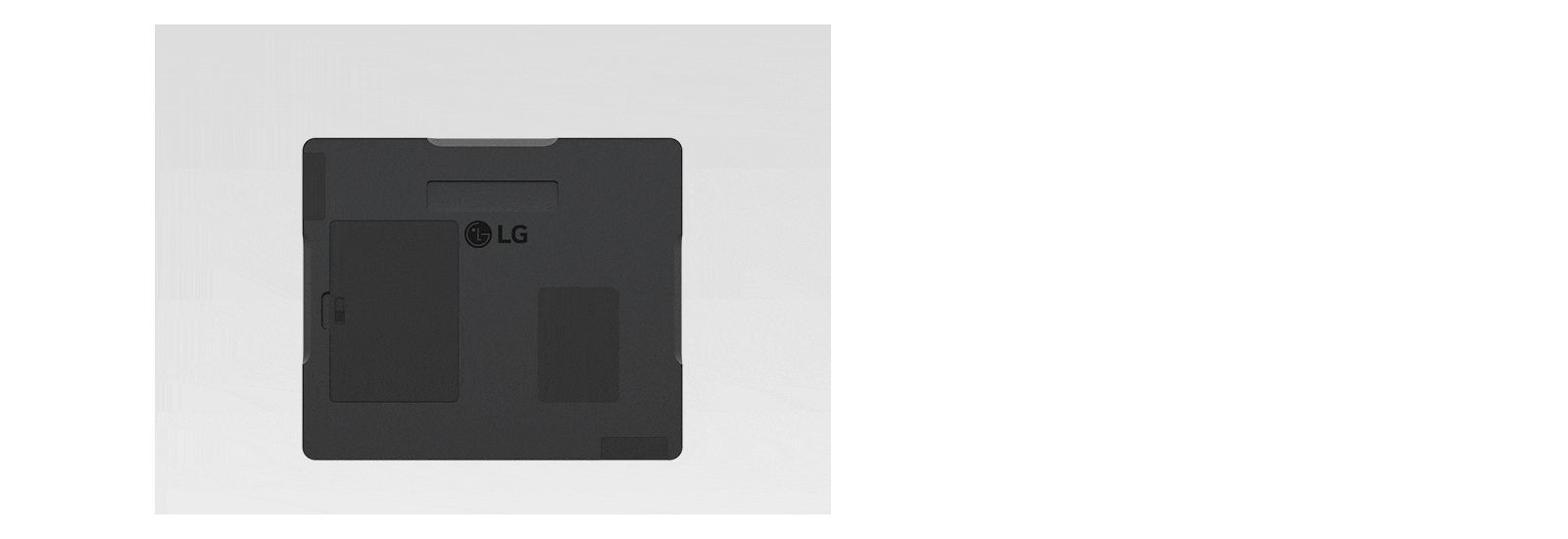

Light-weight Body (1.9kg) with 3-side Chamfer
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Uninterrupted Use for Extended Operating Times
-
![Long-lasting Battery Up to 7.5 Hours.]()
Long-lasting Battery Up to 7.5 Hours
-
![Hot Swap Up to 1min.]()
Hot Swap Up to 1min.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Upgraded Convenience
Monitor Device Status via OLED Display Panel
-

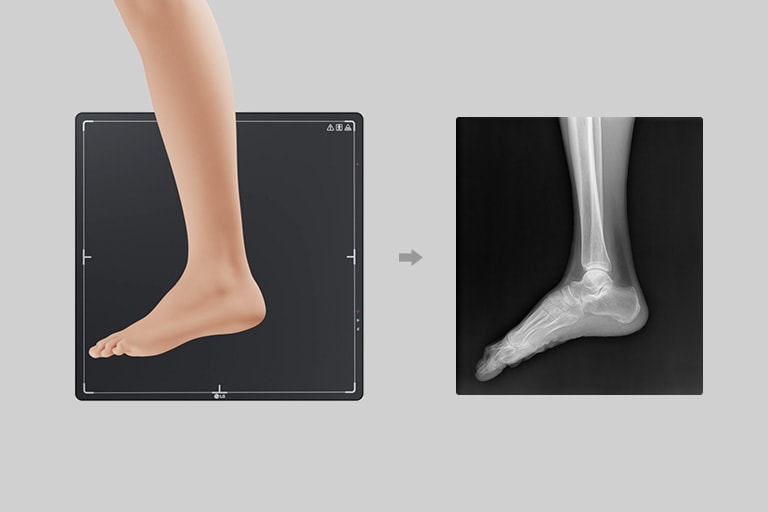

![High Transmission Speed for Full Images.]()
1.5 sec.(Wired) / 2 sec.(Wireless)
High Transmission Speed for Full Images
-

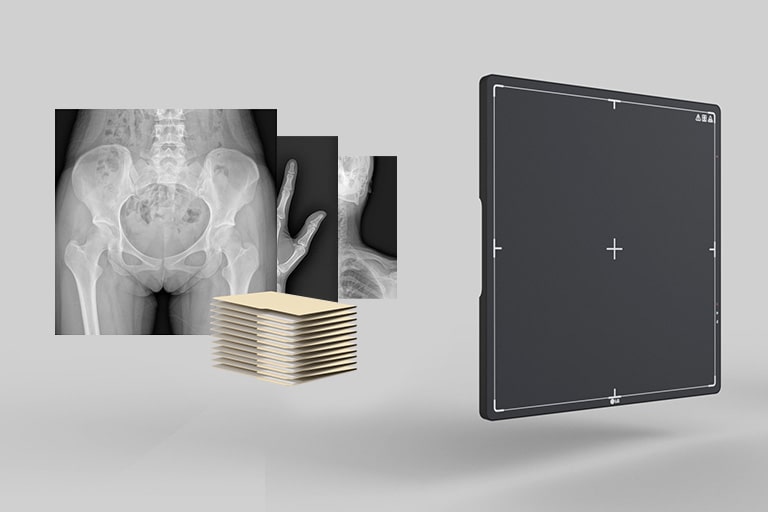

![Storage on the Digital X-ray Detector.]()
Local Storage
Storage on the Digital X-ray Detector
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
-
- Application
- General Radiography
- TFT Type
- A-Si
-
- Scintillator
- Csi
- Number of Pixels
- 2048 x 1792
-
- Pixel Pitch
- 140㎛
- TFT Dimensions(WxDxH, mm)
- 307.18 x 277.94 mm
-
- TFT Active Area(mm)
- 286.72 mm x 250.88 mm
- X-ray sensitive Pixel
- 2048 * 1792
-
- X-ray sensitive Area(mm)
- 286.72 mm x 250.88 mm
- Sensor protection plate
- Carbon Fiber Plate
-
- Input
- DC24V/2.1A
- Power consumption
- Typ. 24W
-
- Dimensions(WxDxH, mm)
- 282 x 333 x 15.6 mm
- Weight(kg) / Icld. Battery (Typ.)
- 1.9 kg
-
- Maximum Load Weight
-
Full (Uniform Load) : 400kg
Local (Point Load) : 200kg
- Falling (IEC60601-1 Test Condition)
- 1.5m
-
- Cycle Time (Wired / Wireless)
- 4.5sec / 5sec
- Full Image (Raw Image) (Typ.)
* without window time - Wired 1.5 sec / Wireless 2 sec
-
- IP Rating
- IP68
- Cleaning and desinfecting products
- Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
-
- MTF @ 0.5lp/mm
- 84%
- MTF @ 1lp/mm
- 62%
-
- MTF @ 2lp/mm
- 31%
- MTF @ 3lp/mm
- 15%
-
- DQE @ 0.1lp/mm
- 66%
- DQE @ 0.5lp/mm
- 55%
-
- DQE @ 1lp/mm
- 43%
- DQE @ 2lp/mm
- 28%
-
- DQE @ 3lp/mm
- 19%
- Sensitivity( lsb/uGy ) / Programmable
- 3.57 lp/mm
-
- A/D Conversion
- 16 bit
- Data Output
- 16 bit
-
- Auto Exposure Detection
- Yes
- X-ray period (ms) (=Window Time)
- 350 ~ 4000ms
-
- Unit Interface
- Connect to Control Box
- Power unit interface
- Connect to Control Box
-
- Wired Communication
- Yes
- WLAN
- IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
-
- AP mode
- Yes(Integrated)
- Detachable Wire
(Easy to plug / unplug) - Yes (Magnetic)
-
- Shock monitoring
- Yes
- Image storage on DXD
- Up to 200 images
-
- Semi-dynamic Acquisition
- 5 fps
-
- Power Input
- AC100 to 240V, 47-63Hz
- Power Output
- DC24V / 2.1A
-
- AC Power Cord
- 1.5m (Black)
- Dimensions(WxDxH, mm)
- 125 x 255 x 109.8mm
-
- weight(kg)
- 1.3 kg
-
- Length
- 7m
-
- Length
- 10m
-
- Length
- 15m
-
- Type
- Detachable
- Nominal Capacity
- 36Wh (7.7V, 4725mAh)
-
- Nominal Voltage
- 7.7V
- Dimensions(WxDxH, mm)
- 112.2 * 158 * 8.4
-
- Weight(g)
- 205
- Operation Time
- Typ. 300 shots/ 7.5 hrs (Condition : Cycle time 90sec)
-
- Hot swap
- Yes (1min)
-
- Input voltage
- 19V
- Output voltage
- 8.7V
-
- Charging Time
- 3 Hours
- Slot Q'ty
- 2
-
- Bundle battery Q'ty
- 2
- Dimensions(WxDxH, mm)
- 268.4 x 186.9 x 54.9mm
-
- weight(kg)
- 0.5 kg
-
- Dimensions(WxDxH, mm)
- 134x59.8x31mm
- DC Cable length
- 1,500 mm
-
- AC Power Cord
- Yes
- Input
- 100 ~ 240VAC
-
- Output
- 19V/3.42A
- Weight(kg)
- 0.335 kg
-
- Storage-Temperature
- -20 to 60 ℃
- Storage-Humidity
- Less than 90% RH, No condensation
-
- Storage-Pressure
- 50 ~ 106 kPa
- Storage- Altitude
- Less than 12,192 m
-
- Operating-Temperature
- 10 to 35 ℃
- Operating-Humidity
- Less than 80% RH, No condensation
-
- Operating-Pressure
- 70 ~ 106 kPa
- Operating- Altitude
- Less than 5000 m
-
- Warranty
- 36 Month
-
- CD
- Manual, Calibration SW
- Cable
- Power cord, Main Cable 7m (LAN Cable, Sync cable Option)
-
- Other
- Book Manual , Outgonig Inspection sheet
-
- Dimension in Shipping (W x H x D)
- 621*352*562
- Pallet Stuffing (20ft/40ft/40ft HC)
- 160/360/432
-
- Weight in Shipping
- 10.9kg
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
