14HQ701G component-copyModelName

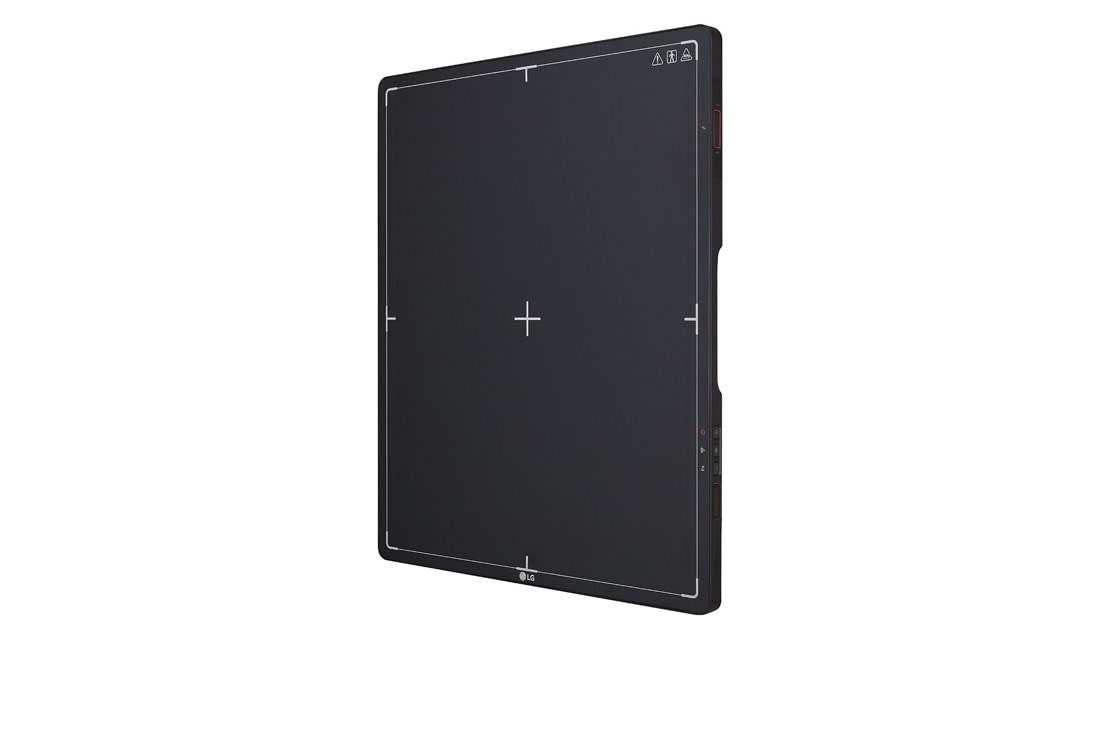

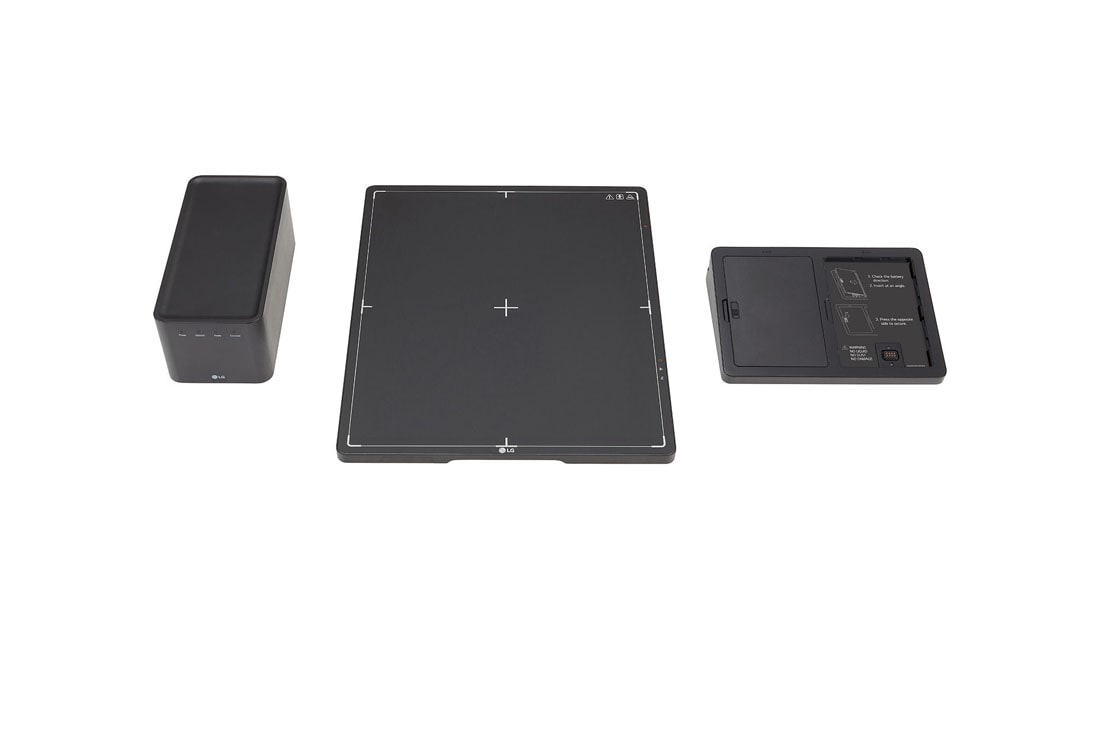

LG Digital X-ray Detector with a-Si TFT

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HQ701G)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HQ701G)
    $
    $
    LG Members Price
Total

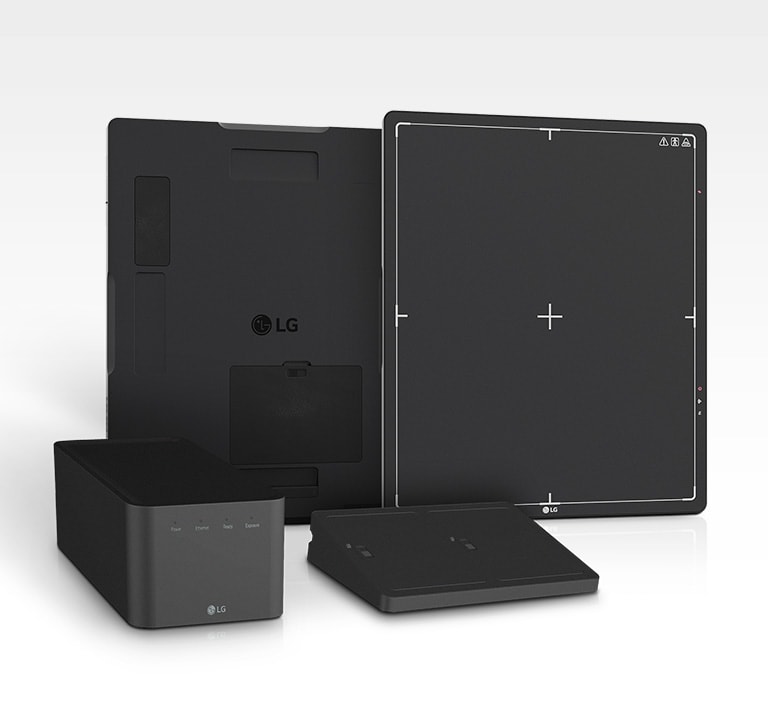

LG Digital X-ray Detector with a-Si TFT
Contact Us

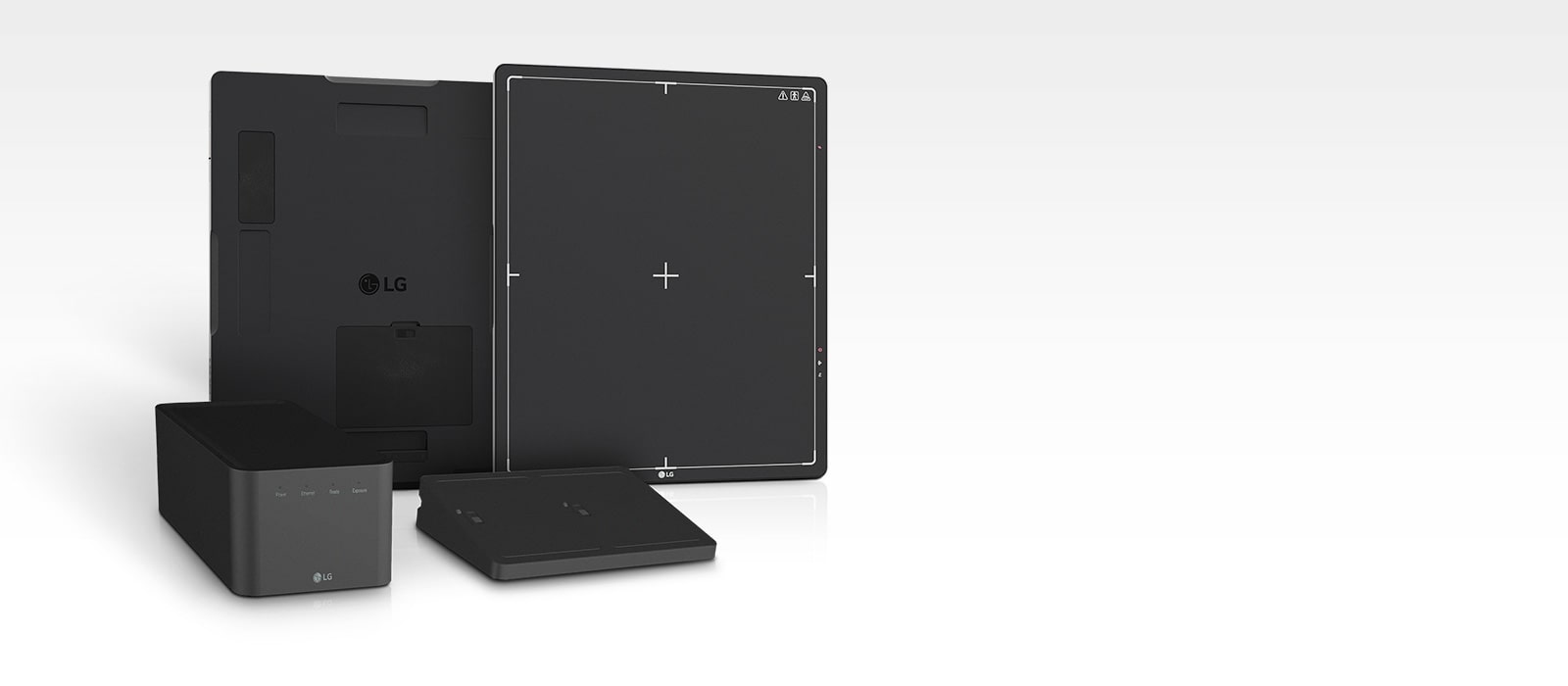

LG Digital X-ray Detector with a-Si TFT. LG Digital X-ray Detector with a-Si TFT.

LG Digital X-ray Detector with a-Si TFT

Watch the Full Movie
*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Amorphous Silicon TFT

Get Clear Images

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

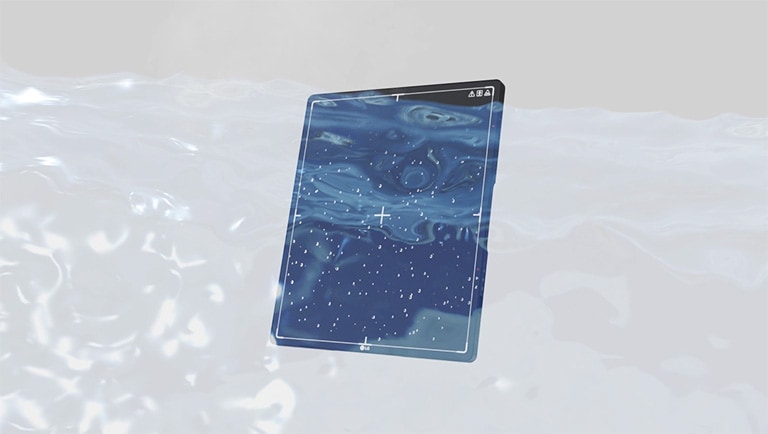

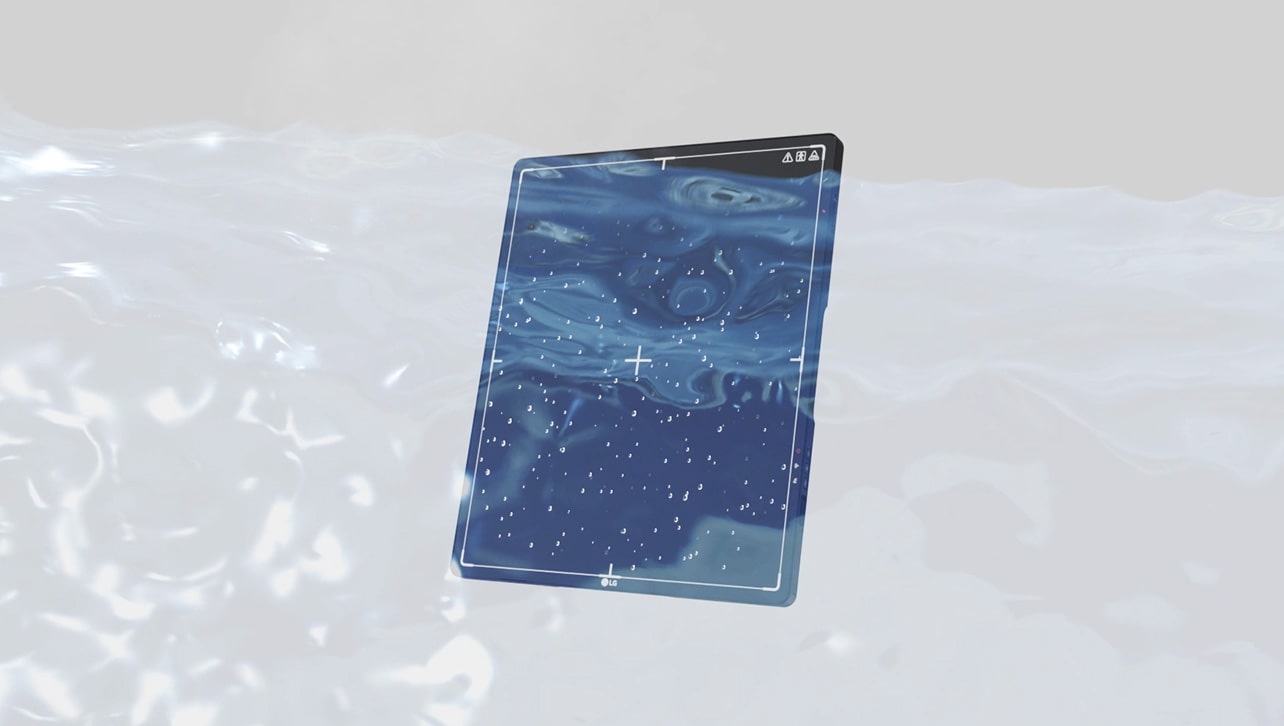

Durable Design

Durable Design. Durable Design.

IP68*

400kg** Max. Uniform Load

200kg** Max. Point Load

1.5m*** Max. Drop Height

*IP68 includes Solids Level 6 (Dust-tight: no ingress of dust, and Liquid Level 8.
*Tested under controlled laboratory conditions with an IP68 rating. Water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet.
**Maximum total uniform load and maximum point load when tested for 60 seconds.
***IEC 60601-1 drop test in a controlled laboratory environment can differ from actual usage situation.
****All images are shown for illustrative purposes only, and may vary from the actual product/usage.
*****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Efficient Portability

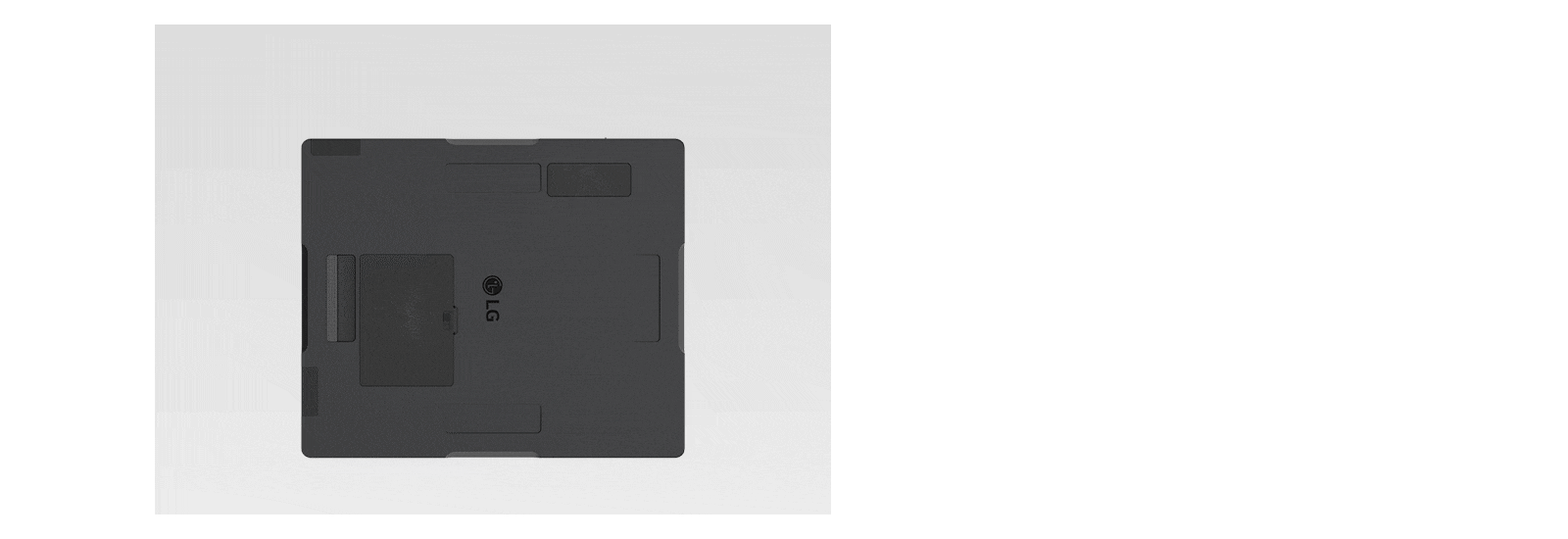

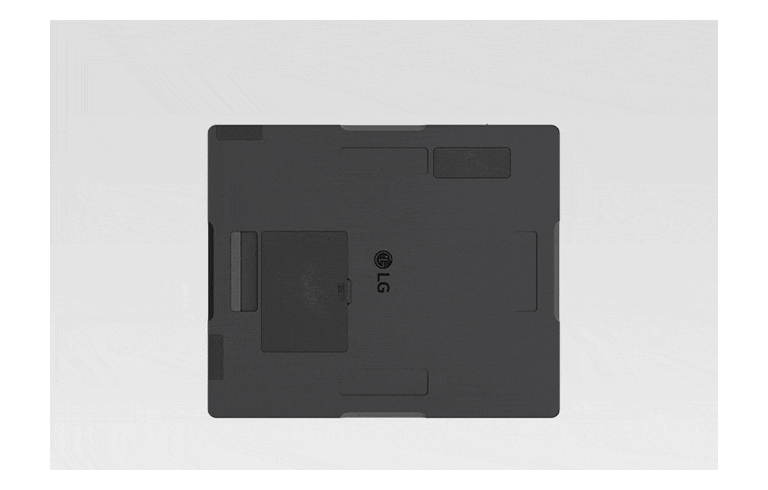

Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer
Carbon & Magnesium Body

Light-weight Body (3.2kg (7.1 lbs)) with 4-side Chamfer

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Uninterrupted Use for Extended Operating Times

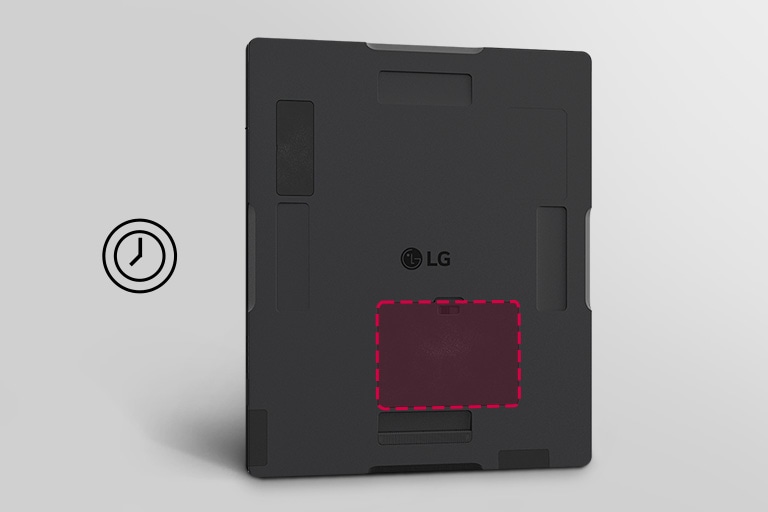

  • Long-lasting Battery Up to 7.5 Hours.

    Long-lasting Battery Up to 7.5 Hours

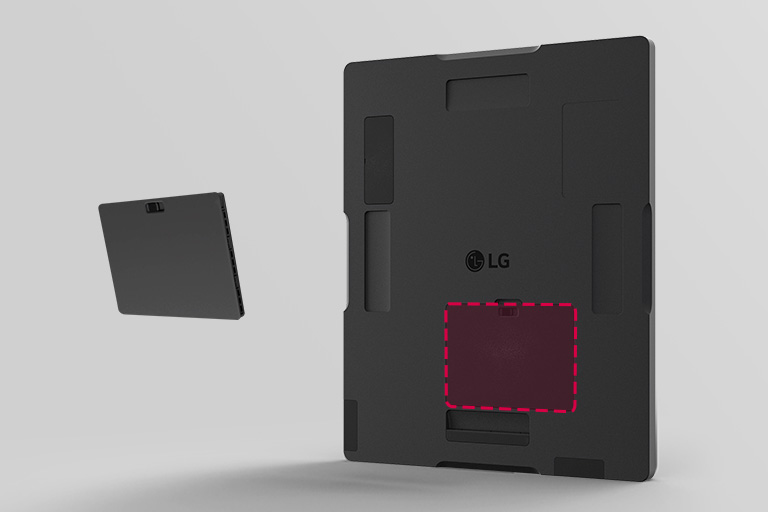

  • Hot Swap Up to 1min.

    Hot Swap Up to 1min.

*300 shots / 7.5 hours under conditions of cycle time 90 sec.
**Actual battery usage time and performance may vary depending on network connectivity and application use.
***All images are shown for illustrative purposes only, and may vary from the actual product/usage.
****Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.

Upgraded Convenience

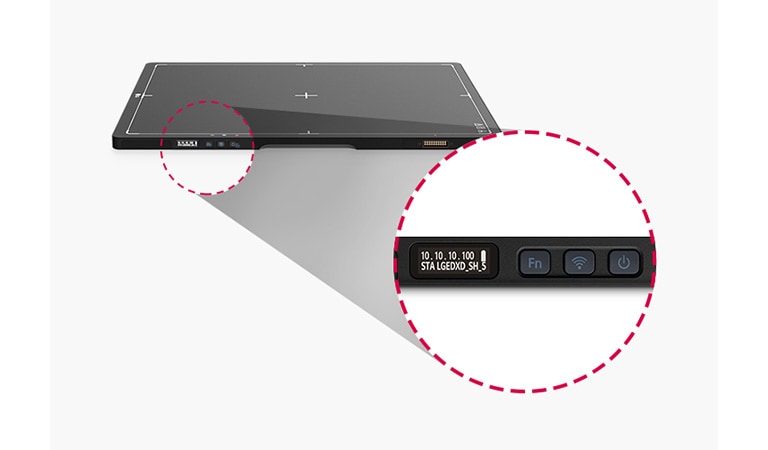

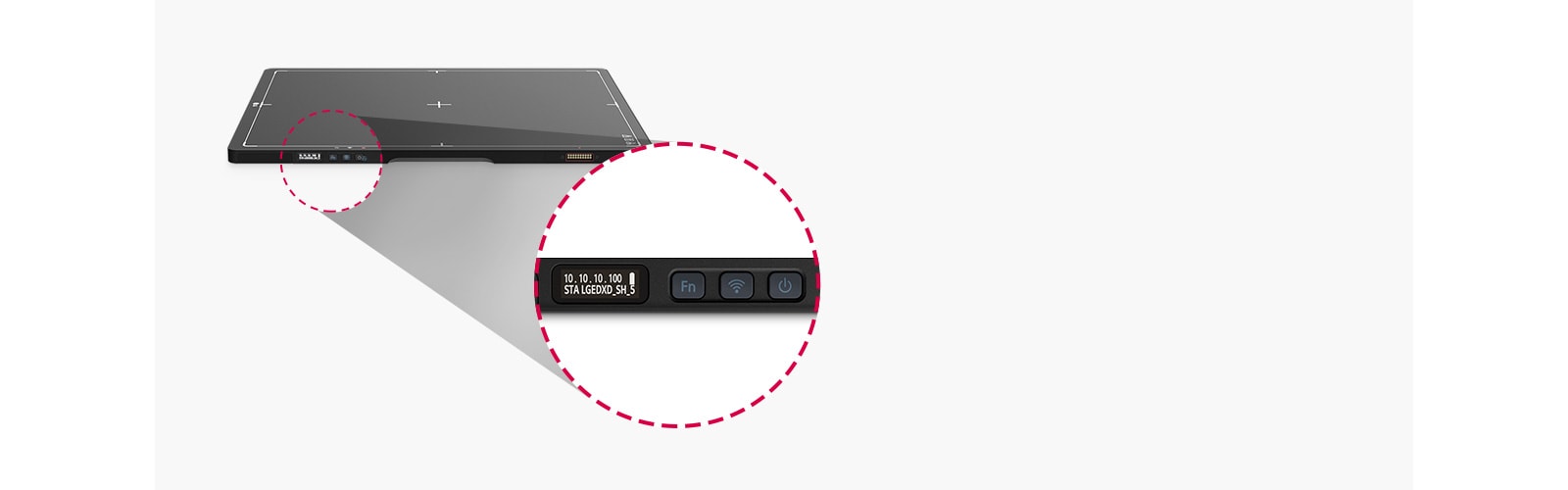

Monitor Device Status via OLED Display Panel. Monitor Device Status via OLED Display Panel.
Built-in OLED Display

Monitor Device Status via OLED Display Panel

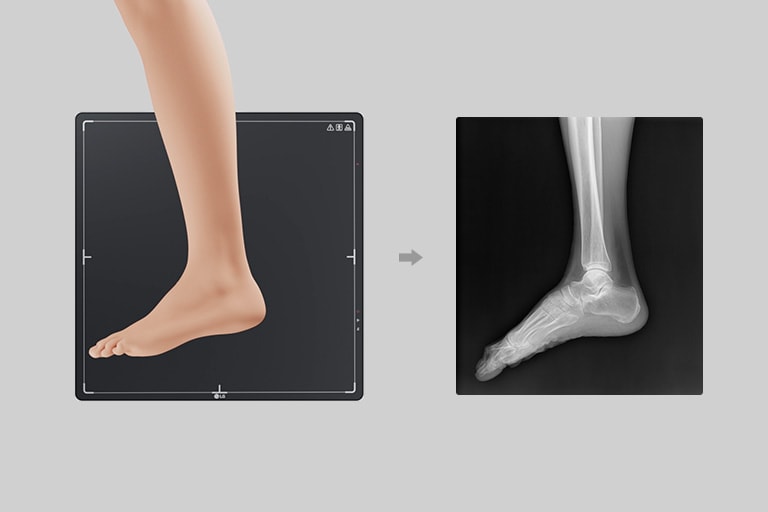

  • High Transmission Speed for Full Images.

    1.5 sec.(Wired) / 2 sec.(Wireless)

    High Transmission Speed for Full Images

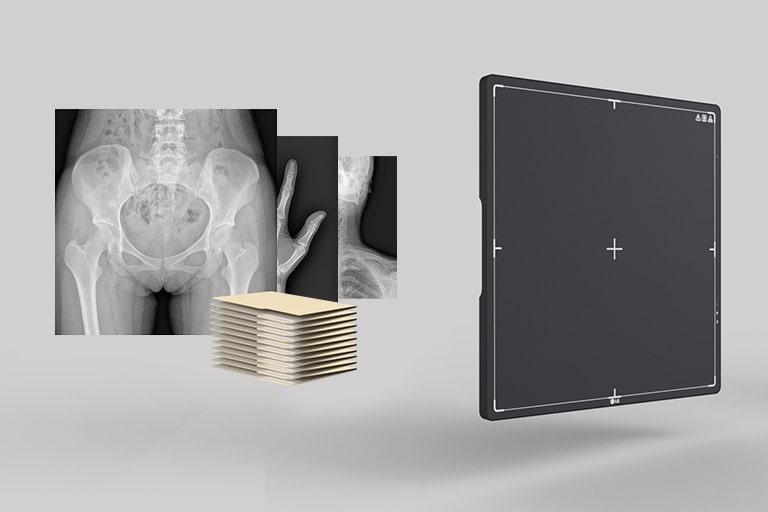

  • Storage on the Digital X-ray Detector.

    Local Storage

    Storage on the Digital X-ray Detector

*All images are shown for illustrative purposes only, and may vary from the actual product/usage.
**Specifications may vary by region. All features, standards, and other product specifications are subject to change without notice.
Close
Sensor(panel)unit
  • Application
    General Radiography
    TFT Type
    A-Si
  • Scintillator
    Csi
    Number of Pixels
    3072x2560
  • Pixel Pitch
    140㎛
    TFT Dimensions(WxDxH, mm)
    369 x 442 mm
  • TFT Active Area(mm)
    358.40 x 430.08
    X-ray sensitive Pixel
    2560x3072
  • X-ray sensitive Area(mm)
    430.08 × 358.40
    Sensor protection plate
    Carbon Fiber Plate
  • Input
    DC24V/2.1A
    Power consumption
    Typ. 38W
  • Dimensions(WxDxH, mm)
    384 x 460 x 15.6 mm
    Weight(kg) / Icld. Battery (Typ.)
    3.2 kg
  • Maximum Load Weight
    Full (Uniform Load) : 400kg
    Local (Point Load) : 200kg
    Falling (IEC60601-1 Test Condition)
    1.5m
  • Cycle Time (Wired / Wireless)
    4.5sec / 5sec
    Full Image (Raw Image) (Typ.)
    * without window time
    Wired 1.5 sec / Wireless 2 sec
  • IP Rating
    IP68
    Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
MTF(Typ.)
  • MTF @ 0.5lp/mm
    84%
    MTF @ 1lp/mm
    62%
  • MTF @ 2lp/mm
    31%
    MTF @ 3lp/mm
    15%
DQE(Typ)
  • DQE @ 0.1lp/mm
    66%
    DQE @ 0.5lp/mm
    55%
  • DQE @ 1lp/mm
    43%
    DQE @ 2lp/mm
    28%
  • DQE @ 3lp/mm
    19%
    Sensitivity( lsb/uGy ) / Programmable
    3.57 lp/mm
Degradation
  • A/D Conversion
    16 bit
    Data Output
    16 bit
  • Auto Exposure Detection
    Yes
    X-ray period (ms) (=Window Time)
    350 ~ 4000ms
  • Unit Interface
    Connect to Control Box
    Power unit interface
    Connect to Control Box
  • Wired Communication
    Yes
    WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
  • AP mode
    Yes(Integrated)
    Detachable Wire
    (Easy to plug / unplug)
    Yes (Magnetic)
  • Shock monitoring
    Yes
    Image storage on DXD
    Up to 200 images
  • Semi-dynamic Acquisition
    5 fps
Control Box
  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V / 2.1A
  • AC Power Cord
    1.5m (Black)
    Dimensions(WxDxH, mm)
    125 x 255 x 109.8mm
  • weight(kg)
    1.3 kg
Main Cable(DXD-Control Box)
  • Length
    7m
LAN Cable(Control Box-PC): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    10m
Sync Cable(Control Box - X-ray Generator): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    15m
Battery
  • Type
    Detachable
    Nominal Capacity
    36Wh (7.7V, 4725mAh)
  • Nominal Voltage
    7.7V
    Dimensions(WxDxH, mm)
    112.2 * 158 * 8.4
  • Weight(g)
    240
    Operation Time
    Typ. 300 shots/ 7.5 hrs (Condition : Cycle time 90sec)
  • Hot swap
    Yes (1min)
Battery Charger
  • Input voltage
    19V
    Output voltage
    8.7V
  • Charging Time
    3 Hours
    Slot Q'ty
    2
  • Bundle battery Q'ty
    2
    Dimensions(WxDxH, mm)
    268.4 x 186.9 x 54.9mm
  • weight(kg)
    0.5 kg
AC Adapter for Battery Charger
  • Dimensions(WxDxH, mm)
    134x59.8x31mm
    DC Cable length
    1,500 mm
  • AC Power Cord
    Yes
    Input
    100 ~ 240VAC
  • Output
    19V/3.42A
    Weight(kg)
    0.335 kg
Environmental
  • Storage-Temperature
    -20 to 60 ℃
    Storage-Humidity
    Less than 90% RH, No condensation
  • Storage-Pressure
    50 ~ 106 kPa
    Storage- Altitude
    Less than 12,192 m
  • Operating-Temperature
    10 to 35 ℃
    Operating-Humidity
    Less than 80% RH, No condensation
  • Operating-Pressure
    70 ~ 106 kPa
    Operating- Altitude
    Less than 5000 m
Warranty
  • Warranty
    36 Month
Accessories
  • CD
    Manual, Calibration SW
    Cable
    Power cord, Main Cable 7m (LAN Cable, Sync cable Option)
  • Other
    Book Manual , Outgonig Inspection sheet
Package
  • Dimension in Shipping (W x H x D)
    621*352*562
    Pallet Stuffing (20ft/40ft/40ft HC)
    160/360/432
  • Weight in Shipping
    11.5kg
