17HK700G-W component-copyModelName
LG 17 x 17-inch Wired Digital X-ray Detector

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK700G-W)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK700G-W)
    $
    $
    LG Members Price
Total

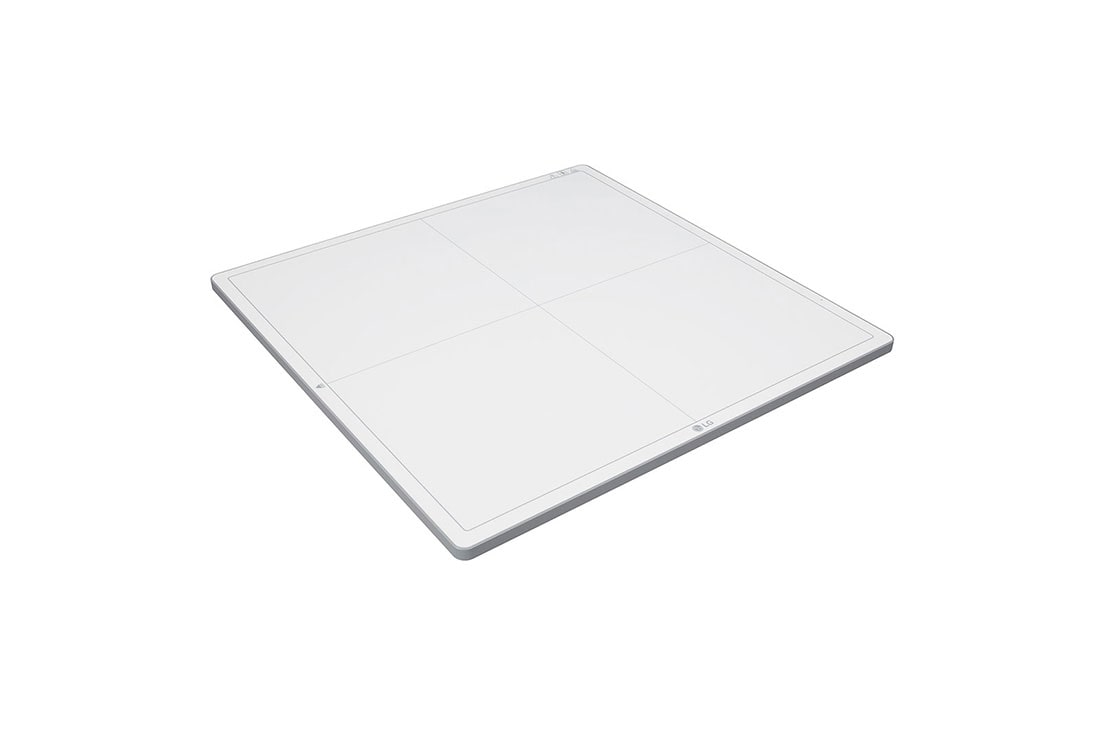

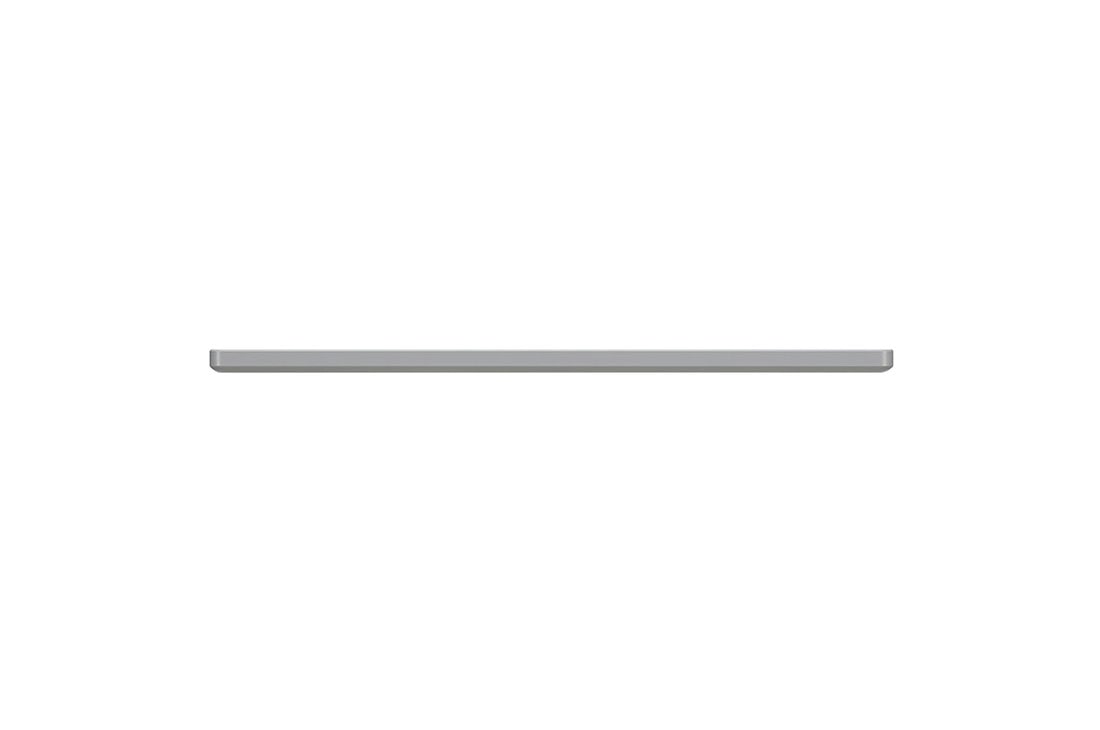

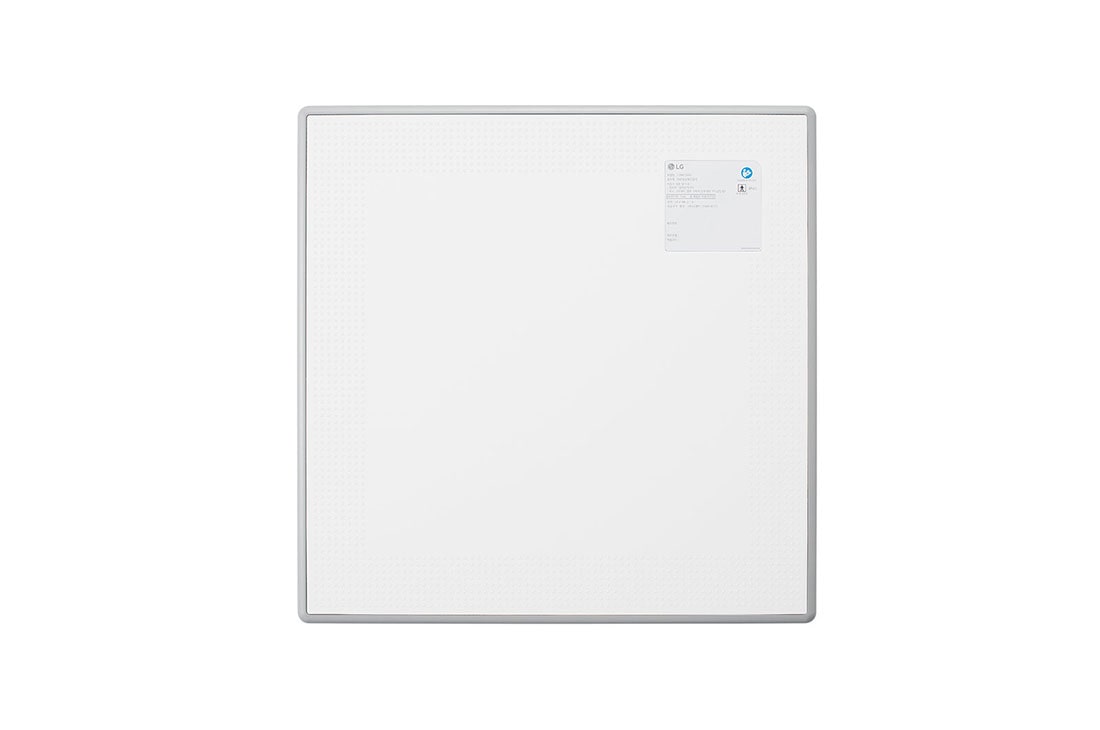

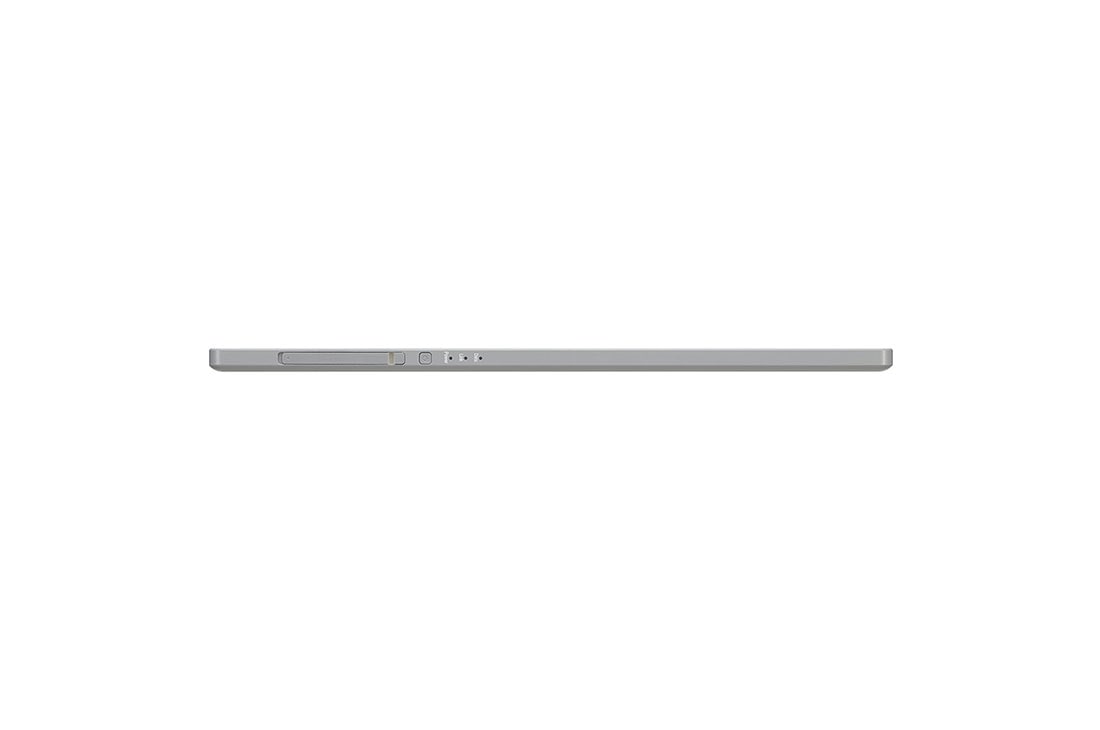

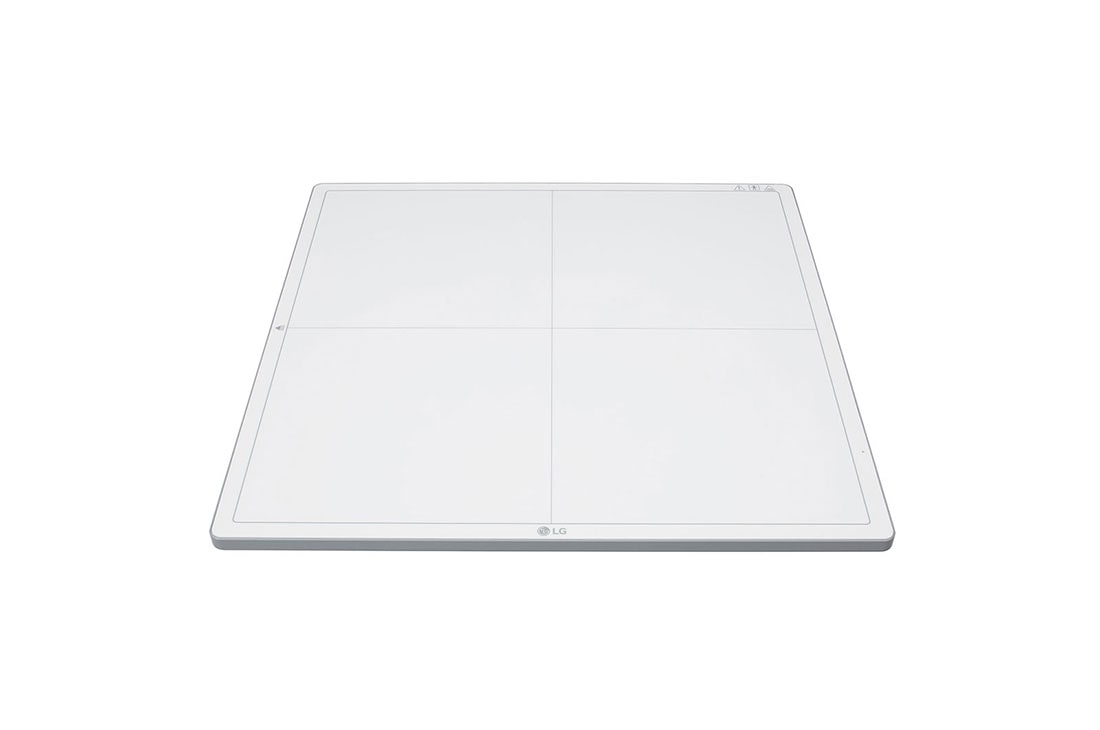

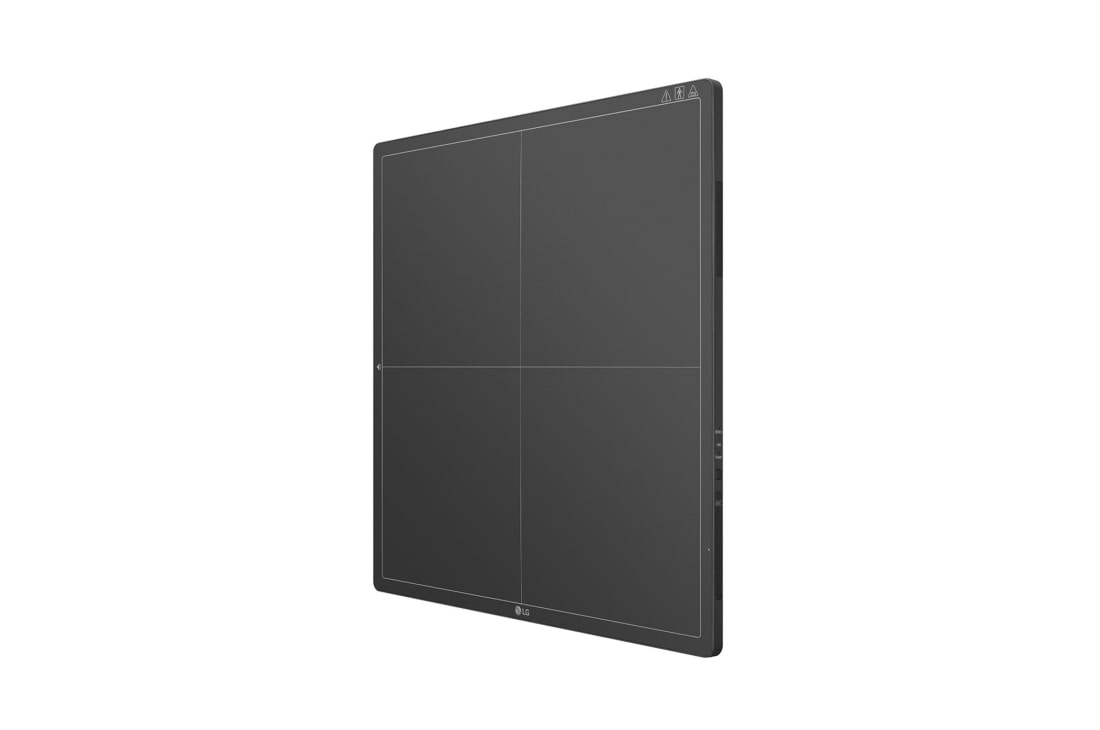

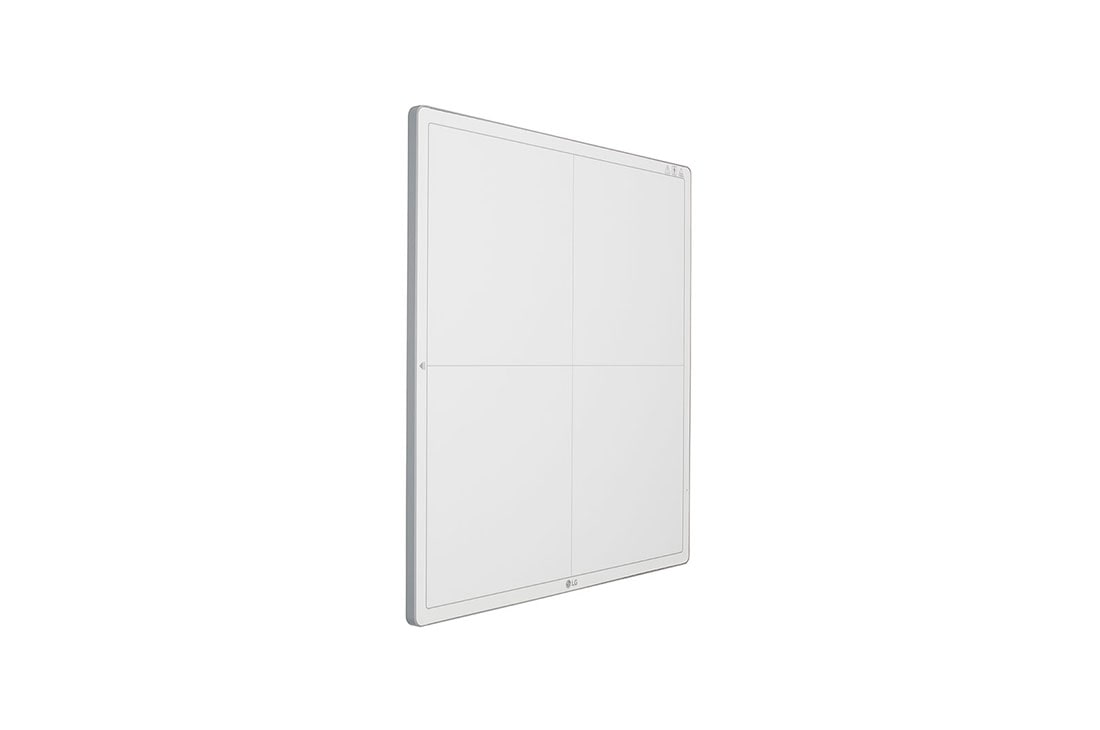

LG 17 x 17-inch Wired Digital X-ray Detector
Contact Us
(No Image) (No Image)
Ensure Diagnostic Accuracy

Superior Image Quality

LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140㎛ for high resolution images.
Watch the Full Movie

Light yet Durable

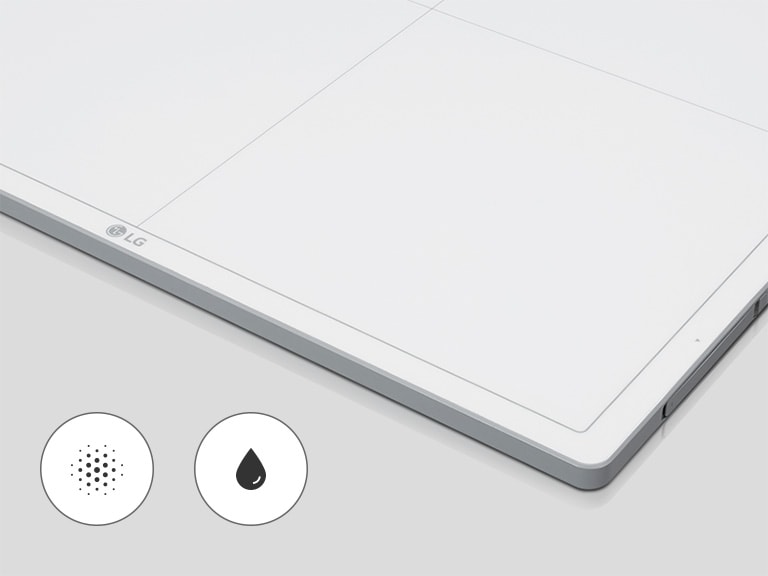

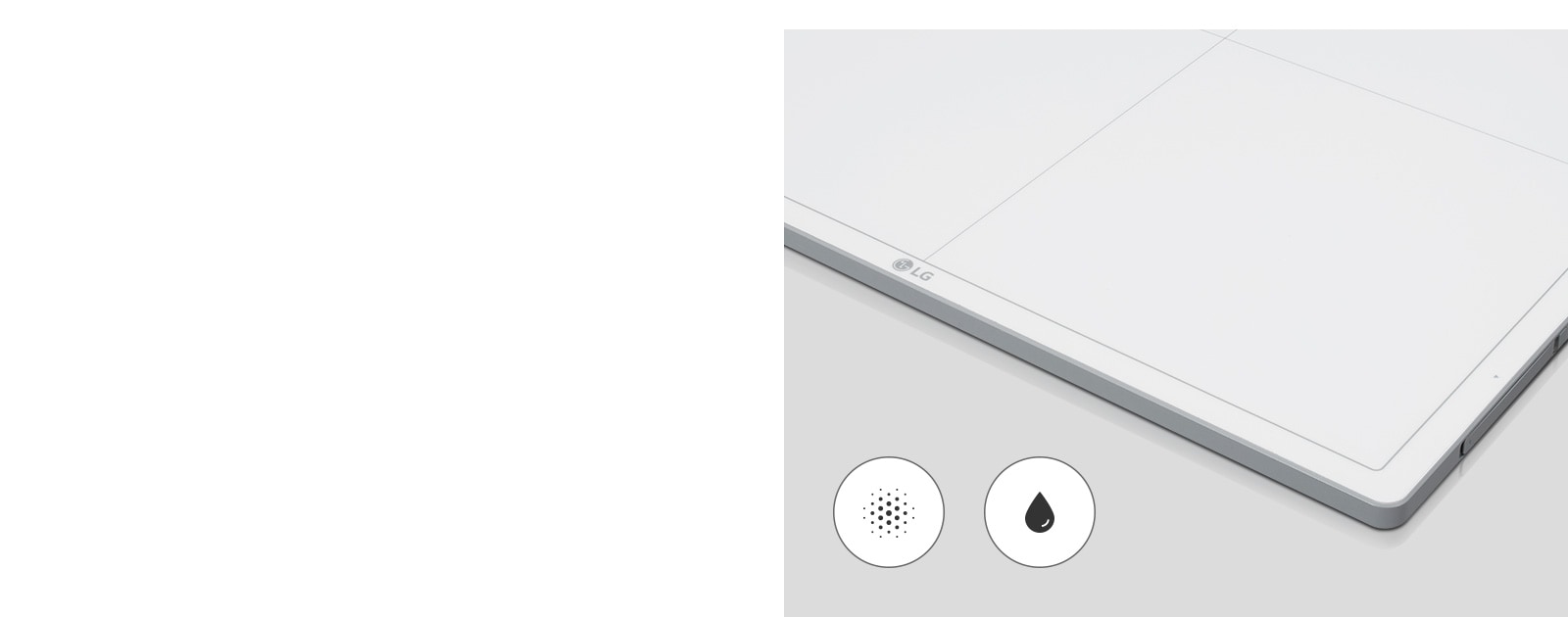

LG DXD protecting waterproof and dustproof LG DXD protecting waterproof and dustproof

IP53 : Waterproof and Dustproof

IP*53 resistance rating ensures that LG DXD will be protected against objects of dust and spraying water at any angle up to 60° from the vertical shell.
*IP: Ingress protection (IP53 indicates Solids Level 5, and Liquids Level 3).

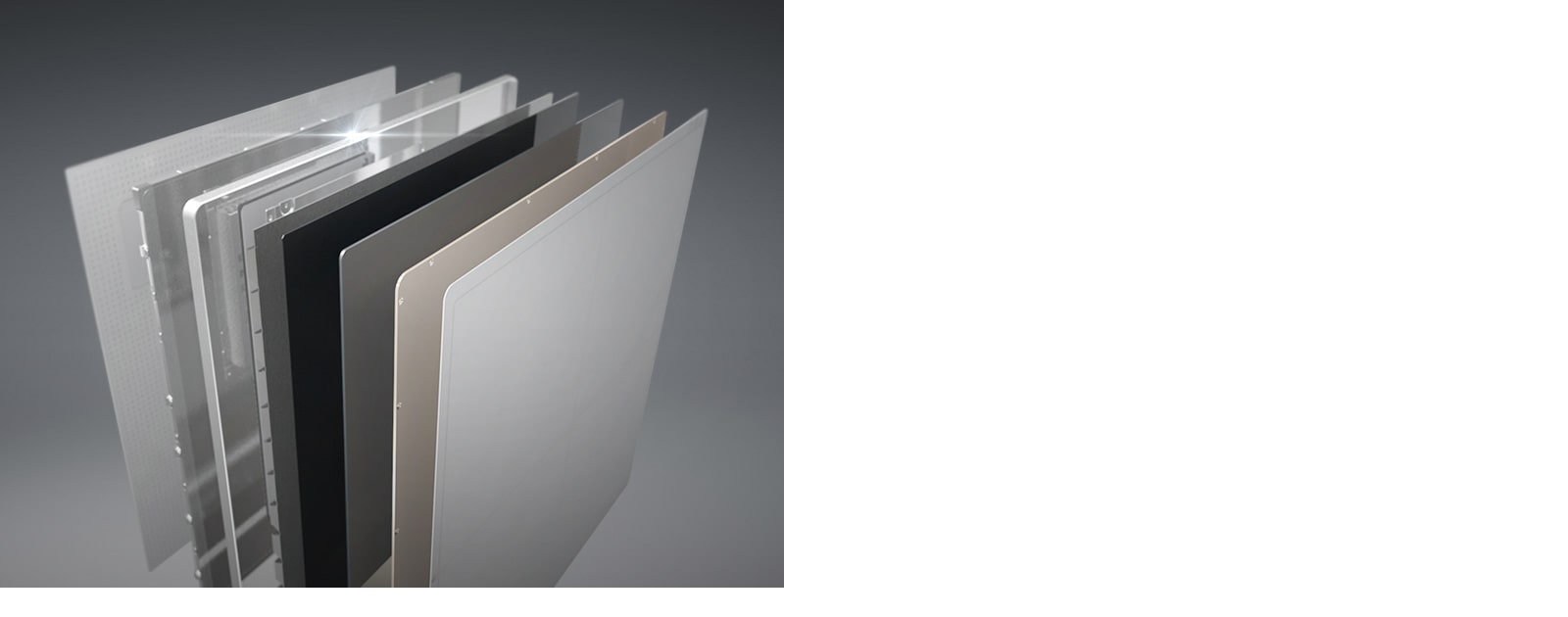

Magnesium, and Carbon-fiber Body Magnesium, and Carbon-fiber Body

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight but also exceptionally strong.

  • 3.2kg(7lb)

    Product Weight

  • 300kg(661lb)

    Maximum Uniform Load

  • 100kg(220lb)

    Maximum Local Load

Improve Work Efficiency

Rapid Image Availability

LG DXD increases productivity with a fast-processing. It takes only 2 seconds to get a raw image.

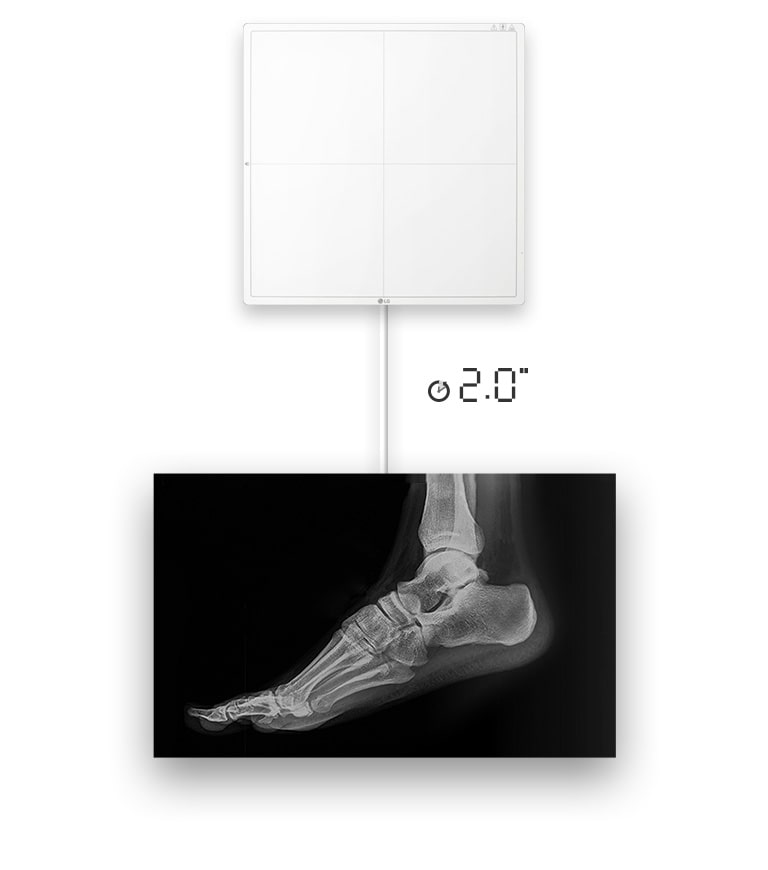

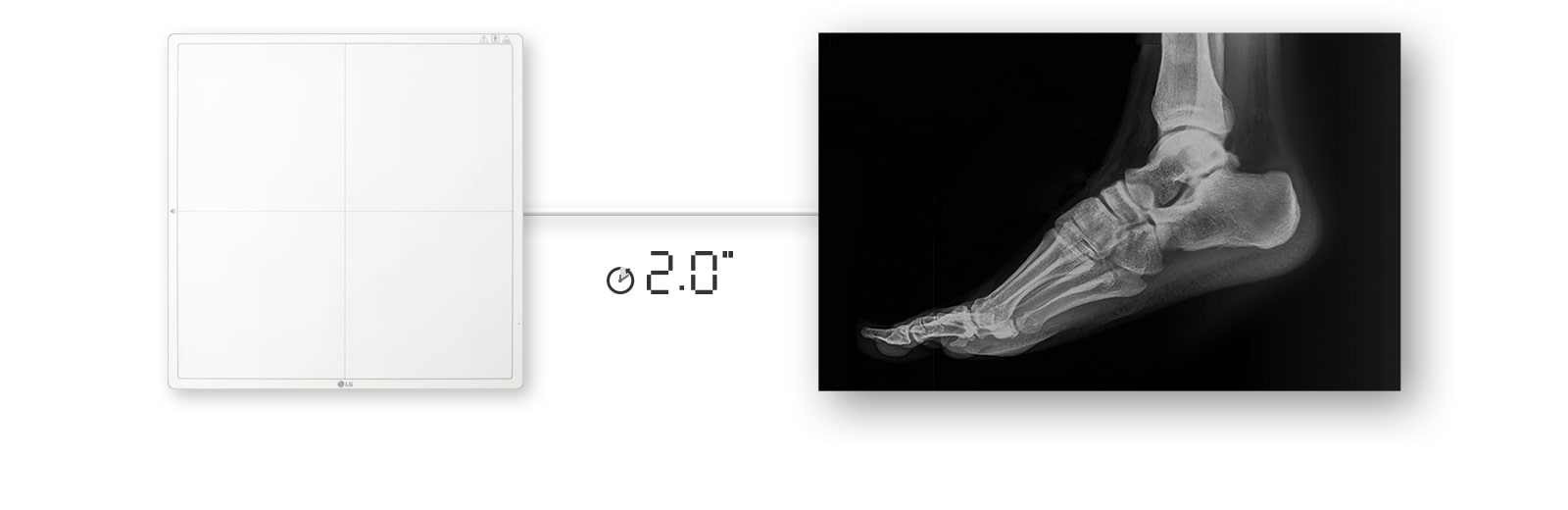

Image availability in 2 seconds with a wired connection. Image availability in 2 seconds with a wired connection.

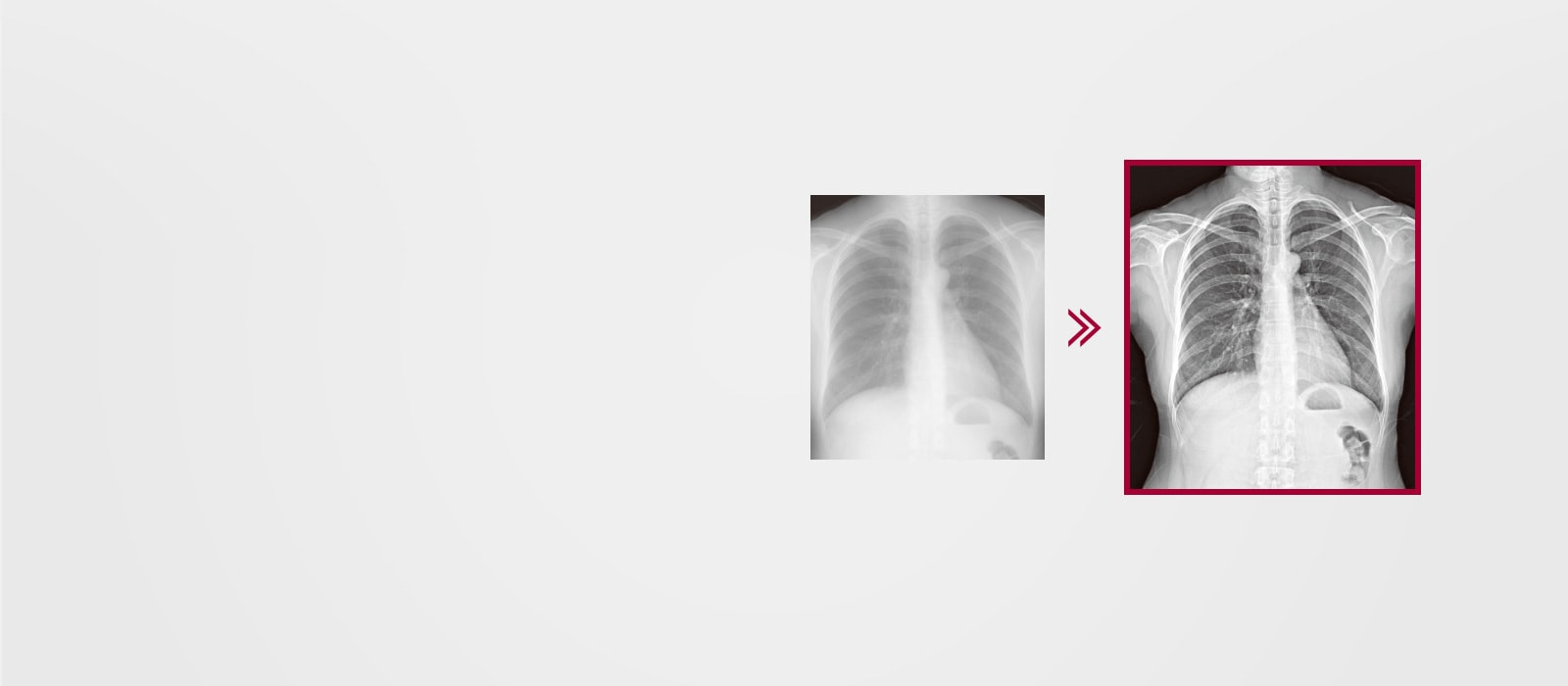

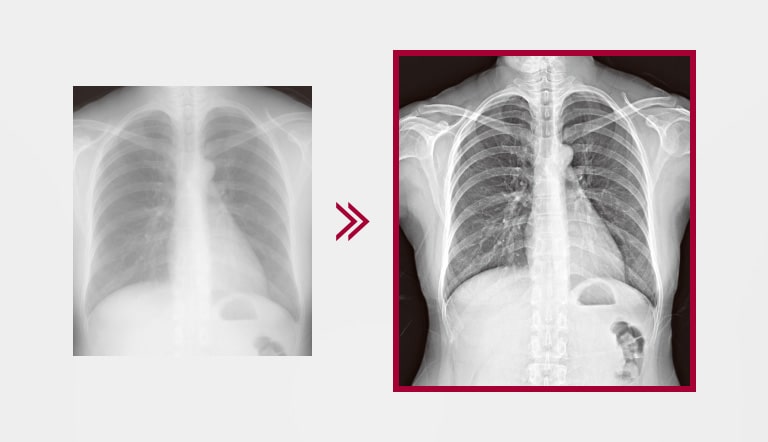

The more finely detailed image result using Multi-layer Image Processing embedded in the AWS, comparing to the image result without Multi-layer Image Processing The more finely detailed image result using Multi-layer Image Processing embedded in the AWS, comparing to the image result without Multi-layer Image Processing
LG AWS for LG DXD

Enhanced Details by MLP

Multi-layer Image Processing(MLP) embedded in the AWS(Acquisition Workstation Software) provides well-balanced visualization at each frequency level with contrast enhancement processing that improves tissue visibility within an image.
Close
Sensor(panel)unit
  • TFT Type
    A-Si
    Scintillator
    Csi
  • Number of Pixels
    3072 x 3072
    Pixel Pitch
    140㎛
  • TFT Dimensions(WxDxH, mm)
    445 x 445 mm
    TFT Active Area(mm)
    430.08 × 430.08 mm
  • X-ray sensitive Pixel
    3072 x 3072
    X-ray sensitive Area(mm)
    430.08 x 430.08mm
  • Sensor protection plate
    Carbon Fiber Plate
    Input
    DC24V/2.1A
  • Power consumption
    Typ. 17W
    Weight(kg) / Icld. Battery (Typ.)
    3.2kg
  • Maximum Load Weight
    Full (Uniform Load) : 300kg Local (Point Load) : 100kg
    Falling
    80cm (1m Limit at IEC600601-1 test)
  • Cycle Time(Ethernet / WLAN)
    8 sec
    Full Image(Raw Image) (Typ.)
    2 sec (Typ.)
  • Image-lag (Typ.)
    0.023%
    IP Rating
    IP53
  • Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
MTF(Typ.)
  • MTF @ 0.5lp/mm
    89%
    MTF @ 1lp/mm
    74%
  • MTF @ 2lp/mm
    47%
    MTF @ 3lp/mm
    29%
DQE(Typ)
  • DQE @ 0.1lp/mm
    72%
    DQE @ 0.5lp/mm
    67%
  • DQE @ 1lp/mm
    61%
    DQE @ 2lp/mm
    49%
  • DQE @ 3lp/mm
    28%
    Sensitivity( lsb/uGy ) / Programmable
    Typ. 900 / Yes
Degradation
  • Expected lifetime (Gy)
    100 Gy
    Sensitivity degradation at the 'end of Life'
    20%
  • Spatial Resolution(lp/mm)
    3.57 lp/mm
    A/D Conversion
    16 bit
  • Data Output
    16 bit
    Auto Exposure Detection
    Yes
  • X-ray generator voltage range
    40 to 150kVp
    Unit Interface
    Connect to Control Box
  • Power unit interface
    Connect to Control Box
    Wired Communication
    Yes
  • Detachable Wire (Easy to plug / unplug)
    Yes (screw Fix)
    X-ray period (ms) (=Window Time)
    Standard: 500 ( ~4000)
  • Sensor
    DXD Rotation & degree (0, 90, 180') to rotate image Drop count for SVC
    Shock monitoring
    Yes
Control Box
  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V/2.1A
  • AC Power Cord
    1.5m, White
    Dimensions(WxDxH, mm)
    125 x 255 x 109.8mm
  • weight(kg)
    1.3 kg
Main Cable(DXD-Control Box)
  • Length
    7m
LAN Cable(Control Box-PC): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    10m
Sync Cable(Control Box - X-ray Generator): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    15m
Environmetal
  • Storage-Temperature
    -20 to 60 ℃
    Storage-Humidity
    Less than 90% RH, No condensation
  • Storage-Pressure
    50 ~ 106 kPa
    Storage- Altitude
    Less than 12,192 m
  • Operating-Temperature
    10 to 35 ℃
    Operating-Humidity
    Less than 80% RH, No condensation
  • Operating-Pressure
    70 ~ 106 kPa
    Operating- Altitude
    Less than 5000 m
Warranty
  • Warranty
    36 Month
Accessories
  • CD
    Manual, Calibration SW
    Cable
    Power cord, Manin Cable 7m (LAN Cable, Sync cable Option)
  • Other
    Book Manual , Outgonig Inspection sheet
Package
  • Dimension in Shipping (W x H x D)
    641 x 352 x 621
    Pallet Stuffing (20ft/40ft/40ft HC)
    120/270/324
  • Weight in Shipping
    12.5kg

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
