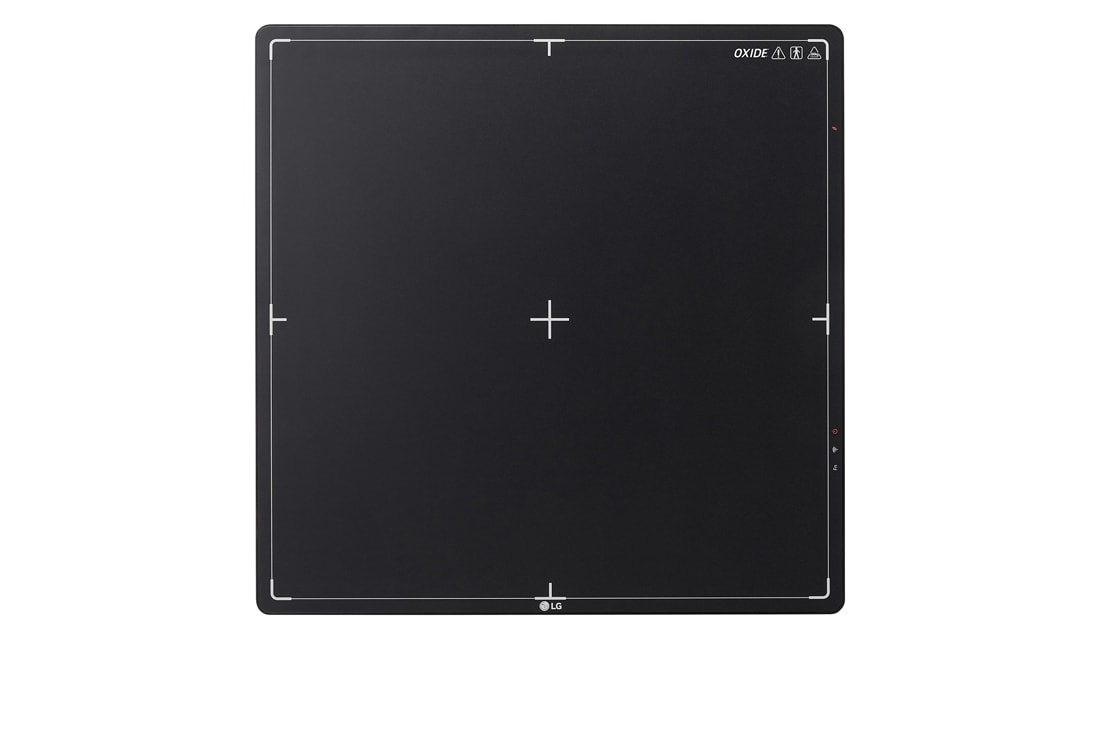

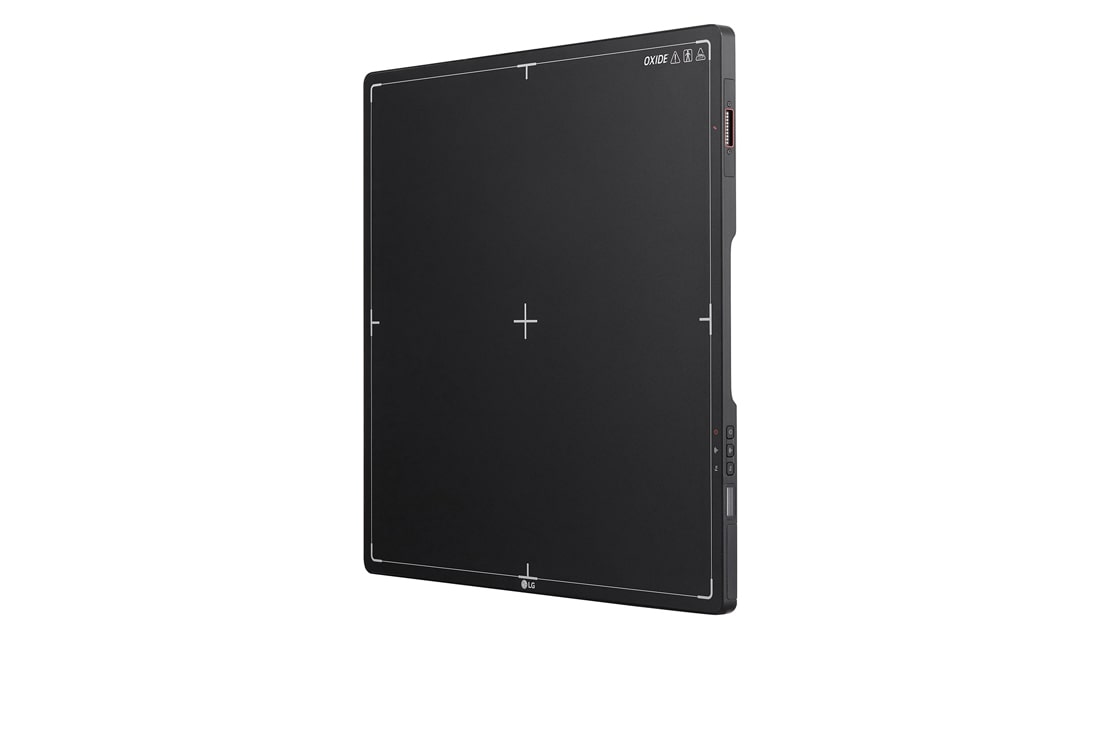

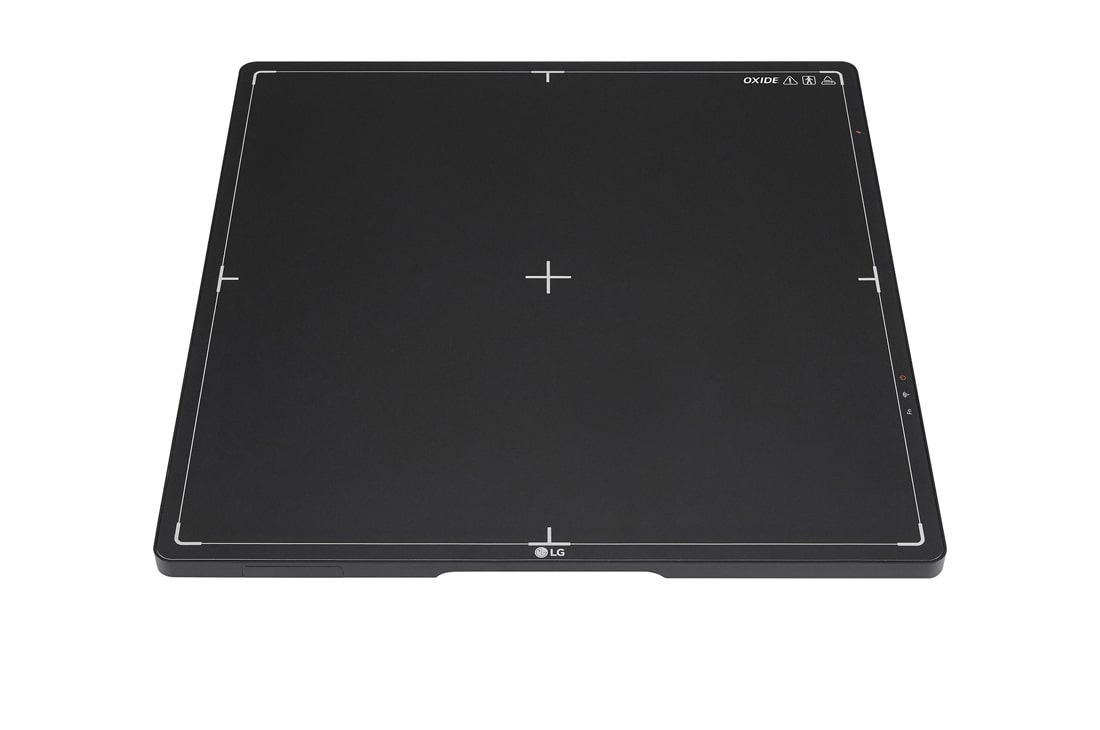

LG Digital X-ray Detector with Oxide TFT
Contact Us
※ The text, "Watch the Full Movie" will be generated automatically once the video is uploaded. ※ The text, "Watch the Full Movie" will be generated automatically once the video is uploaded.

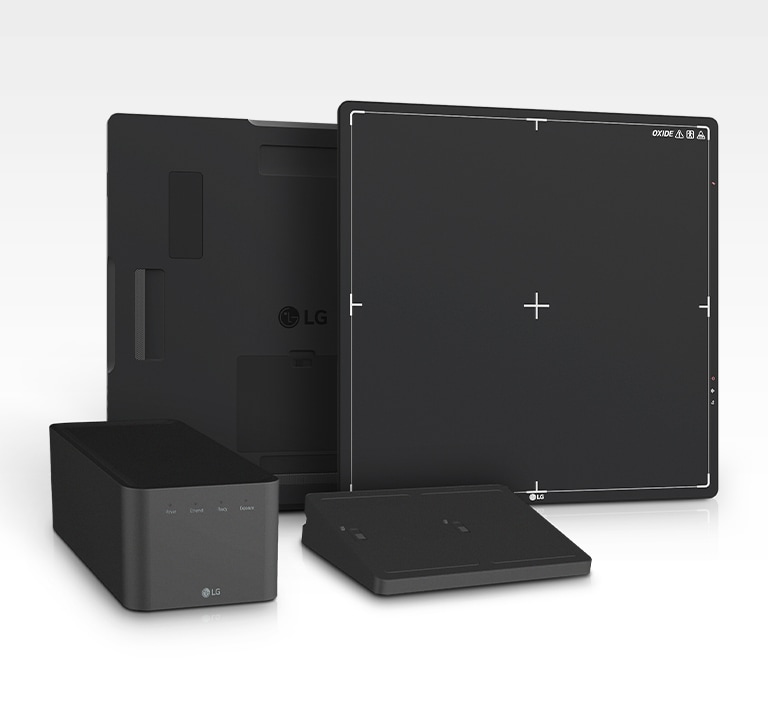

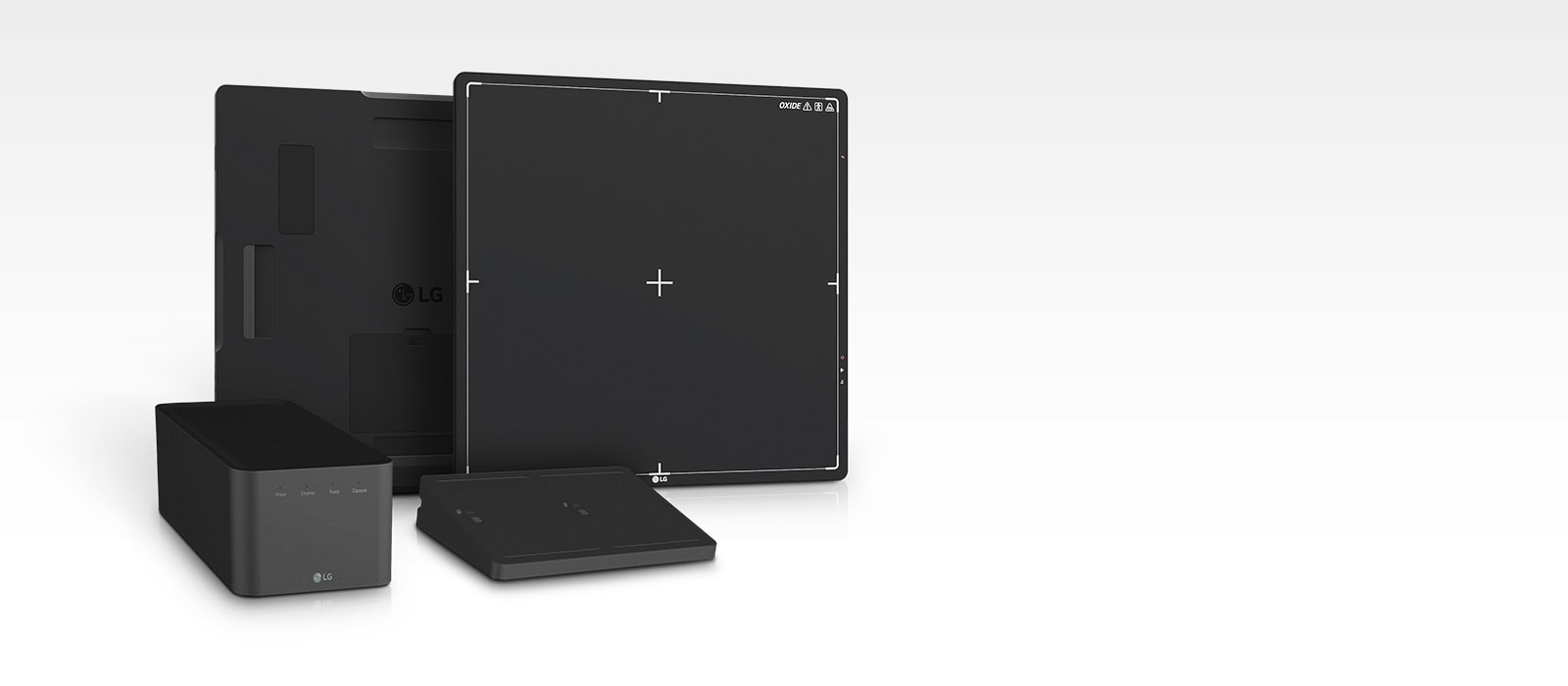

LG Digital X-ray Detector

It delivers high resolution and clear image quality. Plus, it also offers low noise images with Oxide TFT technology.
Watch the Full Movie

  • Image Quality

    • High DQE with Oxide TFT1)
      140㎛-pixel size & 16bit A/D conversion

  • Durability

    • IP68 Water Resistant & Dust Tight2)
      Uniform Load 400kg & Point Load 200kg

  • Usability & Portability

    • LG Acquisition Workstation Software
      Hot swap, AP Mode, Auto Storage
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Compared to products with a-Si TFT.
2)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.

Get High-quality
Images with Oxide TFT

Outstanding Detective Quantum Efficiency (DQE)

X-ray image 1.
X-ray image 2
X-ray image 3
X-ray image 4
X-ray image 5
X-ray image 1.
X-ray image 2
X-ray image 3
X-ray image 4
X-ray image 5
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Light Yet Durable Light Yet Durable

Light Yet Durable

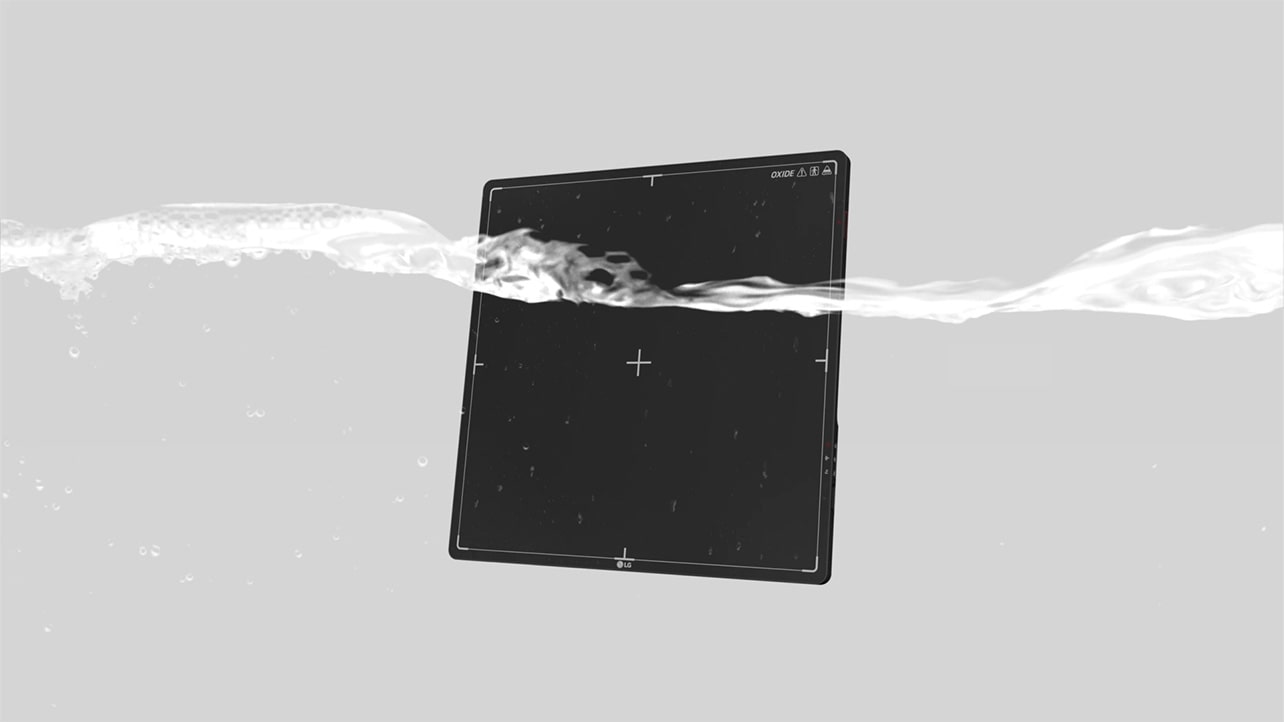

Lightweight Meets Mighty Durability

Lightweight and durability of LG DXDs are key in responding to various medical situations. With an IP681) rating, this LG DXD is resistant to water and dust tight.
Lightweight Meets Mighty Durability Lightweight Meets Mighty Durability

IP681) Water Resistant & Dust Tight

400kg2) Max. Uniform Load

200kg Max. Point Load

1.5m3) Max. Drop Distance

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The images that appear in the video used the 17HQ901G model.
1)According to the Ingress Protection (IP) Rating System, an IP68 means protection against solid foreign objects Level 6 (Dust-tight: no ingress of dust), and protection against liquids Level 8 (Immersion beyond 1m: Protected against immersion in water with a depth of more than 1 meter.) This product has been tested under controlled laboratory conditions and received an IP68 rating. Under these conditions, product is water resistant up to 1 meter for 30 minutes. Dry before using. Do not charge while wet. Level of water resistance may change over time or with exposure to excessive amounts of liquid.
2)Maximum uniform load and maximum point load when tested under laboratory conditions for 60 seconds. Results may differ during actual usage.
3)Drop test in a controlled laboratory environment. Can differ from actual usage.
Up to 7.5 Hours without Charging

Uninterrupted Operating Time

When fully charged, the removable battery will have up to 7.5 hours of operation time. Hot swap, which can hold power for up to a minute, can provide virtually uninterrupted use even while replacing the removable battery.
  • Long Operation Time up to 8 Hours

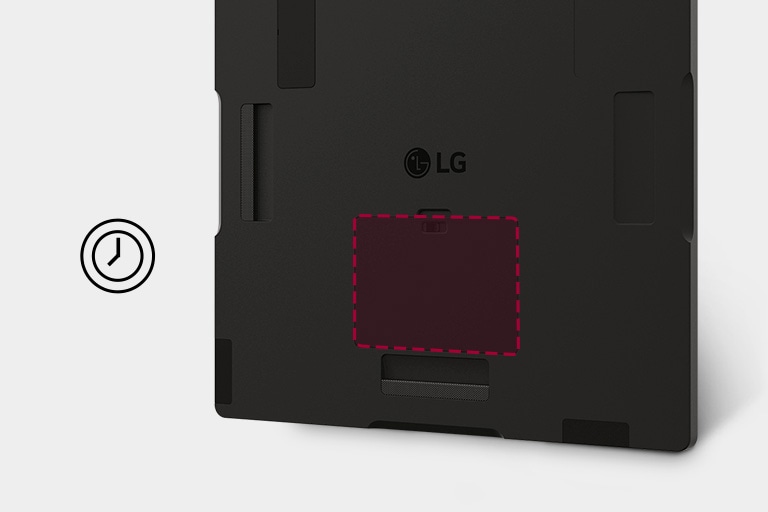

    Long Operation Time up to 7.5 Hours1)

  • Hot Swap - 1 Min. without Battery

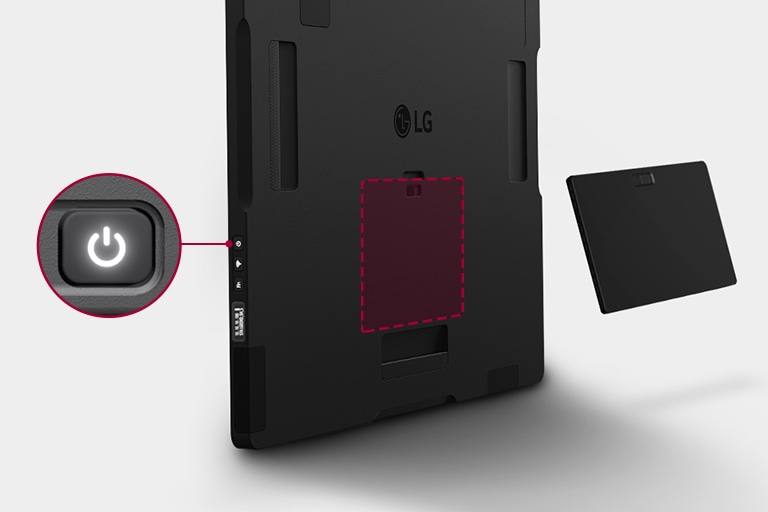

    Hot Swap - 1 Min. without Battery

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)Typical 7.5 hours, Typical 300 shots under conditions of cycle time 90 sec. Measured by irradiating image at a 90-second cycle (consisting of stand by mode, X-ray exposure, and image acquisition), obtaining approximately 300 shots. Actual battery usage time and performance may vary depending on network connectivity and application use.

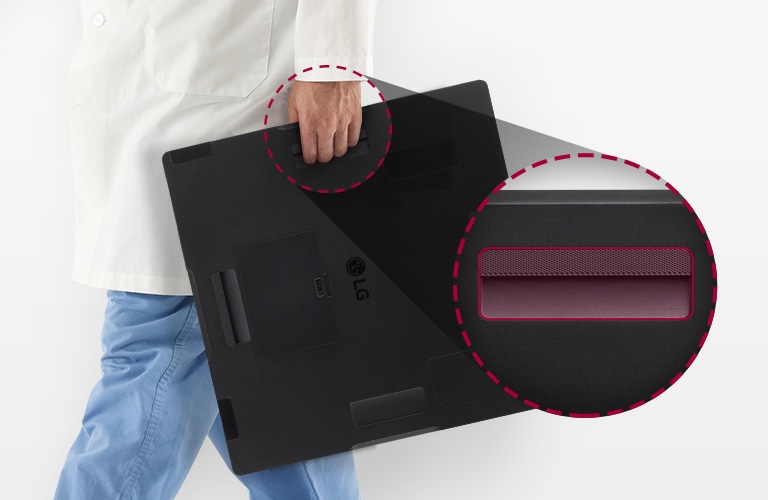

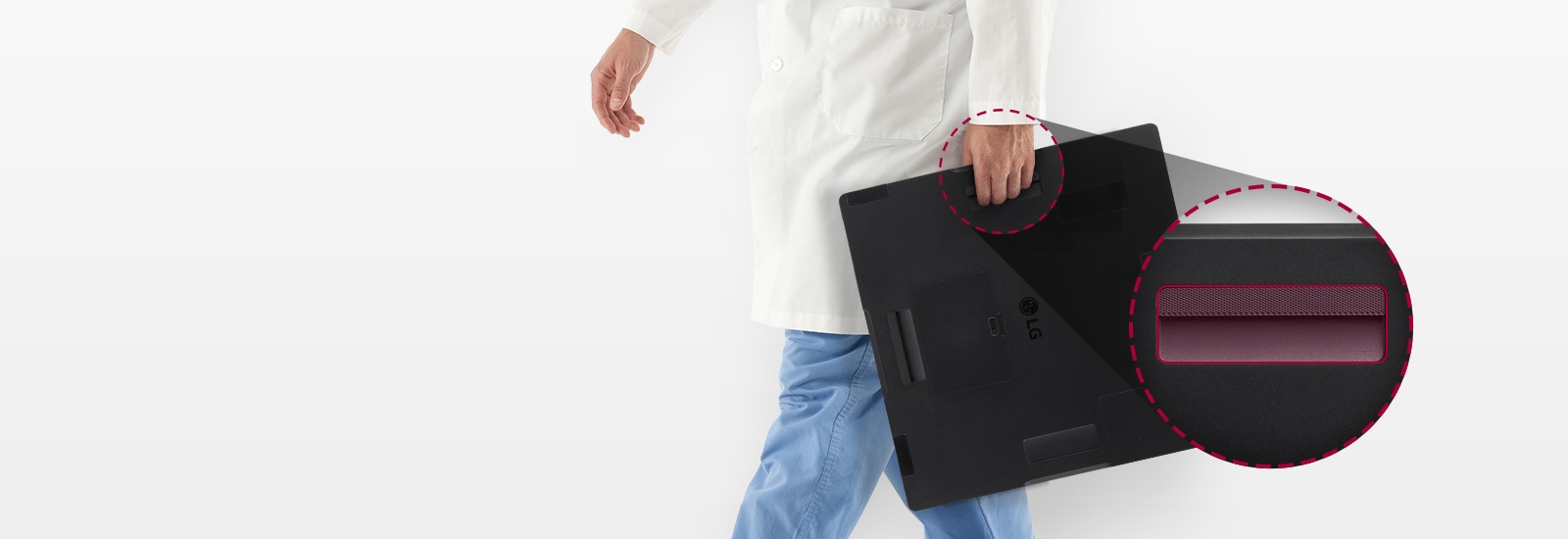

Designed for Portability Designed for Portability
Light-weight Body with Handles

Designed for Portability

With a lightweight body (under 3.6kg) and chamfered edge and built-in handles, LG's DXD offers outstanding portability.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Rapid Image Availability Rapid Image Availability

Work Efficiently

Check and Monitor Directly
Information Display

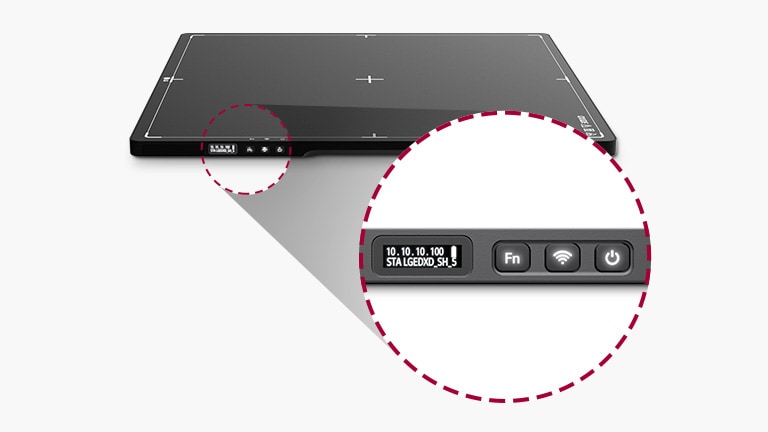

Check and Monitor Directly

Thanks to the embedded OLED information display, you can directly check and monitor the current state of DXD such as connection state, remaining battery, AP (Access Point) mode, auto storage mode, and dynamic mode.
  • Rapid Image Availability

    Rapid Image Availability

    17HQ901G helps increase work productivity with fast processing speeds. It takes only 1.5 seconds with connection or 2 seconds for wireless to get a raw image.

  • Access Point Mode

    Access Point Mode

    Access Point Mode enables point-of-care imaging via direct data transfer to your screen wirelessly. So, X-ray images can be referred in virtually anywhere, anytime by carrying your laptop, or other mobile devices.

  • Auto Storage Up to 200 images

    Auto Storage Up to 200 images1)

    A built-in memory storage allows you to take multiple images without a computer connection, providing a seamless workflow even offline.

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
1)The oldest image (first in) is removed first (first out) from the internal memory storage once the storage space fills up with 200 images.
Close
Sensor(panel)unit
  • Application
    General Radiography
    TFT Type
    Oxide
  • Scintillator
    Csi
    Number of Pixels
    3072x3072
  • Pixel Pitch
    140㎛
    TFT Dimensions(WxDxH, mm)
    442 x 442 mm
  • TFT Active Area(mm)
    430.08×430.08 mm
    X-ray sensitive Pixel
    3072 x 3072
  • X-ray sensitive Area(mm)
    430.08 x 430.08mm
    Sensor protection plate
    Carbon Fiber Plate
  • Input
    DC24V/2.1A
    Power consumption
    Typ. 38W
  • Dimensions(WxDxH, mm)
    460 x 460 x 15.6 mm
    Weight(kg) / Icld. Battery (Typ.)
    3.6kg
  • Maximum Load Weight
    Full (Uniform Load) : 400kg
    Local (Point Load) : 200kg
    Falling (IEC60601-1 Test Condition)
    1.5m
  • Cycle Time (Wired / Wireless)
    4.5sec / 5sec
    Full Image (Raw Image) (Typ.)
    * without window time
    Wired 1.5 sec / Wireless 2 sec
  • IP Rating
    IP68
    Cleaning and desinfecting products
    Isopropanel 100%, Ethanol 70%, Cidex OPA, 0.9% Nacl solution
MTF(Typ.)
  • MTF @ 0.5lp/mm
    84%
    MTF @ 1lp/mm
    60%
  • MTF @ 2lp/mm
    30%
    MTF @ 3lp/mm
    14%
DQE(Typ)
  • DQE @ 0.1lp/mm
    78%
    DQE @ 0.5lp/mm
    70%
  • DQE @ 1lp/mm
    57%
    DQE @ 2lp/mm
    38%
  • DQE @ 3lp/mm
    26%
    Sensitivity( lsb/uGy ) / Programmable
    3.57 lp/mm
Degradation
  • A/D Conversion
    16 bit
    Data Output
    16 bit
  • Auto Exposure Detection
    Yes
    X-ray period (ms) (=Window Time)
    350 ~ 4000ms
  • Unit Interface
    Connect to Control Box
    Power unit interface
    Connect to Control Box
  • Wired Communication
    Yes
    WLAN
    IEEE802.11a/b/g/n/ac, 2.4GHz/5GHz
  • AP mode
    Yes(Integrated)
    Detachable Wire
    (Easy to plug / unplug)
    Yes (Magnetic)
  • Shock monitoring
    Yes
    Image storage on DXD
    Up to 200 images
  • Semi-dynamic Acquisition
    5 fps
Control Box
  • Power Input
    AC100 to 240V, 47-63Hz
    Power Output
    DC24V / 2.1A
  • AC Power Cord
    1.5m (Black)
    Dimensions(WxDxH, mm)
    125 x 255 x 109.8mm
  • weight(kg)
    1.3 kg
Main Cable(DXD-Control Box)
  • Length
    7m
LAN Cable(Control Box-PC): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    10m
Sync Cable(Control Box - X-ray Generator): Optional(When Buyer requires this cable, is shipped according to BOM)
  • Length
    15m
Battery
  • Type
    Detachable
    Nominal Capacity
    36Wh (7.7V, 4725mAh)
  • Nominal Voltage
    7.7V
    Dimensions(WxDxH, mm)
    112.2 * 158 * 8.4
  • Weight(g)
    240
    Operation Time
    Typ. 300 shots/ 7.5 hrs (Condition : Cycle time 90sec)
  • Battery duration in standby status
    Typ.7.7hrs
    Hot swap
    Yes (1min)
Battery Charger
  • Input voltage
    19V
    Output voltage
    8.7V
  • Charging Time
    3 Hours
    Slot Q'ty
    2
  • Bundle battery Q'ty
    2
    Dimensions(WxDxH, mm)
    268.4 x 186.9 x 54.9mm
  • weight(kg)
    0.5 kg
AC Adapter for Battery Charger
  • Dimensions(WxDxH, mm)
    134x59.8x31mm
    DC Cable length
    1,500 mm
  • AC Power Cord
    Yes
    Input
    100 ~ 240VAC
  • Output
    19V/3.42A
    Weight(kg)
    0.335 kg
Environmental
  • Storage-Temperature
    -20 to 60 ℃
    Storage-Humidity
    Less than 90% RH, No condensation
  • Storage-Pressure
    50 ~ 106 kPa
    Storage- Altitude
    Less than 12,192 m
  • Operating-Temperature
    10 to 35 ℃
    Operating-Humidity
    Less than 80% RH, No condensation
  • Operating-Pressure
    70 ~ 106 kPa
    Operating- Altitude
    Less than 5000 m
Warranty
  • Warranty
    36 Month
Accessories
  • CD
    Manual, Calibration SW
    Cable
    Power cord, Main Cable 7m (LAN Cable, Sync cable Option)
  • Other
    Book Manual , Outgonig Inspection sheet
Package
  • Dimension in Shipping (W x H x D)
    621*352*562
    Pallet Stuffing (20ft/40ft/40ft HC)
    160/360/432
  • Weight in Shipping
    12.0kg
