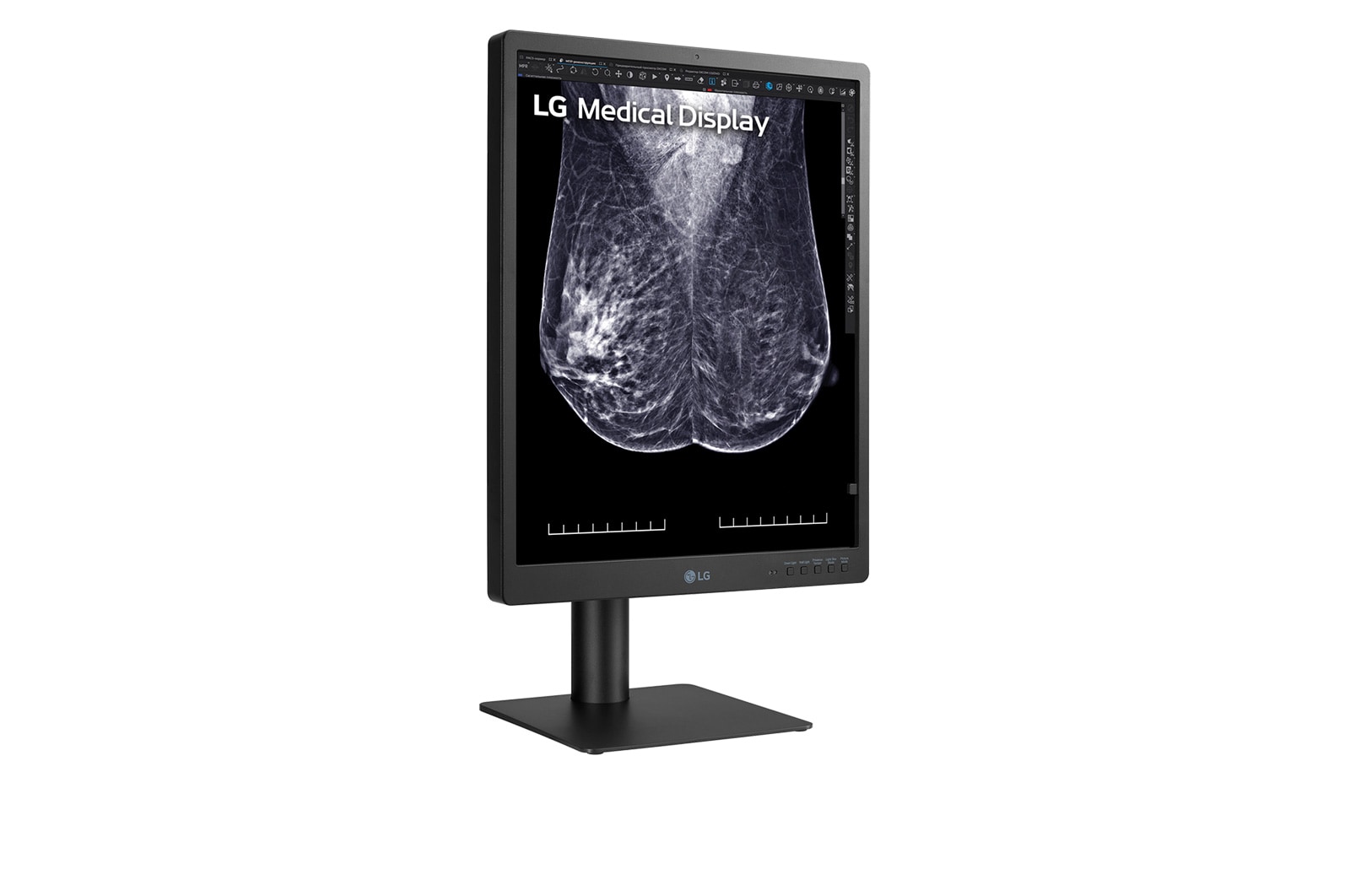

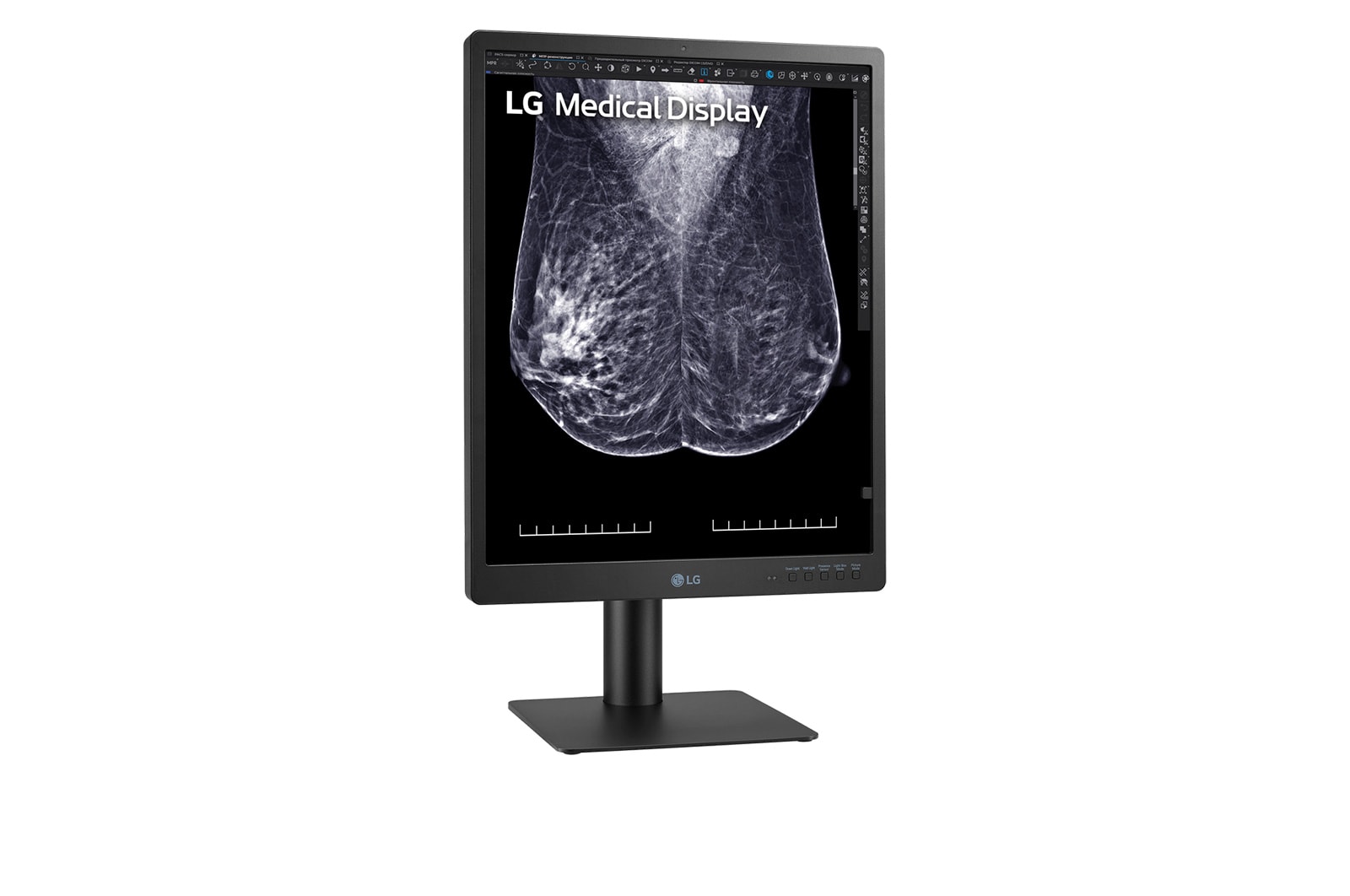

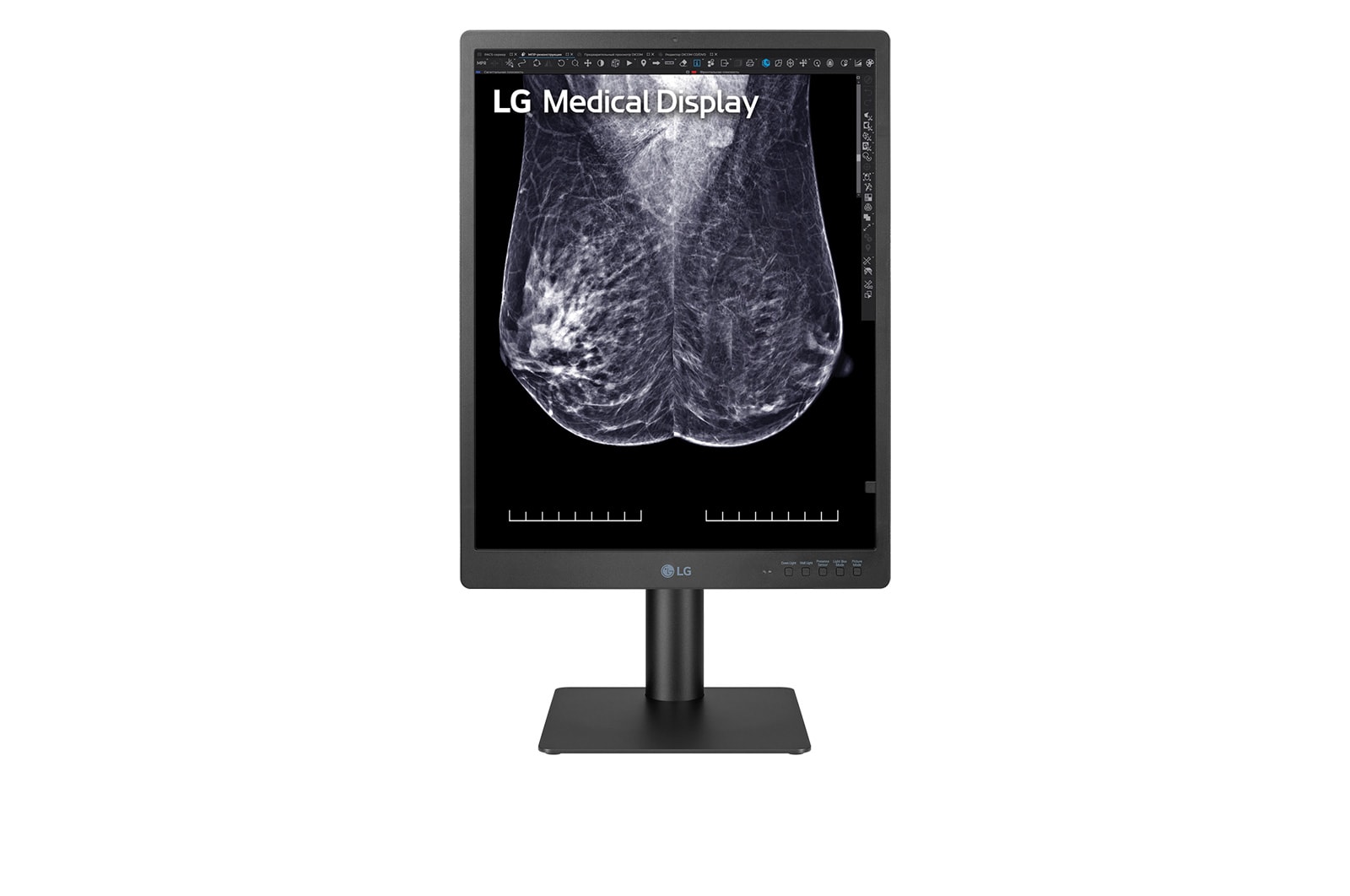

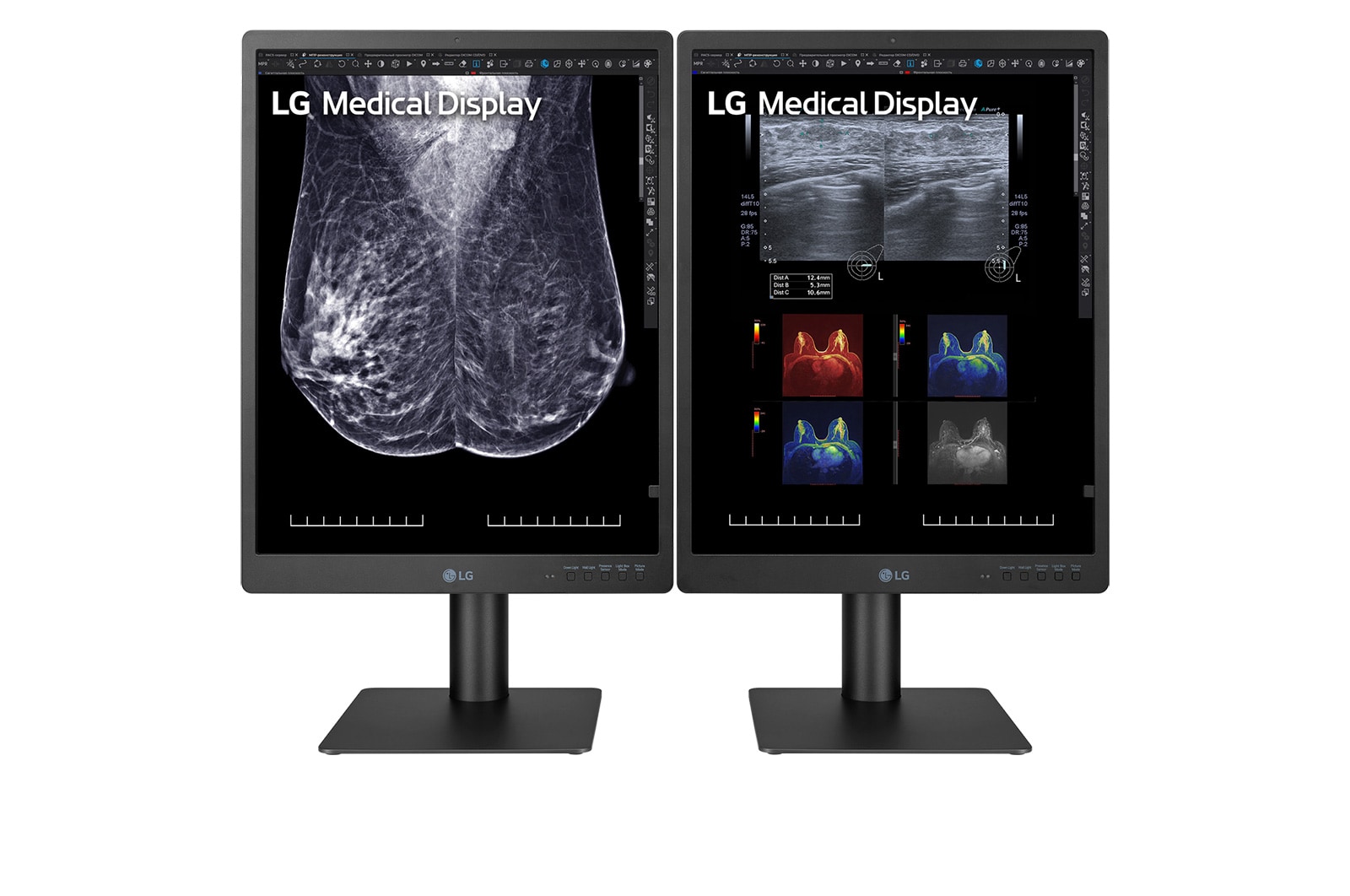

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography
Contact Us
LG Medical Display. LG Medical Display.

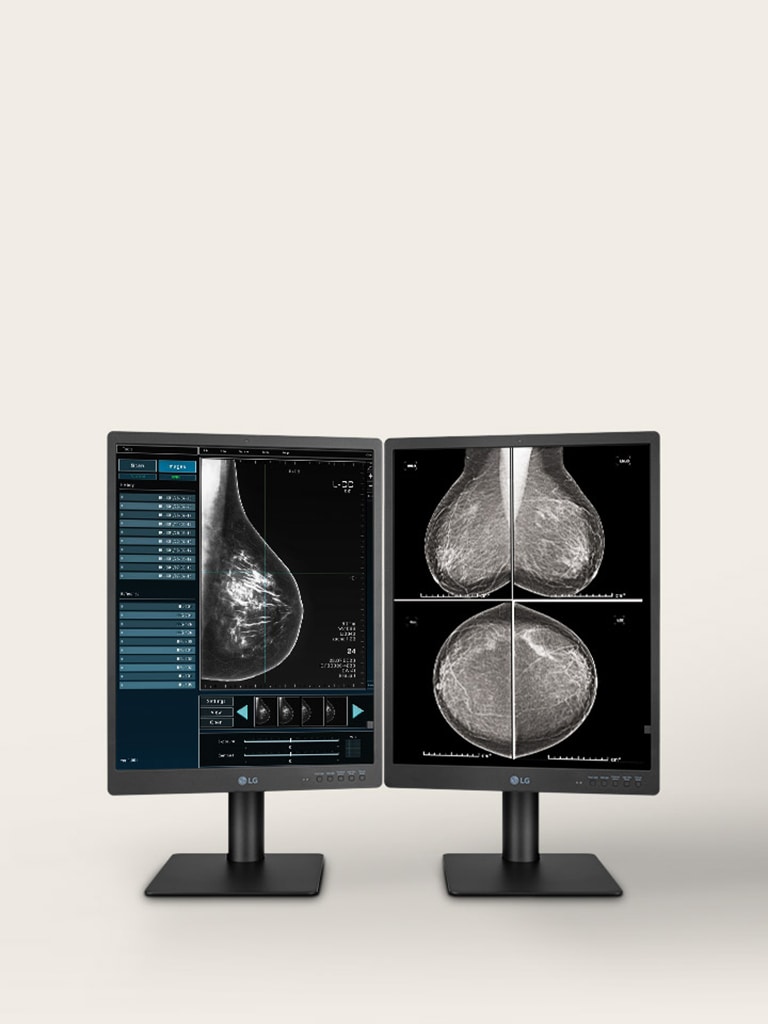

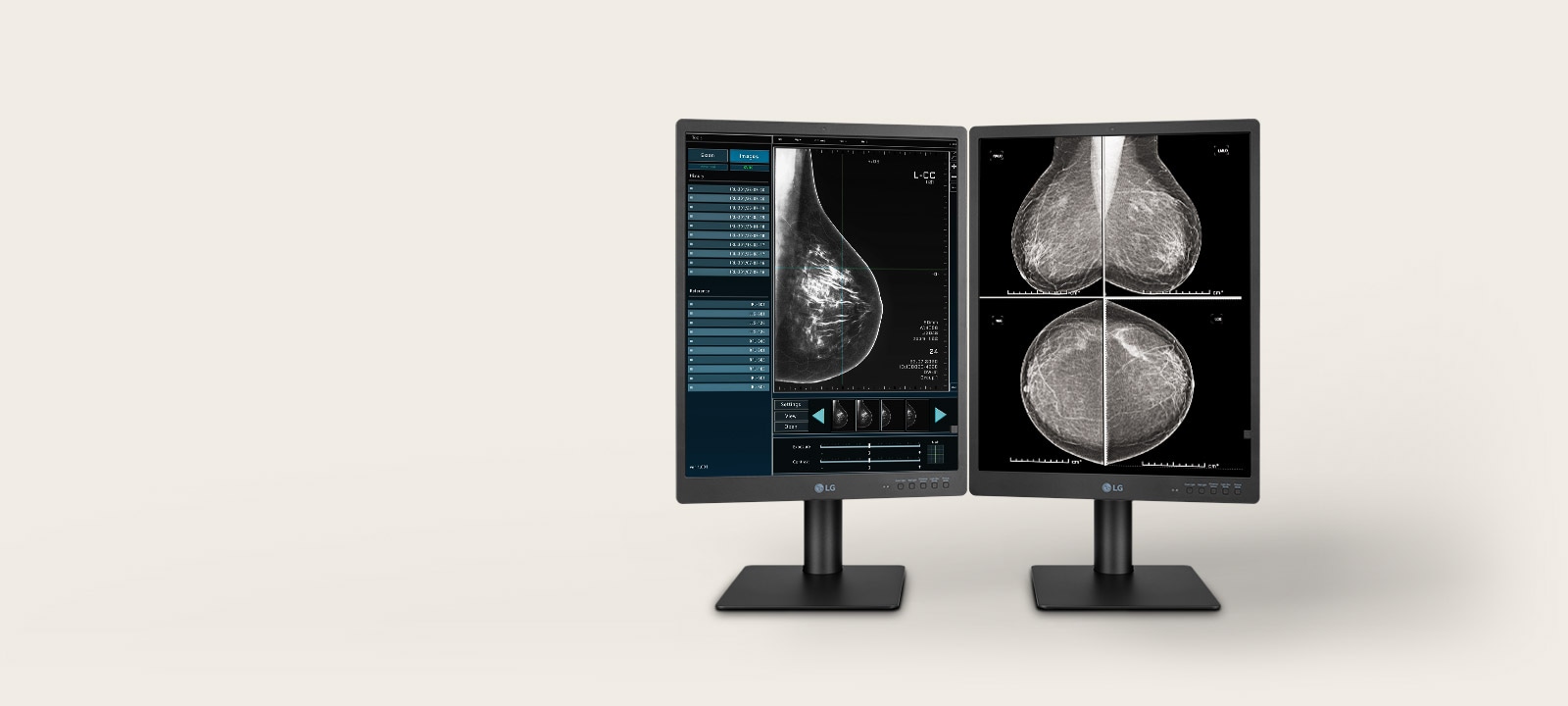

21.3" 5MP IPS Diagnostic Monitor. 21.3" 5MP IPS Diagnostic Monitor.
21.3" 5MP IPS Diagnostic Monitor

Designed for breast imaging

Watch the Full Movie

  • Display for breast imaging

    21.3-inch 5MP (2048x2560) IPS Display
    Calibration with Front Sensor

  • Efficiency

    5 Hot Keys
    Daisy Chain

  • Convenience

    User-friendly Monitor Stand
    Down light & Wall light

High resolution display for breast imaging

High Definition Imaging

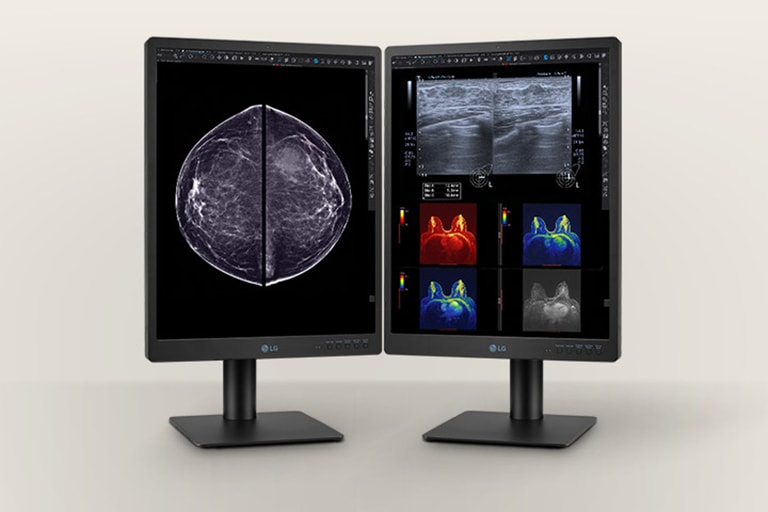

Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Moreover, this monitor showcases vivid color, high definition mammography and breast tomosynthesis images including breast MRI, CT scans and ultrasound, ensuring versatile performance across various medical imaging modalities.
Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1. Diagnostic Monitor 21HQ613D displays radiological images, including full field digital mammography and digital breast tomosynthesis, with a brightness of 1,100 cd/m² and a contrast ratio of 1,800:1.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

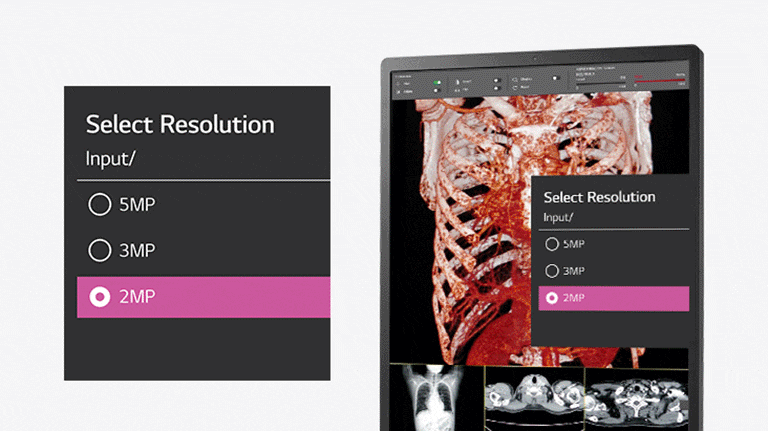

The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
Multi-resolution mode

Set the resolution mode to fit your needs

The various resolution modes (5/3/2MP) of the 21HQ613D allow users to customize their resolution to better fit their respective needs.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

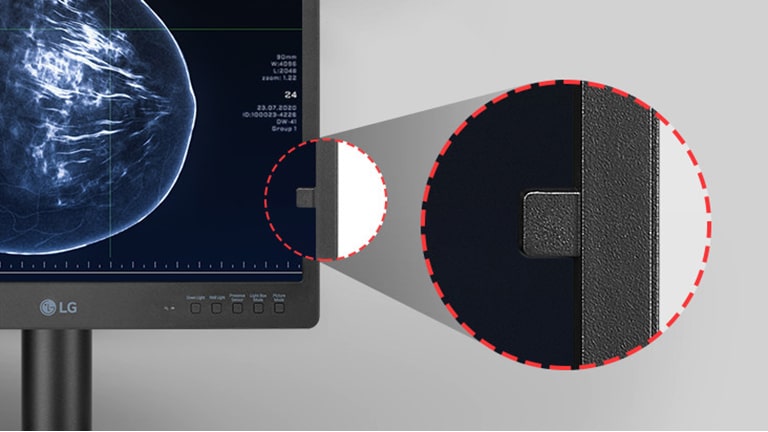

The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
Internal front calibration sensor

Consistency in medical images

The front-sensor, supported by calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

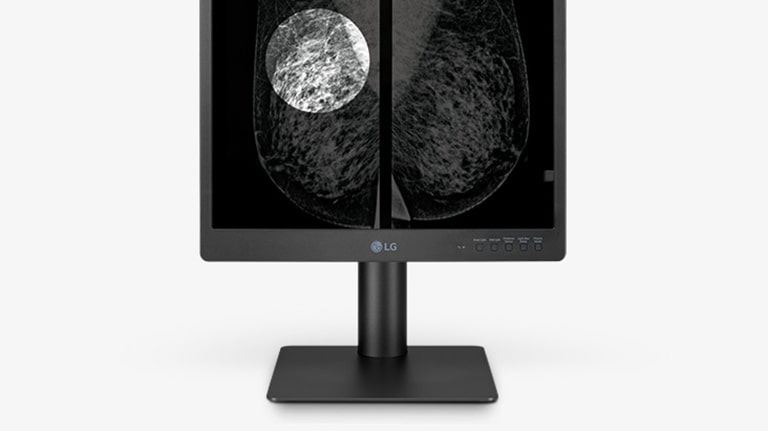

Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
Focus view mode

Focus on the region of interest

Highlight specific parts of the medical image with Focus view mode. Users can easily select and focus on areas of concern with max brightness of screen, while darkening the rest.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
Pathology mode

As if you were looking into a microscope

With Pathology mode, this diagnostic monitor provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

Streamlined and efficient workflow

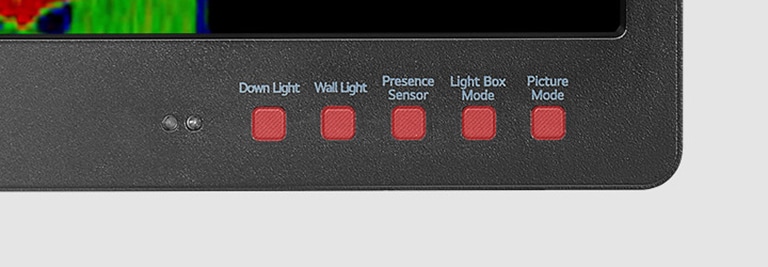

5 Hot Keys

Intuitive Control

The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. They provide fast and easy way to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

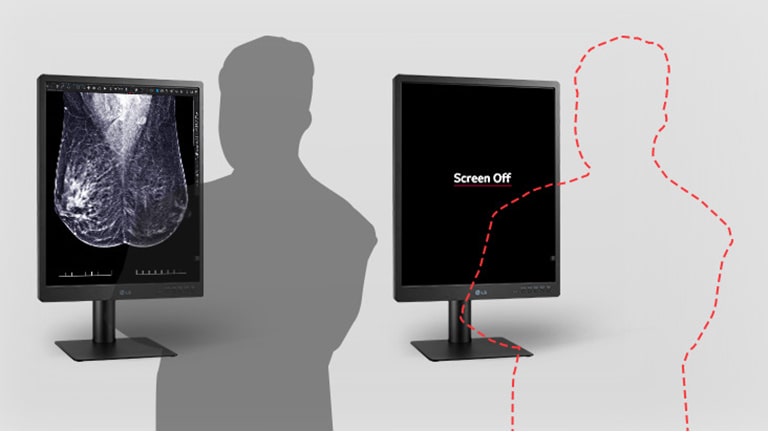

The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
Presence sensor

Convenient power management

The presence sensor automatically turns off the display when no motion is detected for 5 minutes, contributing to convenient power management.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

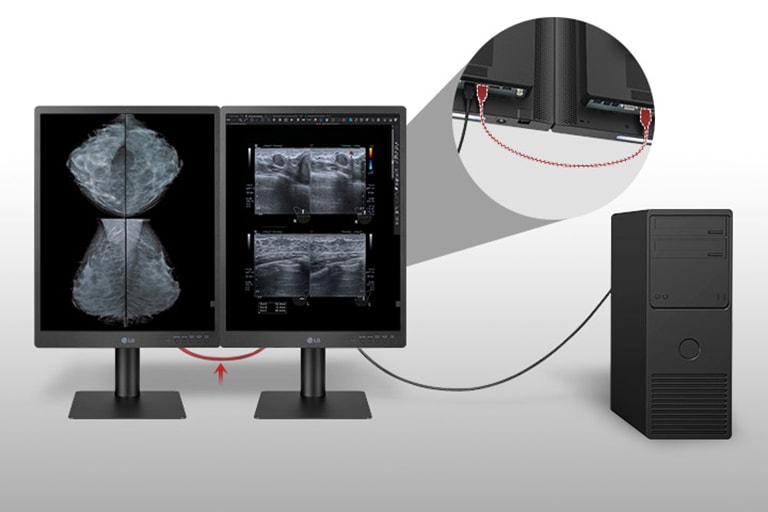

Daisy chain

Simple connection for a clutter-free workspace

Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace. Make your workspace productive with the Daisy Chain setup. You can reduce clutter on your desk and simplify cable management, leading to a productive workspace.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

User convenience

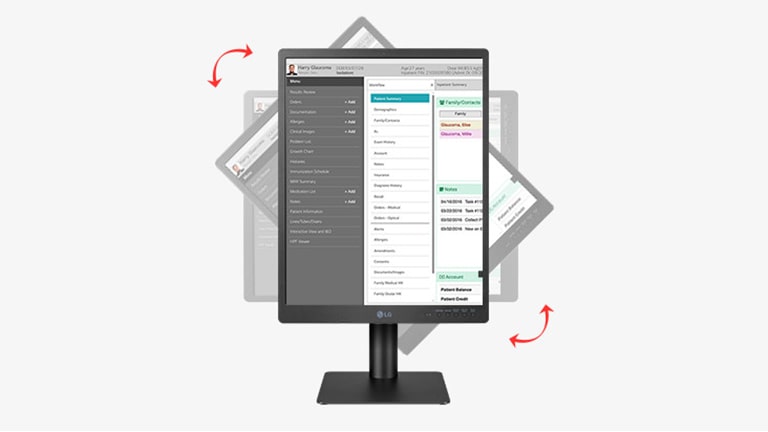

21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.

User-friendly monitor stand

21HQ613D is designed to be adjustable for the posture of users' image review. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
*Auto pivot refers to the automatic screen rotation function based on the pivot direction.

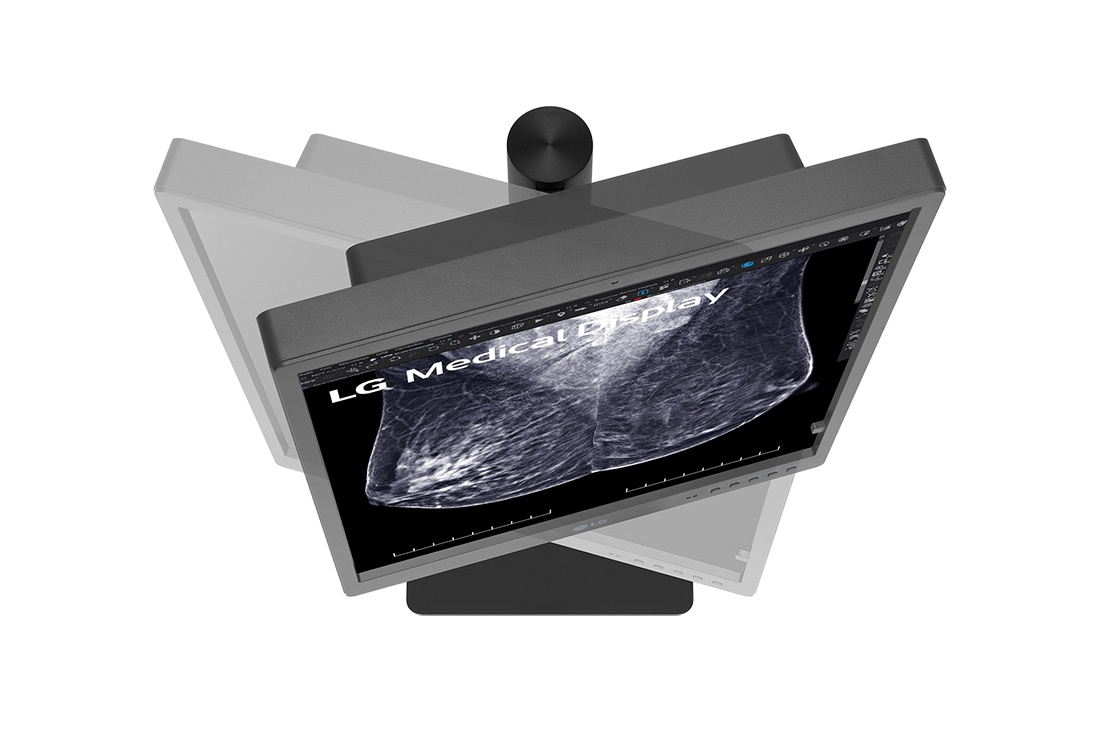

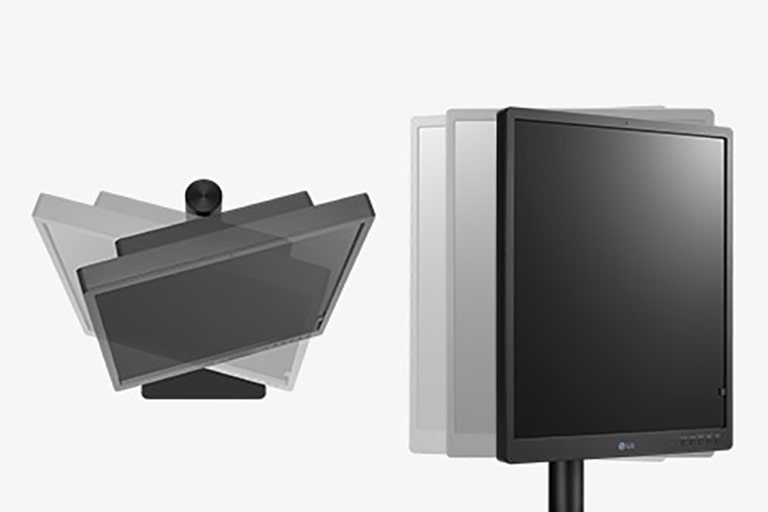

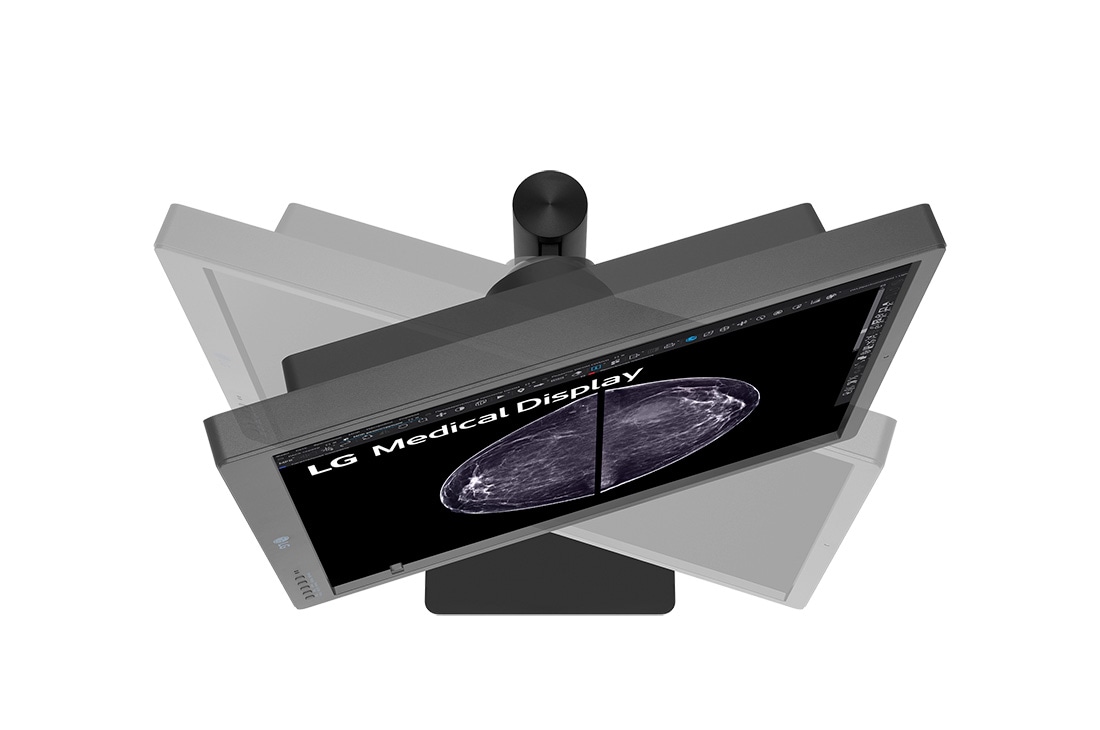

  • Swivel ±15°.

    Swivel ±15°

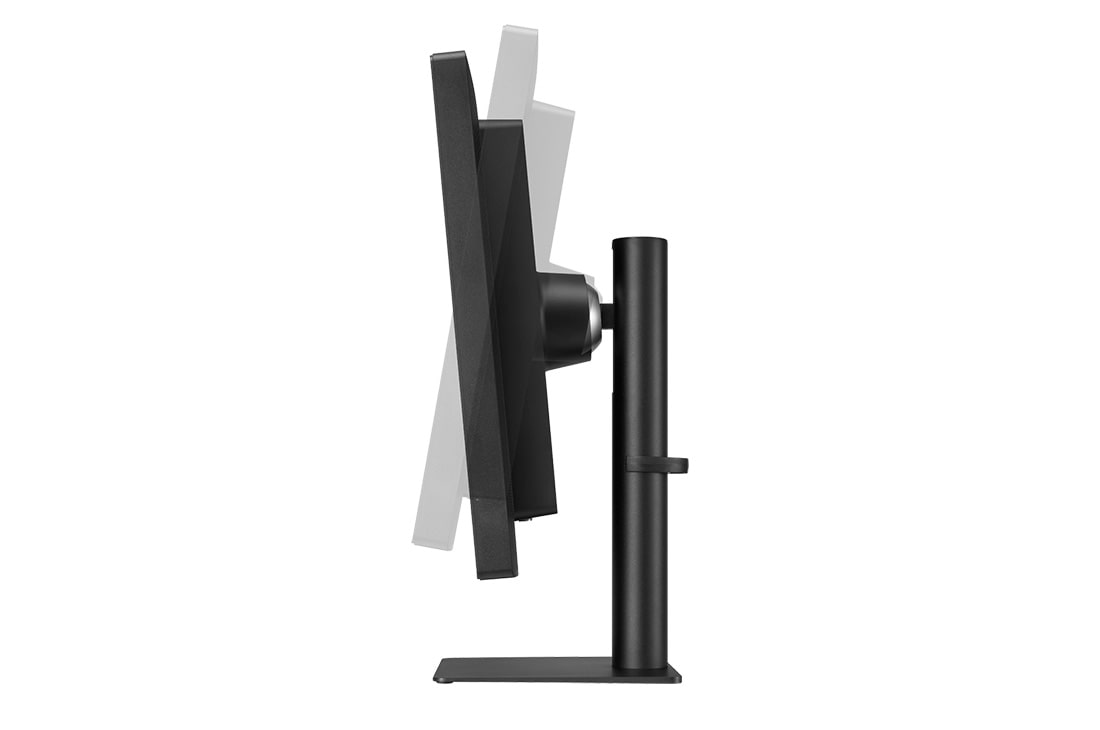

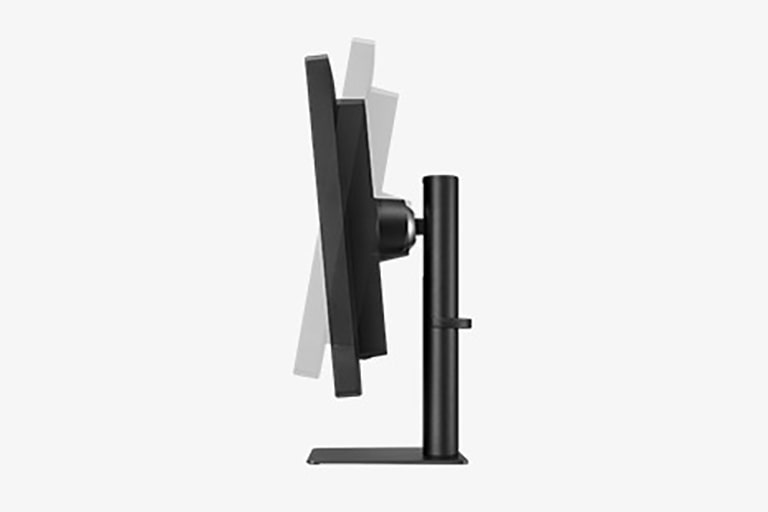

  • Tilt -5° ~ 20°

    Tilt -5° ~ 20°

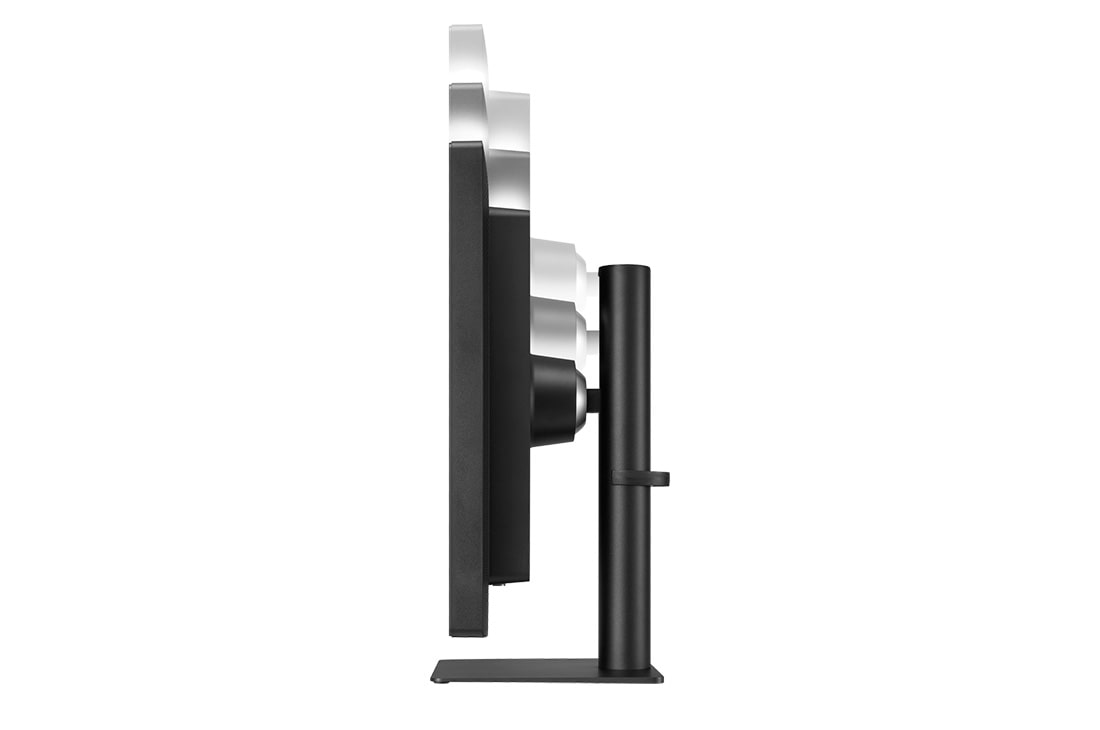

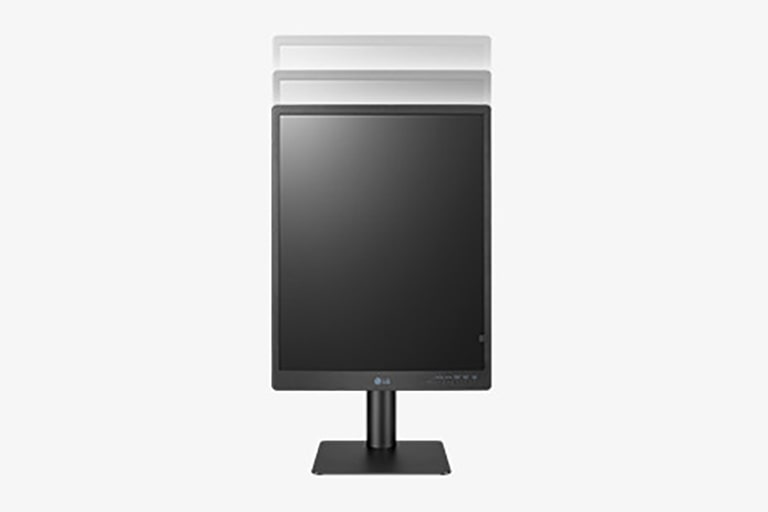

  • Height 110mm

    Height 110mm

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Down light & Wall light

Ideal diagnostic workspace

Down /Wall light mode enhances readability of documents below monitor even in low-light environments.

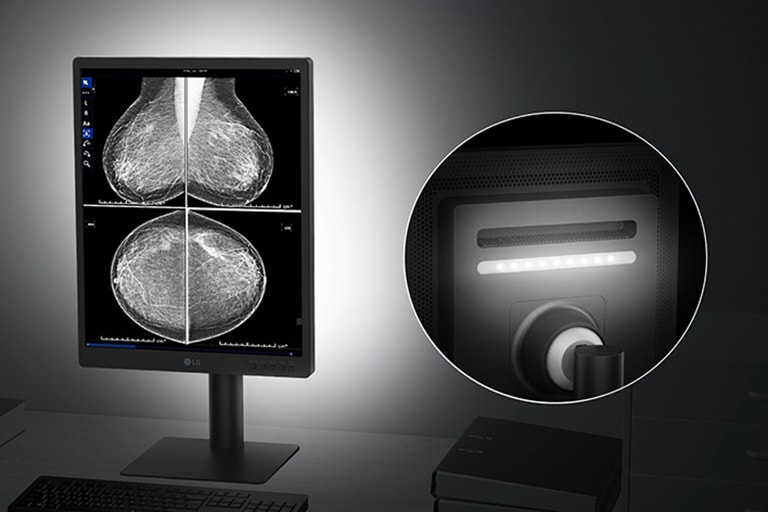

  • Wall light

    Wall light

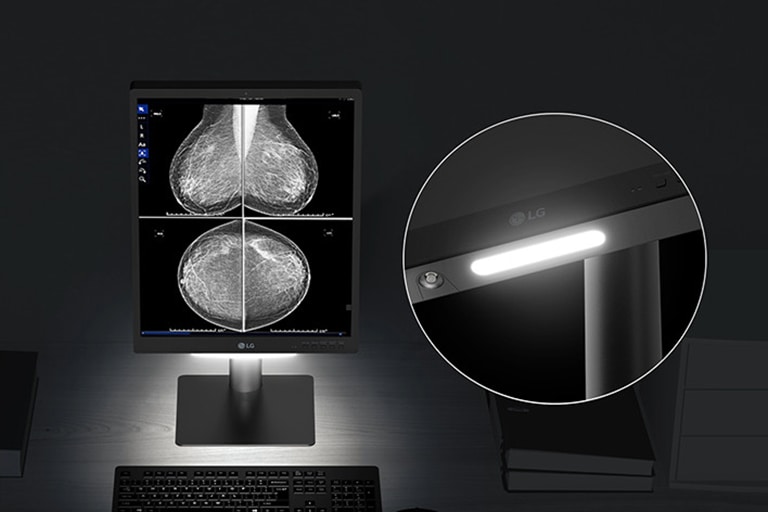

  • Down light

    Down light

*All images are shown for illustrative purposes only and may vary from the actual product/usage.

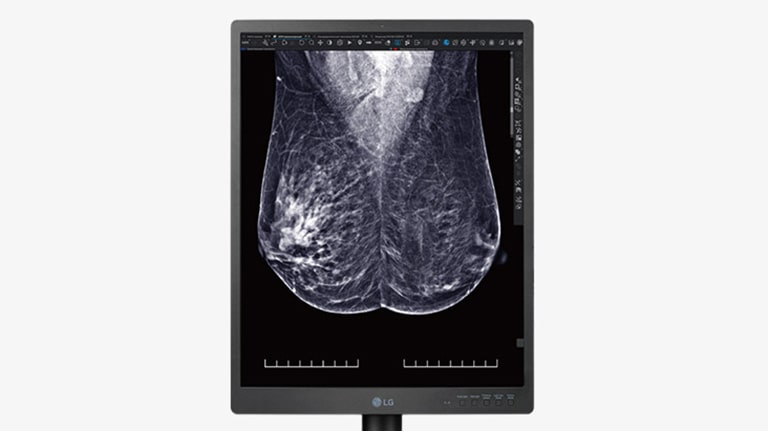

21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
Auto luminance sensor

Automatically adjusts screen brightness

21HQ613D features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Close
Display
  • Aspect Ratio
    4:5
    Brightness (Typ.) [cd/m²]
    1100cd/m²
  • Color Bit
    10bit
    Color Gamut (Typ.)
    NTSC 72% (CIE1931)
  • Contrast Ratio (Typ.)
    1800:1
    Brightness (Stabilization) [cd/m²]
    600 cd/m²
  • Pixel Pitch [mm]
    0.165 X 0.165 mm
    Resolution
    2048 x 2560
  • Response Time
    5ms (GtG at Faster)
    Size [Inch]
    21.3
  • Surface Treatment
    AG
    Viewing Angle (CR≥10)
    178°(R/L), 178°(U/D)
Features
  • Hot Key
    Yes (5 keys)
    Brightness Stabilization
    Yes
  • Auto Brightness
    Yes
    Presence Sensor
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes
    DICOM Compliant
    Yes
  • Color Temperature
    6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
    Flicker safe
    Yes
  • Multi-resolution Mode
    Yes (5MP /3MP /2MP)
    Pathology Mode
    Yes
  • Reader Mode
    Yes (Text Mode)
    Focus View
    Yes
  • Light Box Mode
    Yes
    Smart Energy Saving
    Yes
  • Lighting
    Yes (Down/ Wall)
    Super Resolution+
    Yes
SW Application
  • Dual Controller
    Yes
    LG Calibration Studio Medical
    Yes

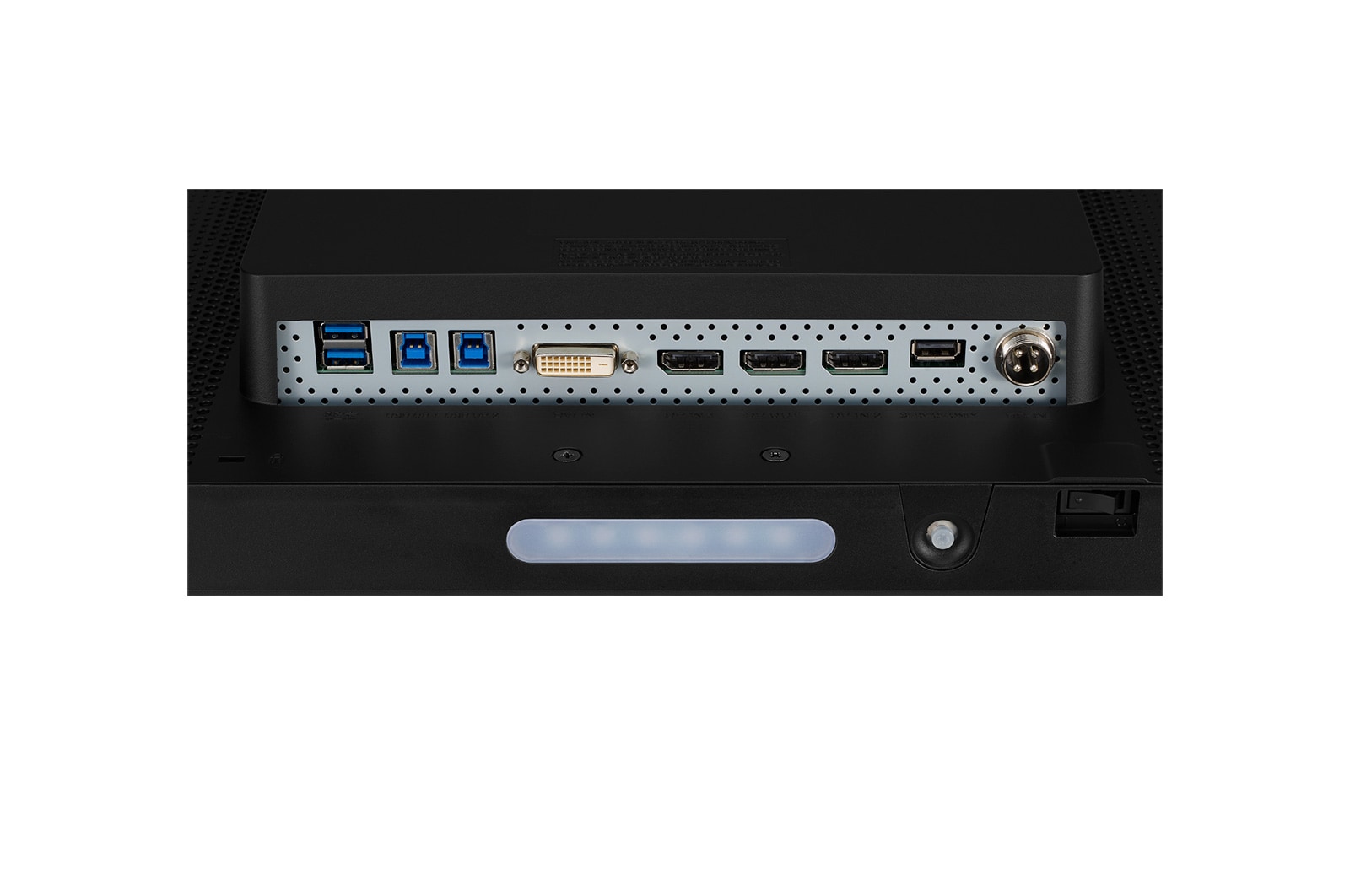

Connectivity
  • DisplayPort
    Yes (In 2ea / Out 1ea)
    DVI
    Yes (In 1ea Dual link)
  • Daisy Chain
    Yes (5MP/48Hz)
    USB Downstream Port
    YES(2ea/ver3.0)
  • USB Upstream Port
    YES(2ea/ver3.0)
Power
  • AC Input
    100-240Vac, 50-60Hz
    DC Output
    19V @6.32A
  • Power Consumption (DC Off)
    Less than 0.3W
    Type
    External Power(Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt / Height / Swivel / Pivot
  • Height Range [mm]
    110 mm
    Mechanical Power Switch
    Yes
  • One Click Stand
    Yes

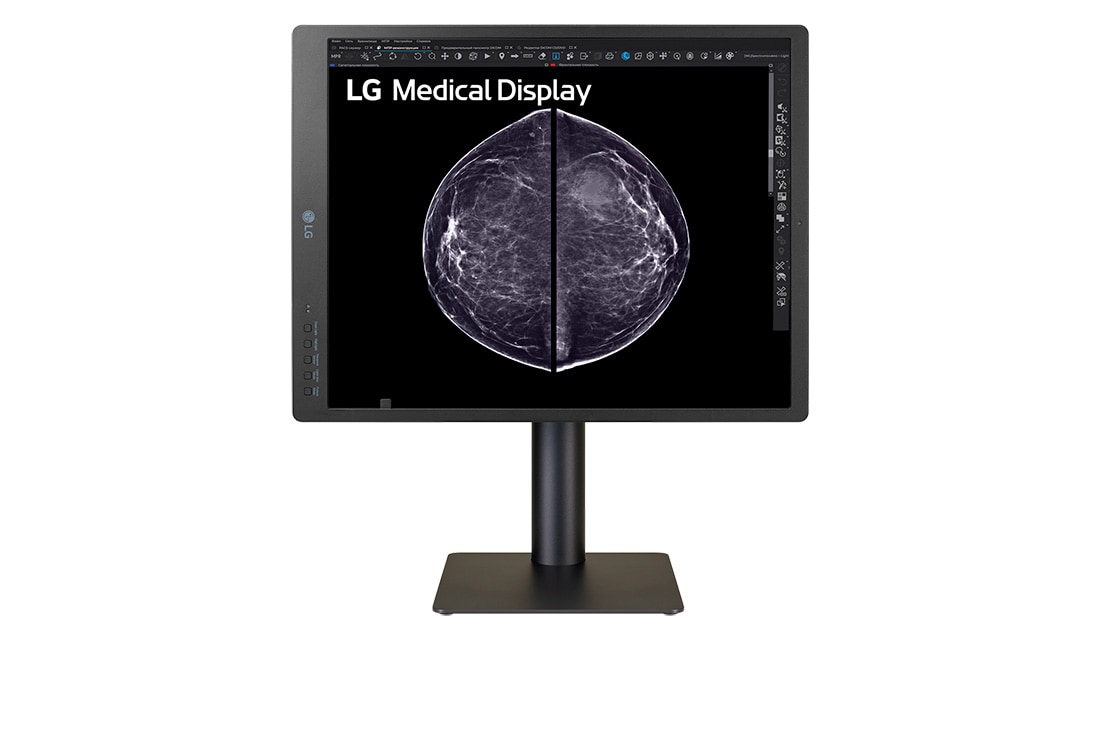

    Pivot
    Yes(±90°)
  • Swivel
    Yes(±15°)
    Tilt
    Yes(-5°~20˚)
  • Wall Mountable [mm]
    100 x 100 mm
Dimensions/Weight
  • Dimension in Shipping (WxHxD) [mm]
    524 x 577 x 296
    Dimension with Stand (WxHxD) [mm]
    364.5 x 634.4 x 233.6
  • Dimension without Stand (WxHxD) [mm]
    364.5 x 473.4 x 78
    Pallet Stuffing (20ft/40ft/40ft HC)
    216 / 504 / 672
  • Weight in Shipping [kg]
    11.4
    Weight with Stand [kg]
    7.85
  • Weight without Stand [kg]
    5.45
Standard
  • IEC (IEC 60601-1/IEC 60601-1-2)
    Yes
    EN (EN 60601-1/EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    510(K)(Class II)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes
Accessory
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • DVI-D
    Yes(1ea)
    Display Port
    Yes
  • Power Cord
    Yes
    USB A to B
    Yes
