24HR513C component-copyModelName

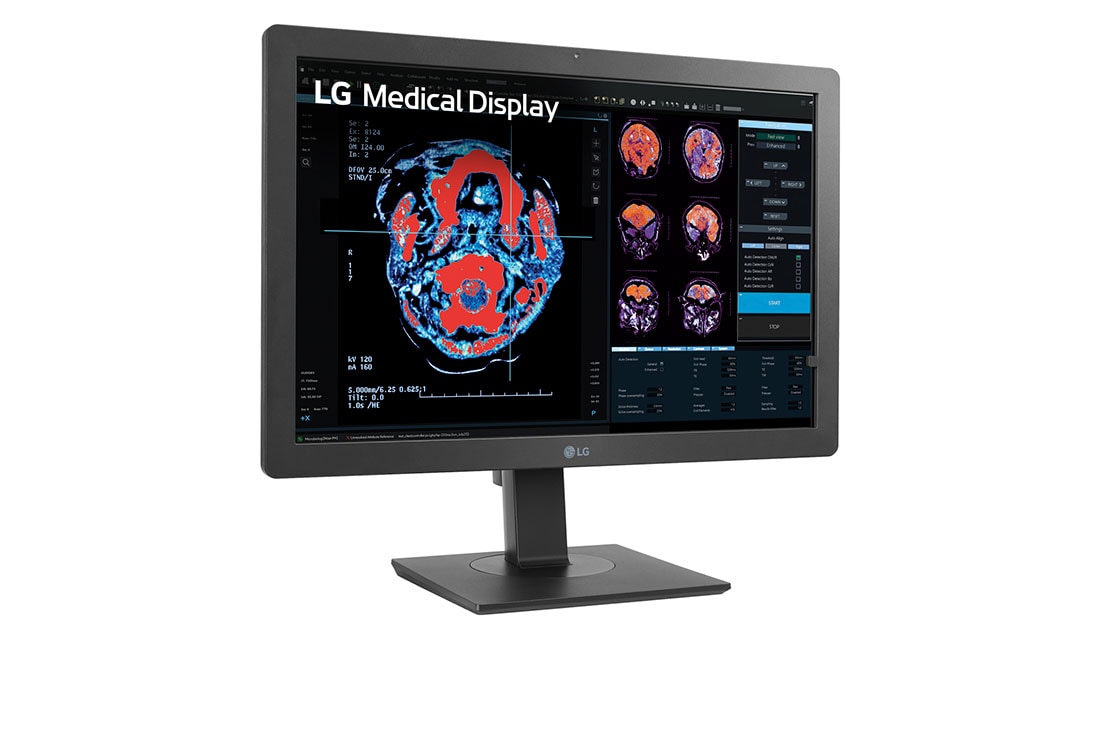

LG 24” 2MP IPS Clinical Review Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (24HR513C)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (24HR513C)
    $
    $
    LG Members Price
Total
LG 24” 2MP IPS Clinical Review Monitor
Contact Us
24” 2MP Clinical review monitor. 24” 2MP Clinical review monitor.
24” 2MP Clinical review monitor

Clinical review and Diagnosis in one display

Watch the Full Movie

Multi-purpose 600cd/m² Brightness (Typ.)
Internal Front Calibration Sensor

Efficiency Management with LCS Medical
Daisy Chain

Convenience Variety of interfaces including HDMI
Ergonomic Design

Multi-purpose

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes. With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes.
600cd/m² Brightness (Typ.)

High brightness suitable for Diagnosis

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
*This display is not intended for mammography.
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Internal front calibration sensor

Consistency in medical images

The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
24HR513C features the Focus View Mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

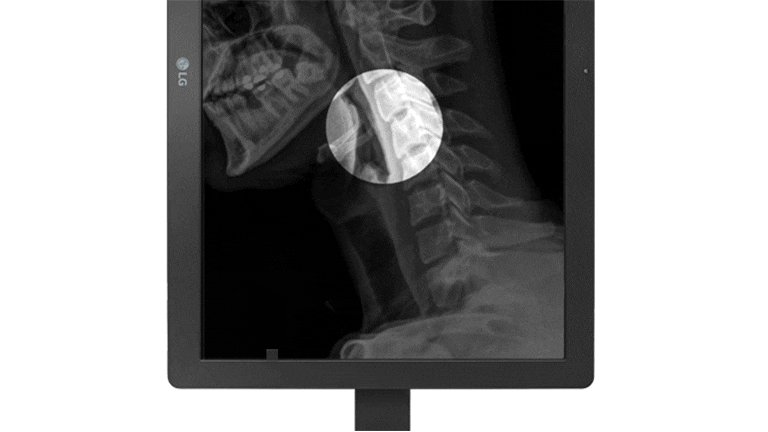

Focus view mode

Focus on the region of interest

24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Pathology mode

Just like looking at a microscope

With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.

Streamlined and efficient workflow

Convenient calibration and QA test. Convenient calibration and QA test.
LCS Medical*

Convenient calibration and QA test

Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.
  • Calibration. Calibration.

    Calibration

  • QA Test. QA Test.

    QA Test

*LCS Medical : LG Studio Calibration Medical
*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.
Daisy Chain

Simple connection for a clutter-free workspace

Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The 3MP diagnostic monitor featured in the image is 21HQ513D.

User convenience

Versatile connectivity

Variety of interfaces, including an HDMI Port

With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.

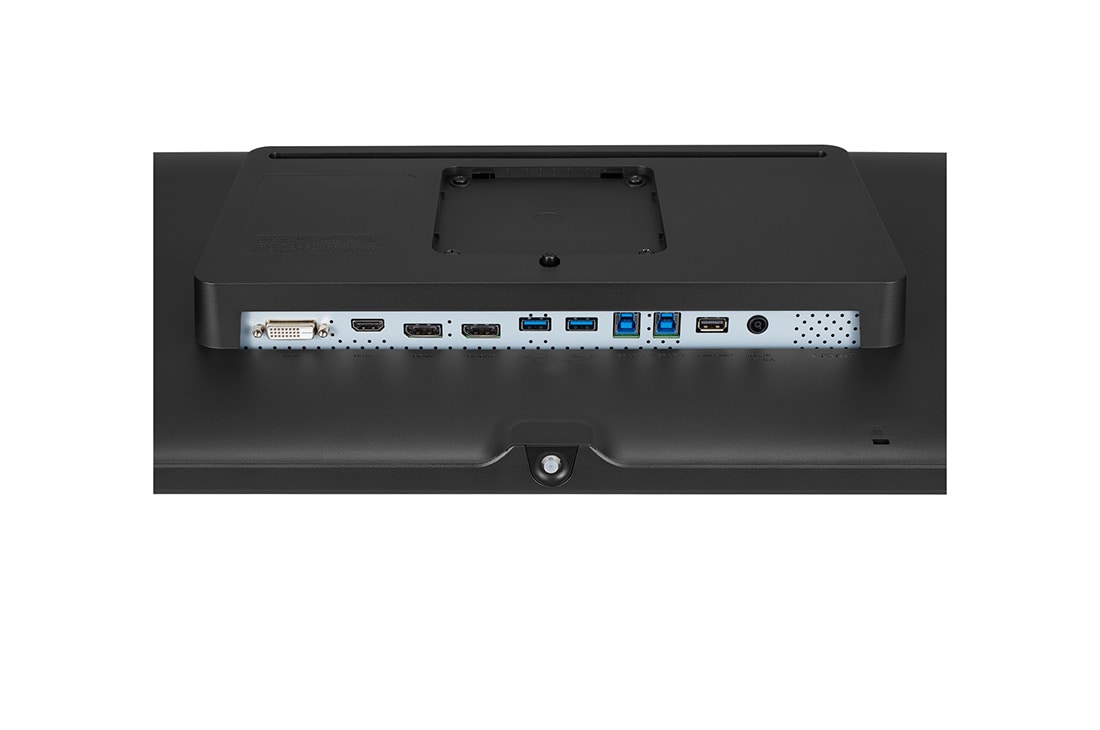

DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2. DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.
1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2
Ergonomic design

Customizable workstation for enhanced usability

24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
  • Bi-directional Auto Pivot.

    Bi-directional Auto Pivot

  • Swivel ±45°.

    Swivel ±45°

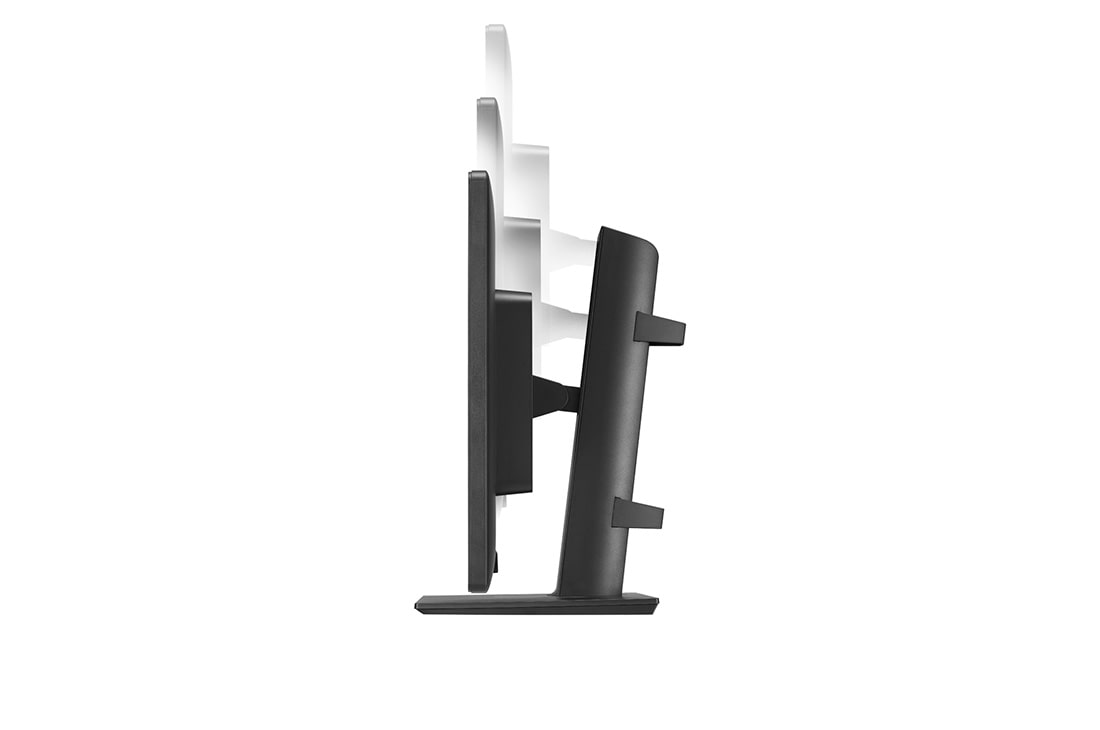

  • Height 0 ~ 150mm.

    Height 0 ~ 150mm

  • Tilt -5 ~ 25°.

    Tilt -5 ~ 25°

  • The One-Click Stand.

    The One-Click Stand

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
Automatically adjusts screen brightness 3
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Auto luminance sensor

Automatically adjusts screen brightness

24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
Close
Display
  • Aspect Ratio
    16:10
    Brightness (Typ.) [cd/m²]
    600
  • Brightness (Stabilization) [cd/m²]
    350
    Color Bit
    8bit
  • Color Gamut (Typ.)
    NTSC 70% (CIE1931)
    Contrast Ratio (Typ.)
    1000:1
  • Pixel Pitch [mm]
    0.27X0.27
    Resolution
    1920x1200
  • Response Time
    5ms (GtG at Faster)
    Size [Inch]
    24
  • Surface Treatment
    Anti-Glare
    Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)
Features
  • Brightness Stabilization
    Yes
    Auto Brightness
    Yes
  • Front Sensor
    Yes
    Black Stabilizer
    Yes
  • HW Calibration
    Yes
    DICOM Compliant
    Yes
  • Color Temperature
    6500K/7500K/9300K
    Manual(5000K~10000K)
    Flicker safe
    Yes
  • Pathology Mode
    Yes
    Reader Mode
    Yes
  • Focus View
    Yes
    Smart Energy Saving
    Yes
  • Super Resolution+
    Yes
SW Application
  • Dual Controller
    Yes
    LG Calibration Studio Medical
    Yes
Connectivity
  • DisplayPort
    Yes(in 1ea/out 1ea)
    DVI
    Yes(1ea)
  • Daisy Chain
    Yes
    HDMI
    Yes (1ea)
  • USB Downstream Port
    Yes (2ea/ver3.0)
    USB Upstream Port
    Yes (2ea/ver3.0)
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 3.42A
  • Power Consumption (DC Off)
    Less than 0.3W
    Power Consumption (Max.)
    65W
  • Type
    External Power(Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    Tilt/Height/Swivel/Pivot
  • Height Range [mm]
    150
    OneClick Stand
    Yes
  • Pivot
    Yes(±90°)
    Swivel
    Yes(±45°)
  • Tilt
    Yes(-5°~25°)
    Wall Mountable [mm]
    100 x 100
Dimensions/Weight
  • Dimension in Shipping (WxHxD) [mm]
    705X480X200
    Dimension with Stand (WxHxD) [mm]
    574.2X559.4X248.2
  • Dimension without Stand (WxHxD) [mm]
    574.2X382.4X59.3
    Pallet Stuffing (20ft/40ft/40ft HC)
    340/700/875
  • Weight in Shipping [kg]
    9.7
    Weight with Stand [kg]
    7.1
  • Weight without Stand [kg]
    4.35
Standard
  • IEC (IEC 60601-1/IEC 60601-1-2)
    Yes
    EN (EN 60601-1/EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    510(k) (Class II)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes
Accessory
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • DVI-D
    Yes
    Display Port
    Yes
  • HDMI
    Yes
    Power Cord
    Yes
  • USB A to B
    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
