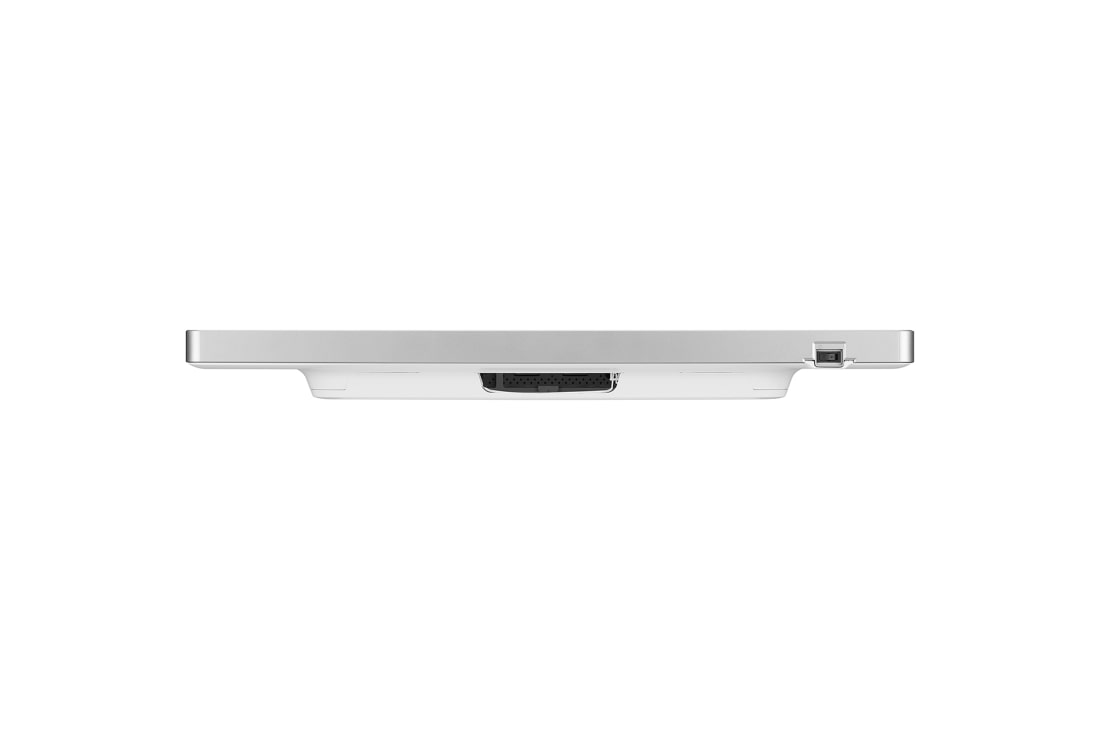

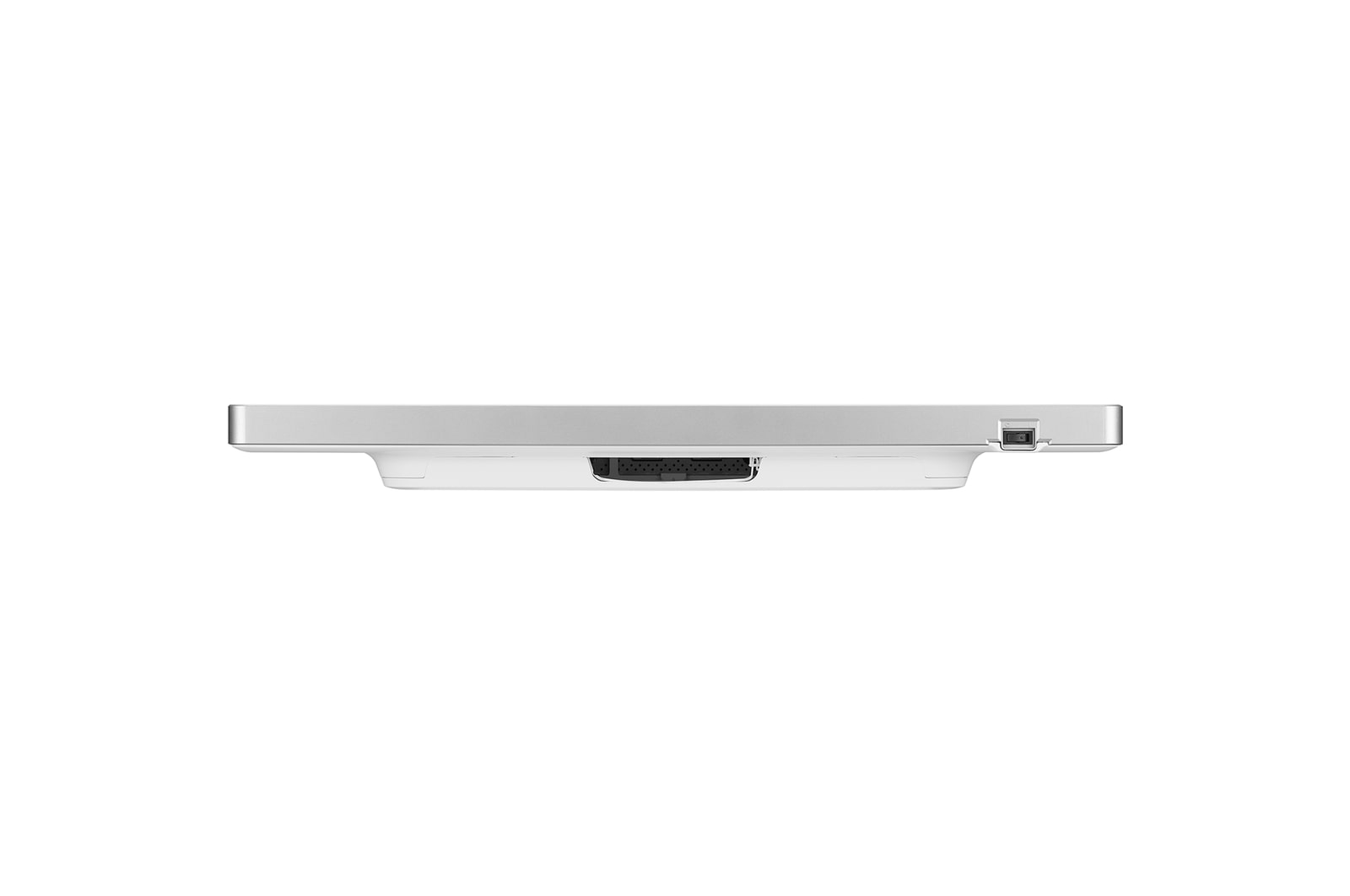

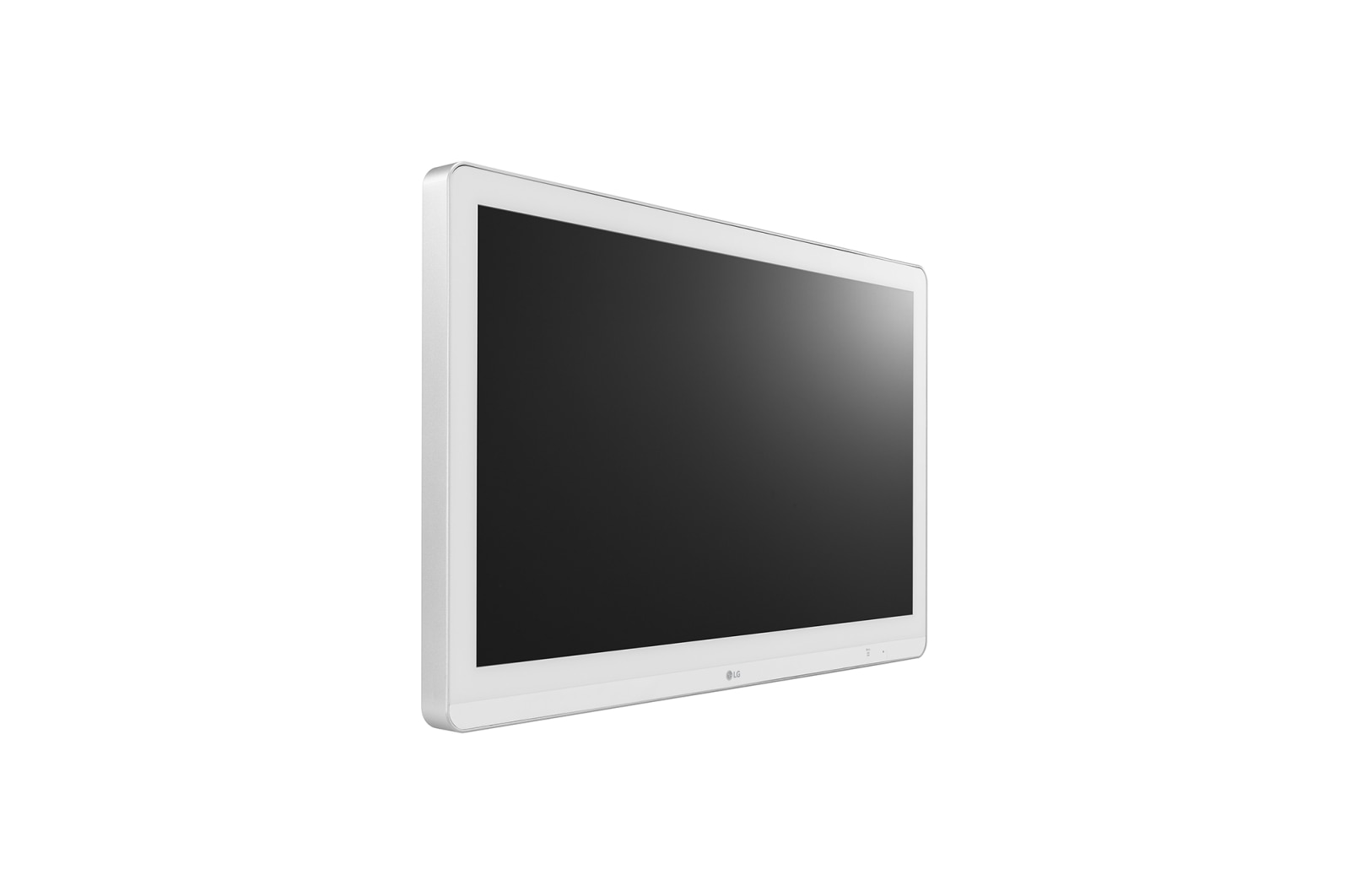

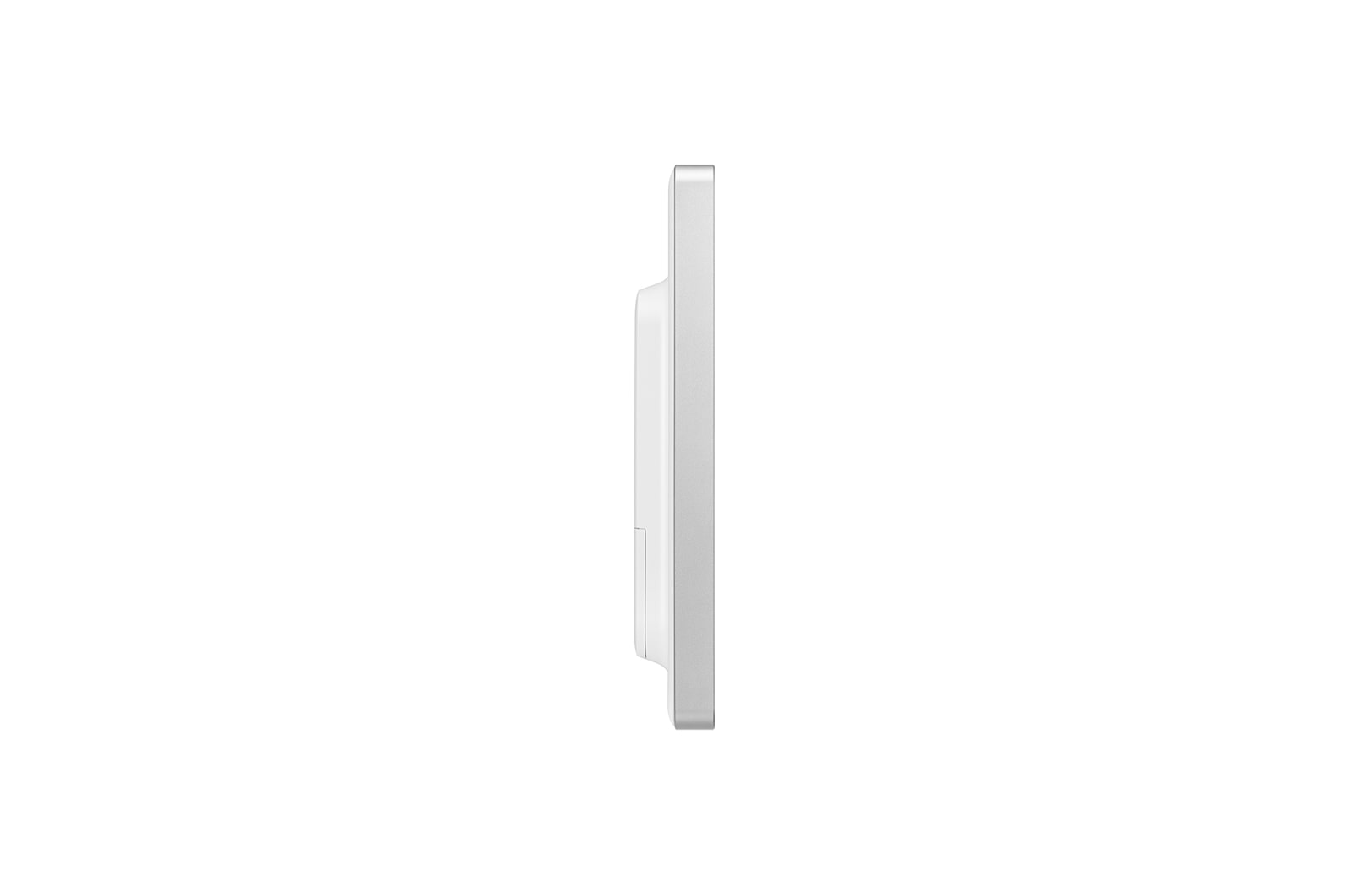

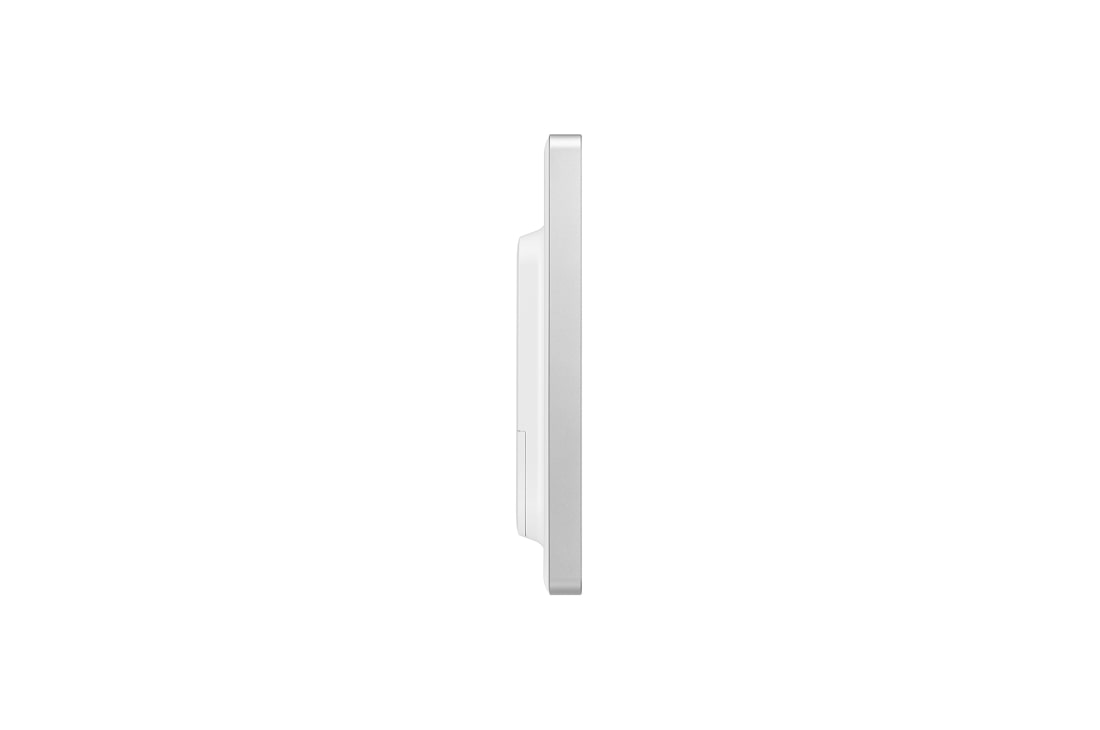

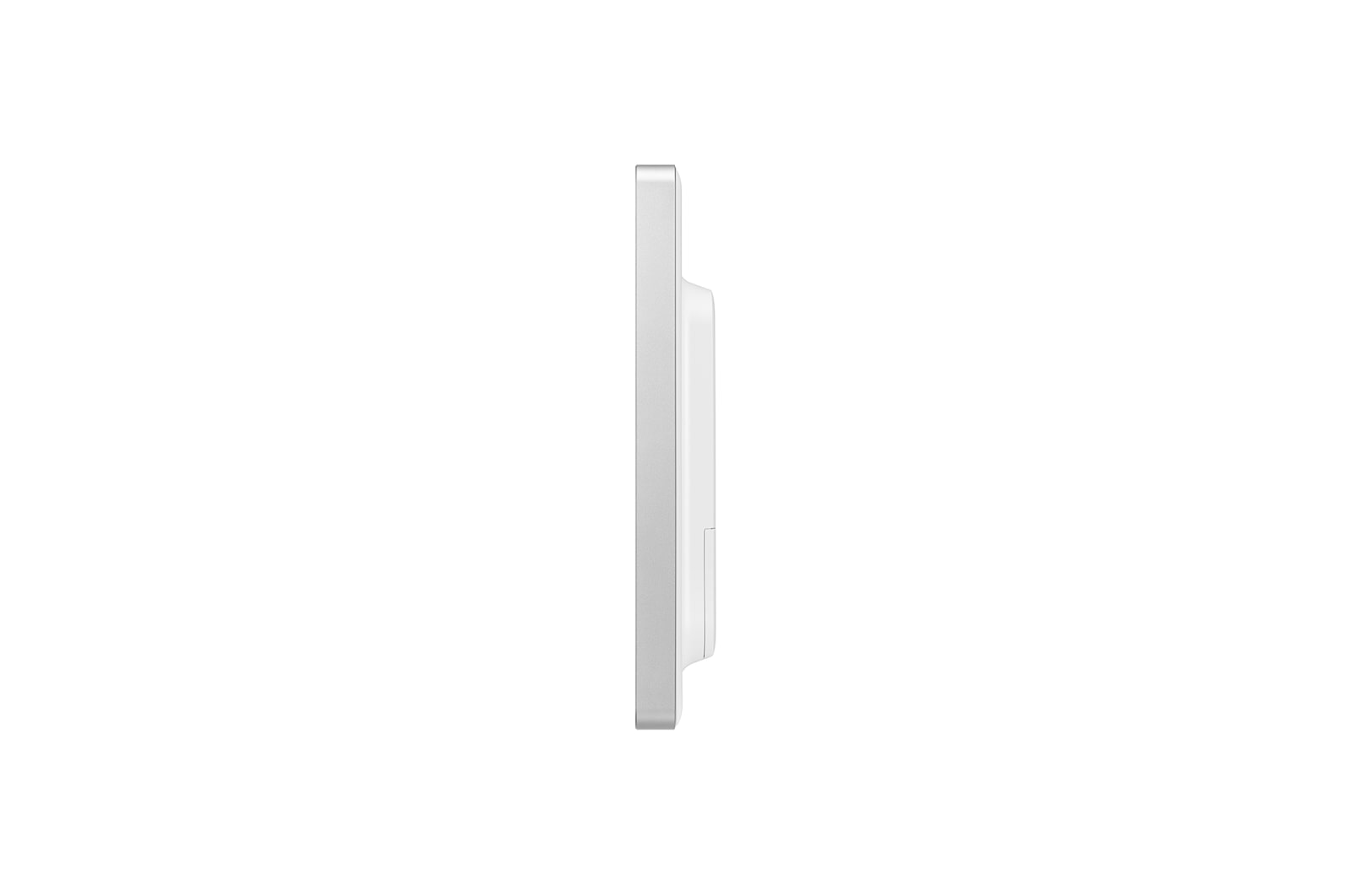

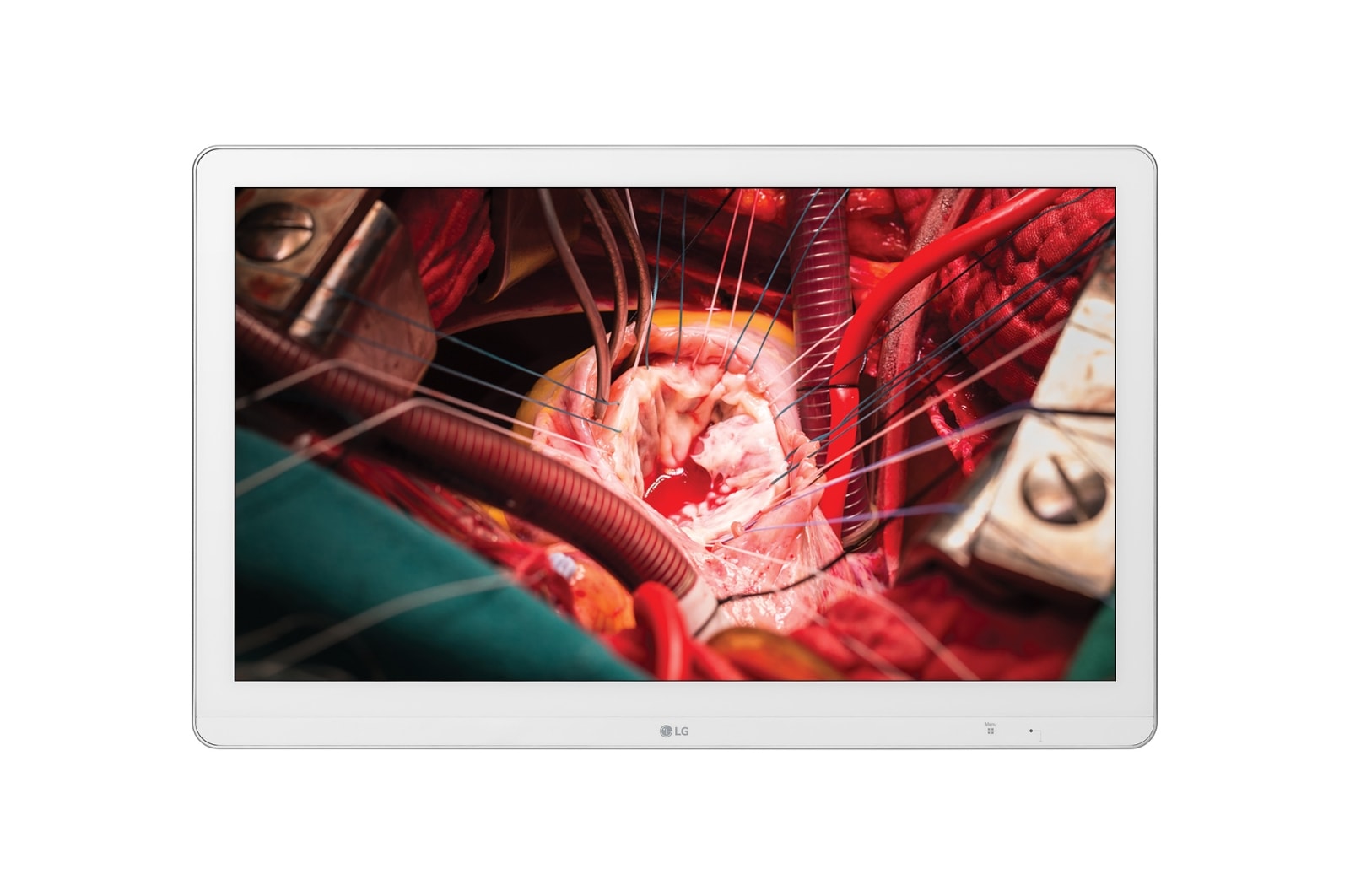

LG 27'' Full HD IPS Surgical Monitor
* DICOM (Digital Imaging and Communications in Medicine): Standard applied to the grayscale tone characteristics of monitors used in the medical field.
Display
  • Aspect Ratio
    16:9
    Backlight Dimming Technology
    Global Dimming
  • Backlight Technology
    LED
    Brightness (Typ.)
    1000 cd/m²

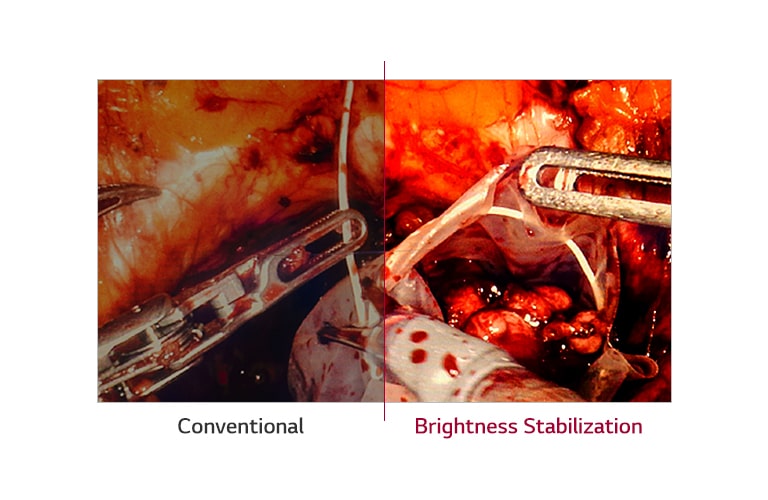

  • Brightness (Stabilization)
    600 cd/m²
    Color Bit
    10bit

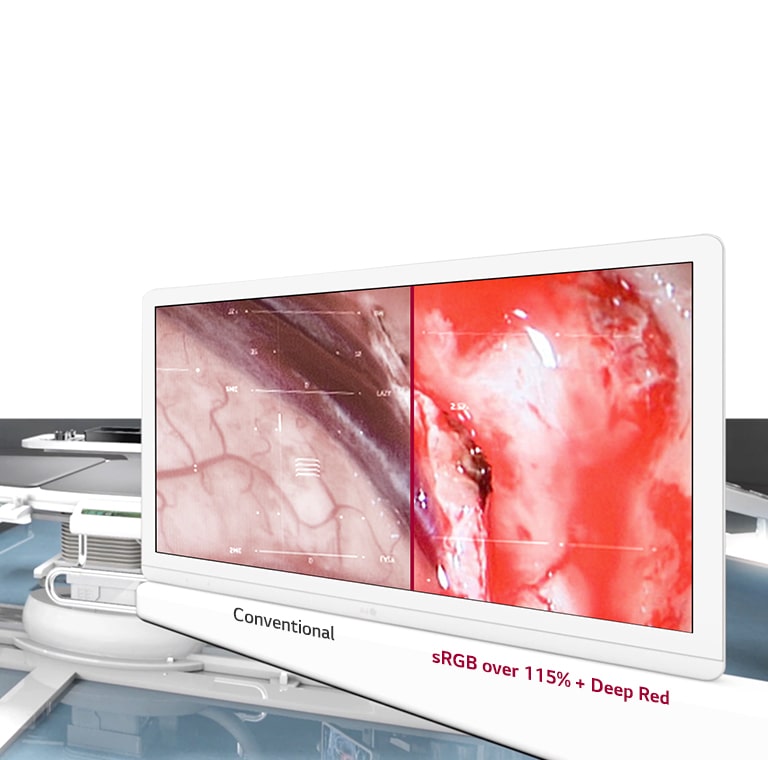

  • Color Gamut (Typ.)
    sRGB 115%(Area),
    sRGB over 99%(Coverage)
    Contrast Ratio (Typ.)
    1000:1
  • Pixel Pitch(H x V)
    0.3114mm x 0.3114mm
    Resolution
    1920x1080
  • Response Time (GTG)
    14ms(Off-setting), 5ms(Faster-setting)
    Size (Diagonal, Inch)
    27
  • Size (H x V)
    597.89 x 336.31mm
    (23.54 x 13.24")
    Surface Treatment
    Protection Glass (1.6t, Anti-Reflection, Anti-fingerprint)
  • Viewing Angle (CR≥10)
    178° (Right/Left), 178° (Up/Down)
Feature
  • Hot Key
    Yes (2keys)
    Brightness stabilization
    Yes
  • Black Stabilizer
    Yes
    HW Calibration
    Yes(LG Calibration Studio)
  • DICOM Compliant
    Yes
    Color Temperature
    6500K / 7500K / 9300K
    Manual (5000K ~ 10000K)

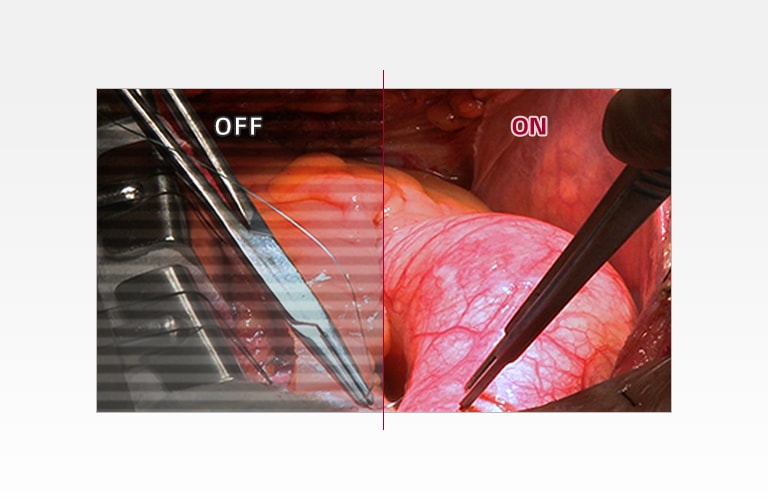

  • Flicker safe
    Yes
    PBP
    Yes (2PBP)
  • PIP
    Yes
    Failover Input Switch
    Yes
  • Smart Energy Saving
    Yes
    Super Resolution+
    Yes
SW Application
  • LG Calibration Studio (True Color Pro)
    Yes
Connectivity
  • 3G-SDI
    Yes (3G,INx1/OUTx1)
    D-Sub
    Yes
  • DVI
    DVI-D (In)/DVI-D(Out)
    HDMI
    Yes (1ea)
  • Component
    Yes
    RS-232
    Yes (1ea)
  • USB Downstream Port
    Yes(1ea/ver3.0)
    USB Upstream Port
    Yes (1ea/ver3.0)
Power
  • AC Input
    100-240Vac, 50/60Hz
    DC Output
    19V, 6.32A
  • DC Input (Monitor)
    19 - 24V, 6.32A - 5.0A
    Power Consumption (DC Off)
    Less than 0.3W
  • Power Consumption (Max.)
    120W
    Type
    External Power(Adapter)
Mechanical
  • Borderless Design
    Normal
    Display Position Adjustments
    No Stand
  • Down Height
    No Stand
    Height Range
    No Stand
  • Machanical Power Switch
    Yes
    OneClick Stand
    No Stand
  • Pivot
    No Stand
    Swivel
    No Stand
  • Tilt
    No Stand

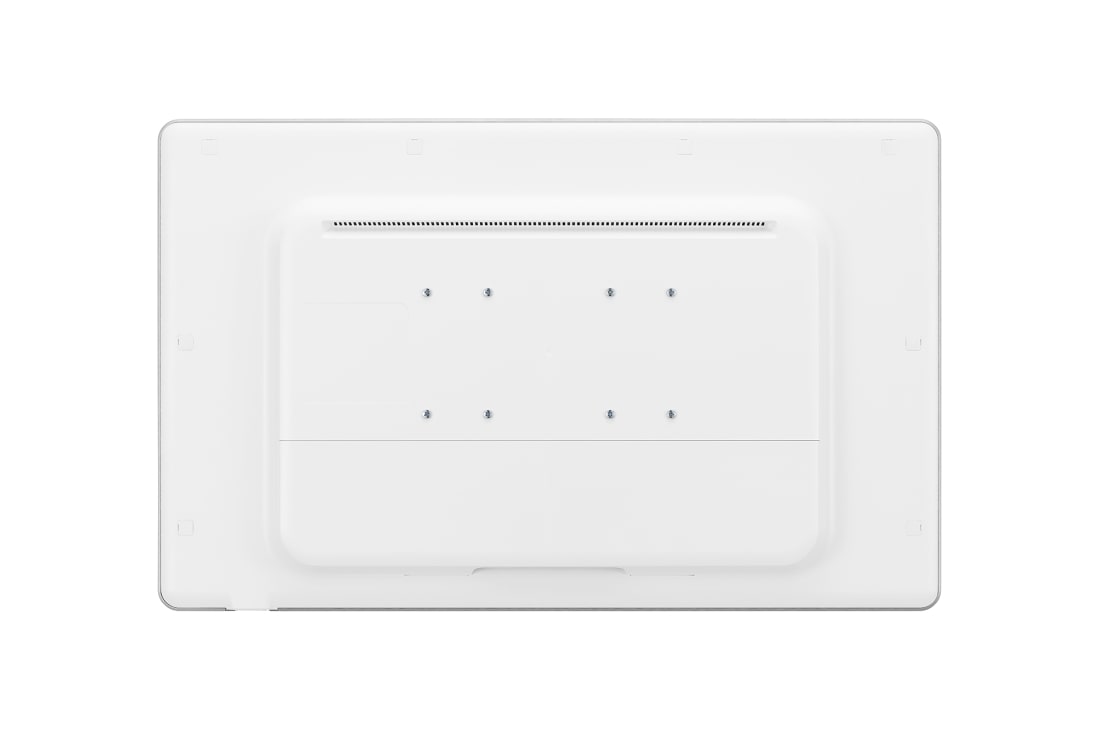

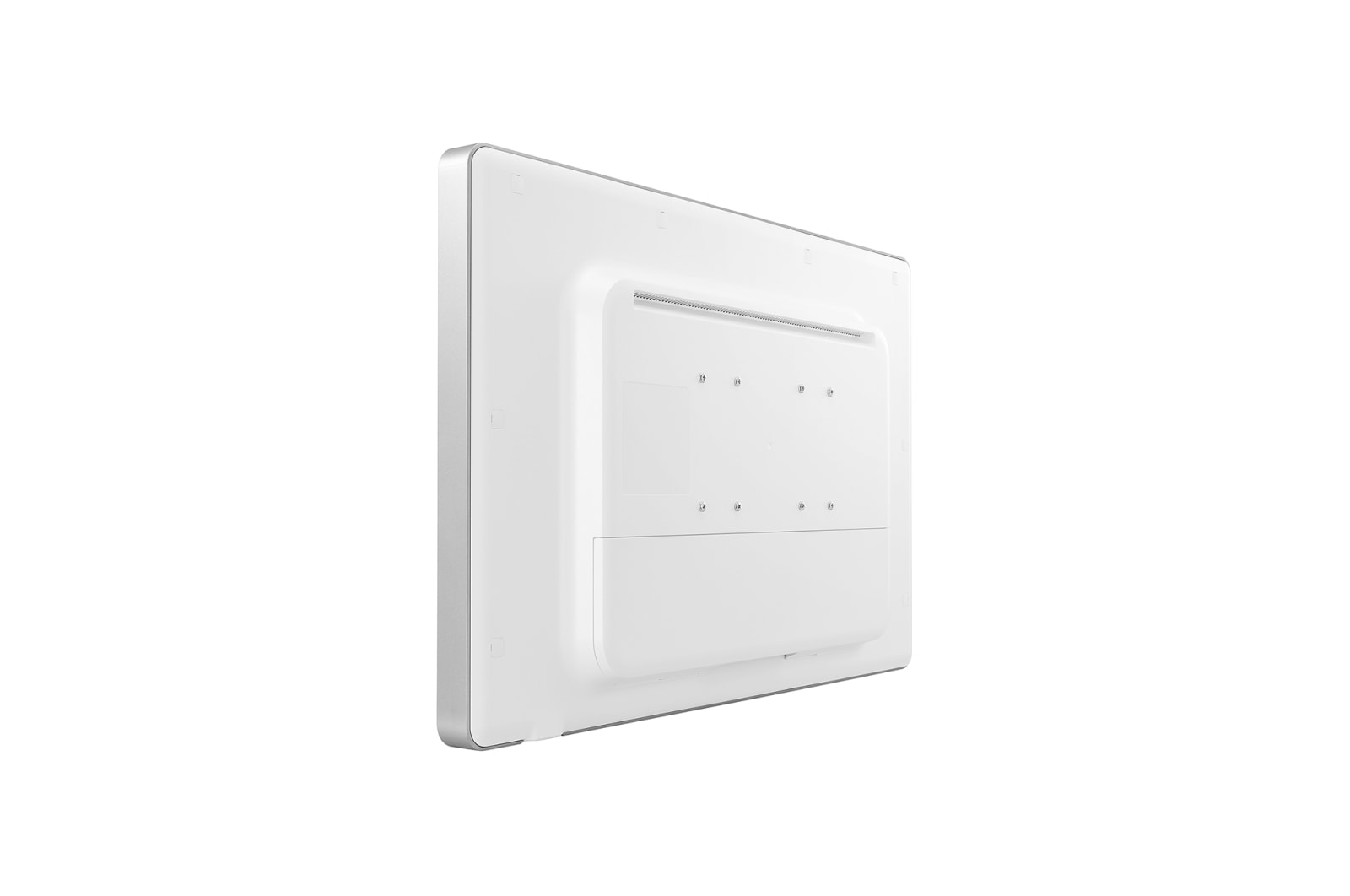

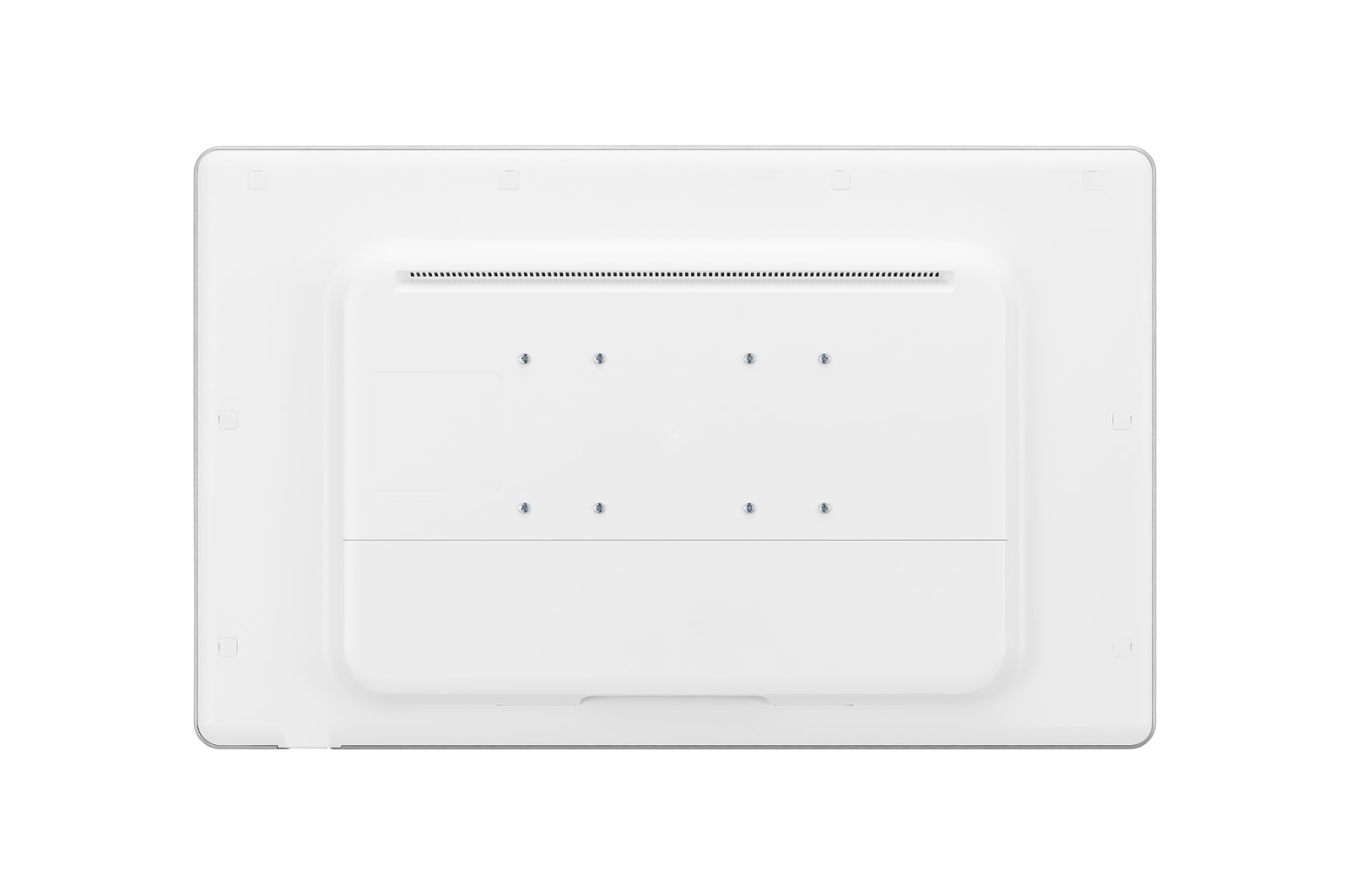

    Wall Mount Size
    200x100mm/100x100mm
Dimensions/Weight
  • Dimension in Shipping (W x H x D)
    743x157X496 mm
    Dimension with Stand (W x H x D)
    No Stand
  • Dimension without Stand (W x H x D)
    656.4x412.9x62.2mm
    Pallet Stuffing (20ft/40ft/40ft HC)
    420 / 900 / 900
  • Weight in Shipping
    11.3kg(24.9lb)
    Weight with Stand
    No Stand
  • Weight without Stand
    7.7kg (17lb)
Standard
  • IEC (IEC 60601-1 / IEC 60601-1-2)
    Yes
    EN (EN 60601-1 / EN 60601-1-2)
    Yes
  • IEC (IEC 60950-1 & IEC 62368-1 / CISPR 32, 35)
    Yes
    EN (EN 62368-1 / EN 55032, 55035)
    Yes
  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)
    Yes
    CE
    MDR
  • FDA
    Registration (Class I)
    ISO13485
    Yes
  • RoHS
    Yes
    REACH
    Yes
  • WEEE
    Yes
    MFDS
    Yes

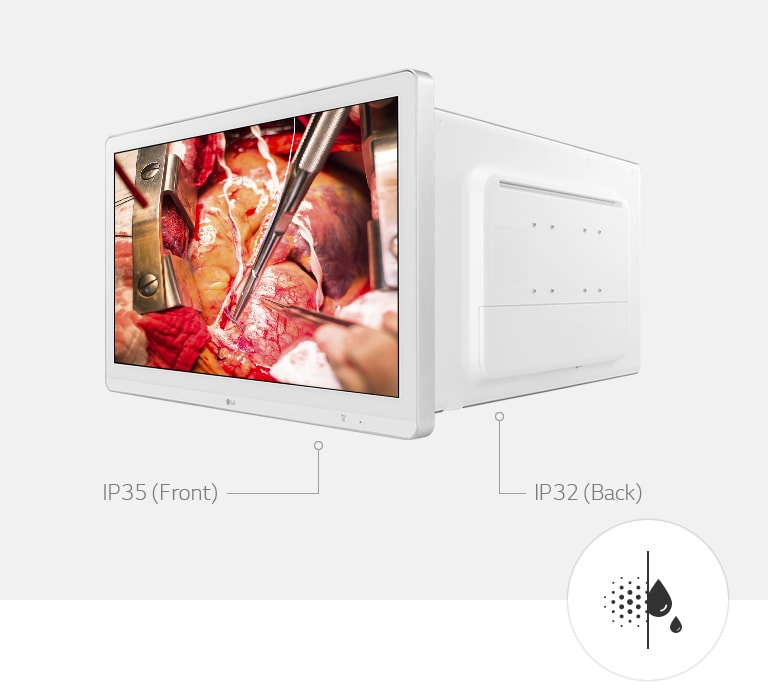

  • IP(front/except for front)
    IP35/IP32
    Vandal-proof
    IK06
Accessory
  • Adapter
    Yes
    Calibration Report (Paper)
    Yes
  • D-Sub
    Yes
    DVI-D
    Yes
  • HDMI
    Yes
    Power Cord
    Yes
Physical Specifications
  • Weight(Without Stand)
    7.7kg
