14HK701G-W (14'' Wireless DXD) component-copyModelName

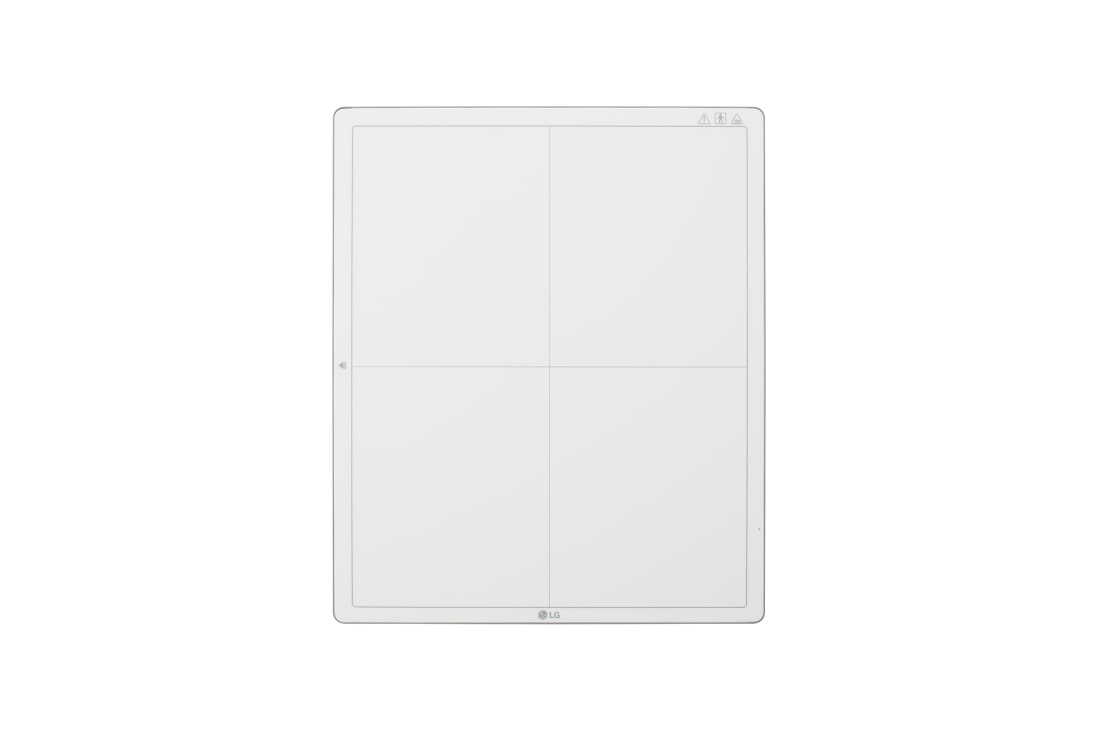

Digital X-Ray Detector (DXD)

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HK701G-W (14'' Wireless DXD))
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HK701G-W (14'' Wireless DXD))
    $
    $
    LG Members Price
Total
Digital X-Ray Detector (DXD)
Contact Us
Superior Image Quality3 Superior Image Quality4
Ensure Diagnostic Accuracy

Superior Image Quality

LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140㎛ for high resolution images.
Watch the Full Movie
Light yet Durable1 Light yet Durable2

Light yet Durable

IP41: Waterproof and Dustproof1 IP41: Waterproof and Dustproof2

IP41: Waterproof and Dustproof

IP*41 resistance rating ensures that LG DXD will be protected against objects of 1mm or larger and dripping liquids such as blood and bodily fluids.
* IP: Ingress protection
Magnesium & Carbon-fiber Body1 Magnesium & Carbon-fiber Body2

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.
* Maximum load weight: uniform load 150kg (331lb), point load 100kg (220lb)
Rapid Image Availability1 Rapid Image Availability2
Improve Work Efficiency

Rapid Image Availability

LG DXD increases productivity with a fast-processing. It takes only 3 seconds with connection or 6 seconds for wireless to get a raw image.
Close
Specification
  • External Dimension
    14 x 17 inch
    Weight
    2.95kg, 6.5lb (Icld. Battery)
  • Intended Use
    General Radiography
    TFT Type
    A-si
  • Scintillator
    CsI
    Pixel Size
    140μm
  • A/D Conversion
    16bit
    Data Output
    16bit
  • Cycle Time
    8sec. (Wired) / 11sec. (Wireless)
    Full Image
    3sec. (Wired) / 6sec. (Wireless)
Image Area
  • X-ray Sensitive Pixel
    2500 x 3052 pixels
    X-ray Sensitive Area
    350 x 427.28 mm
MTF
  • MTF @ 0.5lp/mm
    (Typ.) 89%
DQE
  • DQE @ 0.1lp/mm
    (Typ.) 72%
Communication
  • Type
    Wired / Wireless
    Wireless
    IEE802.11a/b/g/n/ac, 2.4GHz / 5GHz
  • AED (Auto Exposure Detection)
    Support
Durability
  • Maximum Load Weight
    Full (Uniform Load) : 150kg, 331Ib ; Local (Point Load) : 100kg, 220Ib
    Resistance Rating
    IP41
  • Sensor Protection Plate
    Carbon Fiber Plate
Battery
  • Type
    Detachable
    Operating Time
    (Typ.) 220 shots / 5.5hrs. (@ Cycle Time 90sec.)
  • Duration in Standby Status
    (Typ.) 13hrs.
    Charging Time
    3hrs.
  • Datasheet
    • 20190625_LG IT Medical DXD+AWS Flyer_Low.pdf

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
