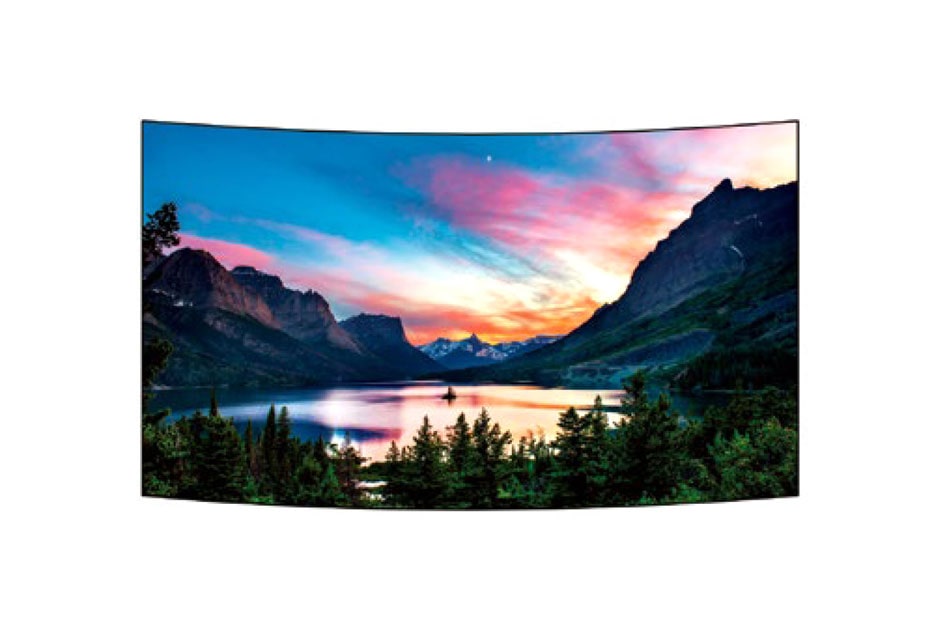

55EF5C component-copyModelName

Fixed Curved Open Frame

LG Fixed Curved Open Frame, 55EF5C, thumbnail 1

Discontinued

55EF5C component-copyModelName

Fixed Curved Open Frame

Key Features

Brightness(Typ.): 400 cd/m² (APL* 25%) * APL: Average Picture Level
Bezel: 7.2 mm (U/B/R/L, Off-bezel)
Available in 2,000R for landscape, 1,500R for portrait (Concave & Convex)
HDMI, DP, RJ45, IR, RS232C, USB, Audio out, Internal memory (64 GB)

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.): 400 cd/m² (APL* 25%) * APL: Average Picture Level
Bezel: 7.2 mm (U/B/R/L, Off-bezel)
Available in 2,000R for landscape, 1,500R for portrait (Concave & Convex)
HDMI, DP, RJ45, IR, RS232C, USB, Audio out, Internal memory (64 GB)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Fixed Curved Open Frame

Perfect Black

Limitless contrast and deepest black
Self-lighting pixels switch off completely to
reproduce black. No light bleeding. Absolute
black offers infinite contrast.

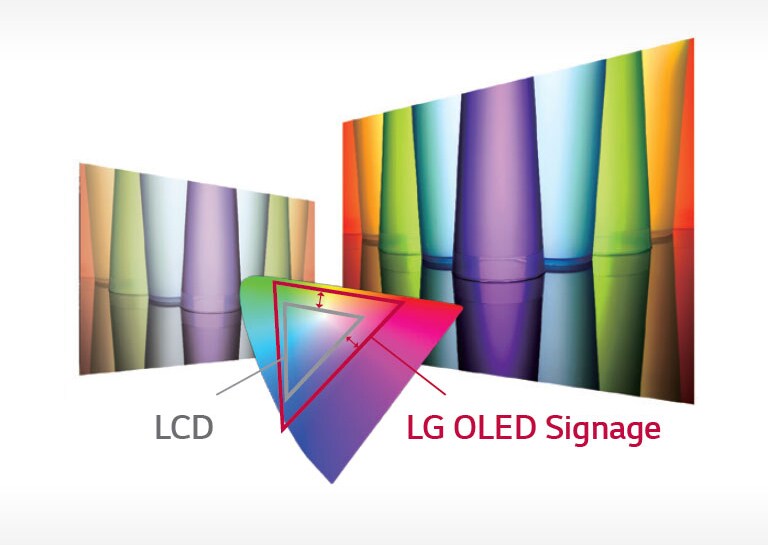

Perfect Color

Accurate & stable color reproduction
Self-lighting pixels bring colors to life with superb accuracy.

Perfect Viewing Screen

Wide viewing angle
LG OLED Signage delivers awe-inspiring
picture quality across the entire screen,
even from wide viewing angles.

Crisp, Clear Motion

Faster response time
LG OLED Signage provides a 5,000-times faster motion-picture response time, for perfectly clear images without blurring.

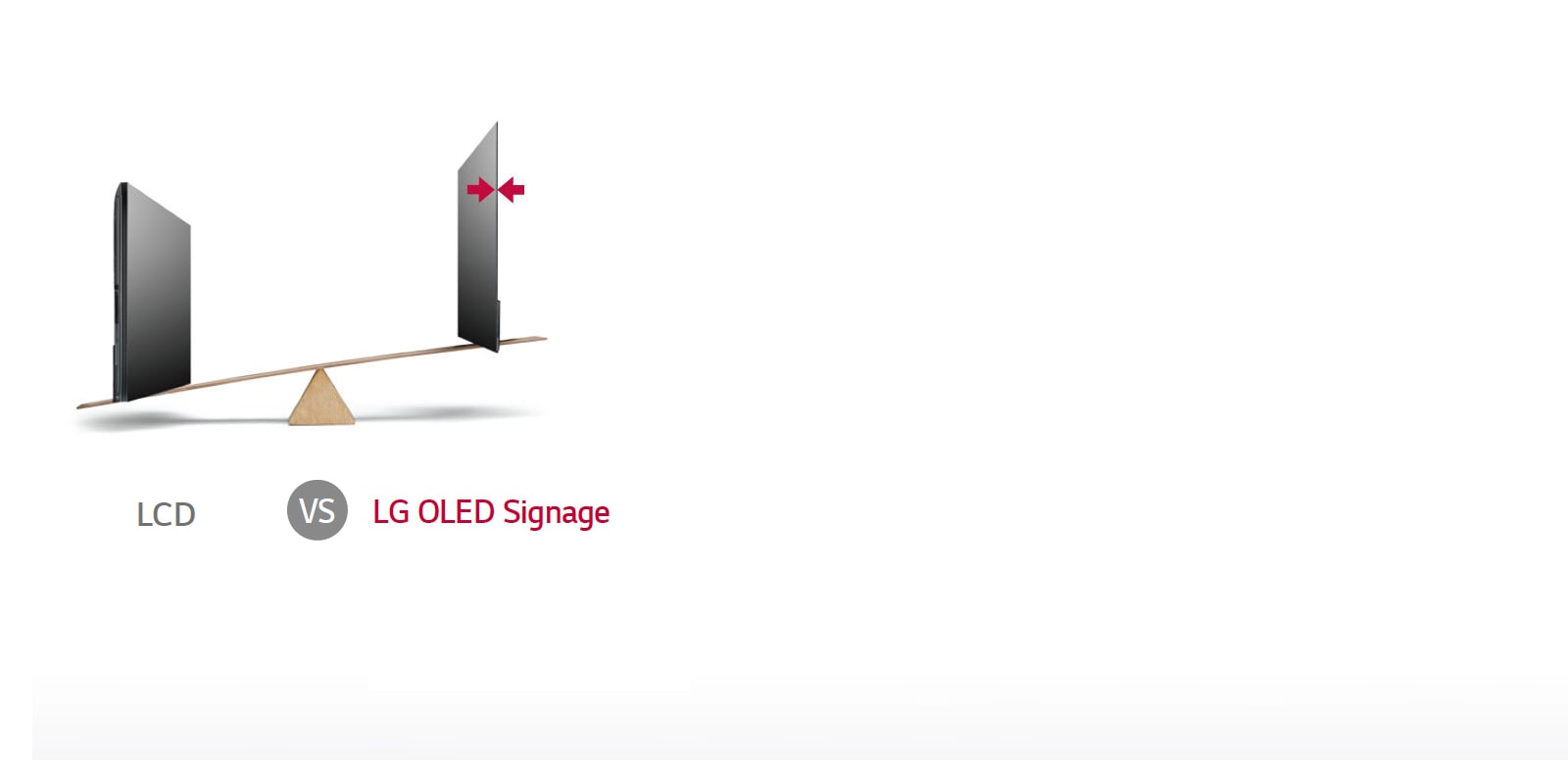

Perfect Design

Slim and light
With just two layers, the LG OLED Signage display is unbelievably lightweight and thin.

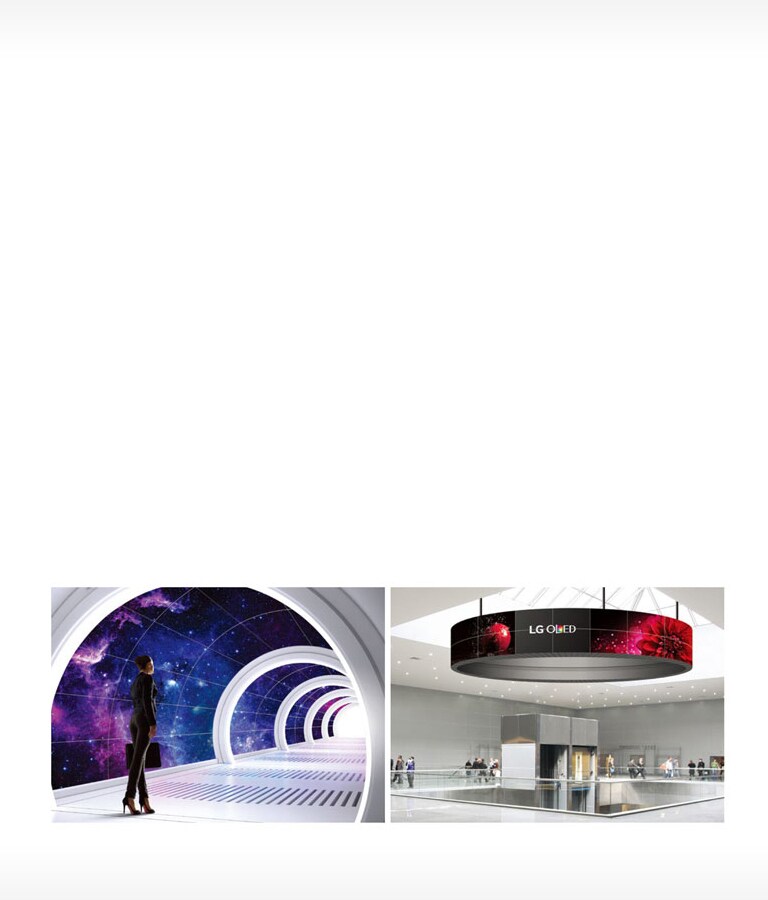

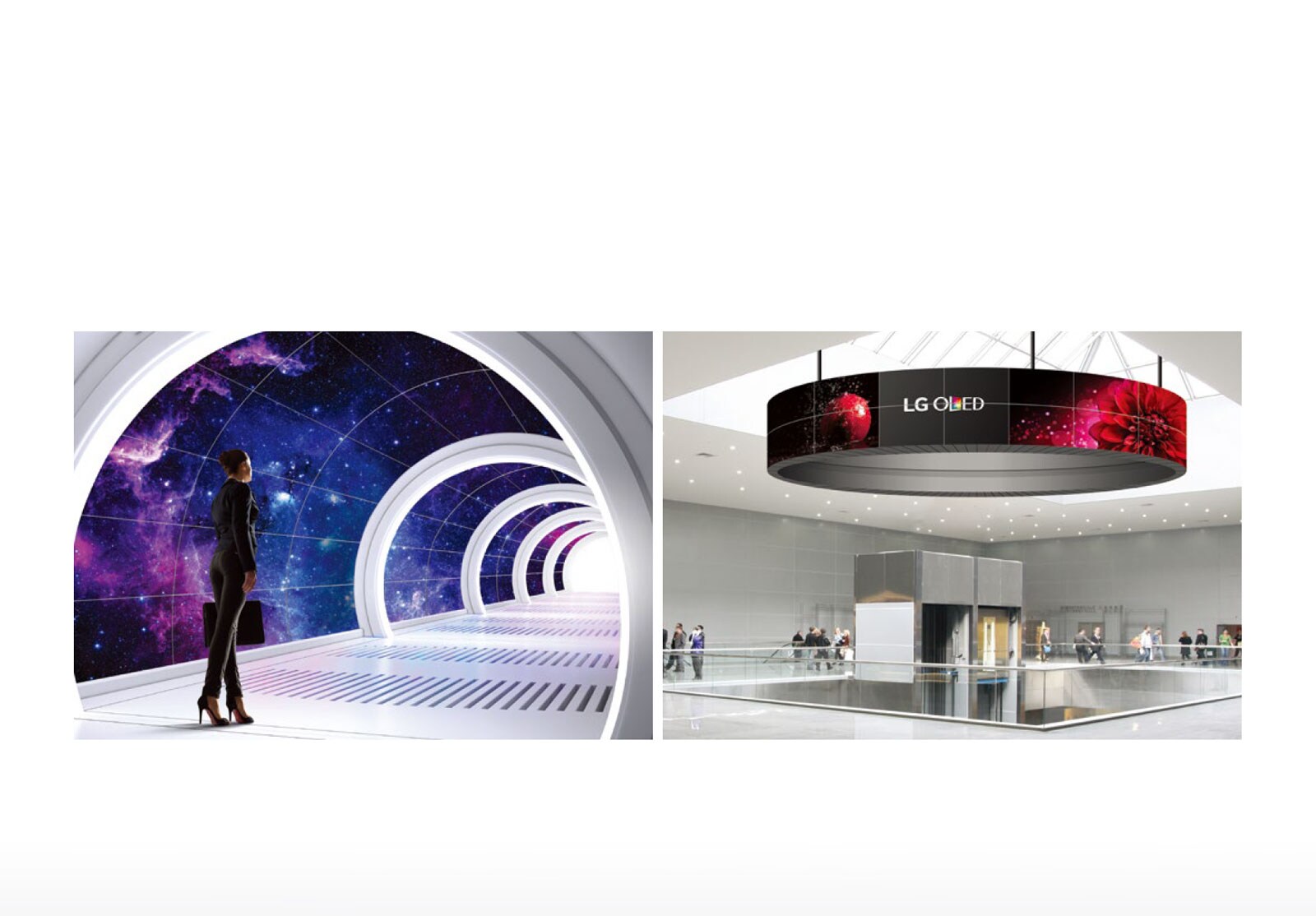

Artistic Display that Becomes a Landmark

Its curved display means that its space effi ciency is outstanding, and it can be positioned in a variety of ways because it is extendable and curved, so by simply installing, it can gather much attention.

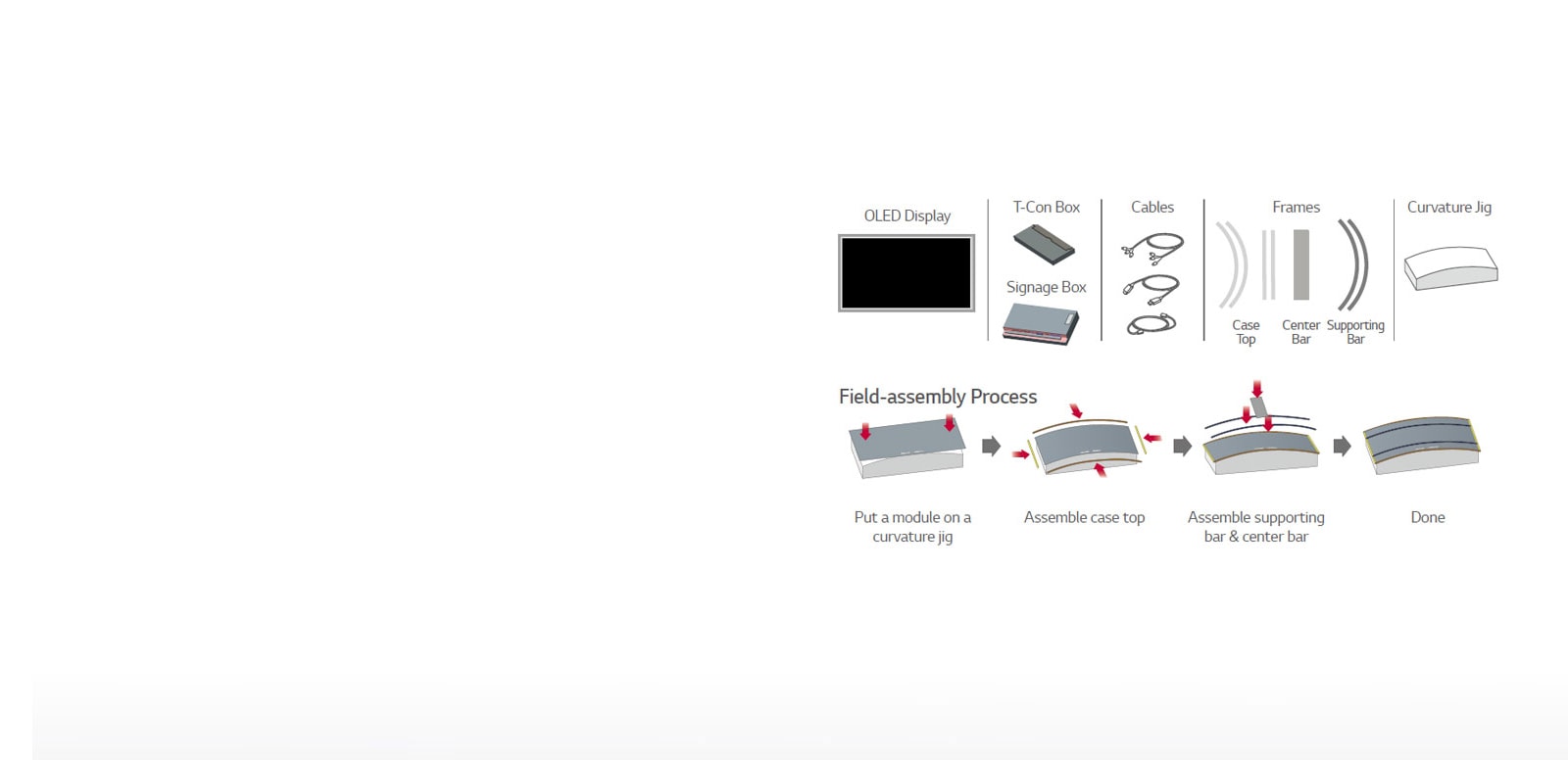

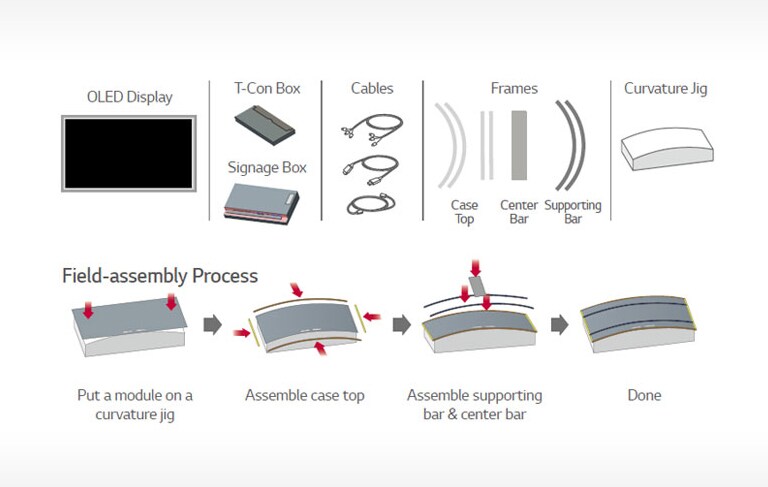

Components & Model Codes

OLED Module & Signage Box & T-Con Box & Cables
- 2 ea (55EF5C-M2/55EF5C-M3)
- 3 ea (55EF5C-M3)
• Accessory 1: A1*****EF5C
• Accessory 2: A2*****EF5C

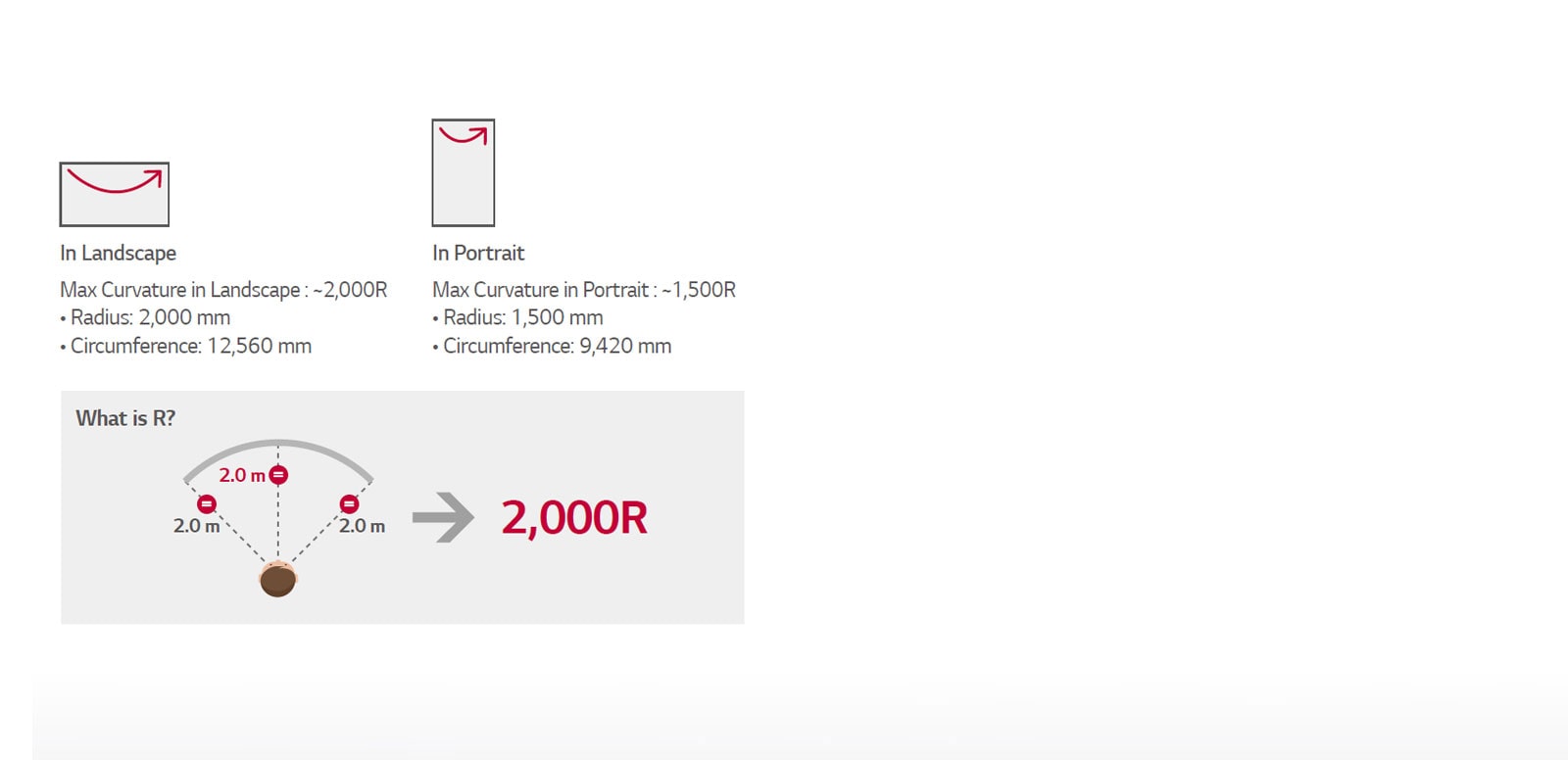

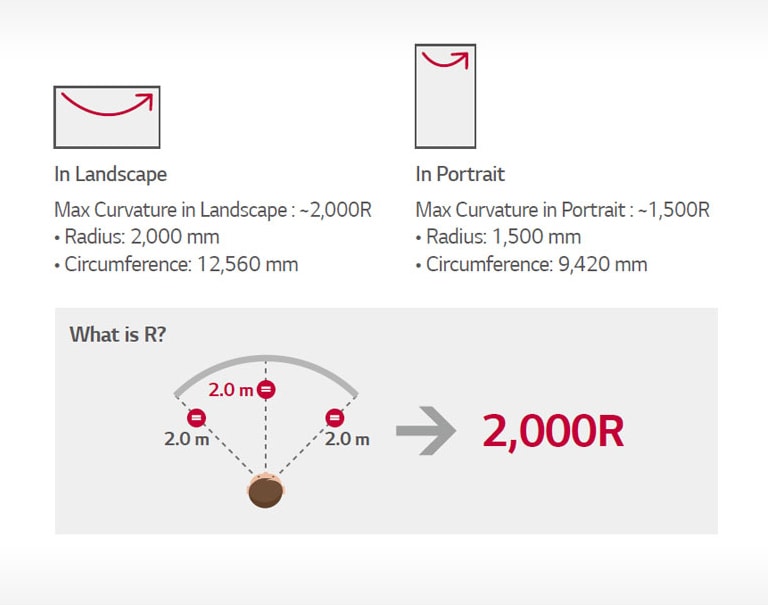

Space-fitting Design Option

Extendable and curved

Panel

Screen Size

55"

Resolution

1,920 x 1,080 (FHD)
Brightness(Average Picture Level 25%, Typ., cd/m²)

400

Connectivity

Input

HDMI, DP, USB

Output

DP, Audio
External Control

RS232C in/out, RJ45 in/out, IR receiver, IR out(shared w/ RS232C out port)

Physical Specification

Bezel Width

7.2, 7.2, 7.2, 7.2 mm (U, B, L, R *Off-bezel)

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Standard(Certification)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class "A" / CE / KCC
ErP / Energy Star

Yes / NA

Media Player Compatibility

OPS type compatible

Yes

External Media player Attatchable

Yes

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable (1m x 1ea for Connection between T-Con Box and Signage Box), Power Hanness Cable (1m x 1ea for Connection between T-Con Box and Signage Box), IR Receiver, Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket, FFC Cables (110mm x 4ea, 350mm x 4ea for Connection between Panel and T-Con Box), DP Cable, LAN Cable

Optional

Accesory Type1 (Case Top/ Bar): A1L****EF5C, A1P****EF5C ,Accesory Type2 (Jig): A2L****EF5C, A2P****EF5C, OPS Kit (KT-OPSA)

Dimension
- Flat_Assy.dwg
- Flat_Assy.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
