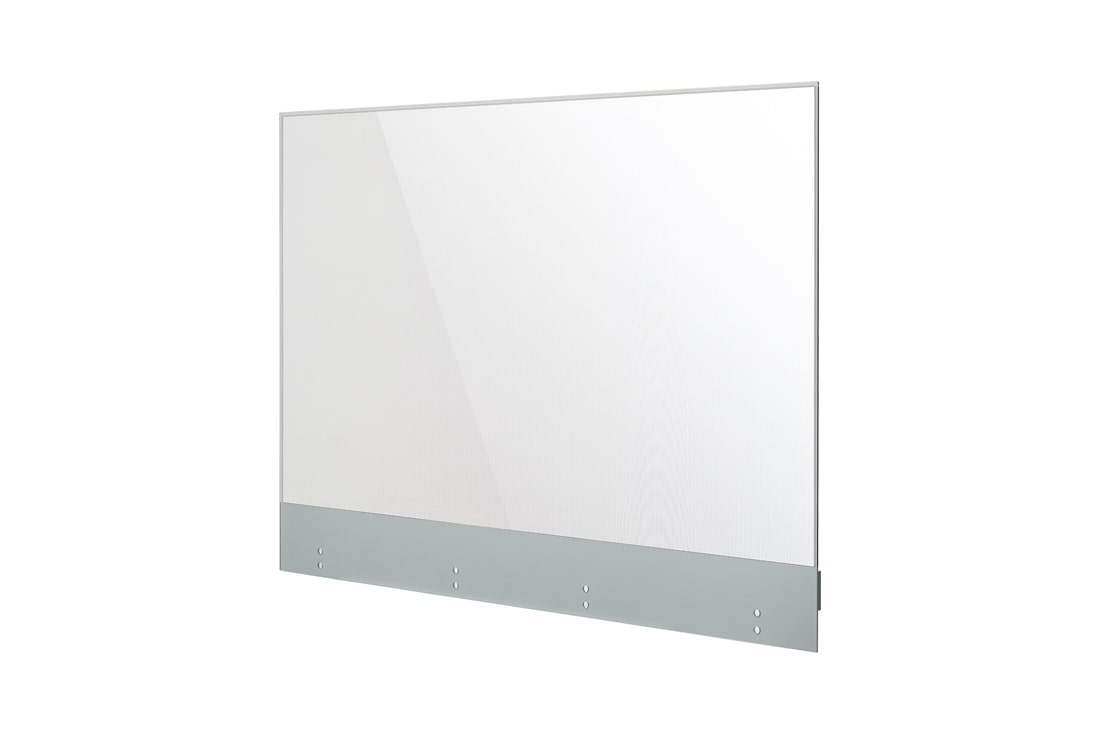

55EW5Q-C component-copyModelName
Transparent OLED

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5Q-C)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (55EW5Q-C)
    $
    $
    LG Members Price
Total
Transparent OLED
Contact Us

See the unseen,
LG Transparent OLED

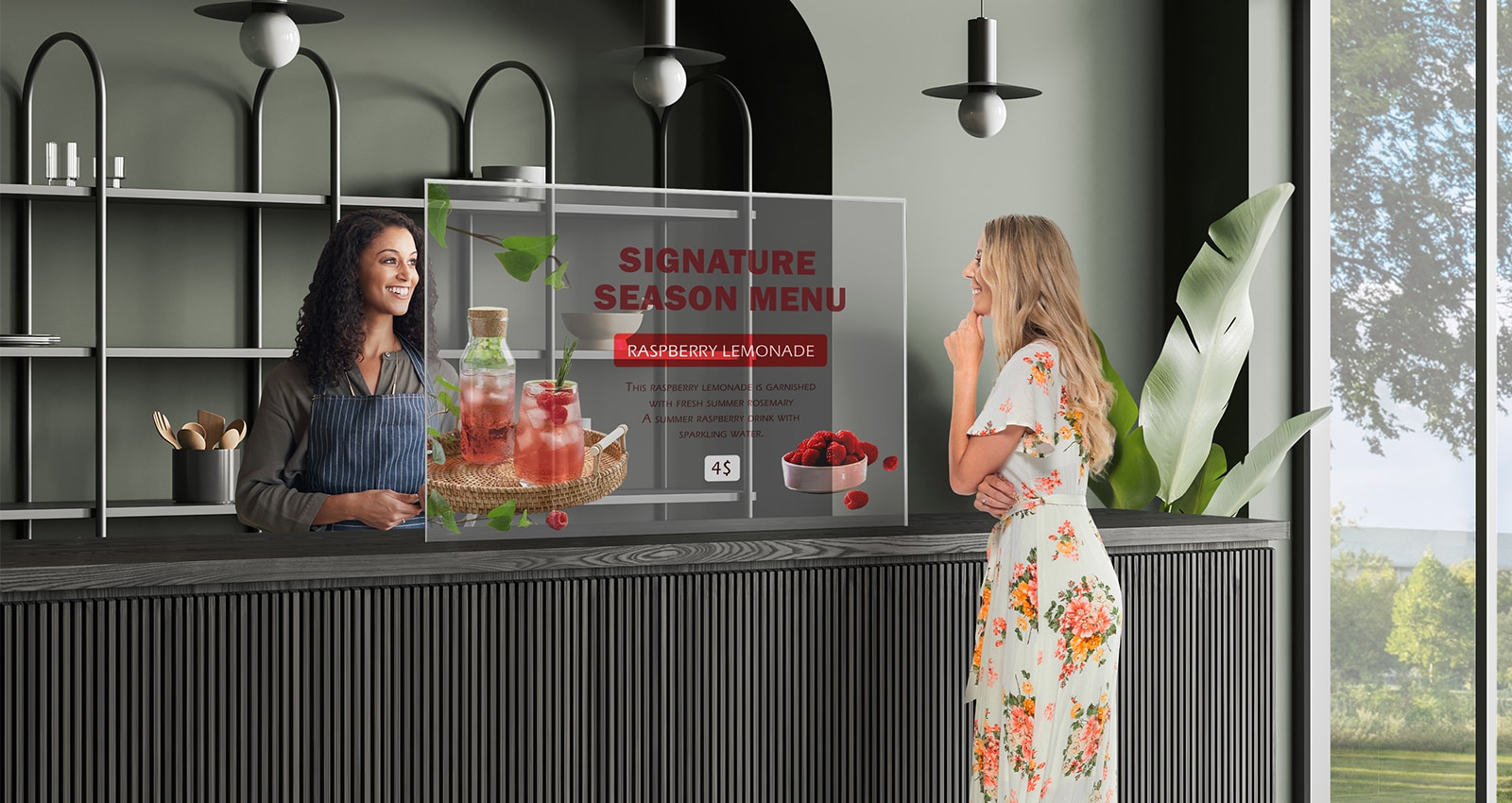

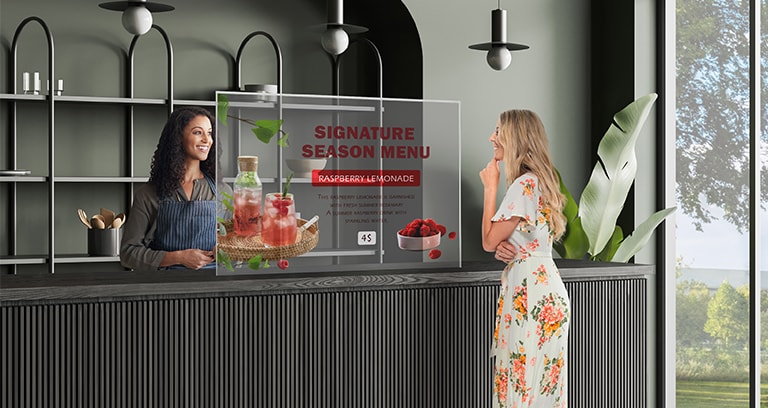

A cafe has Transparent OLED Signage installed, and a woman is checking the menu by looking at the Transparent OLED Signage screen A cafe has Transparent OLED Signage installed, and a woman is checking the menu by looking at the Transparent OLED Signage screen
* All images in this page are for illustrative purposes only.

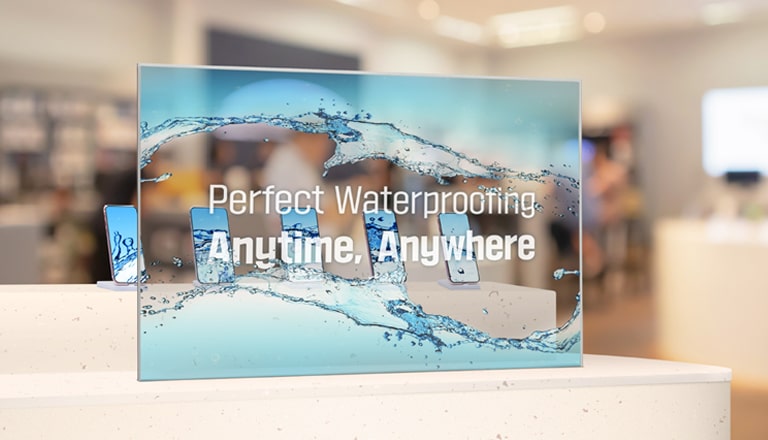

Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store. The Transparent OLED Signage screen is showing an advertisement, and the cell phones displayed behind the screen are also clearly visible. Transparent OLED Signage is installed in front of a table upon which cell phones are displayed in a cell phone store. The Transparent OLED Signage screen is showing an advertisement, and the cell phones displayed behind the screen are also clearly visible.

High Transparency

LG’s OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43%* transparency. It clearly displays objects behind the screen while overlaying relevant information right in front of them.

* The Year of Measurement : 2022
Measurement Method : Checking Transparency Using a Hazemeter
Conducted by : LG Display - internal testing

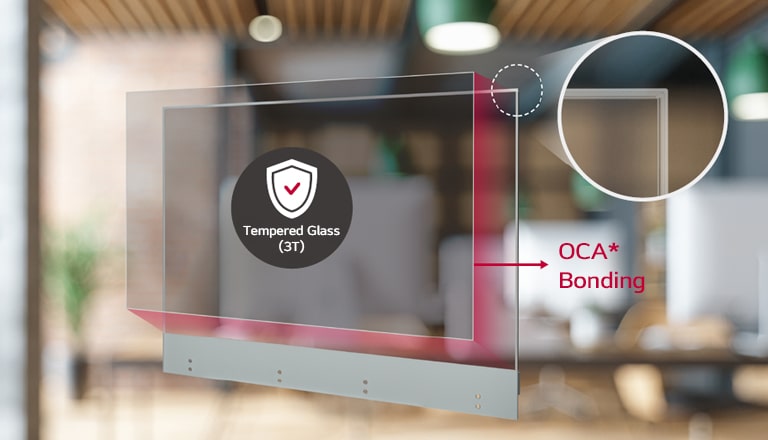

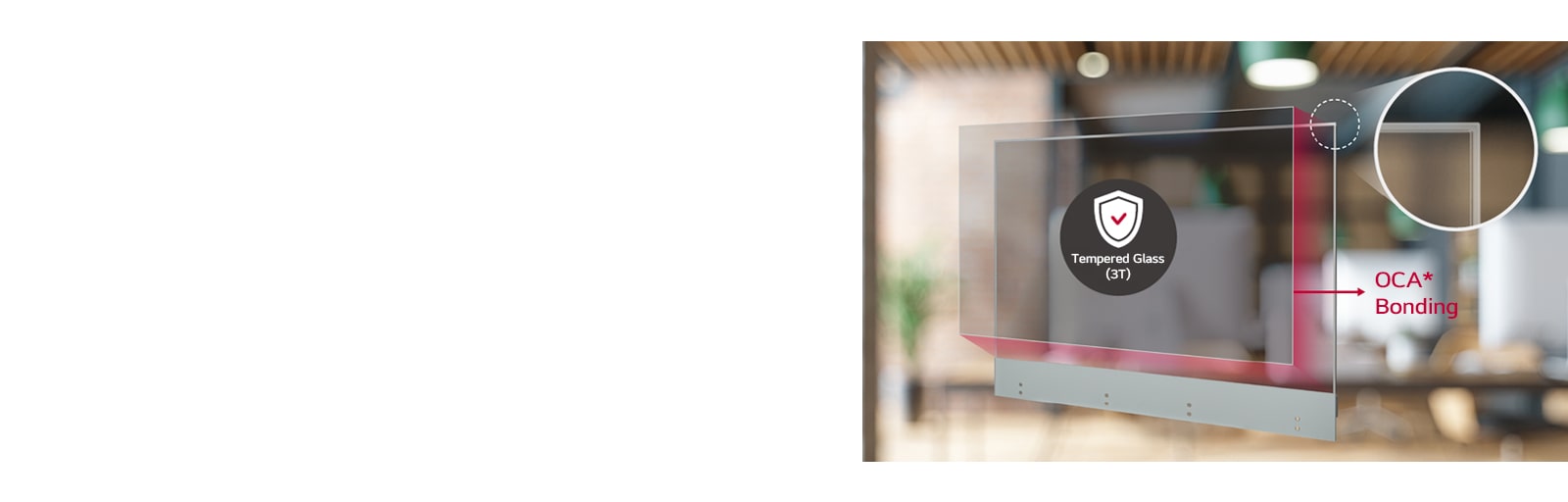

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety. Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered glass in front protects the product from such external impacts and its anti-shatter glass is designed to help minimize customers' injuries.

* Optically Clear Adhesive

Sleek Elegance in Transparency

By connecting spaces and creating a sense of openness, this transparent display features a stunning design that enhances high-end furniture and luxurious interiors. It is designed as a semi-assembled display, allowing for versatile installation options to seamlessly integrate into existing structures and spaces.

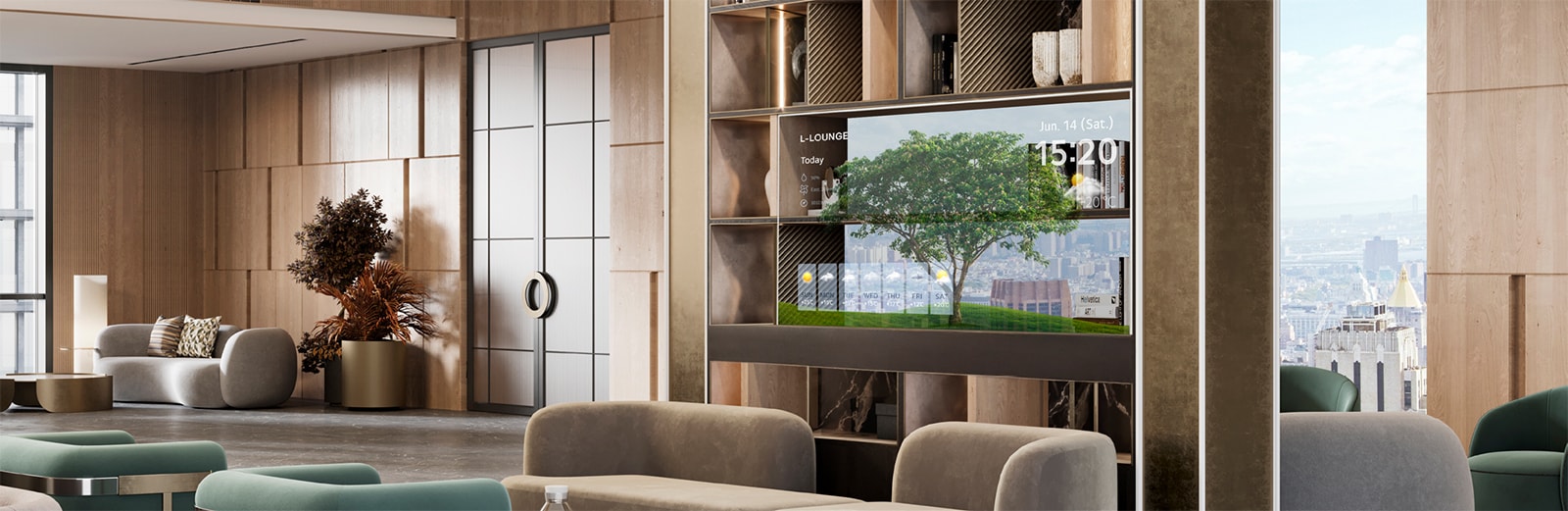

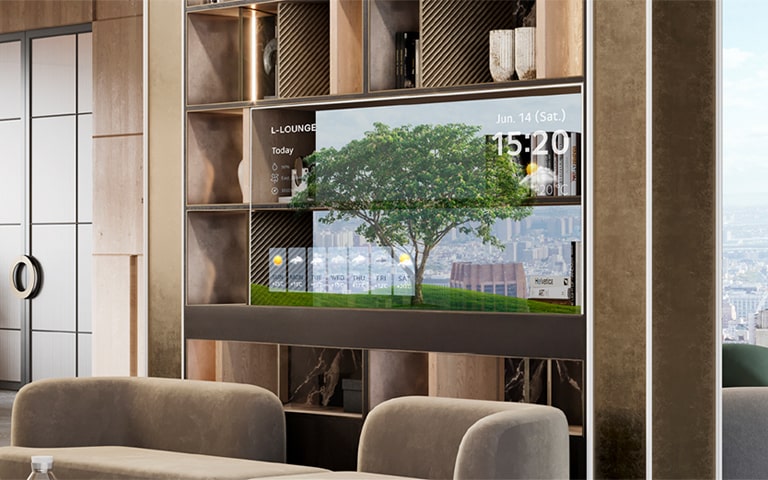

There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows an image of a tree along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive. There’s an open display unit in the large lounge with a transparent OLED screen installed in its center. The screen shows an image of a tree along with the current time and weather information, and the scenery visible through the transparent screen makes the space feel more expansive.
Close
Info
  • Product
    OLED (Transparent)
    Year
    Y24
  • Month
    M12
Panel
  • Screen Size (Inch)
    55"
    Panel Technology
    OLED
  • Back Light Type
    OLED
    Aspect Ratio
    16:9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    120 Hz
  • Brightness
    200/600nit (APL 100%/25%, Without Glass)
    Contrast Ratio
    200,000 : 1
  • Color gamut
    DCI 90%, BT709 110%
    Viewing Angle (H x V)
    178x178
  • Color Depth (Number of Colors)
    10bit(R), 1.07Bilion colors
    Response Time
    0.1ms (G to G), 8ms (MPRT)
  • Surface Treatment (Haze)
    Haze 3% (SET), Hard coating (5H)
    Life time
    30,000 Hrs (Typ.)
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portait / Landscape
    Yes / Yes
  • Transparency
    43% (SET)
Connectivity
(Jack Interface)
  • HDMI IN
    Yes(1), HDCP 2.2/1.4
    DP IN
    Yes(1), HDCP1.3
  • RS232C IN
    Yes(1)
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1), External IR Receiver
    USB IN
    USB2.0 Type A(2)
  • DP Out
    Yes(1)
    Audio Out
    Yes(1)
  • RS232C Out
    Yes(1)
    RJ45(LAN) Out
    Yes(1)
  • IR Out
    Sharing RS232C Out
    Daisy Chain
    Input HDMI, DP / Output DP
Mechanical
  • Bezel Color
    Transparent
    Bezel Width
    T/R/L/B : 7.9/7.9/7.9/121.8mm
  • Weight (Head)
    11.6Kg (Head), 2.6Kg (Signage Box)
    Packed Weight
    21.9Kg
  • Monitor Dimensions (W x H x D)
    1225.5 x 810.1 x 14.6mm (Head)

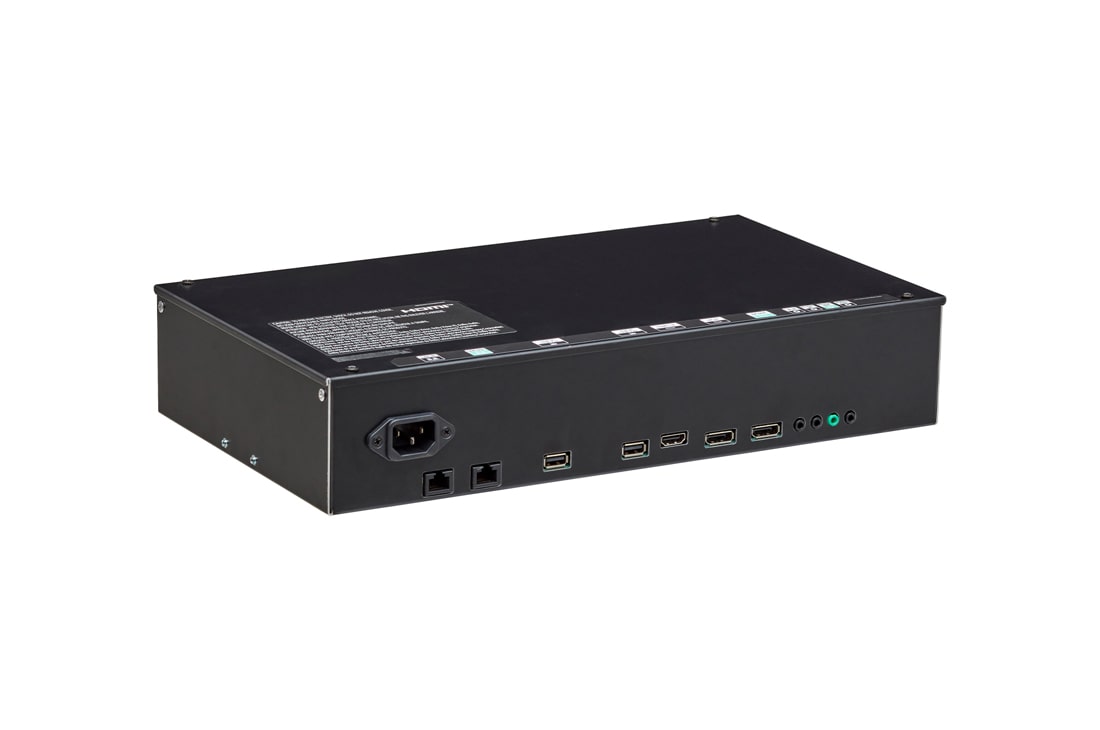

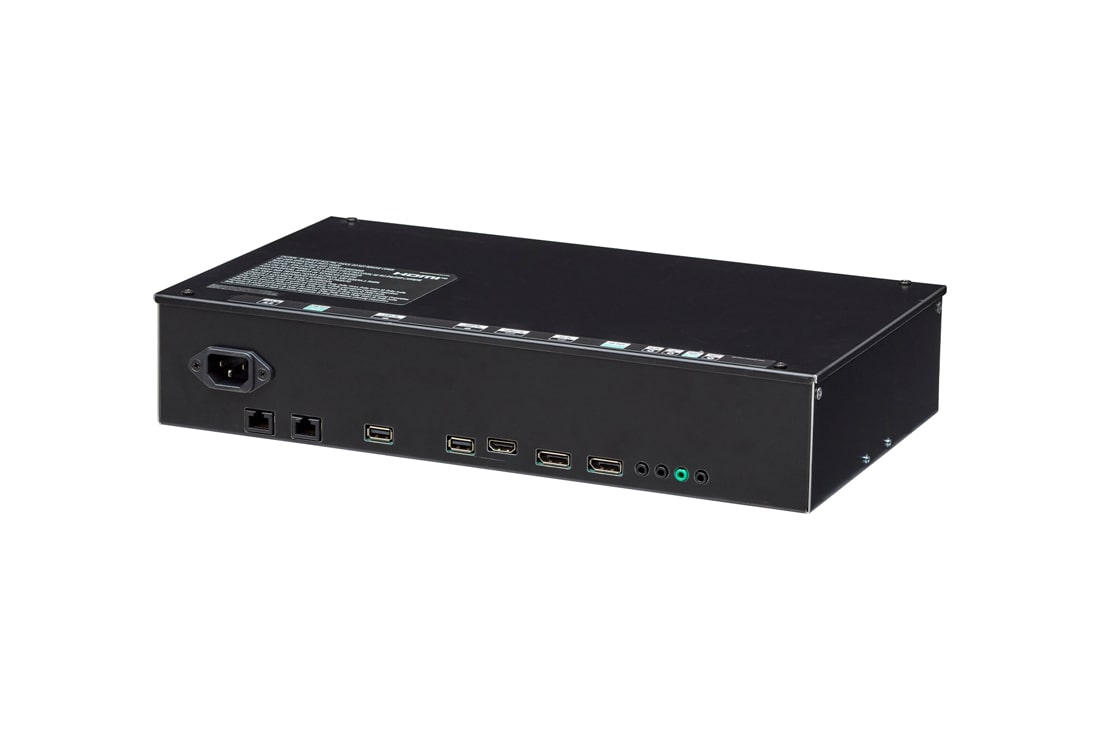

    381.6 x 217.6 x 73.6 (Signage Box)
    Carton Dimensions (W x H x D)
    1345 x 920 x 246mm
Protection Glass
  • Thickness
    3.0mm
    Tempered / Chemical strengthening
    Chemical strengthening
  • Anti-Reflective
    Yes (Film)
    Shatter-Proof
    Yes
HW Feature
  • Internal Memory (eMMC)
    16GB
    Temperature Sensor
    Yes
SW Feature
  • OS Ver. (webOS)
    webOS7.5
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    RS232C Sync
    Yes
  • Local Network Sync
    Yes
    Video Tag
    Yes(4)
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Tile Mode Setting
    Yes
  • Setting Data Cloning
    Yes
    SNMP
    Yes
  • ISM Method
    Yes
    Auto Set ID
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • PM mode
    Yes
    Wake on LAN
    Yes
  • HDMI-CEC
    Yes
    SI Server Setting
    Yes
  • Scan Inversion
    Yes
Environment Conditions
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
Power
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER
Consumption
  • Typ.
    70W (IEC 62087)
    Max.
    230W
  • BTU (British Thermal Unit)
    239 BTU/Hr(Typ), 785 BTU/Hr(Max.)
    DPM
    0.5W
  • Power off
    0.5W
Certification
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / No
Software Compatibility
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
  • Connected Care
    Yes
Language
  • OSD
    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Polski, Türkçe, Arabic
Accessory
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG,
    IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(1000mmx4ea/1000mmx2ea) for connection between panel and Signage Box), DP Cable(2M), LAN Cable(1.5M), RS232 Cable(4P-4P,1.5M), LC Cable(VLC,3M), Screw(M3xL5.5 Black,16EA / M3xL3.5 Silver, 20EA / M4xL22 Black, 22EA), Cover Shield Assy 1EA, Cable Rubber 1EA, Rubber Damper 4EA, Cable Holder 4EA, Signage Box Wing Bracket 2EA
Special Feature
  • Conformal Coating (Power Board)
    Yes
