Discontinued

65EE5PC component-copyModelName

OLED Signage

Discontinued

65EE5PC component-copyModelName

OLED Signage

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : (Front) 15 mm (U), 26 mm (B), 13.2 mm (L/R)
Depth : 8.54 mm (Module)
Interface : HDMI / RS232C / RJ45 / IR In
SuperSign W/Lite/C/N

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : (Front) 15 mm (U), 26 mm (B), 13.2 mm (L/R)
Depth : 8.54 mm (Module)
Interface : HDMI / RS232C / RJ45 / IR In
SuperSign W/Lite/C/N

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

OLED Signage

Perfect Black

Limitless contrast and deepest black
Self-lighting pixels switch off completely
to reproduce black with no light bleed.
Absolute black offers infinite contrast.

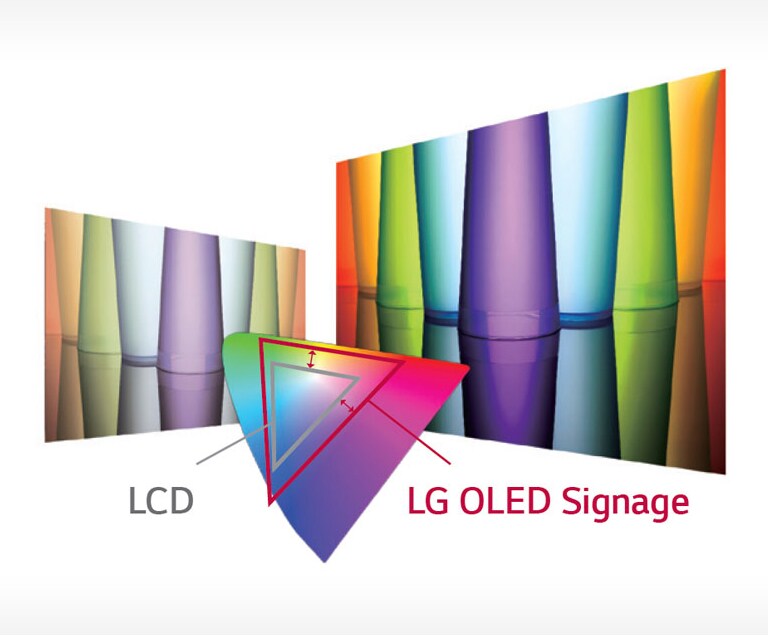

Perfect Color

Accurate & stable color reproduction
Self-lighting pixels bring colors to life
with superb accuracy.

Perfect Viewing Screen

Wide viewing angle
LG OLED Signage delivers awe-inspiring
picture quality across the entire screen,
even from wide viewing angles.

Crisp, Clear Motion

Faster response time
LG OLED Signage provides
5,000 times faster motion
picture response time,
for perfectly clear images
without blurring.

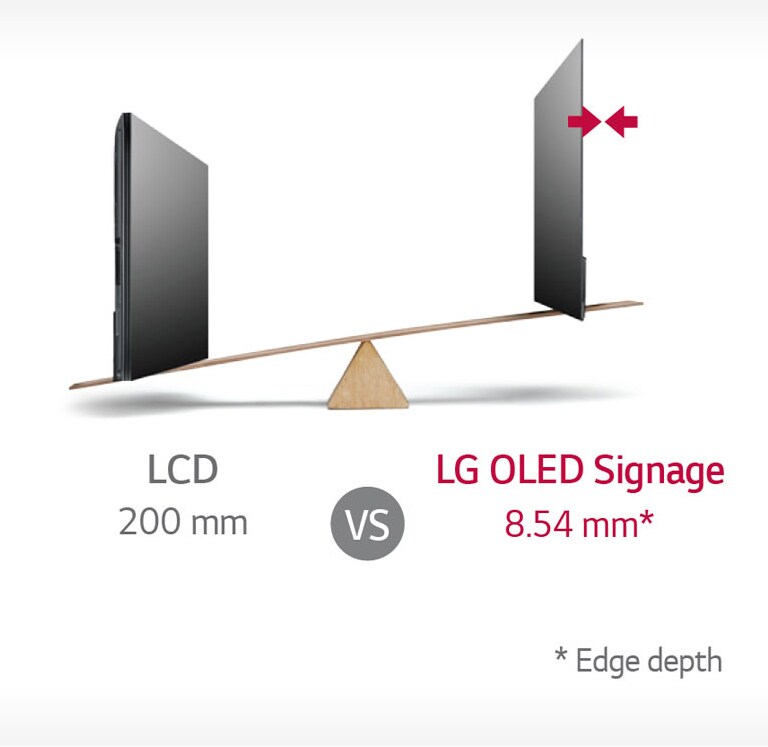

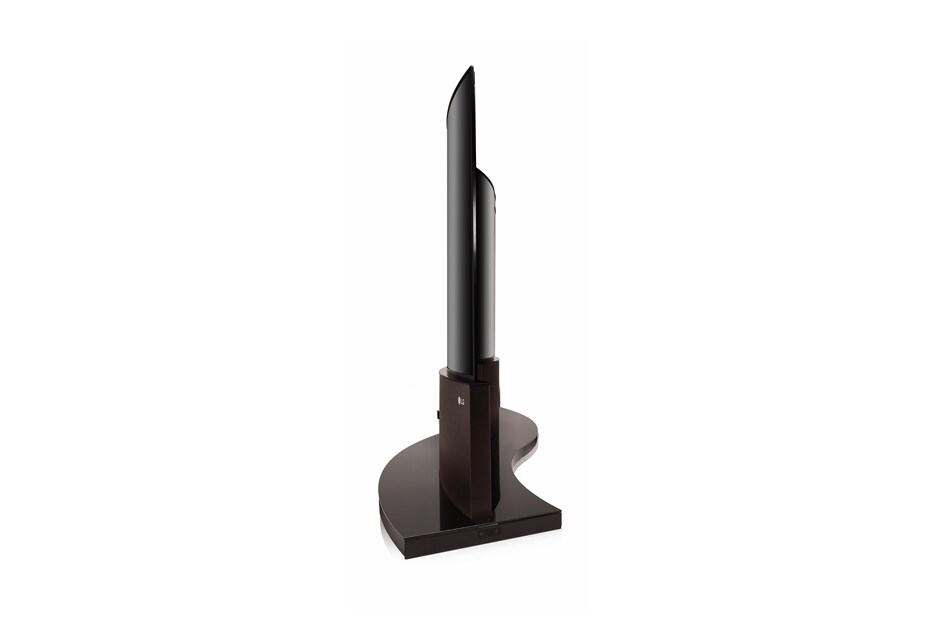

Perfect Design

Slim and light
With just two layers, the
LG OLED Signage Display is
unbelievably thin.

Two Displays for Multi-Use

Two-way media experience and space saving thanks to innovative slim depth.

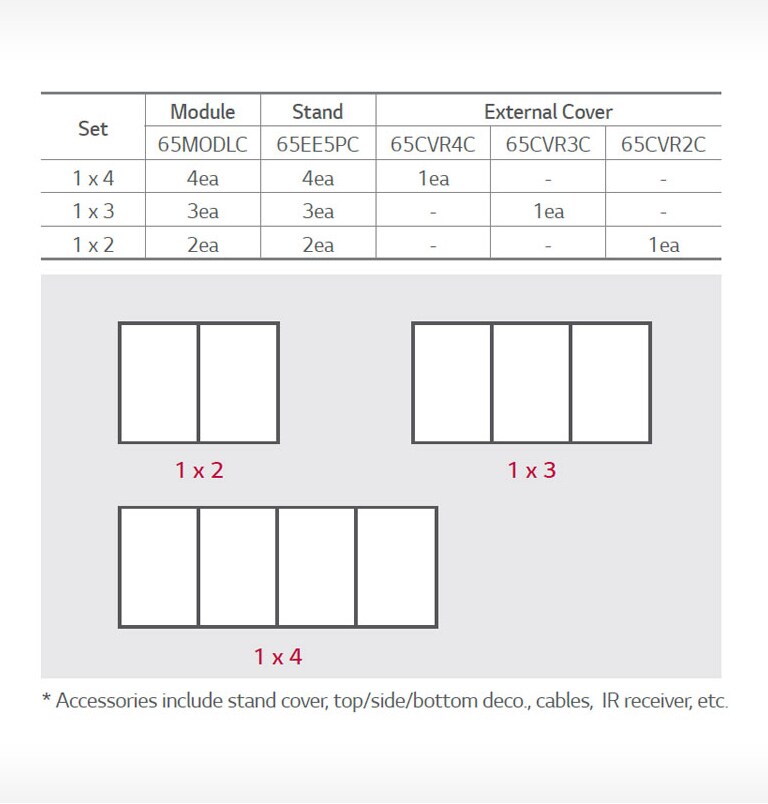

Modular Design

Modular design allows different layouts between
1 x 2 and 1 x 4 with the same design identity.

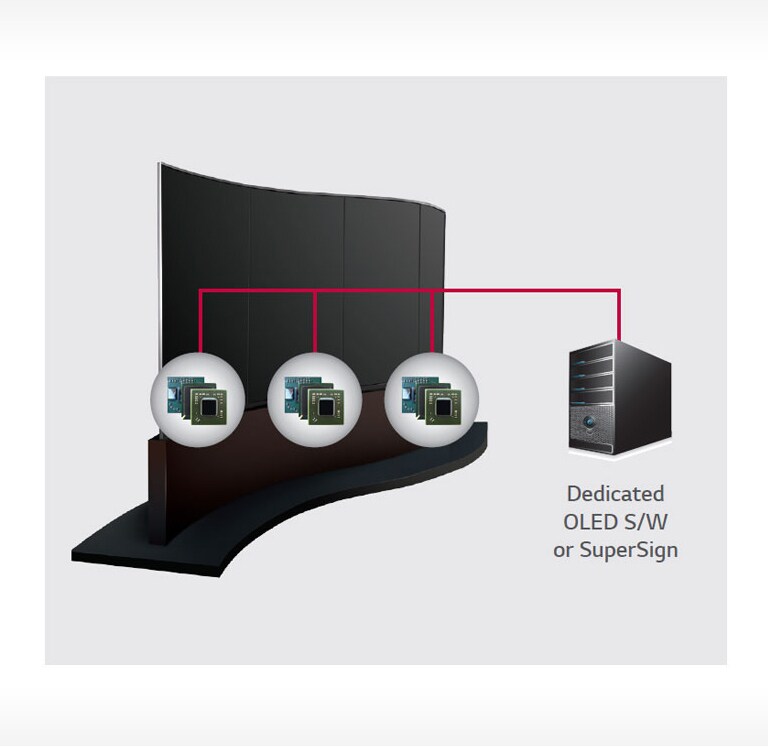

PC-less Playback

High performance SoC & high internal memory capacity
(128 GB) enable perfect UHD-synced playback without the need for media players.

Panel

Screen Size

65"

Brightness (APL25%, Typ., cd/m²)

450
Resolution

3,840 x 2,160

Connectivity

Input

HDMI (HDCP 2.2, External)

Output

-
External Control

RS232C IN, RJ45, IR Receiver

Physical Specification

Bezel Width

15, 26, 13.2, 13.2 mm (U, B, L, R Off-bezel)

Dimension (W x H x D)

(1 x 4 Model) Display: 3,123 x 2,120 x 8.54 mm (Module), 99 mm (Stand Neck)
Weight (Head)

(1 x 4 Model) 380 kg

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption

Typ.

230 W

DPM

3 W
Power off

0.5 W

Standard(Certification)

EMC

FCC Class "A" / CE / KCC

ErP / Energy Star

Yes / NA

Software Compatibility

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign C

Accessory

Basic

Remote Controller (2ea batteries included), Power Cord, HDMI Cable, DP Cable 7ea, RS232C Cable 8ea, LAN Cable 9ea, QSG

Dimension
- 65ee5c_1x3.dwg
- 65ee5c_1x4.dwg
- 65ee5c_1x3.pdf
- 65ee5c_1x4.pdf
Datasheet
- 65EE5PC Leaflet(preview)_11709.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
