BU70QGA component-copyModelName

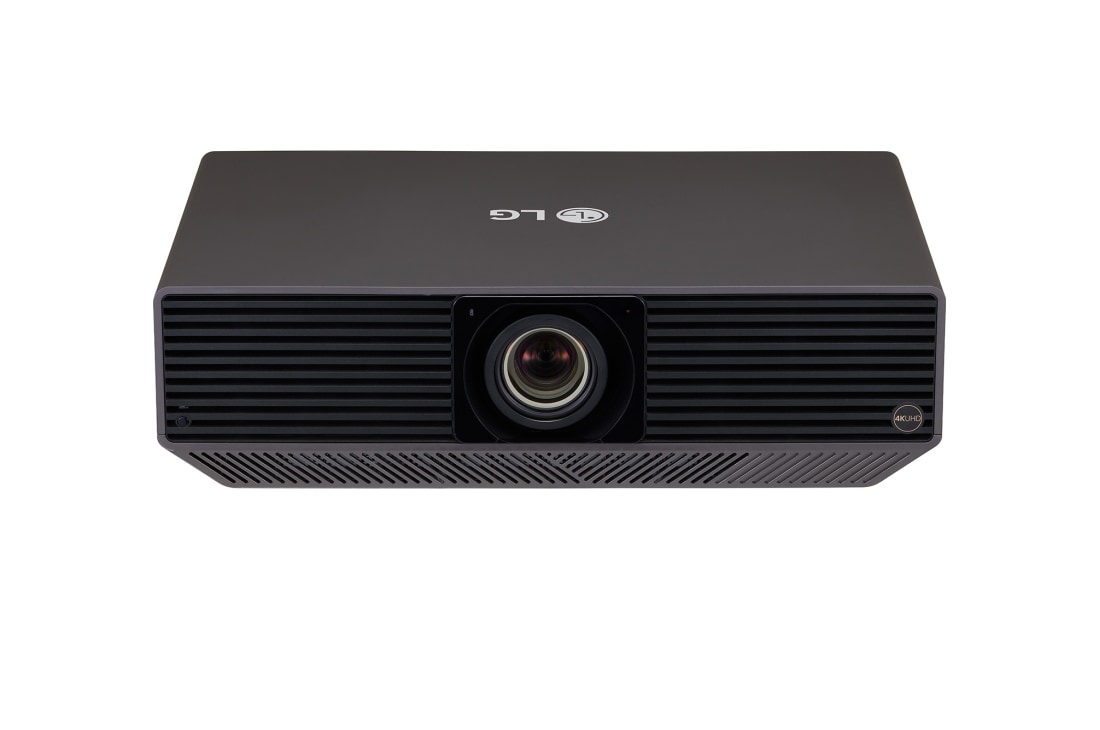

LG ProBeam BU70QGA 4K Laser Signage Projector with 7,000 ANSI Lumens Brightness

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (BU70QGA)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (BU70QGA)
    $
    $
    LG Members Price
Total
LG ProBeam BU70QGA 4K Laser Signage Projector with 7,000 ANSI Lumens Brightness
Contact Us
LG ProBeam. LG ProBeam.

Smart Digital Signage for Expansive Viewing

  • Picture Quality

    7,000 ANSI Lumens
    4K UHD (3840 x 2160)

  • Easy Installation

    Edge Blending
    Auto Screen Adjustment

  • Efficient Management

    SuperSign
    LG Connected Care

All-around Projector for Versatile Fields

Museum & Gallery.
Museum & Gallery
Corporate.
Corporate
Education
Education
Restaurant
Restaurant
Sports Bar.
Sports Bar
Museum & Gallery.
Corporate.
Education
Restaurant
Sports Bar.
*The images simulated to enhance feature understanding. It may differ from actual use.
Laser 4K UHD & 3M:1 CR

Exceptional Picture Quality

With 8.3 mega pixels utilizing 4K UHD (3840 x 2160) resolution, LG ProBeam delivers precisive details from 40-inch up to the 300-inch screen. With 3M:1 contrast ratio, it can express deep darkness and brightness.
WUXGA with 1.5M:1 CR.

WUXGA with 1.5M:1 CR

4K UHD with 3M:1 CR.

4K UHD with 3M:1 CR

WUXGA with 1.5M:1 CR.

WUXGA with 1.5M:1 CR

4K UHD with 3M:1 CR.

4K UHD with 3M:1 CR

*The images simulated to enhance feature understanding. It may differ from actual use.
Thanks to the 7,000 ANSI Lumens brightness, LG BU70QGA can produce clear picture quality even in bright indoor environments such as building lobbies. Thanks to the 7,000 ANSI Lumens brightness, LG BU70QGA can produce clear picture quality even in bright indoor environments such as building lobbies.
7,000 ANSI Lumens Brightness

Accurate Color Even in Bright Ambient

Thanks to the 7,000 ANSI Lumens brightness, LG BU70QGA can produce clear picture quality even in bright indoor environments such as building lobbies.
*The brightness (ANSI Lumen) is based on the perceived brightness of projected image.
Edge Blending

Seamless Panoramic View

By supporting Edge Blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously.
By supporting Edge Blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously. By supporting Edge Blending technology which controls the luminance of the area where the projected light overlaps, it can provide the seamless connection without resulting in a higher luminance when two or more projectors must be used simultaneously.
*The images simulated to enhance feature understanding. It may differ from actual use.

Designed for Many-sided Installation

LG BU70QGA can adjust the screen distortion even in situations where projector installation space may be limited, or an existing bracket has already been installed.
With an Auto Screen Adjustment function, it can automatically correct the screen using the appropriate technology according to the installation status. With an Auto Screen Adjustment function, it can automatically correct the screen using the appropriate technology according to the installation status.
Auto Screen Adjustment

Simply Adjust Screen Distortion

With an Auto Screen Adjustment function, it can automatically correct the screen using the appropriate technology according to the installation status.
  • 4/9/15/25 Point Warping.

    4/9/15/25 Point Warping

  • Lens Shift (+60/-33%), H (±28%).

    Lens Shift (+60/-33%), H (±28%)

  • 1.6x Zoom.

    1.6x Zoom

*The images simulated to enhance feature understanding. It may differ from actual use.
As supporting Screen Rotation you can position the projector anywhere you want, or rotate the screen without physically changing the projector's position. As supporting Screen Rotation you can position the projector anywhere you want, or rotate the screen without physically changing the projector's position.
Screen Rotation

Rotate the Screen as You Want

As supporting Screen Rotation you can position the projector anywhere you want, or rotate the screen without physically changing the projector's position.
*The images simulated to enhance feature understanding. It may differ from actual use.
SuperSign

The Easy Way to Manage and Maintenance

By supporting signage-optimized functions, various solutions such as content distribution and remote management of installed projectors are provided.
LG SuperSign CMS.

LG SuperSign CMS

It is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, so multiple users can easily access the server from PC or mobile, then manages content creation and editing, scheduling, and distribution.
LG SuperSign Control+.

LG SuperSign Control+

SuperSign Control+ is a remote control and monitoring software solution. It focuses on large scale deployment. Multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real-time, control them, and adjust their setting values.

LG ConnectedCare

It is a cloud service solution that can remotely manage the operating status of installed projectors, guaranteeing stable business operations by providing remote monitoring and fault diagnosis.
Real-time Monitoring.

1. Real-time Monitoring

B2B Call Center : Request Assistance.

2. B2B Call Center : Request Assistance

SE Preparation : Mobile Diagnosis.

3. SE Preparation : Mobile Diagnosis

Site Visit by Service Engineer.

4. Site Visit by Service Engineer

Troubleshooting.

5. Troubleshooting

Issue Resolved.

6. Issue Resolved

Close
PROJECTION SYSTEM
  • Native Resolution
    4K UHD (3840 x 2160)
    Brightness (ANSI Lumen)
    7000
  • Contrast Ratio (Full On Full Off)
    3,000,000:1 ↑
    Noise (typical) - Energy Saving Min. (Bright)
    35 dB(A)
  • Noise (typical) - Energy Saving Med.
    33 dB(A)
    Noise (typical) - Energy Saving Off (Max)
    31 dB(A)
  • Uniformorty(JBMMA 9point)
    85%
    Changeable F#
    X
  • Projection Lens - Focus (Auto / Manual)
    Auto
    Projection Lens - Zoom
    1.6x Auto
  • Projection Image - Screen Size
    40" ~ 300"
    Projection Image - Standard (lens to wall)
    Wide 3395 /Tele 5470 (100inch)
  • Projection Image - Throw Ratio
    1.53 ~ 2.45
    Lens Shift
    ( Horiz ± 28% / Vert +60%,-33% ) (Auto)
  • Projection Offset
    110%
    Light source - Type
    Laser (LD + P/W)
  • Light source - Life High Brightness
    20,000 Hrs
General Specification
  • Aspect Ratio Control
    Full / Original
    Sound - Output
    10W (5W+5W)
  • Sound - Clear Voice
    Yes (Clear Voice lll)
    Net Size (mm) (W x D x H)
    570x360x160
  • Net Weight (kg or g)
    17.8kg
    Gross size (mm) (W x D x H)
    774 x 473x 265
  • Gross Weight (kg or g)
    20.5KG
    Power Consumption (Max.)
    500W
  • Stand-by Power
    0.5W↓
    Power Supply
    100V – 240V @ 50~60 Hz
    (PSU Built-in)
  • Operation Temperature
    0 ~ 40℃
    Input Signal Compatibility - Digital(HDMI)
    Up to 4K (4096x2160)
    (60Hz, 50Hz, 24Hz)
  • Input Signal Compatibility - HDBaseT
    Yes
Input/Output Terminals
  • Audio out
    Yes (Phone jack)
    RS-232C(in)
    1
  • RS-232C(out)
    1
    IP control
    Yes
  • RJ45
    1
    HDMI(in)
    3
  • HDM(out)
    1
    HDBaseT
    1
  • USB Type-A
    2 (USB2.0)
    mic in
    Yes (Phone jack)
Main Features
  • Platform (OS, UI)
    Signage webOS ECO
    Screen Share
    (Wireless Mirroring with MiraCast supporting device)
    Yes
  • Contents Sharing (with DLNA supporting device)
    Yes
    Bluetooth Sound out
    Yes
  • LG Sound Sync(with Sound Bar)
    Yes
    Plug & Play(RGB/DVI/HDMI Auto Source Detection)
    Yes
  • USB Host (Movie, Music, Photo)
    Yes (Except for Music)
    Setting Guide
    Yes (Bean Bird)
  • Eco Function - Energy Saving Mode
    Yes
    Eco Function - Sleep Timer
    Yes (Min/Mid/Max)
  • Eco Function - Time Power On/Off (On Time / Off Time)
    Yes
    Eco Function - Automatic Standby / Auto Power Off
    Yes (On / Off)
  • Eco Function - HDD Eco Mode
    Yes
Added Features
  • HDR
    Yes
    DICOM
    Yes
  • TruMotion
    Yes
    Digital Keystone Correction
    Warping (4/9/15/25/HV)(Auto)
  • HDCP
    HDCP2.2
    Quick(Instant) Power on/off
    Yes (on 12 Sec off 2 Sec)
  • Built-in Memory (for Storage)
    Yes (about 9G)
    Background Image
    Yes
  • Blank
    Yes
    Image Flip
    Yes (Horizontal/Vertical)
  • Edge Blending
    Yes
    Auto Screen Adjustment
    Yes (Camera Sensor+ ToF Sensor)
  • Tile Mode
    Yes (9)
    PIP
    Yes
  • PBP
    Yes
    Crestron RoomView™
    Yes
  • 24/7 Operation
    Yes
    Daisy Chain
    Yes
  • One Quick Share
    Yes
    360 degree Installation
    Yes
  • Black Level Control
    Yes
    Color Temperature Adjustment
    Yes
  • Expert controlvADJ
    Yes
    Brilliant Color™ (Overlap Duty)
    Yes
  • Gamma Correction
    Yes
    Noise Reduction
    Yes
  • HDMI ARC(Audio Return Channel)
    Yes
    HDMI simplink(CEC)
    Yes
Design
  • Cabinet Color
    Clay charcoal
    Local Key
    Tact (9key)
  • Kensington Lock
    Yes
    Leg-Stand
    Yes (4 Leg)
  • Ceiling mount hole (for bracket)
    Yes
Accessory
  • Manual (Full or Simple Book)
    Yes
    Quick User Guide (Quick Set-up Guide)
    Yes
  • Warranty Card
    Yes
    Cable - RS232C cable(D-sub to phone)
    1
  • Cable - Power cord
    1
    Remote control (Battery included) - Normal
    Yes
  • Conformances(Regulation)
    FCC/ETL/CE/CB/CCC/PSE/BIS
