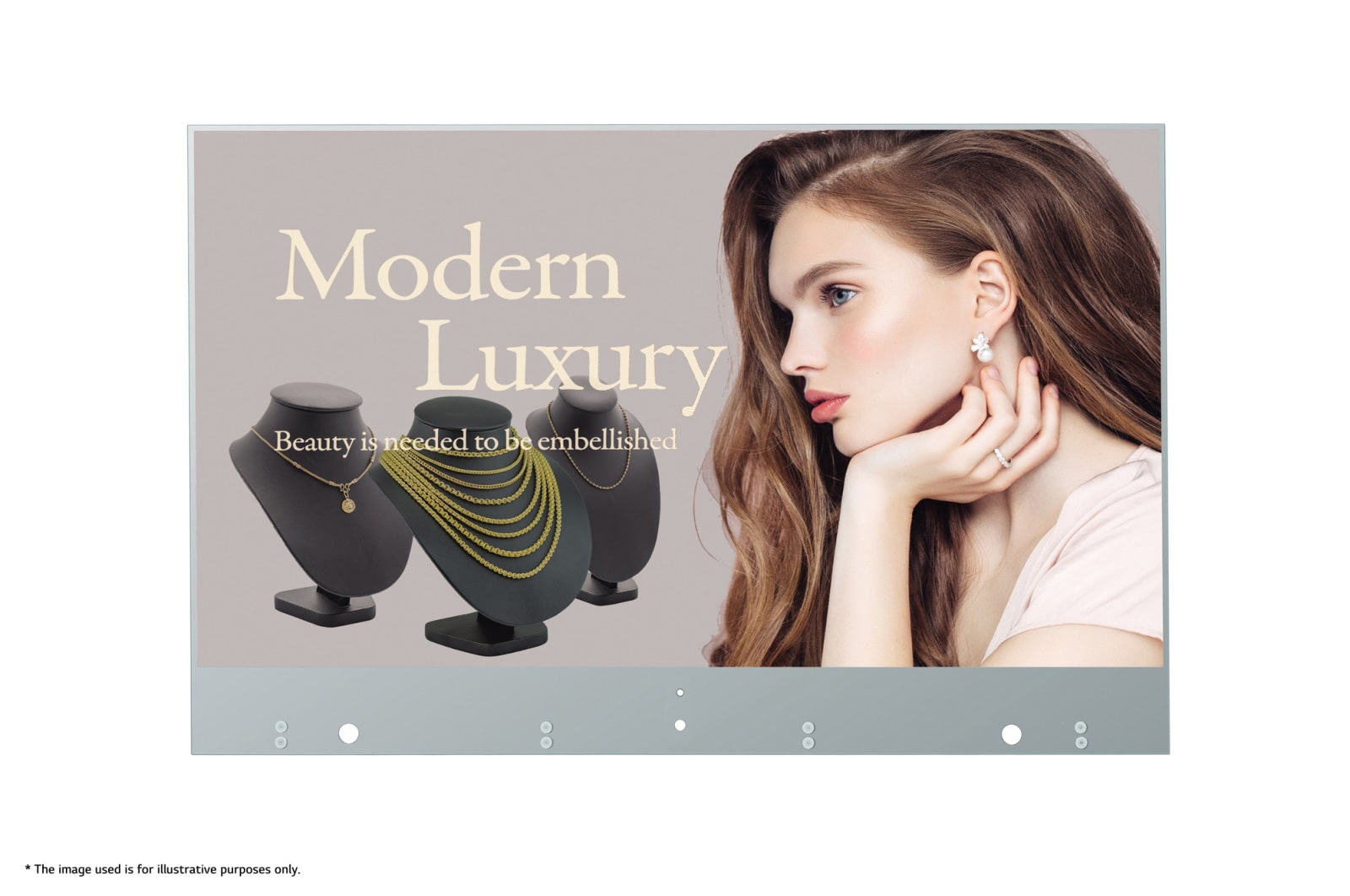

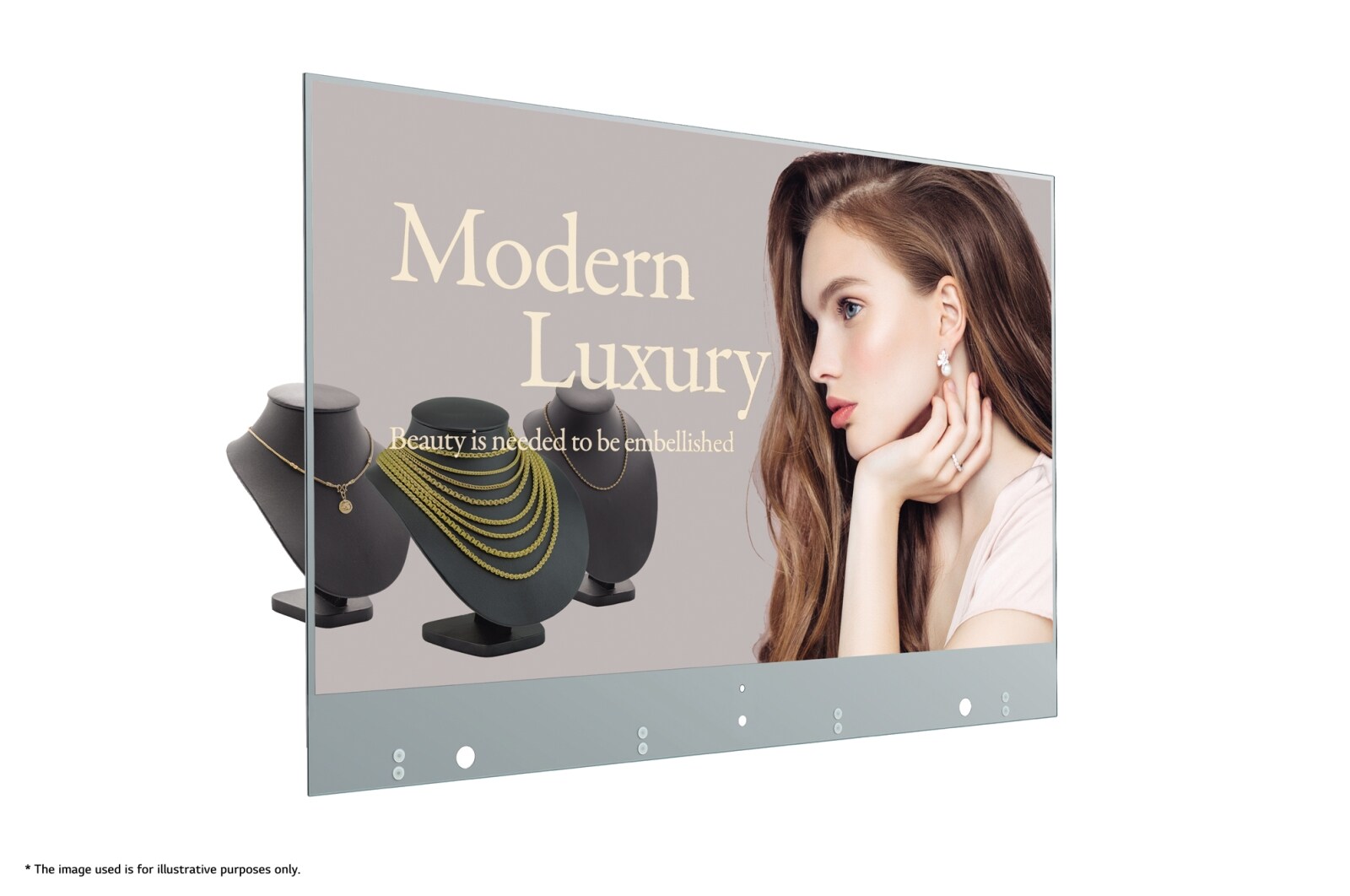

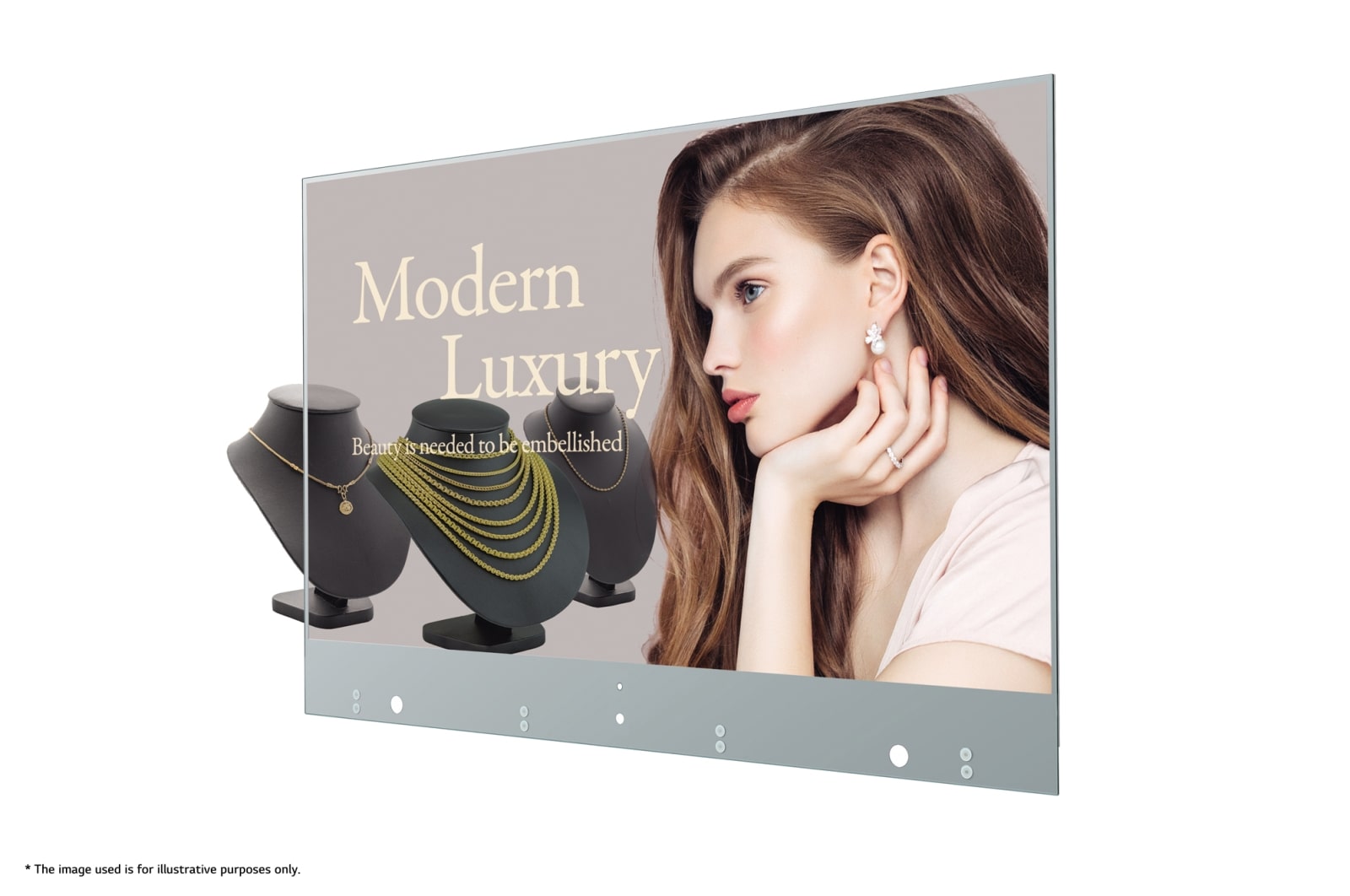

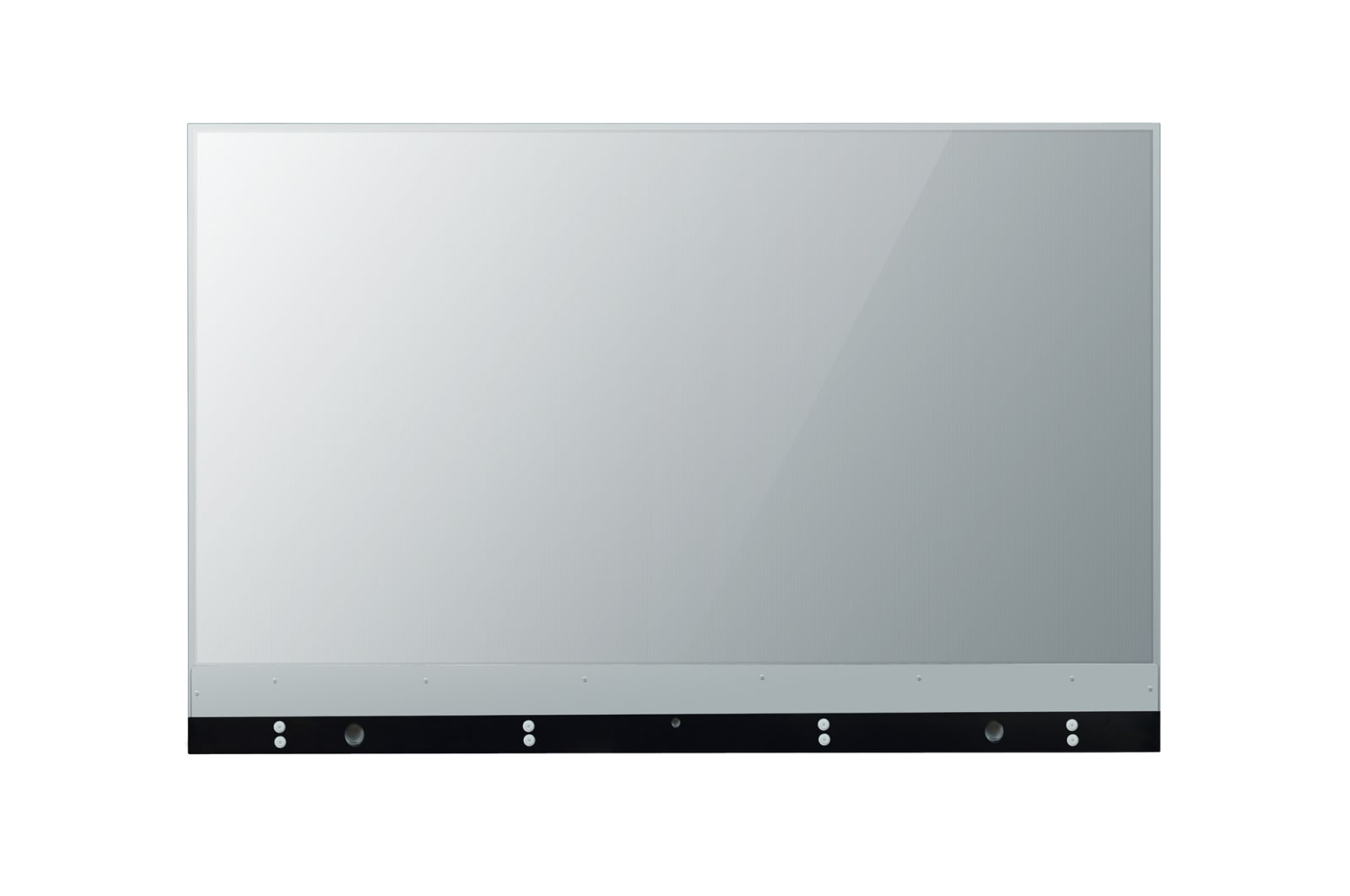

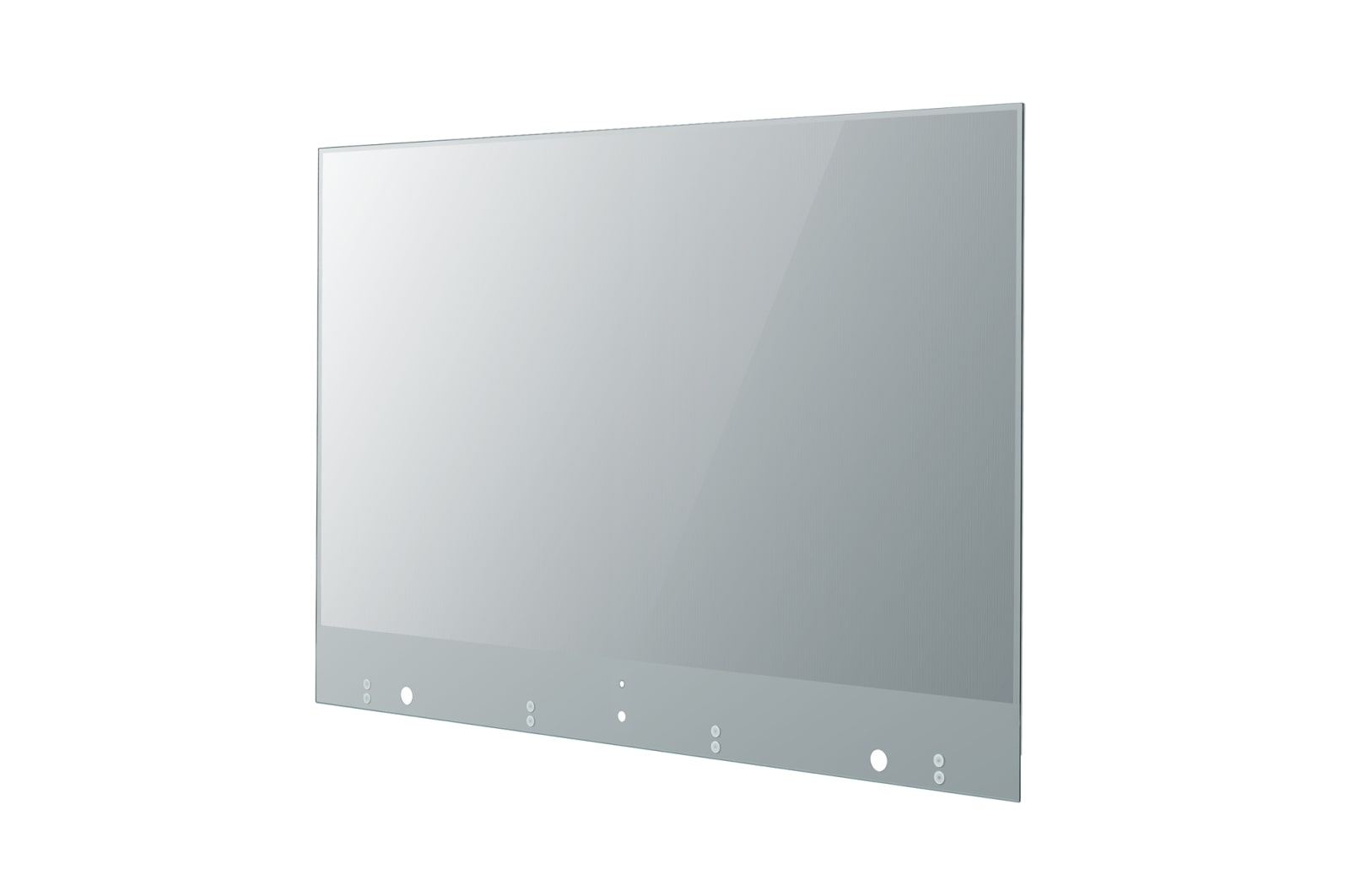

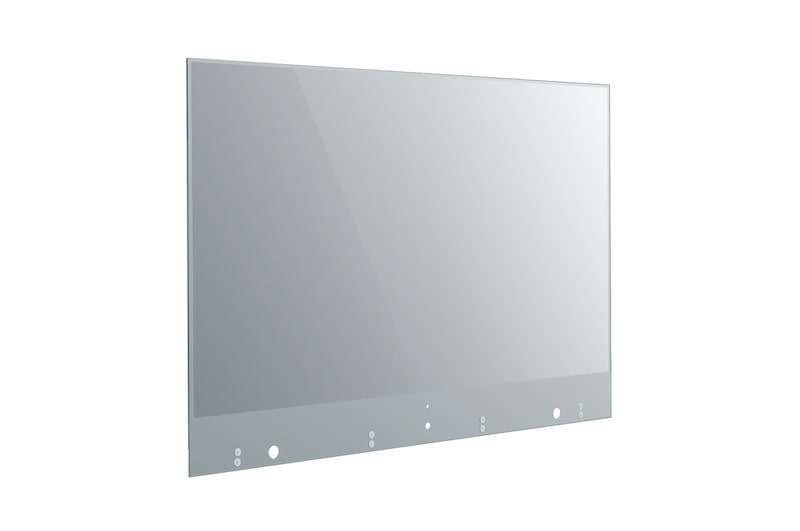

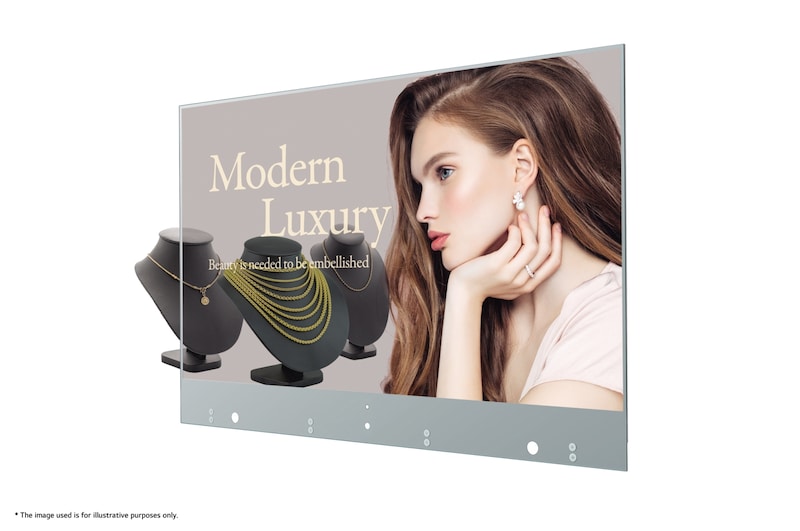

55 吋 OLED 透明顯示屏
所有規格
PANEL
-
Screen Size
55"
-
Native Resolution
1,920 x 1,080 (FHD)
-
Brightness (APL25%, Typ., cd/m²)
400
-
Brightness (APL100%, Typ., cd/m²)
150
-
Transparency (Typ.)
38% (Panel)
CONNECTIVITY
-
Input
HDMI, DP, USB (2)
-
Output
DP, Audio
-
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
-
Bezel Width
7.9 / 7.9 / 7.9 / 121.7 mm (T/L/R/B)
-

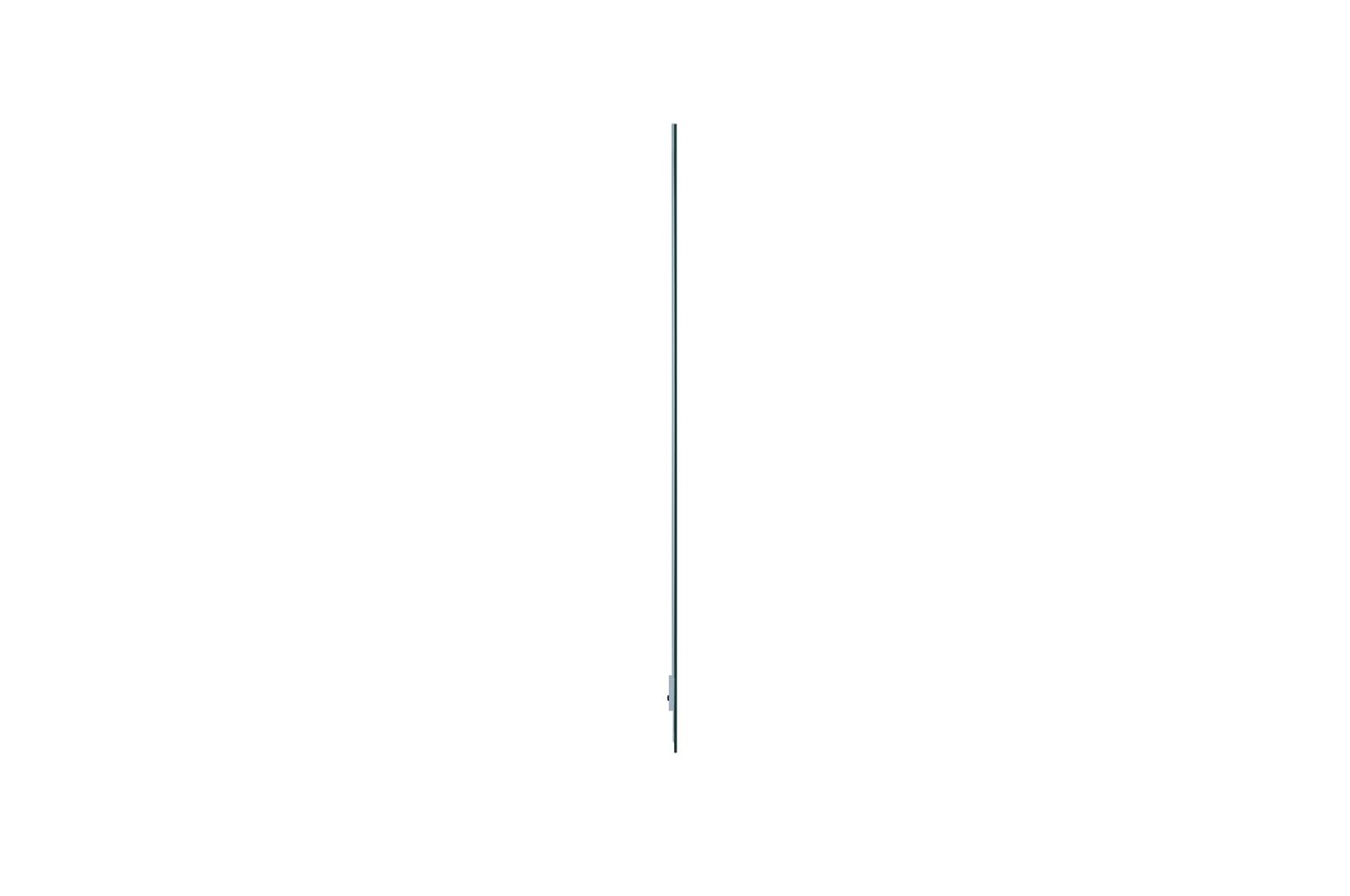

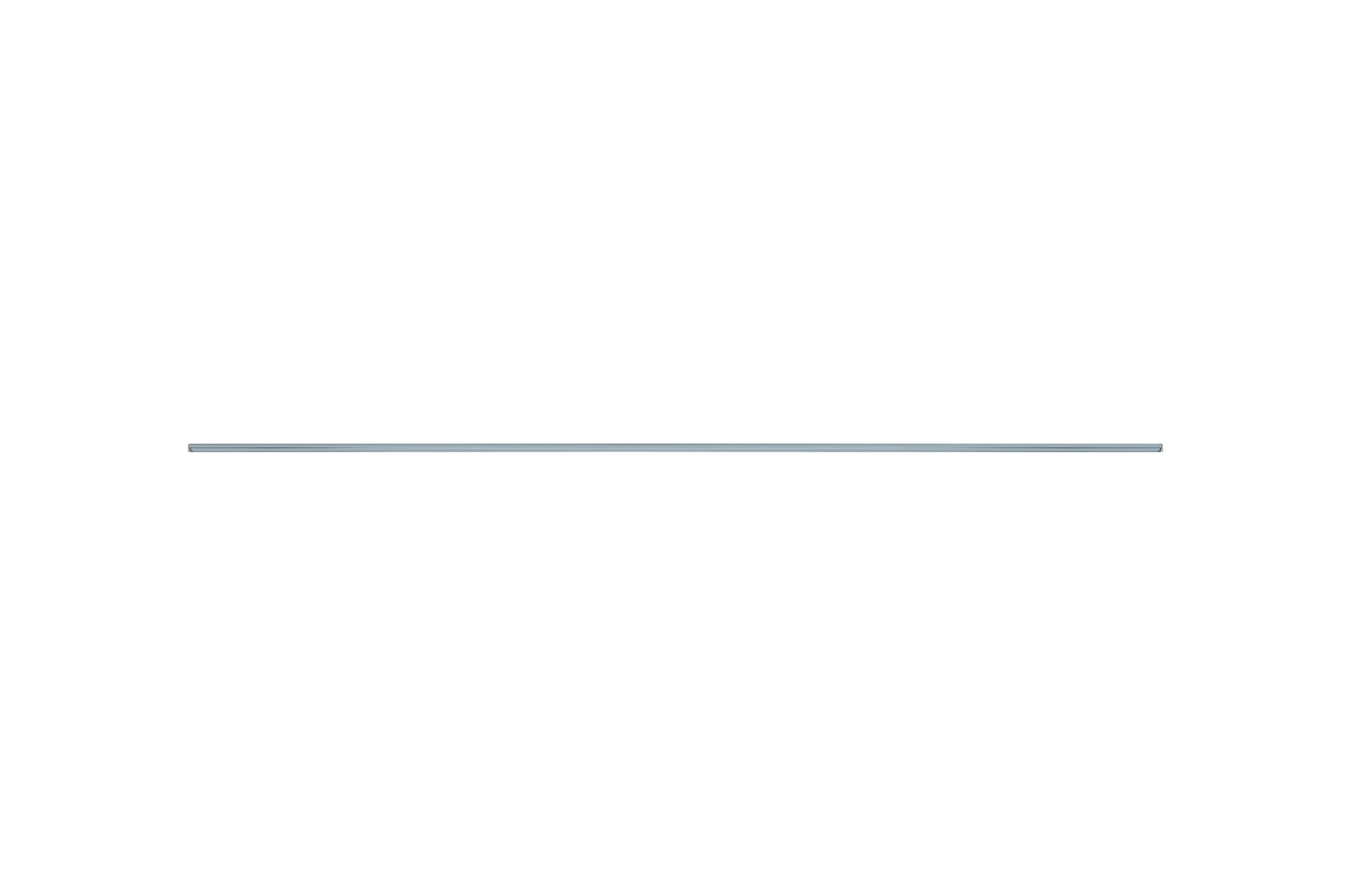

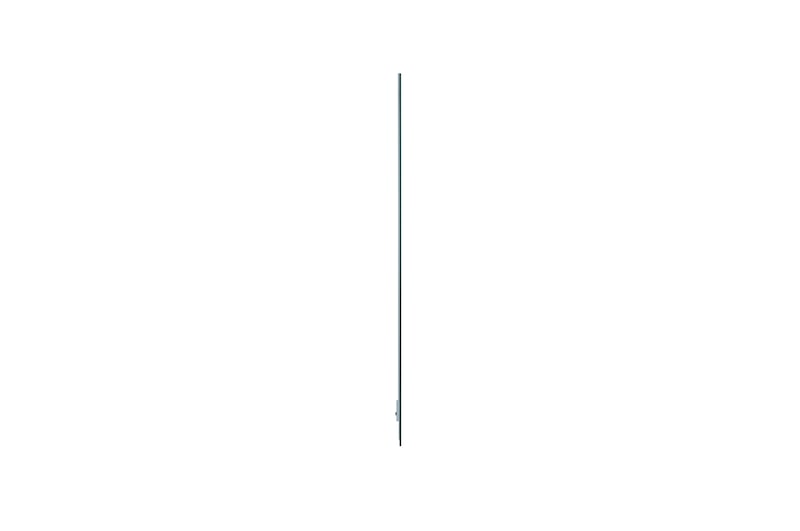

Monitor Dimension (W × H × D)

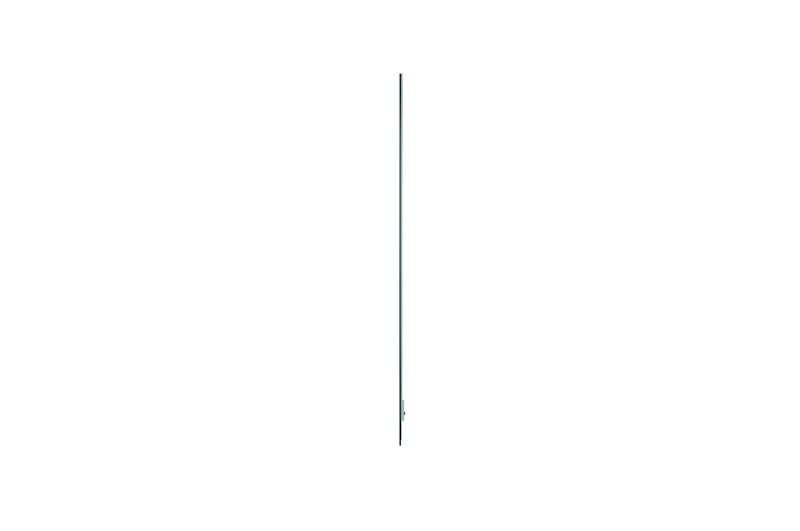

(Head) 1,225.53 x 810.1 x 6.6 mm
(Signage Box) 782.8 x 238.4 x 34.7 mm -
Weight
(Head) 13.9 kg
(Signage Box) 3.4 kg -
Carton Dimensions (W × H × D)
1,329 x 898 x 191 mm
-
Packed Weight
22.4 kg
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ.
309 W *8 color bar
-
Max.
318 W *8 color bar
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "A" / CE / KC
-
ErP / Energy Star
Yes(EU Only) / No
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control / Control+
ACCESSORY
-
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Tapes, Screws, Shield Cover Assy', Rubber Dampers
