所有規格

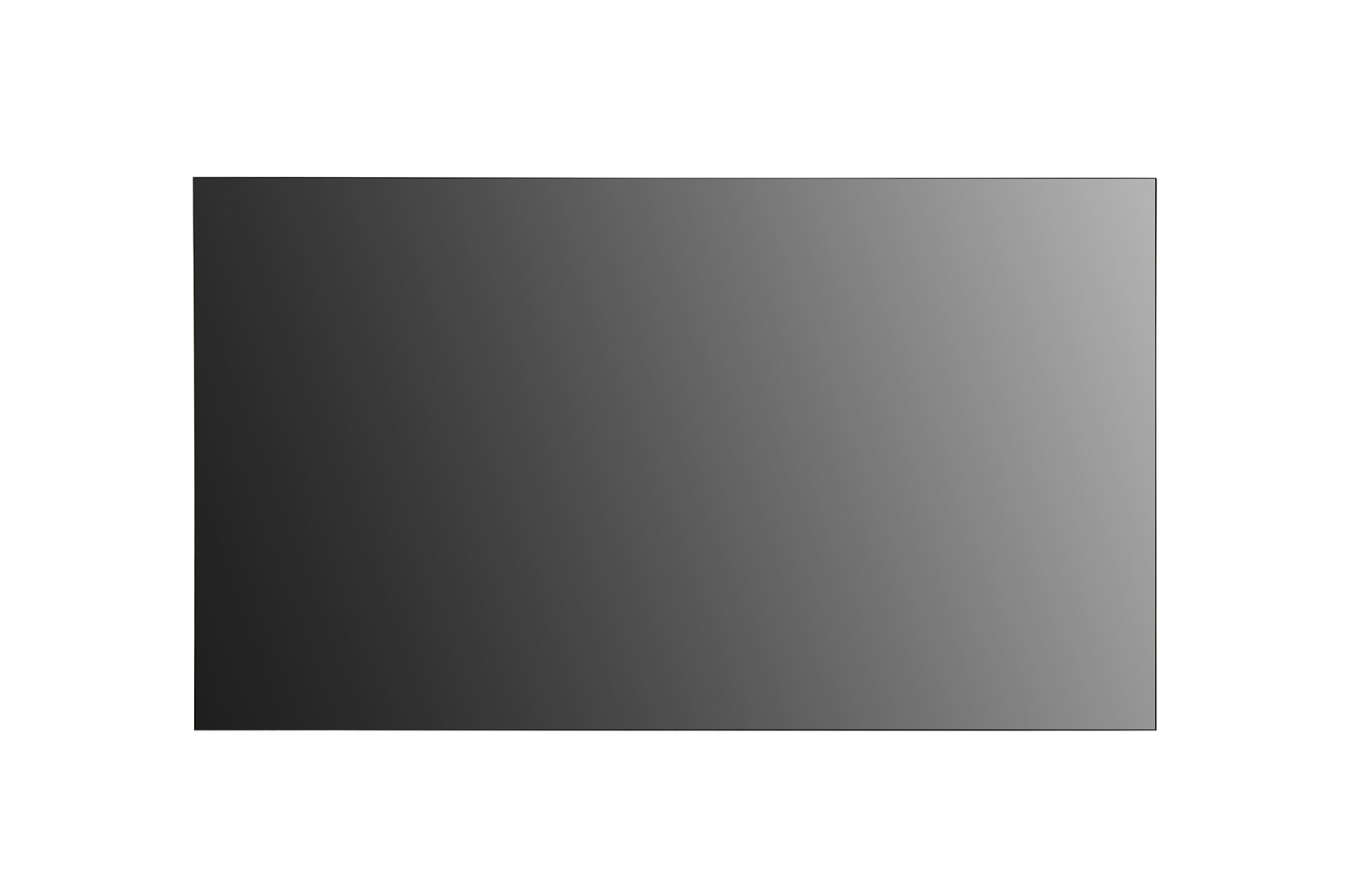

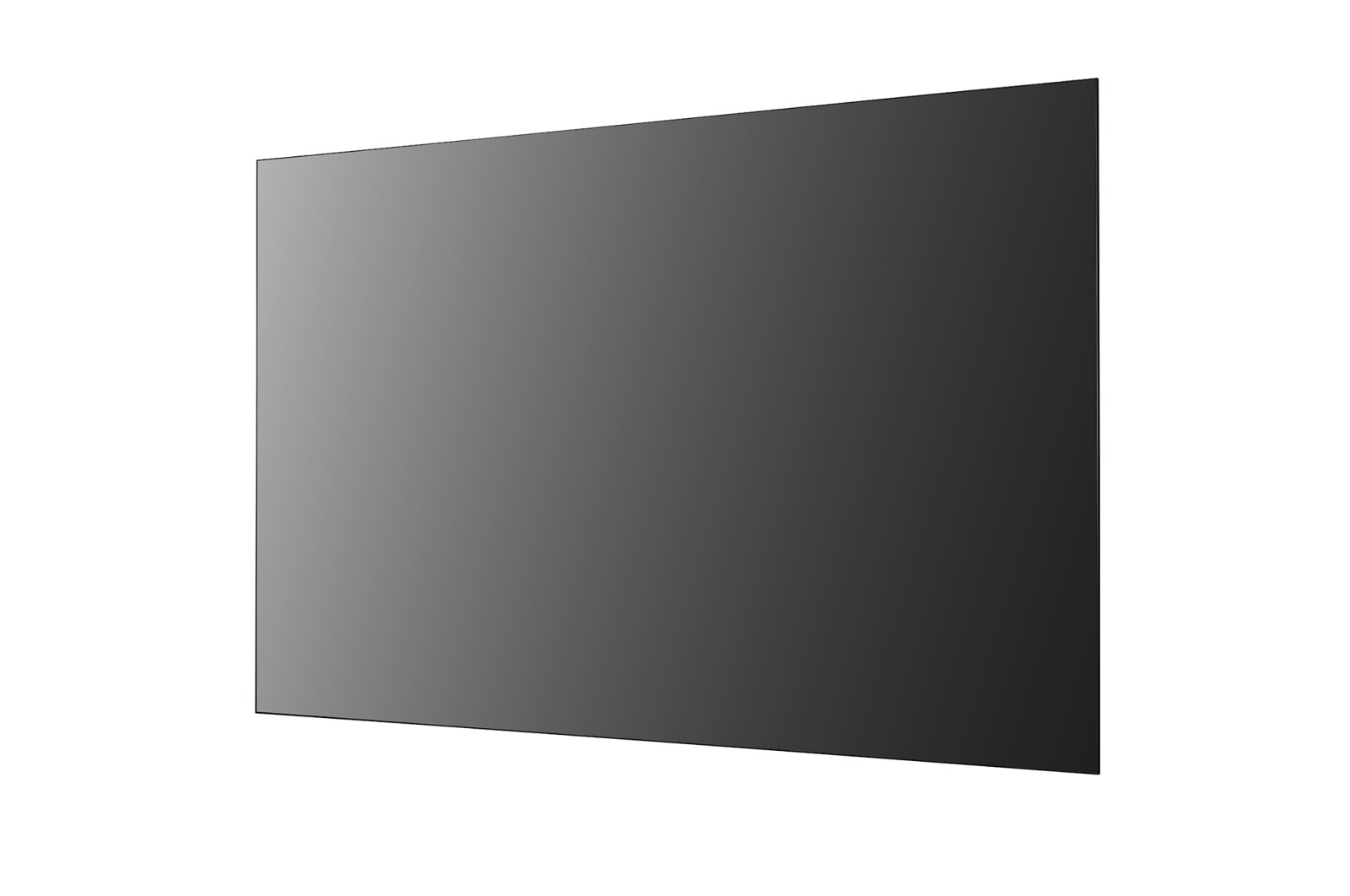

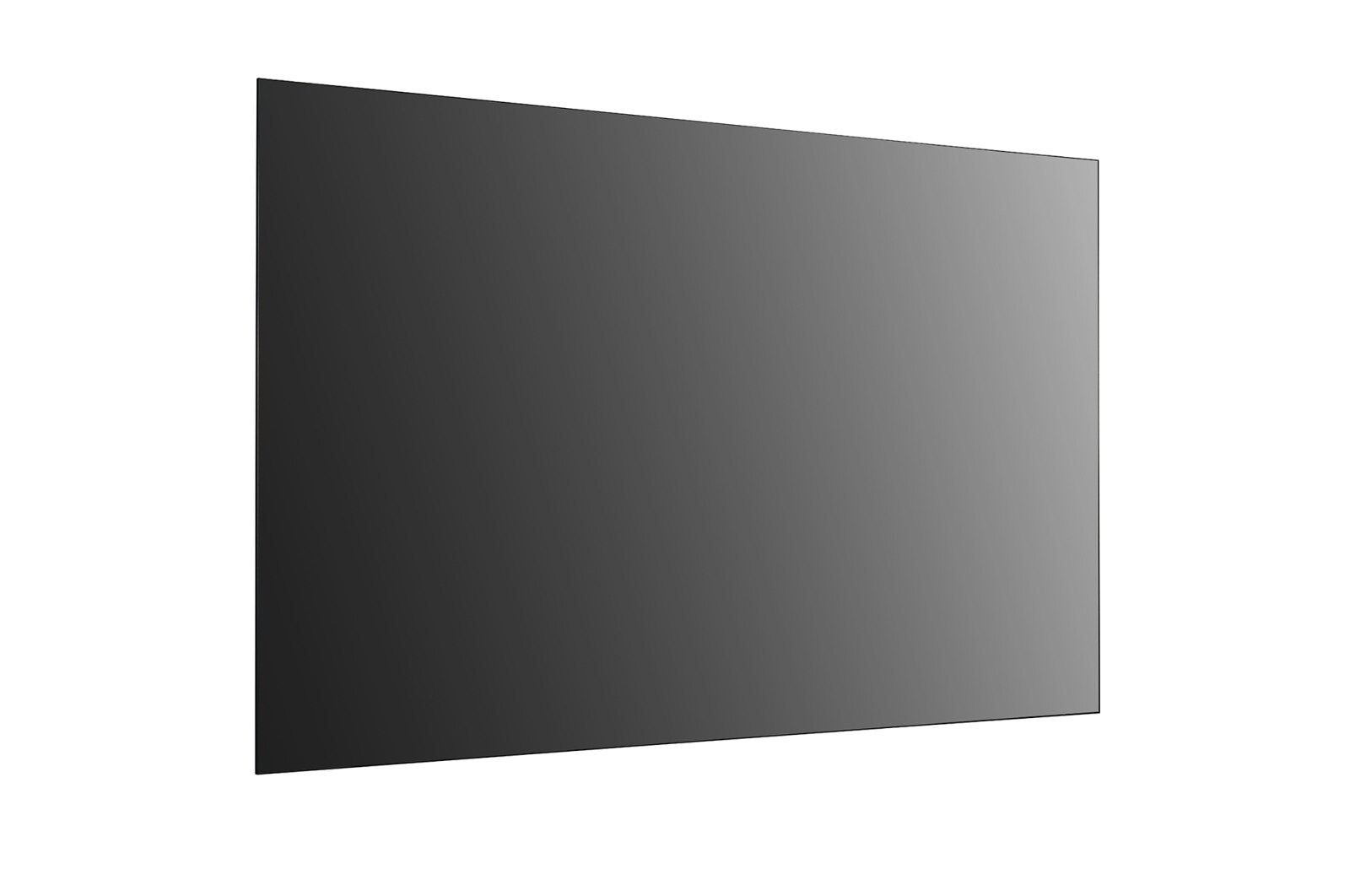

PANEL
-
Screen Size
65"
-
Native Resolution
3,840 x 2,160 (UHD)
-
Brightness (APL25%, Typ., cd/m²)
400
-
Brightness (APL100%, Typ., cd/m²)
150
CONNECTIVITY
-
Input
HDMI, DP, USB 2.0 (2)
-
Output
DP, Audio
-
External Control
RS232C In/out, RJ45 In/out, External IR Receiver
PHYSICAL SPECIFICATION
-

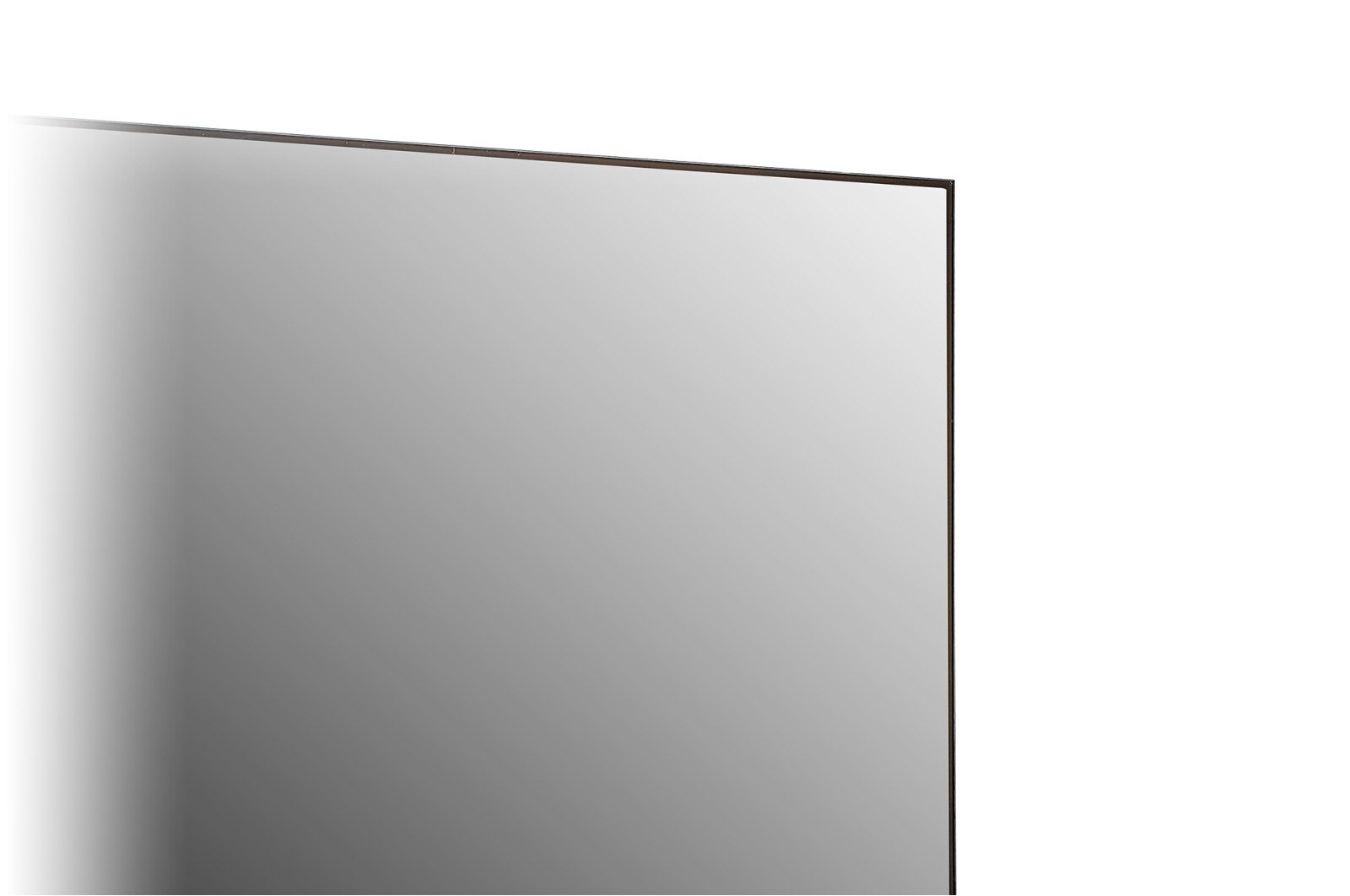

Bezel Width
(Off bezel) 0.9 mm (Even)
(On bezel) 8.1 mm (T), 10.7 mm (B), 8.3 mm (L/R) -
Dimension (W x H x D)

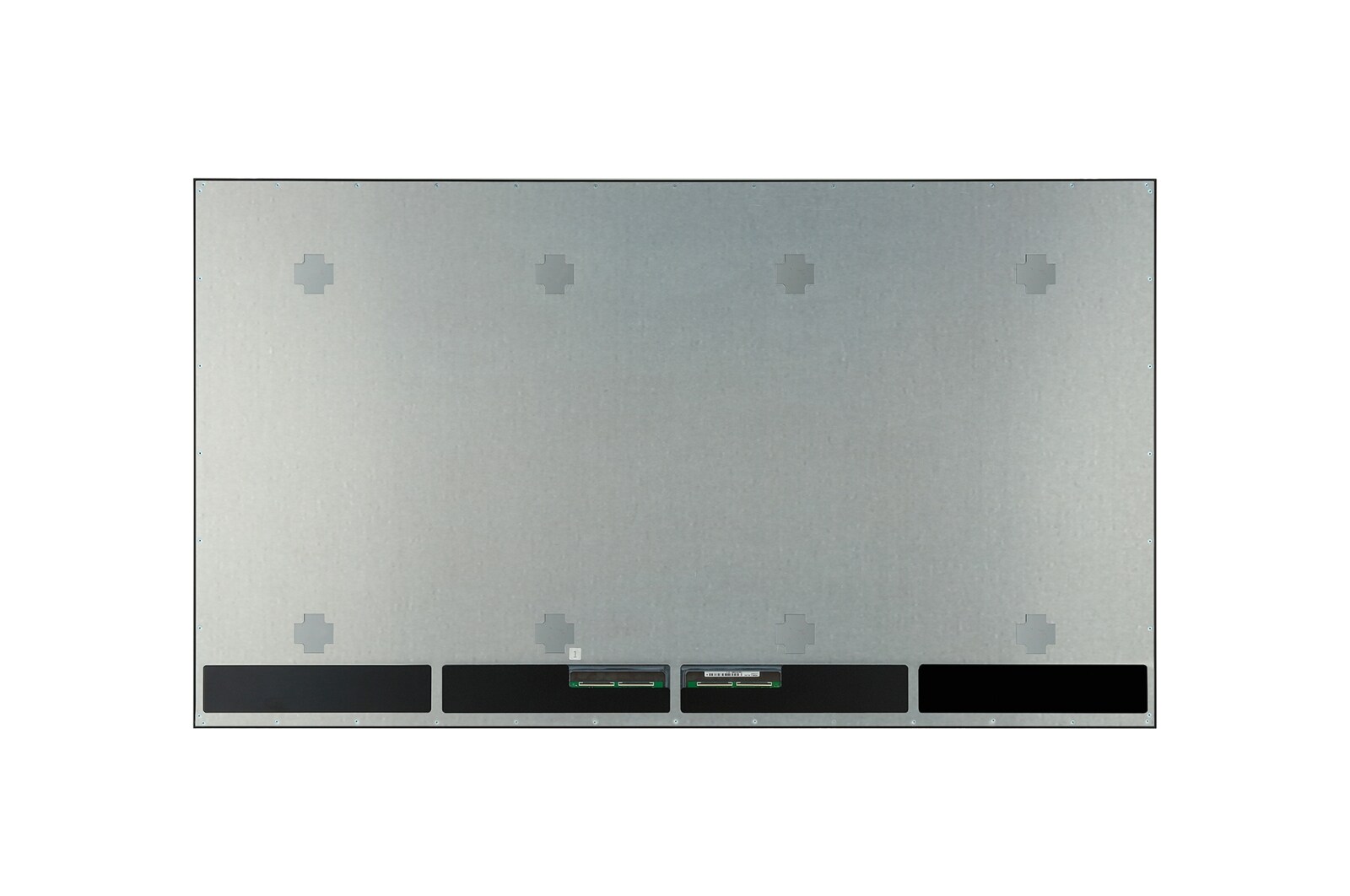

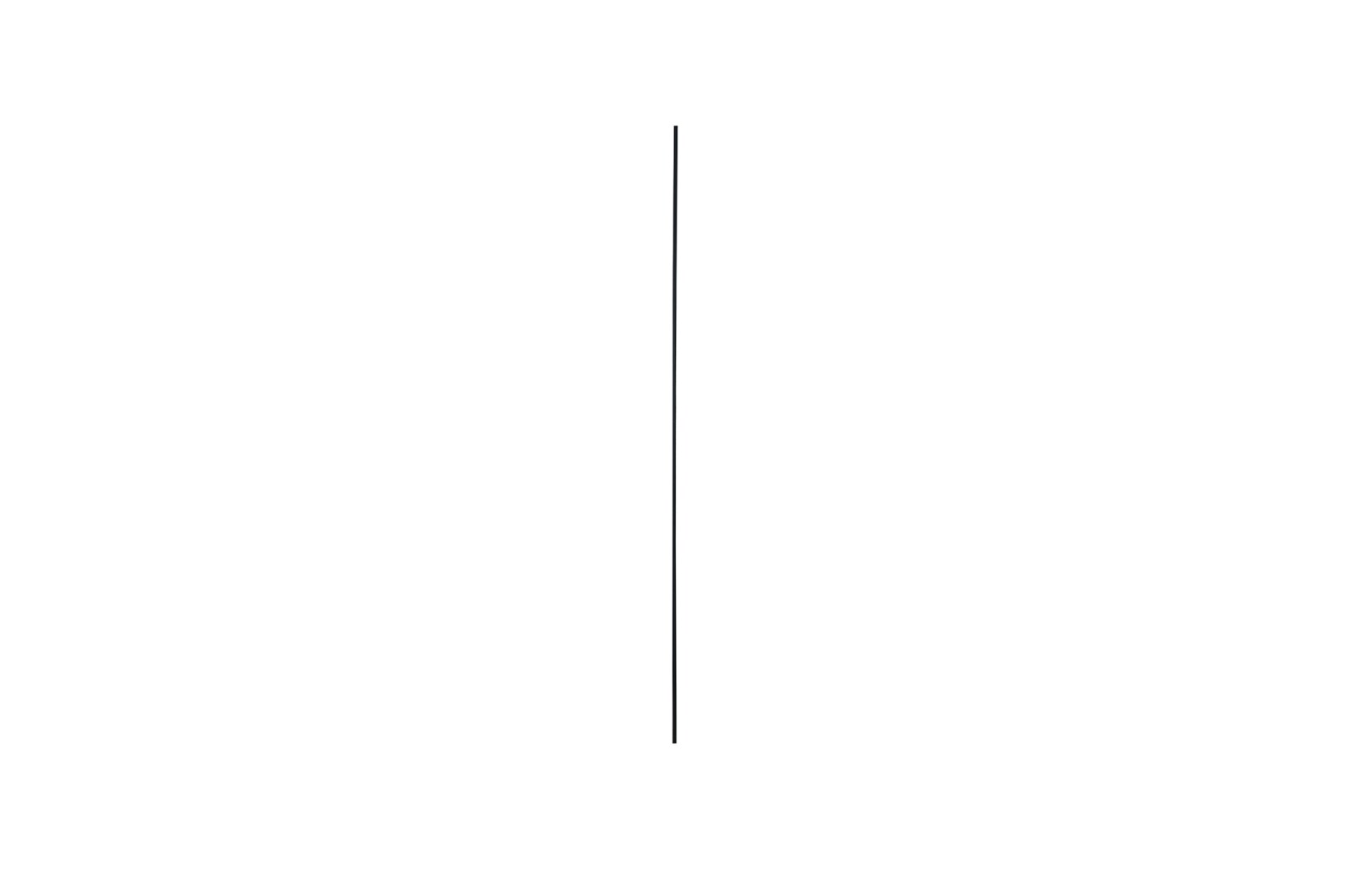

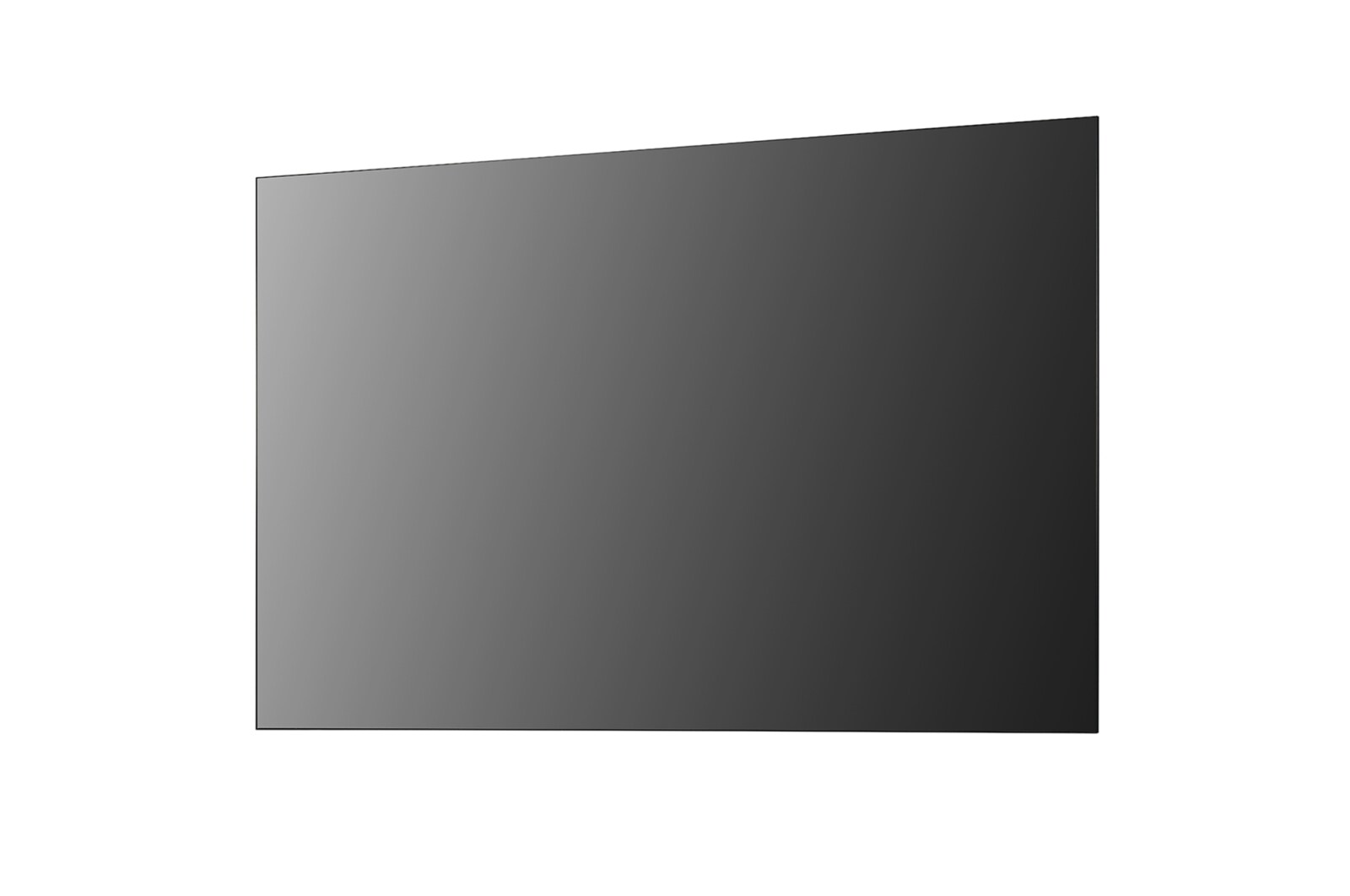

(Head) 1,445.1 x 822.6 x 6.0 mm

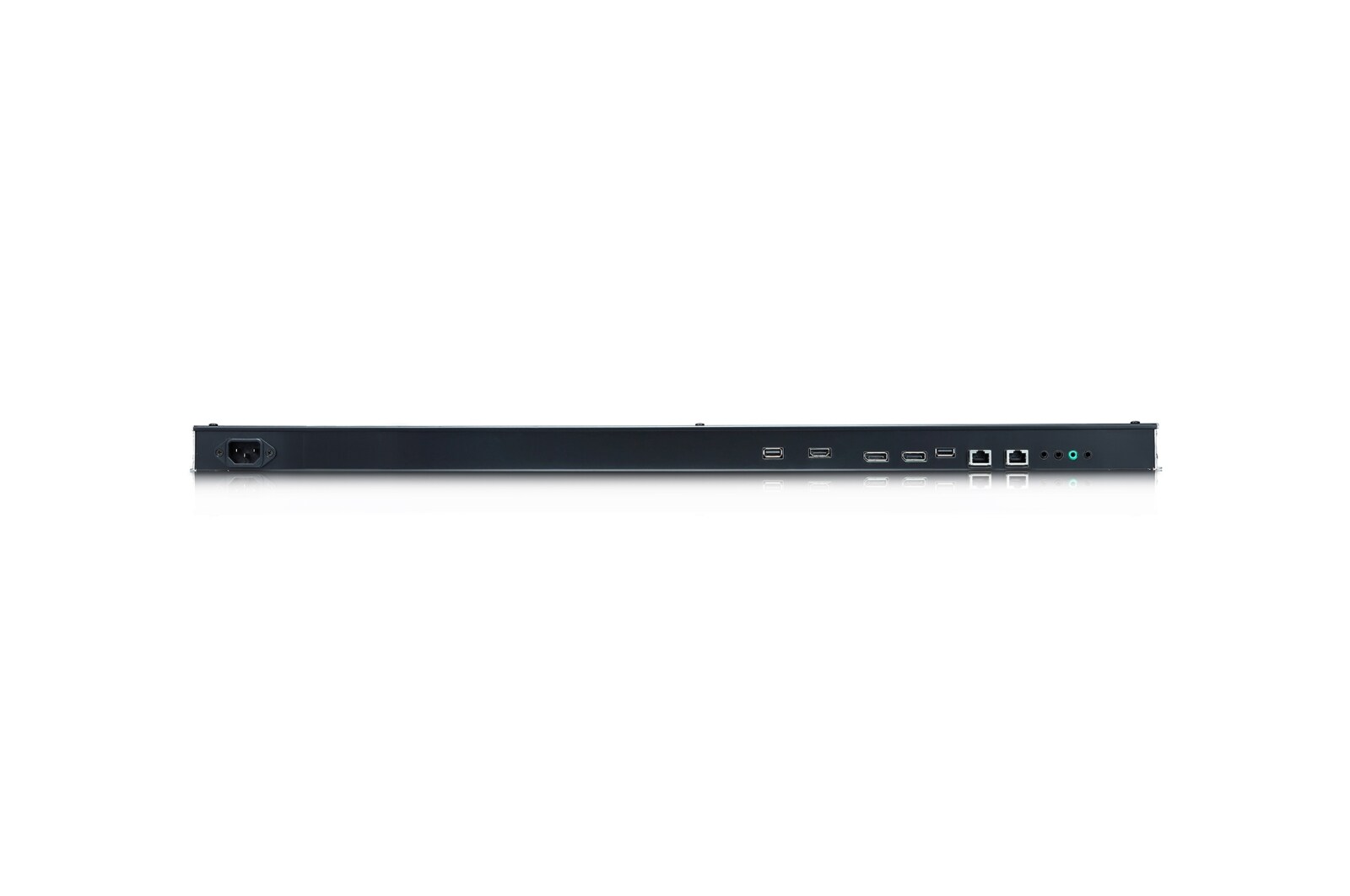

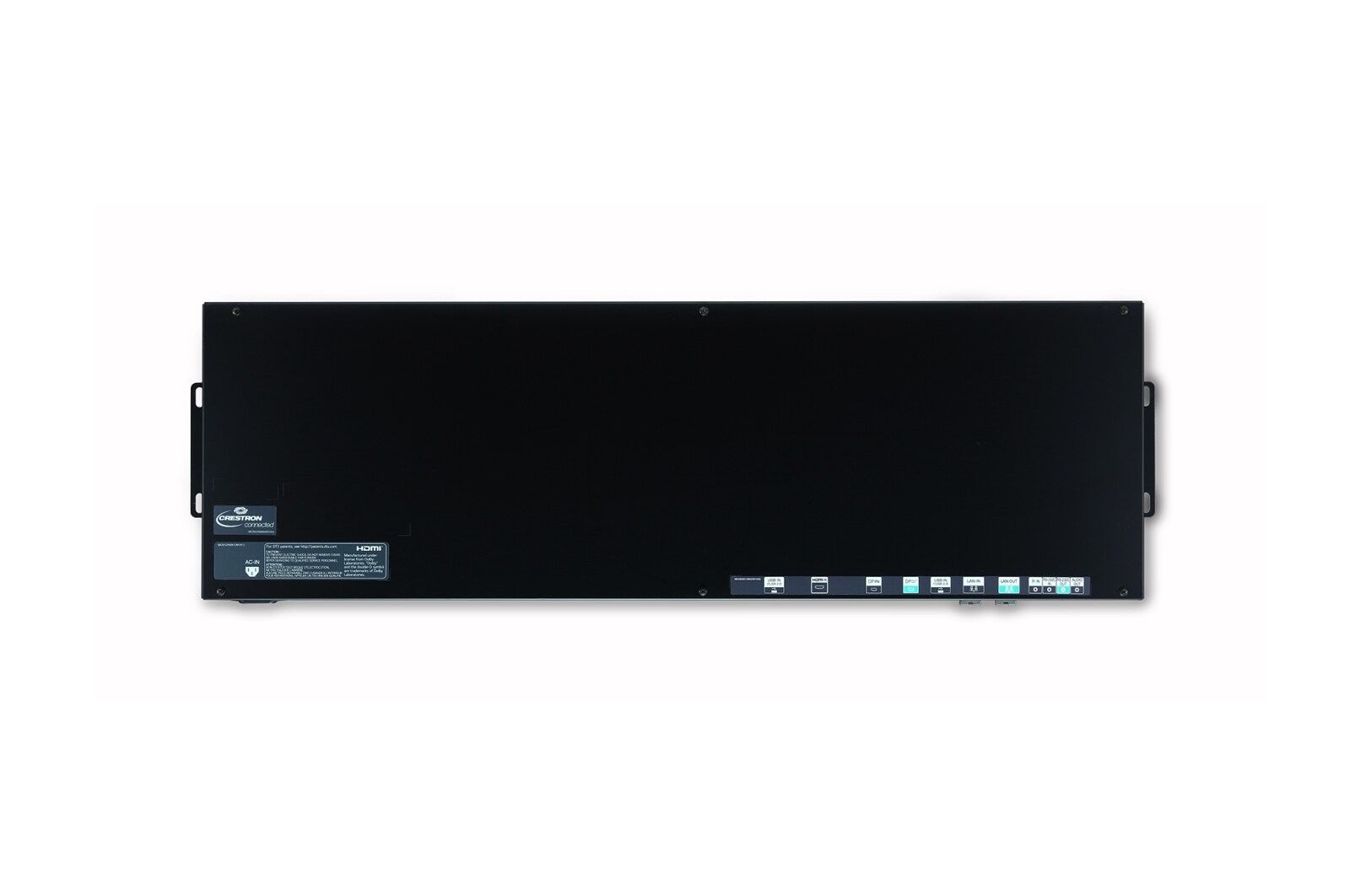

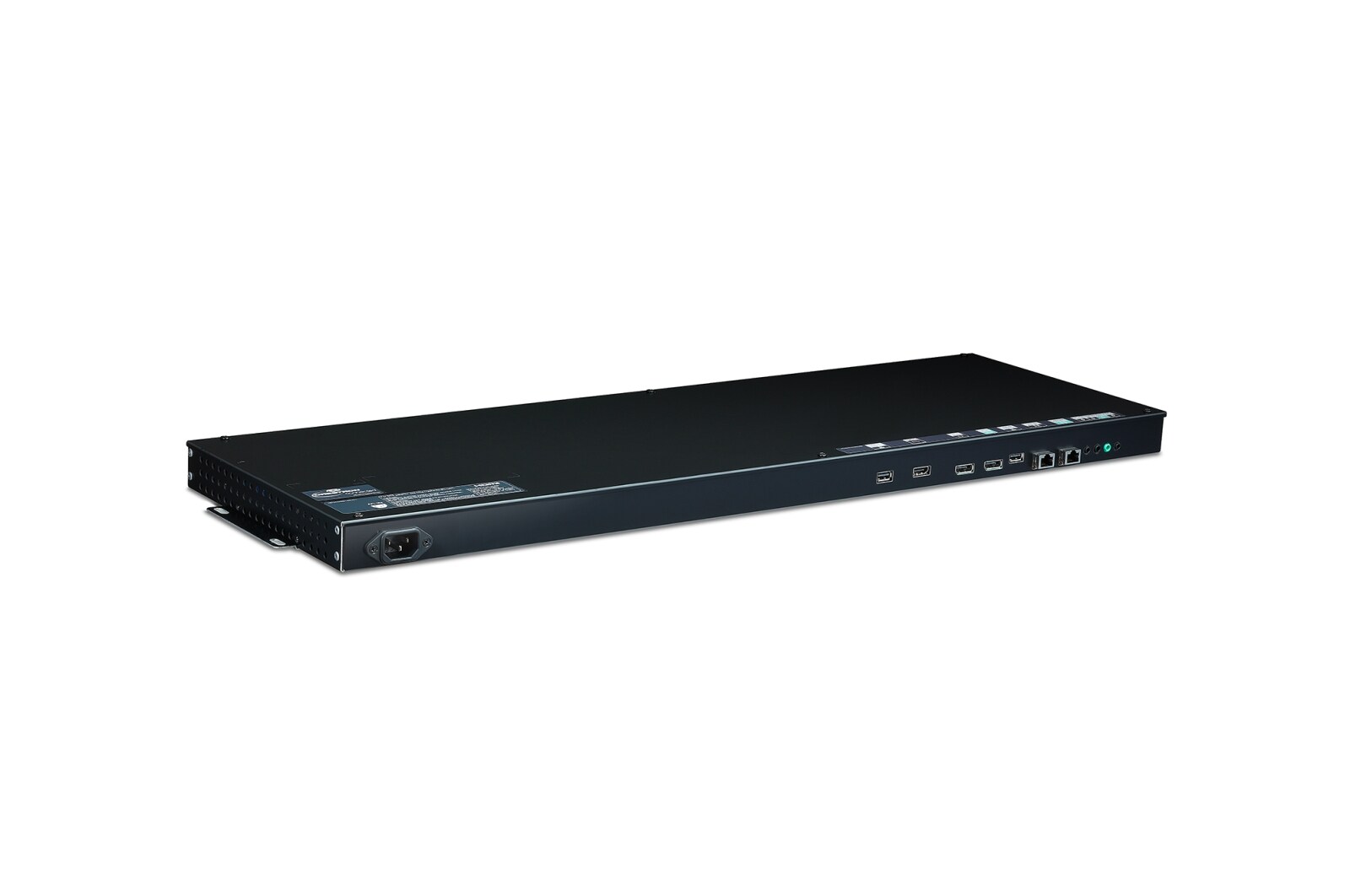

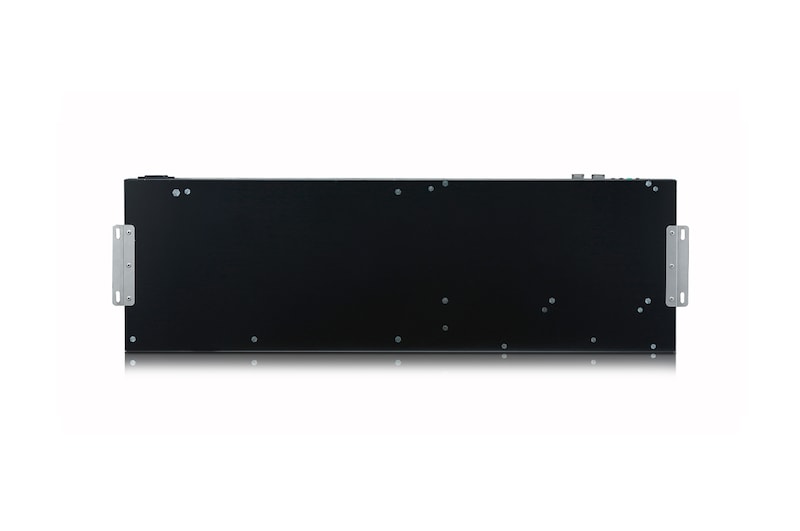

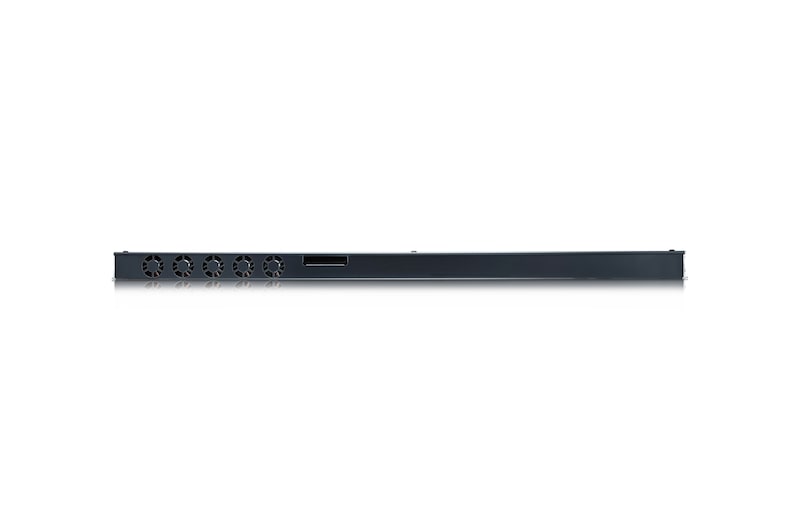

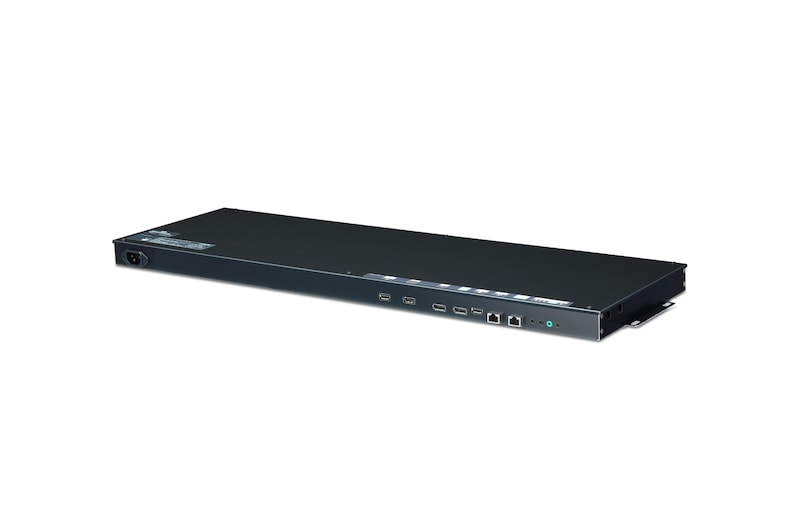

(Signage Box) 782.8 x 35.5 x 239.0 mm -
Weight
13.5 kg (Set)
-
Carton Dimensions (W x H x D)
1,590 x 965 x 205 mm
-
Packed Weight
23.4 kg
ENVIRONMENT CONDITIONS
-
Operation Temperature Range
0°C~40°C
-
Operation Humidity Range
10%~80%
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Type
Built-In Power
-
Power Consumption (Typ. / Max.)
440 W (8 color bar) / 478 W (8 color bar)
STANDARD(CERTIFICATION)
-
Safety
IEC 60950-1 / EN 60950-1 / UL 60950-1
-
EMC
FCC Class "A" / CE / KC
-
ErP / Energy Star
Yes / No
MEDIA PLAYER COMPATIBILITY
-
External Media player Attachable
Yes
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control+ / Control
ACCESSORY
-
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (for Connection Between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable), Wall Fixers, Wall Fixer Install Guide, Install Guide Sheets, Tapes (for Cabling and Dust Proof), Screws
