| Model Name | LBS062DA1-V | LBS062DA3-V | LBS083DA1-V | LBS083DA3-V |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 6.25 | 6.25 | 8.333 | 8.333 |
| Unit Case Resolution(WxH) | 128x256 | 128x256 | 96x192 | 96x192 |
| Unit Case Dimensions(WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case/Square Meter (kg) | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 | 40.0/31.3 |

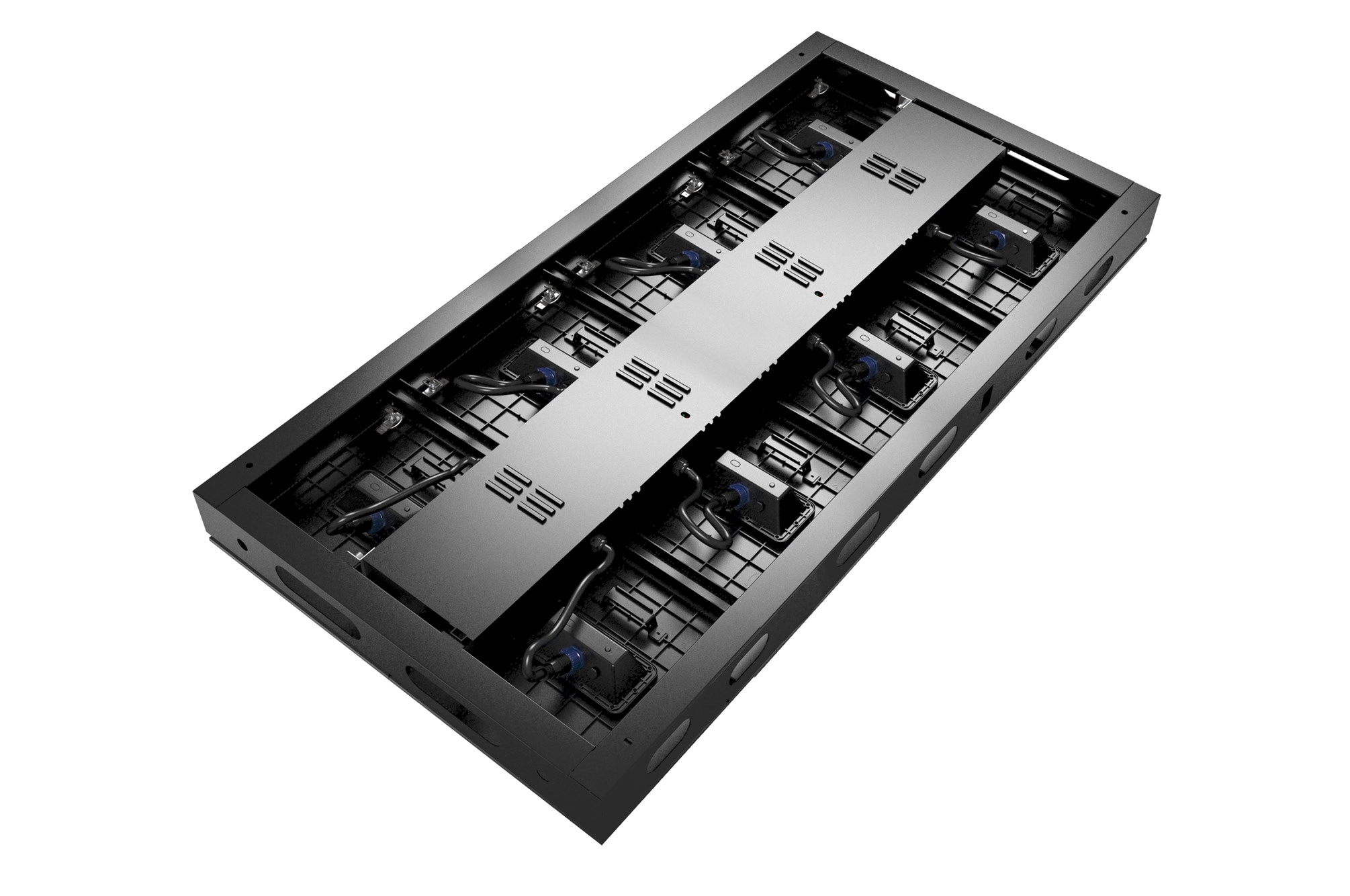

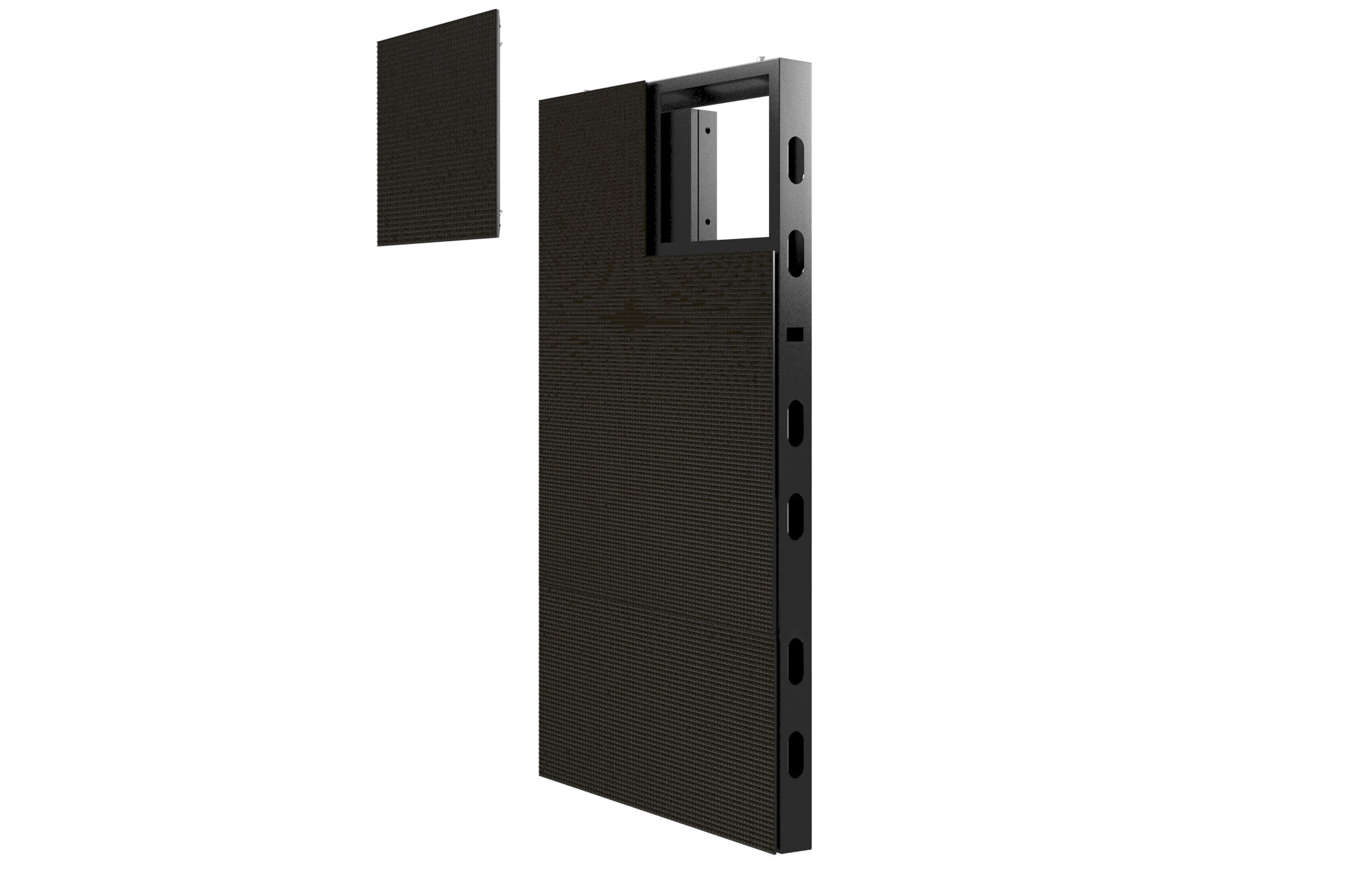

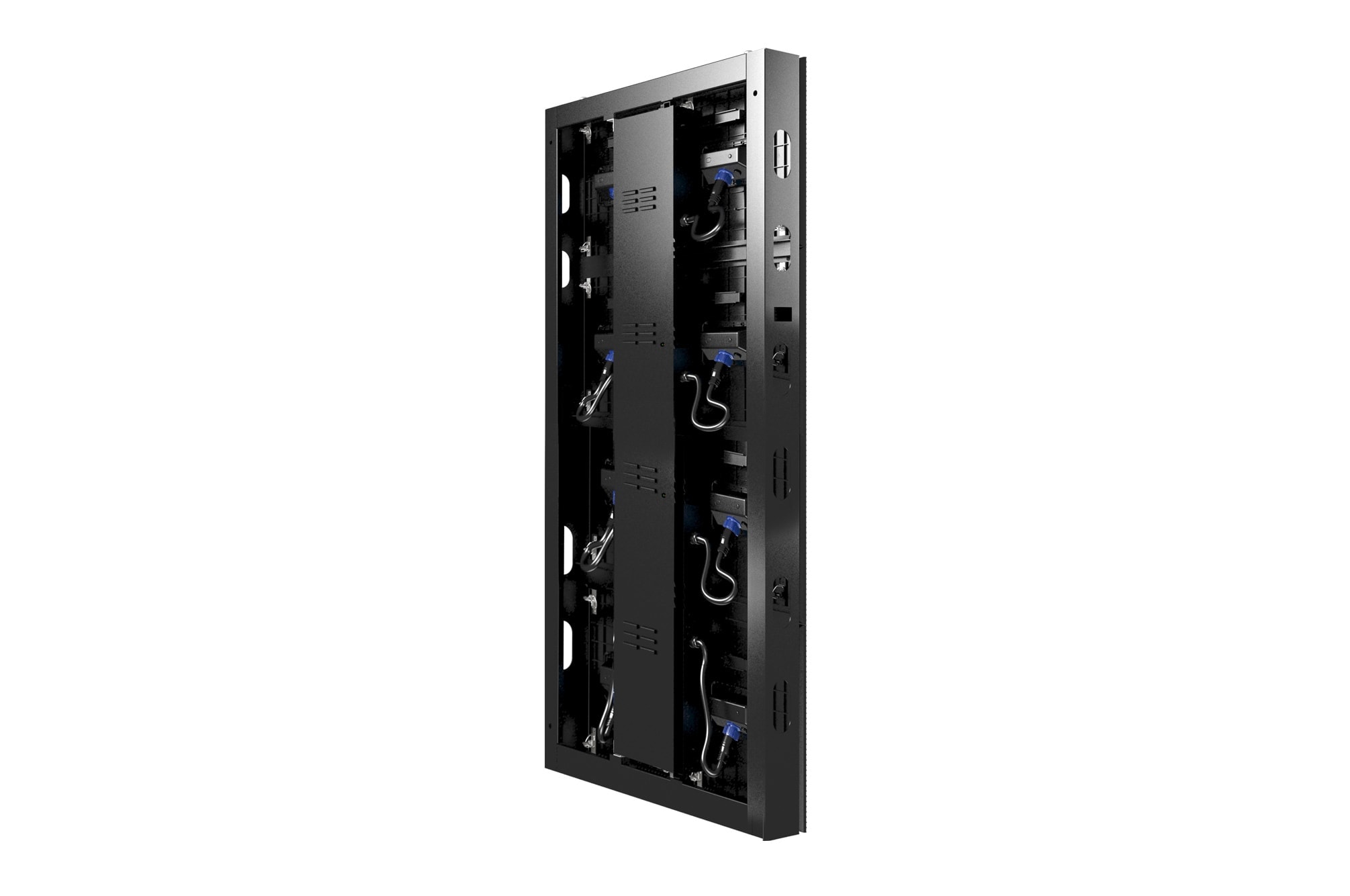

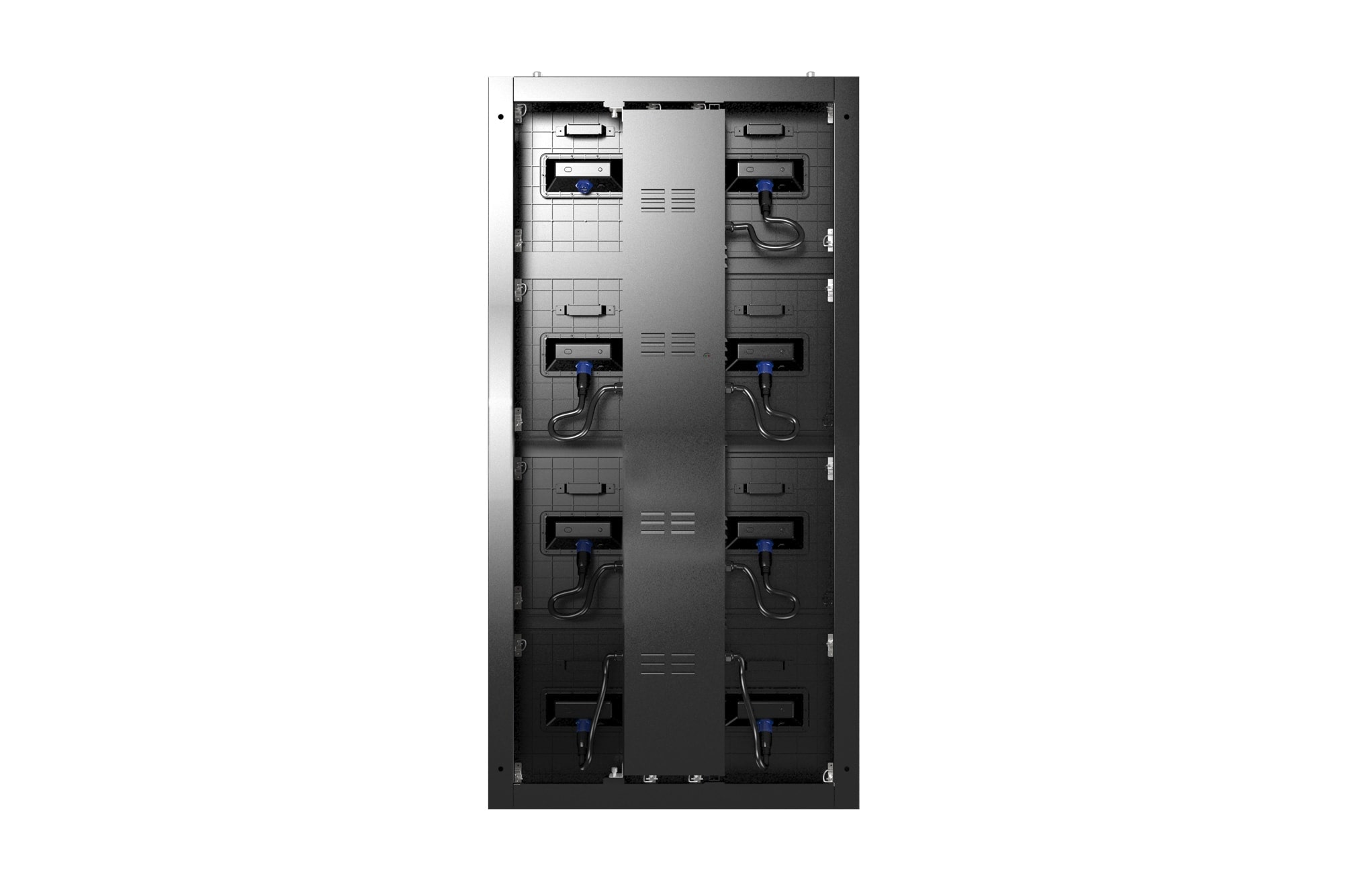

| Service access | Front and Rear | Front and Rear | Front and Rear | Front and Rear |
| Min. Brightness(After Calibration, cd/m²) | 6,000 | 6,000 | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 | 3500-8500 | 3500-8500 |
| Visual Viewing Angle(Horizontal/Vertical) | 160/130 | 160/130 | 160/125 | 160/125 |
| Brightness Uniformity / Color Uniformity | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 | 16 | 16 |
| Power Consumption(W/Unit, Avg./Max.) | 312/780 | 312/780 | 320/800 | 320/800 |
| Power Consumption(W/m², Max.) | 609 | 609 | 625 | 625 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 | 4,000 | 4,000 |
| Lifetime(Half brightness, hrs)* | 100,000 | 100,000 | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 | IP66/IP66 | IP66/IP66 |
*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
| Model Name | LBS100DA1-V | LBS100DA3-V |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10 | 10 |
| Unit Case Resolution(WxH) | 80x160 | 80x160 |
| Unit Case Dimensions(WxHxD, mm) | 800x1600x143.5 | 800x1600x143.5 |
| Weight per Unit Case/Square Meter (kg) | 40.0/31.3 | 40.0/31.3 |
| Service access | Front and Rear | Front and Rear |
| Min. Brightness(After Calibration, cd/m²) | 6,000 | 6,000 |
| Color Temperature | 3500-8500 | 3500-8500 |
| Visual Viewing Angle(Horizontal/Vertical) | 160/115 | 160/115 |
| Brightness Uniformity / Color Uniformity | 97％/±0.05Cx,Cy | 97％/±0.05Cx,Cy |
| Contrast Ratio | 3,000 | 3,000 |
| Processing Depth (bit) | 16 | 16 |
| Power Consumption(W/Unit, Avg./Max.) | 300/750 | 300/750 |
| Power Consumption(W/m², Max.) | 586 | 586 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 4,000 | 4,000 |
| Lifetime(Half brightness, hrs)* | 100,000 | 100,000 |
| Operating Temperature(°C) / Humidity | -20° to 50°/< 90％RH | -20° to 50°/< 90％RH |
| IP rating Front / Rear | IP66/IP66 | IP66/IP66 |
*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
