UM5K Series - 110'' UHD Large Screen Signage

Features

Gallery

Specs

Support

UM5K Series - 110'' UHD Large Screen Signage

110UM5K-B

UM5K Series - 110'' UHD Large Screen Signage

(2)

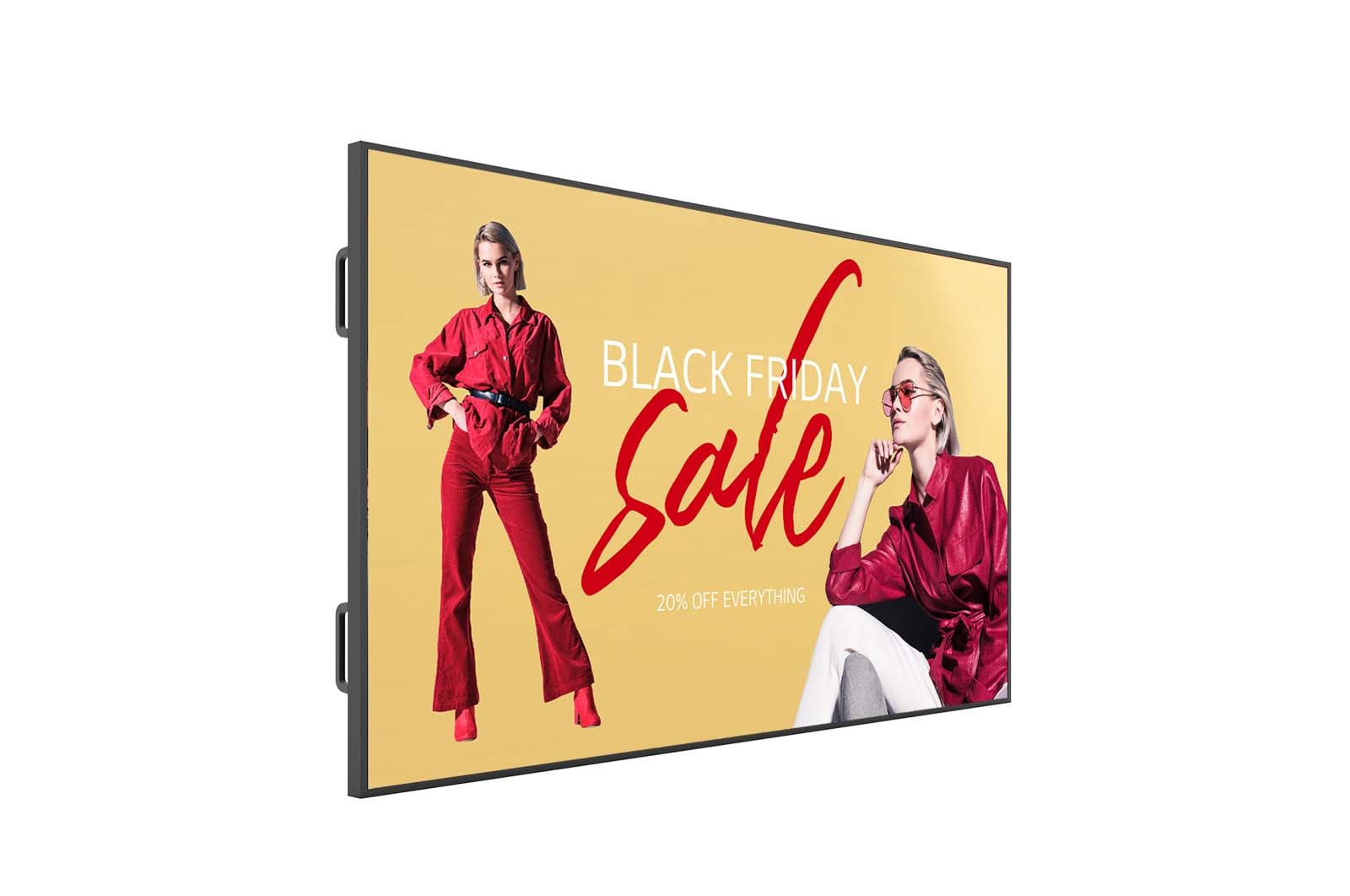

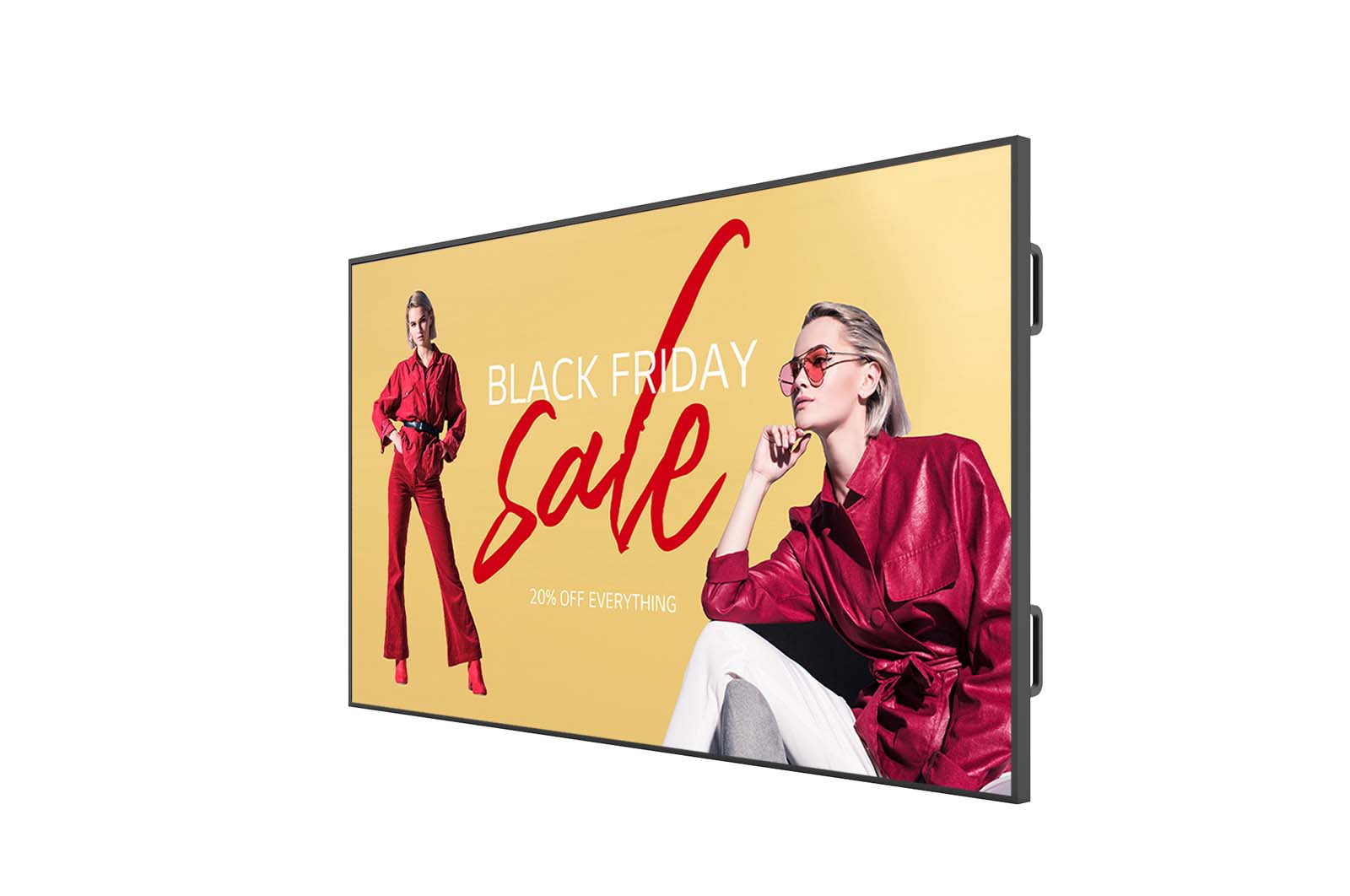

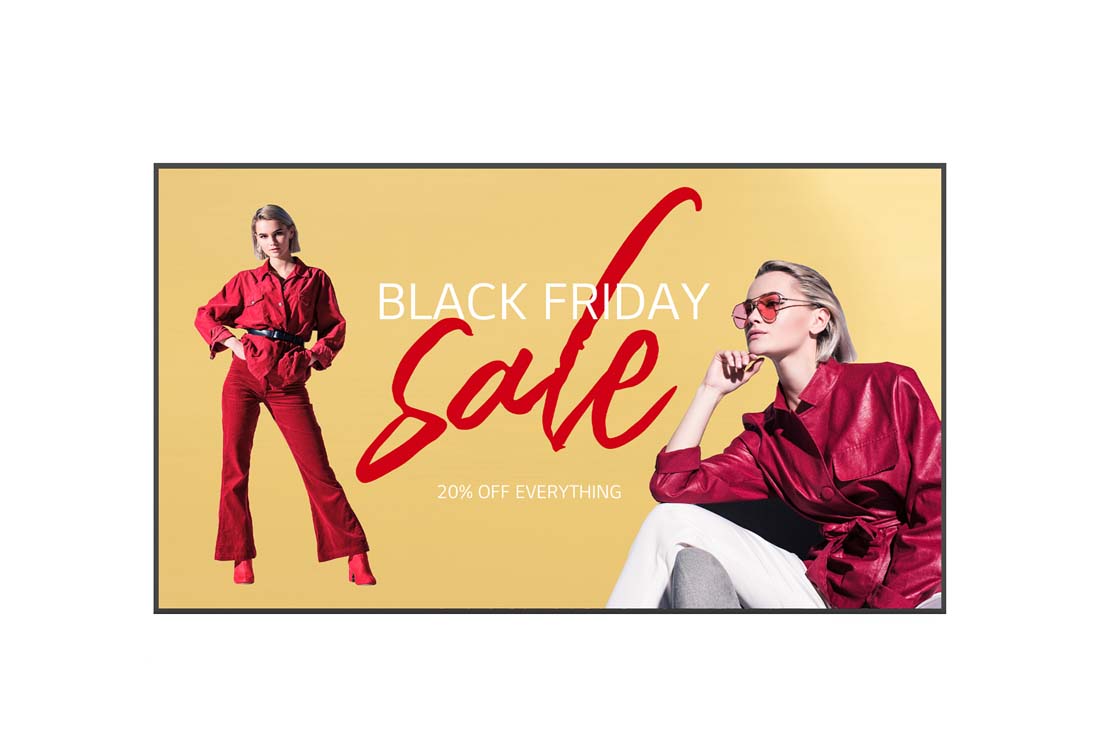

Front view with infill image

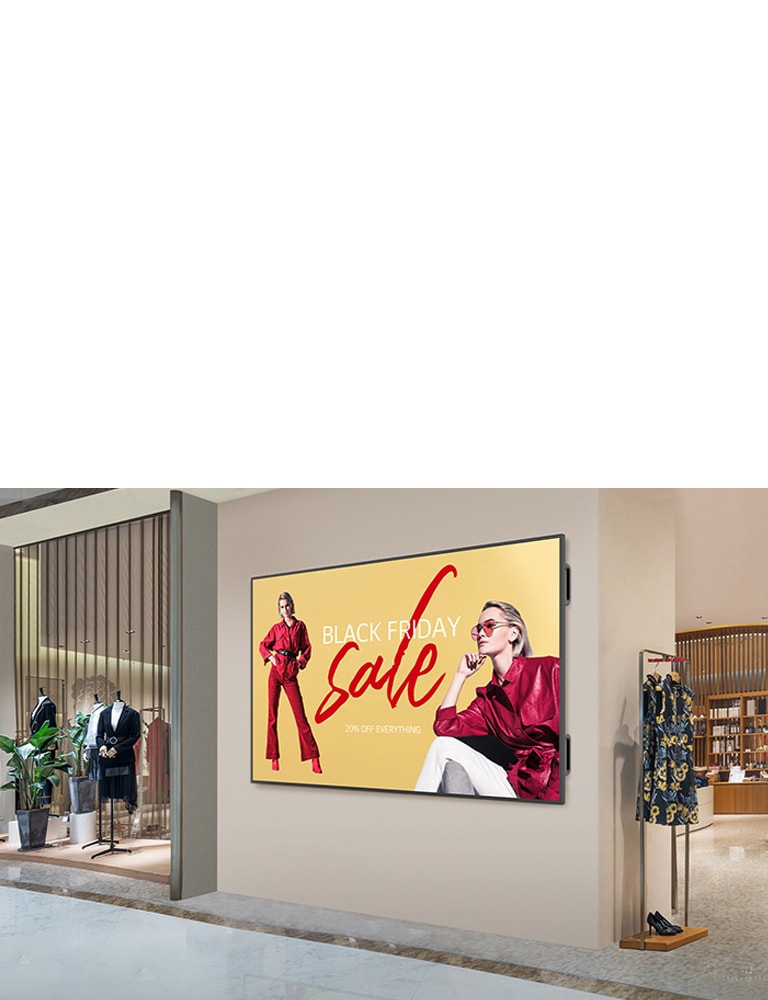

A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

* All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

* Actual images available may differ from the example images shown.

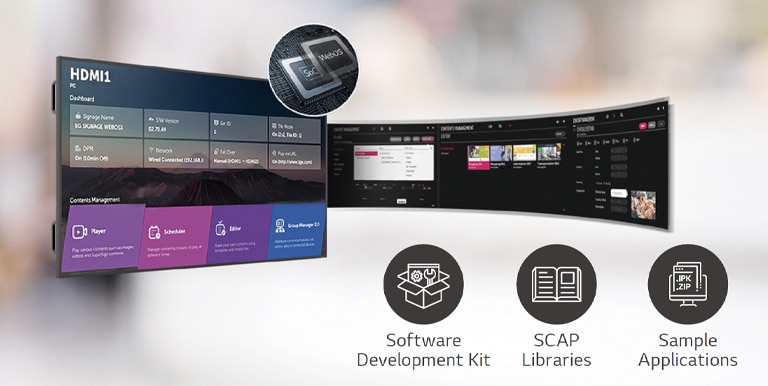

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

One signage on the wall has a built-in speaker which renders rich audio.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

* Internal Built-in Speaker Support (L/R max 10 W)

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

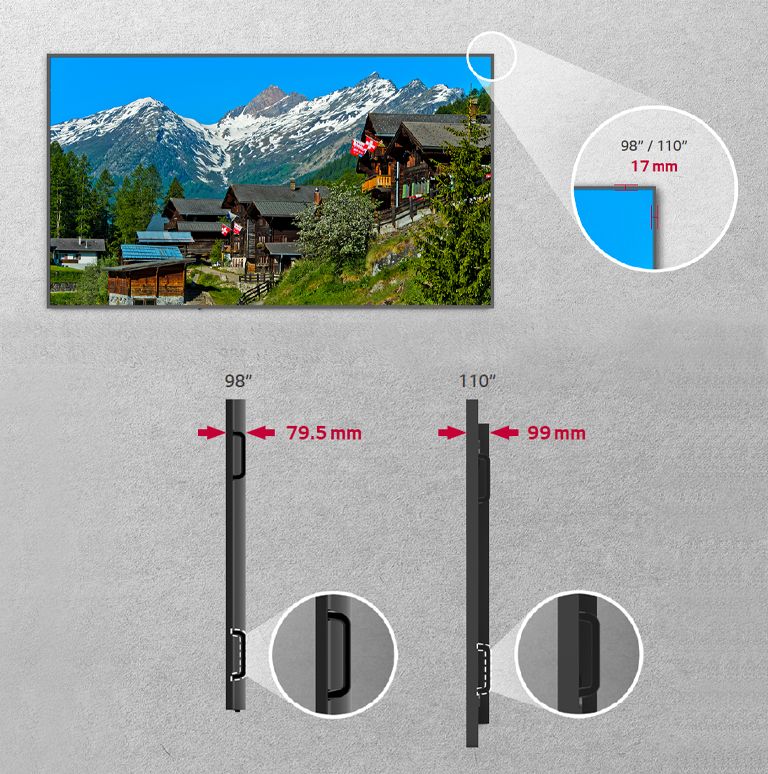

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

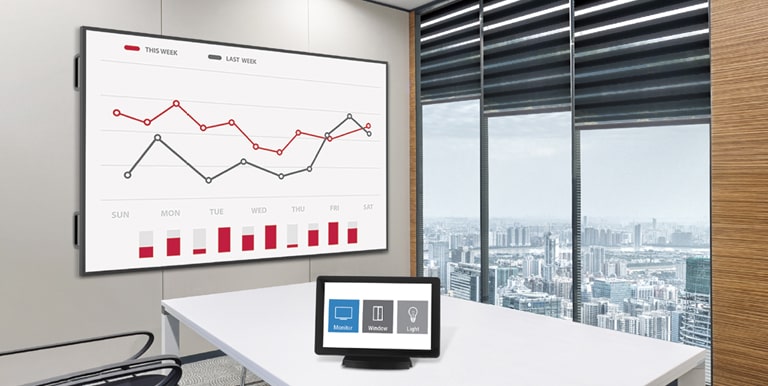

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network based control

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Print

All Spec

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES(NewErP) / NO

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 17mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    2680 x 1730 x 320mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    2474 x 1408 x 99mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    110Kg

  • VESA Standard Mount Interface

    1500 x 600 mm

  • Weight (Head)

    80Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    NO

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    YES (Not available for EU/CIS)

  • SuperSign Cloud

    YES

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    1,200:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    500nit (Typ.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    DCI-P3 88%

  • Dynamic CR

    1,000,000:1

  • Life time

    50,000Hrs (Min.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    ADS

  • Portait / Landscape

    NO / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    110

  • Surface Treatment (Haze)

    Haze 1%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    YES

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    16GB

  • Pixel Sensor

    NO

  • Power Indicator

    YES

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

CONNECTIVITY

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : HDMI

  • Audio In

    YES

  • Audio Out

    YES

  • DP In

    YES (HDCP 2.2/1.3)

  • DP Out

    NO

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    YES

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    YES

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    NO

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 6.0

  • PBP

    YES (4PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    NO

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1501 BTU/Hr(Typ.), 1945 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    308W

  • Max.

    570W

  • Typ.

    440W
