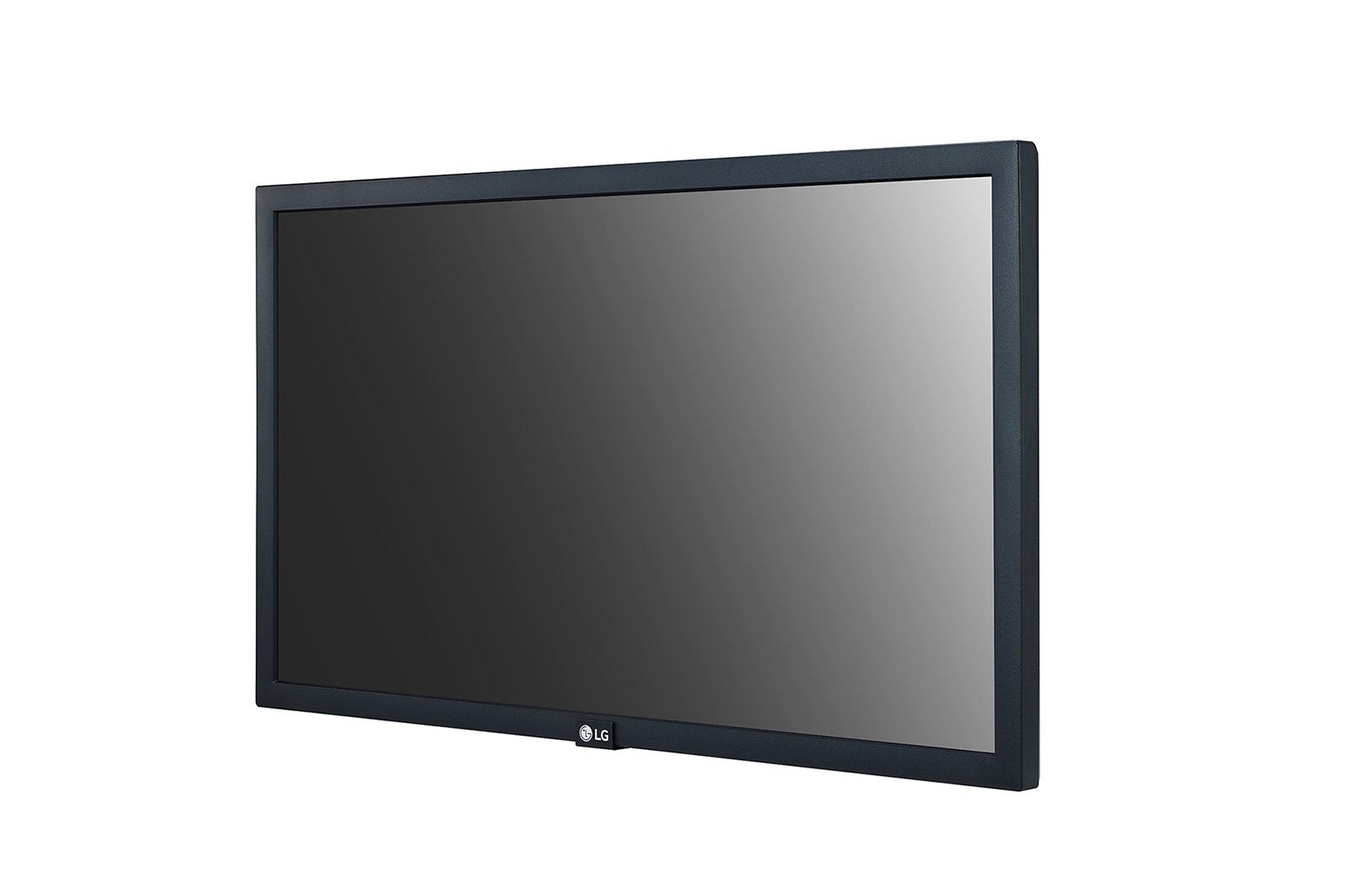

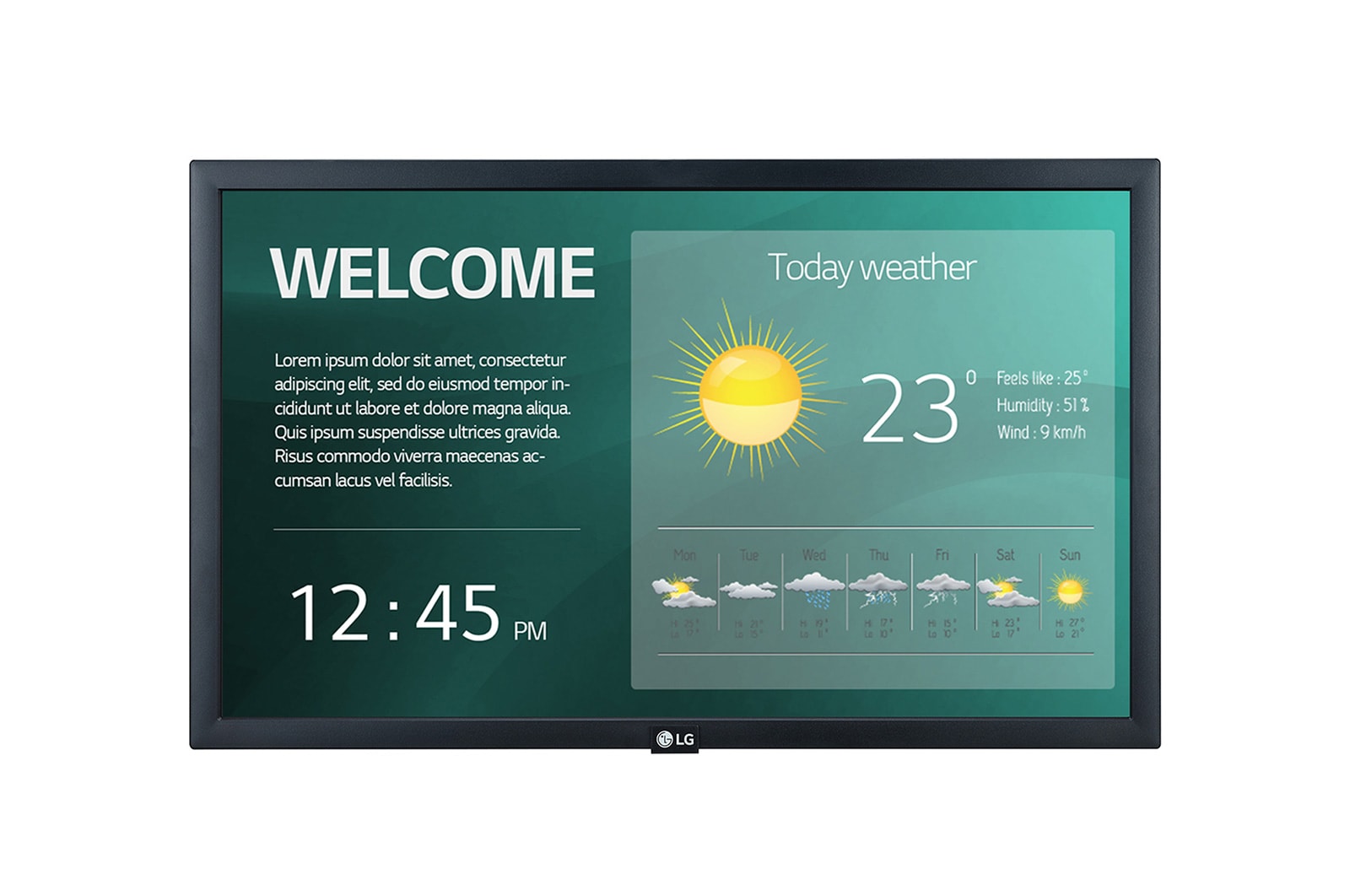

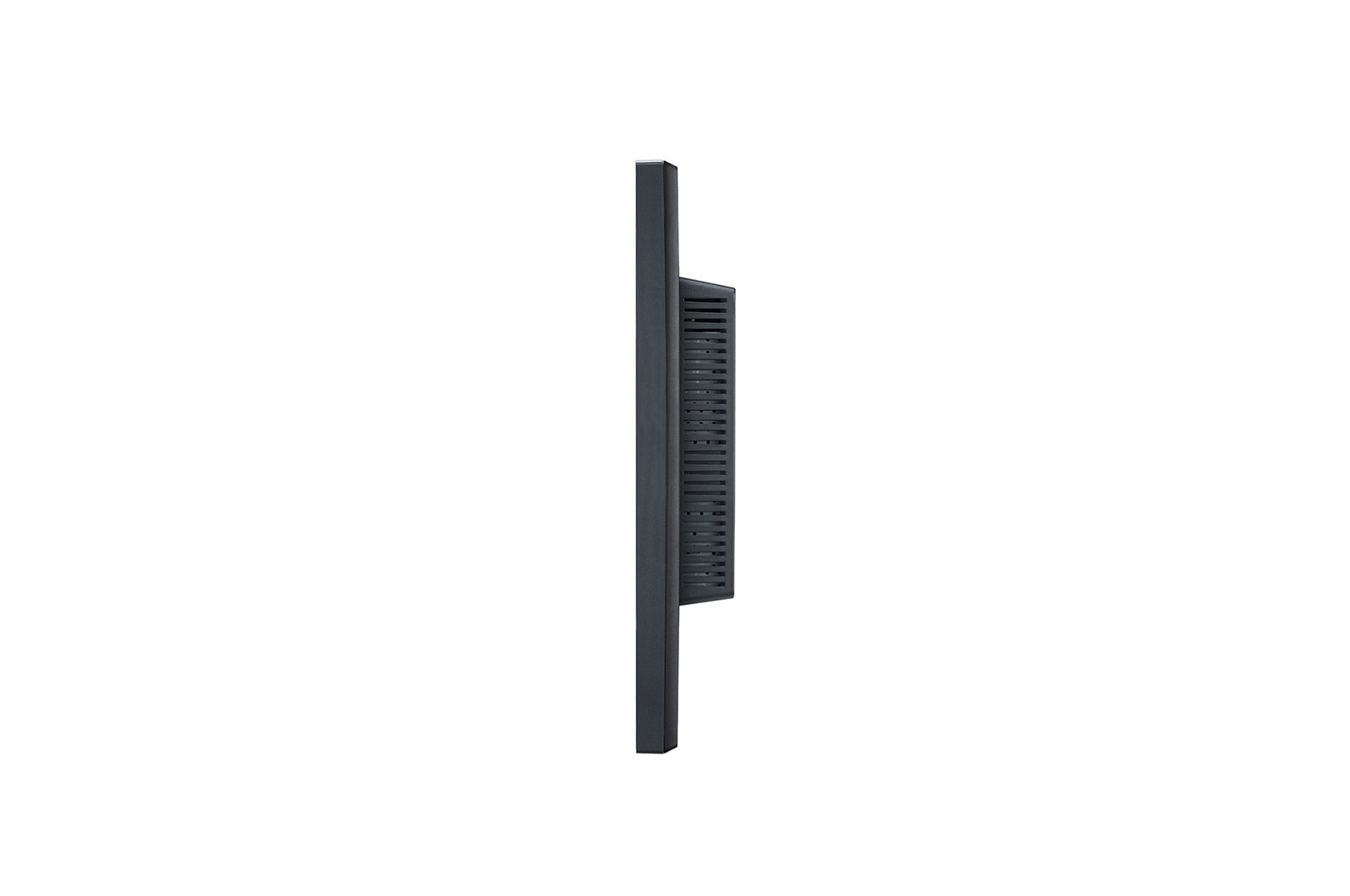

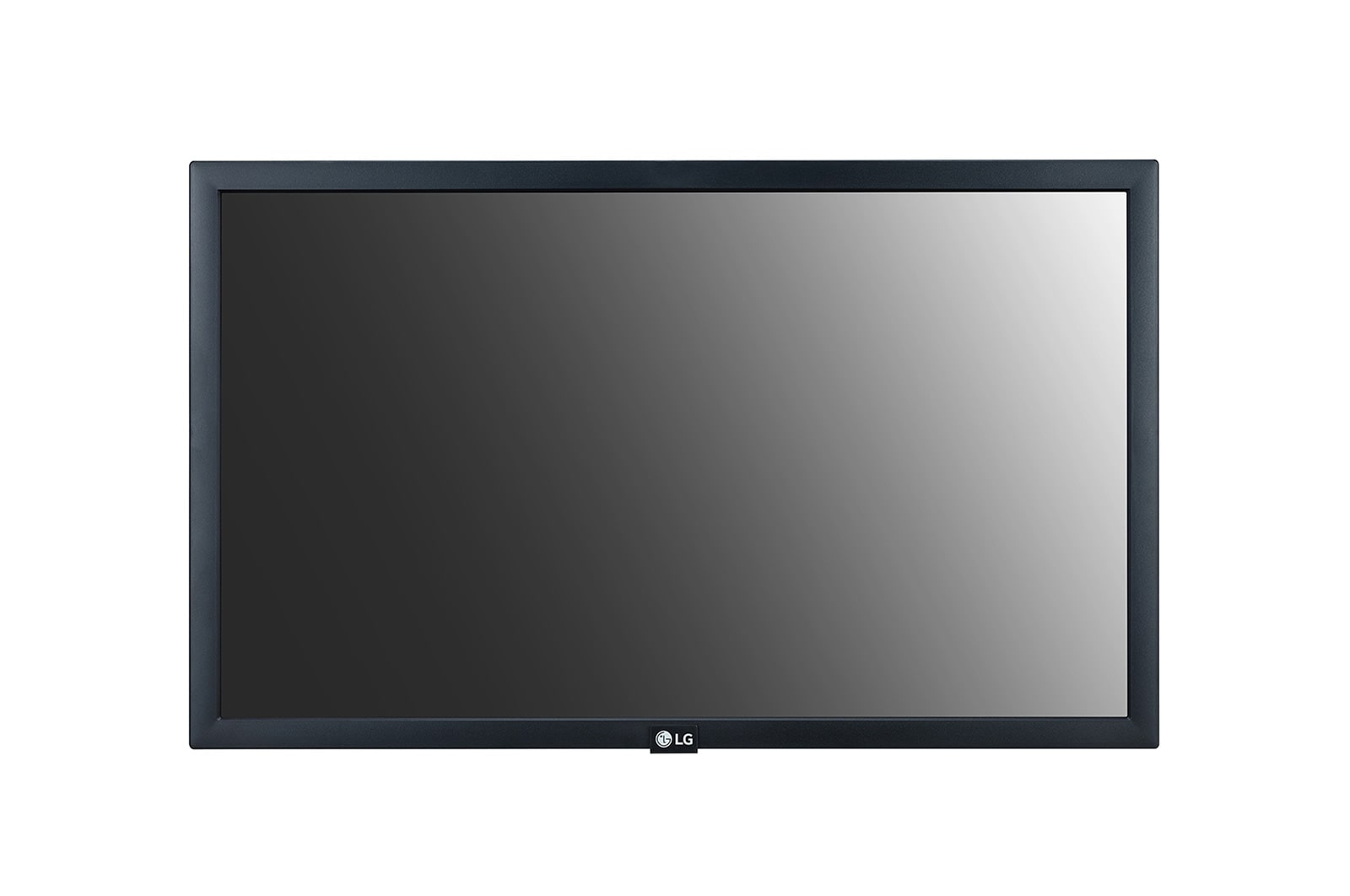

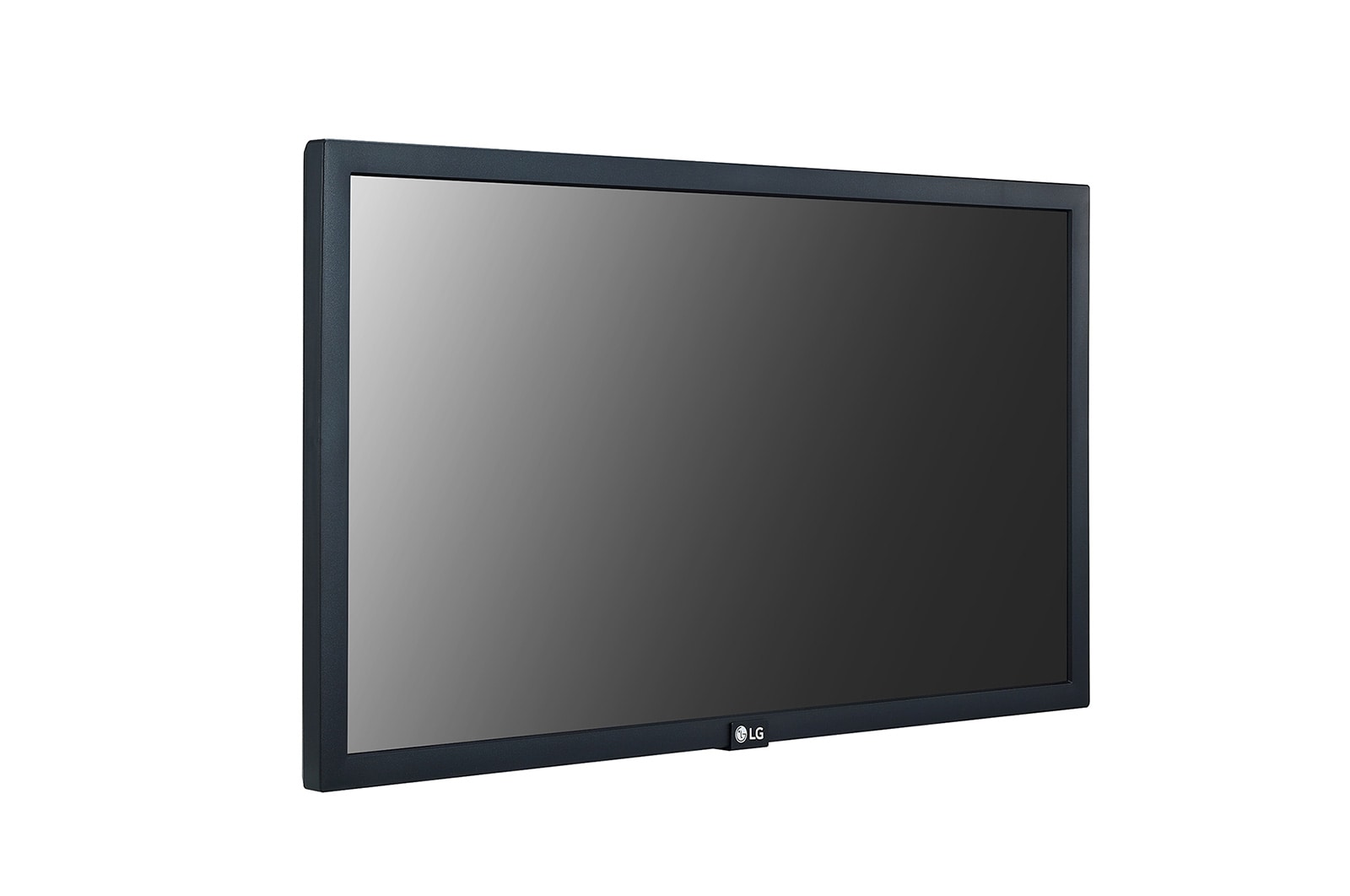

SM3G Series - 22" Digital Signage

Features

Gallery

Specs

Support

SM3G Series - 22" Digital Signage

SM3G Series - 22" Digital Signage

22SM3G-B
()
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
  • LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B
LG SM3G Series - 22" Digital Signage, 22SM3G-B

Key Features

  • Crestron-certified compatibility with AV control system
  • Vivid colour and wide viewing angle with IPS panel
  • Built-in Content Management System and speaker
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi
More

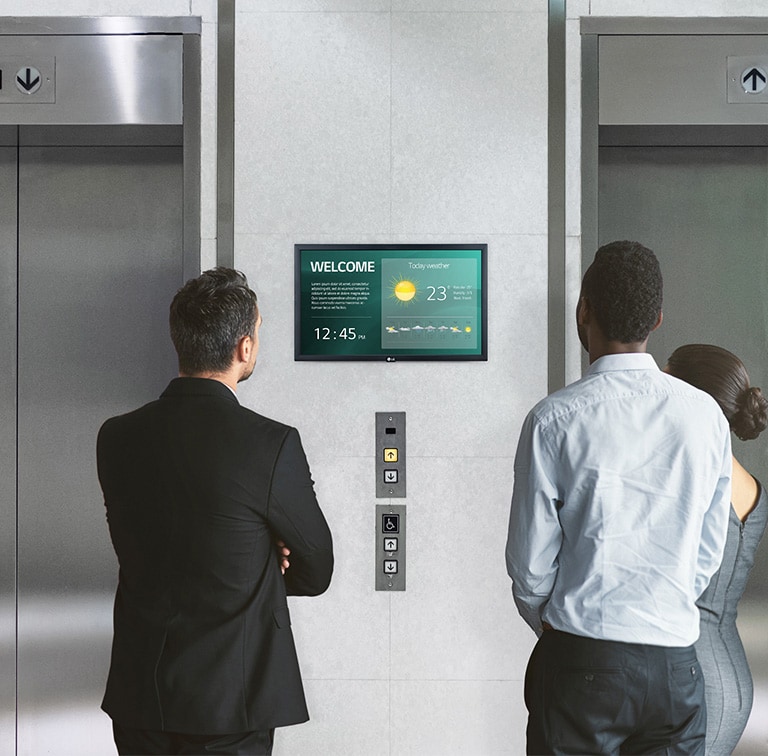

22" Signage with More Utility for Commercial Space

22" Signage with More Utility for Commercial Space

22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.

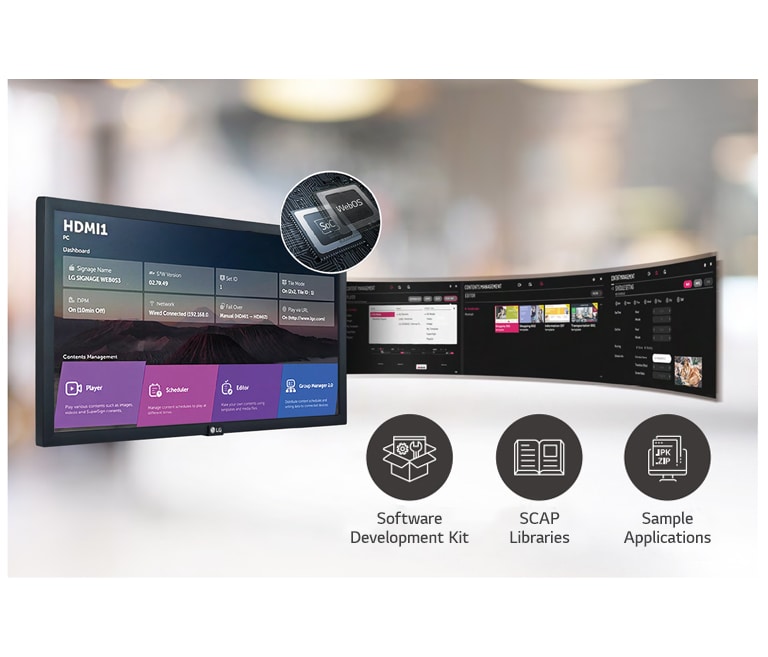

High Performance SoC with webOS
SMART SIGNAGE PLATFORM

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.

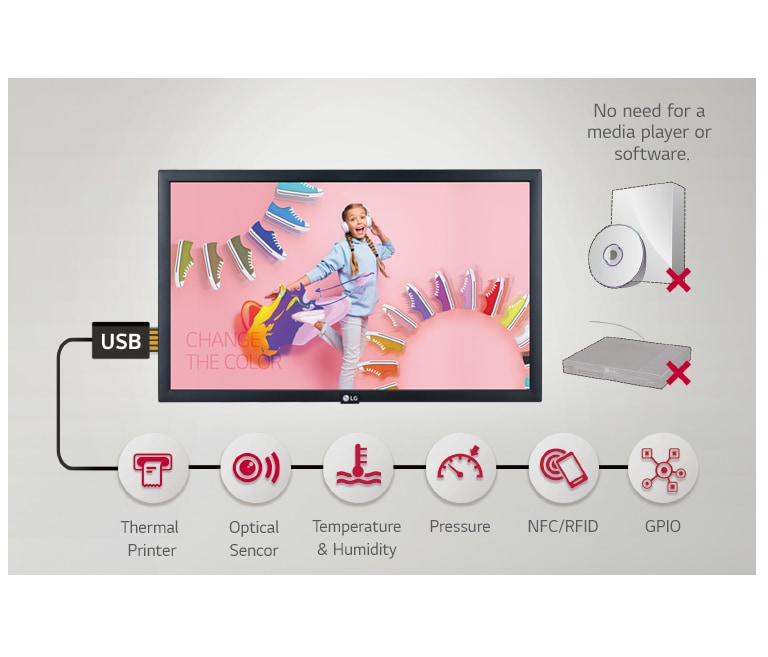

Various Sensor Applications
SMART SIGNAGE PLATFORM

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.

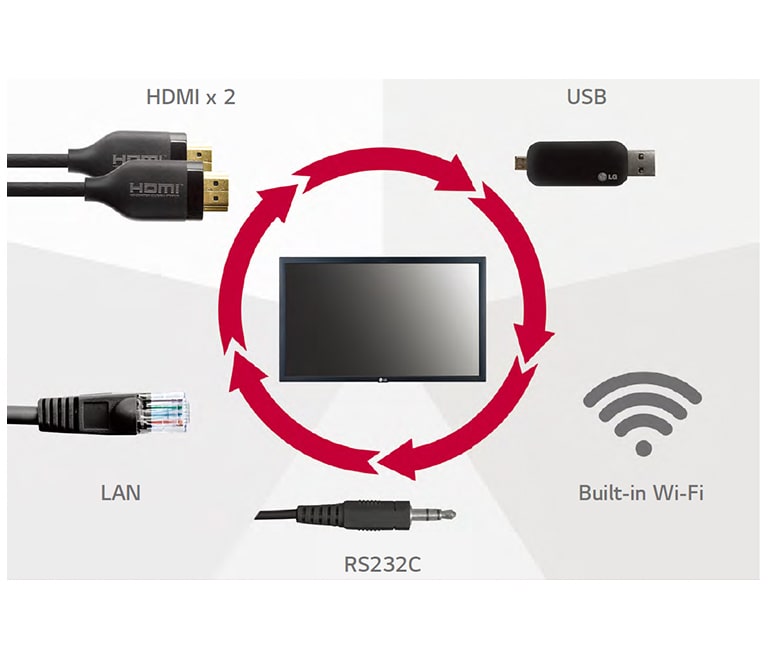

A Wide Range of Interfaces
SMART SIGNAGE PLATFORM

A Wide Range of Interfaces

Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.

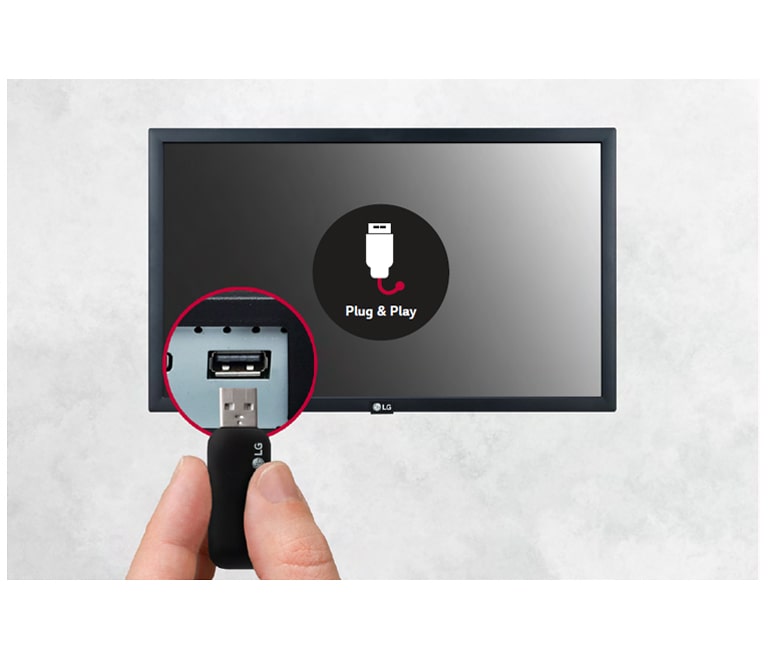

USB Plug
SMART SIGNAGE PLATFORM

USB Plug & Play

22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.

Smart Signage Platform

Smart Signage Platform

Content Sharing

Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion

With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Solution

22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
Remote Monitoring and Control
OPERATIONAL EFFICIENCY

Remote Monitoring and Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Print

All Spec

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    NO / NO

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

SOUND

  • Speaker (Built-in)

    YES (1W x 2)

ACCESSORY

  • Optional

    NO

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 16.3mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    565.0 x 357.0 x 103.0mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    510.3 x 302.1 x 53.8mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    4.74Kg

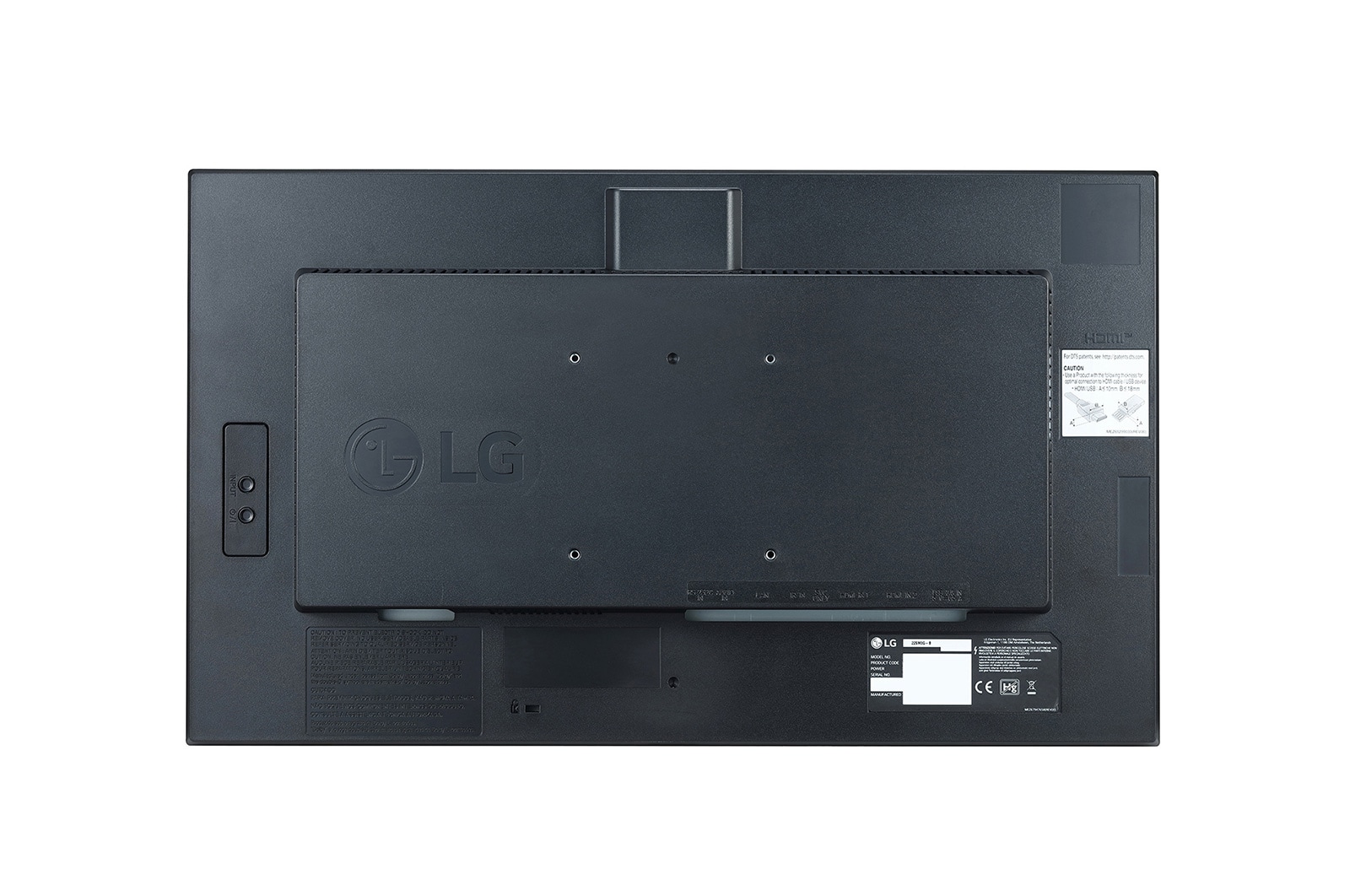

  • VESA Standard Mount Interface

    100 x 100 mm

  • Weight (Head)

    3.34Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    N/A

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    1,000:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    250nit (Typ.)

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Color Gamut

    BT709 95%

  • Dynamic CR

    400,000:1

  • Life time

    30,000Hrs (Min.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    16/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60Hz

  • Response Time

    14ms (G to G)

  • Screen Size (Inch)

    21.5

  • Surface Treatment (Haze)

    Haze 25%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    YES

  • Audio Out

    NO

  • DP In

    NO

  • DP Out

    NO

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    NO

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    NO

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    NO

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    YES (2PBP)

  • PIP

    YES

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    NO

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    NO

  • USB Plug & Play

    YES

  • Video Tag

    YES (2 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    103 BTU/Hr(Typ.), 113 BTU/Hr(Max.)

  • DPM

    0.5W(WOL Off), 3.2W(WOL On)

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    15W±5%

  • Max.

    33W

  • Typ.

    30W
