XS2E Series - 55" Digital Signage

Features

Gallery

Specs

Support

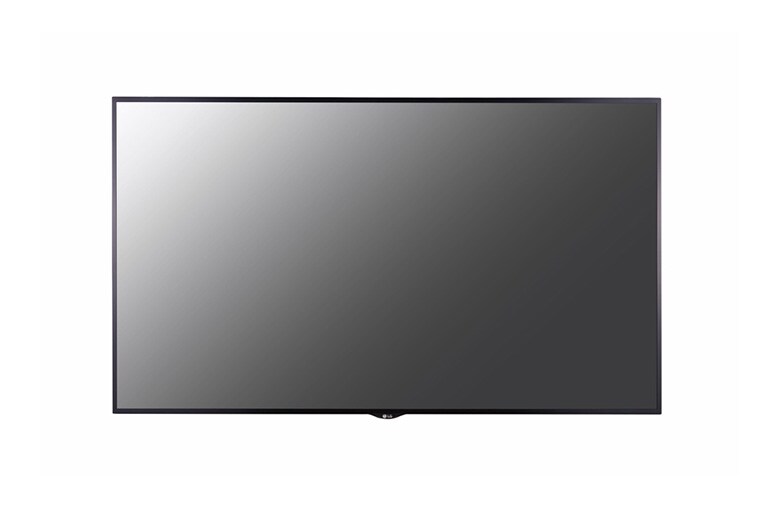

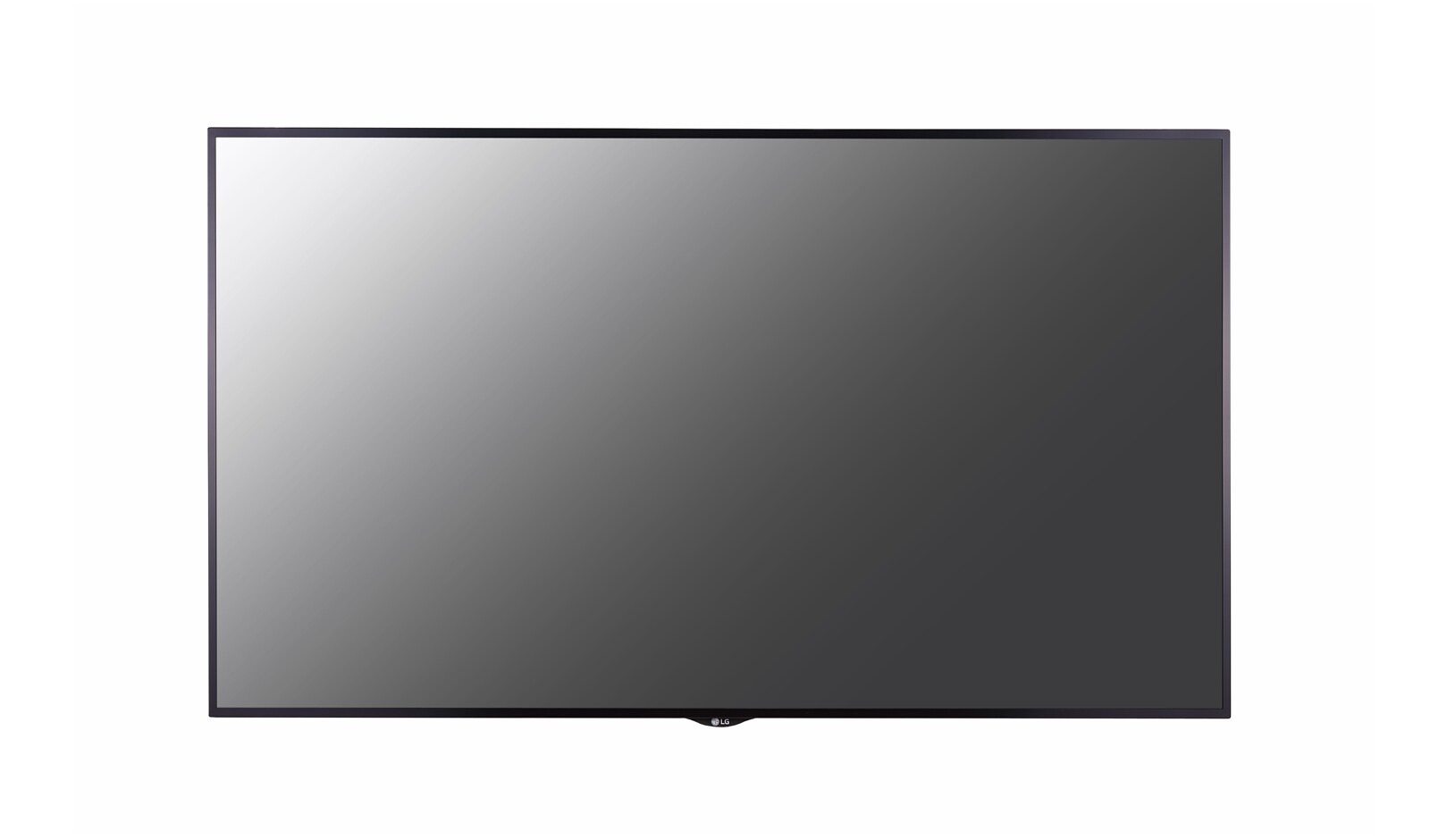

XS2E Series - 55" Digital Signage

55XS2E-B

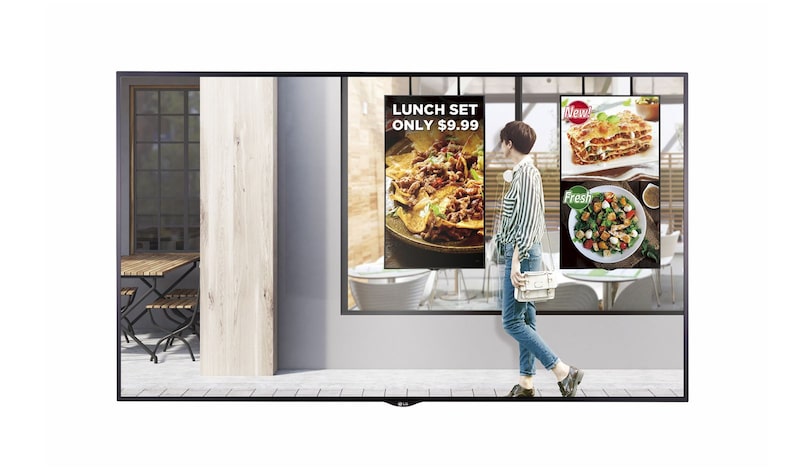

XS2E Series - 55" Digital Signage

()

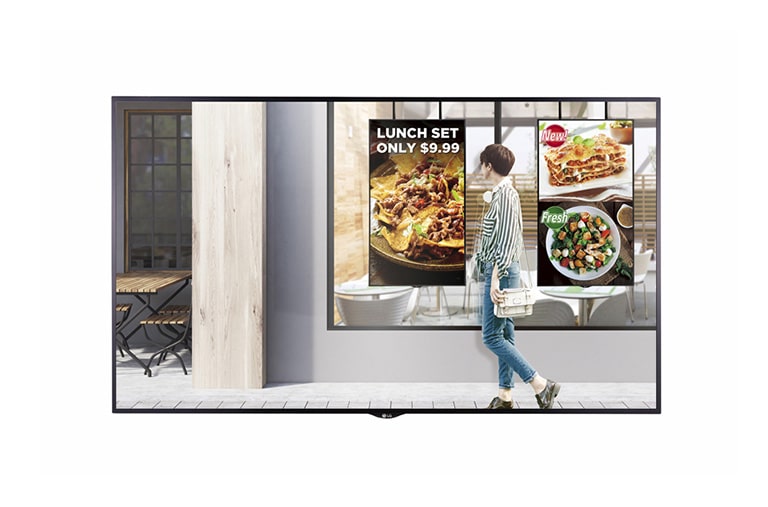

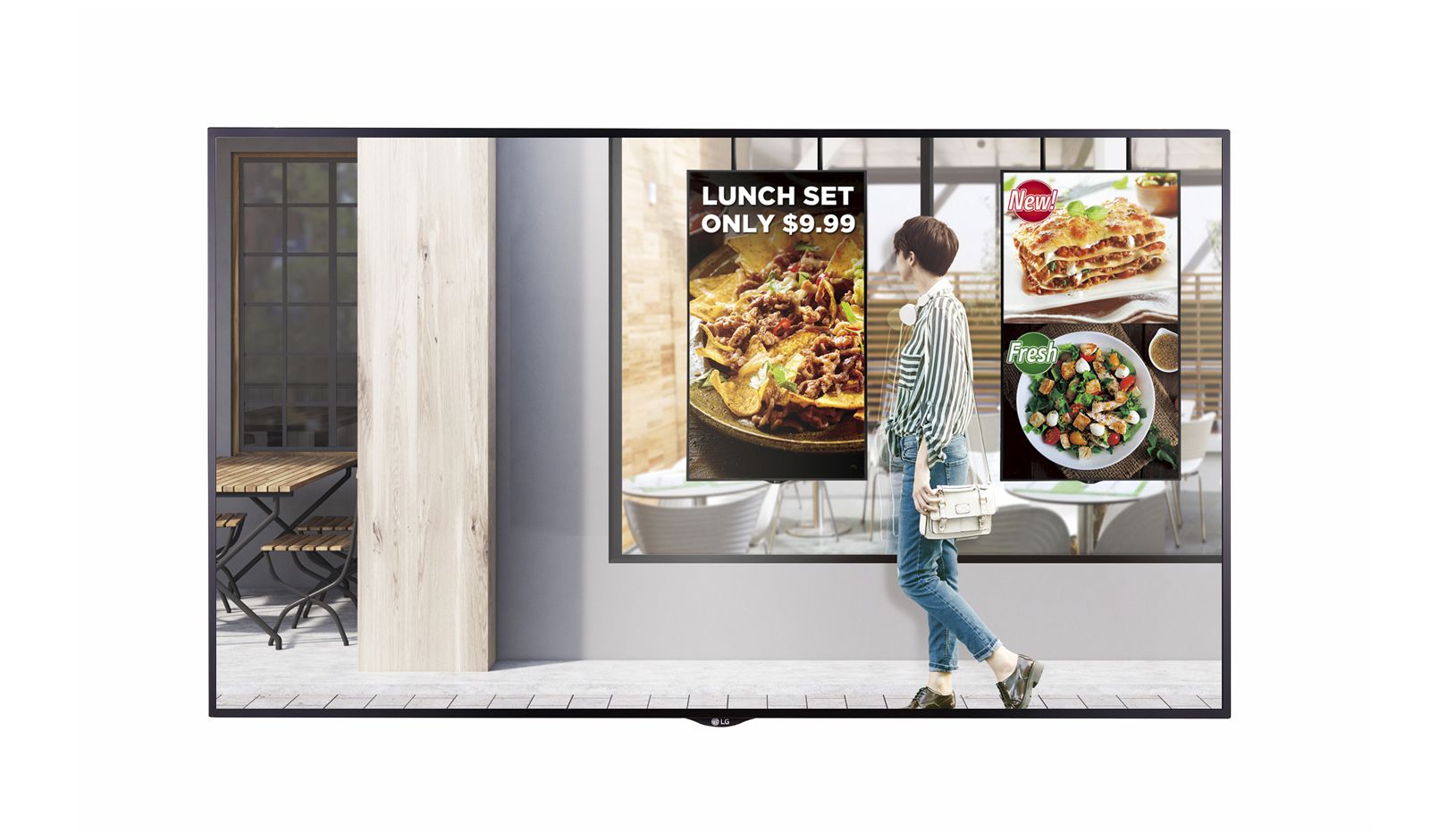

Outstanding Visibility

High Brightness

With a great brightness of 2,500 cd/㎡ , XS series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.
Outstanding Visibility

Visible with Polarized Sunglasses

QWP(Quarter Wave Plate) enables clear visibility even when the viewer is wearing polarized sunglasses.
Quiet Operation

Fan-less Design

By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of daily conversation.
Space Efficiency

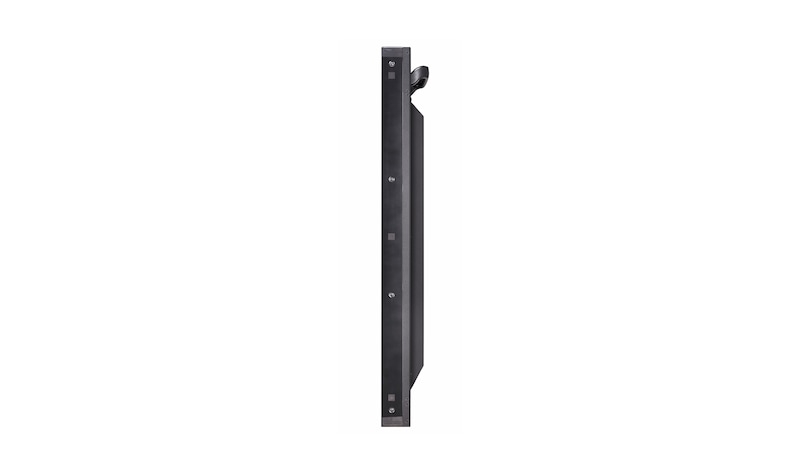

Slim Design

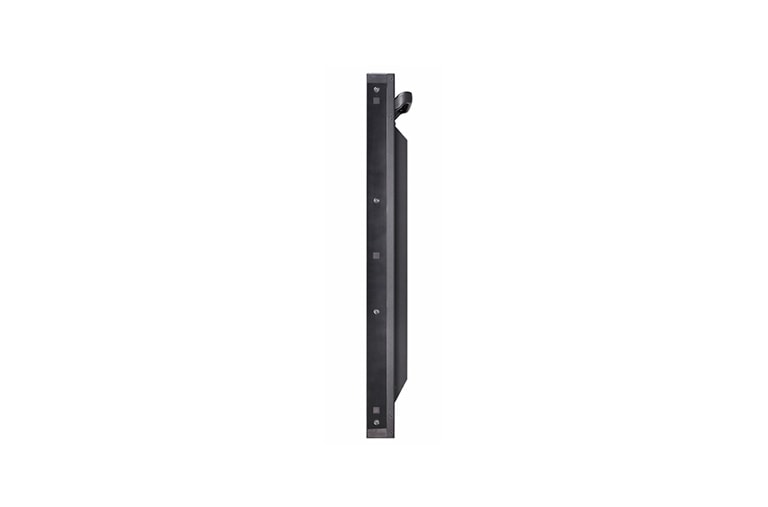

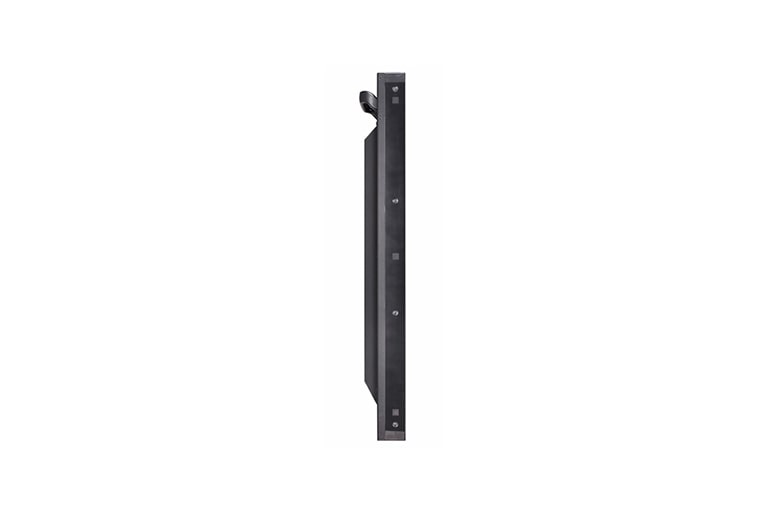

Thanks to its thin depth, the XS series takes up less space, which leads to space efficiency in an in-window environment.
User Convenience

webOS Smart Platform

Quad Core SoC(System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.
User Convenience

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
Print

All Spec

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC / VCCI

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

DEDICATED FEATURE - TOUCH

  • Response Time ('Paint' app on Windows 10 PC)

    N/A

  • Accuracy (Typ.)

    N/A

  • Available Object Size for Touch

    N/A

  • Interface

    N/A

  • Multi Touch Point

    N/A

  • Operating System Support

    N/A

  • Protection Glass Thickness

    N/A

  • Protection Glass Transmission

    N/A

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 45 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 35 °C (Direct Sunlight)

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L/B : 12.0/9.9/9.9/12.0mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    1344 x 820 x 215mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1235.5 x 709.4 x 85.4mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    29.9Kg

  • VESA Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    24.7Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    WM-L640V(Landscape wall mount), WM-P640V(Portrait wall mount), AN-WF500 (Stand is not available)

  • Basic

    Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (ESG&EIG), IR Receiver(w/Ambient Light Sensor)

PROTECTION GLASS

  • Anti-Reflective

    N/A

  • Degree of Protection

    N/A

  • Infrared - Resistance (IR)

    N/A

  • Shatter-Proof

    N/A

  • Tempered / Chemical strengthening

    N/A

  • Thickness

    N/A

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    NO

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    1,000:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    2,500nit (Typ.), 2,250nit (Min.)

  • Color Depth (Number of Colors)

    16.7 Million colors

  • Color Gamut

    NTSC 72%

  • Dynamic CR

    500,000:1

  • Life time

    50,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS / M+

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    YES

  • Refresh Rate

    60Hz

  • Response Time

    9ms (G to G)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 3%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    NO

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

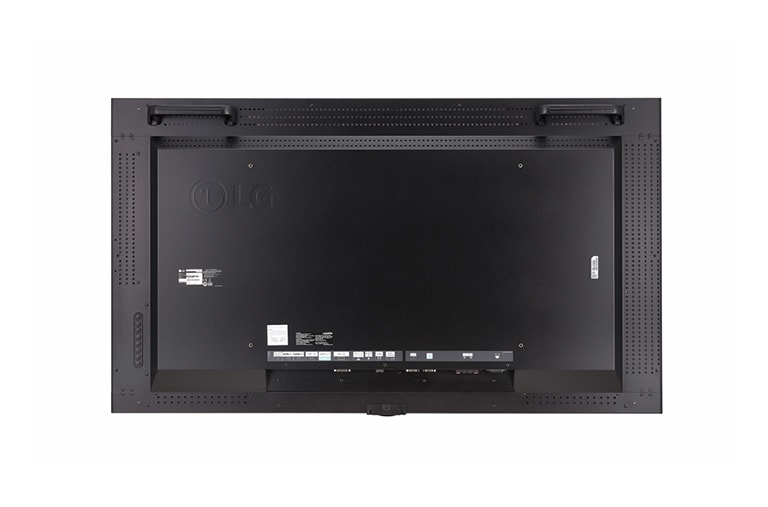

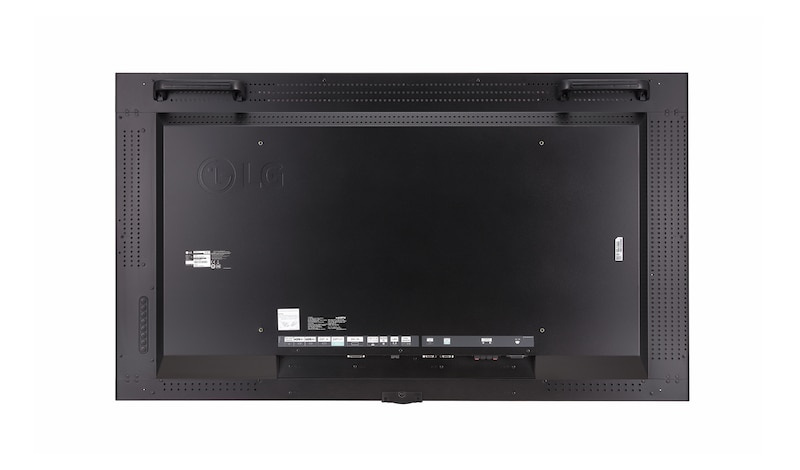

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    YES

  • Audio Out

    NO

  • DP In

    YES (HDCP 1.3)

  • DP Out

    YES

  • DVI-D In

    YES

  • External Speaker Out

    YES

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    NO

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    NO

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    NO

  • OS Ver. (webOS)

    webOS 3.0

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    NO

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (2 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    NO

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    819 BTU/Hr(Typ.), 921 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Max.

    270W

  • Typ.

    240W (Full White) 215W (IEC 62087)
