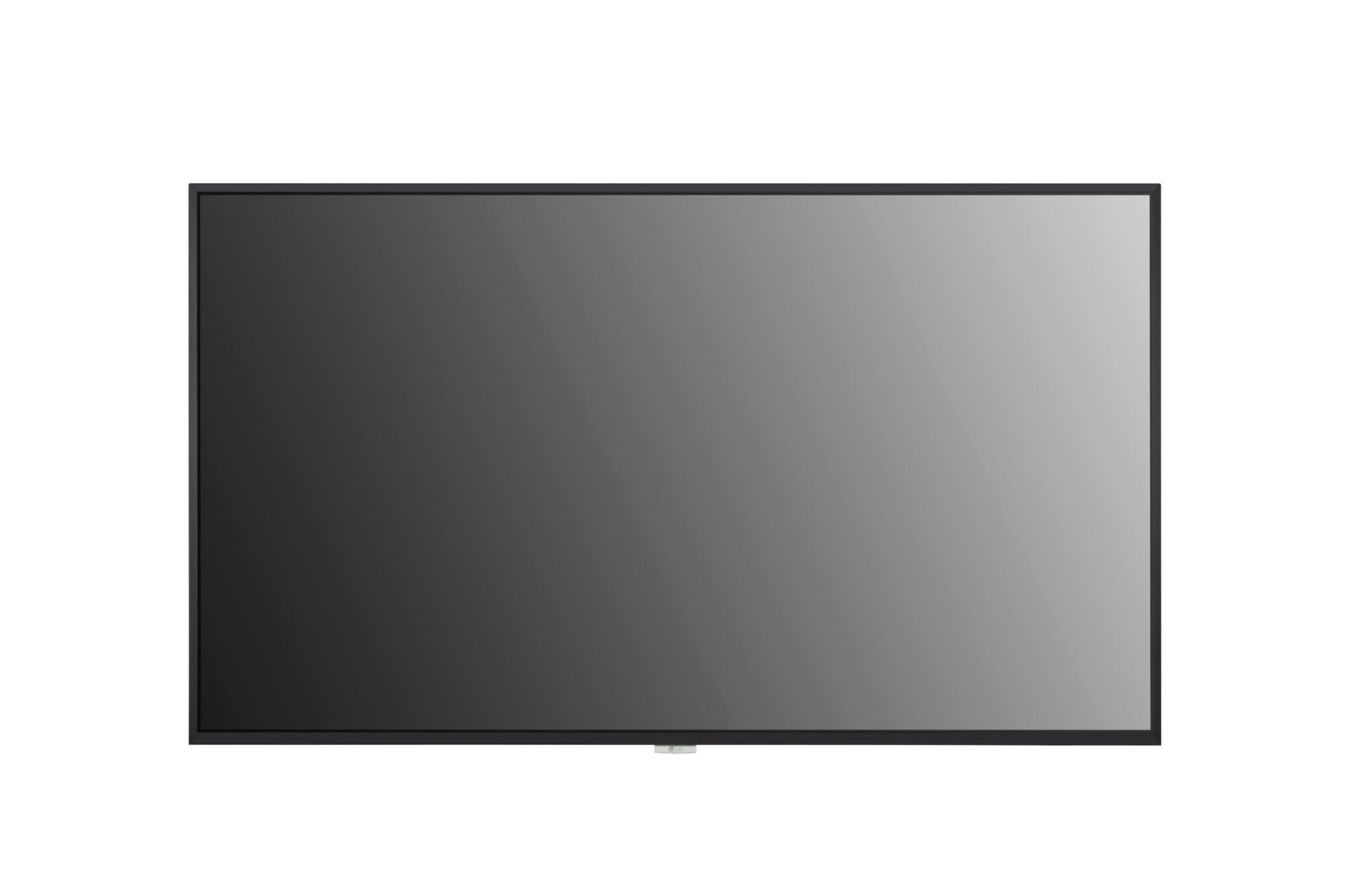

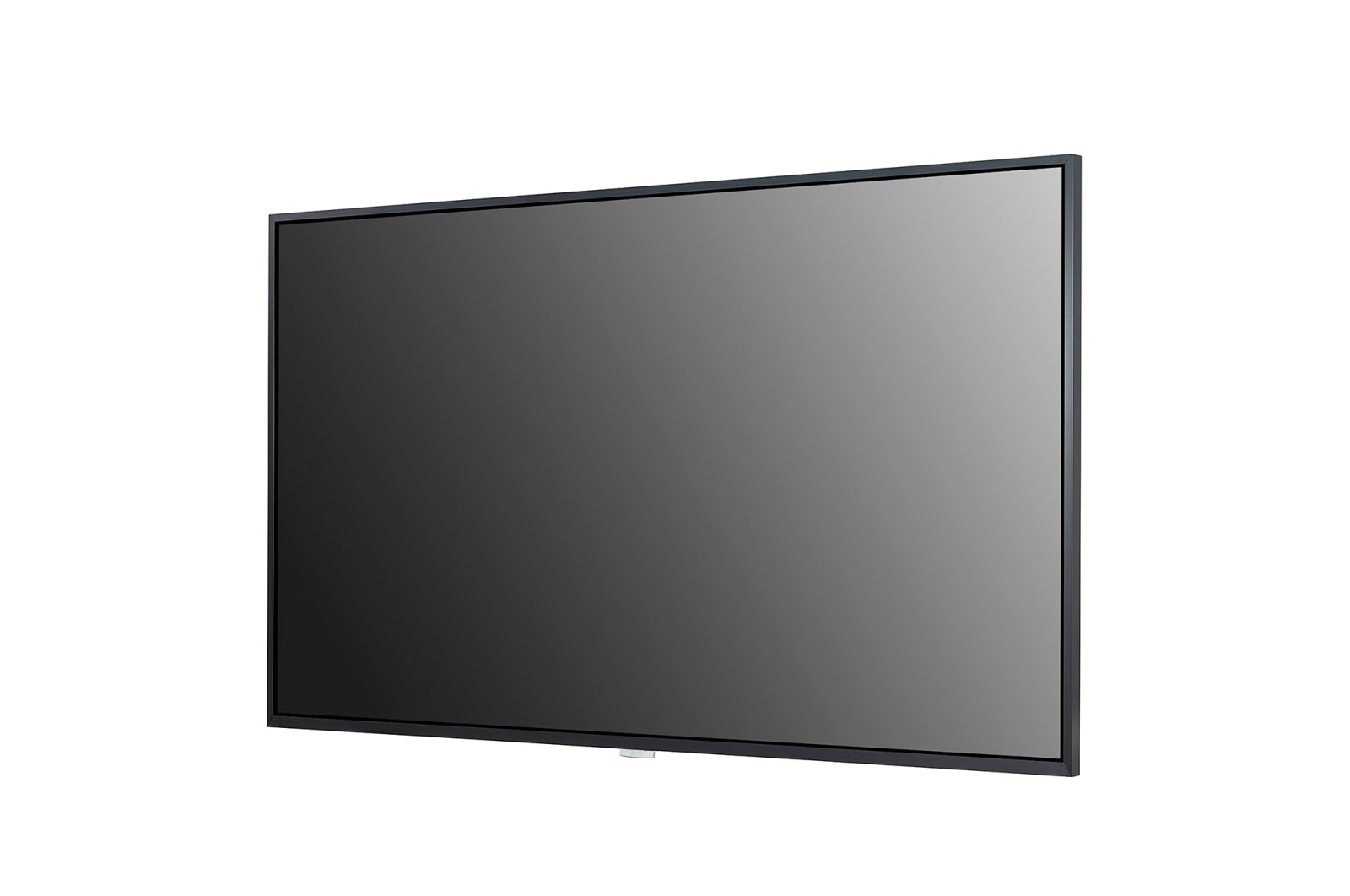

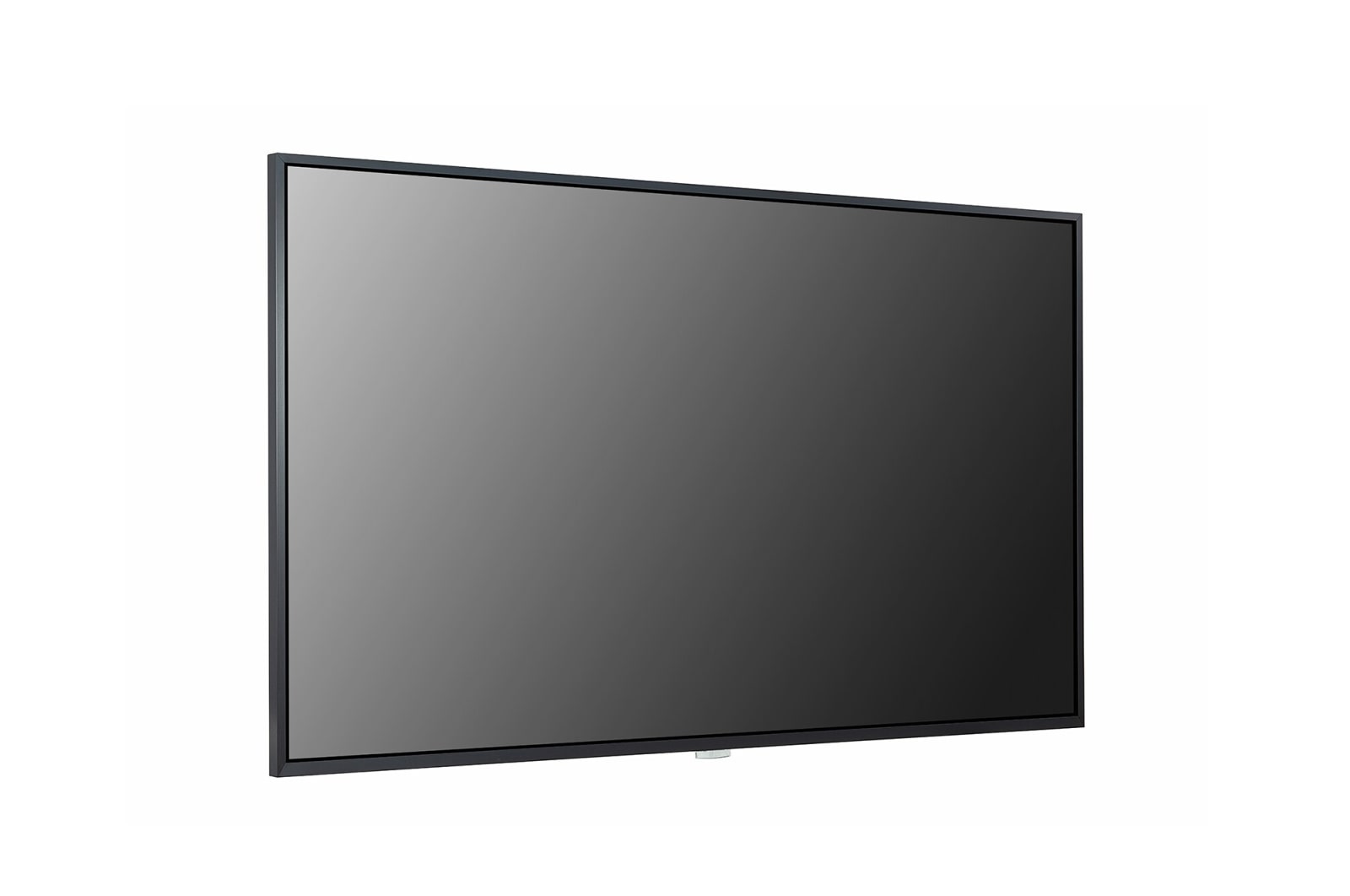

UM3DG Series - 65" Digital Signage

65UM3DG-B

UM3DG Series - 65" Digital Signage

(4)

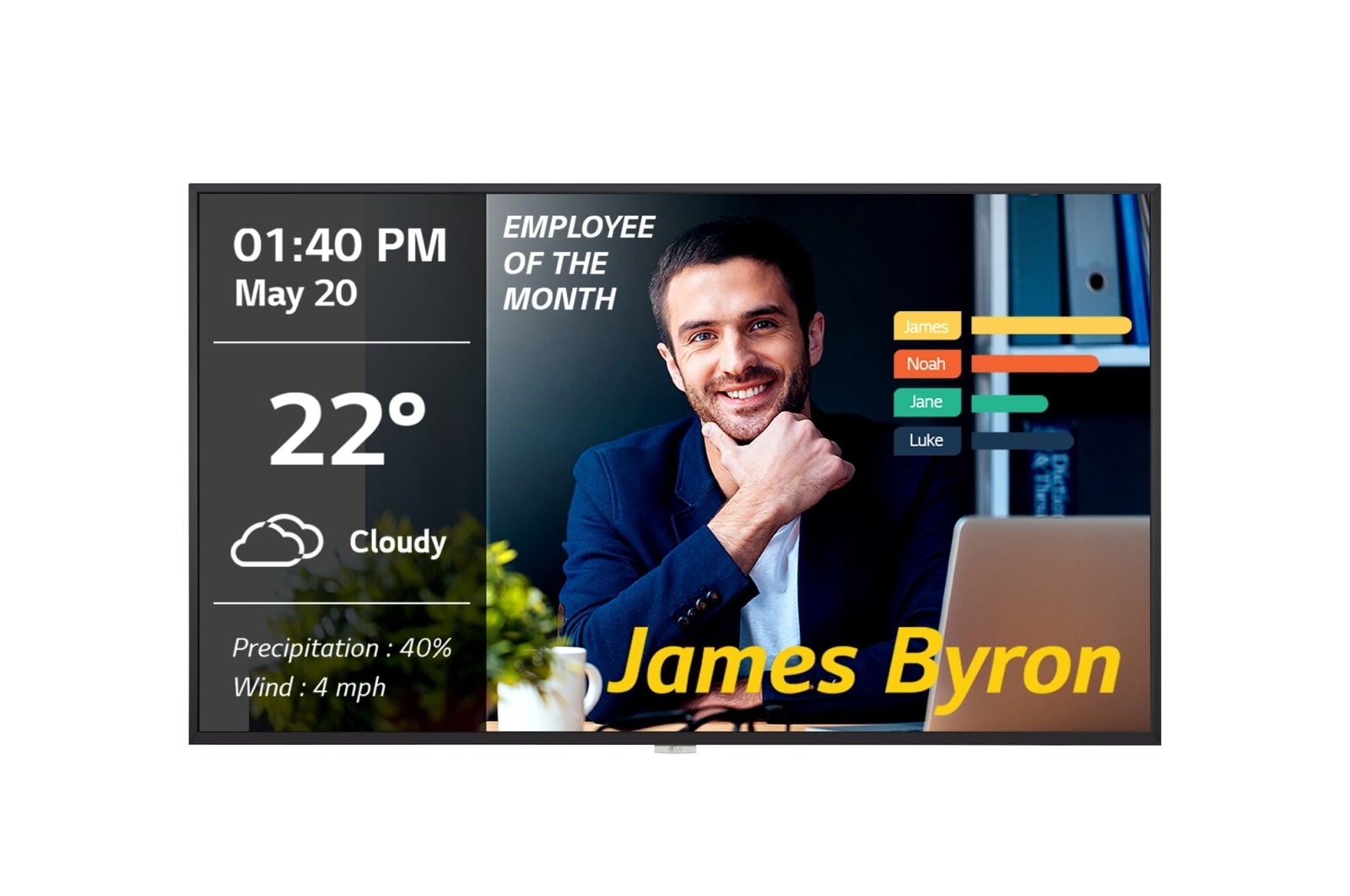

LG UHD Signage

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear contents with no distortion

ULTRA HD Resolution

High Efficiency Video Coding

The UM3DG series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

High Efficiency Video Coding

*High Efficiency Video Coding

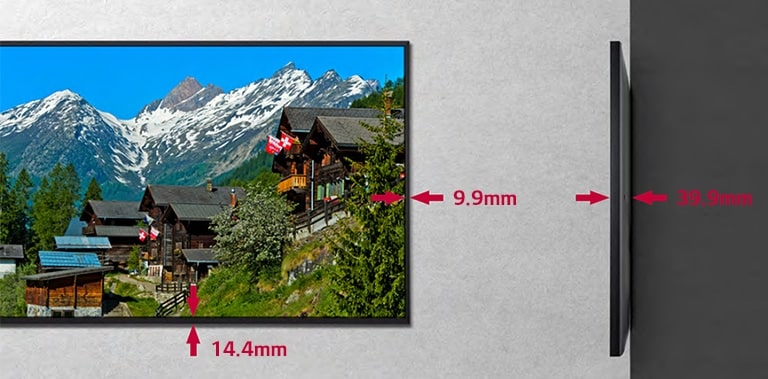

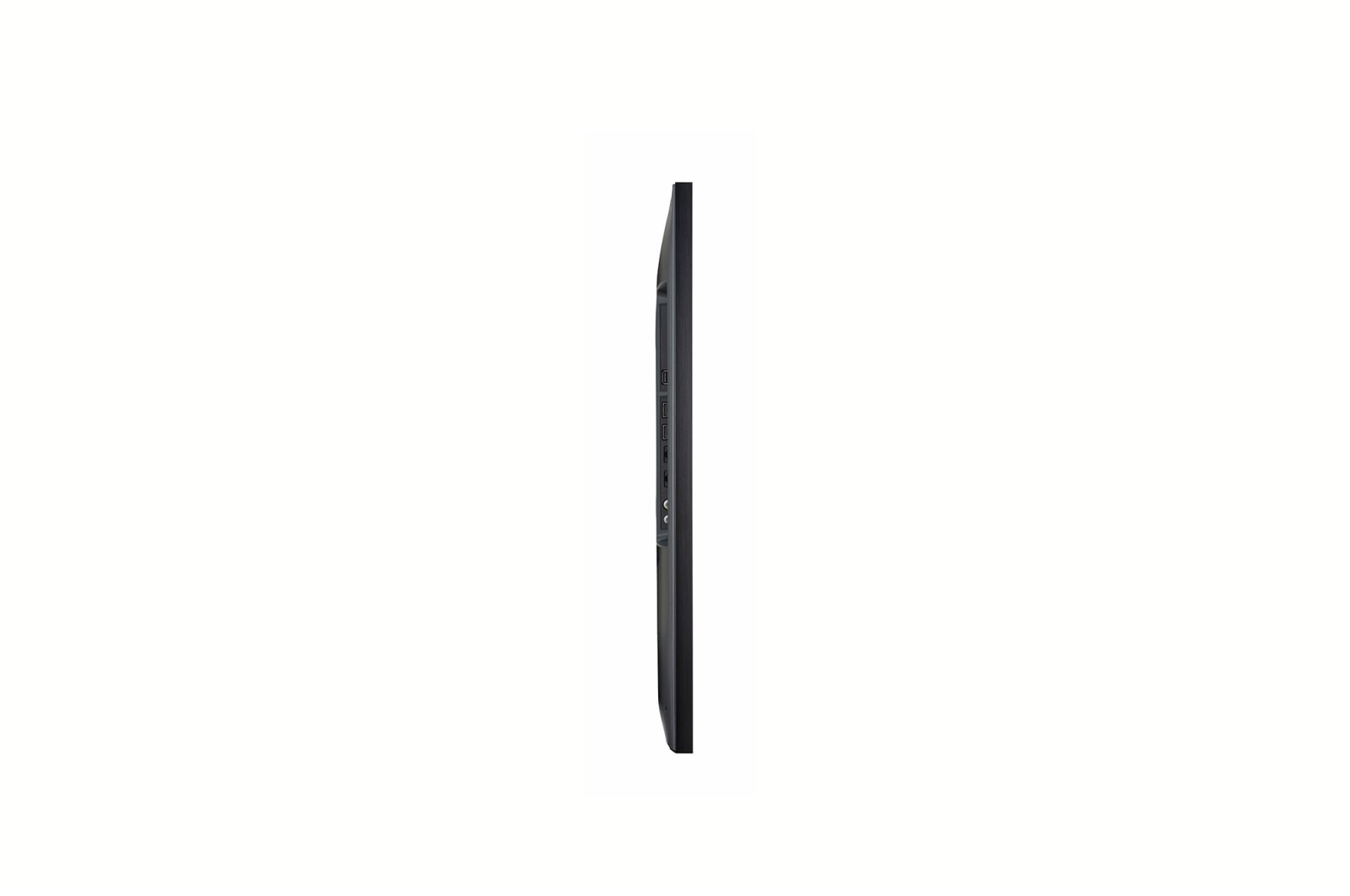

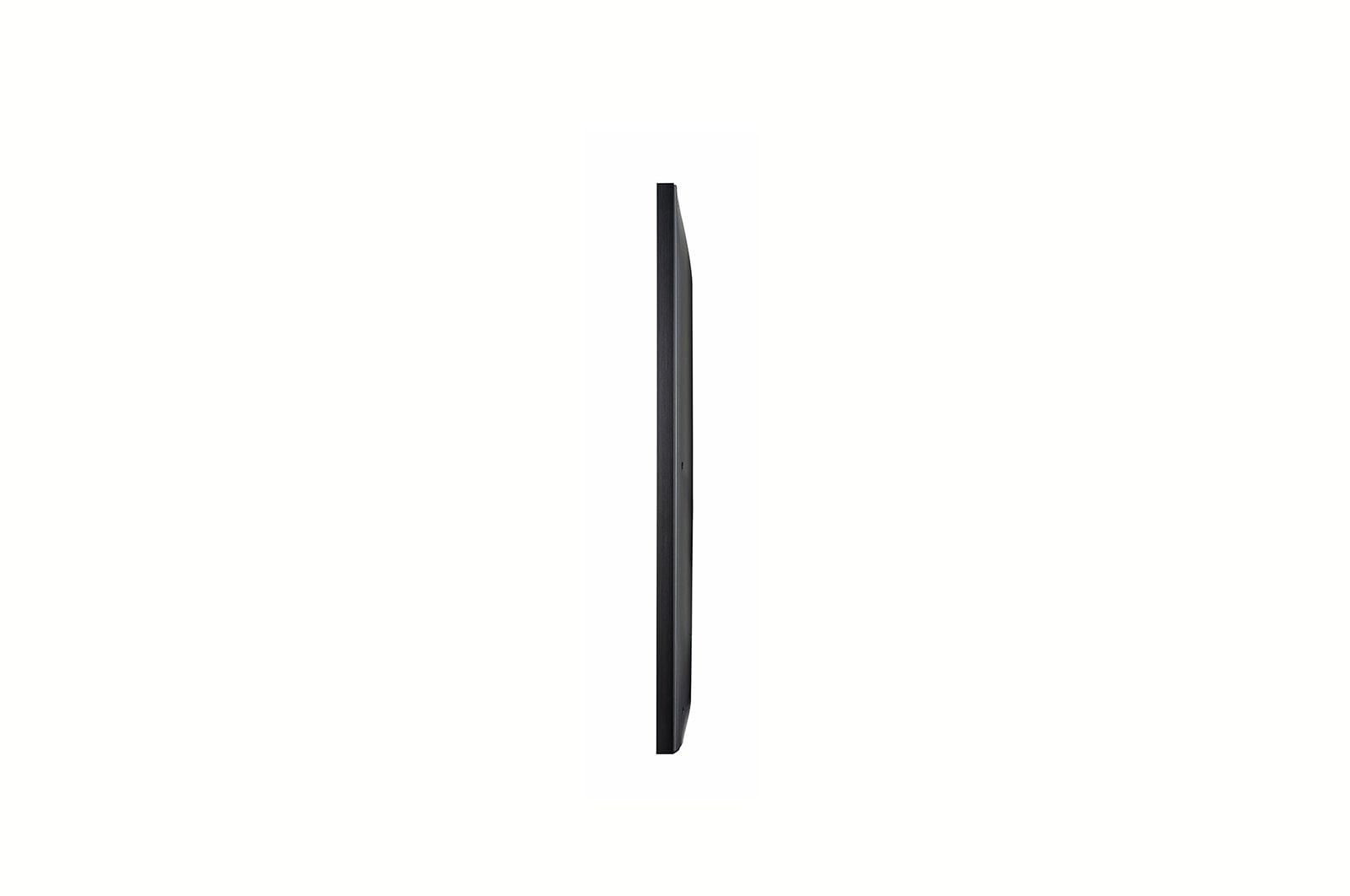

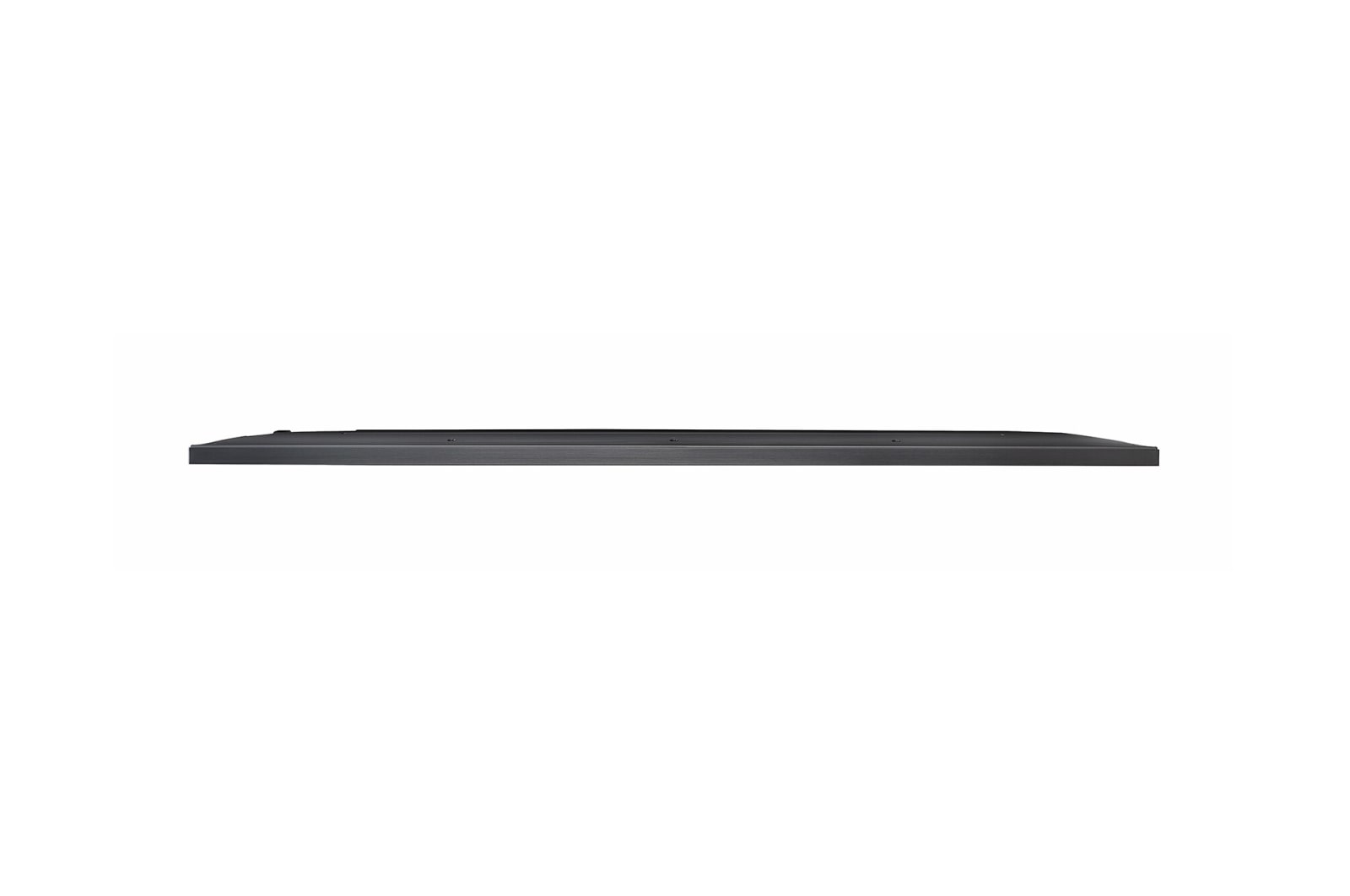

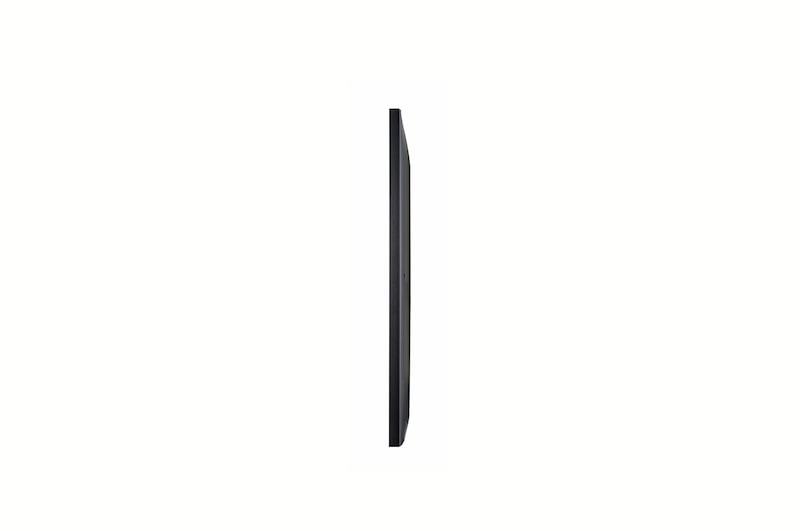

Narrow Bezel & Slim Depth

The UM3DG series has a smaller bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

Narrow Bezel

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Built-in Speaker

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

IP5x Certified Design

15° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UM3DG series supports the installation with 15 degrees of tilt*.

15° Tilting Installation

* Tilt installation of up to 15 degrees facedown is supported. (in conditions within 30°C temperature, 50% humidity)

Remote Monitoring

The UM3DG series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.

Remote Monitoring

Simple Accessibility

Unlike other models where various buttons have to be pressed for control, the UM3DG series provides a single joystick to easily facilitate power on/off, input/setting operation, volume control, etc.

Simple Accessibility

High-Performance with webOS

Built-in SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

High-Performance with webOS

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications.

Compatibility with AV Control System

The UM3DG series has been certified Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

Compatibility with AV Control System

* Network based control

Compatibility with Video Conference System

For the optimum visual meeting, the UM3DG series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

Compatibility with Video Conference System

* Using an HDMI cable connection

ENERGY STAR® Certified

Print

All Spec

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES(NewErP) / YES

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

SOUND

  • Speaker (Built-in)

    YES (10W x 2)

ACCESSORY

  • Optional

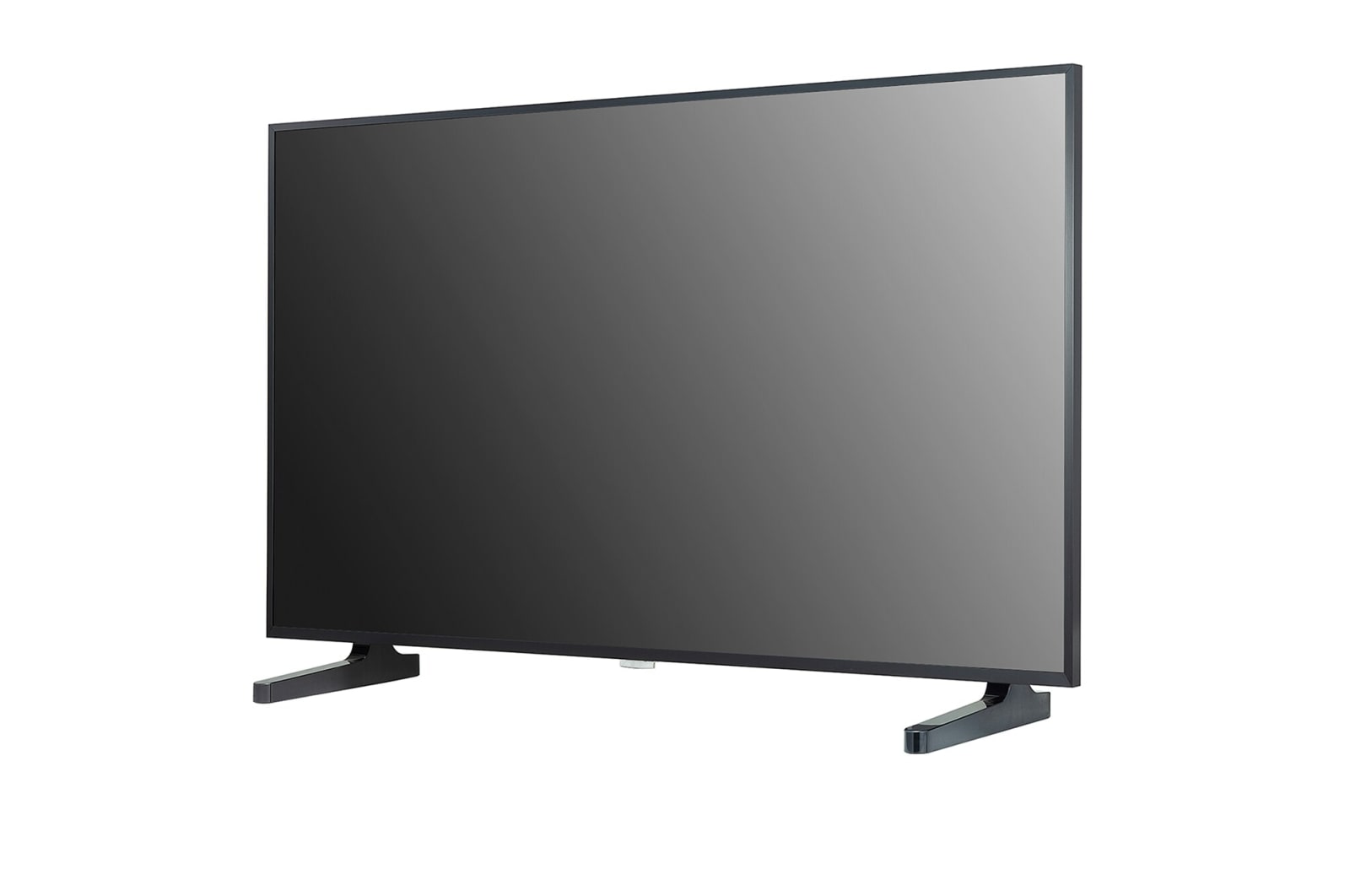

    Stand(ST-653T)

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    T/R/L: 9.9mm, B: 14.4mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    1600.0 x 1095.0 x 175.0mm

  • Handle

    NO

  • Monitor Dimensions (W x H x D)

    1453.3 x 832.8 x 39.9mm (without LG Logo)

  • Monitor Dimension with Stand (W x H x D)

    1453.3 x 893.1 x 290.0mm

  • Packed Weight

    35.0Kg

  • VESA Standard Mount Interface

    300 x 300 mm

  • Weight (Head)

    28.2Kg

  • Weight (Head+Stand)

    28.8Kg

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    NO

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    YES

  • Promota

    YES

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    IP5X

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    Max. 15 degree

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    1,200:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Edge

  • Brightness

    350nit (Typ.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    BT709 95%

  • Dynamic CR

    500,000:1

  • Life time

    50,000Hrs (Min.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Operation Hours (Hours/Day)

    18/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    65

  • Surface Treatment (Haze)

    Haze 1%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    YES

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    YES

CONNECTIVITY

  • Daisy Chain

    NO

  • Audio In

    NO

  • Audio Out

    YES

  • DP In

    NO

  • DP Out

    NO

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (3ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    YES

  • Booting Logo Image

    YES

  • Brightness Compensation

    NO

  • Cisco Certification

    YES

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    NO

  • Screen Rotation

    YES

  • Screen Share

    YES

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    NO

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    359 BTU/Hr(Typ.), 546 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    74W

  • Max.

    160W

  • Typ.

    105W
