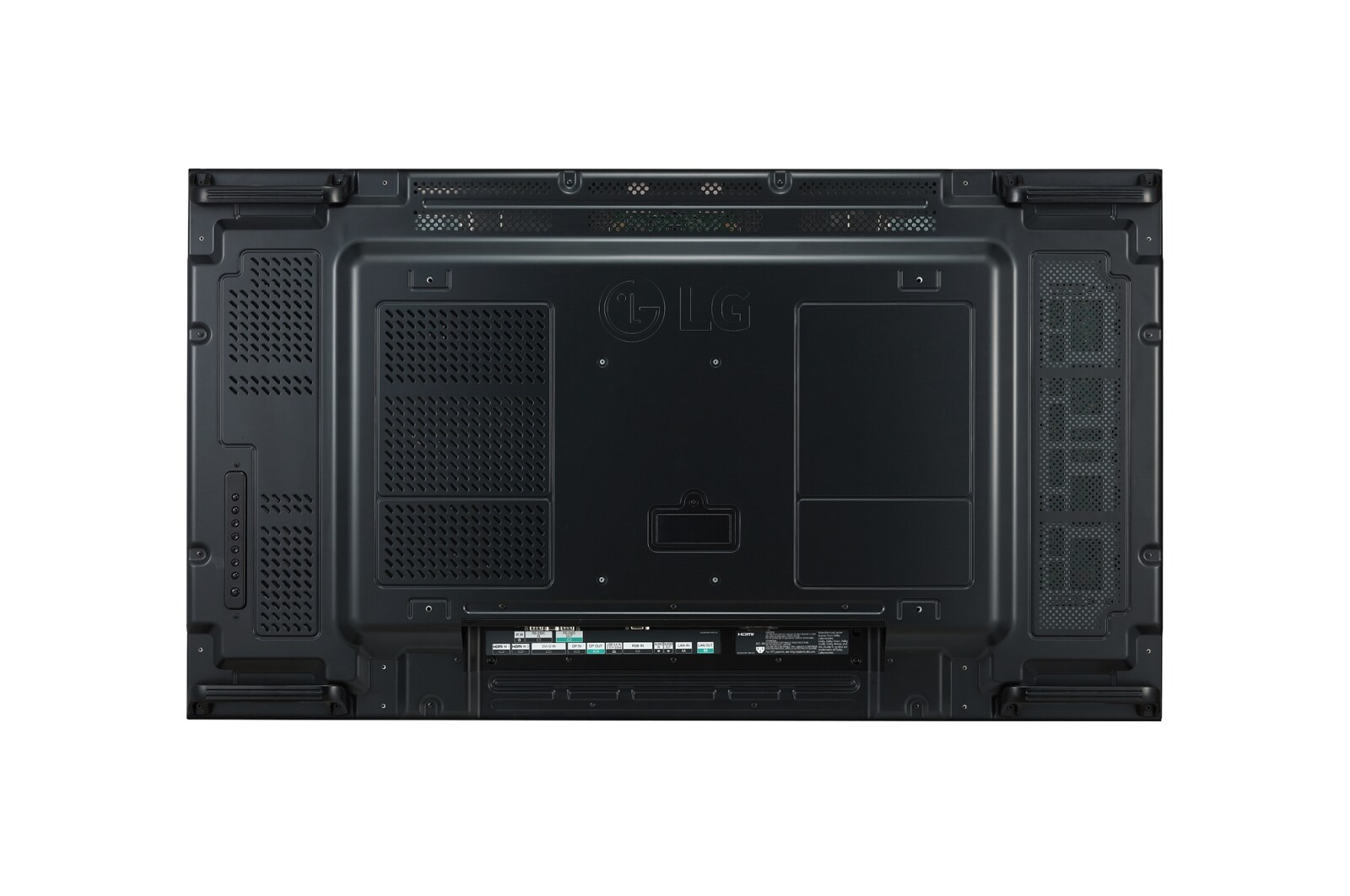

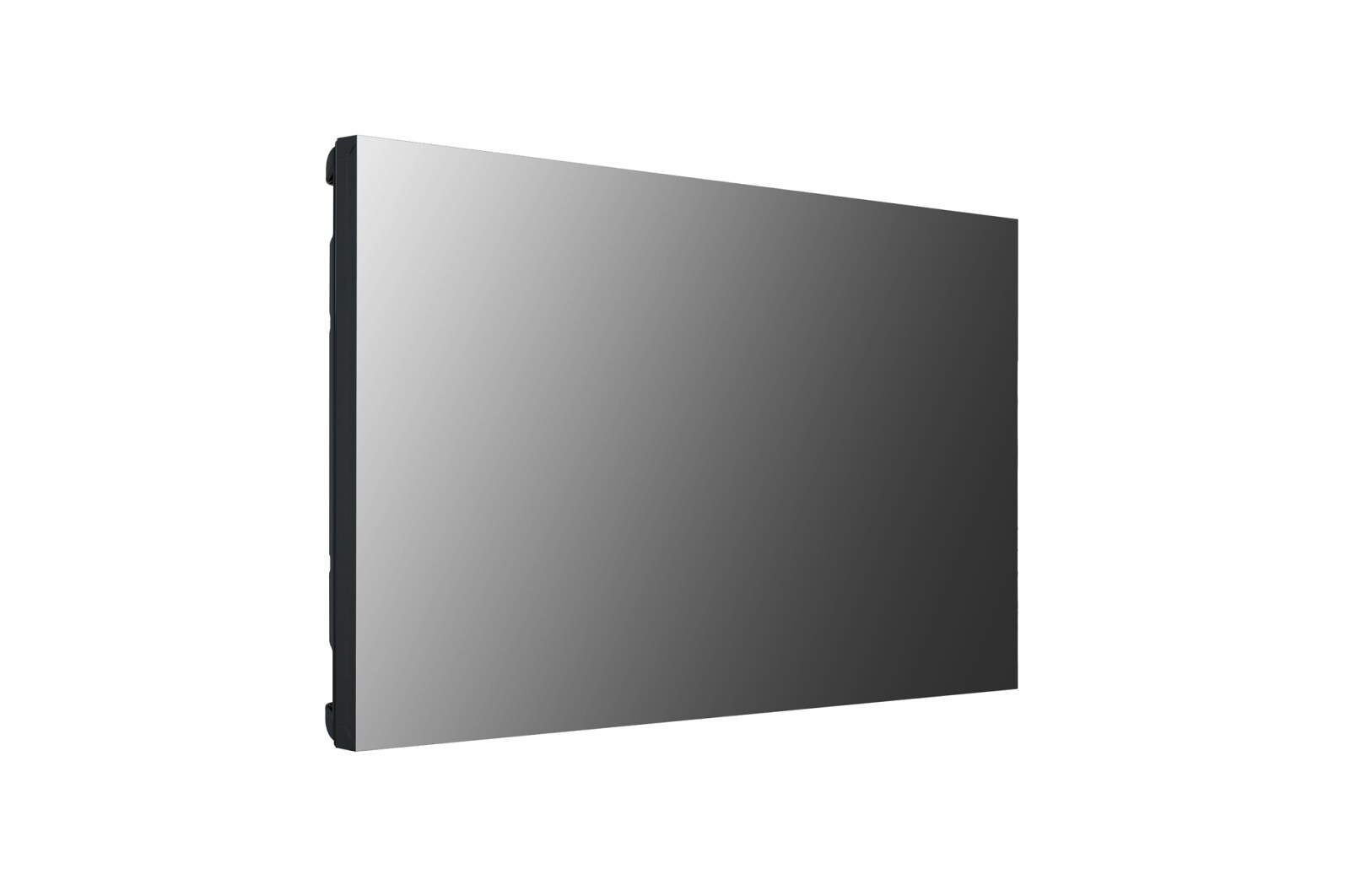

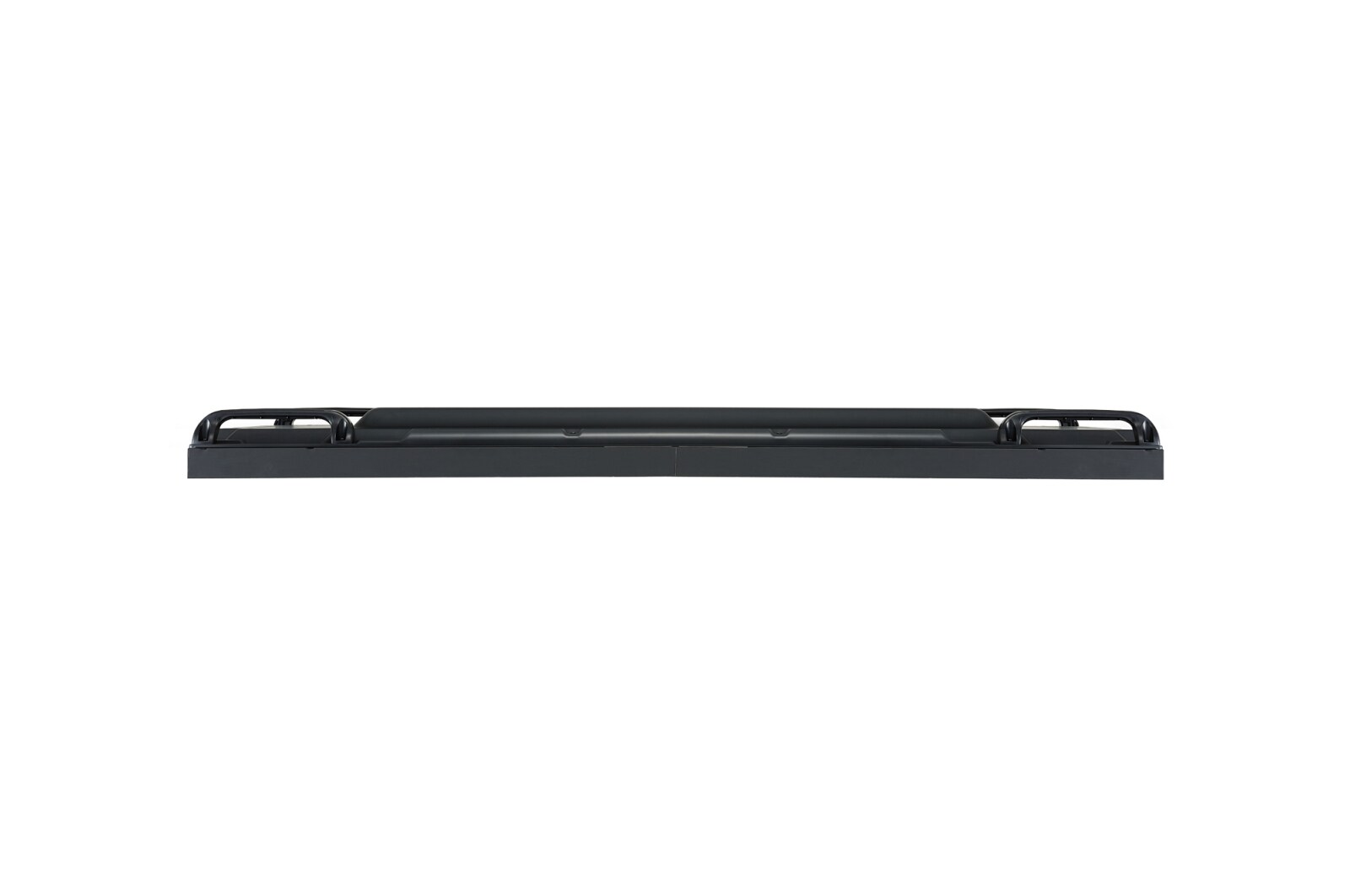

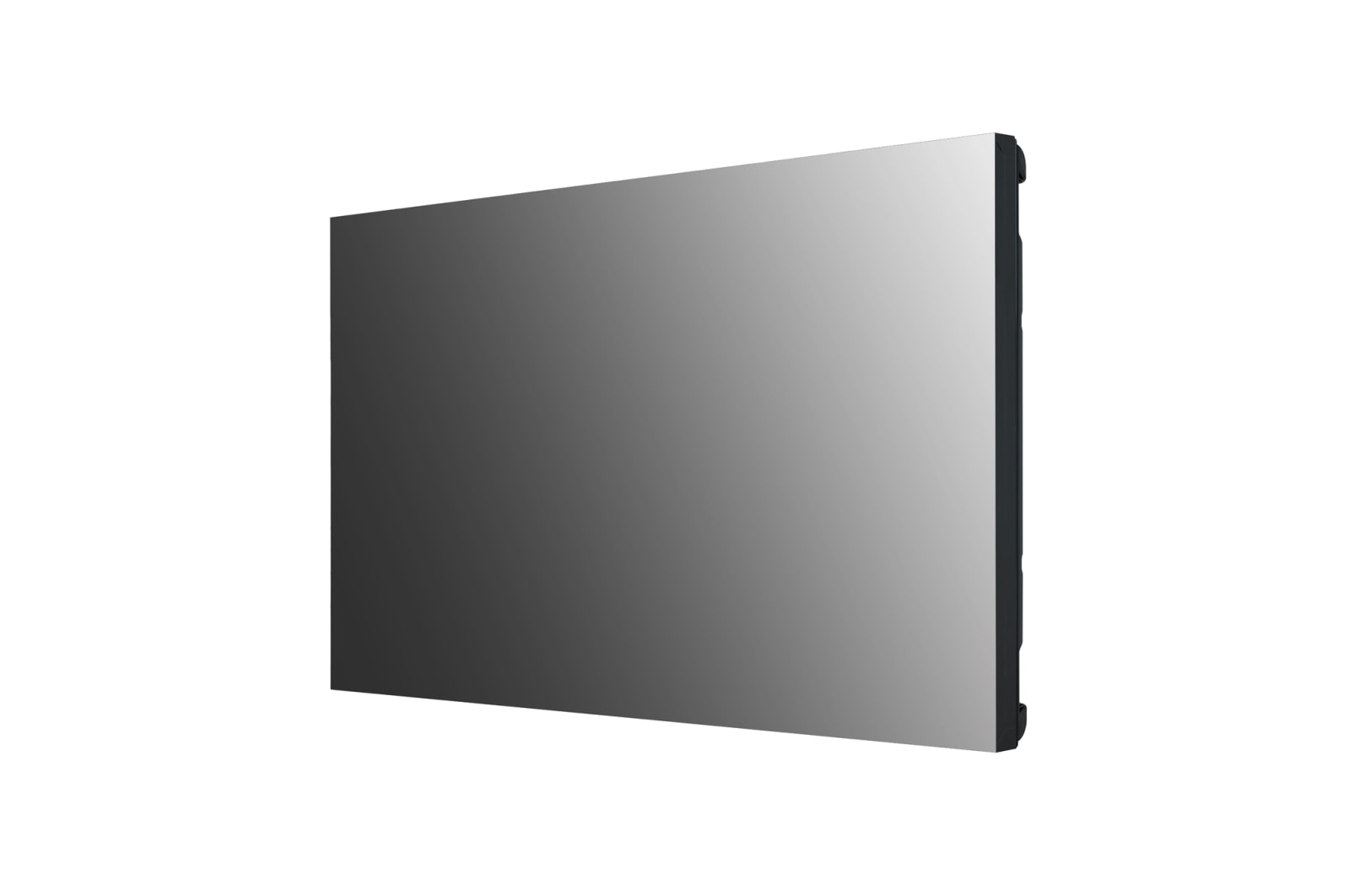

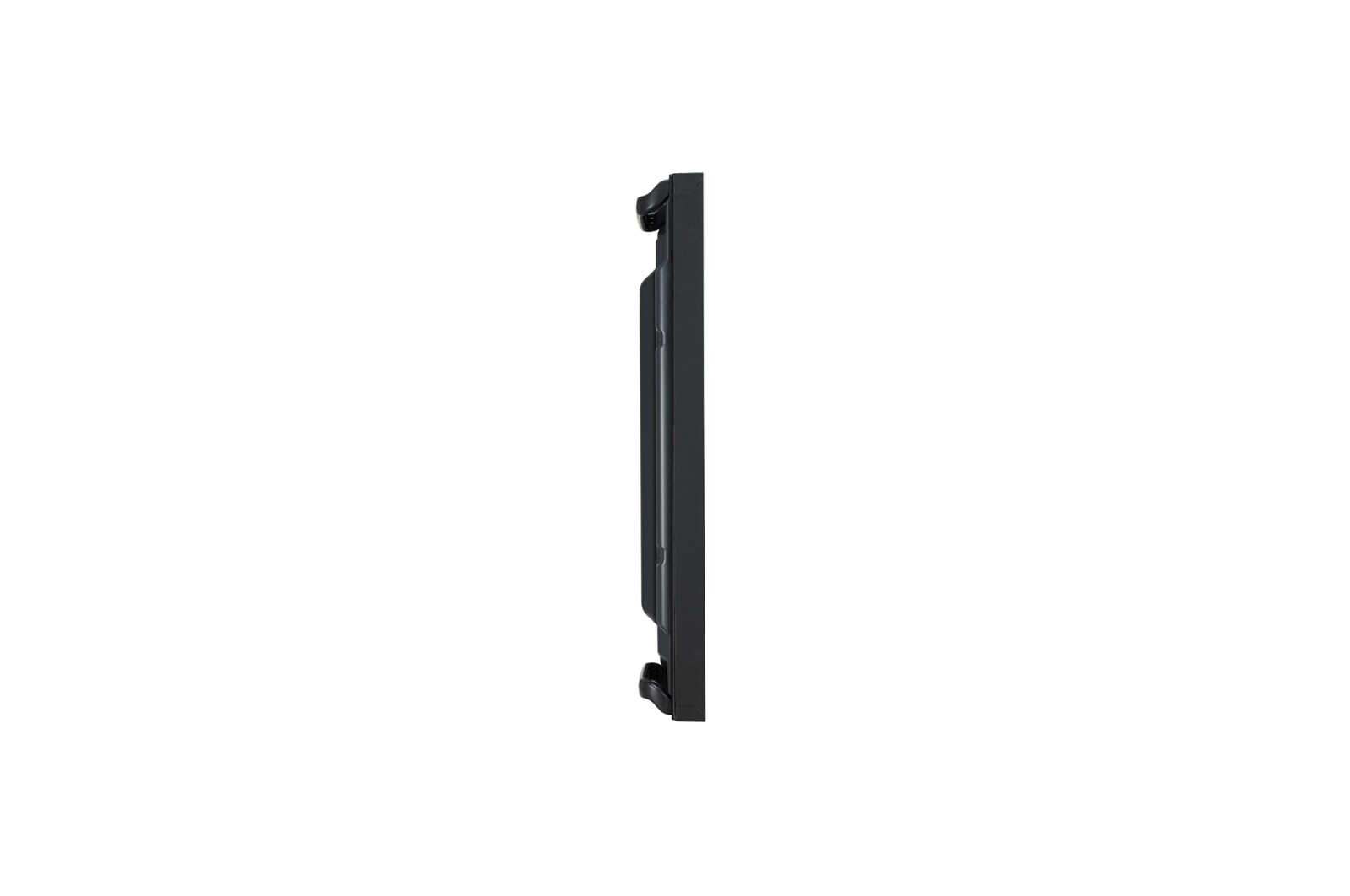

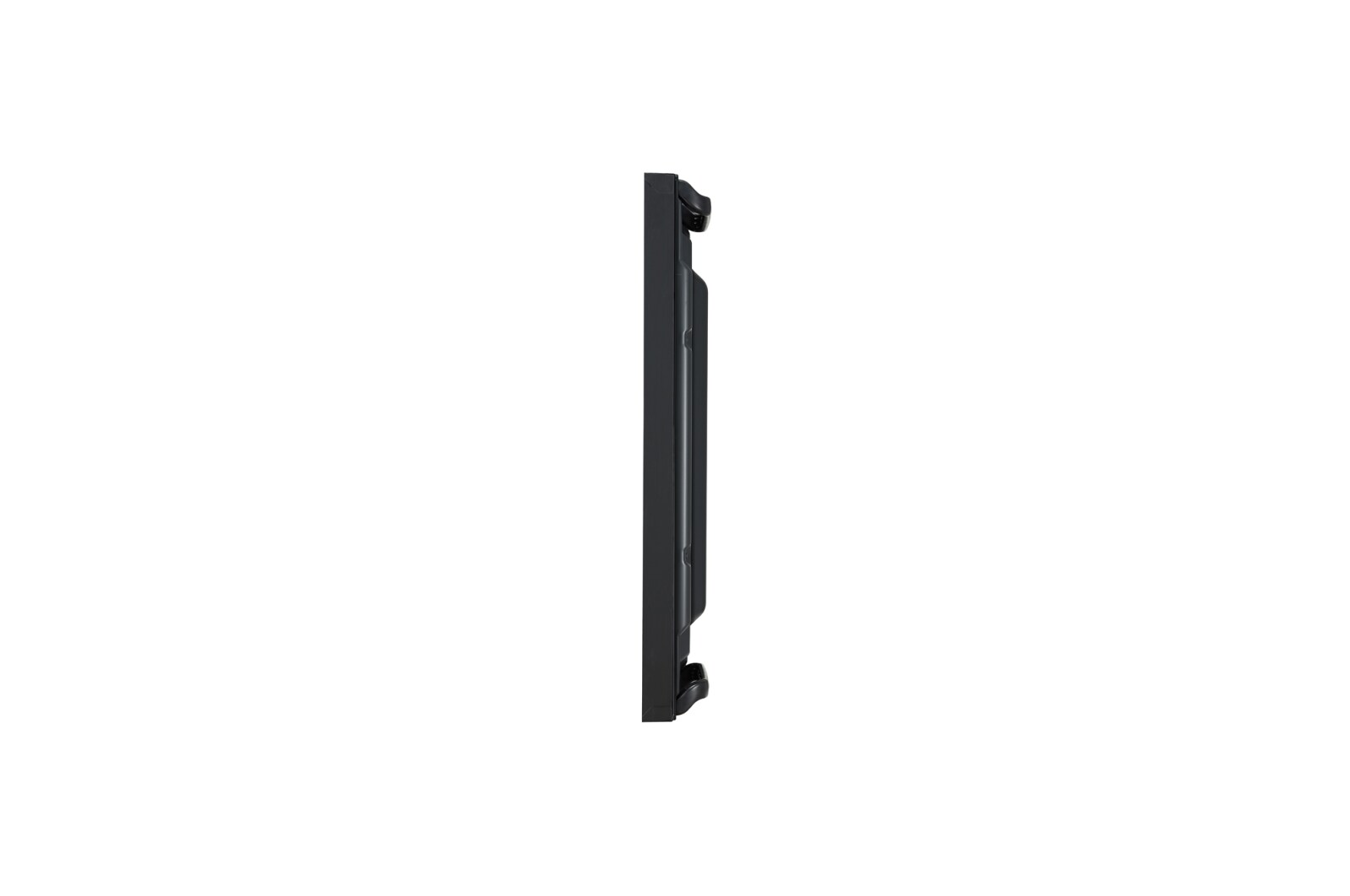

SVH7PF 55" Video Wall with Razor-thin Bazel
![](/content/dam/channel/wcms/hk_en/business/images/digital-signage/55svh7pf-h_ahk_echk_hk_en_b/gallery/medium10.jpg)
All Spec
PANEL
-
Screen Size
55"
-
Panel Technology
IPS
-
Aspect Ratio
16 : 9
-
Native Resolution
1,920 x 1,080 (FHD)
-
Brightness(Typ.,cd/m²)
700
-
Contrast Ratio
1,100:1
-
Viewing Angle (H x V)
178 x 178
-
Response Time
8 ms (G to G)
-
Surface Treatment
Haze 28%
-
Life Time (Typ.)
60,000 Hrs
-
Operation Hours
24 Hrs
-
Orientation
Landscape & Portrait
CONNECTIVITY
-
Input
HDMI (2), DP, DVI-D, Audio, USB, Power In, Power Loop In
-
Output
DP, Audio, Power Loop Out
-
External Control
RS232C In/out, RJ45 (LAN) In/out, IR In
MECHANICAL SPECIFICATION
-
Bezel Color
Black
-
Bezel Width
0.44 mm (Even)
-
Monitor Dimension (W × H × D)
1,210.51 x 681.22 x 86.5mm
-
Weight (Head)
16.8 kg
-
Carton Dimensions (W × H × D)
1,353 x 855 x 263 mm
-
Packed Weight
23.6 kg
-
Handle
Yes
-
VESA™ Standard Mount Interface
600 x 400 mm
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Type
External Power Box (An external power box (LPLG001-FV) needs to be purchased separately.)
POWER CONSUMPTION
-
Typ.
188W
-
Max.
240W
STANDARD(CERTIFICATION)
-
EMC
FCC Class "A" / CE / KC
MEDIA PLAYER COMPATIBILITY
-
OPS Type compatible
Yes (Piggyback)
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control / Control+
ACCESSORY
-
Basic
Remote Controller, RS232C Cable, Lan Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual, Power loop cable
-
Optional
Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), External Power Box (LPLG001-FV3)), Power cable (6m, ACC-LAPPC06), Power cable (60m, ACC-LAPPC60), OPS Kit (KT-OPSF)
-
