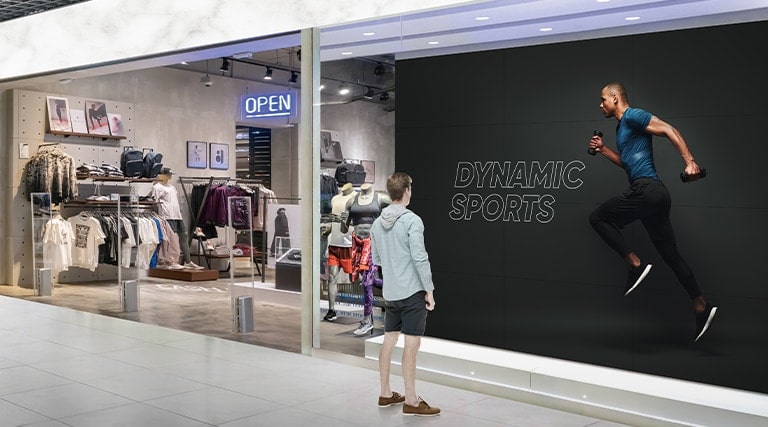

A man is looking at a big screen attached to the window of a sports store.
* All images in this web page are for illustrative purposes only.
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

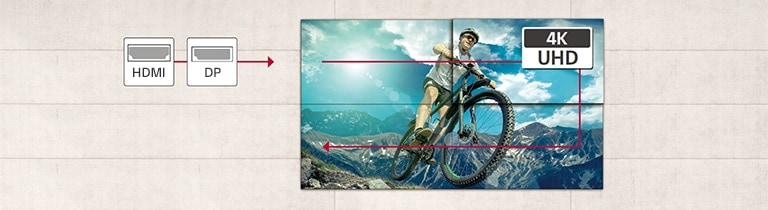

Multiple displays are being managed simultaneously through the daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
The LG employee is remotely monitoring the VL5PJ installed in a different place by using cloud-based LG monitoring solution.
* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.
* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
Screen Size (Inch)
55"
Panel Technology
IPS
Back Light Type
Direct
Aspect Ratio
16 : 9
Native Resolution
1,920 x 1,080 (FHD)
Refresh Rate
60Hz
Brightness
500
Contrast Ratio
1,200:1
Dynamic CR
500,000 : 1
Color Gamut
NTSC 72%
Viewing Angle (H x V)
178x178
Color Depth (Number of Colors)
10bit, 1.07Billion colors
Response Time
8 ms (G to G)
Surface Treatment (Haze)
3%
Life time
60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
Yes / Yes
Bezel Color
Black
Bezel Width
T/R/L/B : 2.25/1.25/2.25/1.25mm
Weight (Head)
23.5 Kg
Packed Weight
26.9 Kg
Monitor Dimensions (W x H x D)
1,213.4 x 684.2 x 93.1 mm
Handle
Yes
VESA Standard Mount Interface
600 x 400
Carton Dimensions (W x H x D)
1,337 x 247 x 833 mm
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power
BTU (British Thermal Unit)
461 BTU/Hr(Typ.), 512 BTU/Hr(Max)
Smart Energy Saving (70%)
115 W
DPM
0.5 W
Power off
0.5 W
Max.
150 W
Typ.
135 W
Safety
CB / NRTL
EMC
FCC Class “A” / CE / KC
ERP / Energy Star
Yes / Energy Star 8.0
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes
Connected Care
Yes
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
IP Rating
IP5X tested
