Artistic Immersion, Overwhelming Captivation

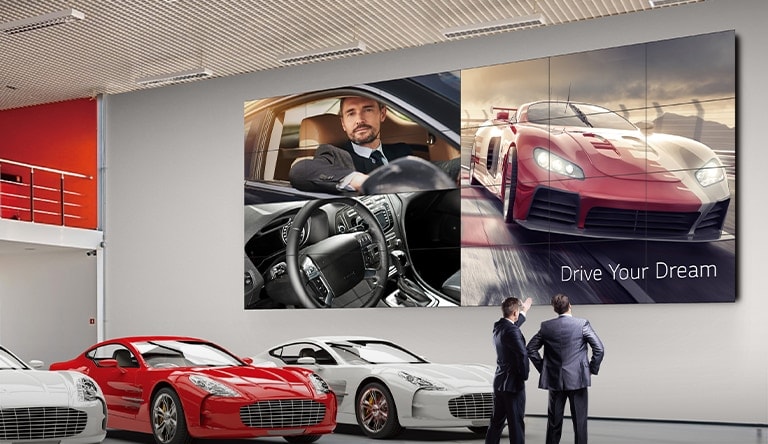

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.
Seamless Large Screens with Extreme-Narrow Bezel

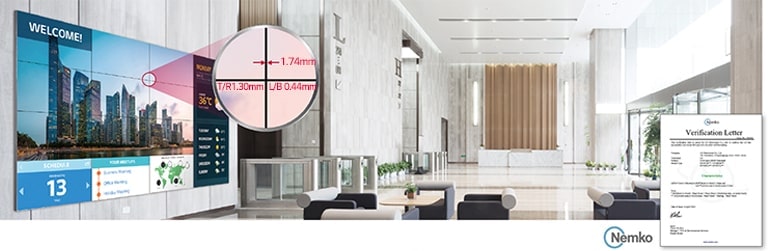

A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.
Image Gap Reduction

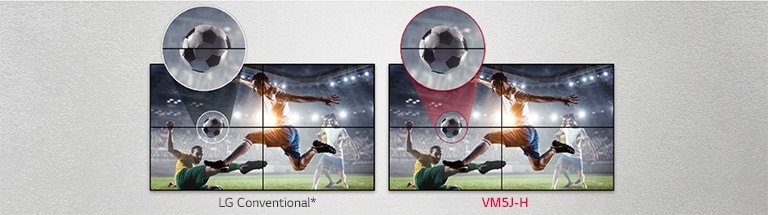

VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.
** The image shown above are for illustration purposes only.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
* Supported protocols : RTSP, RTP, HLS, UDP Multicast
Conformal Coating
The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.
EMC Class B Certified
The VM5J-H, certified with EMC class B, is installed on the control room wall.
Daisy Chain Capability
Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.
IP5x Certified Design
The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.

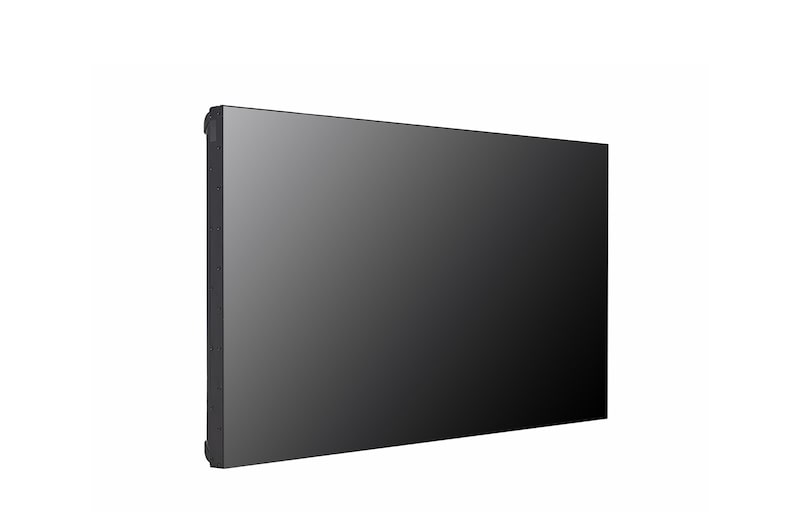

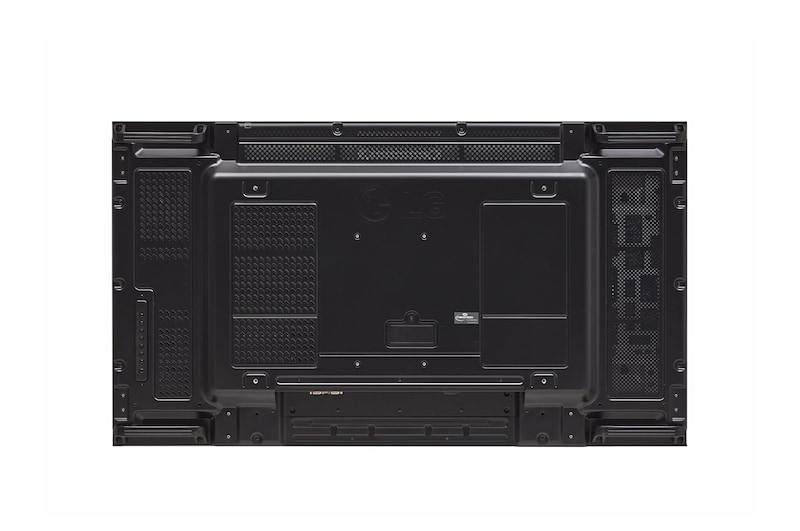

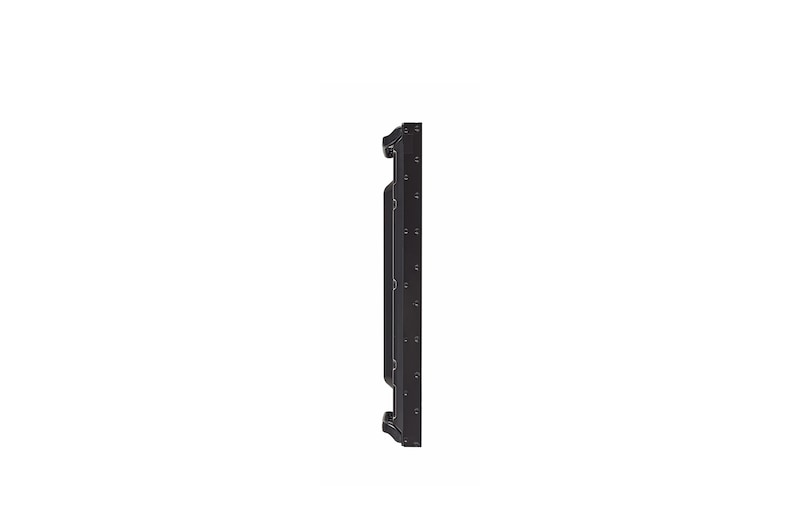

Gallery
All Spec
SOUND
-
Speaker (Built-in)
NO
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "B" / CE / KC
-
ePEAT(US only)
NO
-
ERP / Energy Star
YES / Energy Star 8.0
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
MECHANICAL SPECIFICATION
-
Bezel Width
B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
-
Bezel Color
Black
-
Carton Dimensions (W x H x D)
1393 x 955 x 303mm
-
Handle
YES
-
Monitor Dimensions (W x H x D)
1212.2 x 683.0 x 86.9mm
-
Monitor Dimension with Stand (W x H x D)
N/A
-
Packed Weight
28.0Kg
-
VESA Standard Mount Interface
600 x 400 mm
-
Weight (Head)
18.8Kg
-
Weight (Head+Stand)
N/A
OPS COMPATIBILITY
-
OPS Power Built-in
NO
-
OPS Type compatible
YES (Piggyback)
POWER
-
Power Type
Built-in Power
-
Power Supply
AC 100-240V~, 50/60Hz
ACCESSORY
-
Optional
OPS Kit(KT-OPSF)
-
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
ENVIRONMENT CONDITIONS
-
Operation Humidity
10 % to 80 %
-
Operation Temperature
0 °C to 40 °C
SOFTWARE COMPATIBILITY
-
Connected Care
YES
-
Mobile CMS
NO
-
Promota
NO
-
SuperSign Cloud
NO
-
SuperSign CMS
YES
-
SuperSign Control+
YES
-
SuperSign WB
YES
SPECIAL FEATURE
-
Power Protection
N/A
-
Conformal Coating (Power Board)
YES
-
Direct Sunlight
N/A
-
IP Rating
IP5X tested
-
Overlay Touch Compatibility
N/A
-
Smart Calibration
N/A
-
Tilt (Face down)
N/A
-
Tilt (Face up)
N/A
PANEL
-
Contrast Ratio
1,000:1
-
Aspect Ratio
16:9
-
Back Light Type
Direct
-
Brightness
500nit (Typ.)
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Color Gamut
NTSC 72%
-
Dynamic CR
500,000:1
-
Life time
60,000Hrs (Typ.)
-
Native Resolution
1920 x 1080 (FHD)
-
Operation Hours (Hours/Day)
24/7
-
Panel Technology
IPS
-
Portait / Landscape
YES / YES
-
QWP (Quarter Wave Plate)
N/A
-
Refresh Rate
60Hz
-
Response Time
8ms (G to G)
-
Screen Size (Inch)
55
-
Surface Treatment (Haze)
Haze 28%
-
Transparency
N/A
-
Viewing Angle (H x V)
178º x 178º
FEATURE - HARDWARE
-
Local Key Operation
YES
-
Acceleration(Gyro) Sensor
YES
-
Auto Brightness Sensor
NO
-
BLU Sensor
YES
-
Current Sensor
NO
-
FAN (Built-in)
NO
-
Humidity Sensor
NO
-
Internal Memory (eMMC)
8GB
-
Pixel Sensor
NO
-
Power Indicator
NO
-
Proximity Sensor
NO
-
Temperature Sensor
YES
-
Wi-Fi/BT (Built-in)
NO
CONNECTIVITY
-
Daisy Chain
Input : HDMI, DP, DVI-D / Output : DP
-
Audio In
YES
-
Audio Out
YES
-
DP In
YES (HDCP 2.2)
-
DP Out
YES
-
DVI-D In
YES (HDCP 1.4)
-
External Speaker Out
NO
-
HDMI In
YES (2ea)
-
HDMI In (HDCP Ver.)
2.2
-
HDMI Out
NO
-
IR In
YES
-
IR Out
NO
-
RGB In
NO
-
RJ45(LAN) In
YES (1ea)
-
RJ45(LAN) Out
YES
-
RS232C In
YES
-
RS232C Out
YES
-
Touch USB
NO
-
USB In
USB2.0 Type A (1ea)
FEATURE - SOFTWARE
-
Pro:Idiom
YES
-
Auto Set ID
YES
-
Backlight Sync
NO
-
Beacon
NO
-
Booting Logo Image
NO
-
Brightness Compensation
NO
-
Cisco Certification
NO
-
Control Manager
YES
-
Crestron Connected
YES
-
External Input Rotation
YES
-
Fail over
YES
-
Gapless Playback
YES
-
Group Manager
YES
-
HDMI-CEC
YES
-
ISM Method
YES
-
Local Contents Scheduling
YES
-
Local Network Sync
YES
-
Network Ready
YES
-
No Signal Image
YES
-
OS Ver. (webOS)
webOS 4.1
-
PBP
NO
-
PIP
NO
-
Play via URL
YES
-
PM mode
YES
-
RS232C Sync
YES
-
Scan Inversion
YES
-
Screen Rotation
YES
-
Screen Share
NO
-
Setting Data Cloning
YES
-
SI Server Setting
YES
-
Smart Energy Saving
YES
-
SNMP
YES
-
Status Mailing
YES
-
Tile Mode Setting
YES
-
USB Plug & Play
YES
-
Video Tag
YES (4 Video Tag)
-
Wake on LAN
YES
-
webRTC
YES
-
W/B Setting by Grey scale
YES
POWER CONSUMPTION
-
BTU (British Thermal Unit)
546 BTU/Hr(Typ.), 648 BTU/Hr(Max.)
-
DPM
0.5W
-
Power off
0.5W
-
Smart Energy Saving (70%)
90W
-
Max.
190W
-
Typ.
160W
-
