VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall

Features

Gallery

Specs

Support

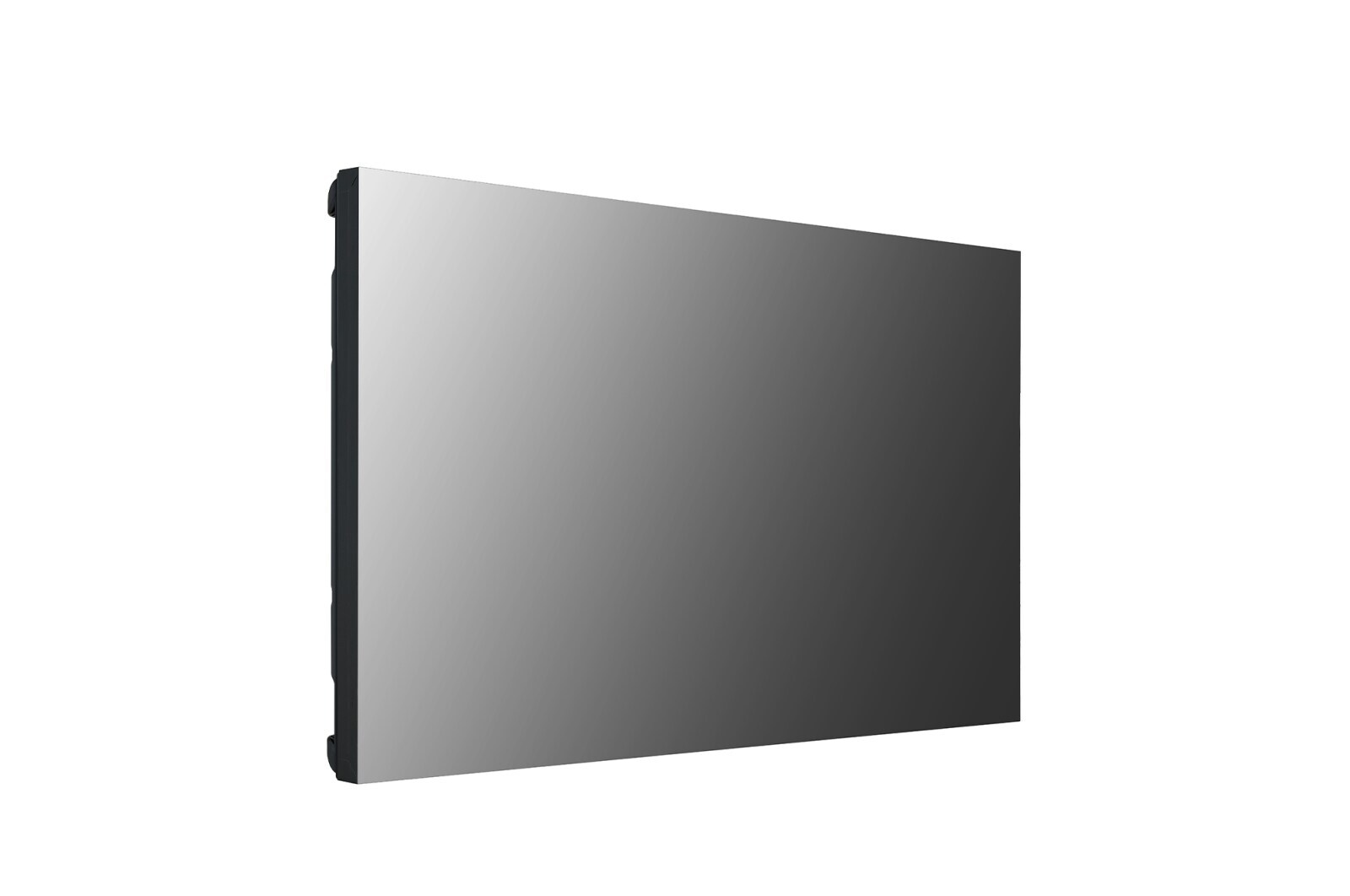

VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall

55VSH7J-H

VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall

(1)
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
  • LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H
LG VSH7J Series - 55'' 700 nits FHD Ultra Slim Bezel Video Wall, 55VSH7J-H

Key Features

  • Ultra Slim Bezel 0.44mm (Even)
  • FHD display, Vivid colour and wide viewing angle with IPS panel
  • Brightness(Typ.) : 700 cd/m²
  • Portrait and landscape-oriented GUI
  • Built-in Content Management System with user-friendly menu structure

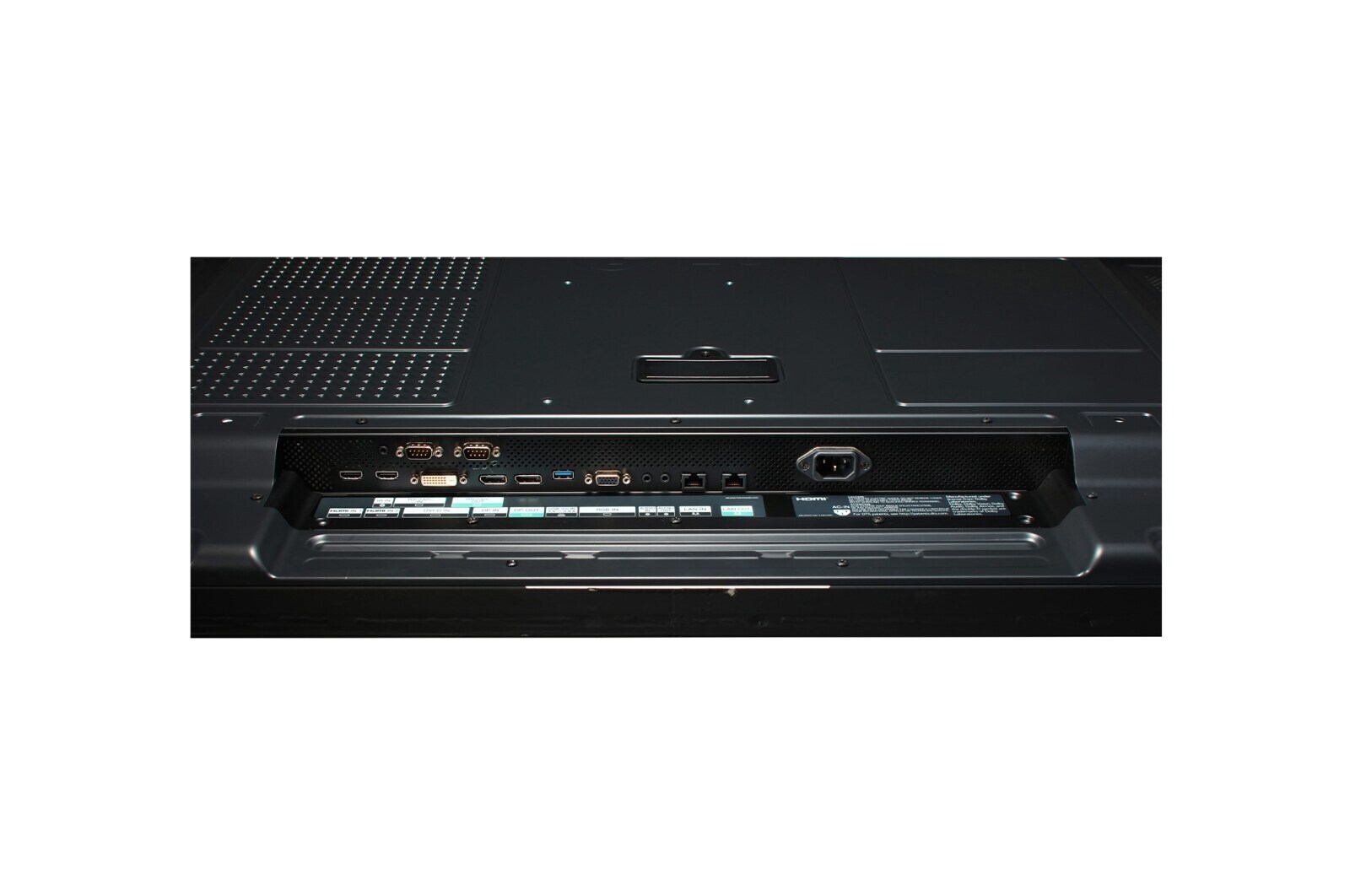

  • Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
More

0.44mm Even Bezel Video Wall

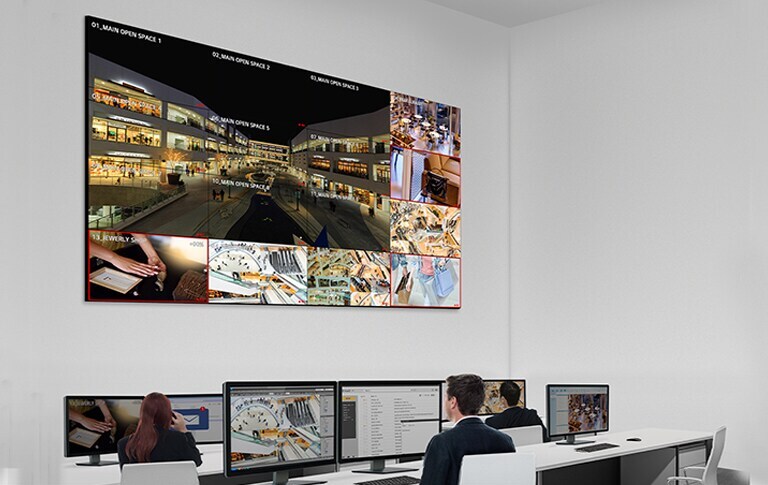

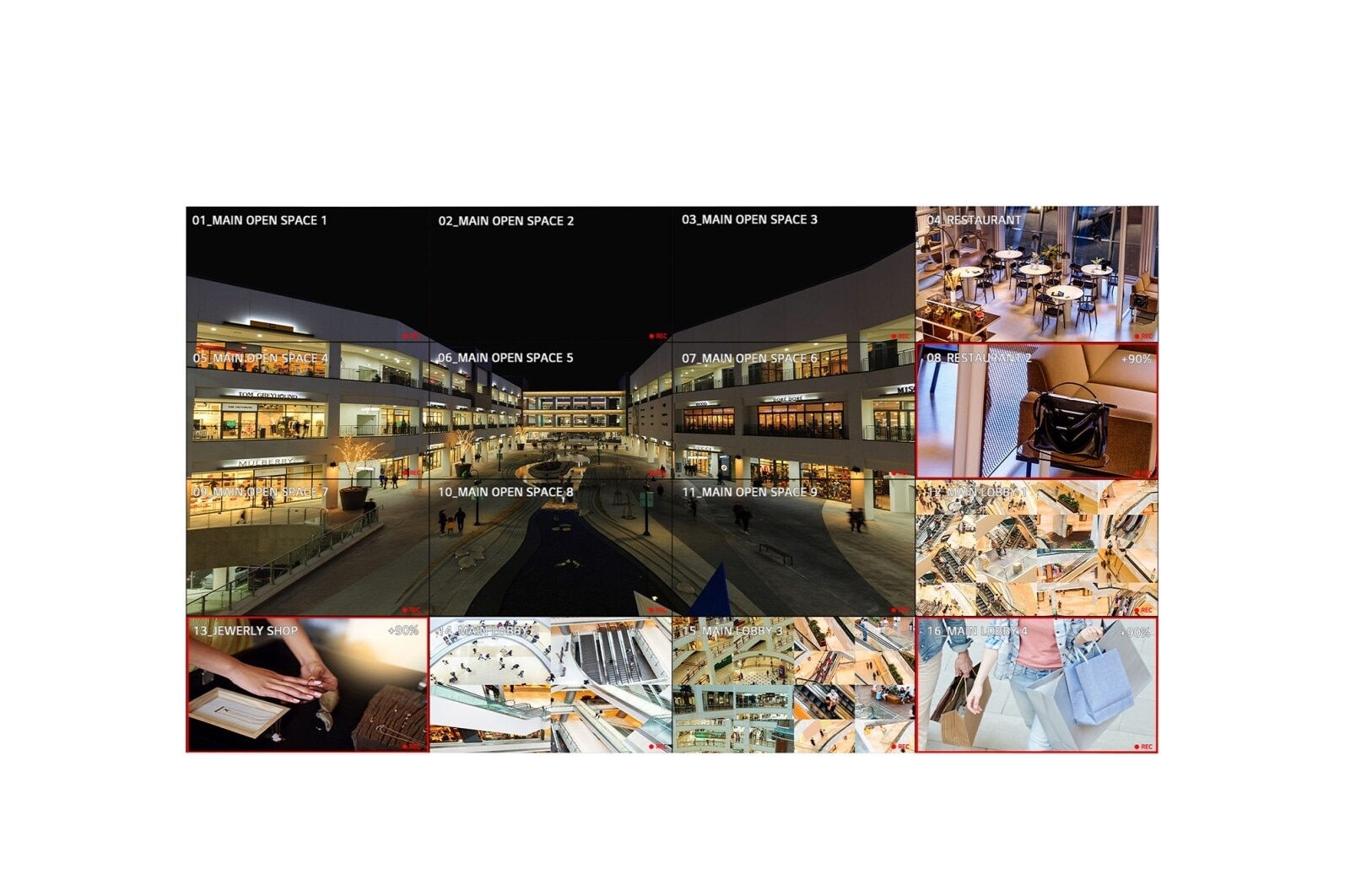

Both the external and internal premises of the shopping center are monitored in the CCTV control room through a large video wall.

* All images in this web page are for illustrative purposes only.

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.

The screening wall behind the news desk is composed of a video wall that consist of extremely thin bezels.

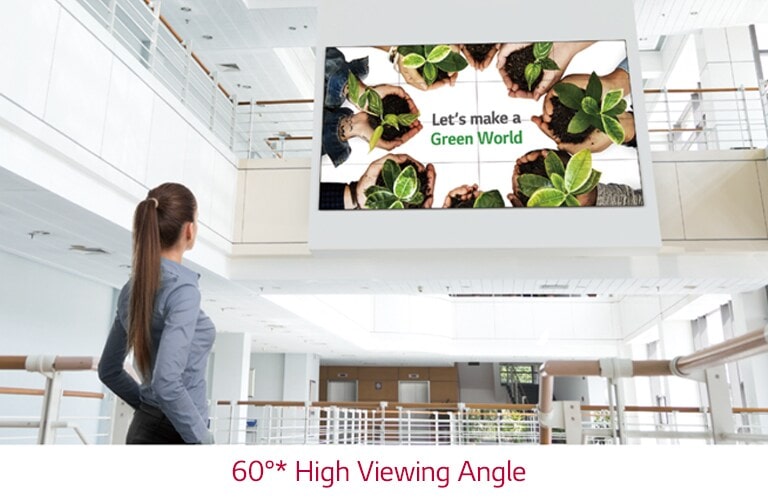

A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

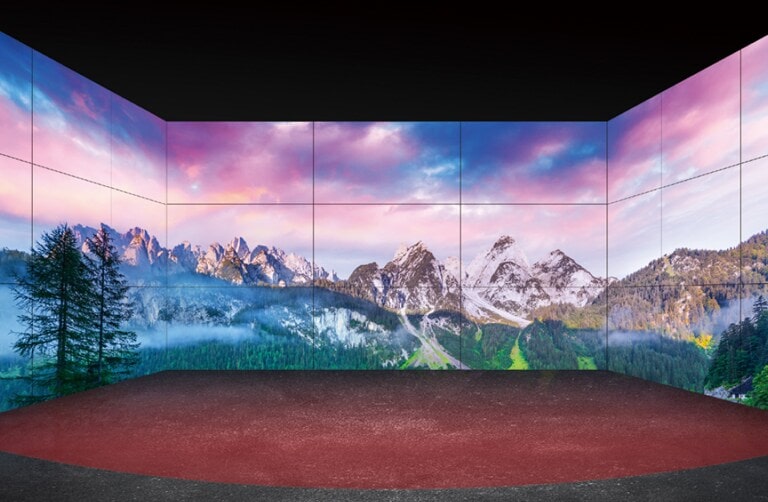

Several screens installed on both sides and front wall provide a more vivid and wider view.

Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

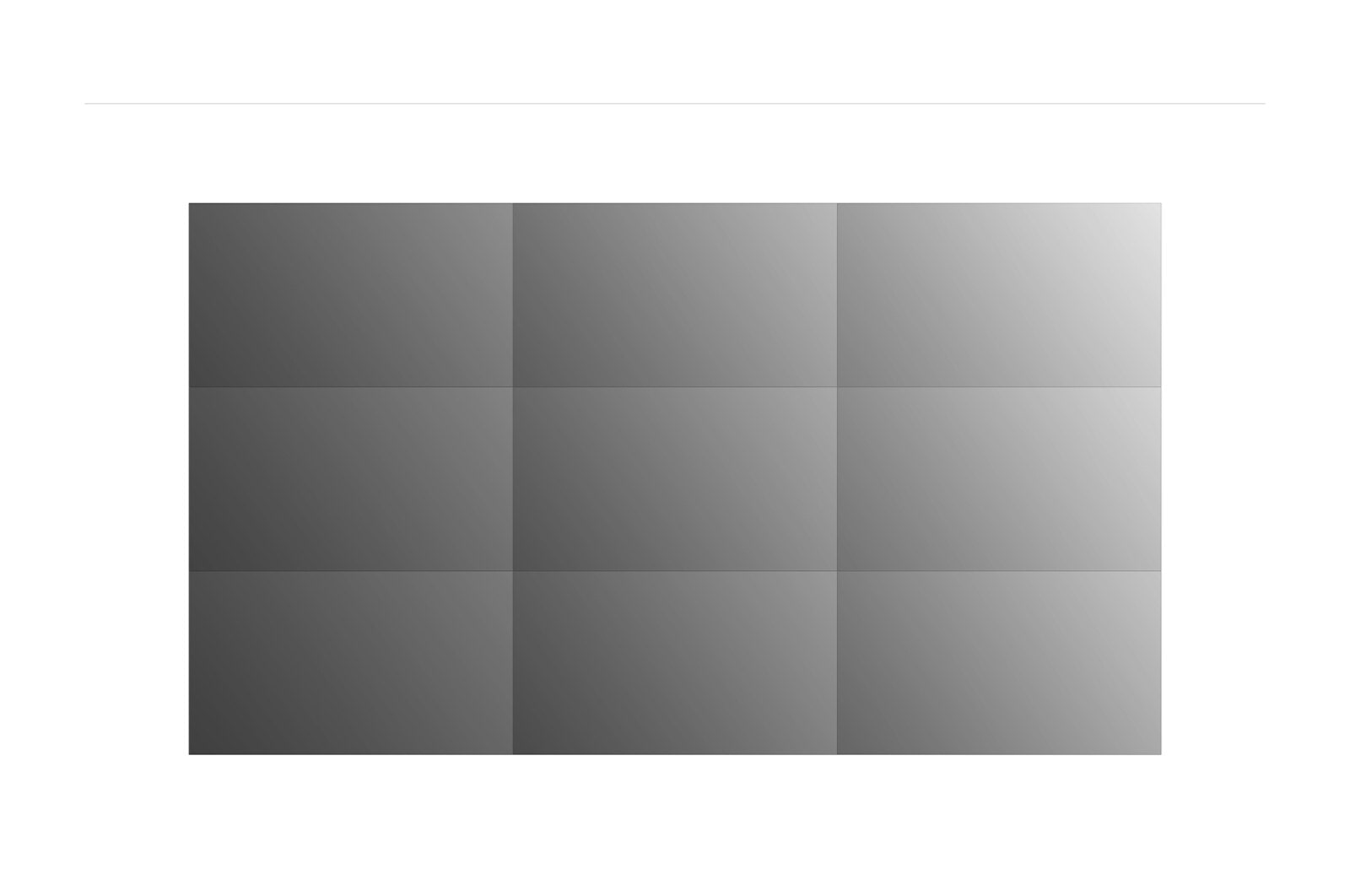

Low Uniformity Screen projects a darkening vignette on the corners of its bezel, whereas VSH7J series is able to display a balanced projection of colors.

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

* Uniformity among 13 points of the screen. Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

The 55VSH7J series consists of less image gaps between the tiled screens compared to the 55SVH7F series. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

Image Gap Reduction

The VSH7J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

* The "55SVH7F series" refers to displays which do not include an image improvement algorithm.

Smart Calibration

Smart Calibration is a solution that enables the reduction of time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the differences between connected displays. With just few simple clicks of a remote control, this calibration process can be done in a matter of minutes. In addition, calibration can be set to automatically occur at regular intervals to always deliver optimum image quality.

On the left, there is a person using sensor calibration to adjust the colors of the video wall through the connected laptop, and the other person on the ladder is assessing the screen error. In contrast, LG Smart Calibration user on the right is simply and conveniently adjusting on a remote controller.

* Depending on the user, the difference in color can be felt after smart calibration. In this case, it is recommended to adjust the color manually.

Clear View with Non-glare Panel

Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.

The 55SVH7F series is affected by bright lights, giving it the layer of white cast over the image. The 55VSH7J series screen in contrast, is able to remain vibrant under bright lightings.

The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)

One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming* is also available, providing the flexibility to organize and diversify content free from capacity limits.

* Supported protocols : RTSP, RTP, HLS, UDP Multicast

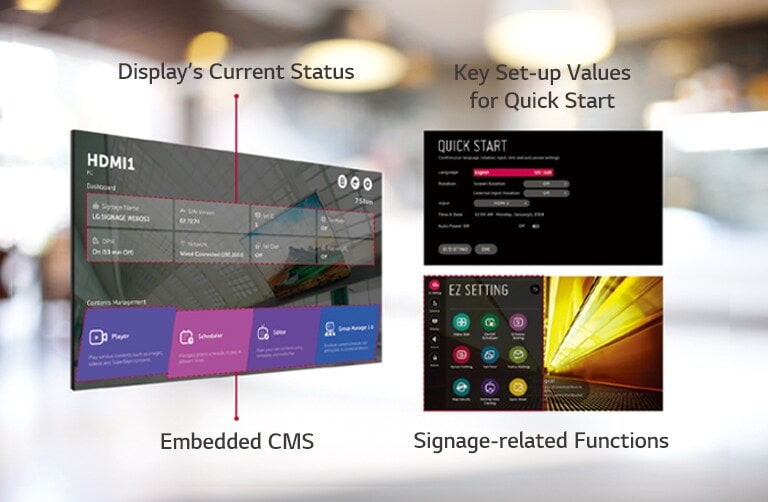

Several tasks could be accomplished simultaneously with the intuitive GUI.

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

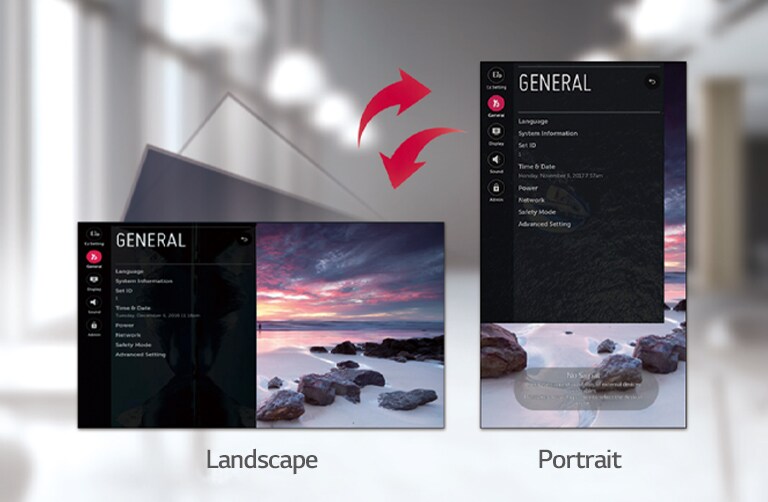

The menu screen consists of both landscape and portrait options.

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VSH7J series, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

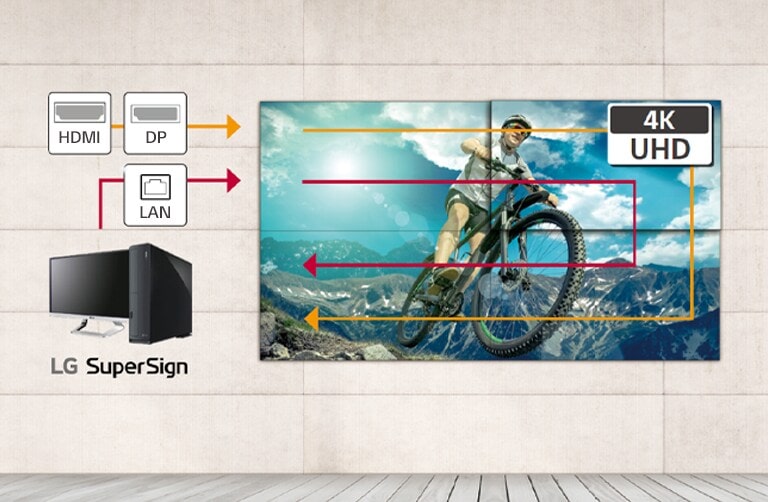

Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST or Matrox graphics card.
Print

All Spec

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

SOUND

  • Speaker (Built-in)

    NO

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / Energy Star 8.0

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

MECHANICAL SPECIFICATION

  • Bezel Width

    Even bezel : 0.44mm

  • Bezel Color

    Black

  • Carton Dimensions (W x H x D)

    1353 x 855 x 263mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1210.51 x 681.22 x 86.5mm

  • Monitor Dimension with Stand (W x H x D)

    N/A

  • Packed Weight

    23.6Kg

  • VESA Standard Mount Interface

    600 x 400 mm

  • Weight (Head)

    18.4Kg

  • Weight (Head+Stand)

    N/A

OPS COMPATIBILITY

  • OPS Power Built-in

    NO

  • OPS Type compatible

    YES (Piggyback)

POWER

  • Power Type

    Built-in Power

  • Power Supply

    AC 100-240V~, 50/60Hz

ACCESSORY

  • Optional

    OPS Kit(KT-OPSF)

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual

SOFTWARE COMPATIBILITY

  • Connected Care

    YES

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    YES

  • SuperSign Control+

    YES

  • SuperSign WB

    YES

SPECIAL FEATURE

  • Power Protection

    N/A

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    IP5X tested

  • Overlay Touch Compatibility

    N/A

  • Smart Calibration

    YES

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

PANEL

  • Contrast Ratio

    1,100:1

  • Aspect Ratio

    16:9

  • Back Light Type

    Direct

  • Brightness

    700nit (Typ.)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    NTSC 72%

  • Dynamic CR

    500,000:1

  • Life time

    60,000Hrs (Typ.)

  • Native Resolution

    1920 x 1080 (FHD)

  • Operation Hours (Hours/Day)

    24/7

  • Panel Technology

    IPS

  • Portait / Landscape

    YES / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    60Hz

  • Response Time

    8ms (G to G)

  • Screen Size (Inch)

    55

  • Surface Treatment (Haze)

    Haze 28%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

FEATURE - HARDWARE

  • Local Key Operation

    YES

  • Acceleration(Gyro) Sensor

    YES

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    YES

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Pixel Sensor

    NO

  • Power Indicator

    NO

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

CONNECTIVITY

  • Daisy Chain

    Input : HDMI, DP, DVI-D / Output : DP

  • Audio In

    YES

  • Audio Out

    YES

  • DP In

    YES (HDCP 2.2)

  • DP Out

    YES

  • DVI-D In

    YES (HDCP 1.4)

  • External Speaker Out

    NO

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2

  • HDMI Out

    NO

  • IR In

    YES

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    YES

  • RS232C In

    YES

  • RS232C Out

    YES

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

FEATURE - SOFTWARE

  • Pro:Idiom

    YES

  • Auto Set ID

    YES

  • Backlight Sync

    NO

  • Beacon

    NO

  • Booting Logo Image

    NO

  • Brightness Compensation

    NO

  • Cisco Certification

    NO

  • Control Manager

    YES

  • Crestron Connected

    YES

  • External Input Rotation

    YES

  • Fail over

    YES

  • Gapless Playback

    YES

  • Group Manager

    YES

  • HDMI-CEC

    YES

  • ISM Method

    YES

  • Local Contents Scheduling

    YES

  • Local Network Sync

    YES

  • Network Ready

    YES

  • No Signal Image

    YES

  • OS Ver. (webOS)

    webOS 4.1

  • PBP

    NO

  • PIP

    NO

  • Play via URL

    YES

  • PM mode

    YES

  • RS232C Sync

    YES

  • Scan Inversion

    YES

  • Screen Rotation

    YES

  • Screen Share

    NO

  • Setting Data Cloning

    YES

  • SI Server Setting

    YES

  • Smart Energy Saving

    YES

  • SNMP

    YES

  • Status Mailing

    YES

  • Tile Mode Setting

    YES

  • USB Plug & Play

    YES

  • Video Tag

    YES (4 Video Tag)

  • Wake on LAN

    YES

  • webRTC

    YES

  • W/B Setting by Grey scale

    YES

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    717 BTU/Hr(Typ.), 853 BTU/Hr(Max.)

  • DPM

    0.5W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    110W

  • Max.

    250W

  • Typ.

    210W
