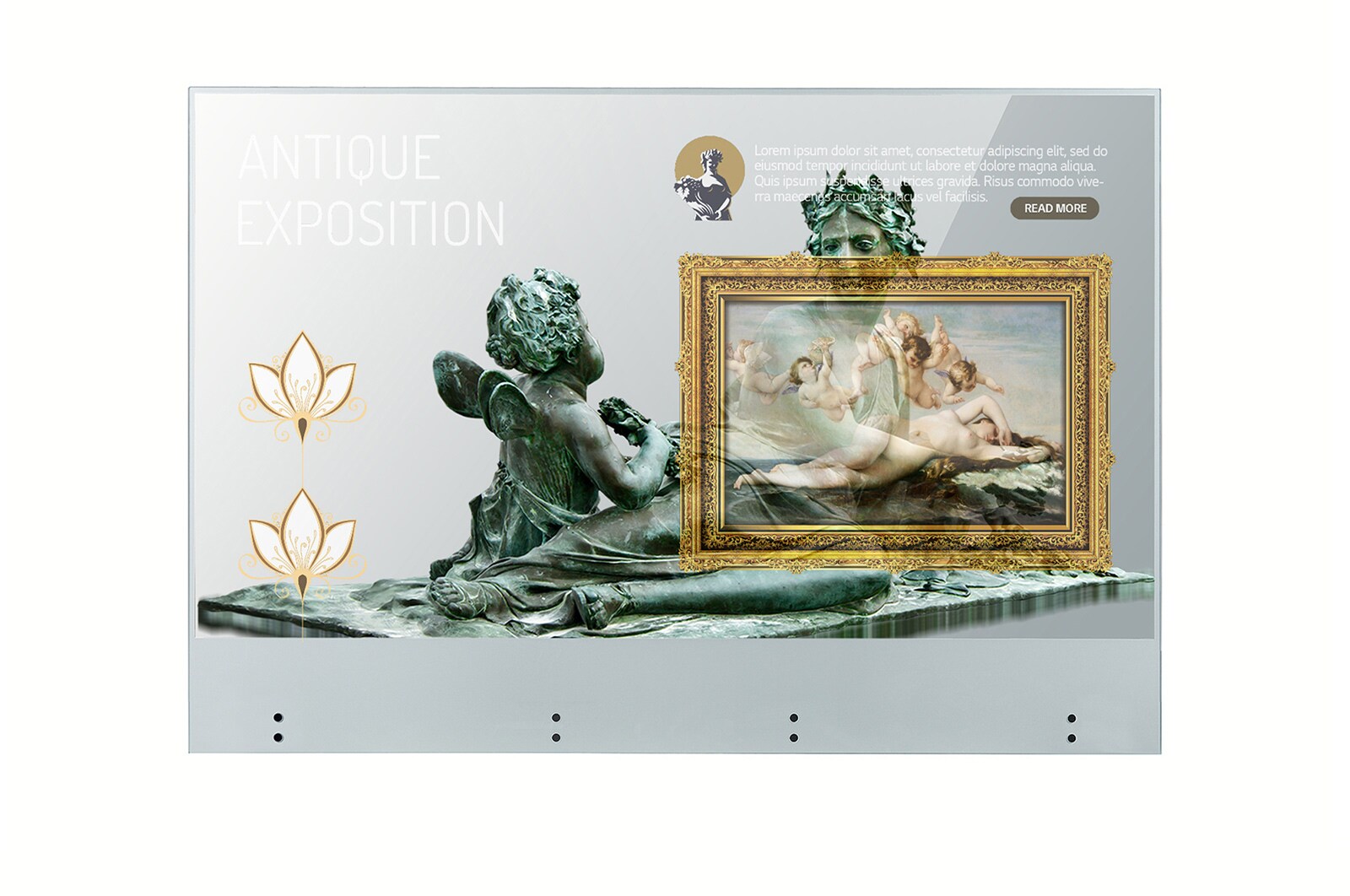

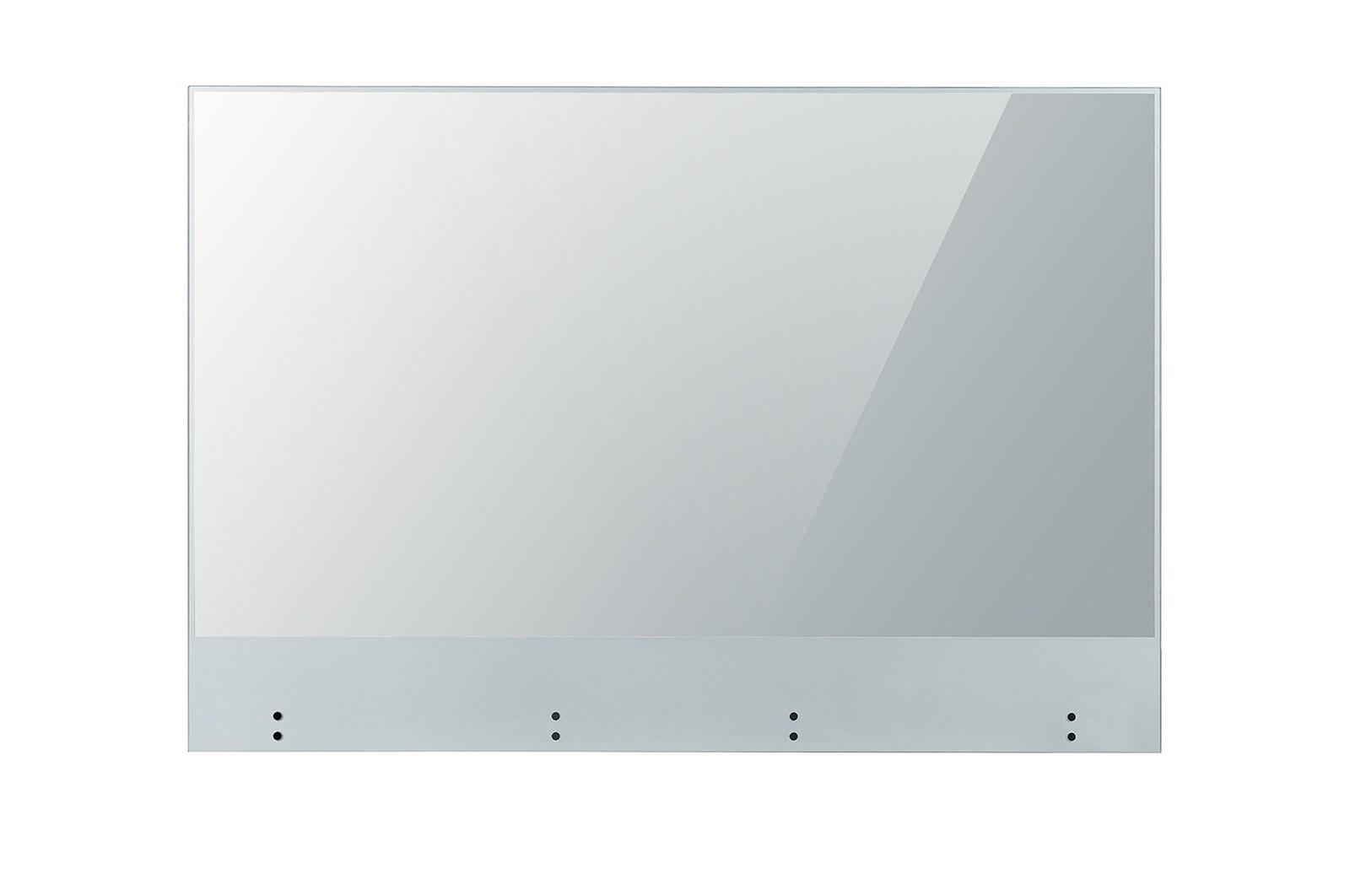

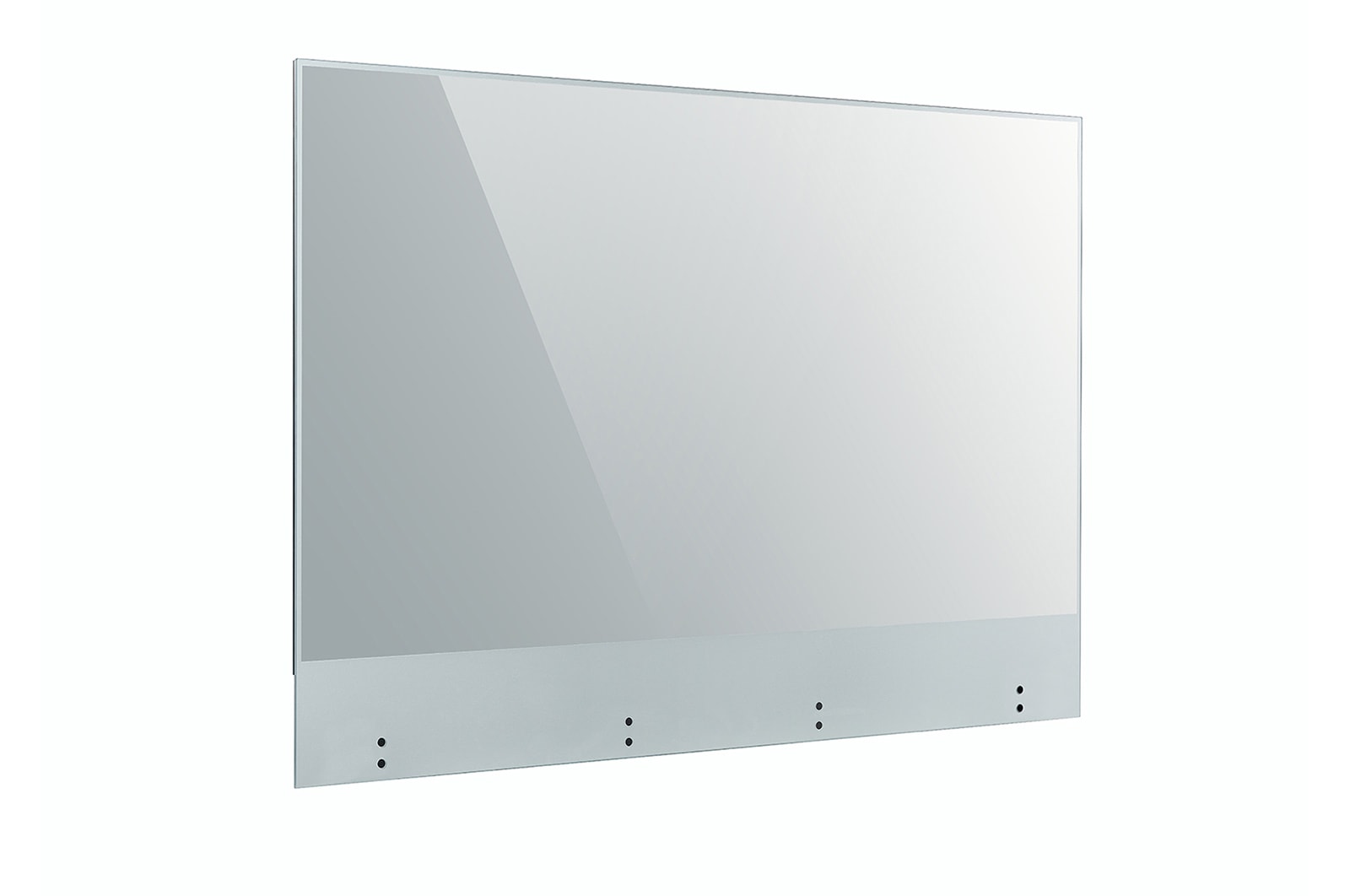

EW5F Series - 55" Transparent OLED Signage
All Spec
PANEL
-
Screen Size
55"
-
Panel Technology
OLED
-
Native Resolution
1920 x 1080 (FHD)
-
Brightness (Typ.)
150 / 400 nit (APL 100% / 25 %, Without Glass)
-
Contrast Ratio
150,000 : 1
-
Dynamic CR
No
-
Color gamut
BT709 120 %
-
Viewing Angle (H x V)
178 x 178
-
Color Depth
1.07 Billion Colors (10 bit)
-
Response Time
1 ms (G to G)
-
Surface Treatment (Haze)
No
-
Operation Hours (Hours / Day)
18 / 7 (Moving Content Only)
-
Portrait / Landscape
Yes / Yes
-
Transparency (Typ.)
33% (Set)
CONNECTIVITY
-
Input
HDMI (HDCP 2.2), DP (HDCP 1.3), USB 2.0 Type A, USB 2.0 Type A (Touch Control Board Only)
-
Output
DP, Audio, USB 2.0 Type B (Touch USB)
-
External Control
RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)
MECHANICAL SPECIFICATION
-
Bezel Color
Matt Silver
-
Bezel Width
7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B)
-
Weight (Head)
(Head) 14.6 kg
(Signage Box) 3.4 kg -
Monitor Dimension (W × H × D)
(Head) 1,225.5 x 832.9 x 7.0 mm
(Signage Box) 782.8 x 238.4 x 34.7 mm -
Monitor Dimensions with Stand (W × H × D)
No
-
VESA™ Standard Mount Interface
No
-
Protection Glass
Depth 3.0 mm , Tempered / Chemical Strengthening,Anti-Reflective, Shatter-Proof
FEATURE
-
Key Feature
Internal Memory (16GB), Temperature Sensor, FAN, webOS 4.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Video Tag (4), Rotation (Screen Rotation), Gapless Playback, Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Crestron Connected®(Network based control), PM Mode, Wake on LAN, HDMI-CEC(Compatibility may differ by equipment.), SI Server Setting, Pro:Idiom
ENVIRONMENT CONDITIONS
-
Operation Temperature Range
0 °C to 40 °C
-
Operation Humidity Range
10 % to 80 %
POWER
-
Power Supply
AC 100-240 V~, 50/60 Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ. / Max.
250 W / 280 W
-
BTU (British Thermal Unit)
853 BTU/Hr (Typ.), 955 BTU/Hr (Max.)
SOUND
-
Speaker
No
CERTIFICATION
-
Safety
CB, NRTL
-
EMC
FCC Class "A" / CE / KC
-
ErP
Yes (EU Only)
MEDIA PLAYER COMPATIBILITY
-
OPS Type compatible
No
-
OPS Power Built In
No
SOFTWARE COMPATIBILITY
-
SuperSign CMS
Yes
-
SuperSign Control / Control+
Yes
-
SuperSign Media Editor
Yes
ACCESSORY
-
Basic
Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables (1,600 mm × 4 ea for Connection Between Panel and Signage Box), HDMI Cable (3 M), Micro to A Type USB Cable (1.8 M for Connection Between Touch and Signage Box), A to B Type USB Cable (Touch Out), Tape (10 ea for Cabling / 10 ea EMI Gasket Tape), Screw (M4 × L22, 12 ea / M4 Nut 12 ea / M3 × L5.5, 8 ea / M3 × L3.5, 20 ea), Shield Cover Ass'y, Rubber Damper 4 ea, Touch Cable Holder 2 ea
-
