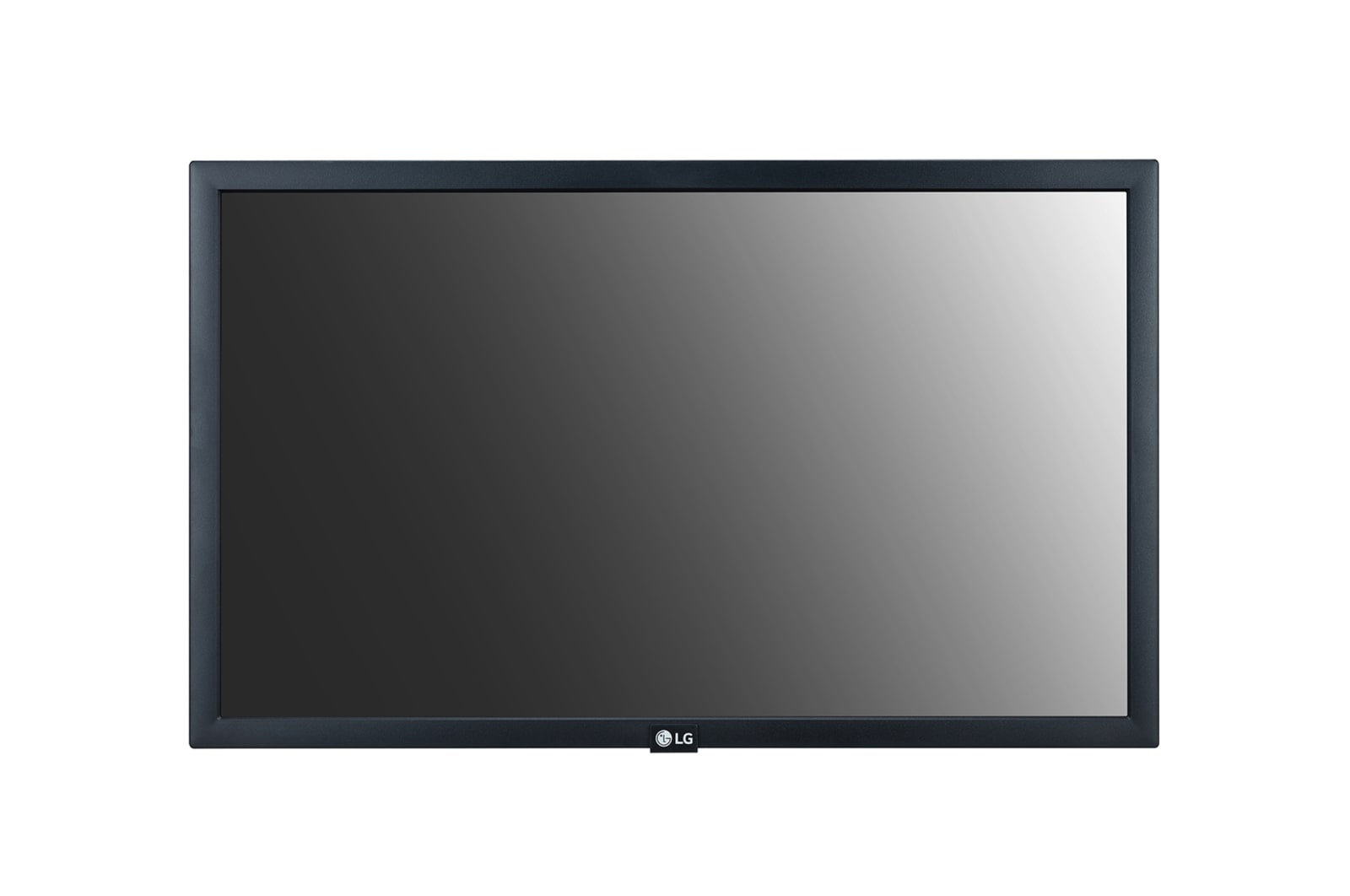

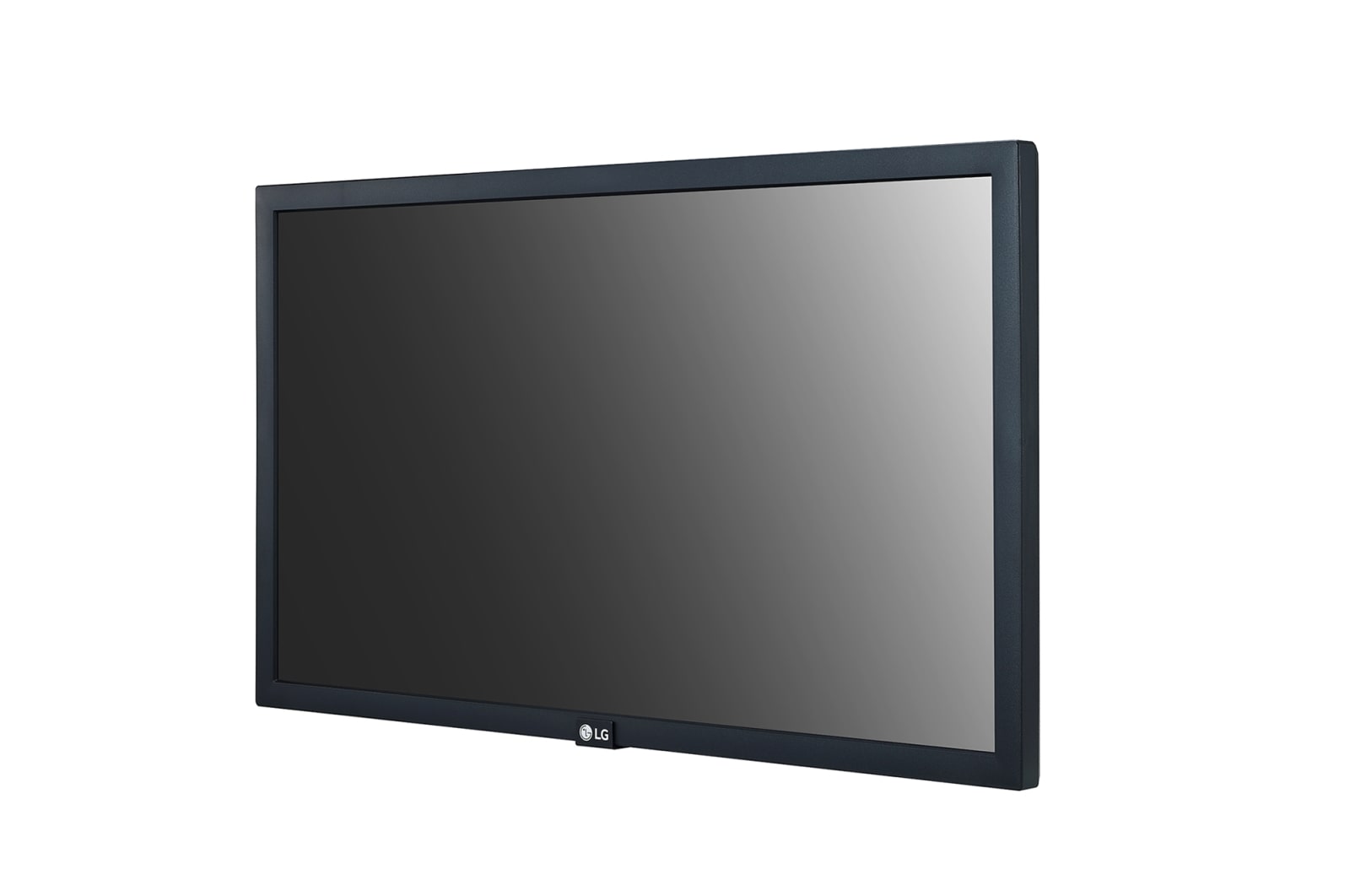

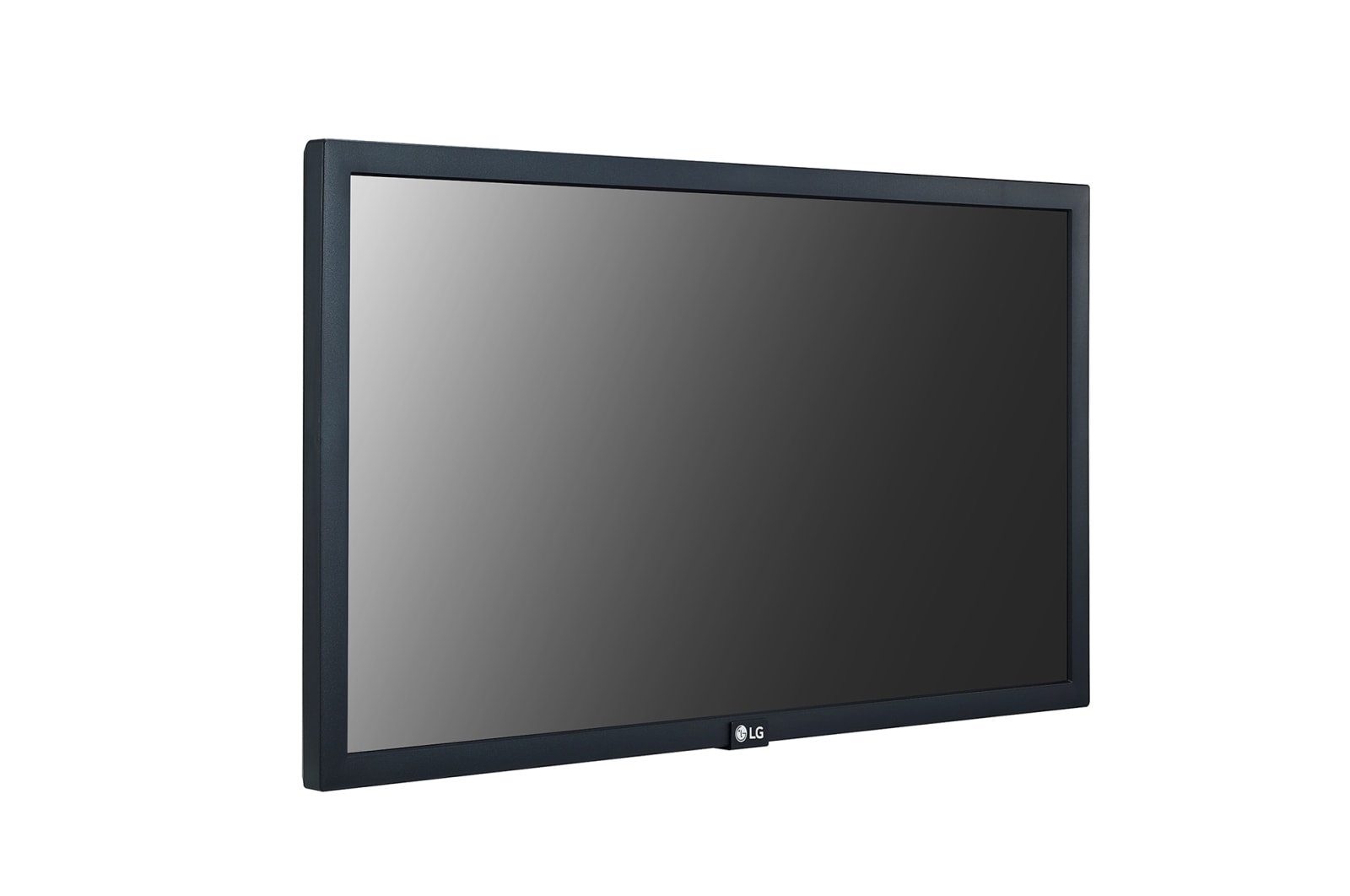

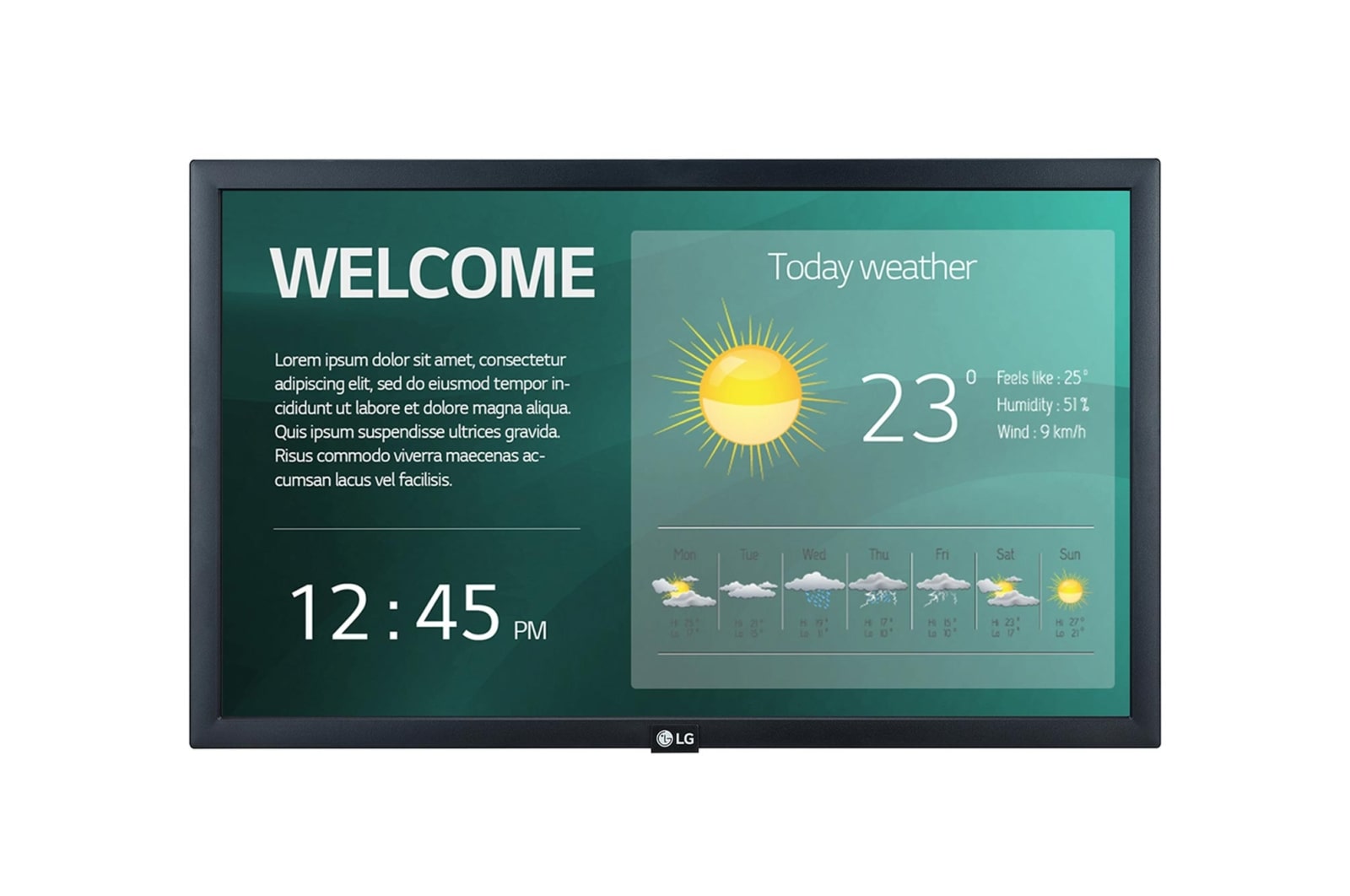

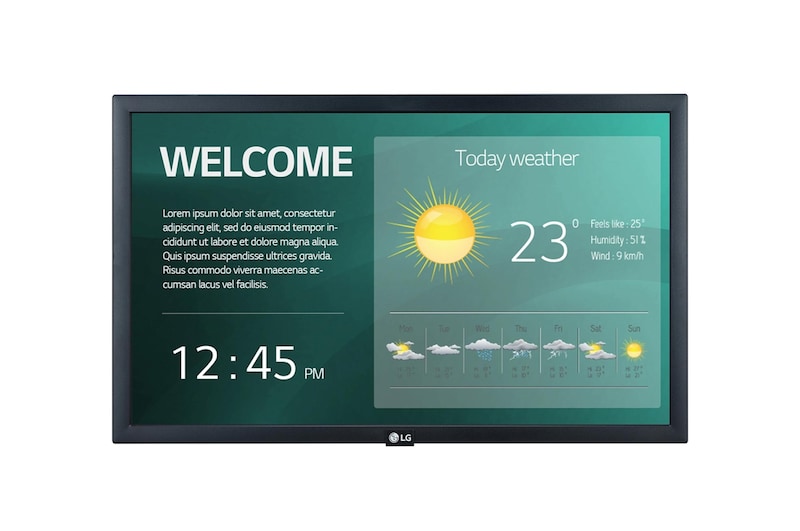

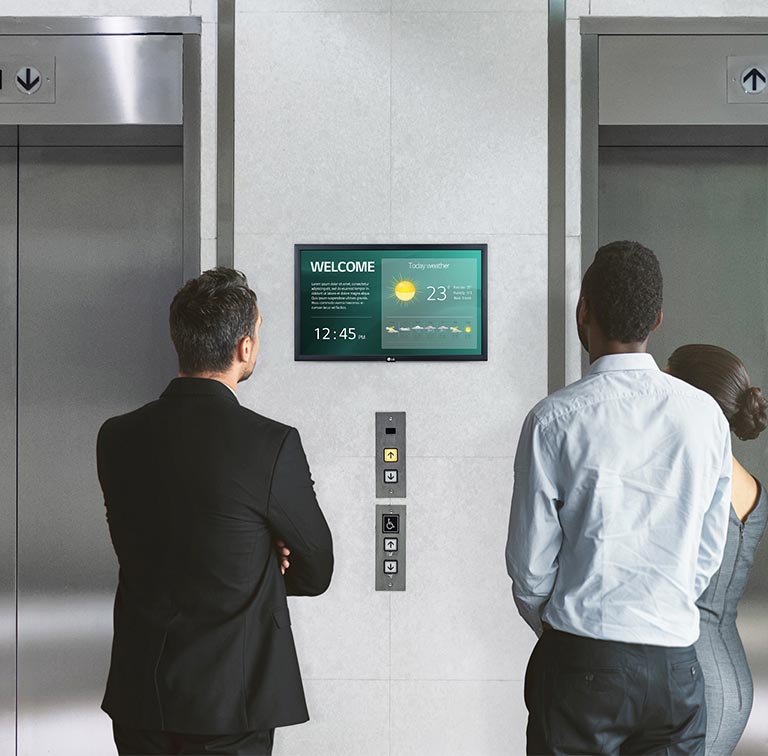

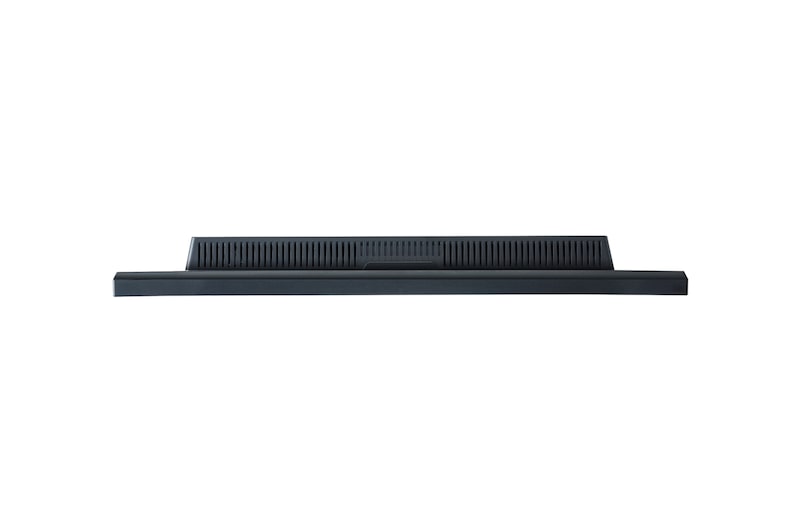

Layar Info Standar 22"

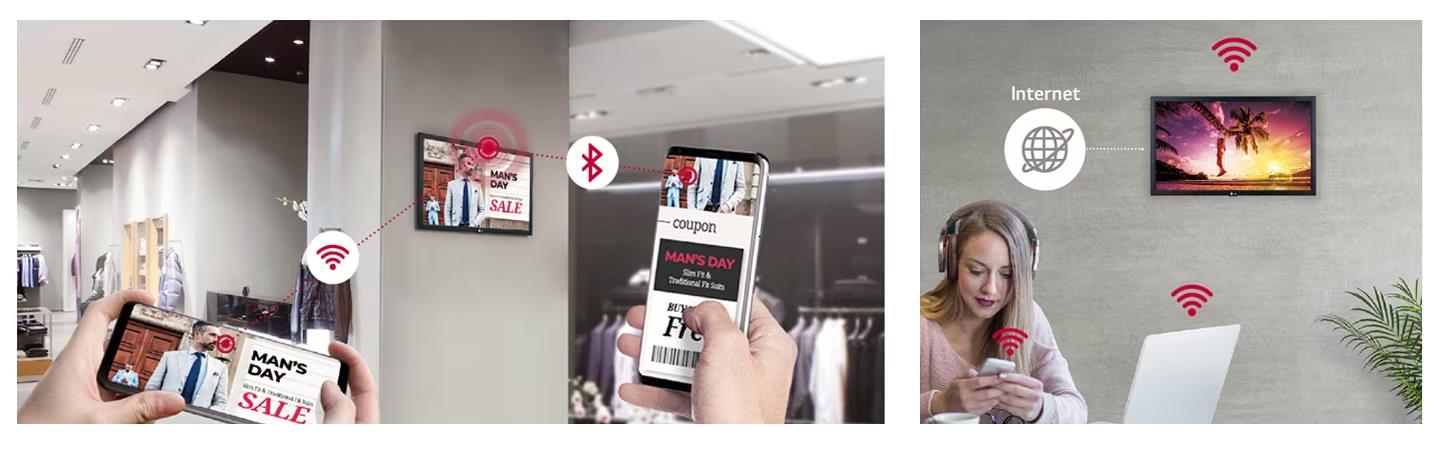

Berbagi konten antar perangkat lebih mudah dengan jaringan Wi-Fi.
Dengan Beacon dan BLE(Bluetooth Low Energy), penjaga toko dapat memberikan kupon dan informasi secara real-time.
22SM3G beroperasi sebagai router virtual yang bisa menjadi jalur akses wireless untuk perangkat seluler.

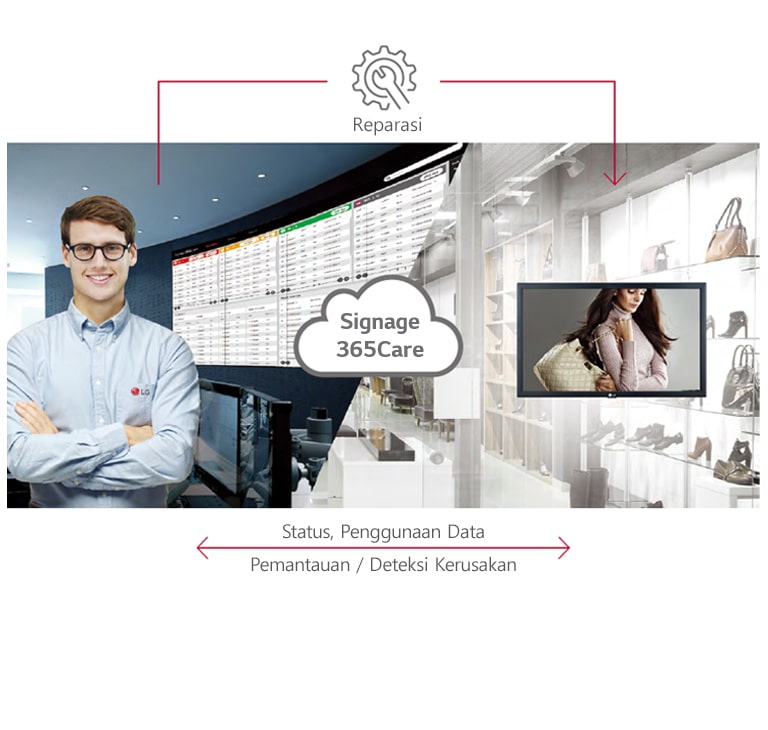

*Ketersediaan layanan "Signage365Care" berbeda-beda menurut wilayah. Silahkan hubungi perwakilan penjualan LG di wilayah Anda untuk rincian selengkapnya.
Backlight Type
Edge
Screen Size
21.5
Panel Technology
IPS
Aspect Ratio
16 : 9
Native Resolution
1920 x 1080 (FHD)
Pixels(H x V x 3)
6,220,800
Brightness
250cd/m2
Contrast Ratio
1000:1 (Typical)
Color gamut
72%
Viewing Angle(H x V)
178 x 178
Color Depth
16.7 Million
Sheet Half Angle
N/A
Portrait
N/A
Long afterimage
N/A
Uniformity
N/A
Panel push
N/A
Response Time
14ms(G to G BW)
Life time(Typ.)
30,000 Hrs (Min.)
Operation Hours
16Hrs
Orientation
Landscape
Refresh Rate
60Hz

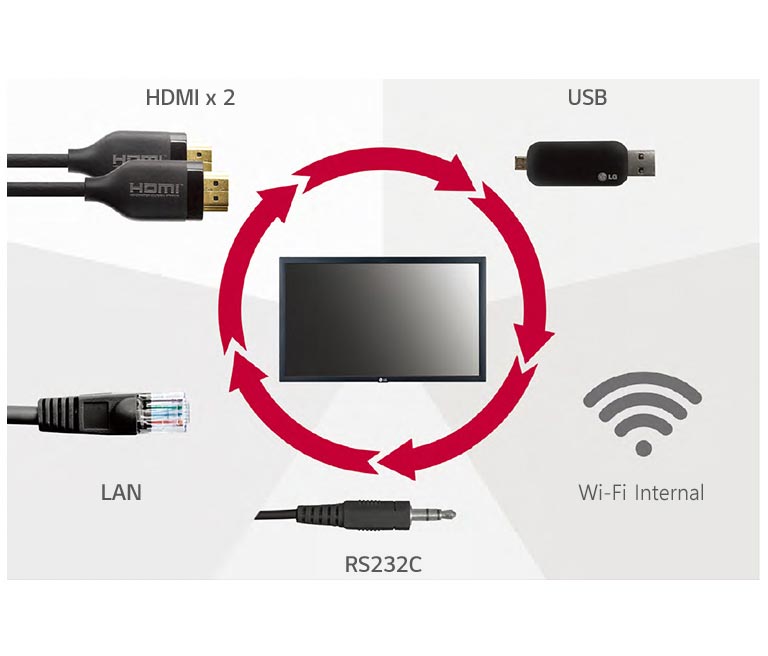

(Input) Digital-HDMI
O(2)
(Input) Digital-DP
X
(Input) Digital-DVI-D
X
(Input) Analog-RGB
X
(Input) Audio In
O(1)
(Input) External Control-RS232C IN
O(1)
(Input) External Control-SVC IN
O(1)
(Input) External Control-RJ45
O(1)
(Input) External Control-IR receiver
O (External type)

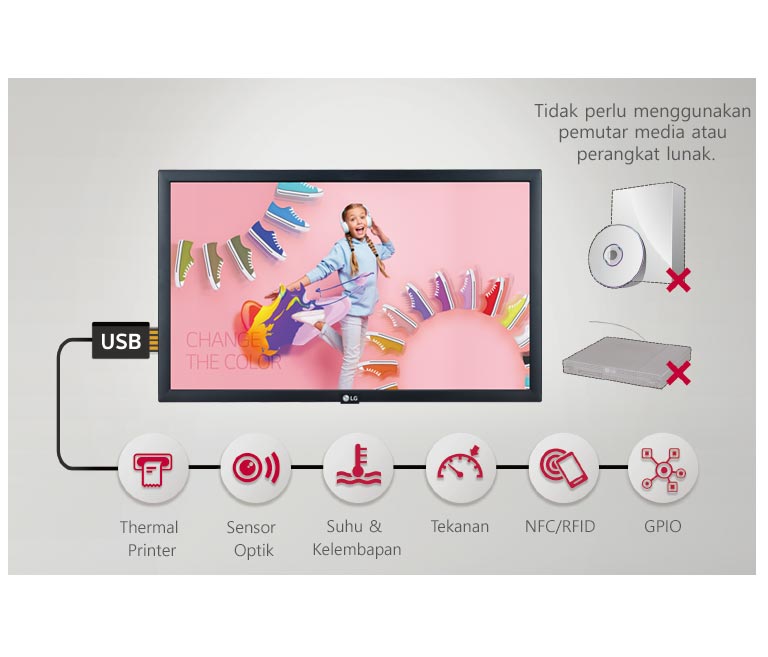

(Input) USB(USB2.0)
O(1)
(Input) SD Card(SDHC/Full Size)
X
(Output) DP Out
X
(Output) Audio Out
X
(Output) Externel Speaker Out
X
(Output) External Control-RS232C OUT
X
Bezel Color
Black
Bezel Width
16.3mm(T/R/L/B)
Monitor Dimension(W x H x D)
510.3mm x 302.1mm x 53.8mm
Weight(Head)
3.6Kg
"Monitor with Optional Stand Dimensions(W x H x D)"
N/A
Weight(Head+Stand)
N/A
Monitor with Optional Stand & Speaker Dimensions(W x H x D)
N/A
Weight(Head+Stand+Speaker)
N/A
Carton Dimensions(W x H x D)
565.0mm x 357.0mm x 103.0mm
Packed Weight
4.74Kg
Handle
No

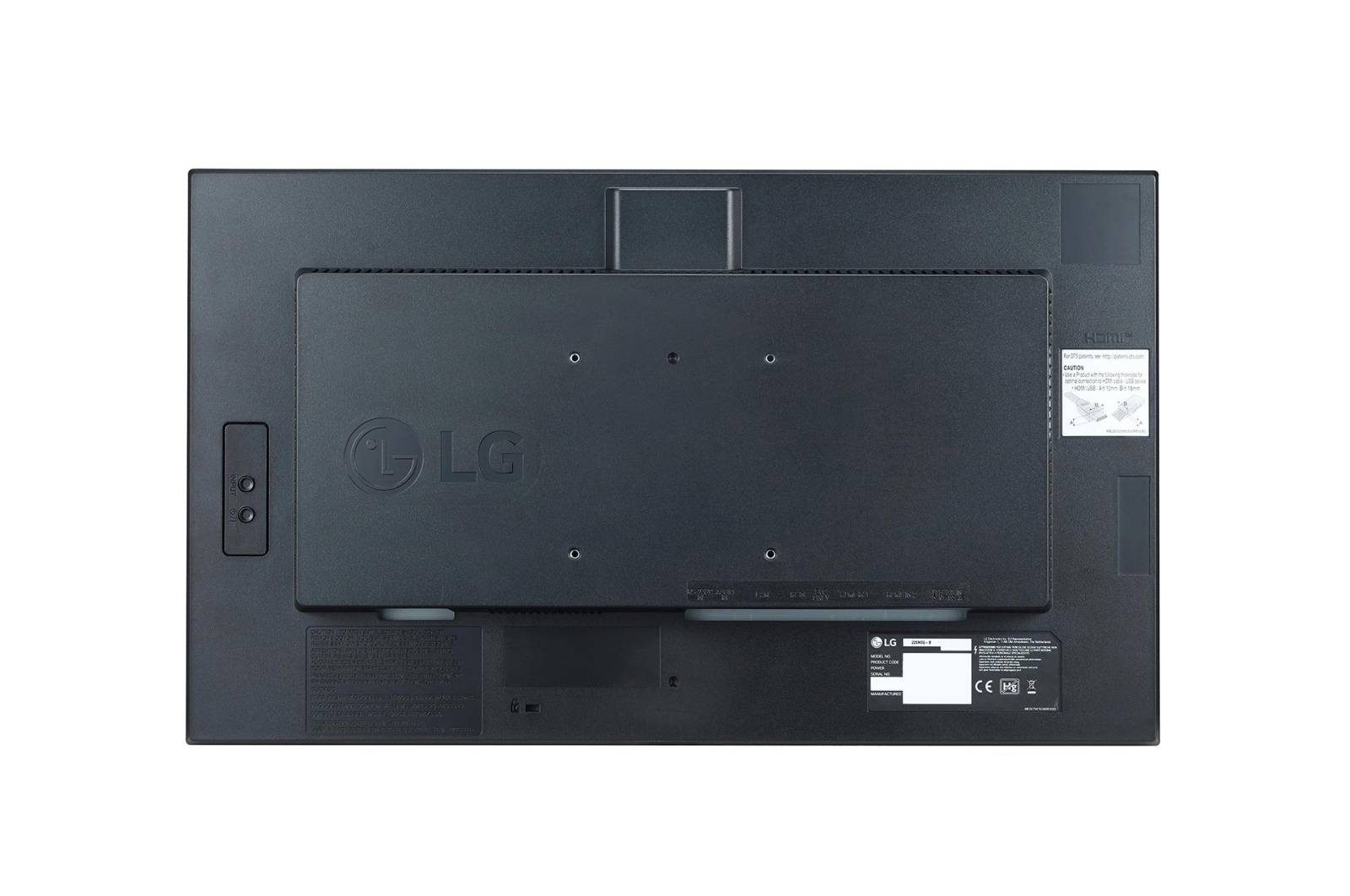

VESATM Standard Mount Interface
100 x 100
Dust
2 level
webOS ver.
webOS 4.1

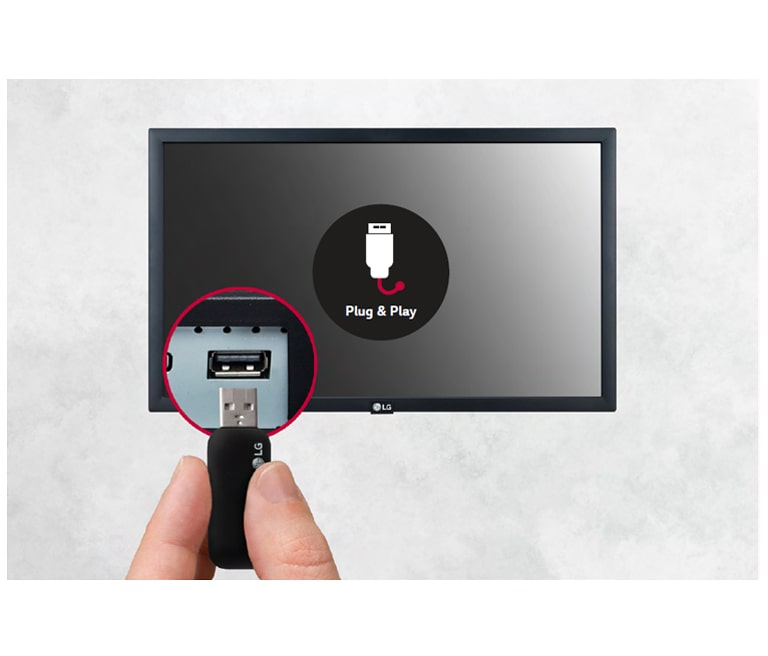

Embedded CMS (USB Auto Playback)
O
Embedded CMS (Local Contents Scheduling)
O
Embedded CMS (Group Manager)
O
Fail over
O
Image Customization (Booting Logo)
O
Image Customization (No Signal)
O
Content Sync. (RS-232C)
X
Content Sync. (Local Network)
X
Multi-screen (PIP)
O
Multi-screen (PBP)
O (2)
Screen Share
O
Video Tag
O(2)
Play via URL
O
OSD Rotation
X
Lock mode
O (Home Dashboard, USB, OSD, IR Operation, Local Key, WiFi, Screen Share)
Content Rotation
X
Gapless Playback
O
Tile Mode Setting
X
Setting Data Cloning
O (Network, USB)
Firmware Update by Network
O
SNMP
O (Ver. 2.0)
ISM Mode (Image Sticking Minimization)
O
Auto Set ID
X
Status Mailing
O
Control Manager
O
3rd Party Control Compatibility (Crestron Connected)
O
3rd Party Control Compatibility (Extron IP Link)
O
Power Mgmt. (DPM)
O
Power Mgmt. (On/Off Schedule)
O
Power Mgmt. (Holiday Schedule)
O
Power Mgmt. (Power on Status)
Standby, PWR, LST
Power Mgmt. (Energy Saving)
O
Power Mgmt. (Smart Energy Saving)
O
Power Mgmt. (PM mode)
O
Power Mgmt. (Wake on LAN)
O
Power Mgmt. (Power on Delay)
O
Daylight Saving Time
O
Beacon
O
HDMI-CEC
O
SI Server Setting
O
webRTC
O
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish
Manual
English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
100-240 V~, 50/60 Hz
Power Type
Built-In Power
Power Switch
Yes
Typ.
TBD
Max
TBD
Smart Enegy Saving
TBD
DPM
TBD
Power off
TBD
Safety
UL / cUL / CB / TUV
EMC
FCC Class "A" / CE
ErP / Energy Star
Yes(EU Only)/NA
Speaker
O(1Wx 2EA for Internal Speaker)
SuperSign (CMS)
O (2.9)
SuperSign (Control / Control+)
O (1.7 /+1.9)
SuperSign (Signage365Care)
O (2.7)
SuperSign (Etc.)
X
Signage 365 Care
O (Cloud Ver.)
OPS Type Compatible
No
External Media player Attatchable
No
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
Optional
N/A
