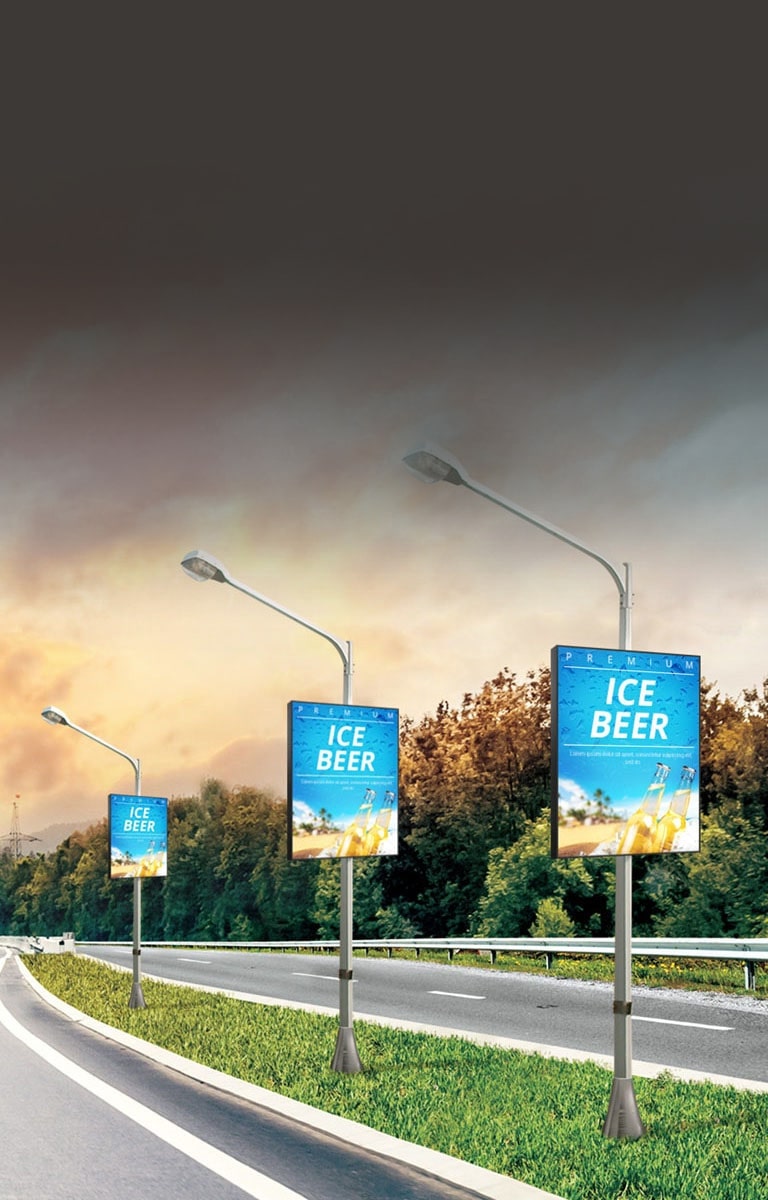

Temukan Informasi tentang Sesuai RoHS, LG LBE DOOH sangat nyaman untuk penempatan luar ruangan. Panelnya menempel satu sama lain tanpa jarak, memberikan kualitas gambar seragam. Pelajari selengkapnya.
ID_LED-Signage_hero_02_M03_LBE-DOOH_1554700996524
| Model Name | LBE040DD4 | LBE080DD3 | LBE080DD4 |
|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 4.00 | 8.00 | 8.00 |
| Unit Case Resolution (WxH) | 160x180 | 80x90 | 80x90 |
| Unit Case Dimensions (WxHxD, mm) | 640x720x90 | 640x720x90 | 640x720x90 |
| Weight per Unit Case / Square Meter (kg) | 17.0/36.9 | 17.0/36.9 | 17.0/36.9 |

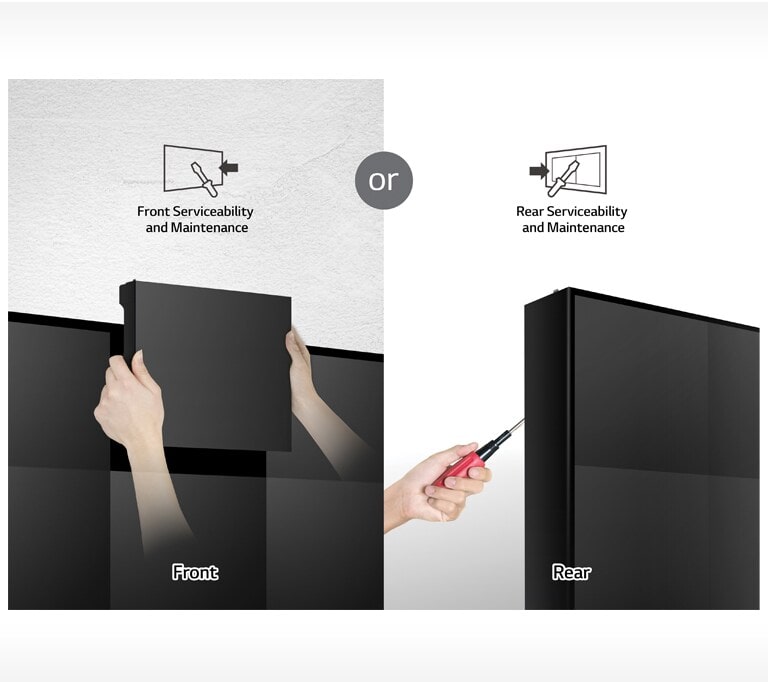

| Service access | Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) | 5,000 | 5,500 | 5,000 |
| Color Temperature | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/120 | 160/120 | 160/120 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.003Cx,Cy | ≥97％/±0.003Cx,Cy | ≥97％/±0.003Cx,Cy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 120/360 | 110/330 | 110/330 |
| Power Consumption (W/m², Max.) | 780 | 720 | 720 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 | 3,840 |
| Refresh Rate (Hz) | 50,000 | 80,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +45°/0-80％RH | -10° to +45°/0-80％RH | a-10° to +45°/0-80％RH |

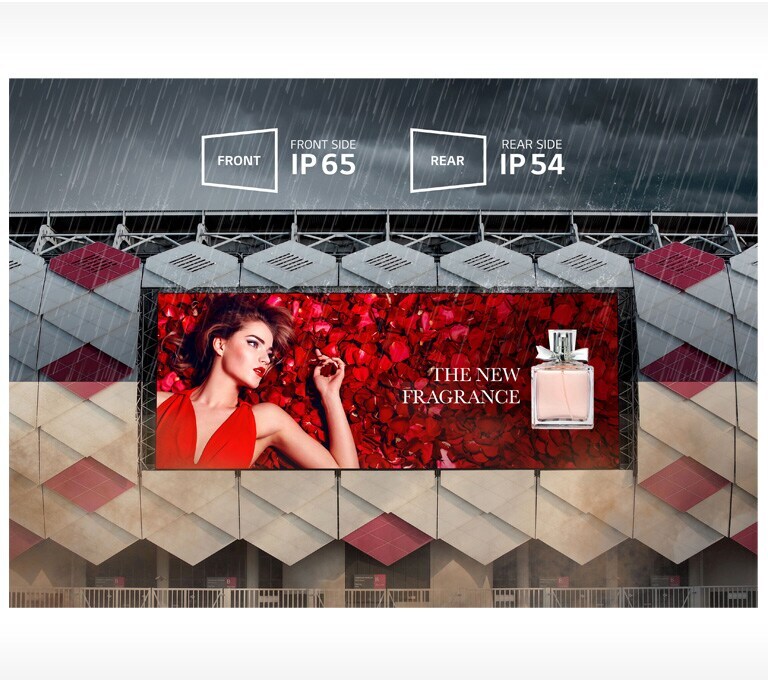

| IP rating Front / Rear | IP65/IP54 | IP65/IP54 | IP65/IP54 |
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan.
| Model Name | LBE100DD3 | LBE100DD4 |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 10.00 | 10.00 |
| Unit Case Resolution (WxH) | 64x72 | 64x72 |
| Unit Case Dimensions (WxHxD, mm) | 640x720x90 | 640x720x90 |
| Weight per Unit Case / Square Meter (kg) | 17.0/36.9 | 17.0/36.9 |
| Service access | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) | 5,500 | 5,000 |
| Color Temperature | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) | 160/120 | 160/120 |
| Brightness Uniformity / Color Uniformity | ≥97％/±0.003Cx,Cy | ≥97％/±0.003Cx,Cy |
| Contrast Ratio | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) | 110/330 | 110/330 |
| Power Consumption (W/m², Max.) | 780 | 720 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 |
| Refresh Rate (Hz) | 80,000 | 50,000 |
| Operating Temperature(°C) / Humidity | -10° to +50°/0-80％RH | -10° to +45°/0-80％RH |
| IP rating Front / Rear | IP65/IP54 | IP65/IP54 |
* Spesifikasi Masa Pakai tergantung pada spesifikasi kemasan LED.
**Model berbeda-beda menurut wilayah. Cek wilayah setempat untuk ketersediaan.
