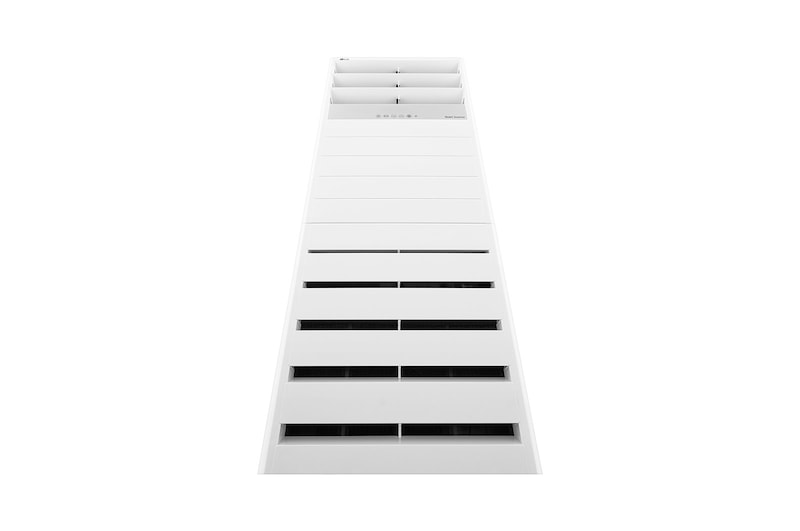

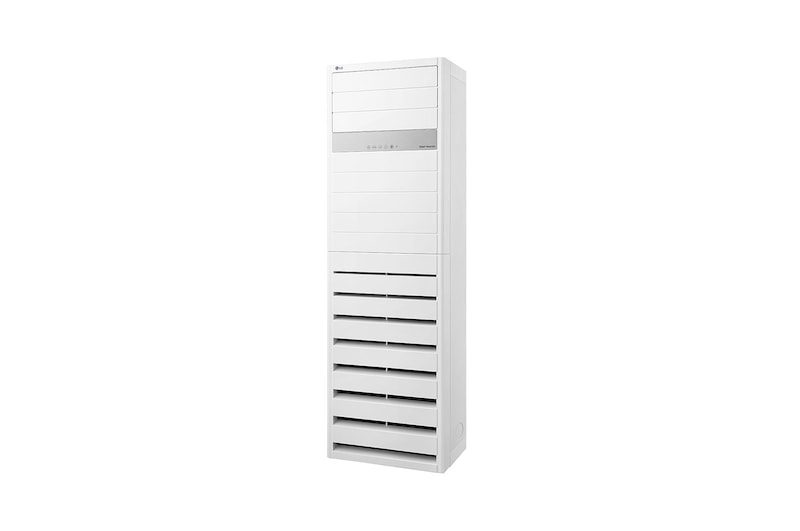

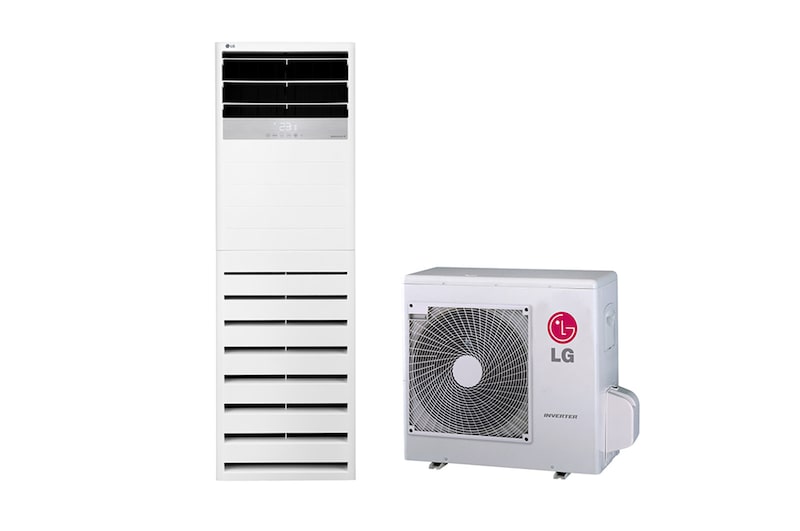

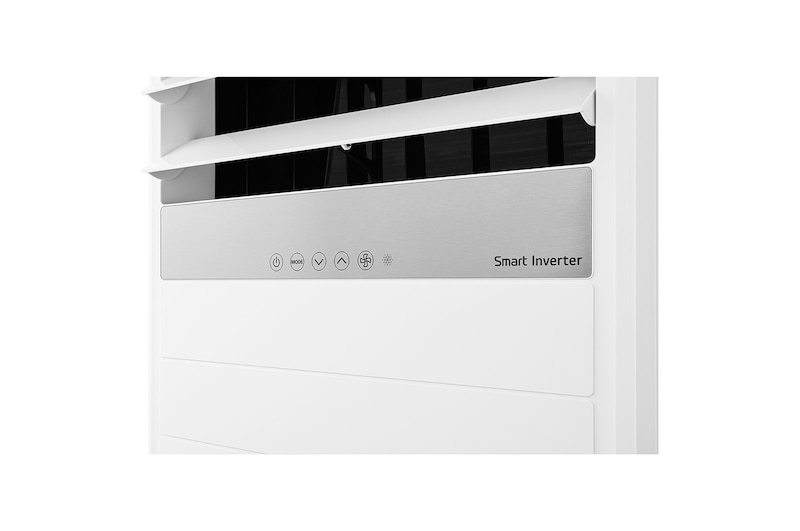

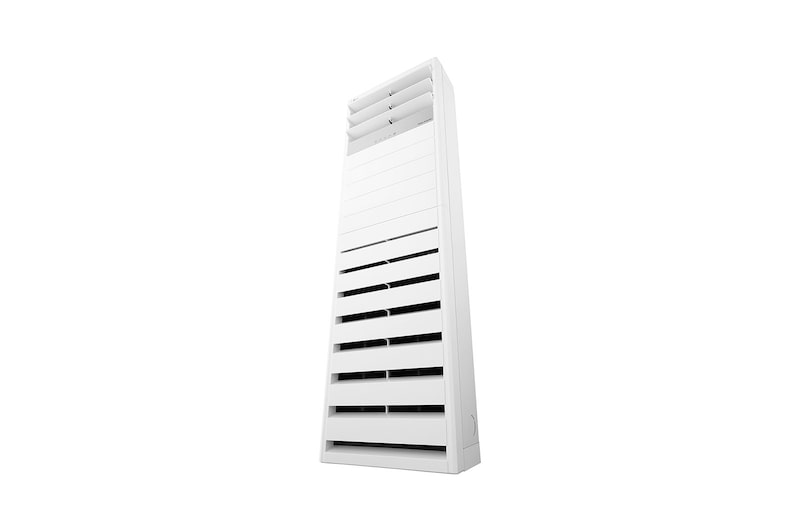

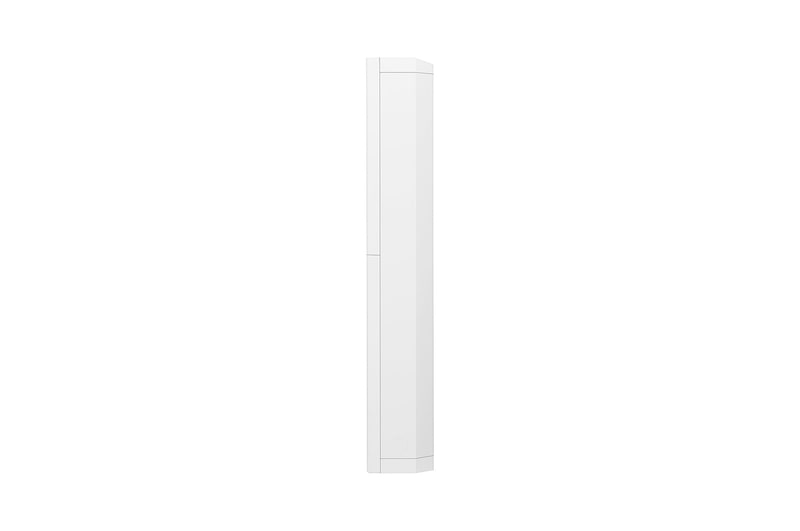

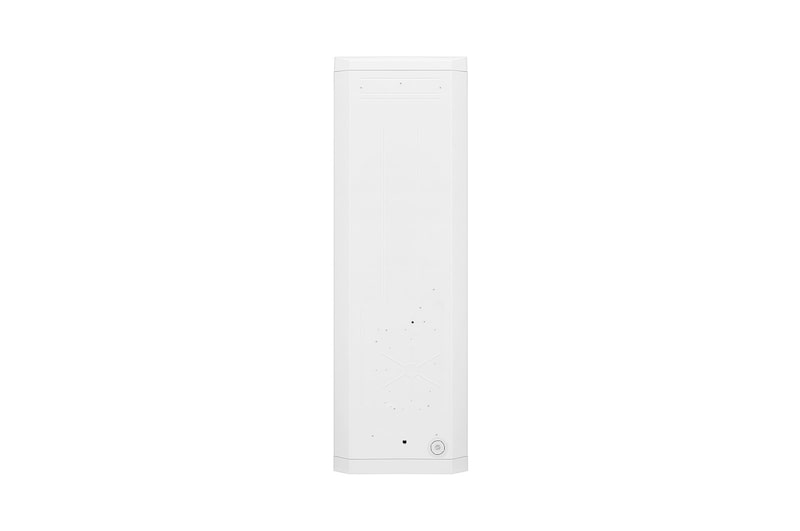

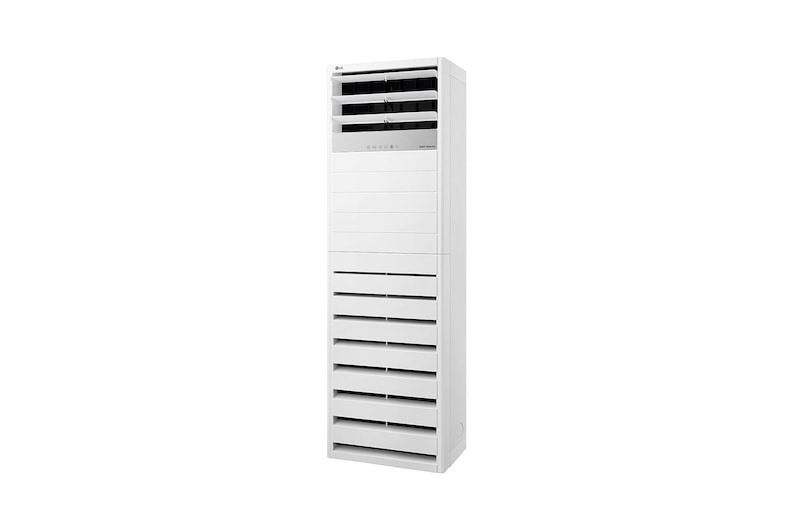

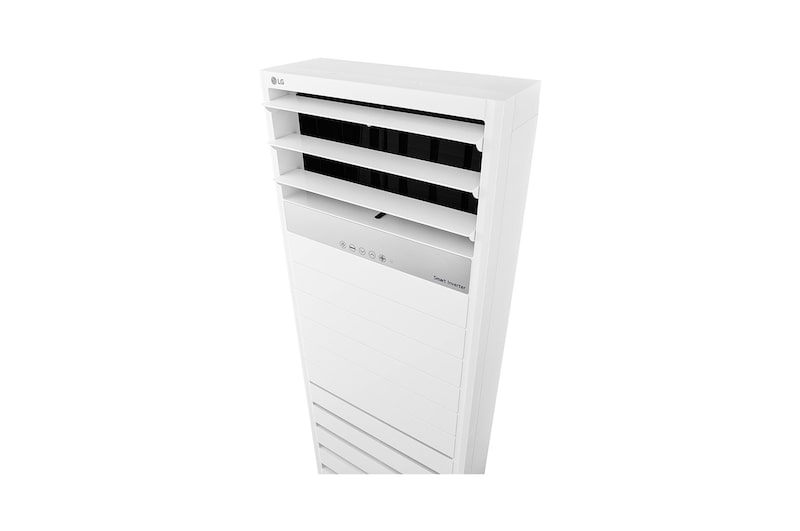

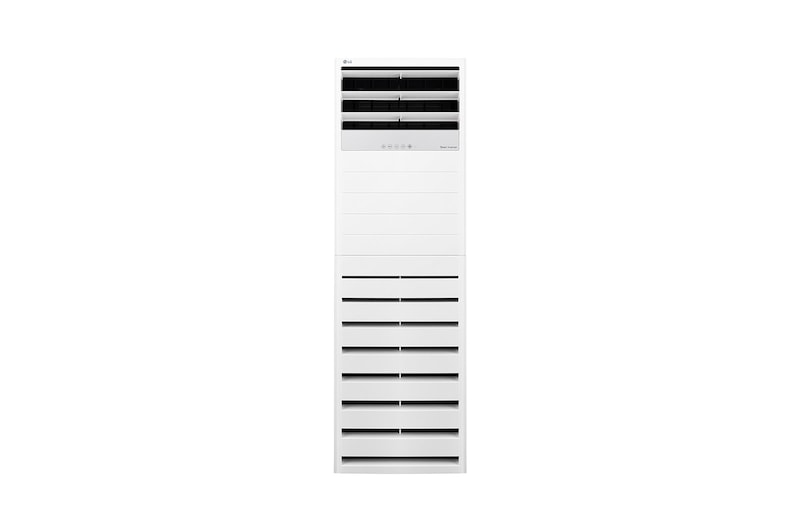

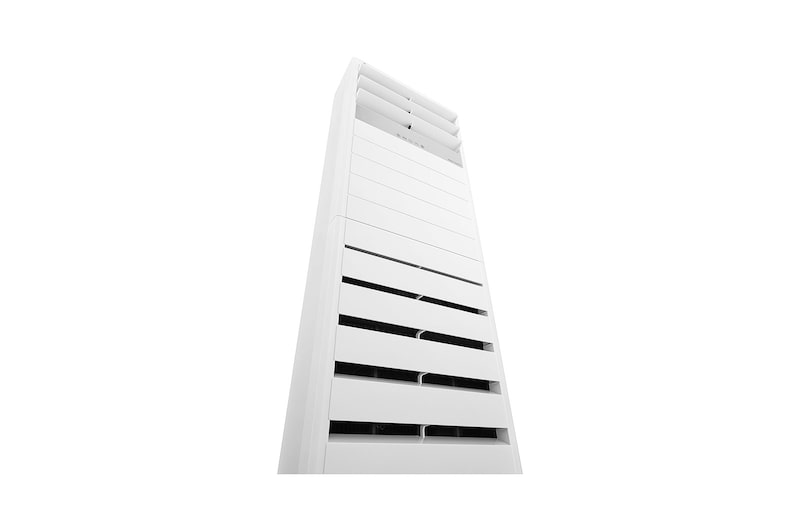

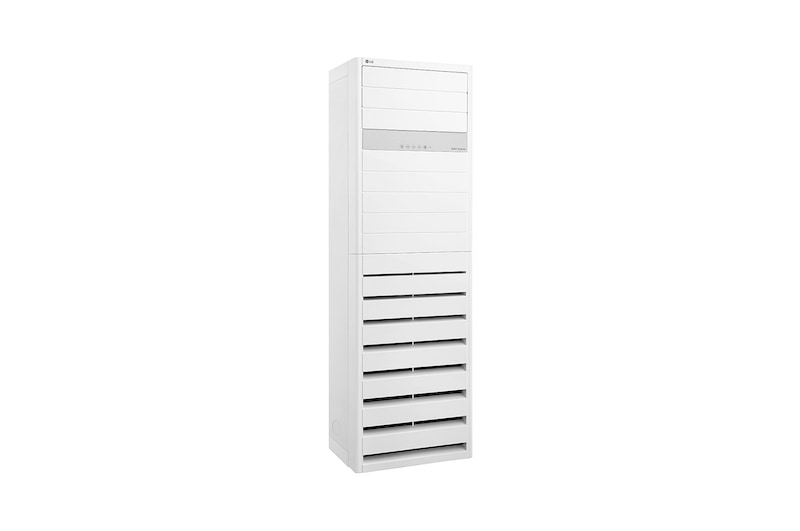

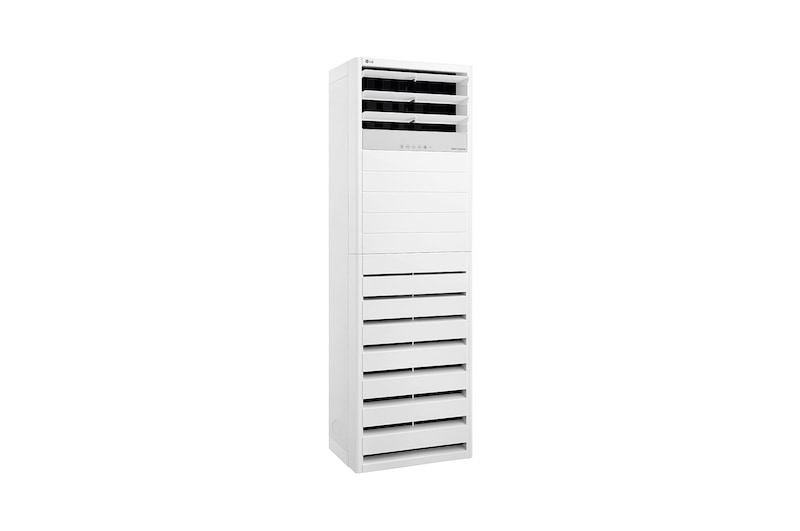

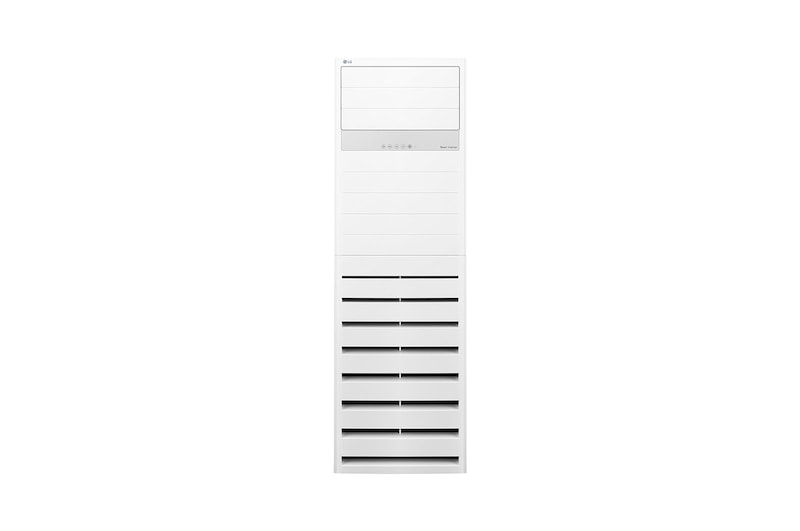

APNQ36LR5A3 / APUQ36LR5A3
Capacity Cooling (Min.∼Rated∼Max.) - ㎾
3.15 ~ 10.5 ~ 10.94
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
10,800 ~ 36,000 ~ 37,300
Power Input Cooling (Rated) - ㎾
3.50
Running Current Cooling (Rated) - A
5.10
EER / COP - w/w
3.01
Power Supply - V, Ø, ㎐
220-240, 1, 50/60
Casing Color
White
Dimensions Body (W x H x D) - mm
590 × 1,840 × 300
Dimensions Shipping (W x H x D) - mm
680 x 1,925 x 395
Weight Body - kg (lbs)
36.0 (79.4)
Weight Shipping - ㎏ (lbs)
43.0 (94.8)
Heat Exchanger (Row x Column x Fins per inch) x No.
(3 x 38 x 19) x 1
Heat Exchanger Face Area - ㎡ (ft²)
0.30 (3.23)
Fan Type
Turbo Fan
Fan Air Flow Rate (SH / H / M / L) - ㎥/min
23.5 / 19.0 / 17.0 / 14.0
Fan Motor Type
BLDC
Fan Motor Drive
Direct
Fan Motor Output - W x No.
104 x 1
Dehumidification Rate - ℓ/h (pts/h)
4.5 (9.7)
Sound Pressure Level Cooling (SH / H / M / L) - dB(A)
52 / 47 / 44 / 41
Piping Connections Liquid Side - ㎜(inch)
Ø 9.52(3/8)
Piping Connections Gas Side - ㎜(inch)
Ø 15.88(5/8)
Piping Connections Drain Pipe (O.D. / I.D.) - ㎜(inch)
Ø 21.0(13/16) / 17.0(21/32)
Safety Devices
Fuse
Power and Communication Cable (included Earth) - No. x ㎟ (AWG)
4C x 0.75 (18)

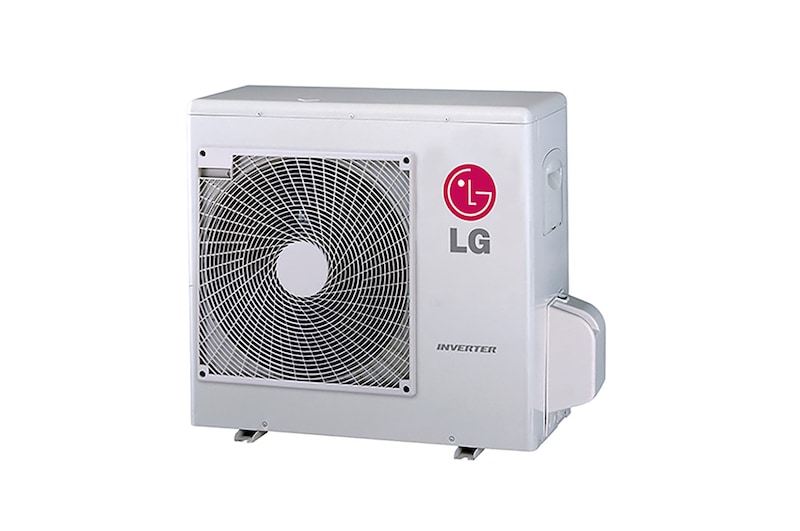

Capacity Cooling (Min.∼Rated∼Max.) - ㎾
3.15 ~ 10.5 ~ 10.94
Capacity Cooling (Min.∼Rated∼Max.) - Btu/h
10,800 ~ 36,000 ~ 37,300
Power Input Cooling (Rated) - ㎾
3.50
Running Current Cooling (Rated) - A
5.10
EER / COP - w/w
3.01
Power Supply - V, Ø, Hz
380-415, 3, 50/60
Casing Color
Warm Gray
Dimensions Body (W x H x D) - ㎜
950 × 834 × 330
Net Weight - ㎏ (lbs)
57.5 (126.8)
Heat Exchanger (Row x Column x Fins per inch) x No.
(2 x 40 x 21) x 1
Compressor Type
Twin Rotary
Compressor Model - Model x No.
GJT325MAA x 1
Compressor Motor type
BLDC
Compressor Motor Output - W × No.
2,137 x 1
Fan Type
Propeller
Fan Air Flow Rate - ㎥/min x No.
70 x 1
Fan Motor Type
BLDC
Fan Motor Output - W x No.
124.2 x 1
Sound Pressure Level Cooling (Rated) - dB(A)
58
Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)
Ø 9.52 (3/8)
Piping Connections Gas Side (Outer Dia.) - ㎜(inch)
Ø 15.88 (5/8)
Piping Length (Min./Max.) - m(ft)
5 (16.4) / 50 (164.0)
Refrigerant Type
R410A
Refrigerant Precharged Amount - g(oz)
1,850 (65.2)
Refrigerant Chargeless-Pipe Length - m(ft)
15.0 (49.2)
Refrigerant Additional Charging Volume - g/m(oz/ft)
20 (0.22)
Refrigerant Control
Electronic Expansion Valve
Refrigerant Oil Type
FVC68D
Refrigerant Oil Charged volume - cc x No.
950 x 1
Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)
5C x 2.5 (12)
Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)
30 (98.4)
Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)
-5 (23.0) ~ 46 (114.8)
