Capacity Cooling (Min.∼Rated∼Max.) - ㎾

1.40 ~ 3.40 ~ 3.70

Capacity Cooling (Min.∼Rated∼Max.) - Btu/h

4,800 ~ 11,600 ~ 12,600

Power Input Cooling (Rated) - ㎾

1.00

Running Current Cooling (Rated) - A

4.30

EER / COP - w/w

3.40

Power Supply - V, Ø, Hz

220-240, 1, 50

Casing Color

Warm Gray

Dimensions Body (W x H x D) - ㎜

770 x 540 x 245

Dimensions Body (W x H x D) - inch

30-5/16 × 21-1/4 × 9-21/32

Net Weight - ㎏ (lbs)

32.0 (70.5)

Heat Exchanger (Row x Column x Fins per inch) x No.

(2 x 24 x 17) x 1

Compressor Type

Rotary

Compressor Model - Model x No.

5RS102XAA21 x 1

Compressor Motor type

BLDC

Compressor Motor Output - W × No.

1,300 x 1

Fan Type

Propeller

Fan Air Flow Rate - ㎥/min x No.

32 x 1

Fan Motor Type

BLDC

Fan Motor Output - W x No.

43.0 x 1

Sound Pressure Level Cooling (Rated) - dB(A)

47

Sound Power Level Cooling (Max.) - ㏈(A)

57

Piping Connections Liquid Side (Outer Dia.) - ㎜(inch)

Ø 6.35 (1/4)

Piping Connections Gas Side (Outer Dia.) - ㎜(inch)

Ø 9.52 (3/8)

Piping Length (Max.) - m(ft)

15 (49.2)

Refrigerant Type

R410A

Refrigerant Precharged Amount - g(oz)

1,000 (35.3)

Refrigerant Chargeless-Pipe Length - m(ft)

7.5 (24.6)

Refrigerant Additional Charging Volume - g/m(oz/ft)

20 (0.22)

Refrigerant Control

Electronic Expansion Valve

Refrigerant Oil Type

FV50S

Refrigerant Oil Charged volume - cc x No.

320 x 1

Wiring Connections Power Supply Cable (included Earth) - No. x ㎟ (AWG)

3C x 2.5 (12)

Maximum Height Difference Outdoor Unit ~ Indoor Unit (Max.) - m(ft)

10 (32.8)

Operation Range (Outdoor Temperature) Cooling (Min. ~ Max.) - ℃ DB(℉ DB)

-10 (14) ~ 43 (109.4)

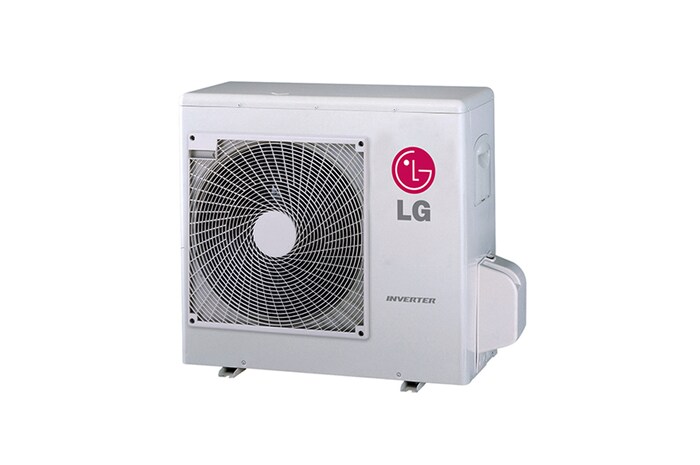

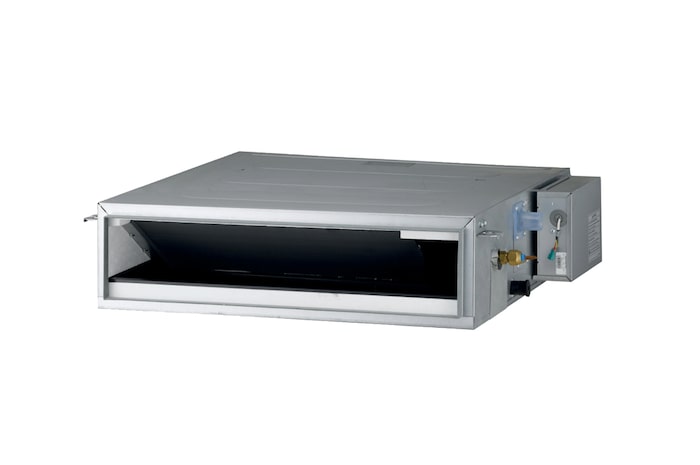

ABNQ12GL2A0 / ABUQ12GL2A0
