Semua Spesifikasi
CAPACITY
-
Cooling(Nom) - kW
-
3.6
-
Cooling(Nom) - kcal/h
-
3,100
-
Cooling(Nom) - Btu/h
-
12,300
-
Heating(Nom) - kW
-
4
-
Heating(Nom) - kcal/h
-
3,400
-
Heating(Nom) - Btu/h
-
13,600
POWER INPUT
-
Power Input(H / M / L) - W
-
18 / 14 / 11
CASING
-
Casing
-
Galvanized Steel Plate
DIMENSIONS (W × H × D)
-
Net - ㎜
-
830 × 225 × 600
-
Net - inch
-
32-11/16 × 8-27/32 × 23-5/8
-
Shipping - ㎜
-
1,033 × 270 × 665
-
Shipping - inch
-
40-21/32 × 10-5/8 × 26-3/16
WEIGHT
-
Net - kg(lbs)
-
18.1 (39.9)
-
Shipping - kg(lbs)
-
22.5 (49.6)
COIL
-
Rows x Columns x FPI
-
2 × 9 × 17
-
Face Area - ㎡
-
0.32

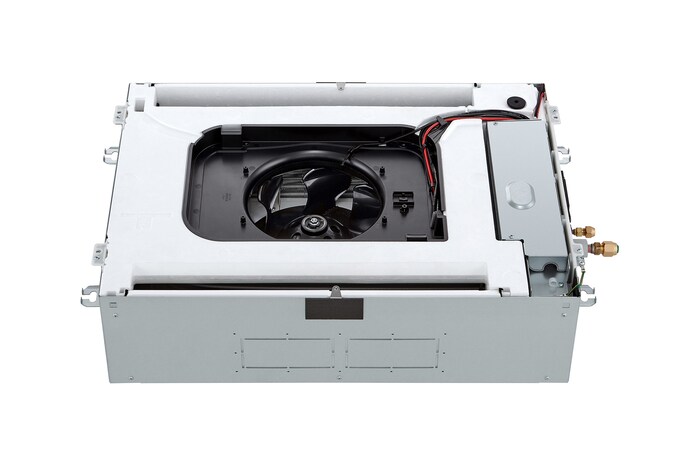

FAN
-
Type
-
Cross Flow Fan
-
Motor Output × Number - W × No.
-
37 × 1
-
Running Current - A
-
0.20
-
Air Flow Rate(H / M / L) - m³/min
-
11.1 / 10.3 / 9.1
-
Air Flow Rate(H / M / L) - ft³/min
-
392 / 364/ 321
-
Drive
-
Direct
-
Motor type
-
BLDC
-
Motor Full Load Ampere - A
-
0.67
TEMPERATURE CONTROL
-
Temperature Control
-
Microprocessor, Thermostat for cooling and heating
SOUND ABSORBING THERMAL INSULATION MATERIAL
-
Sound Absorbing Thermal Insulation Material
-
Foamed polystyrene
SAFETY DEVICE
-
Safety Device
-
Fuse

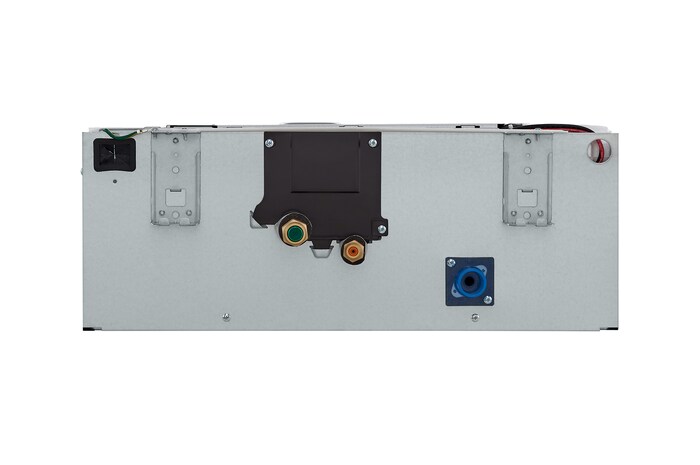

PIPE CONNECTIONS
-
Liquid Side - ㎜(inch)
-
Ø 6.35 (1/4)
-
Gas Side - ㎜(inch)
-
Ø 12.7 (1/2)
-
Drain Pipe(Internal Dia.) - ㎜(inch)
-
Ø 25 (1)
SOUND PRESSURE LEVELS
-
H / M / L - dB(A)
-
34 / 32 / 29
SOUND POWER LEVELS
-
H / M / L - dB(A)
-
43 / 41 / 39
POWER SUPPLY
-
Power Supply - Ø, V, Hz
-
1, 220-240, 50
1, 220, 60
REFRIGERANT CONTROL
-
Refrigerant Control
-
EEV
TRANSMISSION CABLE
-
Transmission Cable - mm² × Cores
-
1.0 ~ 1.5 × 2C
DECORATION PANEL (ACCESSORY)
-
Model Name
-
PT-USC
-
Exterior Color
-
Morning fog
-
Dimensions(W × H × D) Net - mm
-
1,100 × 28 × 690
-
Dimensions(W × H × D) Shipping - mm
-
1,140× 100 × 754
-
Net Weight - kg(lbs)
-
4.65 (10.3)
-
Shipping Weight - kg(lbs)
-
6.50 (14.3)
